Measuring Tools Measurement Length Mass amount of matter

Measuring Tools Measurement Length Mass (amount of matter) Volume (amount of 3 D space) Temperature Time Tools Units

Taking Measurements Steps of Taking a Measurement 1. Determine what the hash marks on the equipment mean. 2. Read the measurement. 3. Estimate beyond what you can read so that the last digit in your measurement is an estimate. Usually this is one digit beyond the last you can read. 4. Include the appropriate units from the equipment. Length

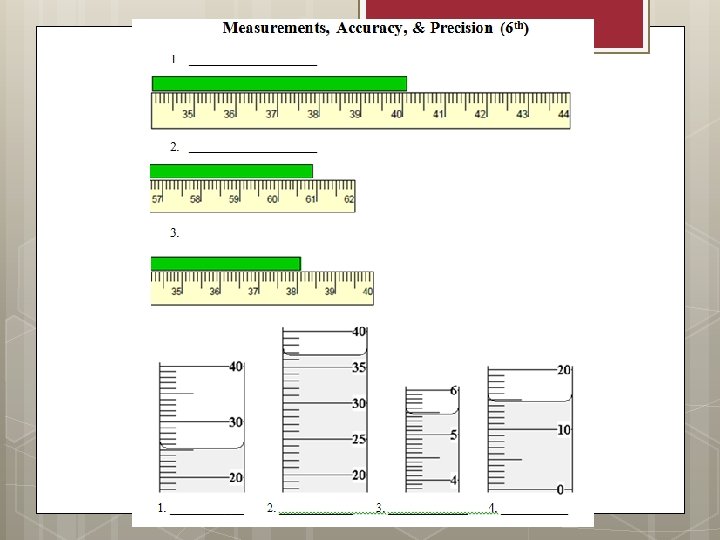

Practice Measure the lines in cm.

Taking Measurements Volume Meniscus: curve at the top of the liquid caused by the attraction of water to the walls of the cylinder. Always read at the bottom of the meniscus and read at eye level. In some plastic graduated cylinders, the liquid will have a flat surface.

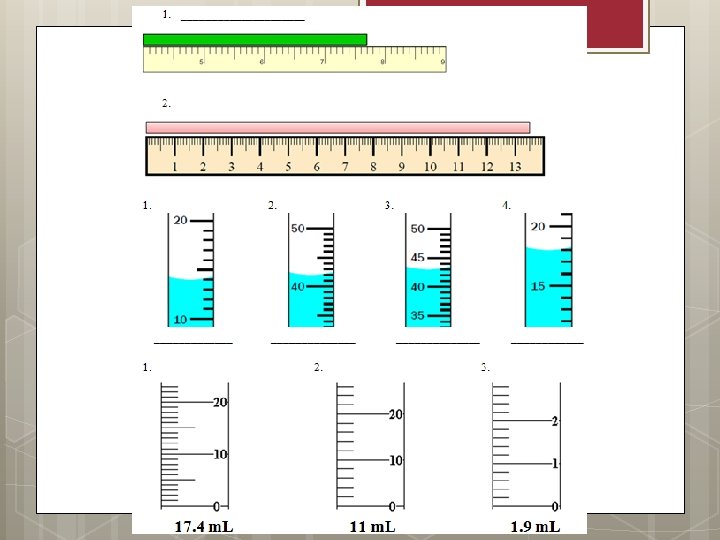

Taking Measurements Volume Practice reading the volumes in the graduated cylinder below:

Taking Measurements Volume Practice reading the volumes in the graduated cylinder below:

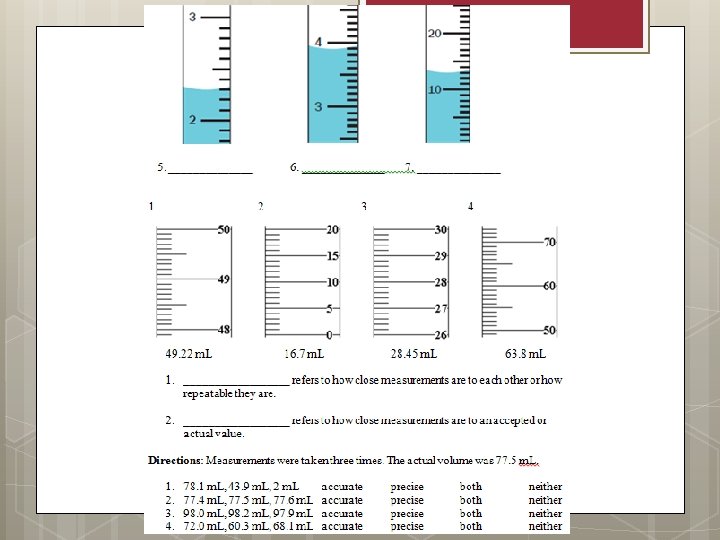

Uncertainty in Measurement Accuracy: difference between measurement and an accepted value. Precision: the repeatability of a measurement. Which students are precise and which are accurate if the actual mass is 42. 3 g? Victoria Lauren Rutesh Shivani 6. 3 g 18. 5 g 0. 2 g 42. 3 g 25. 8 g 18. 7 g 0. 7 g 42. 2 g 48. 9 g 1. 2 g 42. 4 g

Bell Work (6 th) • • Have HW out for me to check. We will go over it before the quiz. Write in CJ. In your notes, write the volume of water in m. L in each of the graduated cylinders below. 1. 2.
