Measuring lung volumes
Syllabus reference: q outline the mechanism of breathing in mammals, with reference to the function of the rib cage, intercostal muscles and diaphragm q explain the meanings of the terms tidal volume and vital capacity q describe how a spirometer can be used to measure vital capacity, tidal volume, breathing rate and oxygen uptake q analyse and interpret data from a spirometer
Inspiration & expiration
Inspiration & expiration
Lung volumes residual volume
Lung volumes n The maximum volume of the lungs is about 5 dm 3 (5 litres) although we never completely empty the lungs; even if we breathe out as much as possible (expiratory capacity) there will still be about 1. 5 dm 3 left in the lung (residual volume). n The amount of air breathed in and out at each breath is called the tidal volume. At rest this will be around 0. 5 dm 3, rising to about 2. 5 dm 3 when we are breathing very deeply. n The maximum volume that can be exchanged by breathing in as much as possible and then forcing out as much as possible is our vital capacity.

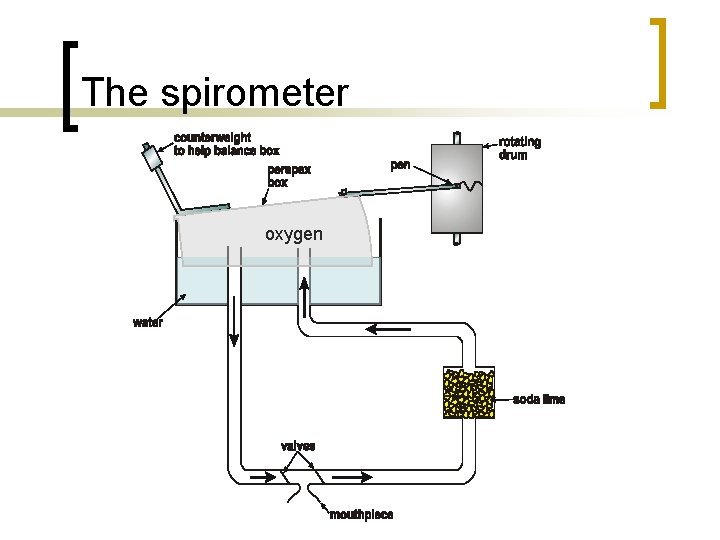

The spirometer oxygen
Spirometer
Lung volumes Note: compare to ‘inverted’ trace in textbook
Lung volumes
The spirometer oxygen
Lung volumes; definitions maximum inspiration Volume in dm 3 Inspiratory capacity Inspiratory reserve volume Vital capacity inspiration at rest Tidal volume expiration at rest maximum expiration Expiratory capacity Expiratory reserve volume Total lung capacity Residual volume
