MEASURES OF DISPERSION Dispersion is the measure of

MEASURES OF DISPERSION Dispersion is the measure of the variation of the items. Objective of measures of dispersion 1) To judge the reliability of measures of central tendency. 2)To make a comparative study of the variability of two series. 3) To identify the causes of variability with a view to control. 4) To serve as a basis for further statistical analysis. Properties of good Measure of Dispersion The properties of good measure of dispersion are the same as the properties of a good measure of central tendency. Some are mentioned below: 1)It should be rigidly defined. 2)It should be based on all the observations of the series. 3) It should be capable of further algebraic treatment. 4)It should not be unduly affected by extreme values.

Different Measures of Dispersion (or variability) a)Absolute Measures: Dispersion is expressed in terms of the original units of the series. (Example dispersion of series relating to income of a group is expressed in terms of rupees, the same unit as in original data. ) Absolute measures of Dispersion are as follows: v Range v Inter-quartile range v Quartile Deviation v Mean Deviation v Standard Deviation v Lorenz Curve b) Relative Measure: Dispersion is measured as a percentage , or a ratio of the average. Relative measures of dispersion are as follows: v Coefficient of Range v Coefficient of mean deviation v Coefficient of quartile deviation v Coefficient of variation

RANGE It is the simplest measure of dispersion. It is the difference between largest and the smallest value in the series. Symbolically, RANGE = L-S Where L is the largest value and S is the smallest value in the series. In case of continuous series , range is calculated by subtracting the lower limit of the lowest class from upper limit of the highest class Coefficient of Range: Since range is a relative measure of dispersion, which cannot be used for comparing two distribution expressed in different unit. This difficulty is overcome by using a relative measure. If the range is divided be the sum of the extreme items the resulting figure is called “ coefficient of range”. Symbolically, Coefficient of Range = L-S / L+S = ABSOLUTE RANGE / SUM OF THE EXTREME VALUES

EXAMPLE The profit of a company for last eight years are given below. Calculate the range and its Coefficient. Year 2010 Profit(in ‘ 000’) 40 2011 2012 2013 2014 2015 2016 2017 30 80 100 120 90 200 230 Solution: Here L =230 and S= 30 Range = L-S = 230 -30 =200 Coefficient of Range= L-S / L+S = 230 -30 / 230+30 = 200/ 260 = 0. 77 Merit: � Simple concept � East to calculate Demerits : � All observations are not considered. � Affected greatly by fluctuations in sampling and extreme values. � Cannot be used in case of open ended distribution

Quartile Deviation Inter Quartile Range (IR): = Q 3 -Q 1 (Difference between third Quartile and first quartile) Semi Inter-Quartile Range or Quartile Deviation(QD) = (Q 3 -Q 1)/ 2 Quartile Deviation is an absolute measure of dispersion And as such is not useful if we need to compare two distributions with different units. Coefficient of Quartile Deviation = (Q 3 -Q 1)/(Q 3+Q 1) Example: Find the Quartile Deviation And its Coefficient from the following data relating to the daily wages of seven workers. Daily Wages 50 70 80 60 65 40 90

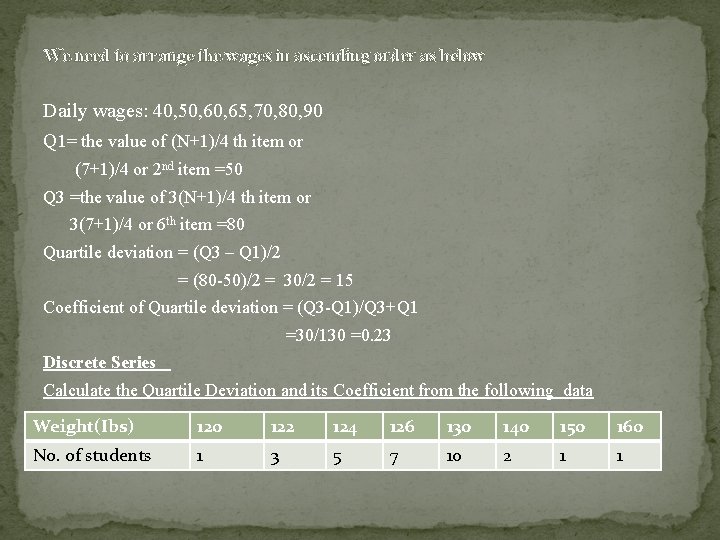

We need to arrange the wages in ascending order as below Daily wages: 40, 50, 65, 70, 80, 90 Q 1= the value of (N+1)/4 th item or (7+1)/4 or 2 nd item =50 Q 3 =the value of 3(N+1)/4 th item or 3(7+1)/4 or 6 th item =80 Quartile deviation = (Q 3 – Q 1)/2 = (80 -50)/2 = 30/2 = 15 Coefficient of Quartile deviation = (Q 3 -Q 1)/Q 3+Q 1 =30/130 =0. 23 Discrete Series Calculate the Quartile Deviation and its Coefficient from the following data Weight(Ibs) 120 122 124 126 130 140 150 160 No. of students 1 3 5 7 10 2 1 1

SOLUTION Q 1= the value of (N+1)/4 th item or (31+1)/4 th item or 8 th item =124 Ibs Q 3= the value of 3 (N+1)/4 or 3(31+1)/4 th item or 24 th item= 130 Ibs Quartile Deviation = (Q 3 -Q 1)/2 =(130 -124)/2 = 6/2 =3 Ibs Coefficient of Quartile Deviation = (Q 3 -Q 1)/Q 3+Q 1 =6/254 = 0. 0236 Continuous Series Calculate the semi inter-Quartile Deviation and Coefficient of Quartile Deviation from the following data Mark 0 -10 10 -20 20 -30 30 -40 40 -50 50 -60 60 -70 70 -80 80 -90 no. of stude nts 11 18 25 28 33 30 22 15 22

Solution Q 1= the value of [N/4]th item or [204/4]th item Or 51 st item which is in 20 -30 group Q 3= the value of 3[N/4]th item or 3[204/4]th item Or 153 rd item which is in 60 -70 group The value of Q 1 = 28. 80 The value of Q 3= 63. 64 Now ; s. Quartile Deviation = (Q 3 -Q 1)/2 = (63. 64 - 28. 80)/2 = 34. 84/2 = 17. 42 marks Coefficient of Quartile Deviation = (Q 3 -Q 1)/Q 3+Q 1 = 34. 84/92. 44=0. 37 marks 0 -10 10 -20 20 -30 30 -40 40 -50 50 -60 60 -70 70 -80 80 -90 No. of students 11 18 25 28 30 33 22 15 22 Cf 11 29 54 82 112 145 167 182 204
