Measurement n n Counting yields exact numbers Measuring

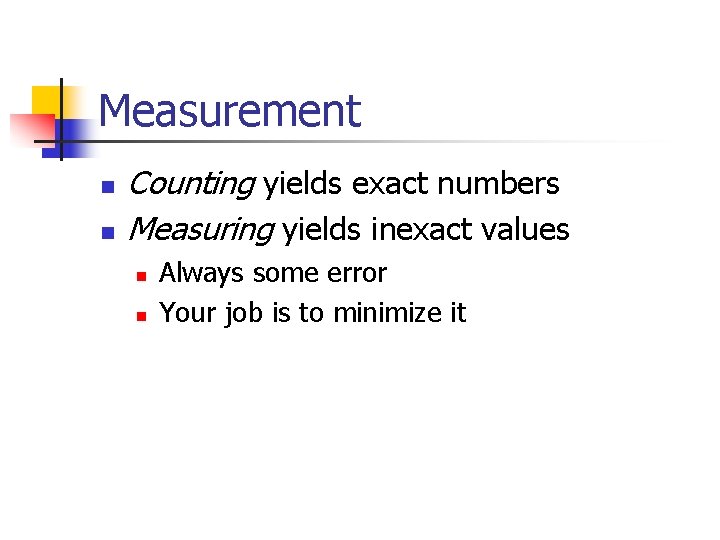

Measurement n n Counting yields exact numbers Measuring yields inexact values n n Always some error Your job is to minimize it

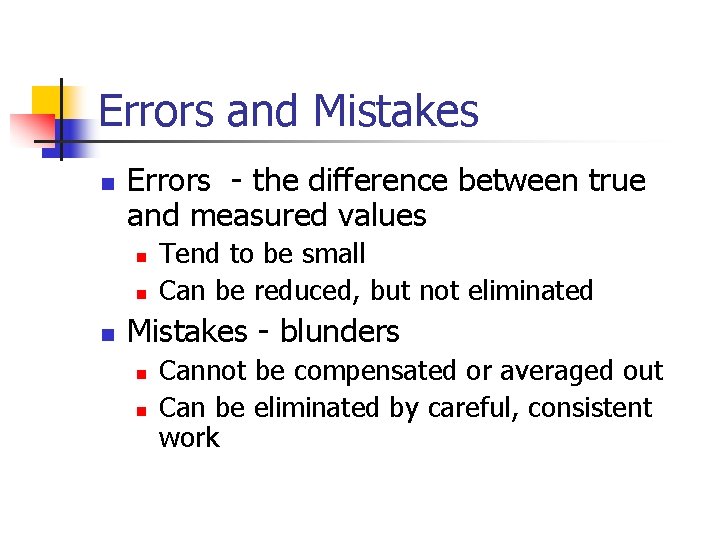

Errors and Mistakes n Errors - the difference between true and measured values n n n Tend to be small Can be reduced, but not eliminated Mistakes - blunders n n Cannot be compensated or averaged out Can be eliminated by careful, consistent work

Sources of Errors n n n Instrument Errors Natural Errors - caused by environment Personal Errors - limits of surveyor’s abilities n n Recording 3. 91 when the true reading was 3. 90 might be a personal error. Recording 4. 91 when the true reading is 3. 90 is a mistake - redo!

Systematic vs. Random Errors n Systematic Errors n n Same magnitude and sign each time Instrument errors, temperature effects are systematic Reduce by calculation Random Errors n n As likely (+) as (-) Usually small Reduce by averaging Personal errors are typically random.

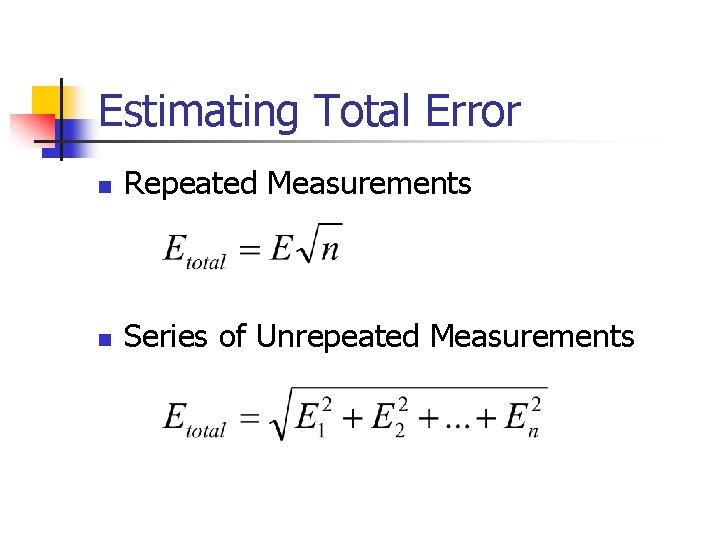

Estimating Total Error n Repeated Measurements n Series of Unrepeated Measurements

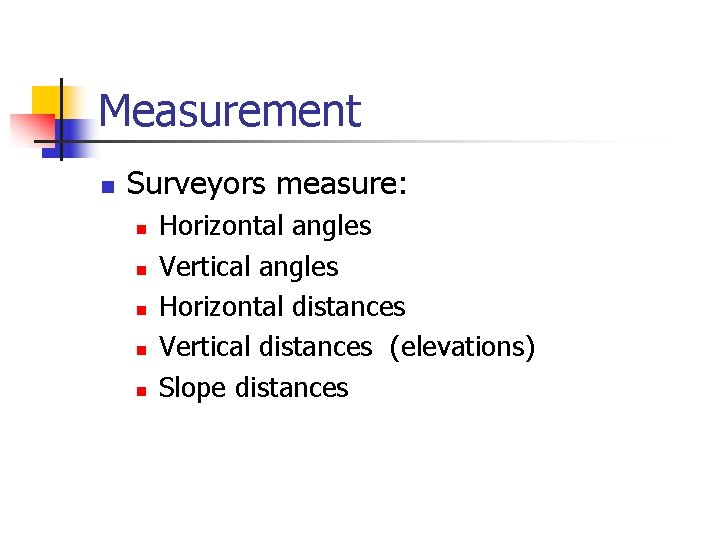

Measurement n Surveyors measure: n n n Horizontal angles Vertical angles Horizontal distances Vertical distances (elevations) Slope distances

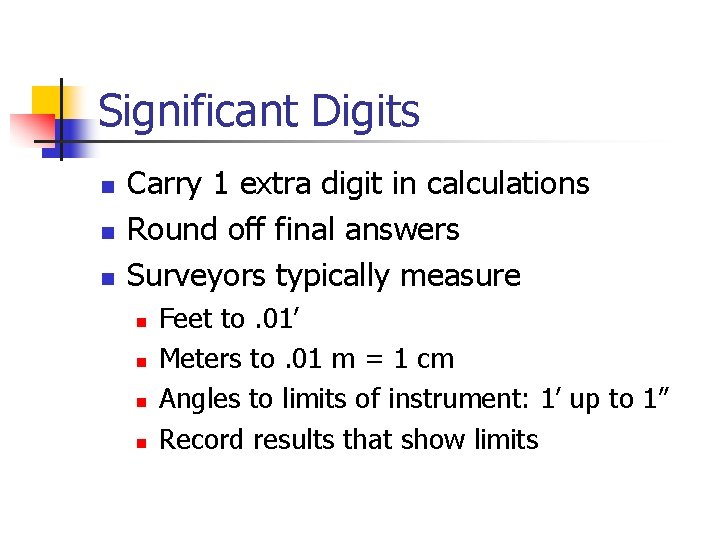

Significant Digits n n n Carry 1 extra digit in calculations Round off final answers Surveyors typically measure n n Feet to. 01’ Meters to. 01 m = 1 cm Angles to limits of instrument: 1’ up to 1” Record results that show limits

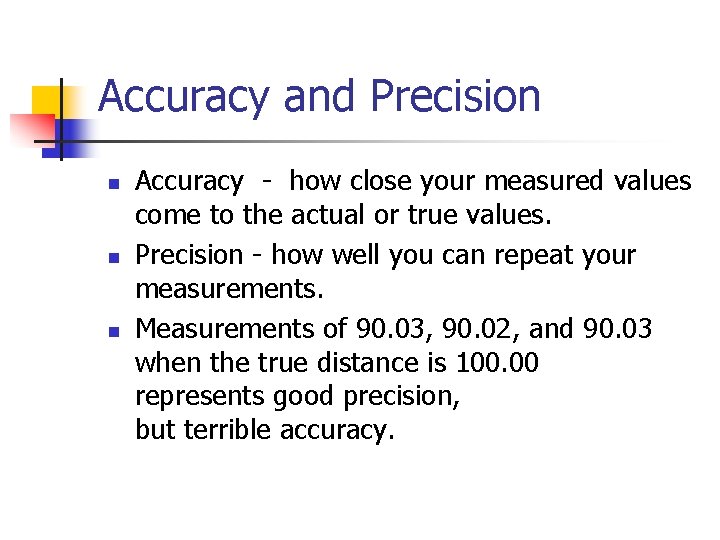

Accuracy and Precision n Accuracy - how close your measured values come to the actual or true values. Precision - how well you can repeat your measurements. Measurements of 90. 03, 90. 02, and 90. 03 when the true distance is 100. 00 represents good precision, but terrible accuracy.

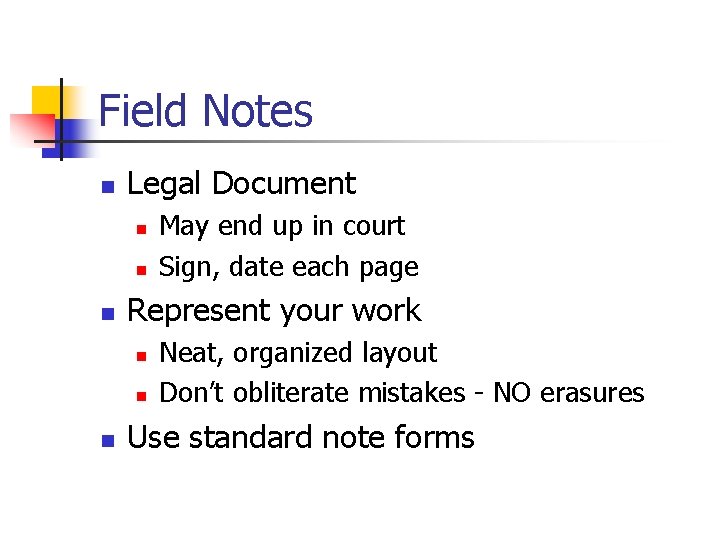

Field Notes n Legal Document n n n Represent your work n n n May end up in court Sign, date each page Neat, organized layout Don’t obliterate mistakes - NO erasures Use standard note forms

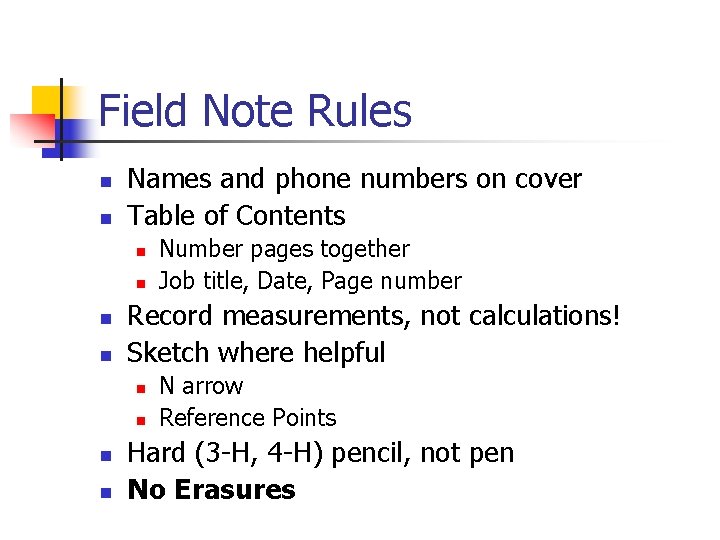

Field Note Rules n n Names and phone numbers on cover Table of Contents n n Record measurements, not calculations! Sketch where helpful n n Number pages together Job title, Date, Page number N arrow Reference Points Hard (3 -H, 4 -H) pencil, not pen No Erasures

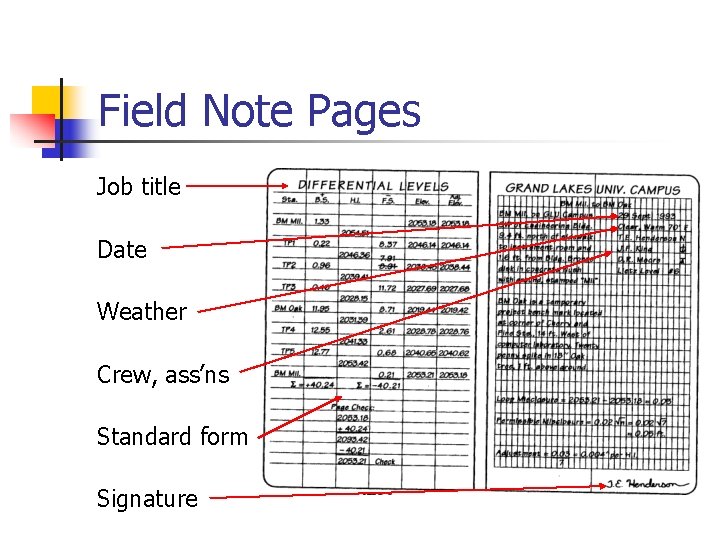

Field Note Pages Job title Date Weather Crew, ass’ns Standard form Signature
