Measurement Lab 2 Significant Figures Calculations Objectives Use

Measurement Lab 2 Significant Figures Calculations

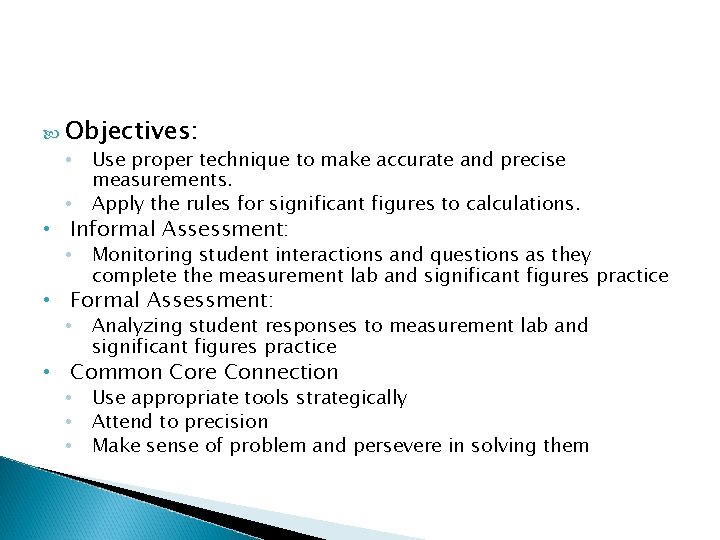

Objectives: • • Use proper technique to make accurate and precise measurements. Apply the rules for significant figures to calculations. • Informal Assessment: • Monitoring student interactions and questions as they complete the measurement lab and significant figures practice • Formal Assessment: • Analyzing student responses to measurement lab and significant figures practice • Common Core Connection • • • Use appropriate tools strategically Attend to precision Make sense of problem and persevere in solving them

Lesson Sequence Evaluate: Warm-Up Explain: Measuring to the Correct Sig Figs Elaborate: Measurement Lab Trial 2 Evaluate: Significant Figures Inquiry Elaborate: Significant Figures Practice Explain: Significant Figures Calculations Elaborate: Significant Figures Calculation Practice Evaluate: Exit Ticket

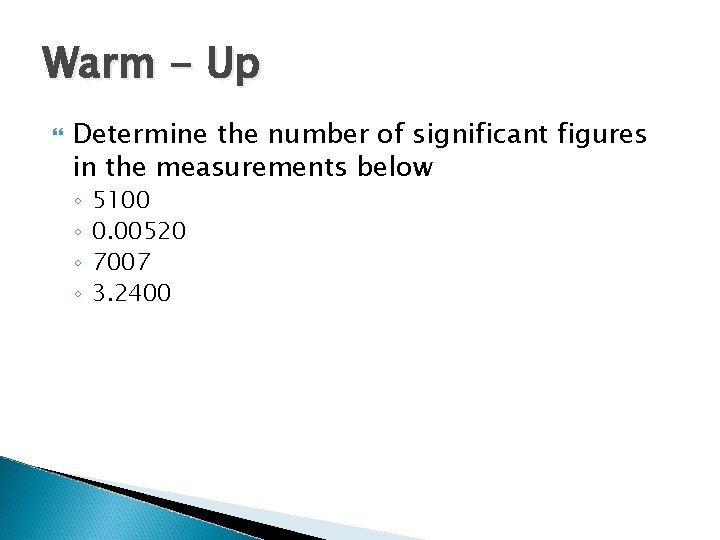

Warm - Up Determine the number of significant figures in the measurements below ◦ ◦ 5100 0. 00520 7007 3. 2400

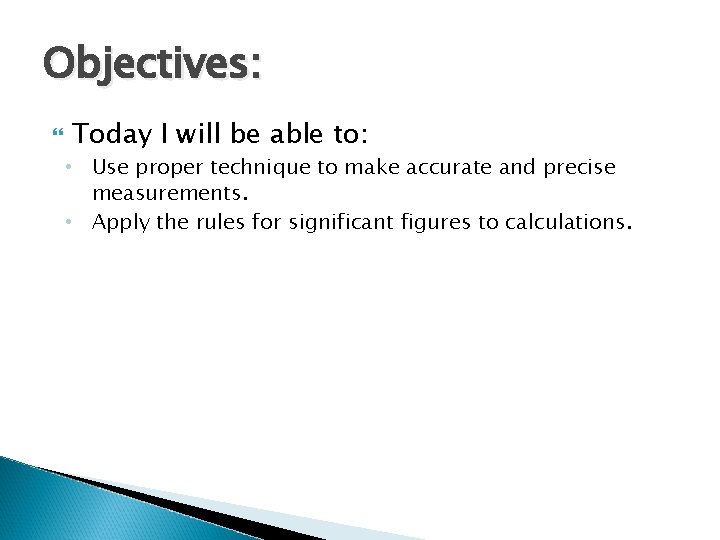

Objectives: Today I will be able to: • Use proper technique to make accurate and precise measurements. • Apply the rules for significant figures to calculations.

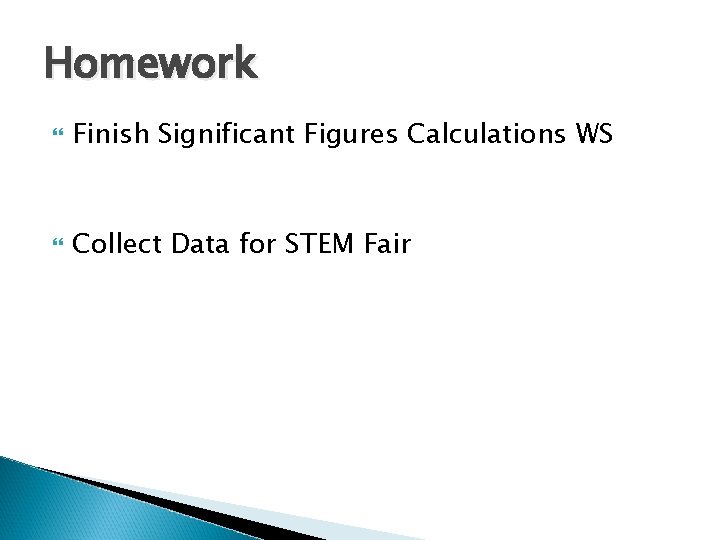

Homework Finish Significant Figures Calculations WS Collect Data for STEM Fair

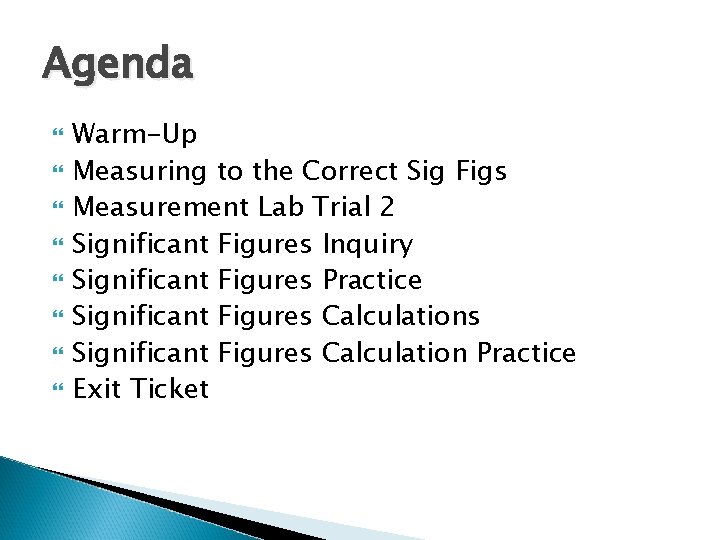

Agenda Warm-Up Measuring to the Correct Sig Figs Measurement Lab Trial 2 Significant Figures Inquiry Significant Figures Practice Significant Figures Calculations Significant Figures Calculation Practice Exit Ticket

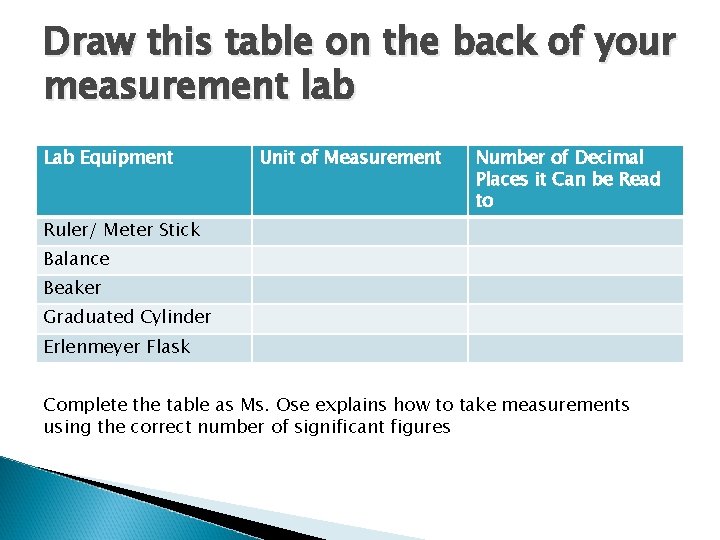

Draw this table on the back of your measurement lab Lab Equipment Unit of Measurement Number of Decimal Places it Can be Read to Ruler/ Meter Stick Balance Beaker Graduated Cylinder Erlenmeyer Flask Complete the table as Ms. Ose explains how to take measurements using the correct number of significant figures

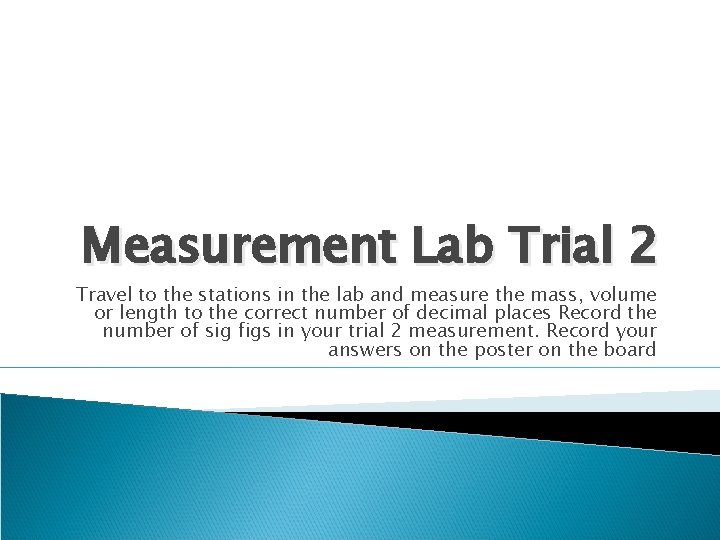

Measurement Lab Trial 2 Travel to the stations in the lab and measure the mass, volume or length to the correct number of decimal places Record the number of sig figs in your trial 2 measurement. Record your answers on the poster on the board

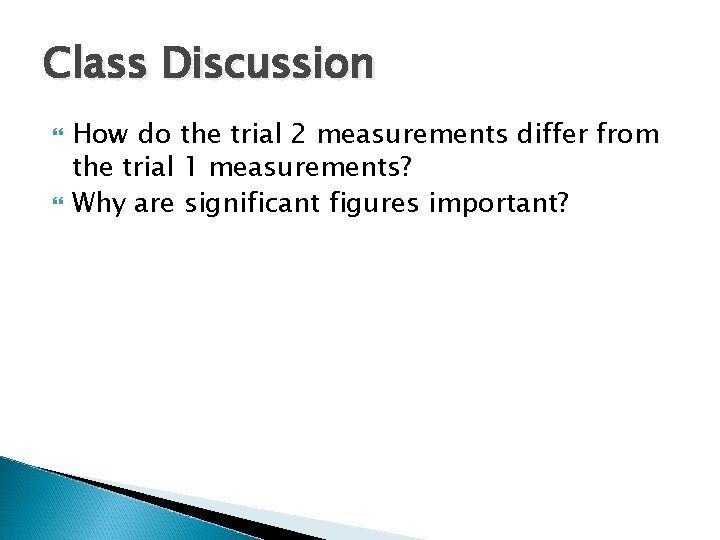

Class Discussion How do the trial 2 measurements differ from the trial 1 measurements? Why are significant figures important?

Take out the Sig Fig Inquiry Worksheet Class review of Significant Figure Rules

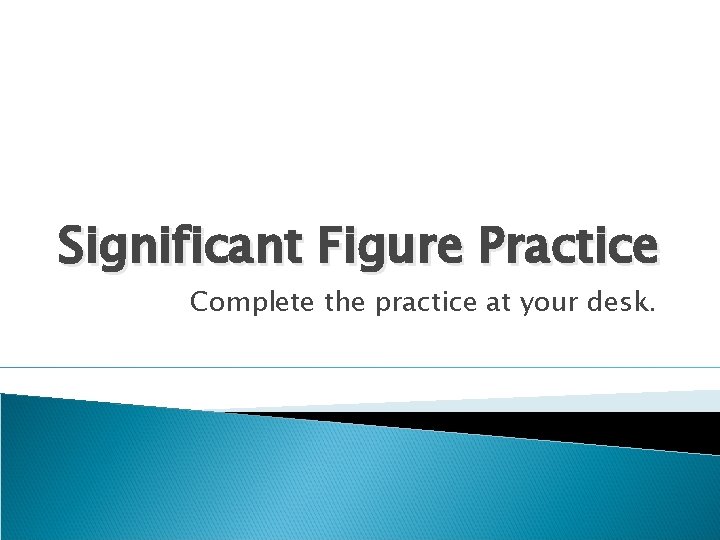

Significant Figure Practice Complete the practice at your desk.

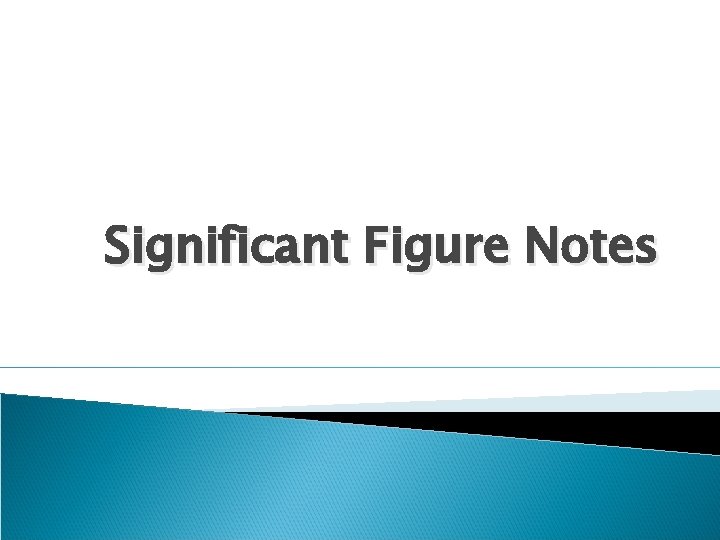

Significant Figure Notes

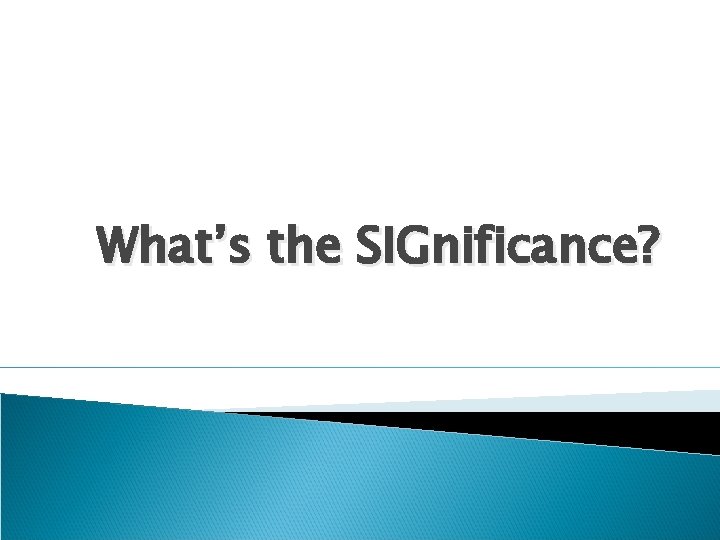

What’s the SIGnificance?

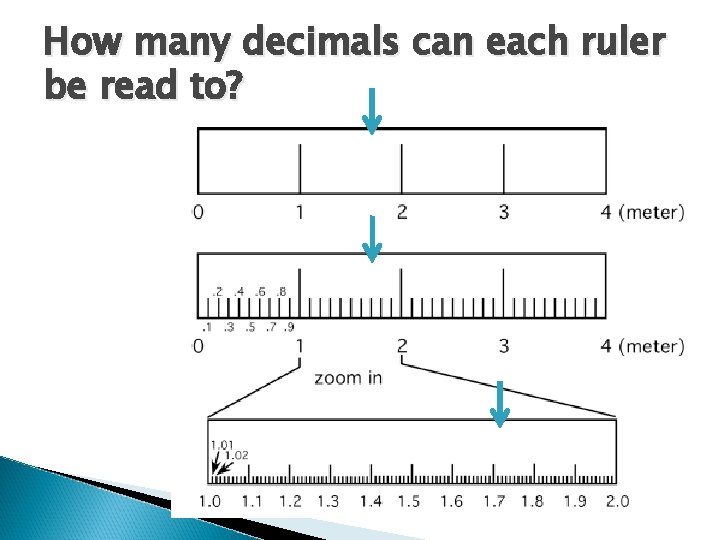

How many decimals can each ruler be read to?

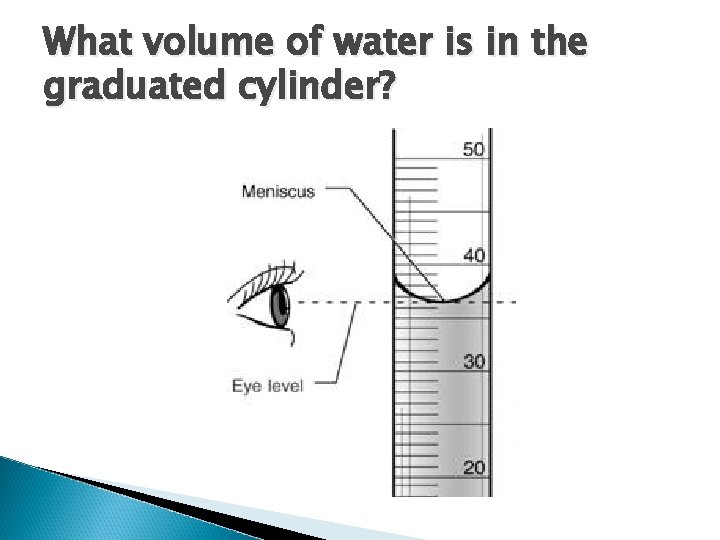

What volume of water is in the graduated cylinder?

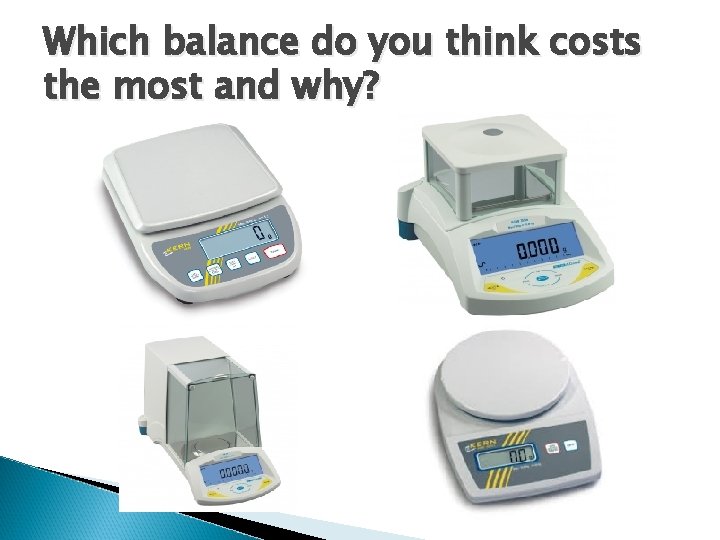

Which balance do you think costs the most and why?

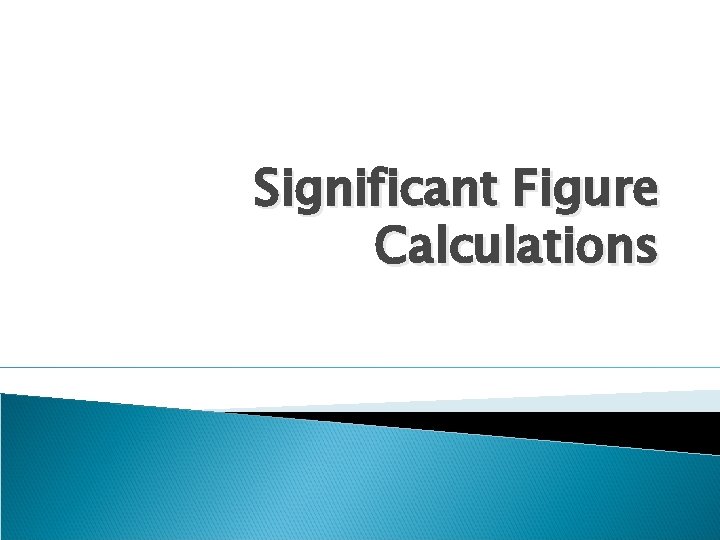

Significant Figure Calculations

Atlantic Pacific Rule

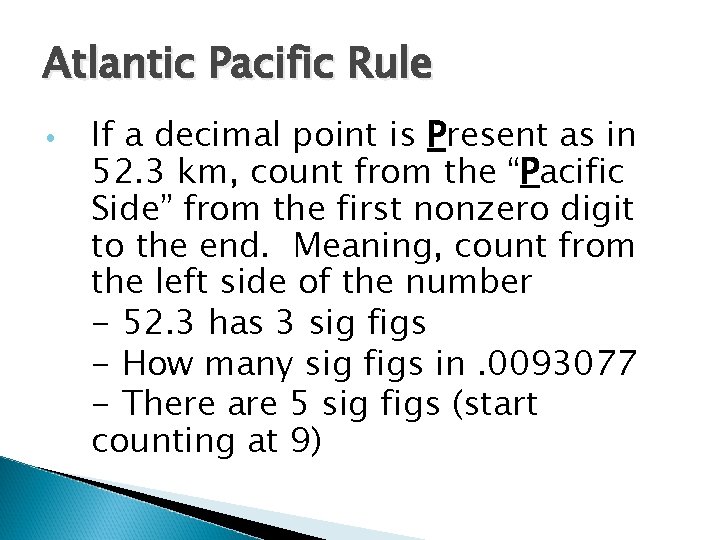

Atlantic Pacific Rule • If a decimal point is Present as in 52. 3 km, count from the “Pacific Side” from the first nonzero digit to the end. Meaning, count from the left side of the number - 52. 3 has 3 sig figs - How many sig figs in. 0093077 - There are 5 sig figs (start counting at 9)

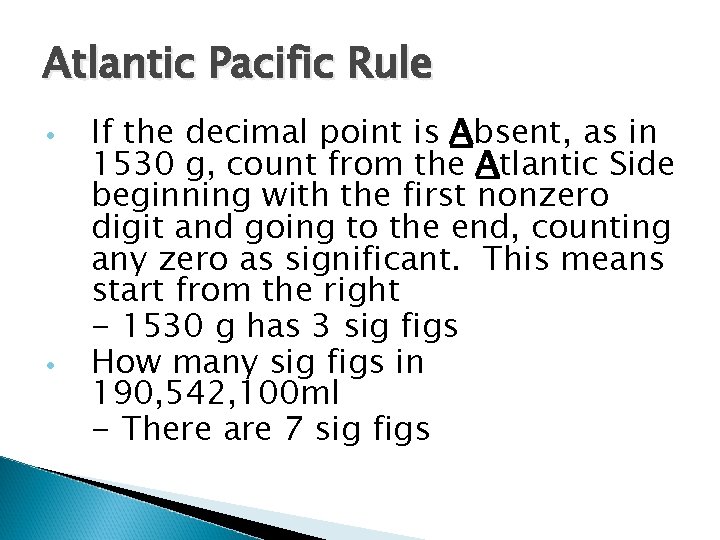

Atlantic Pacific Rule • • If the decimal point is Absent, as in 1530 g, count from the Atlantic Side beginning with the first nonzero digit and going to the end, counting any zero as significant. This means start from the right - 1530 g has 3 sig figs How many sig figs in 190, 542, 100 ml - There are 7 sig figs

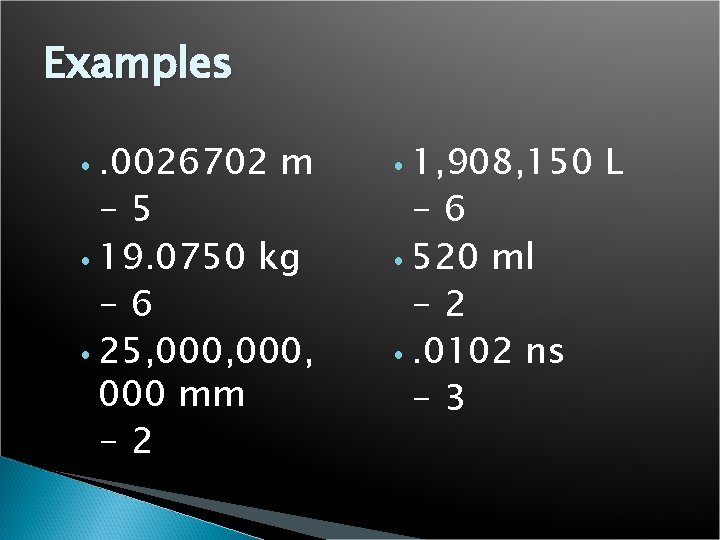

Examples • . 0026702 m -5 • 19. 0750 kg -6 • 25, 000, 000 mm -2 • 1, 908, 150 -6 • 520 ml -2 • . 0102 ns -3 L

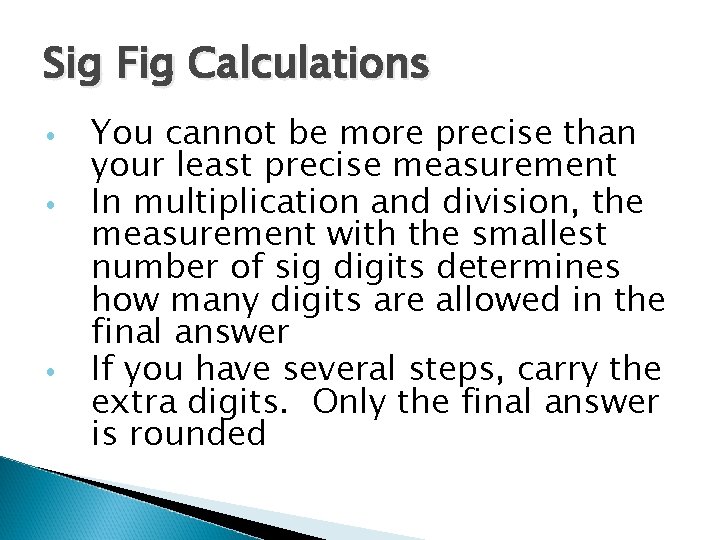

Sig Fig Calculations • • • You cannot be more precise than your least precise measurement In multiplication and division, the measurement with the smallest number of sig digits determines how many digits are allowed in the final answer If you have several steps, carry the extra digits. Only the final answer is rounded

Examples 6. 15 m x 4. 026 m = ? - 6. 15 m has 3 sig figs - 4. 026 m has 4 sig figs - Your answer can only have 3 sig figs - 24. 7599 m 2 24. 8 m 2

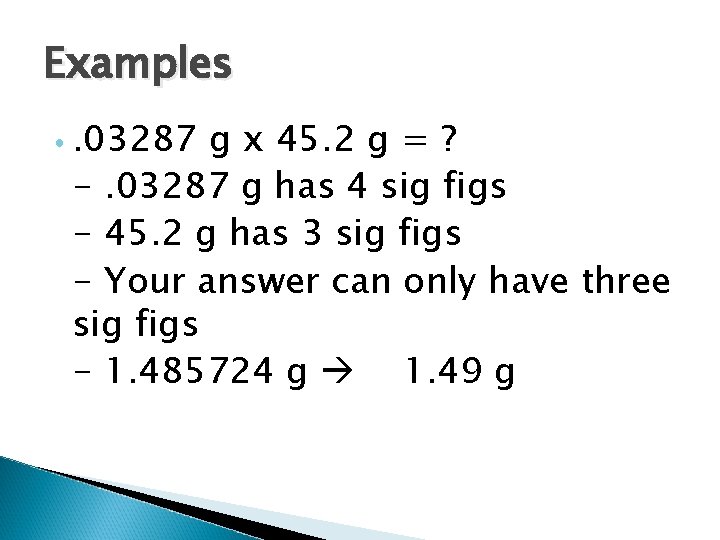

Examples • . 03287 g x 45. 2 g = ? -. 03287 g has 4 sig figs - 45. 2 g has 3 sig figs - Your answer can only have three sig figs - 1. 485724 g 1. 49 g

Final Note When doing calculations with significant figures, conversion factors do not figure in Counts and defined numbers are EXACT and have no uncertain digits Example: if you say there are 6 people in your family it is a counted number and is considered certain. There are not 6. 1 people in your family Example: 12 inches = 1 foot is defined – do not use significant figures. 1 foot will never be 11. 99 inches. In both cases, significant figures do not apply

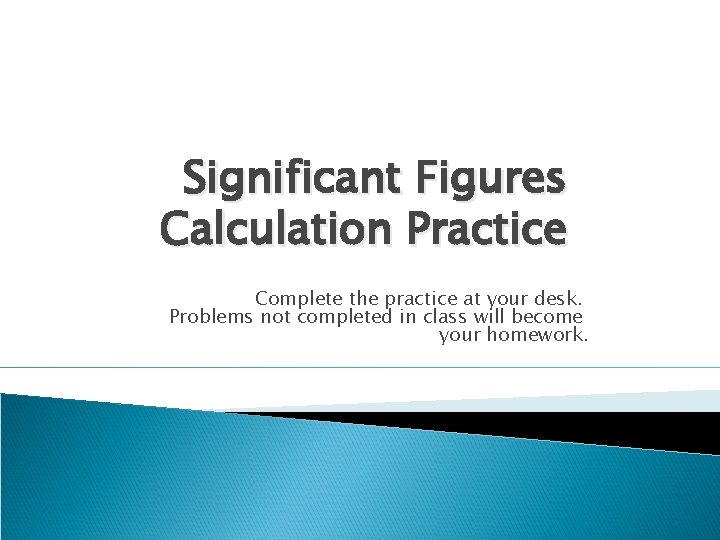

Significant Figures Calculation Practice Complete the practice at your desk. Problems not completed in class will become your homework.

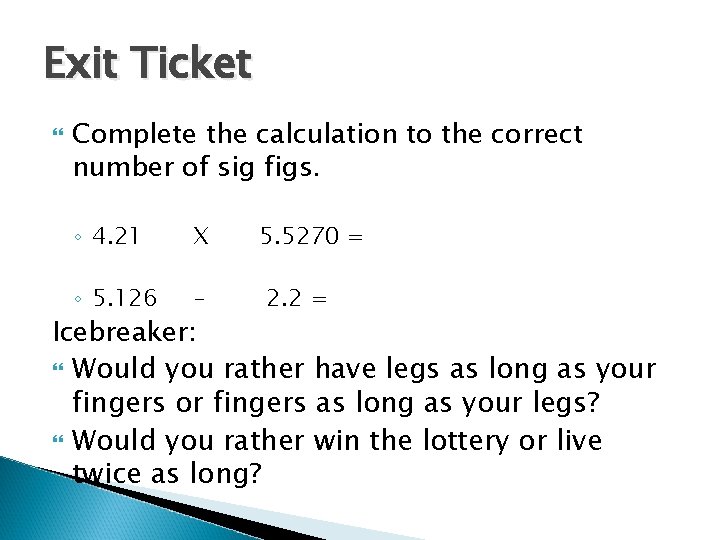

Exit Ticket Complete the calculation to the correct number of sig figs. ◦ 4. 21 X ◦ 5. 126 – 5. 5270 = 2. 2 = Icebreaker: Would you rather have legs as long as your fingers or fingers as long as your legs? Would you rather win the lottery or live twice as long?
