Measurement Basic OLP5 OLP6 OLP8 Power Meters Optical
Measurement Basic OLP-5, OLP-6, OLP-8 Power Meters Optical 1 www. korearental. co. kr

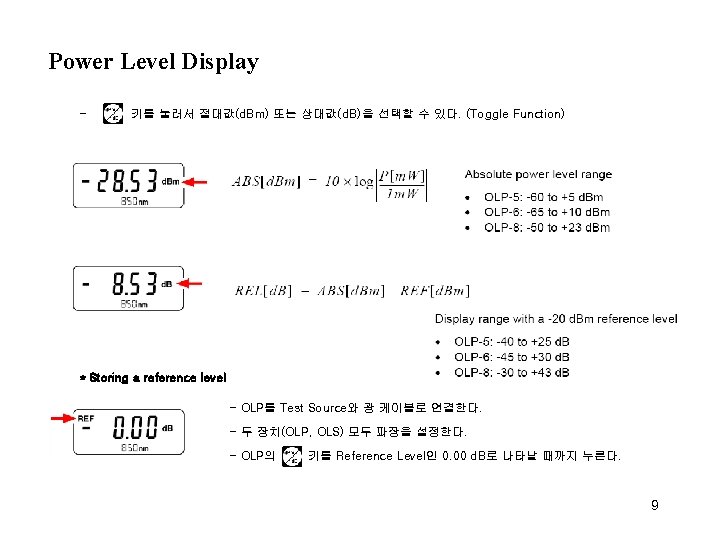

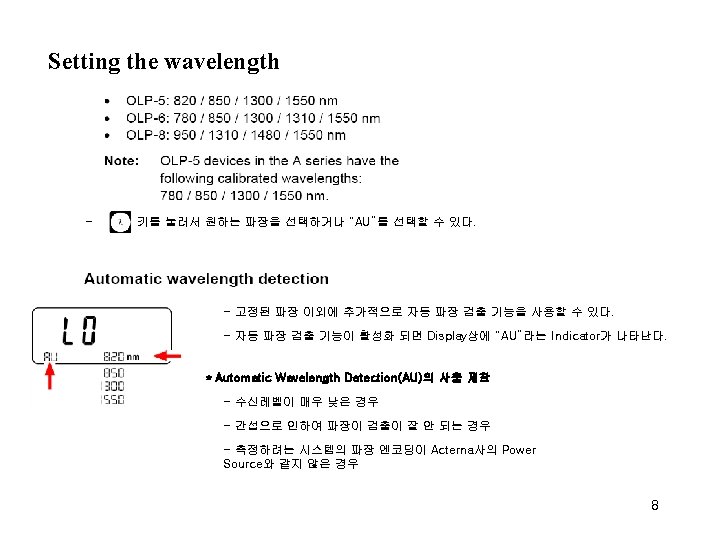

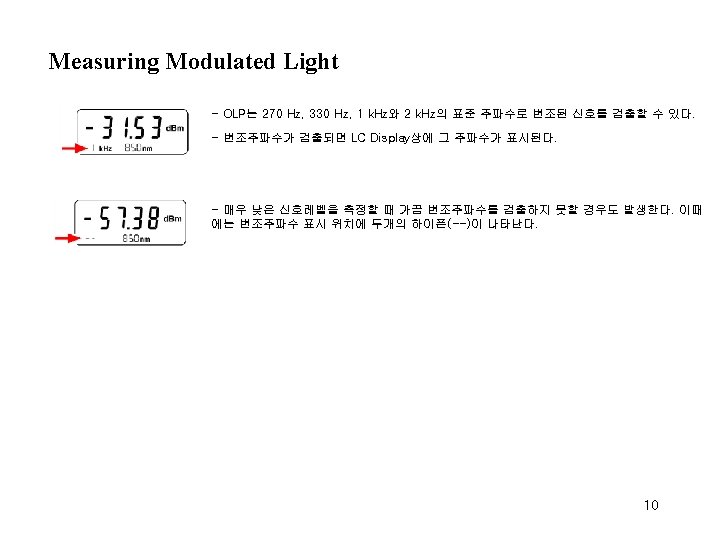

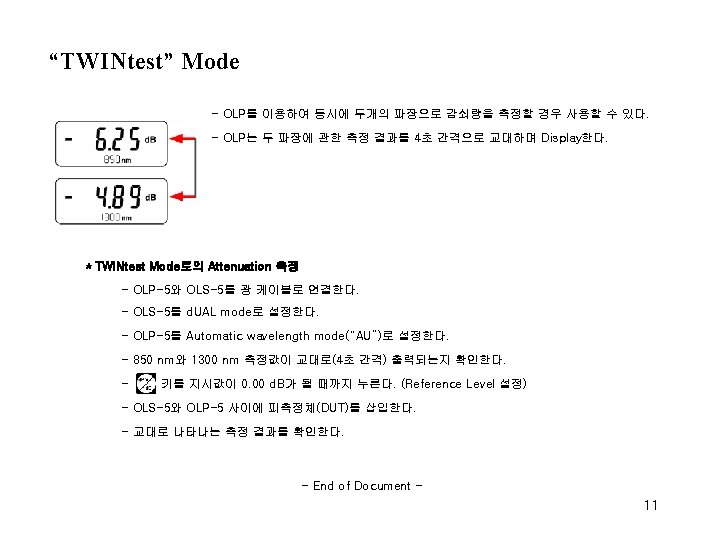

Contents • Power Supply • Differences between the devices • Front Panel & Display Overview • Measurements - System Power Level Measurement - Attenuation Measurement • Setting the wavelength • Power level display • Measuring Modulated Light • ”TWINtest” Mode 2
Power Supply BAT Type Operating life Capacity Two 1. 5 V dry batteries (AA type) 130 hours 100 % Two 1. 2 V Ni. Cd Cells (AA type) 40 hours 60 % For dry batteries : 30 % capacity remaining 30 For Ni. Cd cells : approx 50 % capacity remaining * Power-ON 이후 20분 이내에 ON/OFF 키를 누르면 전원을 OFF시킬 수 있으며, 20분 후에는 자동 으로 전원이 OFF된다. Permanent Operating Mode -28. 53 d. Bm 850 nm PERM - 20분 후에 자동으로 전원이 OFF되지 않고 계속 사용할 수 있도록 설정한다. - “ON/OFF” 키를 약 2초 정도로 길게 눌러 전원을 ON 시킨다. 3
Differences between the devices OLP-5 OLP-6 OLP-8 Dynamic Range -60 to +5 d. Bm -65 to +10 d. Bm -50 to +23 d. Bm Max. Level +10 d. Bm +23 d. Bm Wave Lengths (780)1, 820, 850, 1300, 1550 nm 780, 850, 1300, 1310, 1550 nm 980, 1310, 1480, 1550 nm Auto-λ possible with OLS-5, OLS-6, OLS-15 OLS-6 (1310/1550 nm), OLS-15 Fiber type MM and SM SM Application Datacom Telecom CATV 1 A-series devices only 4
Front Panel & Display Overview 5
Measurements System power level measurement - System Power Level은 절대값(d. Bm)으로 측정된다. - System Power Level은 Transmitter의 Tx 출력 또는 Receiver의 입력 이전에 연결하여 측정한다. 6
Measurements Attenuation measurement - Fiber의 상호연결 또는 디바이스(e. g. connectors)들의 감 쇠량을 측정할 수 있다. - Attenuation은 상대값(d. B)으로 측정된다. - Attenuation 측정은 Test Source와 함께 사용이 요구되며 다음과 같이 두 단계로 이루어진다. 1. Reference Power Level Measurement 2. Relative Power Level Measurement (Attenuation) 7
