Contents § Introduction § Outdoor Unit Installation § Indoor Unit Installation § Refrigerant Pipe Work § Gas Charge § Wiring § Summary Page 2

Introduction Page 3

INSTALLATION Bad installation – System will not operate as per design § Waste of Money § Waste of Time § Bad Image 3 Major Categories § Unit Installation § Piping Installation § Wiring Installation Page 4

Outdoor Unit Installation Page 5

Outdoor Unit Installation § Sufficient area around the unit. No barrier for supply air and discharge air. § Avoid discharge air return to the unit (Hot Air shortcircuiting) § Strong foundation for the unit Page 6

Outdoor Unit Installation Handling Outdoor Unit Correct Page 7

Outdoor Unit Installation Handling Outdoor Unit Wrong Page 8

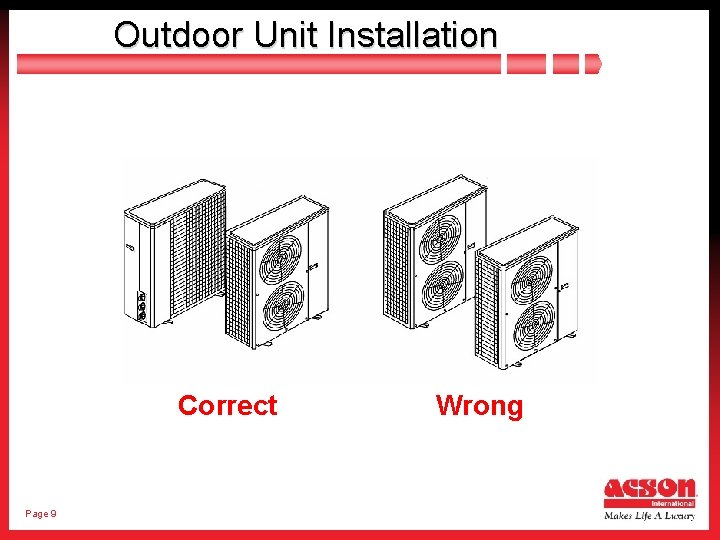

Outdoor Unit Installation Correct Page 9 Wrong

Outdoor Unit Installation Page 10

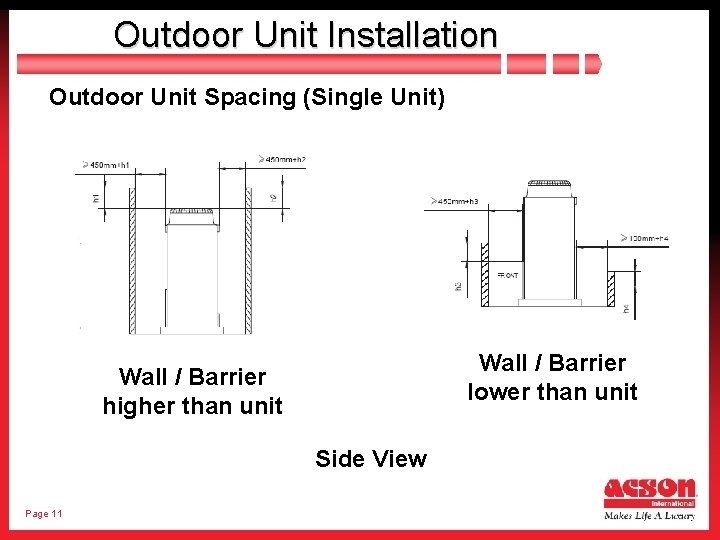

Outdoor Unit Installation Outdoor Unit Spacing (Single Unit) Wall / Barrier lower than unit Wall / Barrier higher than unit Side View Page 11

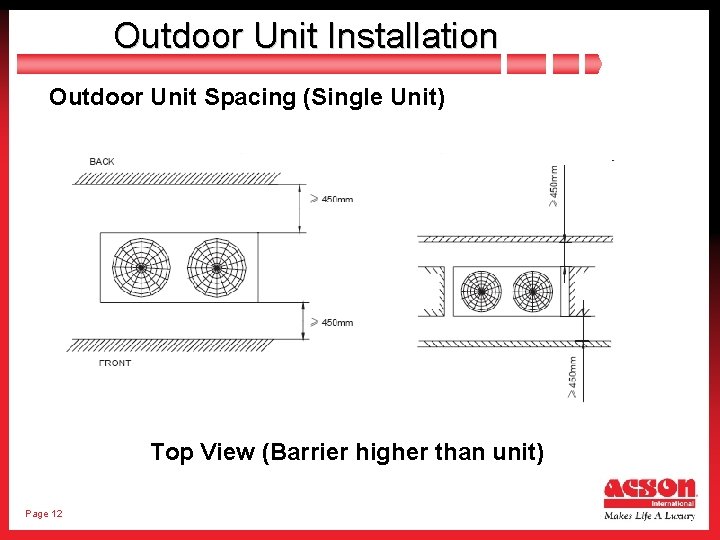

Outdoor Unit Installation Outdoor Unit Spacing (Single Unit) Top View (Barrier higher than unit) Page 12

Outdoor Unit Installation Outdoor Unit Spacing (Single Unit) Top View (Barrier lower than unit) Page 13

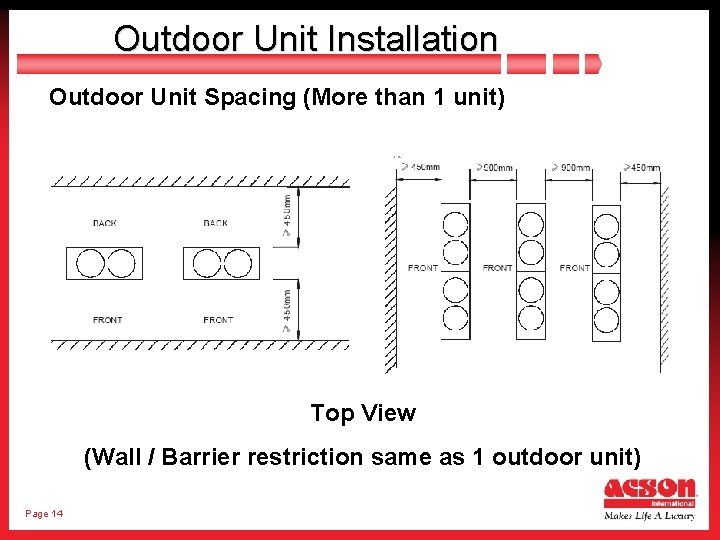

Outdoor Unit Installation Outdoor Unit Spacing (More than 1 unit) Top View (Wall / Barrier restriction same as 1 outdoor unit) Page 14

Outdoor Unit Installation Outdoor Unit Spacing (More than 1 unit) Top View (Wall / Barrier restriction same as 1 outdoor unit) Page 15

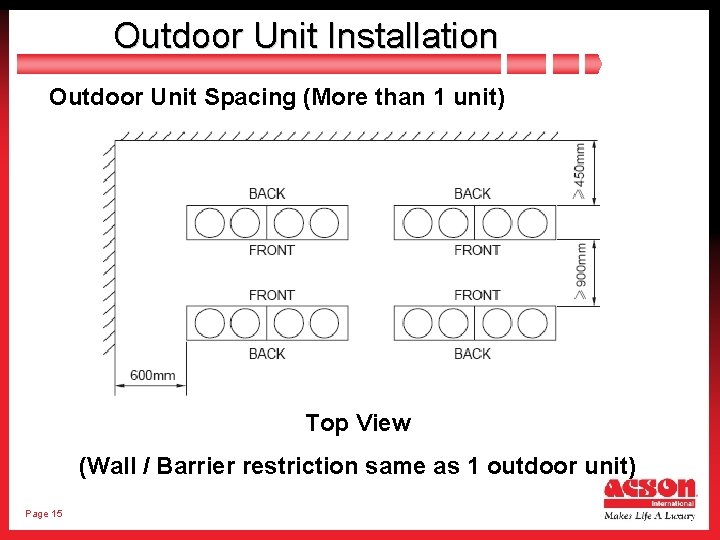

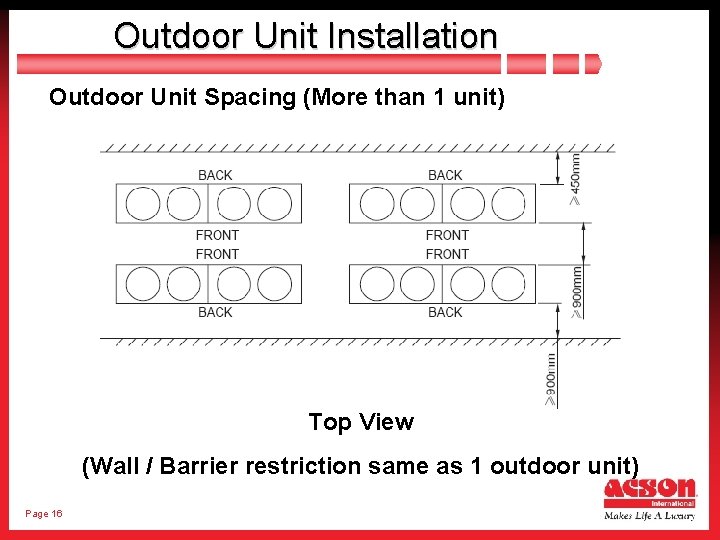

Outdoor Unit Installation Outdoor Unit Spacing (More than 1 unit) Top View (Wall / Barrier restriction same as 1 outdoor unit) Page 16

Outdoor Unit Installation Outdoor Unit Foundation § Floor location strength - Able to withstand the unit weight and vibration Page 17

Outdoor Unit Installation Outdoor Unit Foundation § Layout for drainage, piping & cables - Different level, avoid blocking Gas and liquid piping connection Page 18 Balance piping connection

Outdoor Unit Installation Outdoor Unit Foundation § Screw bolt required to further tighten the unit - Avoid the unit from falling due to earthquake Page 19

Indoor Unit Installation Page 20

Indoor Unit Installation Drainage Pipe Work § Adjust the downward gradient Gradient of 1: 100 or more Page 21

Indoor Unit Installation Drainage Pipe Work § Group drain pipe Vent opening Clamp of drain pipe Gradient ≥ 1/100 ≥ 100 mm Converged drain pipe Page 22

Indoor Unit Installation EXV Box Installation § MUST install vertically upward Page 23

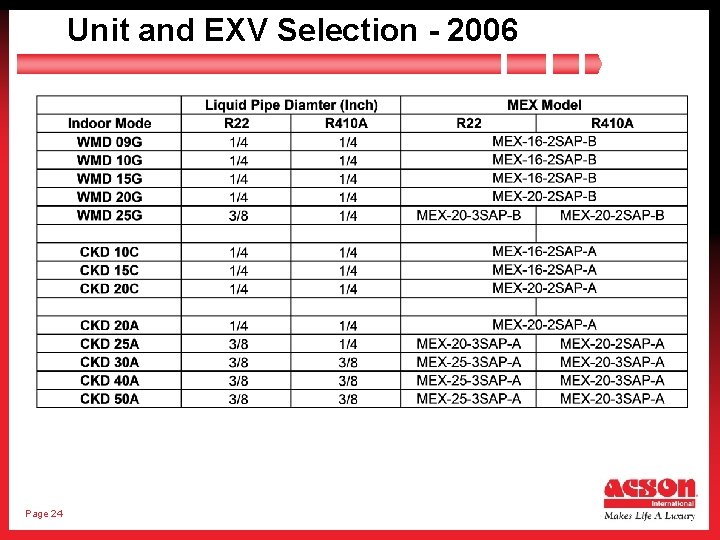

Unit and EXV Selection - 2006 Page 24

Unit and EXV Selection - 2006 Page 25

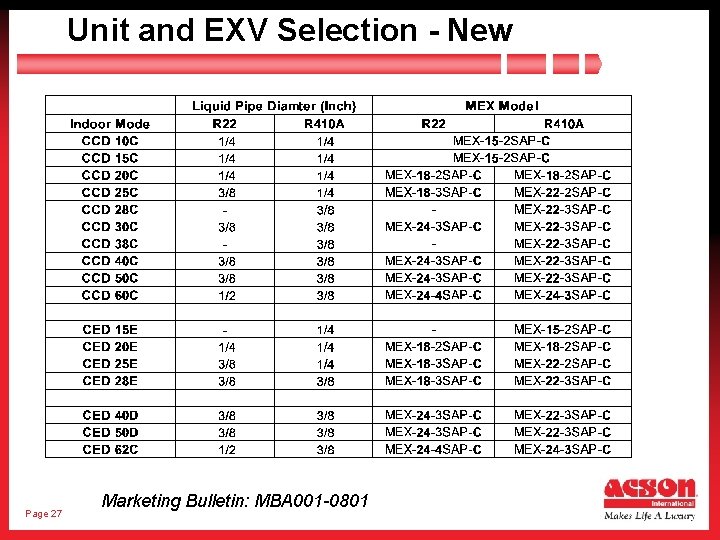

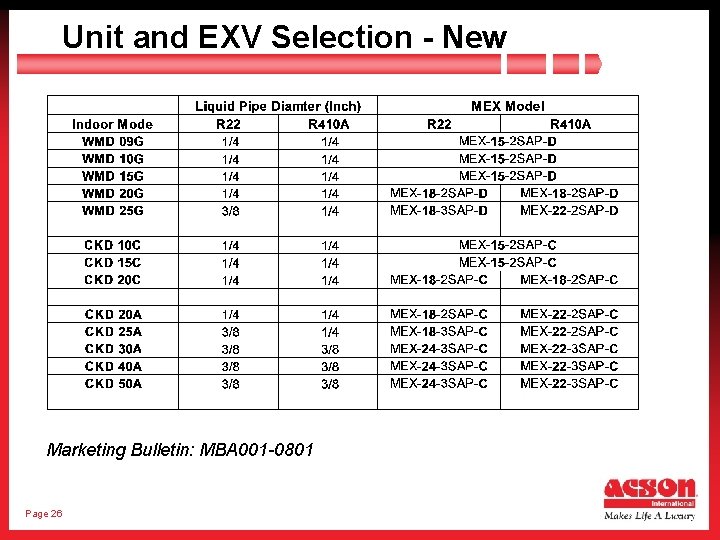

Unit and EXV Selection - New Marketing Bulletin: MBA 001 -0801 Page 26

Unit and EXV Selection - New Page 27 Marketing Bulletin: MBA 001 -0801

Indoor Unit Installation EXV Box Installation § 3 types of mounting methods 1 3 Page 28 2

Indoor Unit Installation EXV Box Installation Page 29

Indoor Unit Installation EXV Box Installation Page 30

Refrigeration Pipe Work Page 31

Refrigerant Pipe Work Piping Installation § Ensure piping is dry, clean and no air leakage Page 32

Refrigerant Pipe Work Piping Installation § Nitrogen gas replacement Nitrogen gas pressure: about 0. 02 MPa (0. 2 kg/cm 2, 2. 8 psi) Page 33

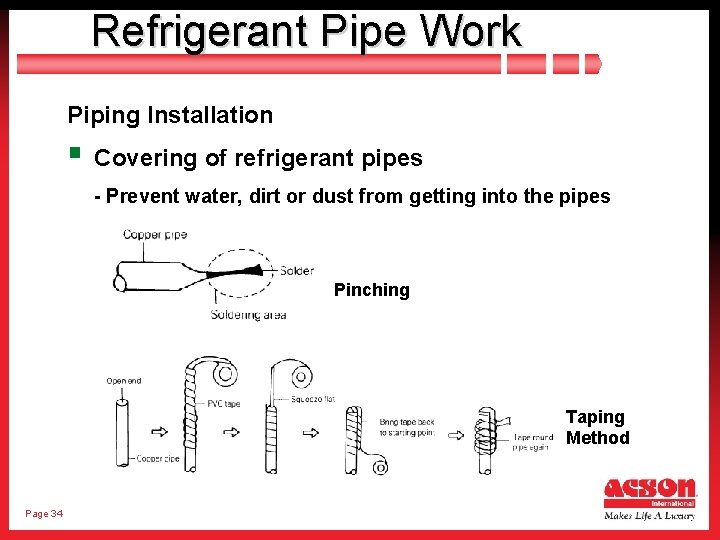

Refrigerant Pipe Work Piping Installation § Covering of refrigerant pipes - Prevent water, dirt or dust from getting into the pipes Pinching Taping Method Page 34

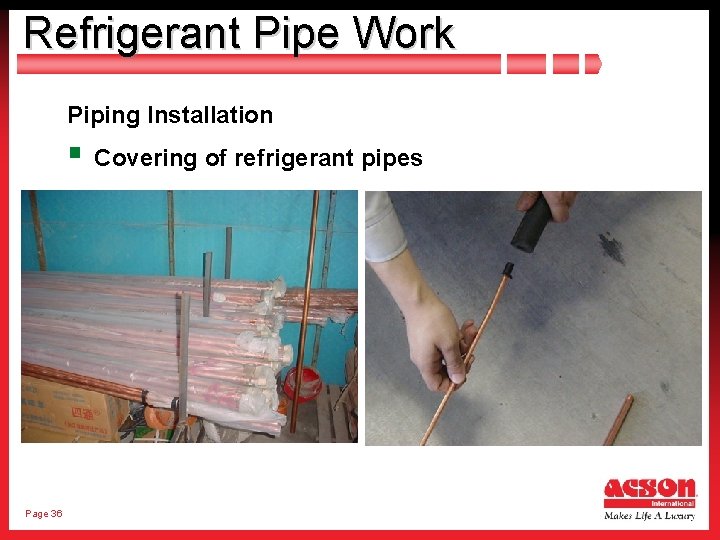

Refrigerant Pipe Work Piping Installation § Covering of refrigerant pipes Page 35

Refrigerant Pipe Work Piping Installation § Covering of refrigerant pipes Page 36

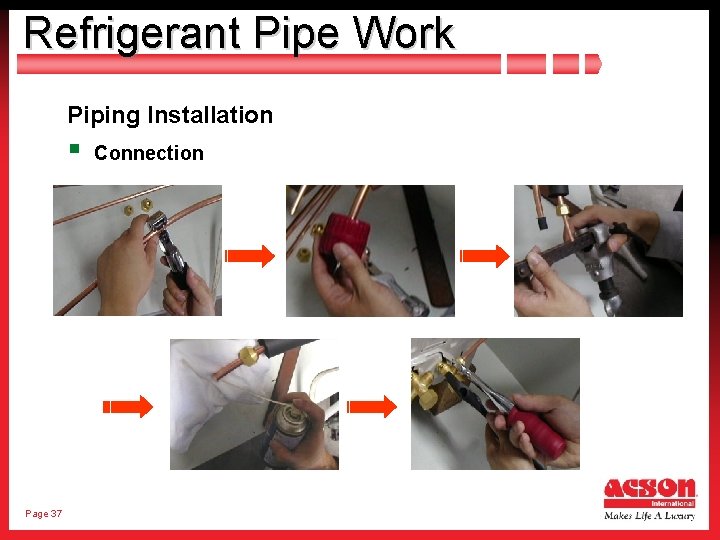

Refrigerant Pipe Work Piping Installation § Page 37 Connection

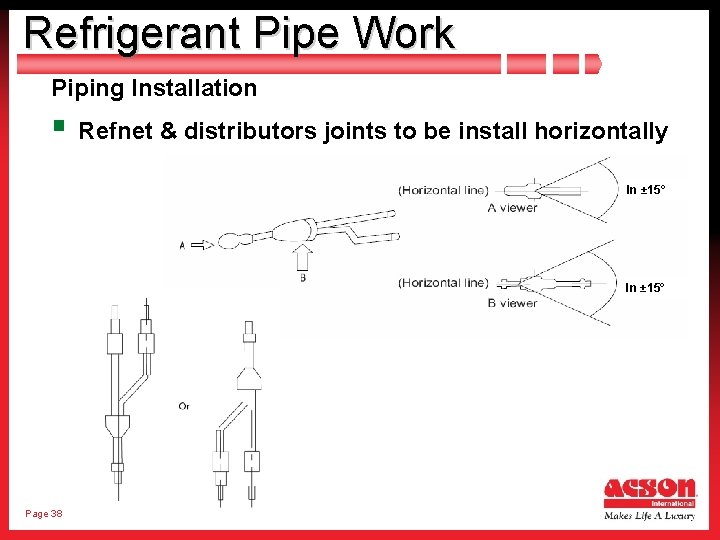

Refrigerant Pipe Work Piping Installation § Refnet & distributors joints to be install horizontally In ± 15° Page 38

Refrigerant Pipe Work Piping Installation § Refnet & distributors joints to be install horizontally Page 39

Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Refnet Joint Page 40

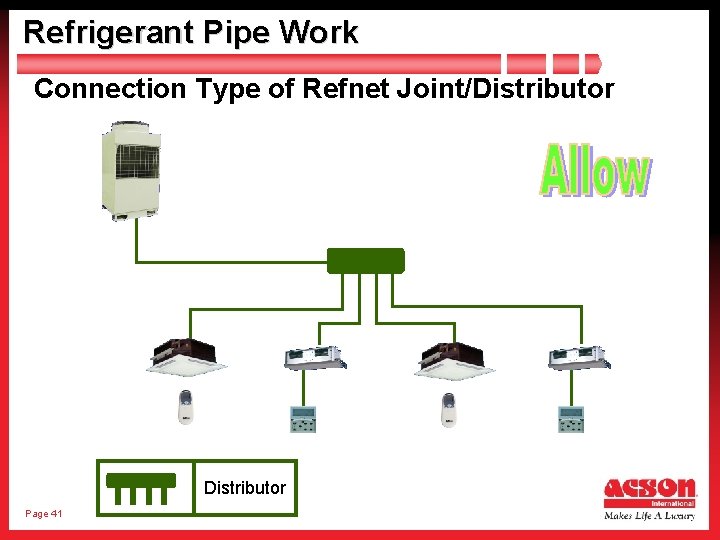

Refrigerant Pipe Work Connection Type of Refnet Joint/Distributor Page 41

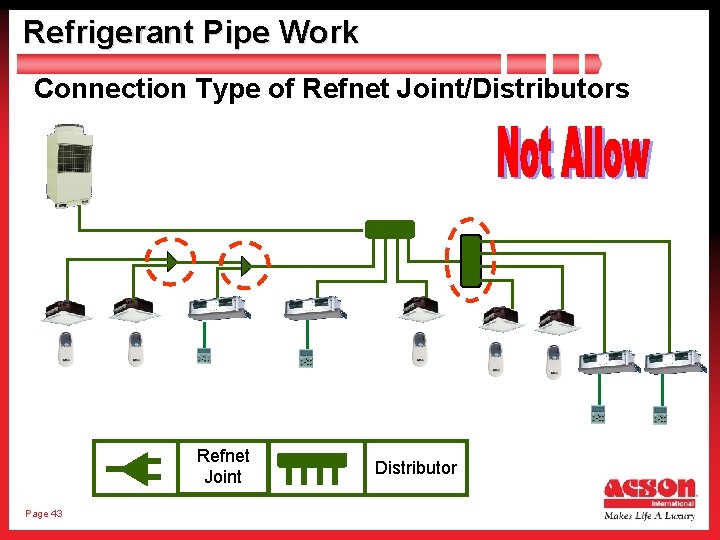

Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Page 42 Refnet Joint Distributor

Refrigerant Pipe Work Connection Type of Refnet Joint/Distributors Refnet Joint Page 43 Distributor

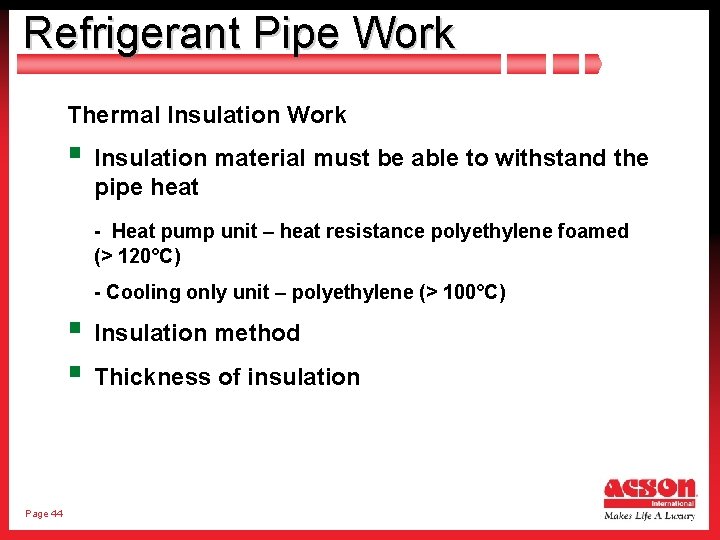

Refrigerant Pipe Work Thermal Insulation Work § Insulation material must be able to withstand the pipe heat - Heat pump unit – heat resistance polyethylene foamed (> 120°C) - Cooling only unit – polyethylene (> 100°C) § Insulation method § Thickness of insulation Page 44

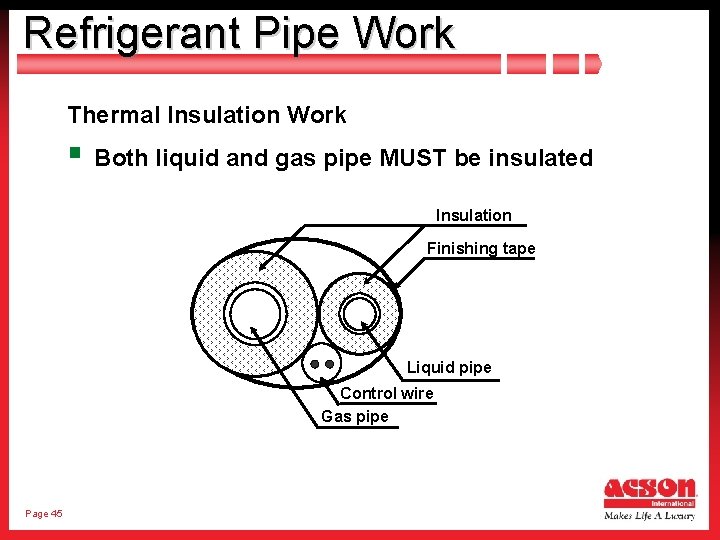

Refrigerant Pipe Work Thermal Insulation Work § Both liquid and gas pipe MUST be insulated Insulation Finishing tape Liquid pipe Control wire Gas pipe Page 45

Refrigerant Pipe Work Thermal Insulation Work Wrong Method Page 46 Correct Method

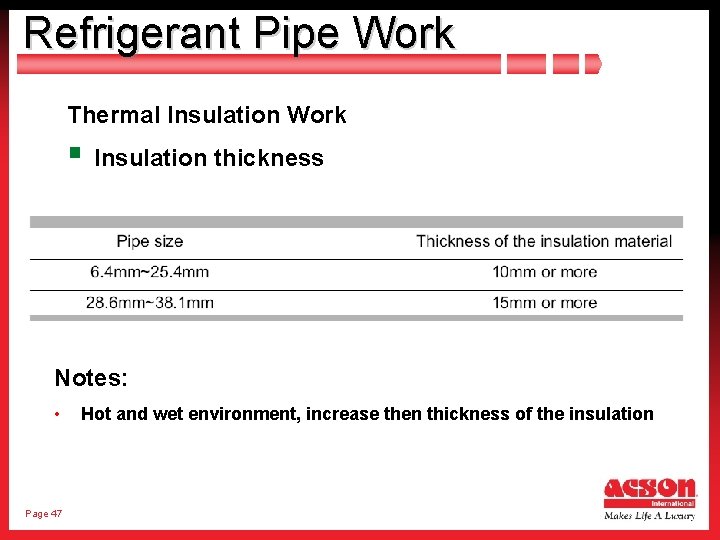

Refrigerant Pipe Work Thermal Insulation Work § Insulation thickness Notes: • Page 47 Hot and wet environment, increase then thickness of the insulation

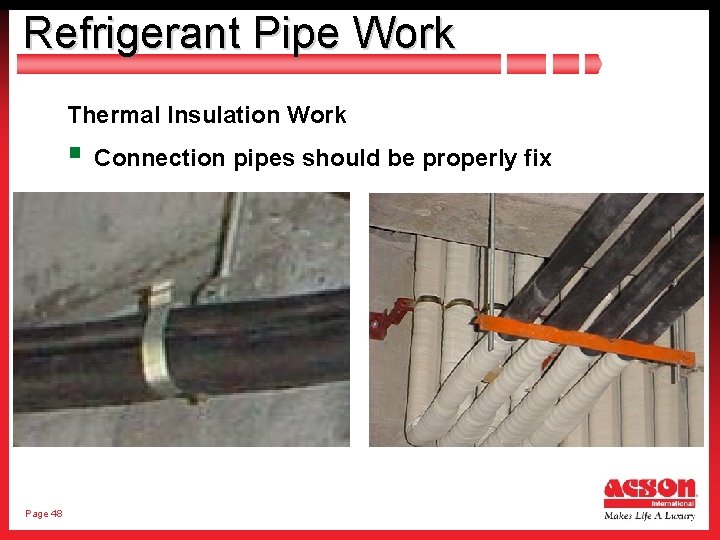

Refrigerant Pipe Work Thermal Insulation Work § Connection pipes should be properly fix Page 48

Gas Charge Page 49

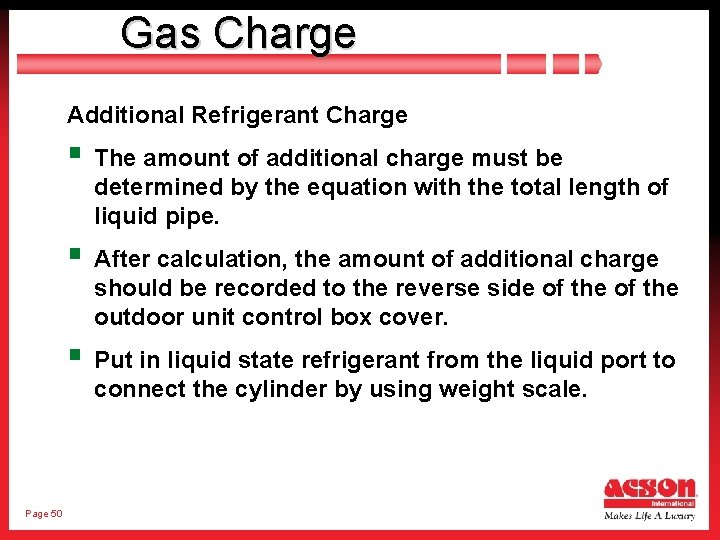

Gas Charge Additional Refrigerant Charge § The amount of additional charge must be determined by the equation with the total length of liquid pipe. § After calculation, the amount of additional charge should be recorded to the reverse side of the outdoor unit control box cover. § Put in liquid state refrigerant from the liquid port to connect the cylinder by using weight scale. Page 50

Gas Charge Additional Refrigerant Charge (R 22) § The equation of additional refrigerant charge Additional Charge Amount = (Ø 15. 88 liquid pipe length x 180 g/m) + (Ø 12. 7 liquid pipe length x 120 g/m) + (Ø 9. 52 liquid pipe length x 80 g/m) + (Ø 6. 35 liquid pipe length x 50 g/m) Page 51

Gas Charge Additional Refrigerant Charge (R 410 A) § The equation of additional refrigerant charge Additional Charge Amount = (Ø 15. 88 liquid pipe length x 180 g/m) + (Ø 12. 7 liquid pipe length x 120 g/m) + (Ø 9. 52 liquid pipe length x 80 g/m) + (Ø 6. 35 liquid pipe length x 50 g/m) Page 52

Wiring Page 53

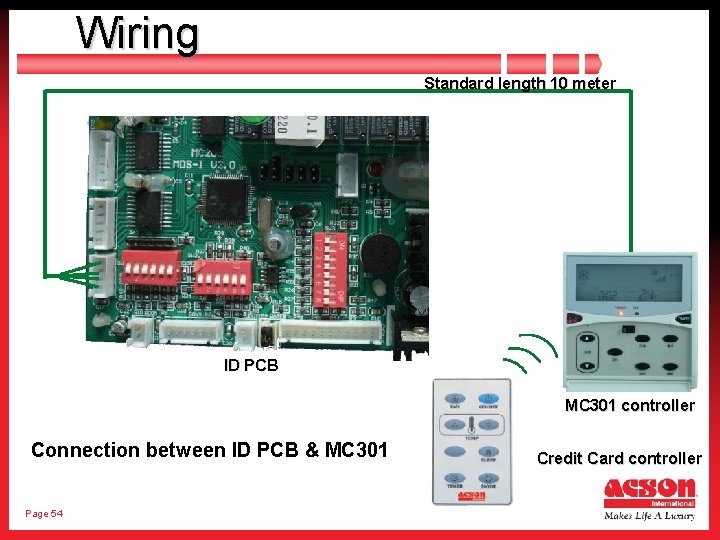

Wiring Standard length 10 meter ID PCB MC 301 controller Connection between ID PCB & MC 301 Page 54 Credit Card controller

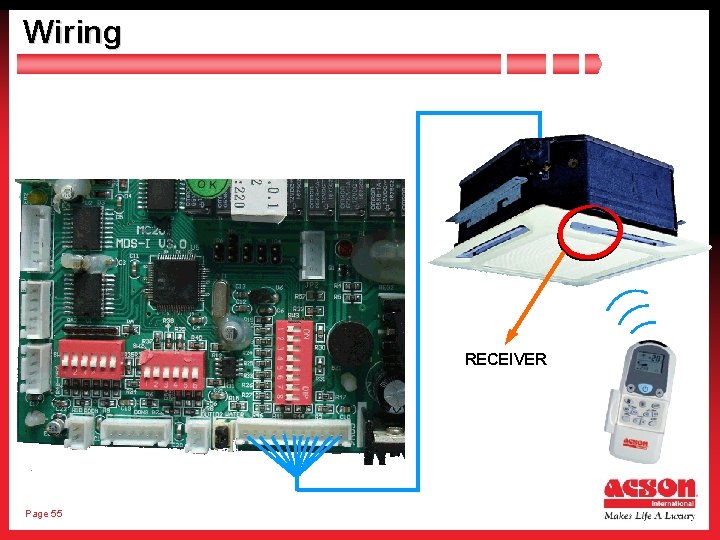

Wiring RECEIVER Page 55

Wiring Design § All wires and accessories must be tested beforehand § All electric work must be done by licensed electrician § Wiring connection should be referred to the installation manual § Breaker and fuse should be set on each outdoor unit Page 56

Wiring Communication Wires § Twisted pair wired with shielding (20 AWG) - Shield wire to be earth on 1 end of the network - Connected serially to the adjacent unit (Daisy Chain Connection) - Same polarity between units (A-A, B-B) Wire Limitation (Units in meter) • PC to Gateway – 2 m (RS 232) • 1 st Outdoor to Last Outdoor < 1000 m (RS 485) • Outdoor to Last Indoor < 1000 m (RS 485) Page 57

Wiring Communication Wires Page 58

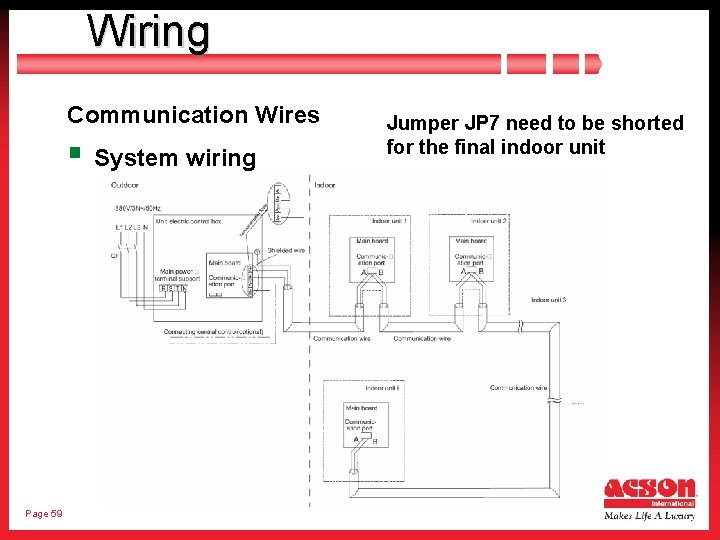

Wiring Communication Wires § System wiring Page 59 Jumper JP 7 need to be shorted for the final indoor unit

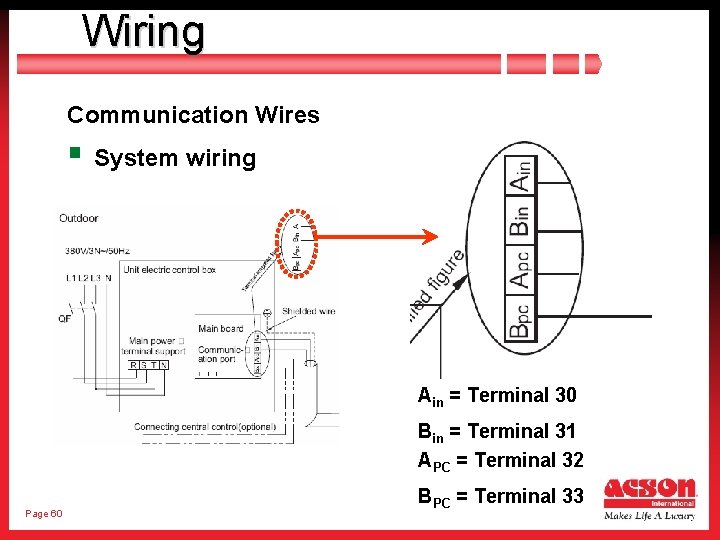

Wiring Communication Wires § System wiring Ain = Terminal 30 Bin = Terminal 31 APC = Terminal 32 Page 60 BPC = Terminal 33

Wiring MDS 080~240 Ain Bin Apc Bpc OD PCB B A Page 61 ID PCB

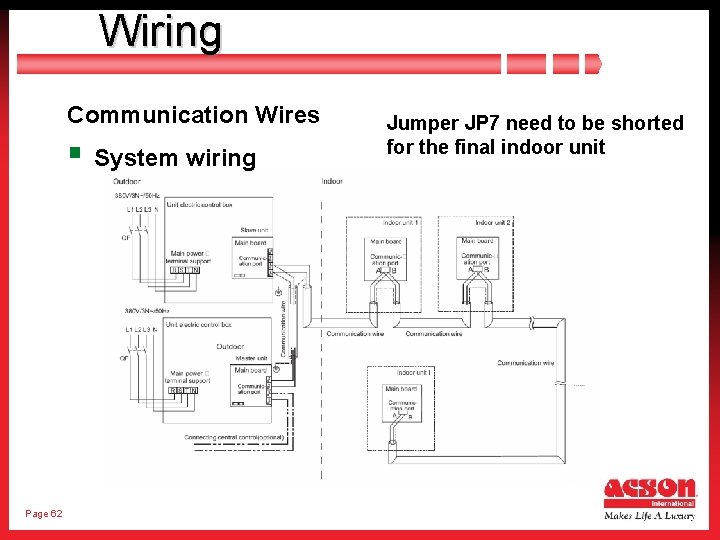

Wiring Communication Wires § System wiring Page 62 Jumper JP 7 need to be shorted for the final indoor unit

Wiring MDS 260/280/300/320 Ain Bin Apc Bpc + MDS 120/150/160 BRM Ain Bin Apc Bpc MDS 130/150/160 BRS Indoor Units Page 63

Wiring Central Controller (For R 410 A MDS Indoor only) PCB: MC 200 -C & MC 201 -C Page 64

Wiring Central Wired Controller • Group control for 32 unit. • Group Control setting: On/Off, Temperature, Operating mode, Fan speed, sleep mode and timer On/Off • Single unit operation setting: On/Off, Temperature, Operating Mode, Fan speed and sleep mode. • Timer setting: timer on/off all units. • Display Circularly: display each unit temperature, mode, fan speed, running and fault code one by one. • Real time clock: Required battery to maintain the time if no power supply. Page 65

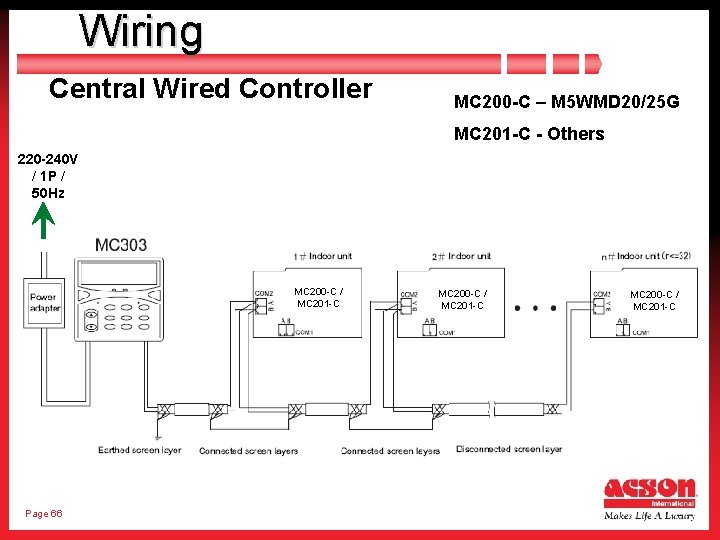

Wiring Central Wired Controller MC 200 -C – M 5 WMD 20/25 G MC 201 -C - Others 220 -240 V / 1 P / 50 Hz MC 200 -C / MC 201 -C Page 66 MC 200 -C / MC 201 -C

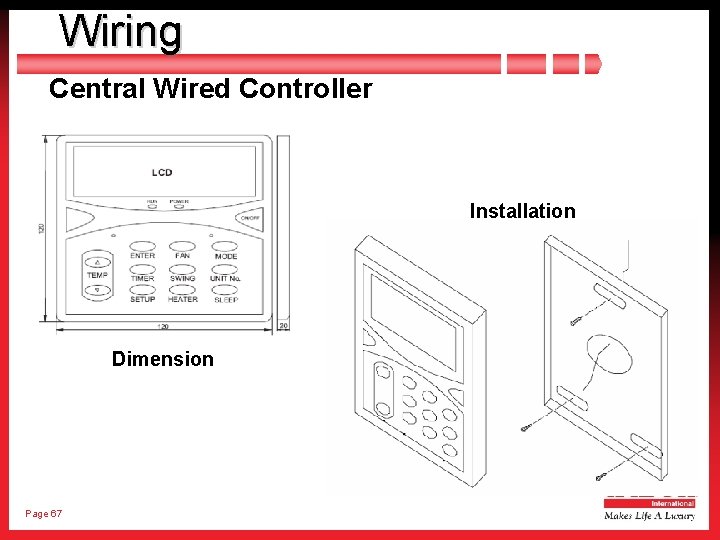

Wiring Central Wired Controller Installation Dimension Page 67

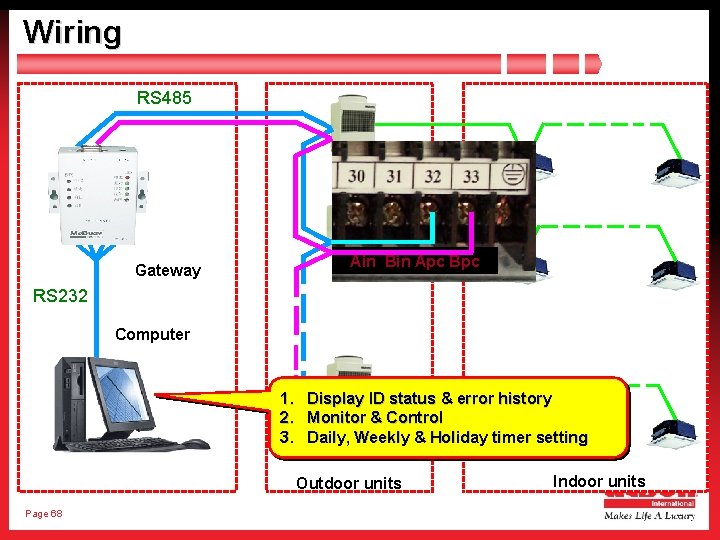

Wiring RS 485 Ain Bin Apc Bpc Gateway RS 232 Computer 1. 2. 3. Display ID status & error history Monitor & Control Daily, Weekly & Holiday timer setting Outdoor units Page 68 Indoor units

Wiring Communication Wires § Necessary distance from communication wires to the power supply cable Problem may happen due the electromagnetic interference if the communication line is too close with the power cable. Page 69

Summary Page 70

Summary § 3 basic rules of refrigerant pipe work : - Dry, Clean and air tight § Both liquid and gas pipe should be insulate separately § The communication wires must be in the same polarity § DO NOT wrap the power cable and communication wire together Page 71
