MDF Terminal Block & Plug type x. DSL Splitter MAT-54 ; IDC MDF Terminal Block and Plug type x. DSL Splitter Aug. 2011

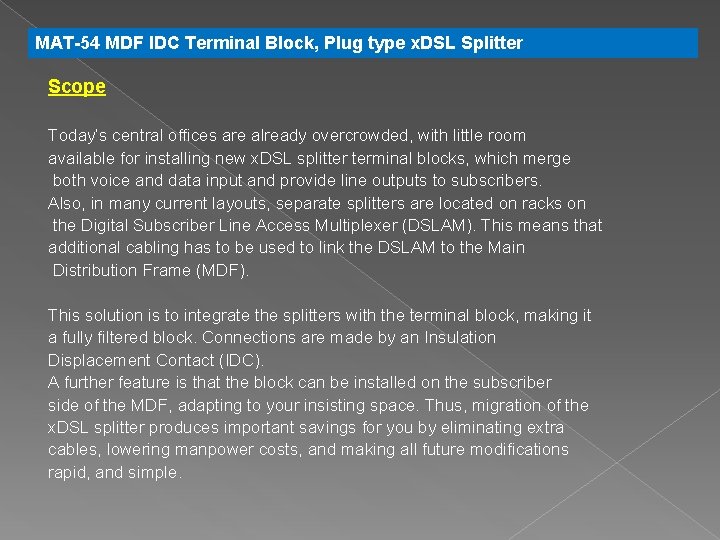

MAT-54 MDF IDC Terminal Block, Plug type x. DSL Splitter Scope Today’s central offices are already overcrowded, with little room available for installing new x. DSL splitter terminal blocks, which merge both voice and data input and provide line outputs to subscribers. Also, in many current layouts, separate splitters are located on racks on the Digital Subscriber Line Access Multiplexer (DSLAM). This means that additional cabling has to be used to link the DSLAM to the Main Distribution Frame (MDF). This solution is to integrate the splitters with the terminal block, making it a fully filtered block. Connections are made by an Insulation Displacement Contact (IDC). A further feature is that the block can be installed on the subscriber side of the MDF, adapting to your insisting space. Thus, migration of the x. DSL splitter produces important savings for you by eliminating extra cables, lowering manpower costs, and making all future modifications rapid, and simple.

Features l High density: you get more lines or ports in the same space l Easy installation: since three accesses (voice input, data input, line output) are conveniently separated l Easy test: since three access connection points are located close to each other at the front l Adaptability: can be installed on subscriber side of the MDF, thus fitting into available space l Easy access and maintenance: the 7 splitter cards can be pivoted or removed without causing any strain on the wires, or having to disconnect subscribers l. Reduces components (racks, splitter shelves, patch cables, MDF blocks, etc. )

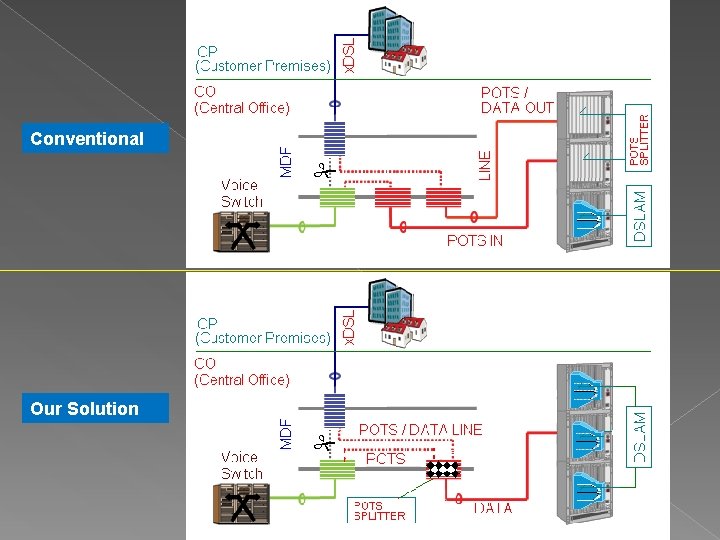

Conventional Our Solution

MAT-54 MDF IDC Terminal Block, Click here to see the brochure MDF IDC Terminal Block Accepting 54 Plug type POTS Splitter 1 - Plug type POTS Splitter is installed

MAT-54 MDF IDC Terminal Block

MAT-54 MDF IDC Terminal Block-continued 4 -mounting hole to MDF Frame

MAT-54 MDF IDC Terminal Block-continued Actually installed MAT-54 Terminal Blocks

Plug type x. DSL POTS Splitters for CO

Plug type x. DSL POTS Splitters for CO-continued DC Blocking Capacitor can be added upon request Photo

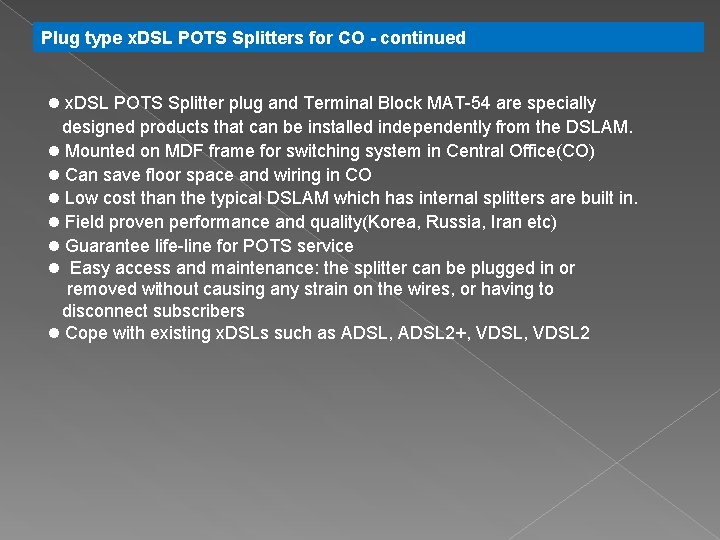

Plug type x. DSL POTS Splitters for CO - continued l x. DSL POTS Splitter plug and Terminal Block MAT-54 are specially designed products that can be installed independently from the DSLAM. l Mounted on MDF frame for switching system in Central Office(CO) l Can save floor space and wiring in CO l Low cost than the typical DSLAM which has internal splitters are built in. l Field proven performance and quality(Korea, Russia, Iran etc) l Guarantee life-line for POTS service l Easy access and maintenance: the splitter can be plugged in or removed without causing any strain on the wires, or having to disconnect subscribers l Cope with existing x. DSLs such as ADSL, ADSL 2+, VDSL 2

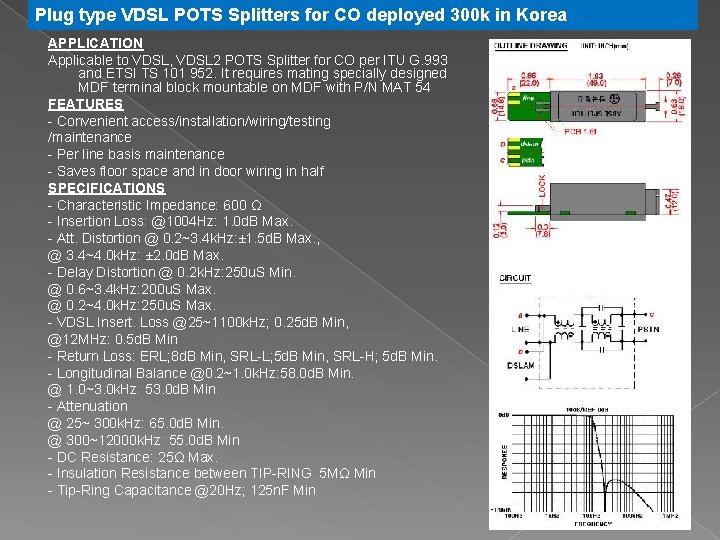

Plug type VDSL POTS Splitters for CO deployed 300 k in Korea APPLICATION Applicable to VDSL, VDSL 2 POTS Splitter for CO per ITU G. 993 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004 Hz: 1. 0 d. B Max. - Att. Distortion @ 0. 2~3. 4 k. Hz: ± 1. 5 d. B Max. , @ 3. 4~4. 0 k. Hz: ± 2. 0 d. B Max. - Delay Distortion @ 0. 2 k. Hz: 250 u. S Min. @ 0. 6~3. 4 k. Hz: 200 u. S Max. @ 0. 2~4. 0 k. Hz: 250 u. S Max. - VDSL Insert. Loss @25~1100 k. Hz; 0. 25 d. B Min, @12 MHz: 0. 5 d. B Min - Return Loss: ERL; 8 d. B Min, SRL-L; 5 d. B Min, SRL-H; 5 d. B Min. - Longitudinal Balance @0. 2~1. 0 k. Hz: 58. 0 d. B Min. @ 1. 0~3. 0 k. Hz: 53. 0 d. B Min. - Attenuation @ 25~ 300 k. Hz: 65. 0 d. B Min. @ 300~12000 k. Hz: 55. 0 d. B Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5 MΩ Min. - Tip-Ring Capacitance @20 Hz; 125 n. F Min

Plug type ADSL POTS Splitters for CO deployed 200 k in Korea APPLICATION Applicable to full DMT ADSL, ADSL 2+ POTS Splitter at CO per ANSI T 1. 413 -Issue 2 Annex E, ITU G. 992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004 Hz: 1. 0 d. B Max. - Attenuation Distortion @ 0. 2~3. 4 k. Hz: ± 1. 5 d. B Max. @ 3. 4~4. 0 k. Hz: ± 2. 0 d. B Max. - Delay Distortion @ 0. 6~3. 4 k. Hz: 200 u. S Max. @ 0. 2~4. 0 k. Hz: 250 u. S Max. - Return Loss @ 0. 2~4. 0 k. Hz: 20 d. B Min. - Longitudinal Balance @ 0. 2~1. 0 k. Hz: 58. 0 d. B Min. @ 1. 0~3. 0 k. Hz: 53. 0 d. B Min. - Attenuation @ 30~ 300 k. Hz: 65. 0 d. B Min. @ 300~1104 k. Hz: 55. 0 d. B Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5 MΩ Min.

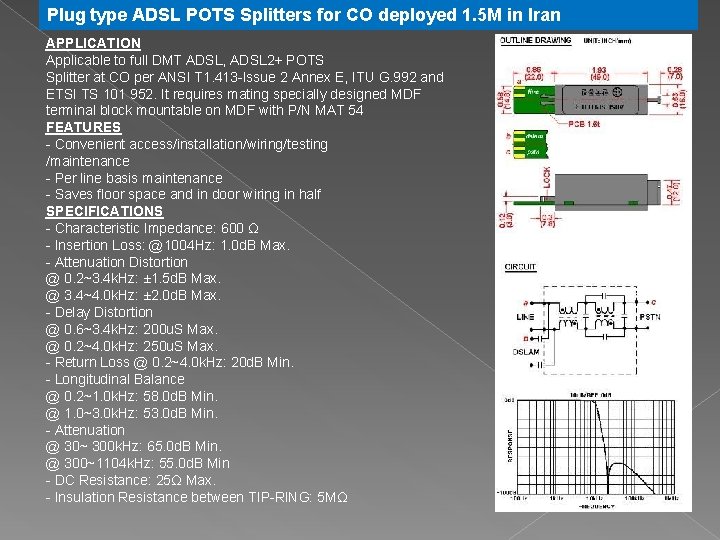

Plug type ADSL POTS Splitters for CO deployed 1. 5 M in Iran APPLICATION Applicable to full DMT ADSL, ADSL 2+ POTS Splitter at CO per ANSI T 1. 413 -Issue 2 Annex E, ITU G. 992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004 Hz: 1. 0 d. B Max. - Attenuation Distortion @ 0. 2~3. 4 k. Hz: ± 1. 5 d. B Max. @ 3. 4~4. 0 k. Hz: ± 2. 0 d. B Max. - Delay Distortion @ 0. 6~3. 4 k. Hz: 200 u. S Max. @ 0. 2~4. 0 k. Hz: 250 u. S Max. - Return Loss @ 0. 2~4. 0 k. Hz: 20 d. B Min. - Longitudinal Balance @ 0. 2~1. 0 k. Hz: 58. 0 d. B Min. @ 1. 0~3. 0 k. Hz: 53. 0 d. B Min. - Attenuation @ 30~ 300 k. Hz: 65. 0 d. B Min. @ 300~1104 k. Hz: 55. 0 d. B Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5 MΩ

Plug type ADSL POTS Splitters for CO deployed 1 M in Russia APPLICATION Applicable to full DMT ADSL, ADSL 2+ POTS Splitter at CO per ANSI T 1. 413 -Issue 2 Annex E, ITU G. 992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004 Hz: 1. 0 d. B Max. - Attenuation Distortion @ 0. 2~3. 4 k. Hz: ± 1. 5 d. B Max. @ 3. 4~4. 0 k. Hz: ± 2. 0 d. B Max. - Delay Distortion @ 0. 6~3. 4 k. Hz: 200 u. S Max. @ 0. 2~4. 0 k. Hz: 250 u. S Max. - Return Loss @ 0. 2~4. 0 k. Hz: 20 d. B Min. - Longitudinal Balance @ 0. 2~1. 0 k. Hz: 58. 0 d. B Min. @ 1. 0~3. 0 k. Hz: 53. 0 d. B Min. - Attenuation @ 30~ 300 k. Hz: 65. 0 d. B Min. @ 300~@2. 2 MHz: 55. 0 d. B Min - DC Resistance: 50Ω Max. - Insulation Resistance between TIP-RING: 5 MΩ

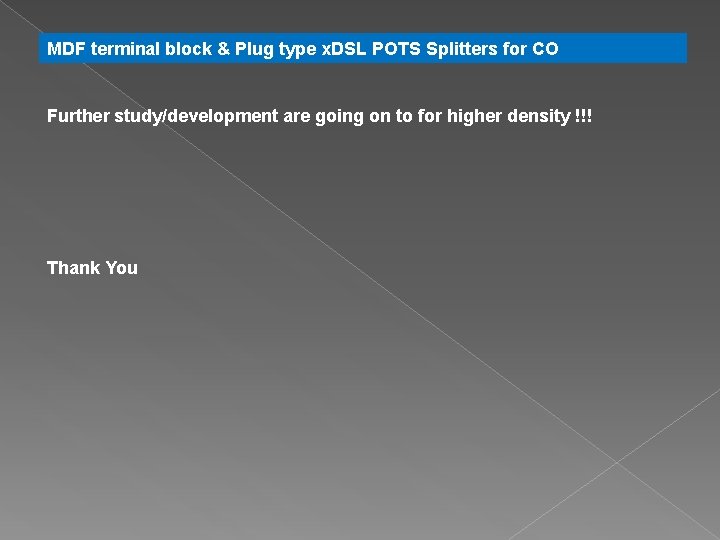

MDF terminal block & Plug type x. DSL POTS Splitters for CO Further study/development are going on to for higher density !!! Thank You
