MCS table design for 16 m Document Number

MCS table design for 16 m Document Number: IEEE C 802. 16 m-09/1007 Date Submitted: 2009 -04 -27 Source: Zhou hua(zhouhua@cn. fujitsu. com), Liang shengbao(sengbaol@cn. fujitsu. com), Tianjun(tianjun@cn. fujitsu. com), Zhang Jie(jie. zhang@cn. fujitsu. com) and Xue Jinyin(xuejy@cn. fujitsu. com) Fujitsu R&D center Co. , LTD Beijing. RE: AWD comments / Area: Chapter 15. 3. 12(Channel coding) “Comments on AWD 15. 3. 12 channel coding”. Base Contribution: Purpose: Propose to be discussed and adopted by TGm for the use in Project 802. 16 m AWD. Notice: This document does not represent the agreed views of the IEEE 802. 16 Working Group or any of its subgroups. It represents only the views of the participants listed in the “Source(s)” field above. It is offered as a basis for discussion. It is not binding on the contributor(s), who reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEE’s name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEE’s sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE 802. 16. Patent Policy: The contributor is familiar with the IEEE-SA Patent Policy and Procedures: <http: //standards. ieee. org/guides/bylaws/sect 6 -7. html#6> and <http: //standards. ieee. org/guides/opman/sect 6. html#6. 3>. Further information is located at <http: //standards. ieee. org/board/pat-material. html> and <http: //standards. ieee. org/board/pat >.

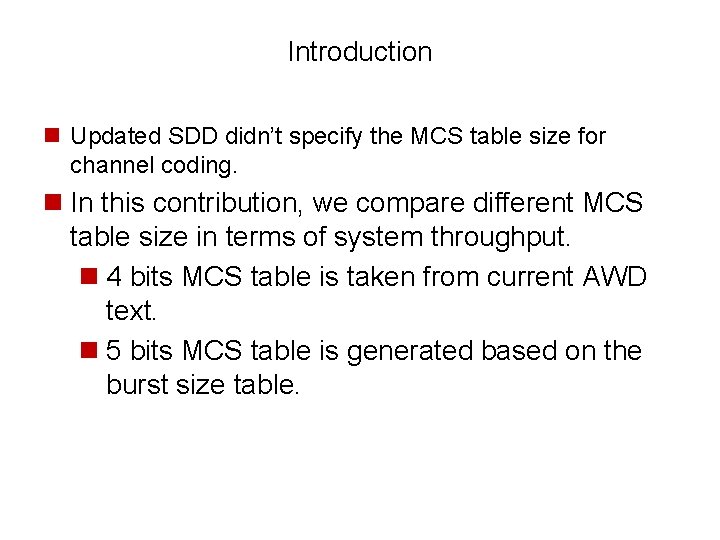

Introduction n Updated SDD didn’t specify the MCS table size for channel coding. n In this contribution, we compare different MCS table size in terms of system throughput. n 4 bits MCS table is taken from current AWD text. n 5 bits MCS table is generated based on the burst size table.

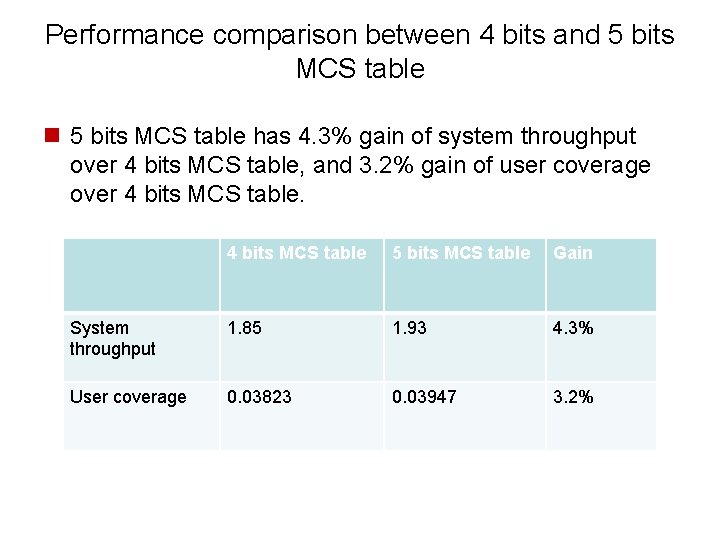

Performance comparison between 4 bits and 5 bits MCS table n 5 bits MCS table has 4. 3% gain of system throughput over 4 bits MCS table, and 3. 2% gain of user coverage over 4 bits MCS table 5 bits MCS table Gain System throughput 1. 85 1. 93 4. 3% User coverage 0. 03823 0. 03947 3. 2%

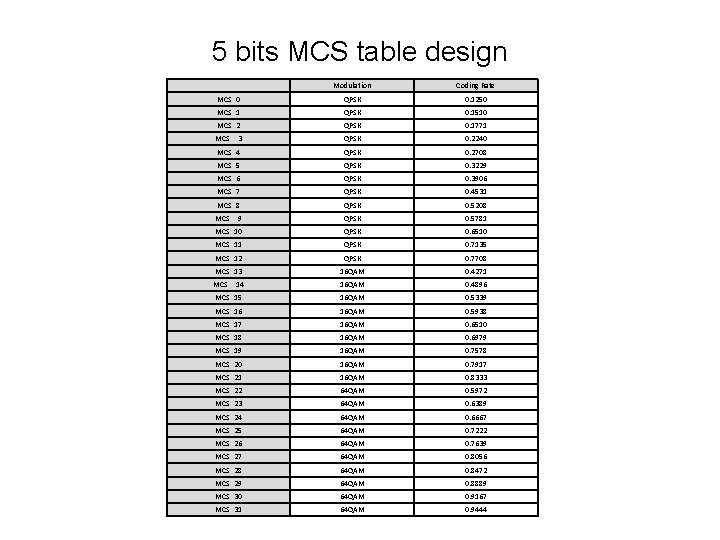

5 bits MCS table design Modulation Coding Rate MCS 0 QPSK 0. 1250 MCS 1 QPSK 0. 1510 MCS 2 QPSK 0. 1771 MCS 3 QPSK 0. 2240 MCS 4 QPSK 0. 2708 MCS 5 QPSK 0. 3229 MCS 6 QPSK 0. 3906 MCS 7 QPSK 0. 4531 MCS 8 QPSK 0. 5208 MCS 9 QPSK 0. 5781 MCS 10 QPSK 0. 6510 MCS 11 QPSK 0. 7135 MCS 12 QPSK 0. 7708 MCS 13 16 QAM 0. 4271 MCS 14 16 QAM 0. 4896 MCS 15 16 QAM 0. 5339 MCS 16 16 QAM 0. 5938 MCS 17 16 QAM 0. 6510 MCS 18 16 QAM 0. 6979 MCS 19 16 QAM 0. 7578 MCS 20 16 QAM 0. 7917 MCS 21 16 QAM 0. 8333 MCS 22 64 QAM 0. 5972 MCS 23 64 QAM 0. 6389 MCS 24 64 QAM 0. 6667 MCS 25 64 QAM 0. 7222 MCS 26 64 QAM 0. 7639 MCS 27 64 QAM 0. 8056 MCS 28 64 QAM 0. 8472 MCS 29 64 QAM 0. 8889 MCS 30 64 QAM 0. 9167 MCS 31 64 QAM 0. 9444

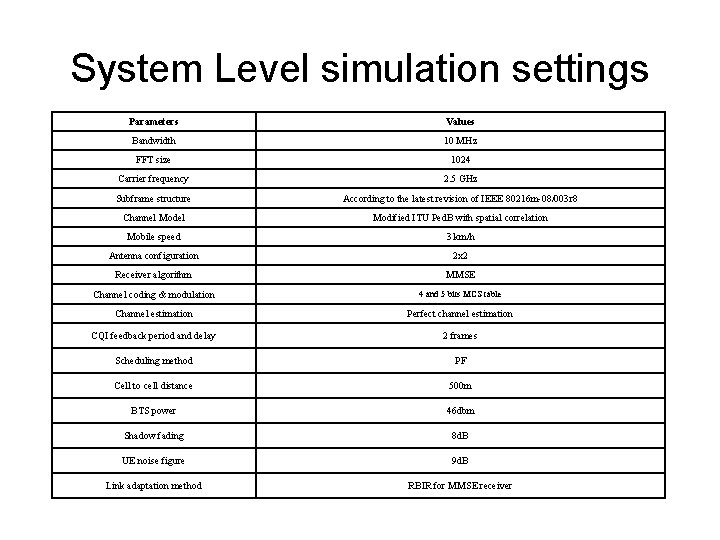

System Level simulation settings Parameters Values Bandwidth 10 MHz FFT size 1024 Carrier frequency 2. 5 GHz Subframe structure According to the latest revision of IEEE 80216 m-08/003 r 8 Channel Modified ITU Ped. B with spatial correlation Mobile speed 3 km/h Antenna configuration 2 x 2 Receiver algorithm MMSE Channel coding & modulation 4 and 5 bits MCS table Channel estimation Perfect channel estimation CQI feedback period and delay 2 frames Scheduling method PF Cell to cell distance 500 m BTS power 46 dbm Shadow fading 8 d. B UE noise figure 9 d. B Link adaptation method RBIR for MMSE receiver

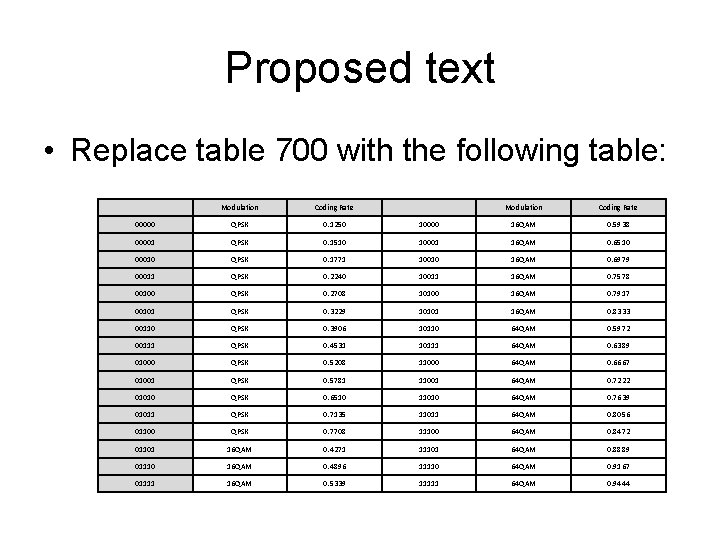

Proposed text • Replace table 700 with the following table: Modulation Coding Rate 00000 QPSK 0. 1250 10000 16 QAM 0. 5938 00001 QPSK 0. 1510 10001 16 QAM 0. 6510 00010 QPSK 0. 1771 10010 16 QAM 0. 6979 00011 QPSK 0. 2240 10011 16 QAM 0. 7578 00100 QPSK 0. 2708 10100 16 QAM 0. 7917 00101 QPSK 0. 3229 10101 16 QAM 0. 8333 00110 QPSK 0. 3906 10110 64 QAM 0. 5972 00111 QPSK 0. 4531 10111 64 QAM 0. 6389 01000 QPSK 0. 5208 11000 64 QAM 0. 6667 01001 QPSK 0. 5781 11001 64 QAM 0. 7222 01010 QPSK 0. 6510 11010 64 QAM 0. 7639 01011 QPSK 0. 7135 11011 64 QAM 0. 8056 01100 QPSK 0. 7708 11100 64 QAM 0. 8472 01101 16 QAM 0. 4271 11101 64 QAM 0. 8889 01110 16 QAM 0. 4896 11110 64 QAM 0. 9167 01111 16 QAM 0. 5339 11111 64 QAM 0. 9444

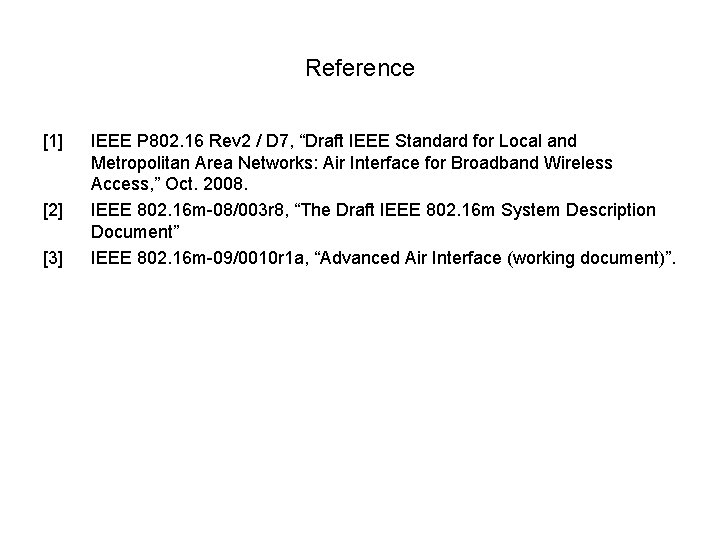

Reference [1] [2] [3] IEEE P 802. 16 Rev 2 / D 7, “Draft IEEE Standard for Local and Metropolitan Area Networks: Air Interface for Broadband Wireless Access, ” Oct. 2008. IEEE 802. 16 m-08/003 r 8, “The Draft IEEE 802. 16 m System Description Document” IEEE 802. 16 m-09/0010 r 1 a, “Advanced Air Interface (working document)”.
