MCM FAQs MCM Motor and Load Anomaly Detector GE Internal - For internal distribution

MCM FAQs MCM Motor and Load Anomaly Detector GE Internal - For internal distribution only.

Elevator Speech • Energy savings of 2 -4% from efficiency improvements: (on a big

Elevator Speech • Energy savings of 2 -4% from efficiency improvements: (on a big motor, that’s a lot of energy) • Power and O&G Industry paradigm is shifting from periodic monitoring to anomaly detection to better manage both mechanical and electrical maintenance. • Users moving from PDC route data collection realize personnel savings and improved resource management. • CM technologies are used to validate anomalies for increased alarm confidence. • Simplicity: “traffic light” user interface: “. . it simply works. ” • covers electrical and mechanical faults: for the driver and the load Bottom Line: Gives earliest warning with maximum confidence and maximum coverage …. …at the lowest cost. GE Internal - For internal distribution only.

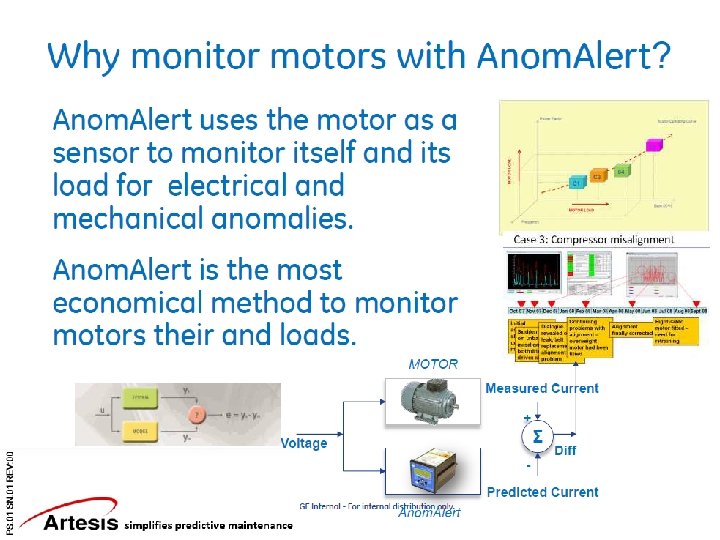

Why monitor motors? Majority are out of sight-out, out of mind … until they

Why monitor motors? Majority are out of sight-out, out of mind … until they break. For the petroleum and chemical industries the average downtime costs are $87, 000 per hour. 1 • Because they’re a major energy consumer! • In the US alone, 1. 2 billion+ motors consume 20% of all energy used in the US • These same motors consume 59% of all electricity generated. 1 Motor efficiency is best at maximum load. MCM measures and reports on motor efficiency. Owners then have the info they need to size a motor correctly for the specific application. GE Internal - For internal distribution only.

AES Viewer Conditions of all monitored equipment in a row can be seen in

AES Viewer Conditions of all monitored equipment in a row can be seen in one window. Each horizontal line corresponds to one equipment monitored listed on the left.

AES Viewer Equipment status report includes a summary of fault detection, diagnosis and work

AES Viewer Equipment status report includes a summary of fault detection, diagnosis and work order suggestion.

AES Viewer On trend view , the limit levels are plotted for each parameter

AES Viewer On trend view , the limit levels are plotted for each parameter providing an in depth understanding about equipment condition.

AES Viewer Instant PSD plotting enables comparing PSDs of different equipment being monitored.

AES Viewer Instant PSD plotting enables comparing PSDs of different equipment being monitored.

What are MCM’s target motors? Hazardous locations Difficult and/or dangerous to access Semi to

What are MCM’s target motors? Hazardous locations Difficult and/or dangerous to access Semi to high criticality motors Cyclic duty Nuclear installations Cryogenic motorpumps Submerged, remote offshore example GE Internal - For internal distribution only. Fin fans

What are MCM’s benefits? Easy installation Significant energy savings Operational expense reduction Very cost

What are MCM’s benefits? Easy installation Significant energy savings Operational expense reduction Very cost effective Semi-automated mechanical and electrical analysis. Model based diagnostics/ anomaly detection: Patented Algorithm. Differential spectrum (actual - good) used to identify anomalies. like noise-cancelling headphones, MCM enables you to see the good stuff normally buried in the noise level. GE Internal - For internal distribution only.

Why enhance existing CM Solutions for Motors? It’s a natural extension of our extensive

Why enhance existing CM Solutions for Motors? It’s a natural extension of our extensive experience with rotating equipment…. …and MCM’s experience with motor modeling and anomaly detection. In this case, MCM had been installed on various items of equipment at an automotive battery manufacturer, including this compressor. MCM started giving intermittent alarms on September 2005, and a bearing problem was diagnosed by MCM. Deterioration in the condition of the machine was kept under review until January 2006, during which time maintenance action was safely deferred. When carried out, maintenance and repair actions verified the diagnostic assessment of MCM. On later examination of the MCM trends, it was found that the bearing problem was detected even earlier that 13 September 2005, but the assessed severity was not sufficient to give rise to an alert. This demonstrates the capability of MCM to indicate developing faults at a very early stage. and really leverages your customer’s value from their installed BN base

How are you better than the other guys? MCM gives the earliest warning possible

How are you better than the other guys? MCM gives the earliest warning possible with maximum confidence and maximum coverage at lowest cost y.

What is MCM’s Track Record? Multiple international awards for MCM technology, including: • UK

What is MCM’s Track Record? Multiple international awards for MCM technology, including: • UK Institution of Engineering and Technology (IET) - Innovation Award • Control Engineering's Editor's Choice Award - The 40 Best Products of 2000 Installed base > 2, 000 (and growing) installed in multiple industries. Proven technology and product. 7 GE Internal - For internal distribution only.

What is the value proposition? Frees up operators and experts by reducing data gathering

What is the value proposition? Frees up operators and experts by reducing data gathering chores. Improves energy efficiency with motor energy monitoring. Correlates motor and load parameters to process data. GE Internal - For internal distribution only.

Pd. M/MCM Program Comparison Sample Pd. M Program MCM Predictive

Pd. M/MCM Program Comparison Sample Pd. M Program MCM Predictive

I already have Multilin; why do I need MCM? MCM is a condition monitoring

I already have Multilin; why do I need MCM? MCM is a condition monitoring solution for the motor and its load. Multilin, Eaton, ABB and other protective relays provide protection, metering, data and event capture only for the motor. System 1(or a similar application) is required to capture the data from these protective relays and convert it to useful condition monitoring information. MCM provides condition monitoring information for the motor, and its load, by itself, or with System 1. Protection relays are like 3500 without System 1. GE Internal - For internal distribution only.

MCM frees up your motor experts and increases their effectiveness and efficiency. MCM I

MCM frees up your motor experts and increases their effectiveness and efficiency. MCM I already have other technologies; why do I need MCM? MCM provides one technology that detects anomalies and the cause. These technologies are not replaced but are optimally used to validate that a condition exists and to collect further data to correct the anomaly. GE Internal - For internal distribution only.

Ideal Customer Profile • Has a “significant” fleet of REB motors that are not

Ideal Customer Profile • Has a “significant” fleet of REB motors that are not already permanently instrumented for monitoring (e. g. Trend. Master, 3500). • Has an Electrical Maintenance team with skilled services resources that can install current and voltage sensors. GE Internal - For internal distribution only.

References These items can be accessed at: http: //libraries. ge. com/folders. Index. do? entity_id=16045599101&sid=101&SF=1

References These items can be accessed at: http: //libraries. ge. com/folders. Index. do? entity_id=16045599101&sid=101&SF=1 1. Test Methods for Determining the Impact of Motor Condition on Motor Efficiency and Reliability, Howard W. Penrose, Ph. D. , ALL-TEST Pro, LLC. 2. In. Tech (ISA) Paper: Embedded motor condition monitoring, diagnostics, July, August 2010 3. On-line Condition Monitoring of Motors using Electrical Signature Analysis, Korde, Diagnostic Technologies India Pvt. Ltd. 4. World-Class Companies need World-Class Motor Management and Maintenance, Bethel, VP Pd. MA, no date 5. Intelligent Condition Management On-Line, Hills, White paper WP 08, Mechanalysis (India) Limited, (presented at Power Generation India 2008, New Delhi) 6. Artesis-Predictive Maintenance Revolution, September 2008 7. MCM Case Studies, 22 Case Studies-March 2011 Thomson. ppt GE Internal - For internal distribution only.
