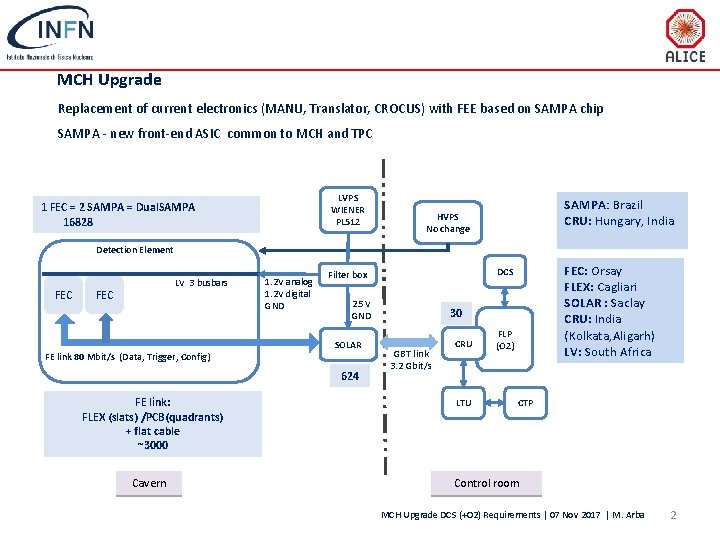

MCH Upgrade Replacement of current electronics (MANU, Translator, CROCUS) with FEE based on SAMPA chip SAMPA - new front-end ASIC common to MCH and TPC LVPS WIENER PL 512 1 FEC = 2 SAMPA = Dual. SAMPA 16828 SAMPA: Brazil CRU: Hungary, India HVPS No change Detection Element FEC LV 3 busbars FEC FE link 80 Mbit/s (Data, Trigger, Config) 1. 2 V analog 1. 2 V digital GND 2. 5 V GND SOLAR 624 FE link: FLEX (slats) /PCB(quadrants) + flat cable ~3000 Cavern FEC: Orsay FLEX: Cagliari SOLAR : Saclay CRU: India (Kolkata, Aligarh) LV: South Africa DCS Filter box 30 GBT link 3. 2 Gbit/s CRU LTU FLP (O 2) CTP Control room MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 2

Numbers 1 -2 • Station 1: • 451 DS 12 per quadrant (3608 total) • 48 SOLAR inside + 48 outside • 8 crates inside + 8 outside (2 crates per quadrant) • 2 CRU Inside + 2 CRU Outside (2 FLP) • Station 2: • 443 DS 12 per quadrant (3544 total) • 48 SOLAR inside + 48 outside • 8 crates inside + 8 outside (2 crates per quadrant) • 2 CRU Inside +2 CRU Outside (2 FLP) MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 3

Numbers 345 • Station 3: • 604 DS 345 1/2 Ch 5, 614 DS 345 1/2 Ch 6 (2436 total) • 52 SOLAR inside + 52 outside • 10 crates inside + 10 outside (5 crates half chamber) • 3 CRU inside + 3 CRU outside (3 FLP) • Station 4: • 860 DS 345 for half chamber (3440 total) • 76 SOLAR inside + 76 outside • 14 crates inside + 14 outside (7 crates half chamber) • 2 CRU per half chamber (8 CRU total – 4 FLP) • Station 5: • 950 DS 345 for half chamber (3800 total) • 88 SOLAR inside + 88 outside • 16 crates inside + 16 outside (8 crates half chamber) • 2 CRU per half chamber (8 CRU total -4 FLP) MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 4

DCS – O 2 general scheme MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 5

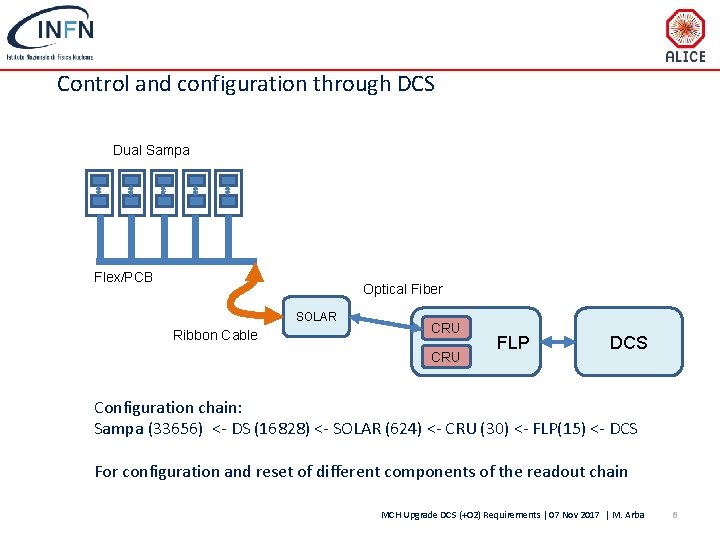

Control and configuration through DCS Dual Sampa Flex/PCB Optical Fiber SOLAR Ribbon Cable CRU FLP DCS Configuration chain: Sampa (33656) <- DS (16828) <- SOLAR (624) <- CRU (30) <- FLP(15) <- DCS For configuration and reset of different components of the readout chain MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 6

Components controlled over DCS • • • HV LV – Dual. Sampa, SOLAR crates Temperature Dual Sampa – config SOLAR – config CRU MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 7

HV • No change in HV plan in the upgrade scenario • DCS: system-wise same as the present system • Trip handling may evolve – e. g. automatic HV adjustment on overcurrent MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 8

LV • Supply SOLAR and DS – new configuration in the upgrade scenario • DCS: system-wise analogous to the present system (MANU → DS; CROCUS → SOLAR) Numbers will change – depending on the LV segmentation MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 9

Temperature Monitor temperature at the chamber level – same as present system MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 10

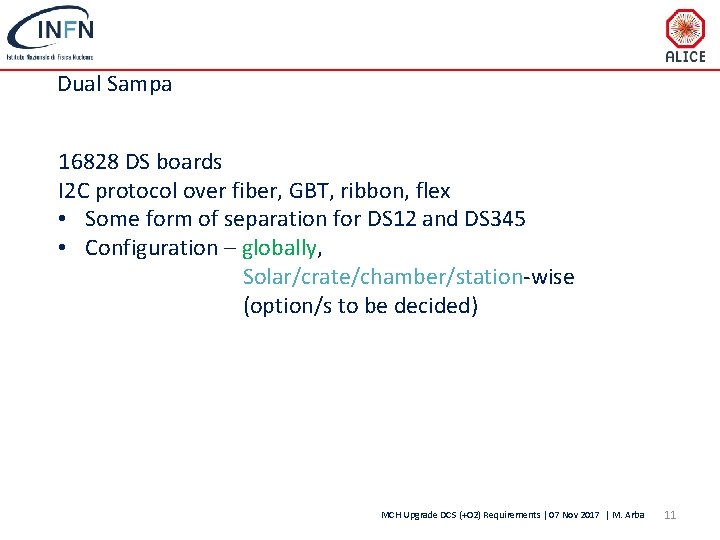

Dual Sampa 16828 DS boards I 2 C protocol over fiber, GBT, ribbon, flex • Some form of separation for DS 12 and DS 345 • Configuration – globally, Solar/crate/chamber/station-wise (option/s to be decided) MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 11

SOLAR 624 SOLAR boards • GBT Configuration – globally, single/crate/chamber/station-wise (option/s to be decided) • Reset – globally, single/crate/chamber/station-wise (option/s to be decided) MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 12

CRU 30 CRU • Configuration – FW reprogramming (? ) • Append DCS info to data packets at specific intervals - tbd • Monitoring? MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 13

O 2 req (preliminary, not exhaustive) Numbers 30 CRU hosted in 15 FLPs • St 1 – 4 CRU – 2 FLPs • St 2 – 4 CRU – 2 FLPs • St 3 – 6 CRU – 3 FLPs • St 4 – 8 CRU – 4 FLPs • St 5 – 8 CRU – 4 FLPs MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 14

O 2 req ID • Data to be tagged with unique id • ID available – DS, SOLAR, CRU • Sufficient to have an unique ID which is unique in a Station MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 15

O 2 req Configuration tool • We need a tool in order to configure the whole readout chain • Analogous to LC 2 where we can add/remove FEE components at any level we want – DS/Solar/Crate… to be decided • This tool should decode the same config file used by DCS to configure the chain Should be considered also in the processing requirements of O 2 in the FLP level MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 16

O 2 req: Commissioning One CRU has 24 bidilinks for optical fibers • station 1: work by quadrant, need 12 links = 1 CRU • station 2: work by quadrant, need 12 links = 1 CRU • station 3: work by half-chamber, need 26 links ==> 2 CRU • station 4: work by half-chamber, need 38 links ==> 2 CRU • station 5: work by half-chamber, need 44 links ==> 2 CRU Commissioning Station 1(quadrant): 1 CRU - 1 FLP Station 2(quadrant): 1 CRU - 1 FLP Stations 3, 4, 5(half-chamber): 2 CRUs – 1 FLPs Total: 4 CRUs, 3 FLPs MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 17

https: //docs. google. com/document/d/1 u. HDe. Hy. J 3 rv 1 g 61 Zb. Rlp. Ti. Bi. AJ 577 n. Ek 85 Nox. E Dw. J 67 o/edit? usp=sharing MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 18

MCH O requirements 2 Processing needs in the FLP Estimation of the processing power to analyze the data once stored in the FLP memory. …. . FLP availability for commissioning at P 2 Number of FLP and CRU/GBT links needed to commission the detector (at P 2 or in another lab). Commissioning will be independently done for Station 1, Station 2 and Station 345 The requirements for commissioning at P 2 (without spares) are as follows: - 1 CRU for commissioning of quadrants station 1: 1 FLP - 1 CRU for commissioning of quadrants station 2: 1 FLP - 2 CRU for commissioning of half-chambers of stations 3, 4, 5 : 1 FLP Total: 4 CRU and 3 FLP for commissioning in the Cavern ( the CRU/FLP should be installed in the cavern for commissioning) In addition we need 2 set ups for laboratory tests at CERN (one already existing with GRORC). For that we need 2 CRU and 2 FLPs in total for the two setups. Starting date when the infrastructure must be ready to start such a commissioning We will start the commissioning in the cavern not before March 2019. In the lab we would like to have the set up by mid/late 2018 if possible. MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 19

EXTRAS MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 20

MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 21

Control and configuration through DCS Configuration chain: Sampa (33656) <- DS (16828) <- SOLAR (624) <- CRU (30) <FLP(15) <- DCS For configuration and reset of different components of the readout chain MCH Upgrade DCS (+O 2) Requirements | 07 Nov 2017 | M. Arba 22
