MCE 561 Computational Methods in Solid Mechanics Nonlinear

MCE 561 Computational Methods in Solid Mechanics Nonlinear Issues

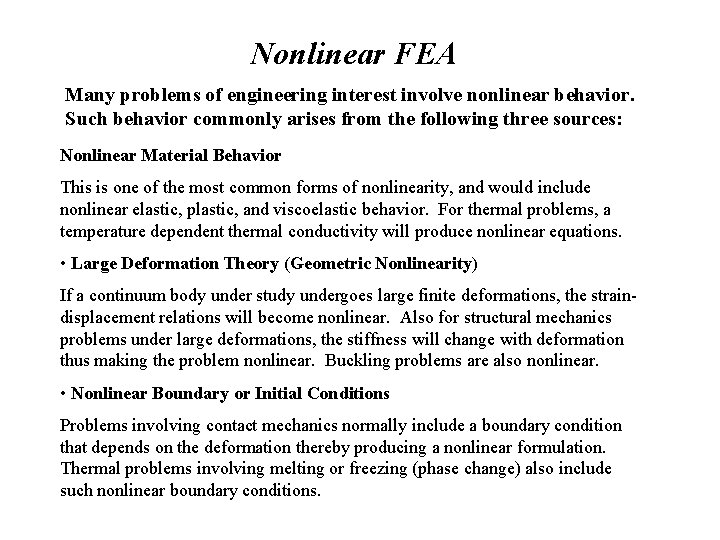

Nonlinear FEA Many problems of engineering interest involve nonlinear behavior. Such behavior commonly arises from the following three sources: Nonlinear Material Behavior This is one of the most common forms of nonlinearity, and would include nonlinear elastic, plastic, and viscoelastic behavior. For thermal problems, a temperature dependent thermal conductivity will produce nonlinear equations. • Large Deformation Theory (Geometric Nonlinearity) If a continuum body under study undergoes large finite deformations, the straindisplacement relations will become nonlinear. Also for structural mechanics problems under large deformations, the stiffness will change with deformation thus making the problem nonlinear. Buckling problems are also nonlinear. • Nonlinear Boundary or Initial Conditions Problems involving contact mechanics normally include a boundary condition that depends on the deformation thereby producing a nonlinear formulation. Thermal problems involving melting or freezing (phase change) also include such nonlinear boundary conditions.

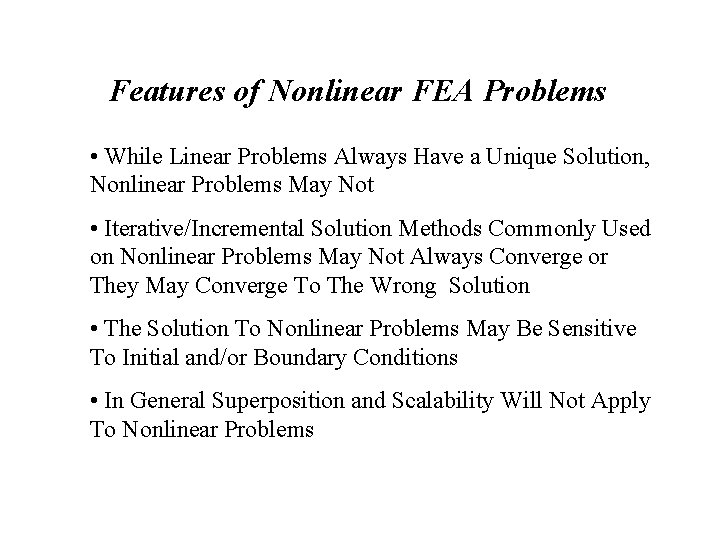

Features of Nonlinear FEA Problems • While Linear Problems Always Have a Unique Solution, Nonlinear Problems May Not • Iterative/Incremental Solution Methods Commonly Used on Nonlinear Problems May Not Always Converge or They May Converge To The Wrong Solution • The Solution To Nonlinear Problems May Be Sensitive To Initial and/or Boundary Conditions • In General Superposition and Scalability Will Not Apply To Nonlinear Problems

Example Nonlinear Problems Material Nonlinearity s s e e Nonlinear Stress-Strain Behavior Elastic/Plastic Stress-Strain Behavior W (i) L (j) This behavior leads to an FEA formulation with a stiffness response that depends on the deformation

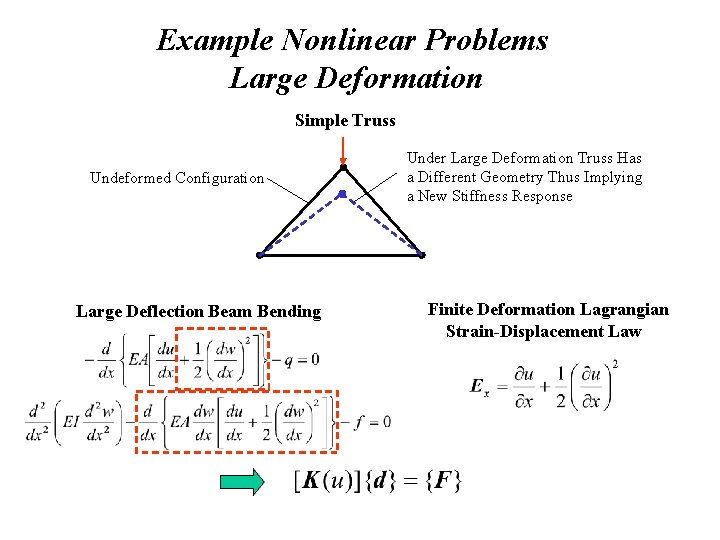

Example Nonlinear Problems Large Deformation Simple Truss Undeformed Configuration Large Deflection Beam Bending Under Large Deformation Truss Has a Different Geometry Thus Implying a New Stiffness Response Finite Deformation Lagrangian Strain-Displacement Law

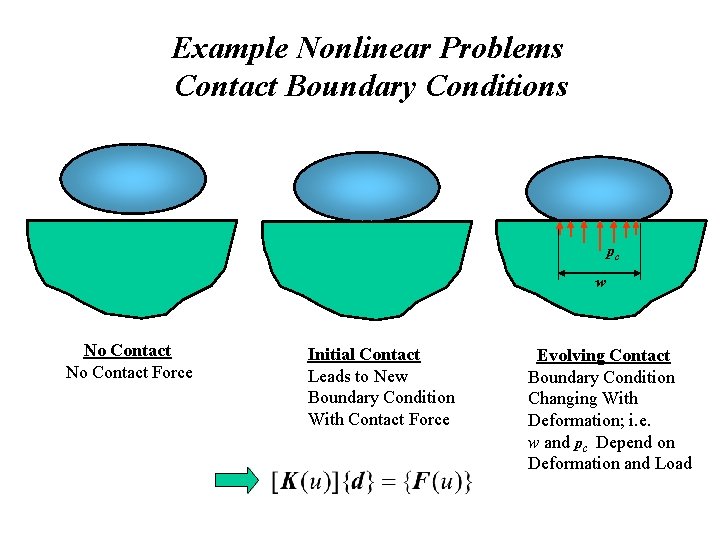

Example Nonlinear Problems Contact Boundary Conditions pc w No Contact Force Initial Contact Leads to New Boundary Condition With Contact Force Evolving Contact Boundary Condition Changing With Deformation; i. e. w and pc Depend on Deformation and Load

Nonlinear FEA Example Temperature Dependent Conductivity Hence Nonlinearity in Both Stiffness Matrix and Loading Vector

Solution Techniques for Nonlinear Problems Since Direct Inversion of the Stiffness Matrix Is Impossible, Other Methods Must Be Used To Solve Nonlinear Problems • Incremental or Stepwise Procedures • Iterative or Newton Methods • Mixed Step-Iterative Techniques

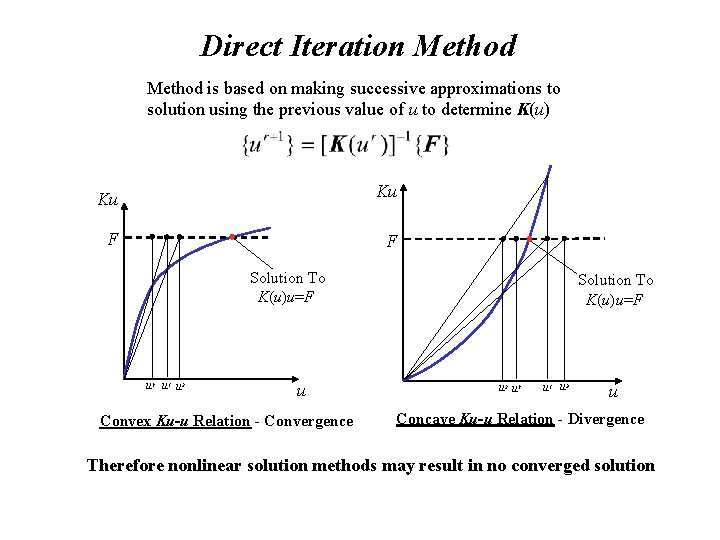

Direct Iteration Method is based on making successive approximations to solution using the previous value of u to determine K(u) Ku Ku F F Solution To K(u)u=F u 0 u 1 u 2 u Convex Ku-u Relation - Convergence Solution To K(u)u=F u 2 u 0 u 1 u 3 u Concave Ku-u Relation - Divergence Therefore nonlinear solution methods may result in no converged solution
