Mc Murdo Marine Product Range Mc Murdo Marine

Mc. Murdo Marine Product Range

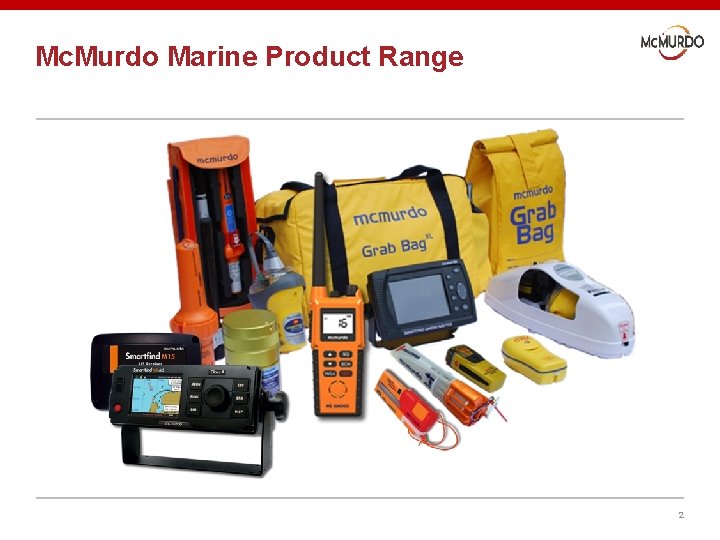

Mc. Murdo Marine Product Range 2

EPIRBs Emergency Position-Indicating Radio Beacon

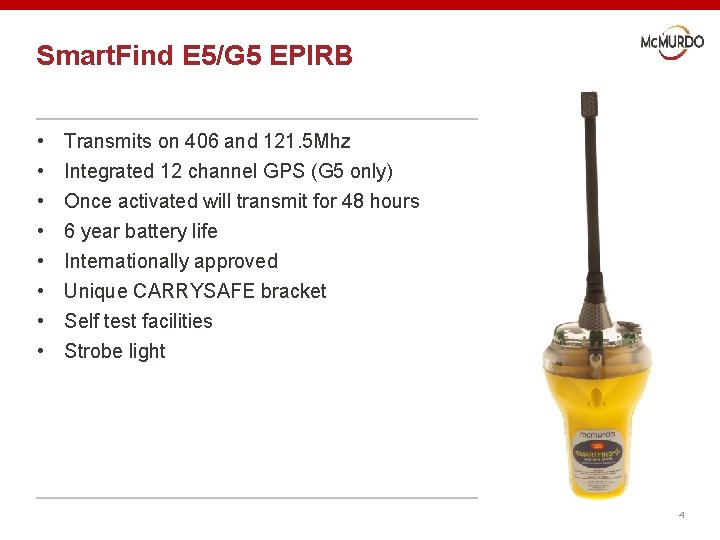

Smart. Find E 5/G 5 EPIRB • • Transmits on 406 and 121. 5 Mhz Integrated 12 channel GPS (G 5 only) Once activated will transmit for 48 hours 6 year battery life Internationally approved Unique CARRYSAFE bracket Self test facilities Strobe light 4

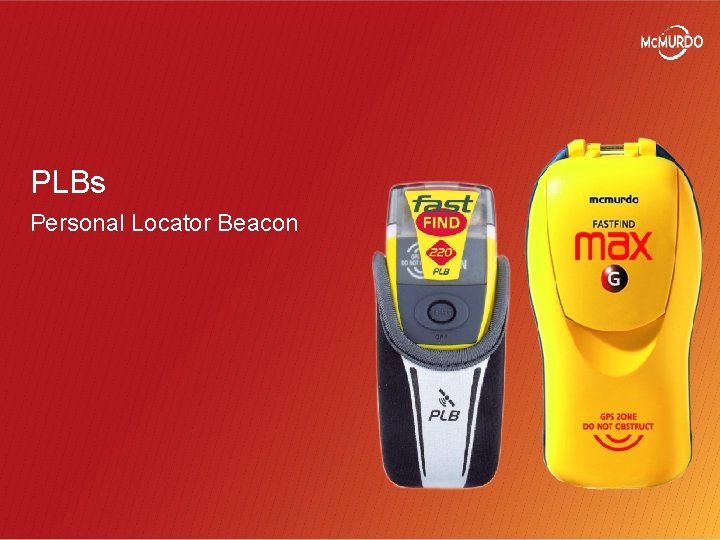

PLBs Personal Locator Beacon

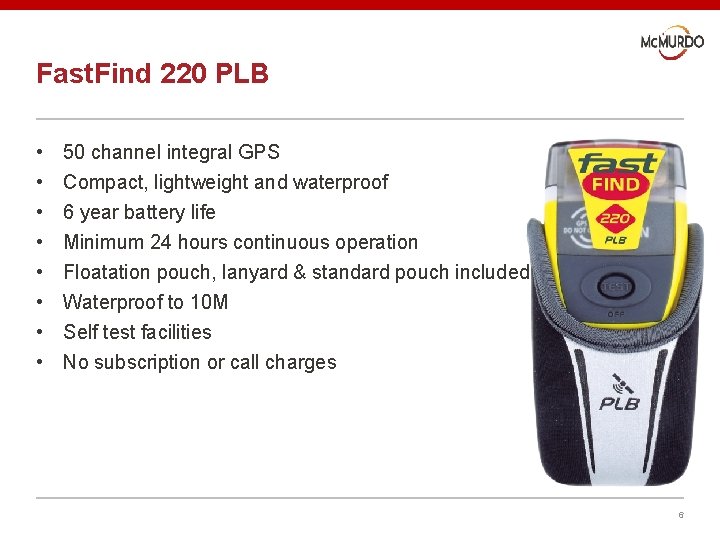

Fast. Find 220 PLB • • 50 channel integral GPS Compact, lightweight and waterproof 6 year battery life Minimum 24 hours continuous operation Floatation pouch, lanyard & standard pouch included Waterproof to 10 M Self test facilities No subscription or call charges 6

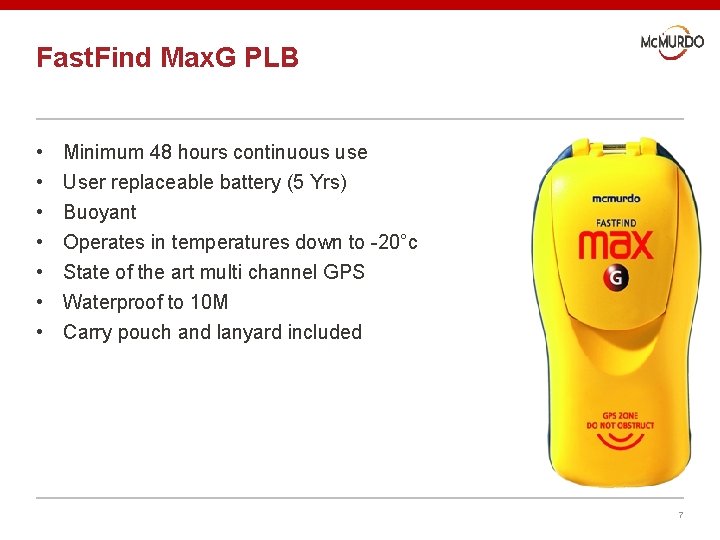

Fast. Find Max. G PLB • • Minimum 48 hours continuous use User replaceable battery (5 Yrs) Buoyant Operates in temperatures down to -20°c State of the art multi channel GPS Waterproof to 10 M Carry pouch and lanyard included 7

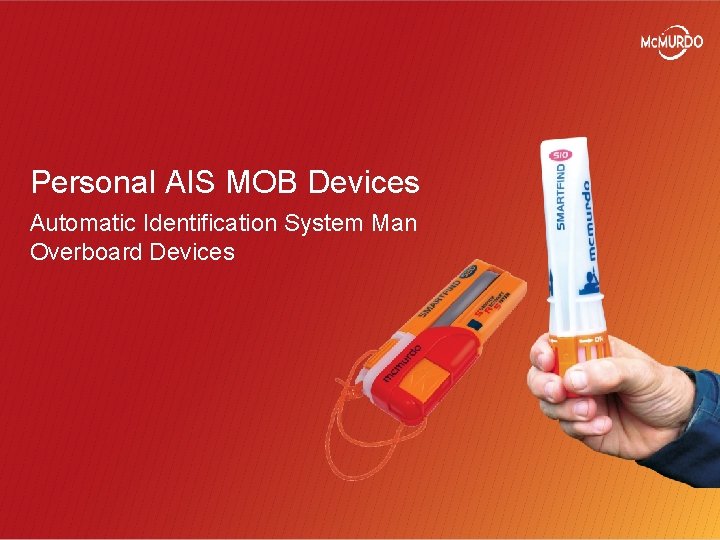

Personal AIS MOB Devices Automatic Identification System Man Overboard Devices

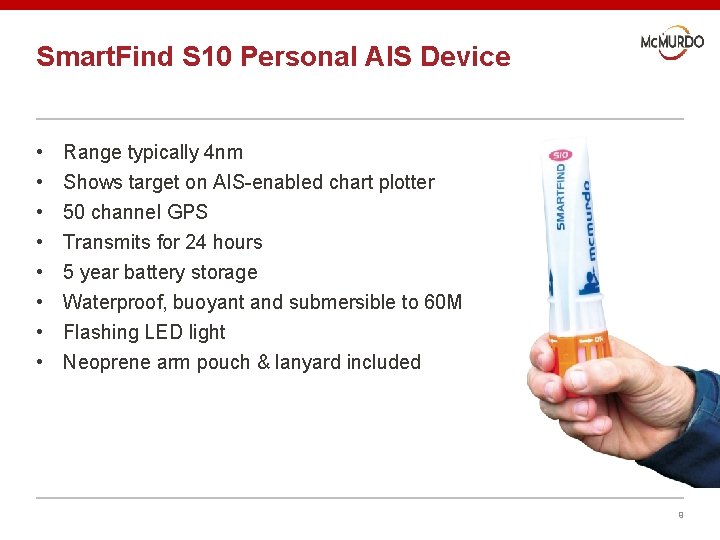

Smart. Find S 10 Personal AIS Device • • Range typically 4 nm Shows target on AIS-enabled chart plotter 50 channel GPS Transmits for 24 hours 5 year battery storage Waterproof, buoyant and submersible to 60 M Flashing LED light Neoprene arm pouch & lanyard included 9

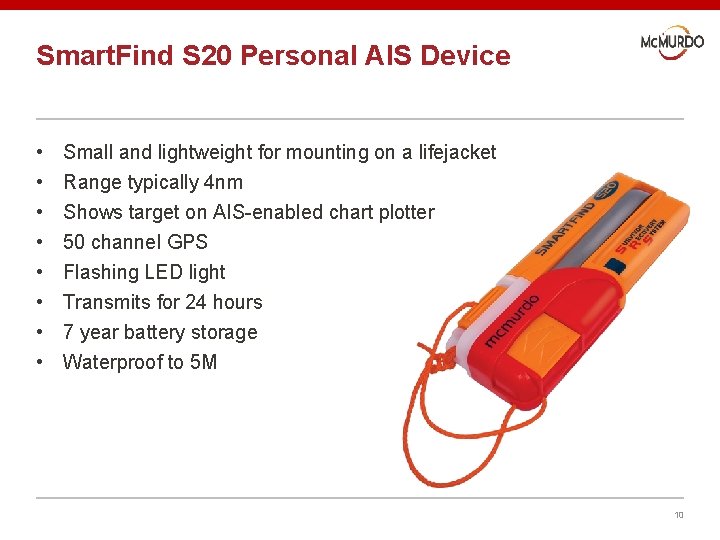

Smart. Find S 20 Personal AIS Device • • Small and lightweight for mounting on a lifejacket Range typically 4 nm Shows target on AIS-enabled chart plotter 50 channel GPS Flashing LED light Transmits for 24 hours 7 year battery storage Waterproof to 5 M 10

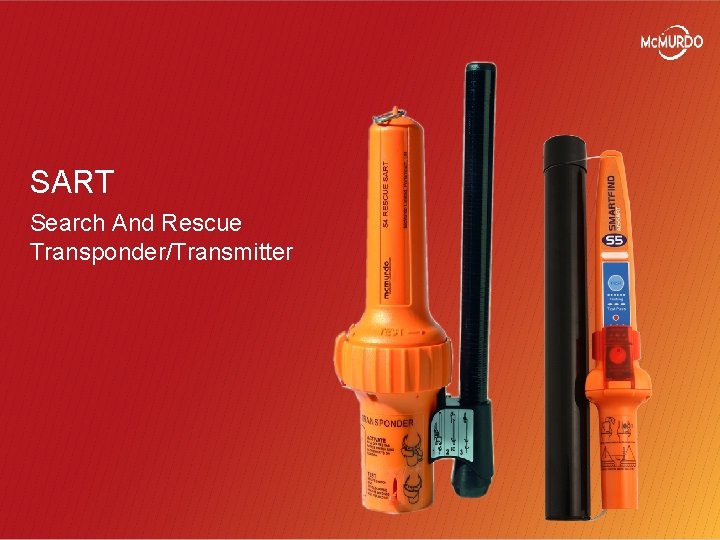

SART Search And Rescue Transponder/Transmitter

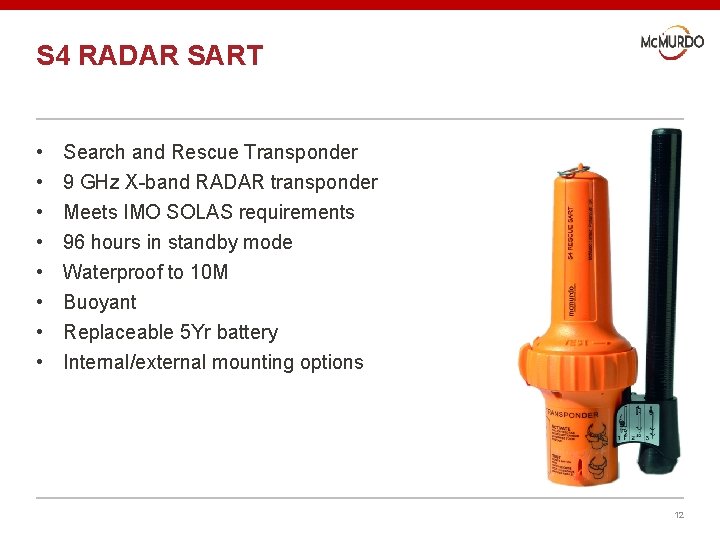

S 4 RADAR SART • • Search and Rescue Transponder 9 GHz X-band RADAR transponder Meets IMO SOLAS requirements 96 hours in standby mode Waterproof to 10 M Buoyant Replaceable 5 Yr battery Internal/external mounting options 12

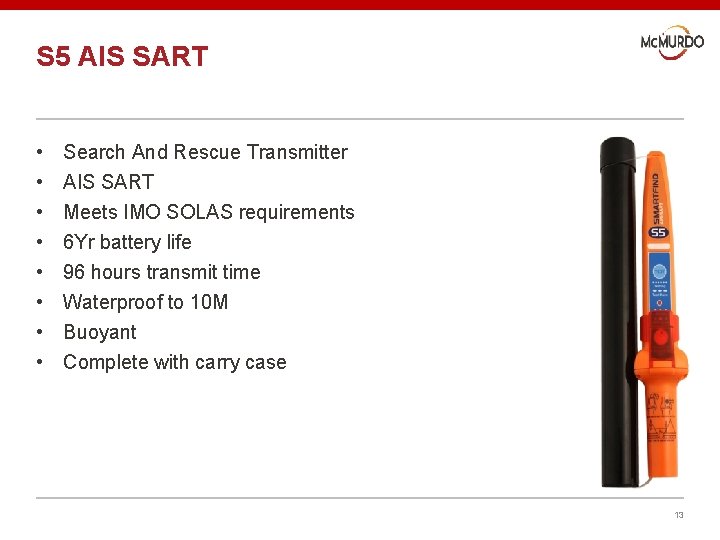

S 5 AIS SART • • Search And Rescue Transmitter AIS SART Meets IMO SOLAS requirements 6 Yr battery life 96 hours transmit time Waterproof to 10 M Buoyant Complete with carry case 13

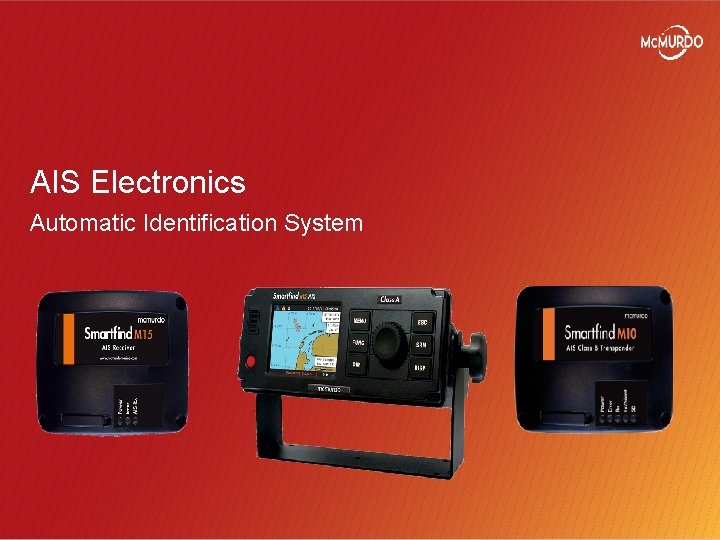

AIS Electronics Automatic Identification System

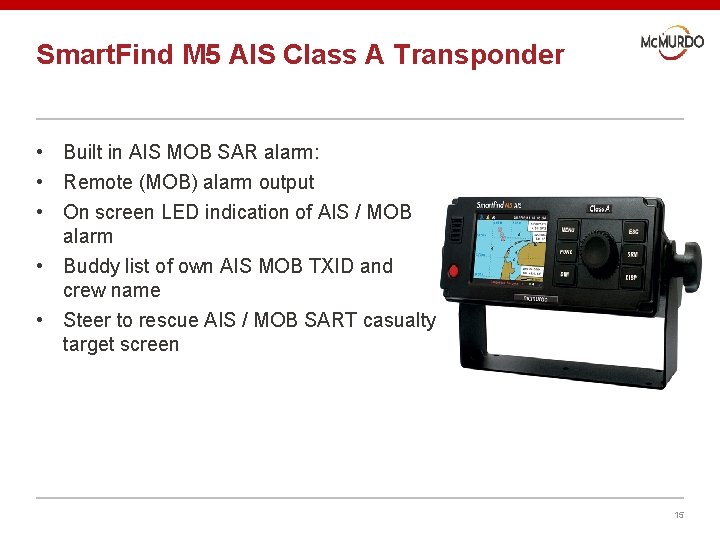

Smart. Find M 5 AIS Class A Transponder • Built in AIS MOB SAR alarm: • Remote (MOB) alarm output • On screen LED indication of AIS / MOB alarm • Buddy list of own AIS MOB TXID and crew name • Steer to rescue AIS / MOB SART casualty target screen 15

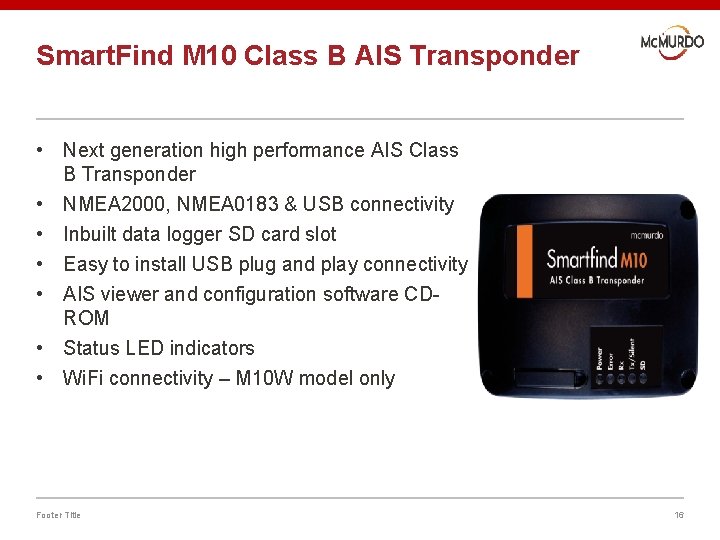

Smart. Find M 10 Class B AIS Transponder • Next generation high performance AIS Class B Transponder • NMEA 2000, NMEA 0183 & USB connectivity • Inbuilt data logger SD card slot • Easy to install USB plug and play connectivity • AIS viewer and configuration software CDROM • Status LED indicators • Wi. Fi connectivity – M 10 W model only Footer Title 16

Smart. Find M 15 AIS Receiver • • • Dual channel AIS receiver High sensitivity Dual-Channel AIS Receiver VHF antenna socket NMEA 0183 interface connection Easy to install USB plug and play connectivity AIS viewer and configuration software CDROM • Status LED indicators • VHF splitter – M 15 S model only 17

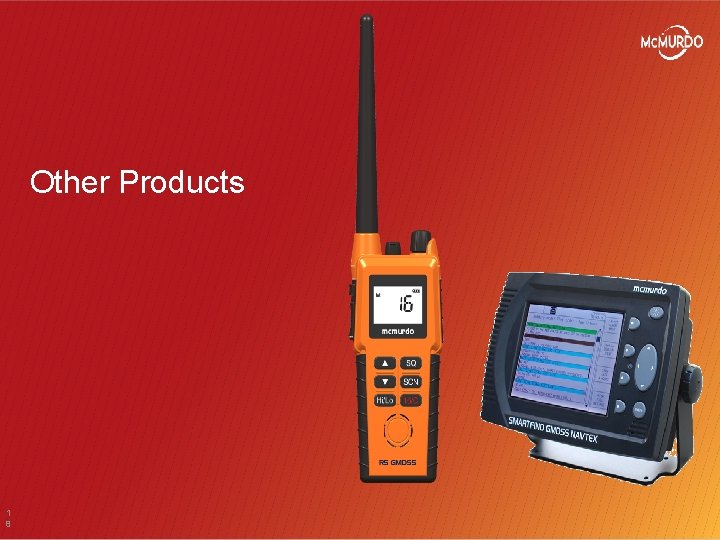

Other Products 1 8

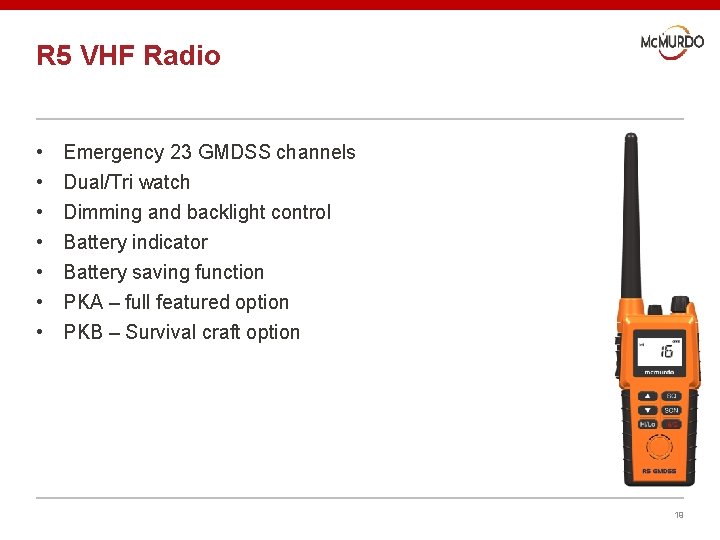

R 5 VHF Radio • • Emergency 23 GMDSS channels Dual/Tri watch Dimming and backlight control Battery indicator Battery saving function PKA – full featured option PKB – Survival craft option 19

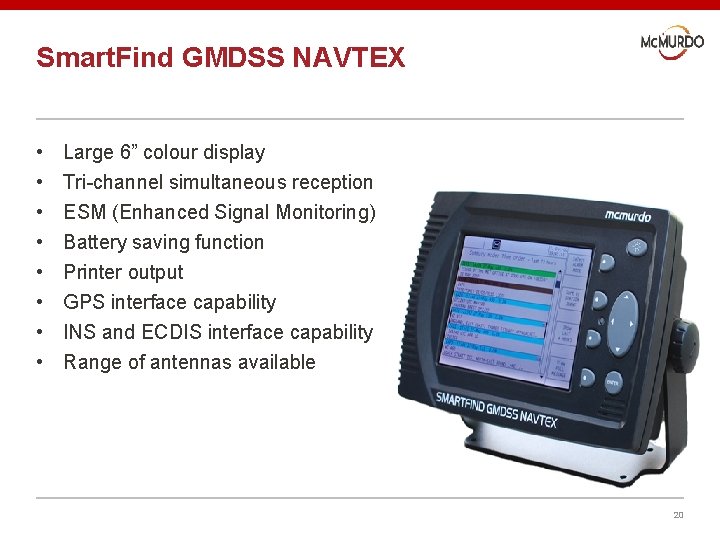

Smart. Find GMDSS NAVTEX • • Large 6” colour display Tri-channel simultaneous reception ESM (Enhanced Signal Monitoring) Battery saving function Printer output GPS interface capability INS and ECDIS interface capability Range of antennas available 20

www. mcmurdogroup. com 21
