May 2018 doc IEEE 802 15 18 0258

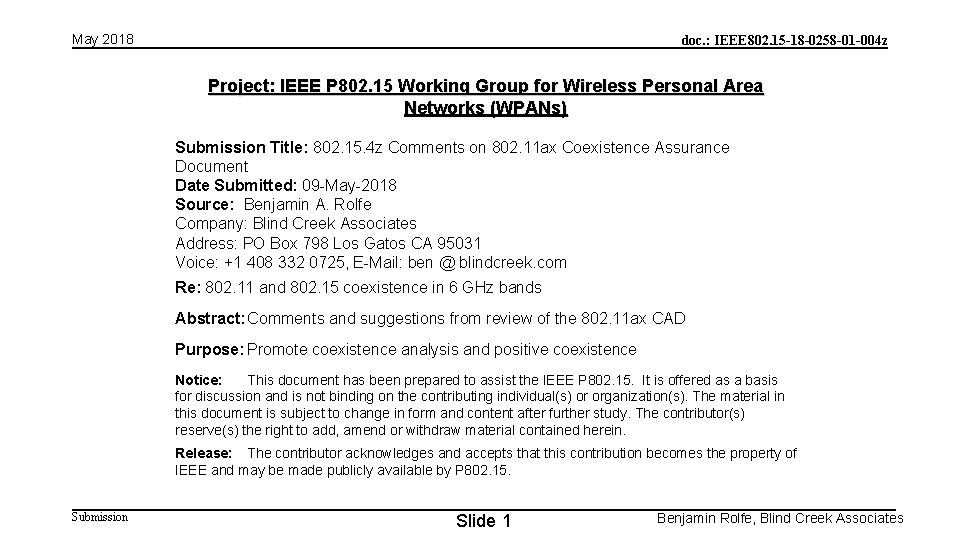

May 2018 doc. : IEEE 802. 15 -18 -0258 -01 -004 z Project: IEEE P 802. 15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: 802. 15. 4 z Comments on 802. 11 ax Coexistence Assurance Document Date Submitted: 09 -May-2018 Source: Benjamin A. Rolfe Company: Blind Creek Associates Address: PO Box 798 Los Gatos CA 95031 Voice: +1 408 332 0725, E-Mail: ben @ blindcreek. com Re: 802. 11 and 802. 15 coexistence in 6 GHz bands Abstract: Comments and suggestions from review of the 802. 11 ax CAD Purpose: Promote coexistence analysis and positive coexistence Notice: This document has been prepared to assist the IEEE P 802. 15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P 802. 15. Submission Slide 1 Benjamin Rolfe, Blind Creek Associates

March 2018 doc. : IEEE 802. 15 -18 -0258 -01 -004 z Purpose of Technical Guidance Document Provides technical guidance for preparation of proposals. The objective of this guidance is to provide technical recommendations for preparing and evaluating proposals, and should not be understood as mandatory requirements for the system design. The intent is to use a flexible and efficient process that provides sufficient descriptions of the technical drivers to enable relevant responses, with efficiency of effort while meeting the critical need for a timely amendment. Submission Slide 2 Benjamin Rolfe, Blind Creek Associates

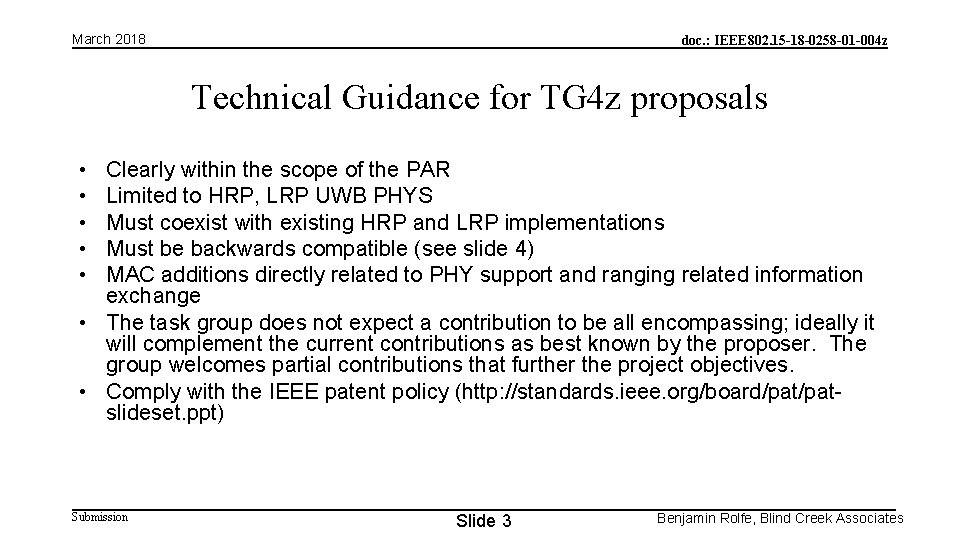

March 2018 doc. : IEEE 802. 15 -18 -0258 -01 -004 z Technical Guidance for TG 4 z proposals • • • Clearly within the scope of the PAR Limited to HRP, LRP UWB PHYS Must coexist with existing HRP and LRP implementations Must be backwards compatible (see slide 4) MAC additions directly related to PHY support and ranging related information exchange • The task group does not expect a contribution to be all encompassing; ideally it will complement the current contributions as best known by the proposer. The group welcomes partial contributions that further the project objectives. • Comply with the IEEE patent policy (http: //standards. ieee. org/board/patslideset. ppt) Submission Slide 3 Benjamin Rolfe, Blind Creek Associates

March 2018 doc. : IEEE 802. 15 -18 -0258 -01 -004 z “Backwards Compatible” in 15. 4 • In general, it means operation of new version devices in the sphere of influence of legacy devices does not disrupt operation of legacy device (doesn’t break it) – The behavior of a legacy device upon reception of the “new” signal/packet/frame is well defined • May be degrees of ‘compatible’, for example – New signal not even detected by legacy devices, – New signal demodulated and ignored – New signal can be demodulated and understood, without the benefit of “new” features • Proposals should address how backward compatible is achieved Submission Slide 4 Benjamin Rolfe, Blind Creek Associates
