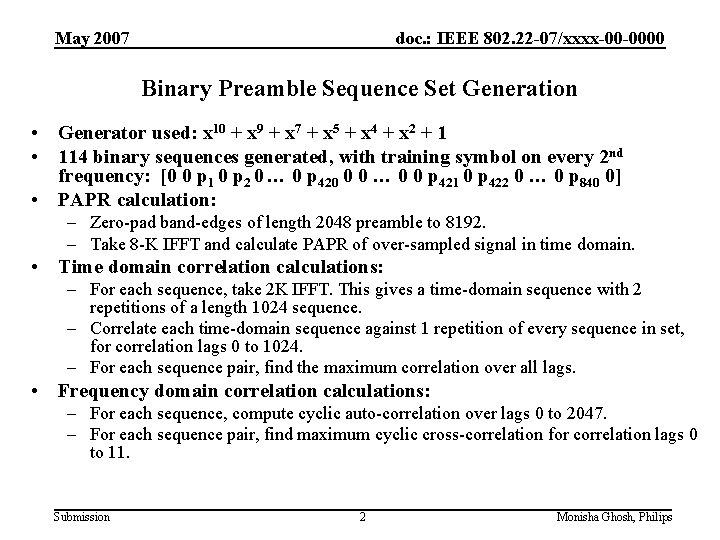

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Binary Preamble Sequence Set Generation • Generator used: x 10 + x 9 + x 7 + x 5 + x 4 + x 2 + 1 • 114 binary sequences generated, with training symbol on every 2 nd frequency: [0 0 p 1 0 p 2 0 … 0 p 420 0 0 … 0 0 p 421 0 p 422 0 … 0 p 840 0] • PAPR calculation: – Zero-pad band-edges of length 2048 preamble to 8192. – Take 8 -K IFFT and calculate PAPR of over-sampled signal in time domain. • Time domain correlation calculations: – For each sequence, take 2 K IFFT. This gives a time-domain sequence with 2 repetitions of a length 1024 sequence. – Correlate each time-domain sequence against 1 repetition of every sequence in set, for correlation lags 0 to 1024. – For each sequence pair, find the maximum correlation over all lags. • Frequency domain correlation calculations: – For each sequence, compute cyclic auto-correlation over lags 0 to 2047. – For each sequence pair, find maximum cyclic cross-correlation for correlation lags 0 to 11. Submission 2 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 PAPR Of Sequence Set Submission 3 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Maximum Time-Domain Cross-Correlation Of Sequence Set Submission 4 Monisha Ghosh, Philips

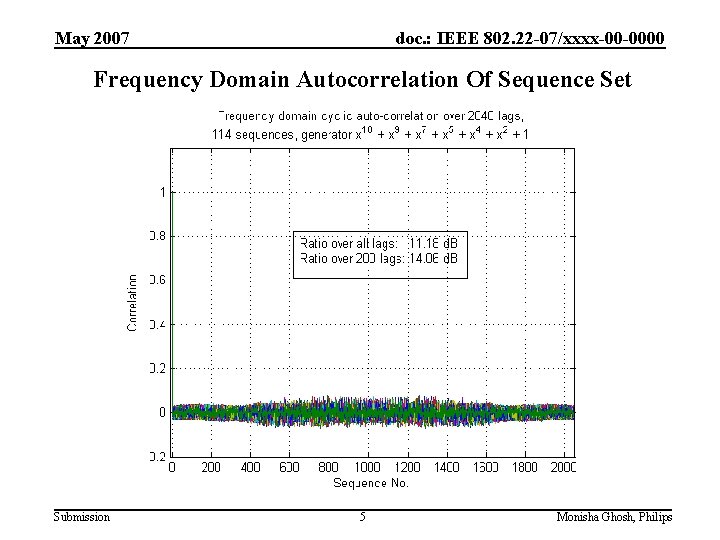

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Frequency Domain Autocorrelation Of Sequence Set Submission 5 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Maximum Frequency-Domain Cross-Correlation Of Sequence Set Over 11 Lags. Submission 6 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Evaluation Of WIMAX sequences • 114 binary sequences provided by Runcom: DC was set to 0 for evaluations. • PAPR calculation: – Zero-pad band-edges of length 2048 preamble to 8192. – Take 8 -K IFFT and calculate PAPR of over-sampled signal in time domain. • Time-domain correlation calculation: – For each sequence, take 2 K IFFT. This gives a time-domain sequence with approximately 3 repetitions of a length 682 sequence. – Correlate each time-domain sequence against 1 repetition of every sequence in set, for all correlation lags. – For each sequence pair, find the maximum and minimum correlation over all lags. • Frequency domain correlation calculation: – For each sequence, compute cyclic auto-correlation over all lags. – For each sequence pair, find maximum cyclic correlation for correlation lags 0 to 11. Submission 7 Monisha Ghosh, Philips

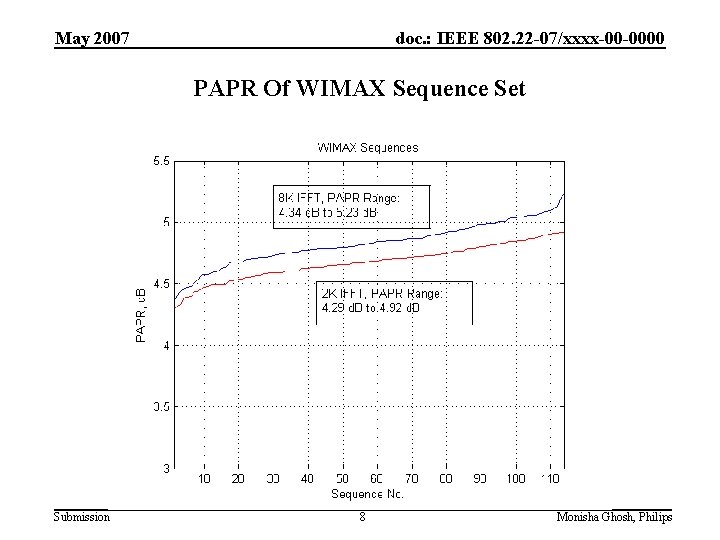

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 PAPR Of WIMAX Sequence Set Submission 8 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Maximum Time-Domain Cross-Correlation Of WIMAX Set About 3 d. B worse than proposed preamble set Submission 9 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Frequency Domain Autocorrelation Of WIMAX Set 2. 6 d. B worse than proposed sequences over all lags. 4. 23 d. B worse than proposed sequences over lags 0 to 200. Submission 10 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Maximum Frequency-Domain Cross-Correlation Of WIMAX Sequence Set Over 11 Lags About 6 d. B worse than proposed preamble set Submission 11 Monisha Ghosh, Philips

May 2007 doc. : IEEE 802. 22 -07/xxxx-00 -0000 Conclusions • Binary preamble set with 114 sequences generated. • PAPR range : 4. 78 to 5. 57 d. B. • Low maximum cross-correlation among proposed sequences in both time and frequency domain. – Better than WIMAX sequences for regions of interest. • Based on M-sequences: simple specification of generator + shifts for each sequence. – Generator is the same for all sequences. Submission 12 Monisha Ghosh, Philips
