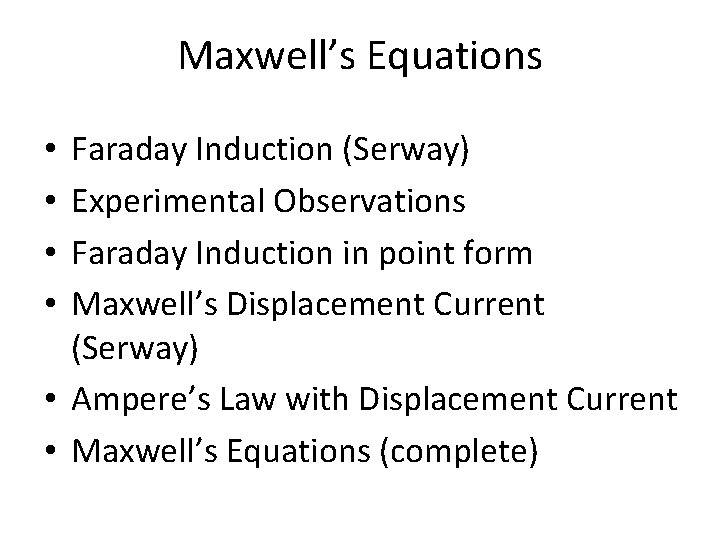

Maxwell’s Equations Faraday Induction (Serway) Experimental Observations Faraday Induction in point form Maxwell’s Displacement Current (Serway) • Ampere’s Law with Displacement Current • Maxwell’s Equations (complete) • •
Faraday Induction Consider a single turn of wire, through which an externally-applied magnetic flux is present. The flux varies with time. A current, Iind , is generated in the wire loop as a result of the changing magnetic flux.

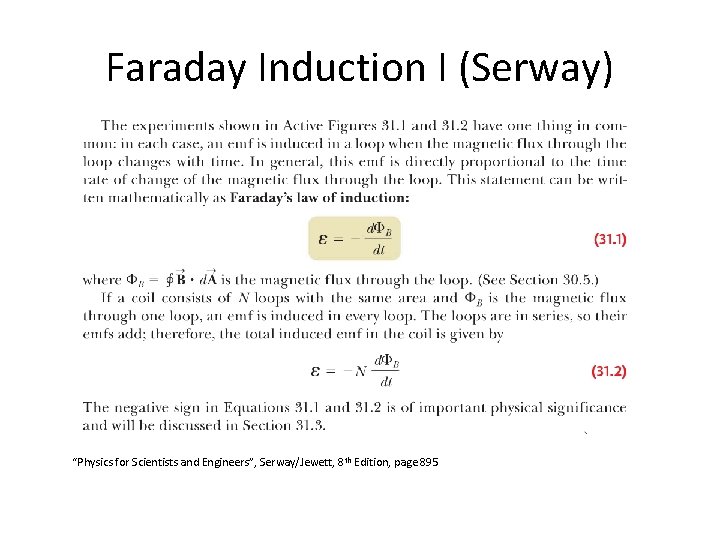

Faraday Induction I (Serway) “Physics for Scientists and Engineers”, Serway/Jewett, 8 th Edition, page 895
Replacing Current with Electric Field Current in the wire is caused by electric field, E, that pushes the charge around the wire. In this illustration, the wire is removed, and the electric field remains. An integration contour, C, is also shown, that coincides with E.
Faraday Induction II (Serway) Experimentally-verified postulate (note ds here is a path)
Faraday Induction •
Displacement Current (Serway)
Displacement Current – The Problem •

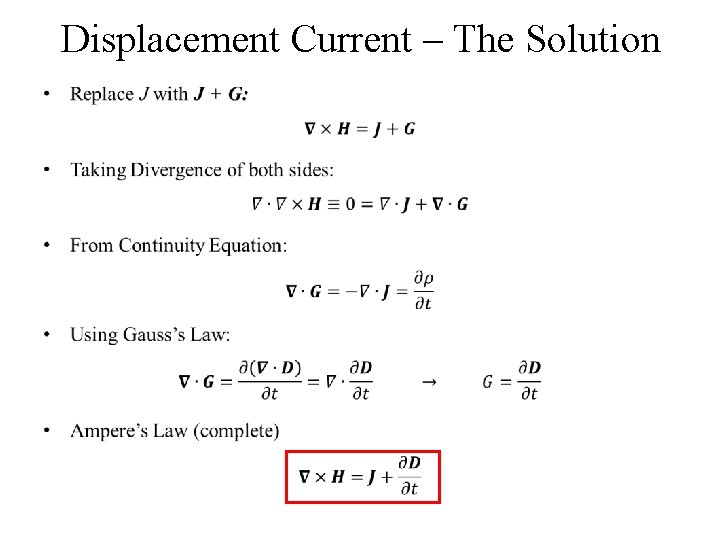

Displacement Current – The Solution •
Maxwell’s Equations in Point Form (Complete) Ampere’s Circuital Law Faraday’s Law of Induction Gauss’ Law for the electric field Gauss’s Law for the magnetic field • Wave setup and propagation • Speed of light, EM spectrum
