Maxwells Equation Maxwell Equations are about Conservation of
Maxwell’s Equation Maxwell Equations are about Conservation of Current Details and PROOF at https: //arxiv. org/abs/1609. 09175 Page 1

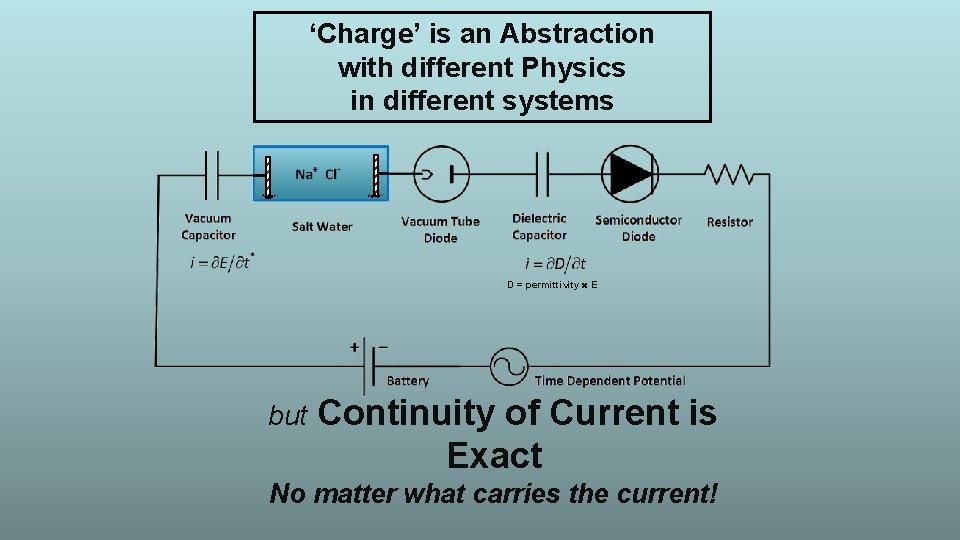

‘Charge’ is an Abstraction with different Physics in different systems Ag Ag. Cl D = permittivity E but Continuity of Current is Exact No matter what carries the current!
Maxwell Equations are about Conservation of Current ‘Current’ is whatever creates a magnetic field curl B Electric Field takes on Whatever Value Conserves current, specifically Details and PROOF at https: //arxiv. org/abs/1609. 09175 Page 3
Electric Field takes on Whatever Value Conserves current, No matter what are the Properties of matter or its Polarization. Theories of matter often treat electrodynamics cavalierly. Vacuum displacement current is usually ignored and so conservation of `current' is not enforced. Details and PROOF at https: //arxiv. org/abs/1609. 09175 Page 4
In a series circuit Current is exactly equal everywhere in every location at every time For ANY mechanism of current flow How is that possible? Page 5
‘Charge’ is an Abstraction with different Physics in different systems Ag Ag. Cl D = permittivity E but Continuity of Current is Exact No matter what carries the current!

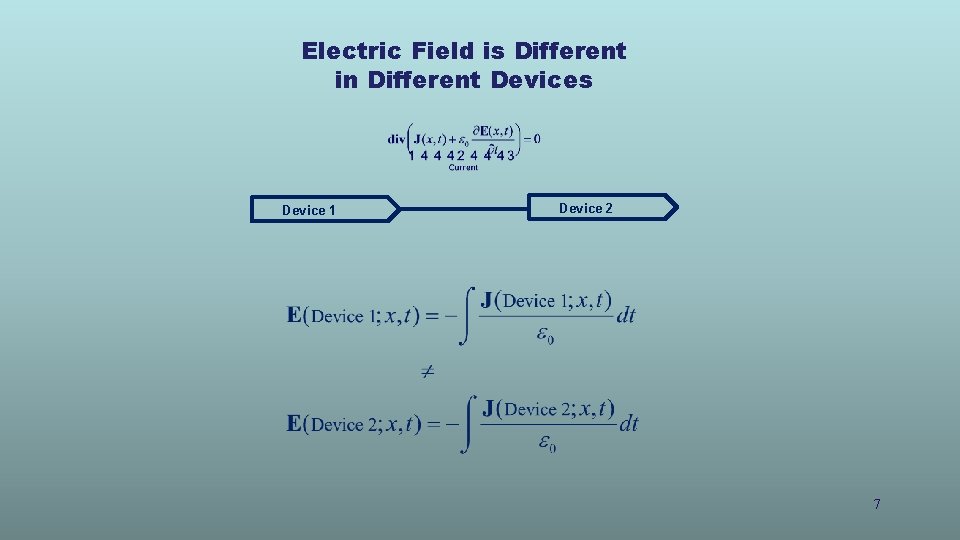

Electric Field is Different in Different Devices Device 1 Device 2 7

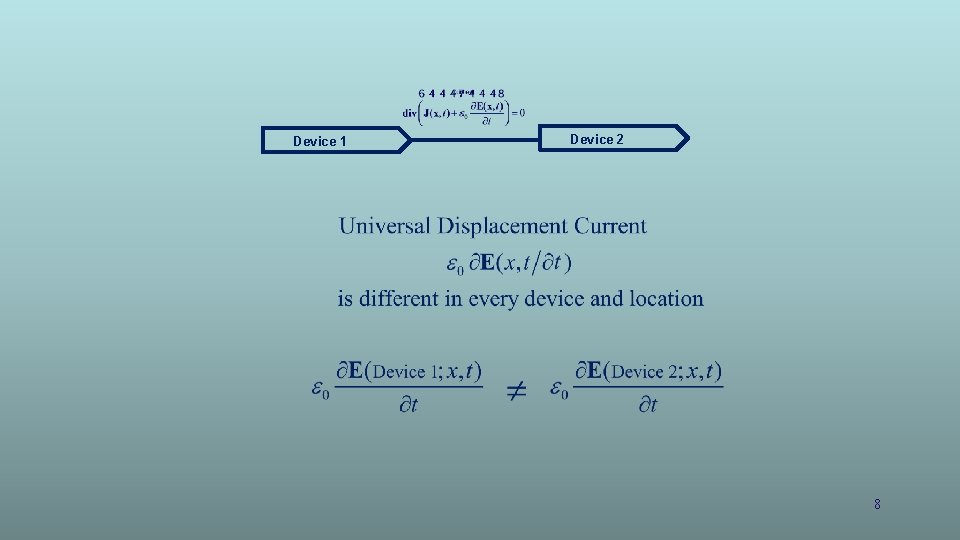

Device 1 Device 2 8

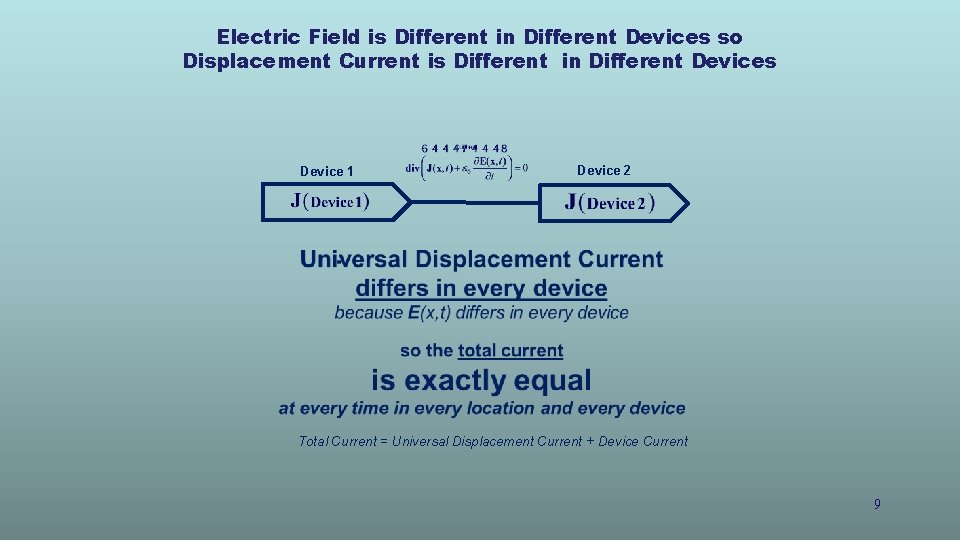

Electric Field is Different in Different Devices so Displacement Current is Different in Different Devices Device 1 Device 2 Total Current = Universal Displacement Current + Device Current 9

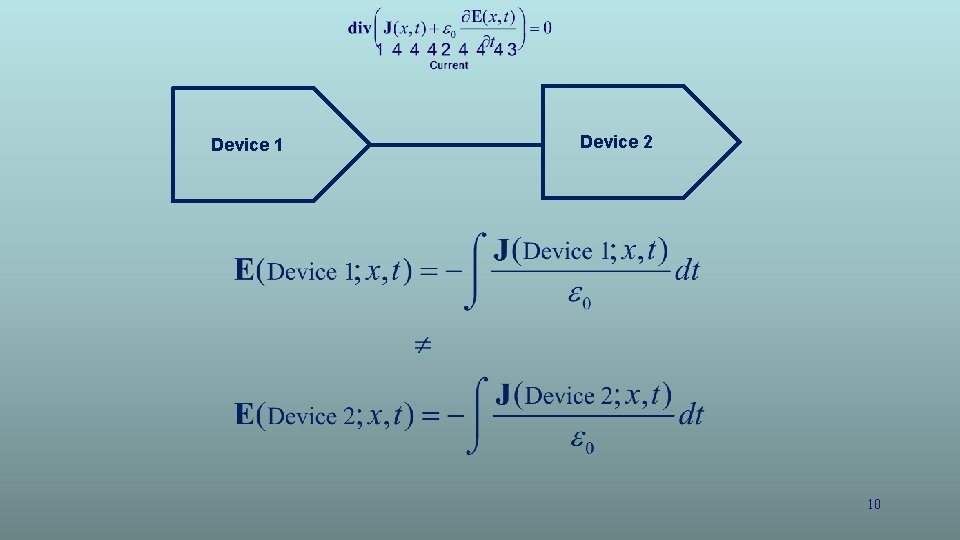

Device 1 Device 2 10

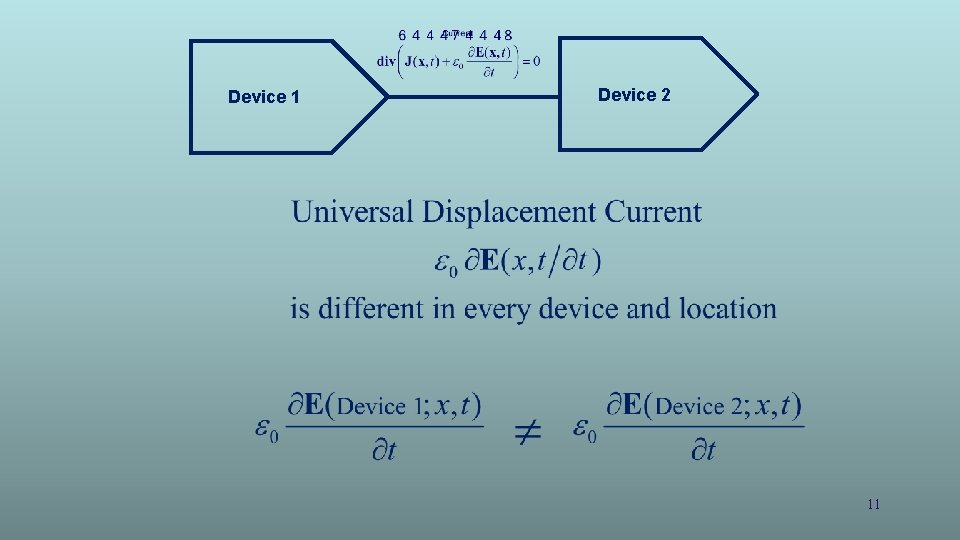

Device 1 Device 2 11

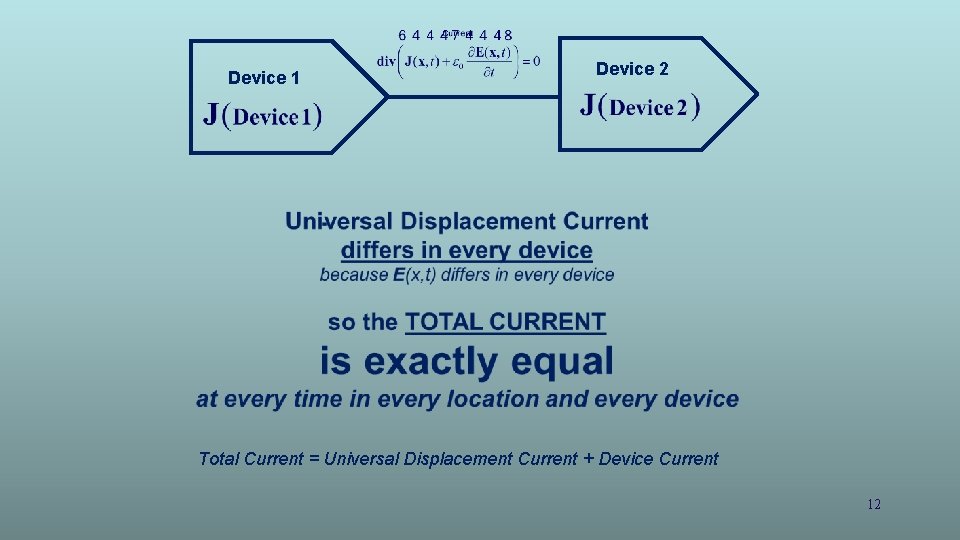

Device 1 Device 2 Total Current = Universal Displacement Current + Device Current 12
