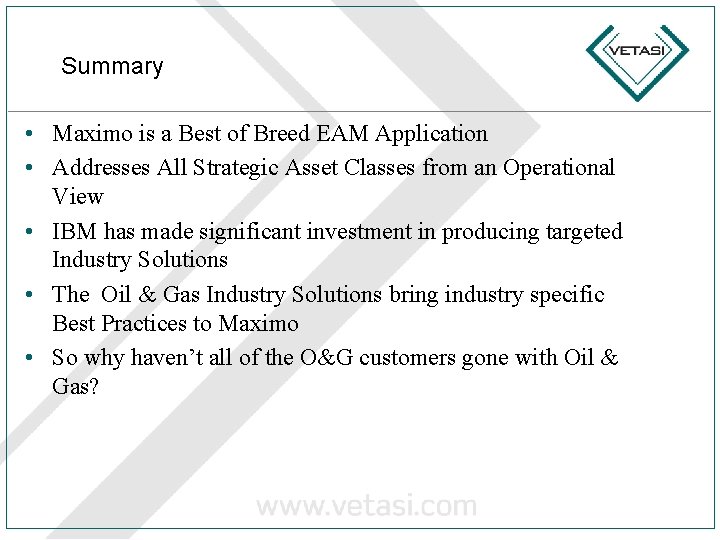

Summary • Maximo is a Best of Breed EAM Application • Addresses All Strategic Asset Classes from an Operational View • IBM has made significant investment in producing targeted Industry Solutions • The Oil & Gas Industry Solutions bring industry specific Best Practices to Maximo • So why haven’t all of the O&G customers gone with Oil & Gas?

Strategic Asset & Service Mgmt: Six key functional areas…

IBM Maximo Asset Management Suite Maximo Asset Management IT Asset & Service Mgmnt Maximo Essentials Utilities Life Sciences Nuclear Power Transportation Government Oil & Gas Maximo 7. 1 Industry Solutions Add-On Solutions Linear Assets Change & Corrective Action Mgr Spatial Service Provider Calibration Asset Configuration Manager SLA Manager Asset Navigator Options * Available with Maximo Asset Management 7. 1 Mobile Work Manager SAP ERP Adapter for MS Project * Enterprise Adapter Mobile Inventory Manager Oracle ERP Adapter for Primavera Compliance Assistance Documentation

Adoption of O&G in large ME Oil Companies • • • Maximo has been deployed at KOC – 5, 500 Users Maximo has been deployed at KNPC – 3, 200 Users Maximo deployed at Gasco – 2, 000 Users Maximo deployed at ADMA – 1, 500 Users Maximo has been deployed at PIC – 200 Users • These are major Oil Companies covering Upstream and Downstream • None of these Companies initially bought into the Maximo Oil & Gas Solution. • Why?

Example – KOC • All Asset Classes are addressed – Wells, Operations, Pipelines, Transport, Plant, Marine Vessels, IT Assets, Ahmadi Township, Roads, etc. • Replacement of Indus Passport System • Purchased many Maximo options: • • Spatial – for GIS Linear – for Pipelines, Roads and Telecomms Transport – for Plant, Vehicles and Marine Fleet Utilities – for Crew Management Mobile Work Management, Inventory Management ITAM and ITSM Calibration • KOC Did NOT Purchase Oil & Gas!! • Maintenance team felt it was too advanced for their needs.

Example – KOC • During Application Discovery, the team identified 135 “stand alone” applications • 20 systems to be integrated (Oracle Finance, HRMS, GIS, Scada, TPIMS, Landmark, etc. ) • 70 standalone apps to be replaced by Maximo • HSE has 5 Applications: • • HSE Live Incident Reporting • HSE Audit Tracking • e. Permits • HSE Management System • File. Net Document Management • In process of developing more applications! KOC adopted Oil & Gas to handle HSE Requirements during the project

Petroleum Industry Solution, Integrated Operations The Business: (Missions, Goals, Customers, Users) Business Drivers Regulations Performance HSE Service Request Mobile Work Reporting and Governance Primavera ERP Work Mgmt Incident Real Time Investigation Contract Mgmt Materials Mgmt Market Improvement Safety Procurement Integration Risks Change Action Cost Resource Management Planning & Scheduling PR’s, PO’s Inventory Leases Hazards Work Orders Work Log Defects RFQ’s Inspections Warranties Precautions Activities Solutions Incidents Invoices Tools Purchase Plans Receipts Storerooms Labour RCFA Conditions Escalations Facility Assets Drilling Assets Investigations Job Plans AAR Job Plans Benefits Templates Global Issue Priority Matrix. Communications. Failure Reporting Losses Qualifications Authorization Production Assets Operations Management Regulations SLAs MOC Relationships Engineering Systems IT Assets Pipeline Assets Chemical & Petroleum Asset Management Standards – ISO 14224/API 689 Projects Assets Locations Improvements Item Master Actions Transportation Assets Refinery Assets Preventive Documents Maintenance MS Project GIS

IBM Maximo for Oil and Gas module overview

Maximo for Oil and Gas – Capability Summary Release 7. 1. 0 GA: Sep 28, 2008 Release 7. 1. 1 Release 7. 1. 2 GA: Dec 2009 GA: Nov. 2010 • ISO 14224 Asset Classifications • Control of Work • Operating Policies • ISO 14224 Failure Codes • Permit and Certificate Types • Operating Procedures • Location and Work Details • Risk Analysis • Operator Tasks • Prioritization Matrix • Risk Matrices • Cause Analysis/FMECA • Condition for Work • Operator’s Log • Drilling and Completion • Regulations • Standard Action Groups • Run Log • Incidents • Maximo Spatial Integration • Material Inspection • Defects • Support for MIMOSA • Operator Log Enhancements • Investigations • Miscellaneous enhancements • Scheduler integration • Solutions • Hazards • MOC enhancements • Improvements • MOC Risks and Projects • Miscellaneous enhancements • Benefits and Losses • Target Availability • Extra failure fields • Management of Change • Legacy Tag • Incident impact • Action Tracking • Bad Actor Dialog • Regulations extra where used • Standard Actions • Service Request (Oil) Maximo 7. 1 All future release dates are estimates and specific content is subject to change. Maximo 7. 1

Maximo for Oil and Gas – Capability Release 7. 5 GA: Release 7. X GA: • Non-conformances • ISO I 4224 Failure Mechanism • ISO 14224 Sub unit/maint item • Multiple persons on Incident • Classification of risk assessments • Item Master on MOC • Add Regulation to Incidents • Qualifications link to certificates • Qualification verification on Labor • Editable fields on People (Oil) Maximo 7. X All future release dates are estimates and specific content is subject to change. Maximo 7. X

Maximo Oil & Gas for HSE • Brings HSE Reporting into the same Platform as Work Management • Can view all Activities against an Asset – SR, WO, PM, Incident, Defect, Change, Moves, etc. • Uses a common database – Assets, Locations, Regulations, Permits, Work Orders, Incidents, Personnel, Qualifications, etc. • Eliminates duplicate data entry (e. g. leaking valve requires a WO and an Incident)

Data of Mechanism of Lagging Indicators Leading Indicators Reporting Notification Process Inline with HSEMS Procedures Action items as per the roles & responsibiliti es Analysis of Data Tracking

HSE Audits, Inspections and Visits • • Set up Dashboard to show HSE Audits Create WO type Audit to plan, schedule and track audit Create Follow On Activities for NCR On NCR attach recommendations

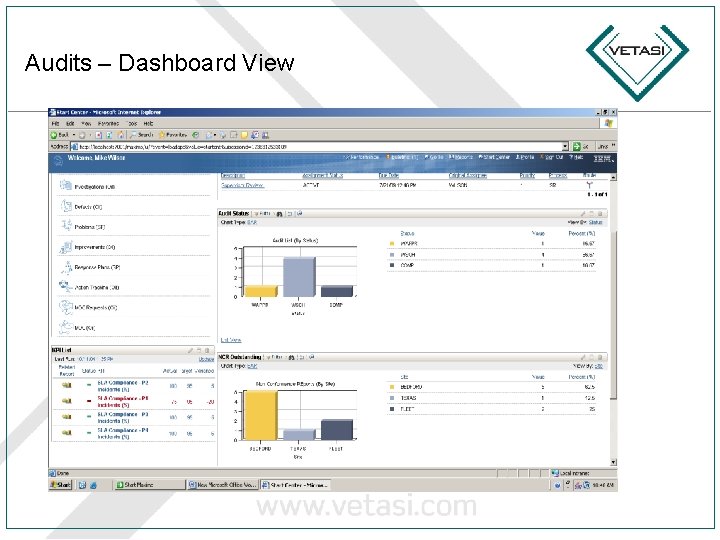

Audits – Dashboard View

Audits – Drilldown Lists

Audits - NCRs

Regulatory Compliance • What is it? • Provides ability to hold details of regulations relevant to work carried out in Maximo, and relate these regulations to both work planned in Maximo and actual work carried out • Use cases • Provide documented proof that work carried out in Maximo was completed based on the required regulation • Provides the ability to demonstrate compliance with many statutory requirements covering safety, health and environment • Business Value • Identifies compliance with relevant regulations • Simplifies work required to demonstrate compliance

Incident Management • Product Capability • An application to record and management incidents occurring during plant operation and maintenance • Incorporates high context incident reporting • Benefits for the Industry • Improved process safety management, encourages collaboration between maintenance and operations • Incident management becomes part of the work management process, rather than a stand alone process • Significant reduction in costs of incident management program since an incident can be ‘raised’ from a work order (automatically copies over related information) • Enables additional automation of process, e. g. , an incident on a safety valve can automatically create an investigation • Reduced requirement for other software or spreadsheets

Defect Elimination (Integrity Management) • • Product Capability • A defect reporting and management application • Classification of defects supports deeper analysis of equipment integrity issues Benefits for the Industry • Drives reliability improvement programs, e. g. , Six Sigma, Continuous Improvement, Mechanical Integrity • Forms the basis for engineering analysis for the removal of equipment problems and defects • Collaborative application between maintenance, operations and engineering • Enables automation of defect analysis, e. g. , escalation of a defect on critical equipment would be different than non-critical equipment • Reduced requirement for other software or spreadsheets

Investigations (Oil) • What is it? • Supports investigations of incidents or defects • A problem may be the result of one or many incidents • Use cases • Raised when a Root Cause Failure Analysis or After Action Review is required • Could be initiated from an incident that requires further investigation into the cause of the incident • Business value • Improved process safety management • A mechanism for initiating the recording of lessons learned by an organization

Prioritization of Work • Product Capability • A matrix based system of work or risk prioritization, reason for work definitions • Configure multi variable (safety, economics, health, regulatory, etc. . ) operational standards for the prioritization of work based on subject matter expertise • Benefits for the Industry • Standardizes work prioritization based on corporate compliance and operational standards, not personal or ‘tribal knowledge’ decisions • Balances work priorities based on many parameters, not just asset criticality • Ensures compliance, some regulatory, to corporate priorities • Reduced cost / time associated with work planning and scheduling, first step in enabling work planning and scheduling automation

Sample Prioritization Matrix Reason for Work RFW 6 RFW 5 RFW 4 RFW 3 Imminent Danger Safety Environment Routine Asset/Loc Priority Matrix Index Matrix Priority 5 78 5 65 4 58 4 50 3 4 77 5 59 4 51 3 45 2 3 76 5 52 3 41 3 38 2 2 75 5 45 3 39 2 36 1 1 74 5 40 3 37 2 35 1

Action Tracking • Product Capability • A means of tracking actions agreed with regulatory authorities or internal review and audit teams • A way of following up actions arising from investigations or improvements • Benefits for the Industry • Drives implementation of business critical actions and improvements • Reduced costs, e. g. , regulatory reporting and implementation of improvement programs • Improved safety and reliability • Reduced requirement for other software or spreadsheets

Some thoughts on integrity management? • It is often latent conditions created by maintenance lapses that set an accident sequence in motion or threaten its recovery * • An organization must possess the technical competence necessary to achieve safety goals * • Competence is very closely related to the quality of an organization’s safety information system * * J. Reason, 1997. Managing the Risks of Organizational Accidents

Solutions (Oil) • • • What is it? • A repository for proven solutions and lessons learned by an organization • Identification of benefits associated with Solutions • Extends People application to provide authorization capability Use cases • Record details of a successful project to replace a compressor oil cooling system that resulted in a significant increase in compressor reliability • Log a Lesson Learned arising from an After Action Review on an isolation valve repair that led to a potential loss of containment that led to a change to standard operating procedures when performing work that could potentially cause a containment issue Business value • Supports organizational learning

Improvements • What is it? • An application to record suggestions for improvements to plant operation and maintenance • Supports Six Sigma or similar methodologies • Use cases • Could arise from a defect identified by a maintenance technician or operator • Could be initiated from a Problem that requires improvement action to address the cause • Business value • A mechanism to drive continuous improvement

Benefits and Losses • What is it? • A new Maximo application that defines benefits that can be associated with Improvements and Solutions • Provides a loss reporting capability • Use Cases • Use to document a cost/benefit analysis • Use Losses sub-tab to record production losses associated with planned and unplanned shutdowns and near miss losses • Business value • Drive improvements in plant availability • Focus on business benefit

Management of Change • • Product Capability • An application to support a company’s full management of change process from request to closure • Manages review and approval process, pre and post management of change actions; audit trail on entire process • Standard action application to reduce manual data entry Benefits for the Industry • Improved safety, reliability and compliance • Reduced cost through greater process conformity / standardization through integration with work management process • Encourages collaboration with operations, maintenance and engineering • Improved organizational learning • Reduced requirement for other software or spreadsheets

Full Cycle MOC • • Request Change Review Approve Pre-MOC actions Authorize Post-MOC actions Closure Decision support – identification of bad actors

Conclusion • Maximo Oil & Gas provides platform to integrate HSE Activities with Work & Asset Management • Avoids Siloed Systems and “pop up” applications • One Stop Shop for Incident Reporting, Work Management, Investigations, Management of Change, Safety Compliance • The advantage of a “single version of the truth” outweighs possible shortfalls in depth of base functionality. • An Oil Company implementing Maximo should look at O&G from an HSE and Integrity Management perspective – not from the traditional Maintenance viewpoint.

Regulatory Compliance main tab screenshot

Incidents (Oil) main tab screenshot

Defects main tab screenshot

Investigations main tab screenshot

Investigations After Action Review tab screenshot

Investigations Lessons Learned tab screenshot

Investigations Root Cause Failure Analysis tab screenshot

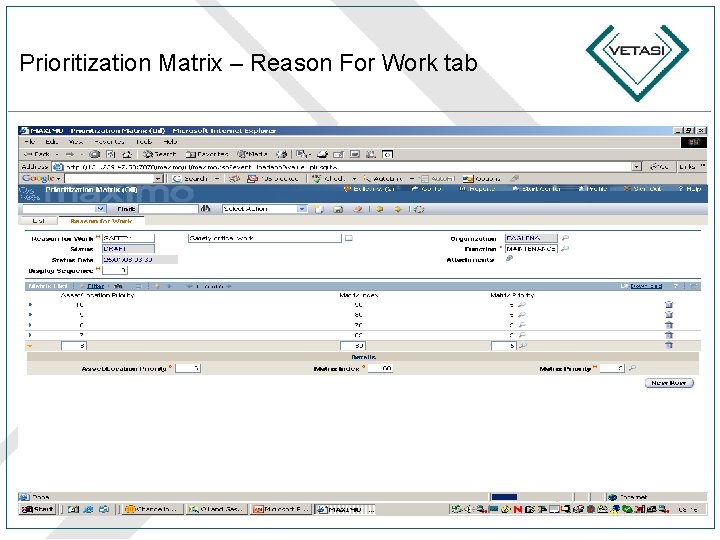

Prioritization Matrix – Reason For Work tab
