MAXI MOVE MAXI MOVE Battery Powered Vertical Lift
MAXI MOVE
MAXI MOVE ü Battery Powered Vertical Lift ü 500 lbs. weight limit ü Used for mod to max assist patients ü Used for fall recovery ü Used for boosting, repositioning, turning ü Provides transfer to the toilet, bedside commode, chair & bed ü Used for ambulating (proper slings/bar)
SEATED SLING (LAUNDERED) ü Apply appropriate sling ü Crisscross leg straps ü Attach sling to the bar (Loop/Clip) ü Loop with 2 point bar ü Clip with 4 point attachment ü Apply brakes and Hoist patient up ü Position patient to desired location ü Use tilt feature (4 point clip bar only) ü Place bed in chair position for don/doff sling (2 point bar) ü Unhook sling
SLING: REPO SHEET (Single Patient Use, Disposable) ü Only can be used with 2 point bar ü Patient must be centered on the sheet ü Attach straps to the bar ü Hoist patient up ü Boost / Turn / Reposition patient
SIMPLE STEPS: (MULTI-STRAPS) ü Used for lifting & holding parts of patients body to facilitate examination, care & treatment. ü Only can be used with 2 point bar ü Used for turning sideways ü Apply straps under the body part ü Attach loops to the sling bar ü Hoist patient up
SIMPLE STEPS: (AMBULATION SLINGS) ü Assess patient’s mobility ü Apply appropriate slings ü Attach slings to the bar ü Patient’s feet must have sufficient contact with the floor

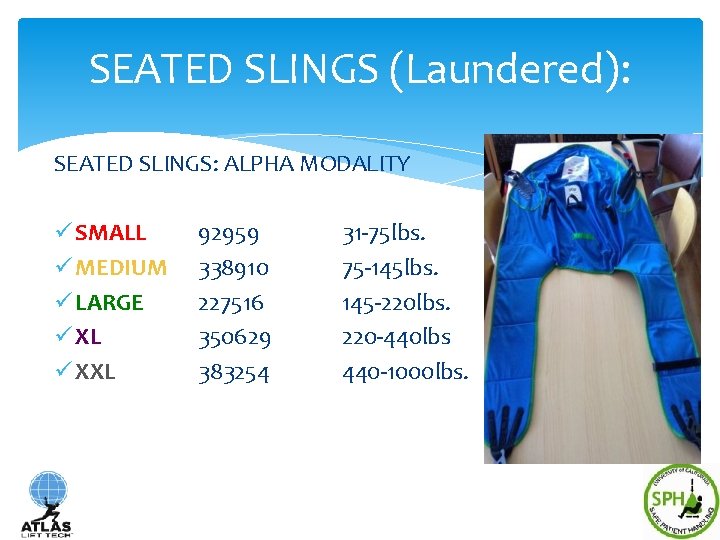

SEATED SLINGS (Laundered): SEATED SLINGS: ALPHA MODALITY ü SMALL ü MEDIUM ü LARGE ü XL ü XXL 92959 338910 227516 350629 383254 31 -75 lbs. 75 -145 lbs. 145 -220 lbs. 220 -440 lbs 440 -1000 lbs.
SLINGS: (LOOP ONLY, Single Patient Use, Disposable) Seated (Liko Brand) ü MEDIUM 932119 ü LARGE 321848 ü XL 118397 MULTISTRAPS: ü 4 inches 97350 ü 10 inches 97350 REPO SHEET: ü White Sheet 20754
WALKING SLINGS: (LOOP ONLY) ALL WALKING SLINGS ARE LAUNDERED WALKING: Medium Liko ü Medium 617395 ü Large Liko 374565 ü XL Liko 89721 ü XXL Liko 188311 ü SMALL TEM 71996 ü MEDIUM TEM 197083 ü LARGE TEM 155798 ü XL WALKING JACKET 432427 440 lbs. 1100 lbs. 440 lbs. 418 lbs.
When To Use Maxi Move ü Mod to Max Assist Patients ü With 2 point bar: Turning, Boosting, Repositioning, Transfers (Supine<>Sit, Bed<>Chair/Commode, Lateral transfers: Bed<>Gurney), Ambulation ü With 4 point bar: Transfers (Supine<>Sit, Bed<>Chair/Commode, Lateral transfers: Bed<>Gurney) ü Do not use SEATED SLING for patient with spine & hip precautions ü Do not use on combative patients
IN CASE OF EMERGENCY. . . If battery runs out while patient is being lifted, there are emergency features: ü Mechanical Emergency lowering ü Electrical Lowering (old Maxi)
FRIENDLY REMINDER: ü Check battery before used ü Clip Attachment Bar (4 Point Hanger Bar) ü Loop Attachment Bar (2 Point Hanger Bar) ü Watch out for pinch point area ü Notify Unit Manager if broken ü Call Atlas Lift Coach for training and/or assistance ext. 79961; 0700 – 2300 7 days/week
Any Questions? ? ATLAS LIFT COACH Ext. 7 -9961 925 -407 -7785(mobile) 0700 – 2300 7 Days a Week Rebecca Ferrier SPH&M Coordinator UCSF Medical Center 415 -353 -3204 (office) 415 -203 -8072 (mobile)
