Max Planck Institute for Molecular Genetics A pipeline
- Slides: 19
Max Planck Institute for Molecular Genetics A pipeline based on multivariate correspondence analysis with supplementary variables for cancer genomics Christine Steinhoff Max Planck Institute for Molecular Genetics Berlin, Germany
Information Source Literature/ database • DNA/Genome In silico • RNA Profiling/ characterizing • Protein • Phenotype experimental Data Sources Biological Level Technology Examples ESTlibrary; physical parameters of DNA, RNA, Proteins, etc; DNA sequence, datamining, literature mining, . . . Methylation prediction: TFBS prediction; functional annotations (repetitive elements, functional categories, . . . ), Splicing, Epigenetics; SNP arrays, array. CGH; sequencing; expression arrays; . . . interaction Ch. IP chip; Preotein interaction; MASS of complexes; . . . phenomics Imaging; RNAi techniques; MASS; medical observations Max Planck Institute for Molecular Genetics
PROBLEMS grade stage Died 2 1 Yes 4 3 No 2 2 yes Cat (m, c) After appropriate normalization Approx lognormal symmetric Not symmetric skew Scale and Distribution differ! Max Planck Institute for Molecular Genetics Discrete categories
Procedure Data INPUT Discretization Filtering Indicator coding Multiple Correspondence Analysis Max Planck Institute for Molecular Genetics
Step 1: Discretization Expression array. CGH Patients covariates Categorical: e. g. Staging Grading Smoking Mutation. . Max Planck Institute for Molecular Genetics
Step 1: Discretization Expression array. CGH Package: DNAcopy Probability of expression Fold Change Criterion Segmentation and discretization of array. CGH data Max Planck Institute for Molecular Genetics
Step 1: Discretization Expression array. CGH Typically: n~23, 000 -> reduce number Max Planck Institute for Molecular Genetics Patients covariates

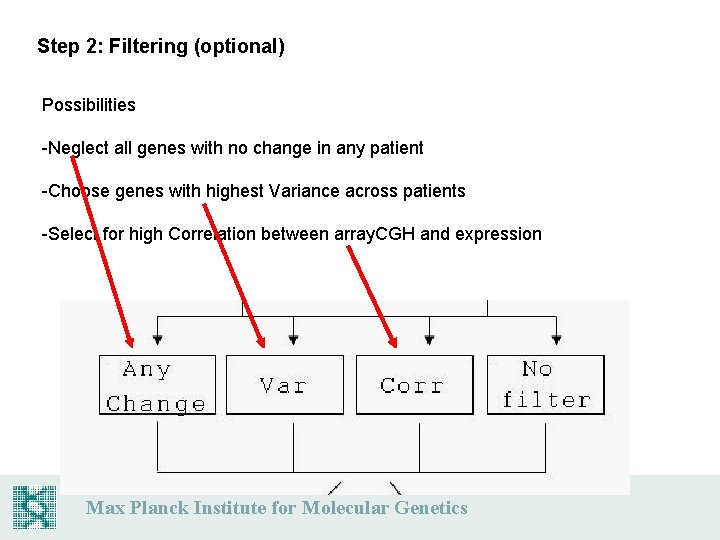

Step 2: Filtering (optional) Possibilities -Neglect all genes with no change in any patient -Choose genes with highest Variance across patients -Select for high Correlation between array. CGH and expression Max Planck Institute for Molecular Genetics
Procedure Data INPUT Discretization Filtering Indicator coding Multiple Correspondence Analysis Max Planck Institute for Molecular Genetics
Step 3: Indicator Matrix - Binary Coding down normal Up pat 1 1 0 0 pat 2 0 0 1 pat 3 0 1 0 pat 4 0 1 0 Gene 1 pat 1 Down pat 2 Up pat 3 Normal pat 4 normal Original matrix With categories Max Planck Institute for Molecular Genetics Indicator matrix With binary coding

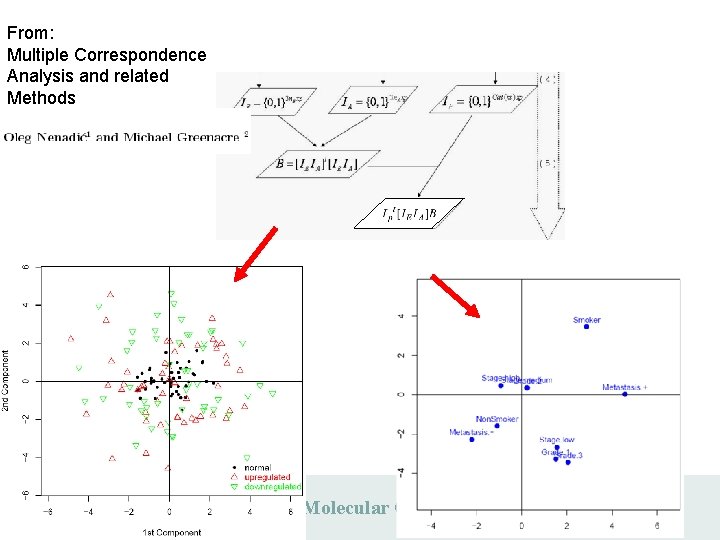

From: Multiple Correspondence Analysis and related Methods Max Planck Institute for Molecular Genetics
EXAMPLE: PUBLISHED DATA Max Planck Institute for Molecular Genetics
Covariate States‘ Display Max Planck Institute for Molecular Genetics
Explore ERBB 2 and MYC ERBB 2 Amplified in ACGH ERBB 2 overexpression ERBB 2 normal in ACGH Max Planck Institute for Molecular Genetics
ERBB 2 underexpr ERBB 2 loss in ACGH Max Planck Institute for Molecular Genetics
MYC amplification MYC Overexpression Max Planck Institute for Molecular Genetics
MYC underexpression MYC Normal acgh Max Planck Institute for Molecular Genetics
Enrichment of GO Categories Max Planck Institute for Molecular Genetics
Thank you for your attention ! ACKNOWLEDGEMENT Max Planck Institute for Molecular Genetics Martin Vingron Sensor Lab, CNR-INFM Matteo Pardo Max Planck Institute for Molecular Genetics
