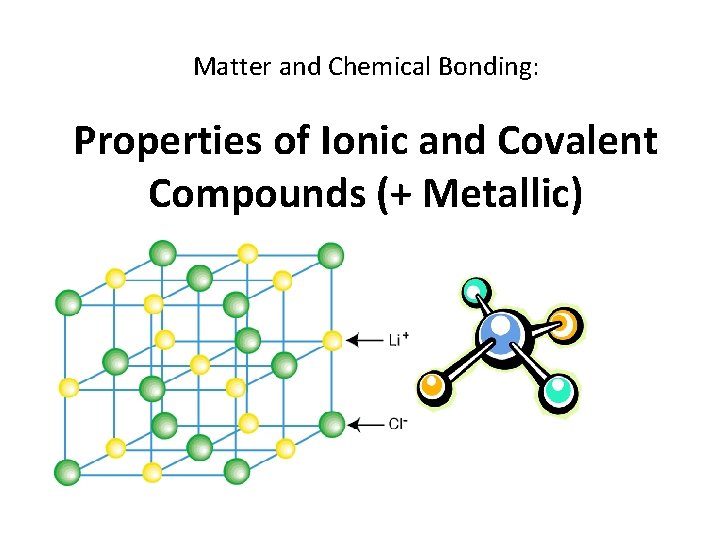

Matter and Chemical Bonding: Properties of Ionic and Covalent Compounds (+ Metallic)

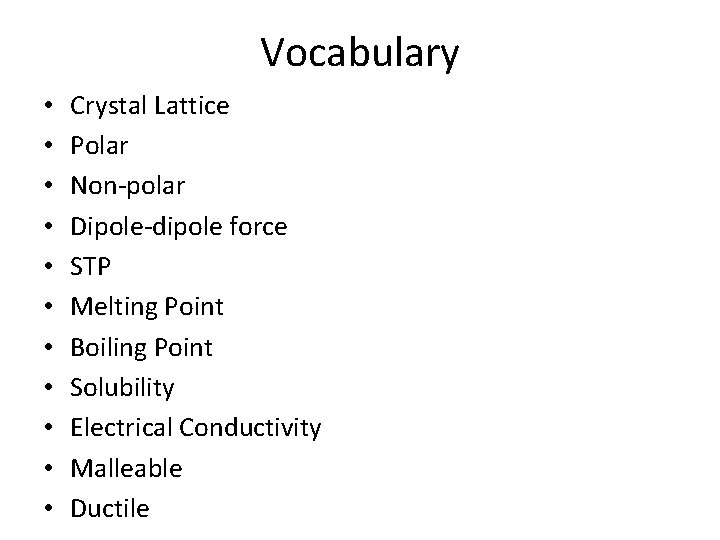

Vocabulary • • • Crystal Lattice Polar Non-polar Dipole-dipole force STP Melting Point Boiling Point Solubility Electrical Conductivity Malleable Ductile

Chemical Bonds • Chemical Bonds - attractive force that holds atoms or ions together - 3 types ionic, covalent, metallic - determines the structure of compound - structure affects properties - melting/boiling pts, conductivity, solubility, etc.

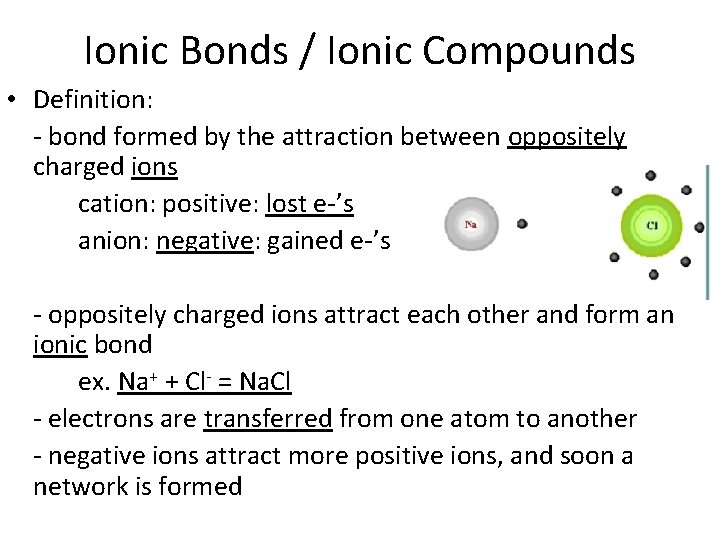

Ionic Bonds / Ionic Compounds • Definition: - bond formed by the attraction between oppositely charged ions cation: positive: lost e-’s anion: negative: gained e-’s - oppositely charged ions attract each other and form an ionic bond ex. Na+ + Cl- = Na. Cl - electrons are transferred from one atom to another - negative ions attract more positive ions, and soon a network is formed

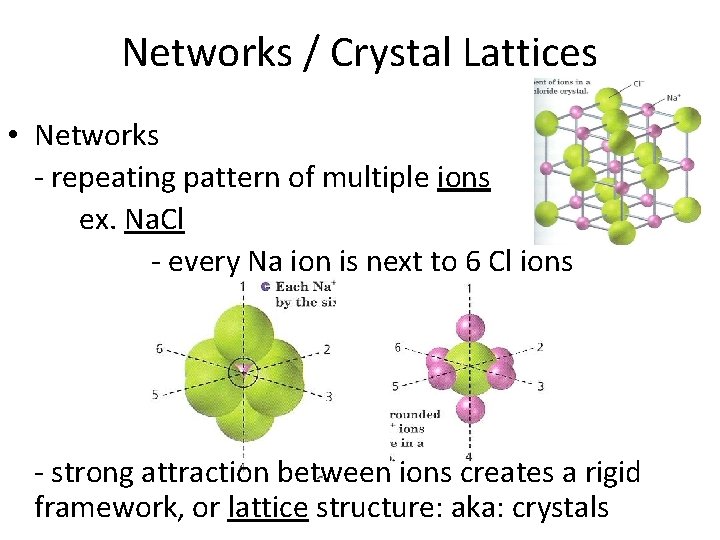

Networks / Crystal Lattices • Networks - repeating pattern of multiple ions ex. Na. Cl - every Na ion is next to 6 Cl ions - strong attraction between ions creates a rigid framework, or lattice structure: aka: crystals

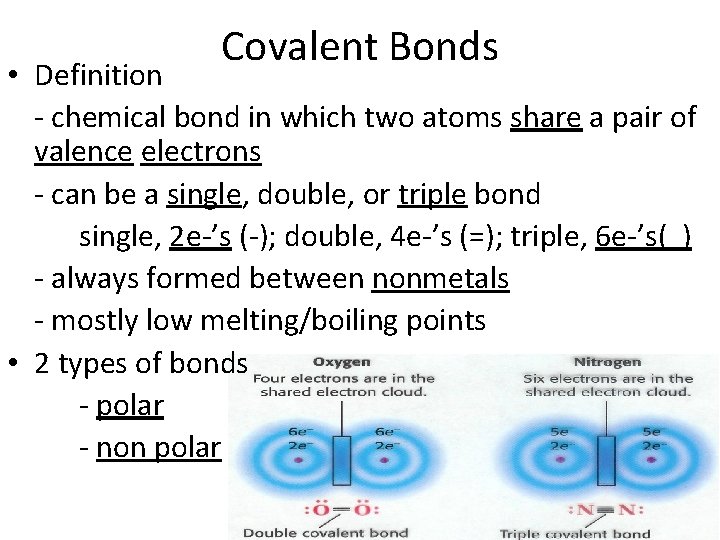

Covalent Bonds • Definition - chemical bond in which two atoms share a pair of valence electrons - can be a single, double, or triple bond single, 2 e-’s (-); double, 4 e-’s (=); triple, 6 e-’s( ) - always formed between nonmetals - mostly low melting/boiling points • 2 types of bonds - polar - non polar

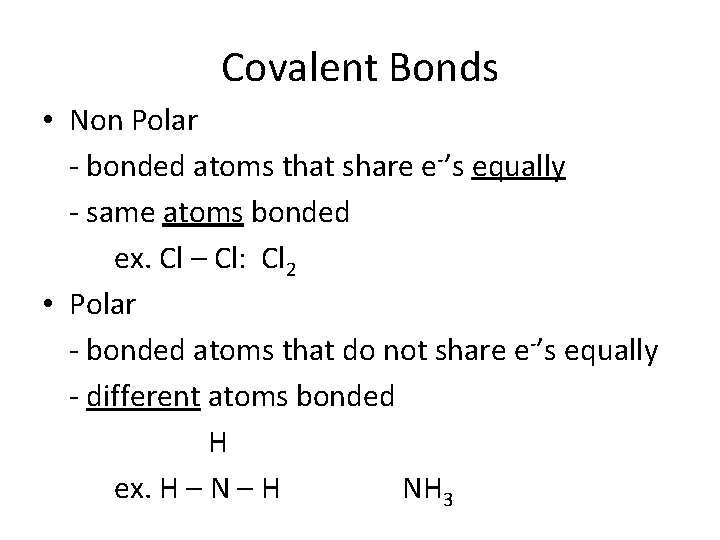

Covalent Bonds • Non Polar - bonded atoms that share e-’s equally - same atoms bonded ex. Cl – Cl: Cl 2 • Polar - bonded atoms that do not share e-’s equally - different atoms bonded H ex. H – N – H NH 3

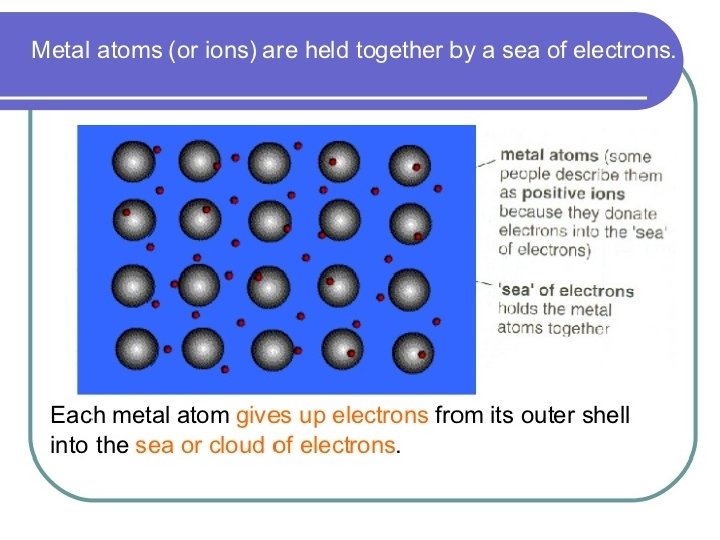

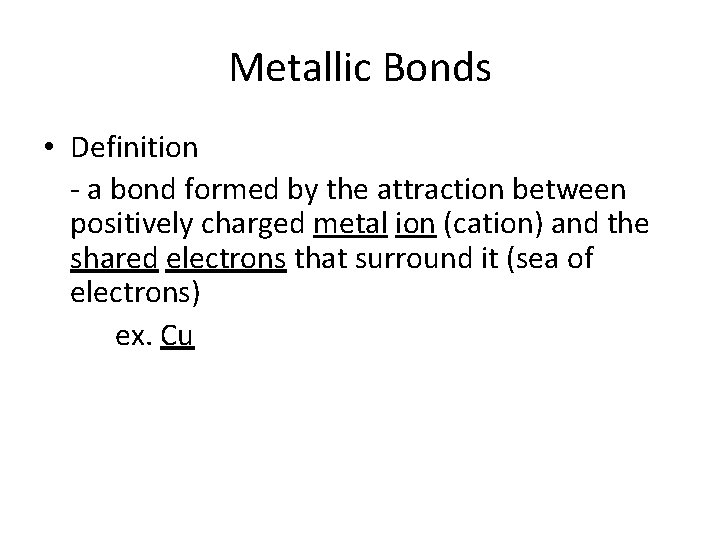

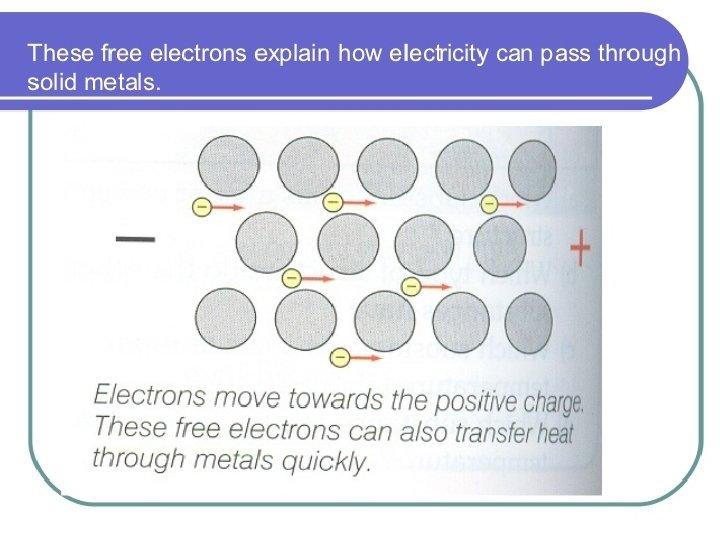

Metallic Bonds • Definition - a bond formed by the attraction between positively charged metal ion (cation) and the shared electrons that surround it (sea of electrons) ex. Cu

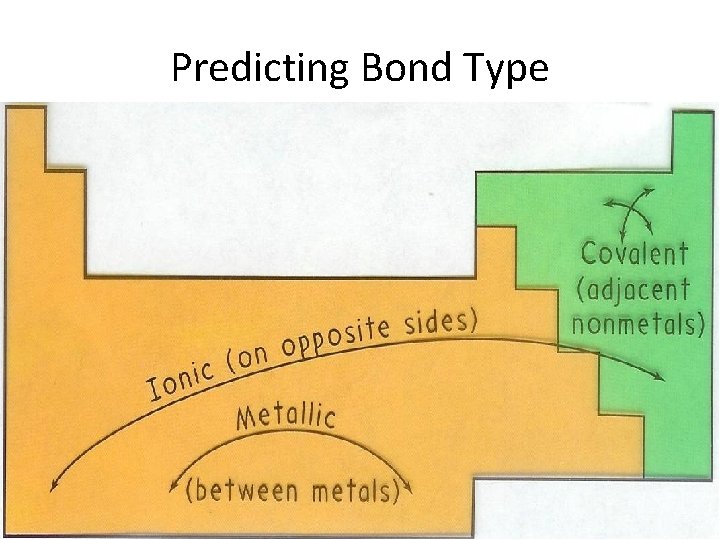

Predicting Bond Type

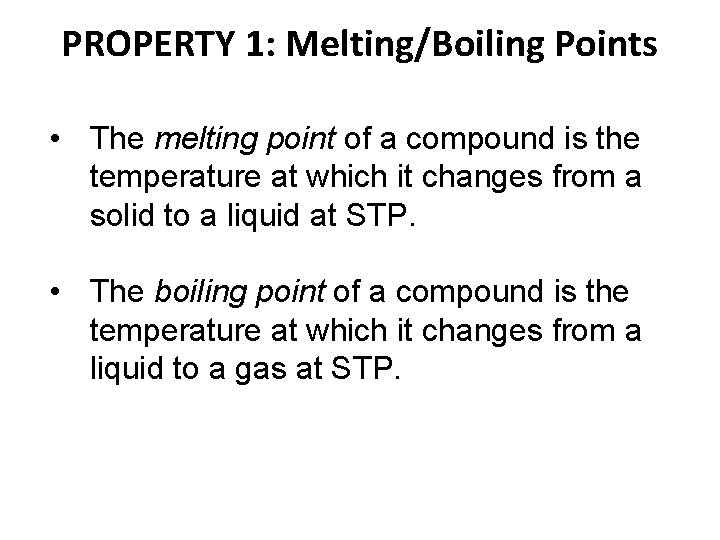

PROPERTY 1: Melting/Boiling Points • The melting point of a compound is the temperature at which it changes from a solid to a liquid at STP. • The boiling point of a compound is the temperature at which it changes from a liquid to a gas at STP.

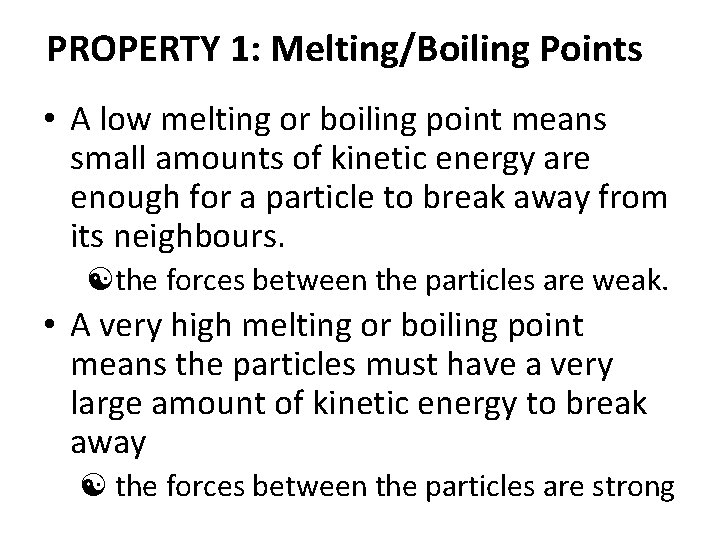

PROPERTY 1: Melting/Boiling Points • A low melting or boiling point means small amounts of kinetic energy are enough for a particle to break away from its neighbours. the forces between the particles are weak. • A very high melting or boiling point means the particles must have a very large amount of kinetic energy to break away the forces between the particles are strong

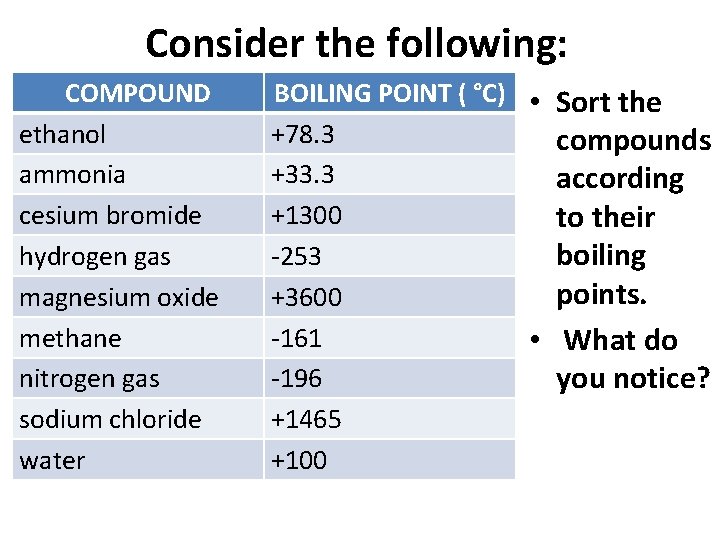

Consider the following: COMPOUND ethanol ammonia cesium bromide hydrogen gas magnesium oxide methane nitrogen gas sodium chloride water BOILING POINT ( °C) • Sort the +78. 3 compounds +33. 3 according +1300 to their -253 boiling points. +3600 -161 • What do -196 you notice? +1465 +100

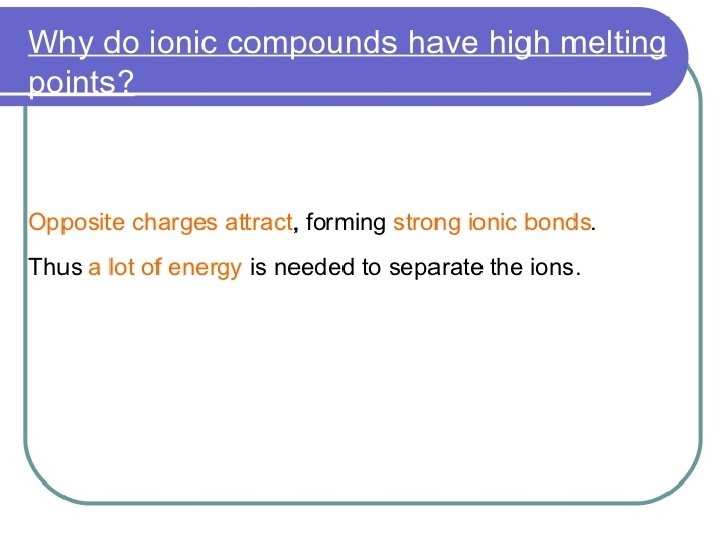

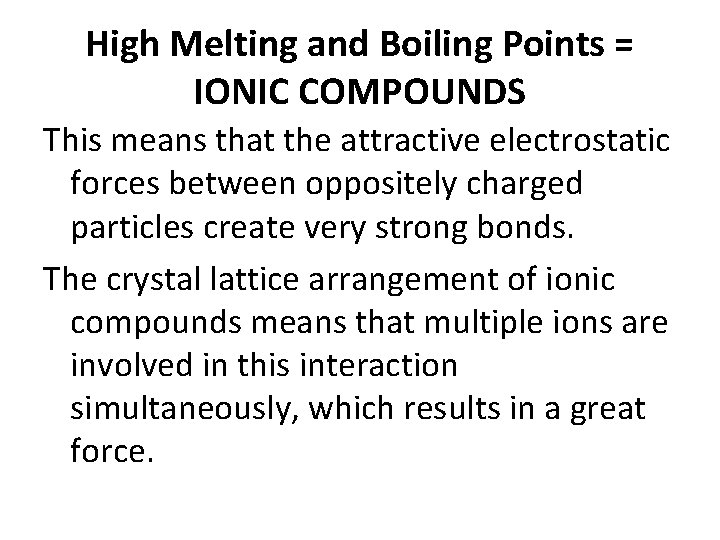

High Melting and Boiling Points = IONIC COMPOUNDS This means that the attractive electrostatic forces between oppositely charged particles create very strong bonds. The crystal lattice arrangement of ionic compounds means that multiple ions are involved in this interaction simultaneously, which results in a great force.

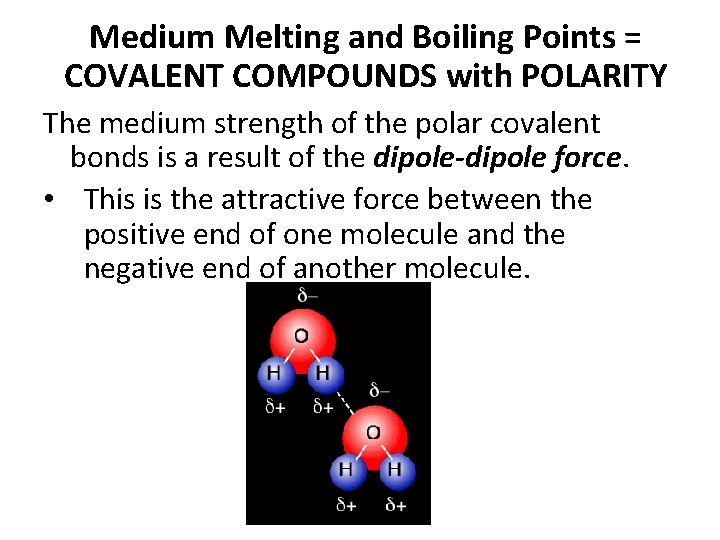

Medium Melting and Boiling Points = COVALENT COMPOUNDS with POLARITY The medium strength of the polar covalent bonds is a result of the dipole-dipole force. • This is the attractive force between the positive end of one molecule and the negative end of another molecule.

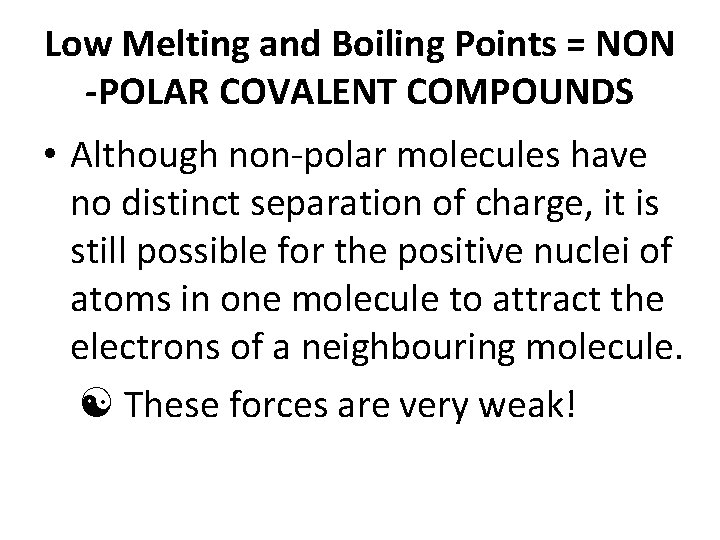

Low Melting and Boiling Points = NON -POLAR COVALENT COMPOUNDS • Although non-polar molecules have no distinct separation of charge, it is still possible for the positive nuclei of atoms in one molecule to attract the electrons of a neighbouring molecule. These forces are very weak!

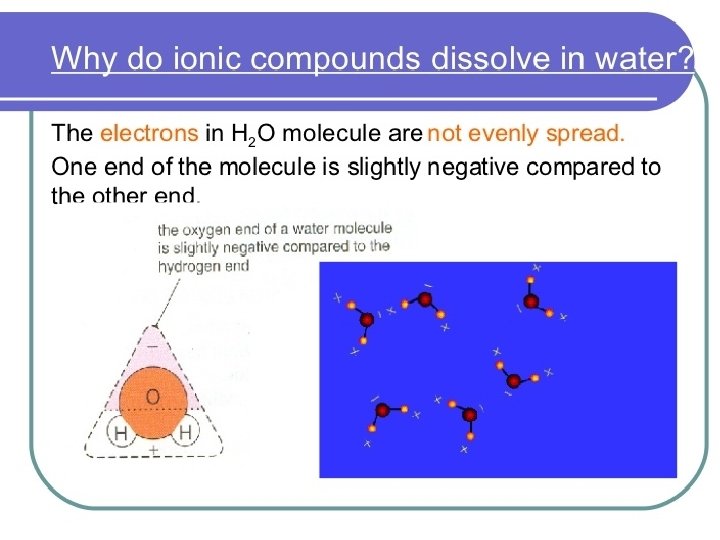

PROPERTY 2: Water solubility • The partially positive H in water is attracted to negative ions of an ionic compound or the partially negative atom of a polar compound. • The partially negative O in water is attracted to the positive ions of an ionic compound or the partially positive atom of a polar compound. IONIC AND POLAR COVALENT COMPOUNDS ARE WATER SOLUBLE. NON-POLAR COVALENT COMPOUNDS ARE NOT WATER SOLUBLE.

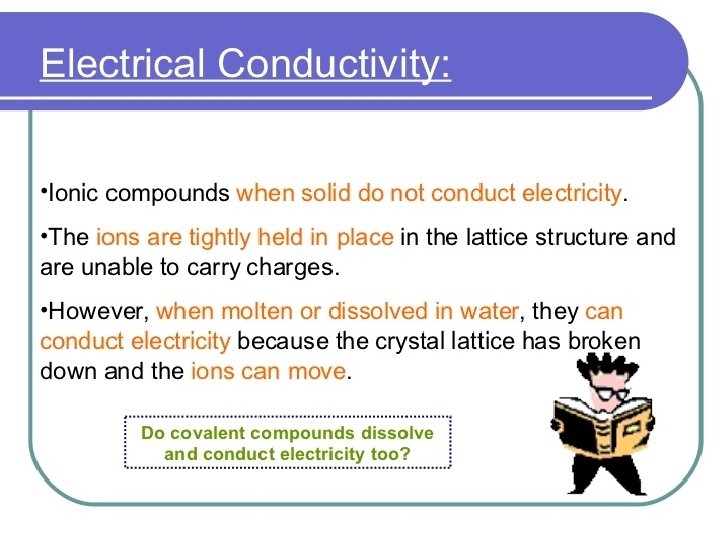

PROPERTY 3: Electrical Conductivity Electrical conductivity is the ability of a substance to allow an electric current to pass. A substance is conductive if charges can move independently of one another. This is only possible for ionic compounds in the liquid state or dissolved in water. For this reason they are called electrolytes Since in covalent compounds , electrons do not leave an atom completely these compounds do not conduct electricity when in liquid state. They are called non-electrolytes.
