Matrix Representations of Graphs Benjamin Martin Christopher Mueller

Matrix Representations of Graphs Benjamin Martin, Christopher Mueller, Joseph Cottam, and Andrew Lumsdaine Open Systems Lab/Indiana University

Introduction o o Introduction to Visual Similarity Matrices Interpreting Visual Similarity Matrices n o A Comparison of Ordering Algorithms n o Christopher Mueller, Benjamin Martin, and Andrew Lumsdaine. Interpreting Large Visual Similarity Matrices. In Asia-Pacific Symposium on Visualization, February 2007 Christopher Mueller, Benjamin Martin, and Andrew Lumsdaine. A Comparison of Vertex Ordering Algorithms for Large Graph Visualization. In Asia-Pacific Symposium on Visualization, February 2007 BFS Case Study

Visual Similarity Matrices Essentially, draw the adjacency matrix o Axes are labeled with the vertex names o Matrix dots represent graph edges

Visual Similarity Matrices Advantages: o Capable of representing much larger graphs o No risk of occlusion or edge crossings o Good for large and dense graphs, for most tasks See M. Ghoniem, J. -D. Fekete, and P. Castagliola. “On the readability of graphs using node-link and matrix-based representations: a controlled experiment and statistical analysis. ” In Information Visualization, volume 4, pages 114– 135, 2005.

Visual Similarity Matrices But VSMs must be ordered Expert Ordering NCI AIDs Screen Data So how do we do that? Random Ordering

Questions o How do we order a VSM? n o How do we decide between different methods? How do we interpret the results?

Interpreting VSMs Some features of VSMs are dependent on the matrix ordering, some are not

Interpreting VSMs Straight horizontal or vertical lines show “star” connectivity patterns in a graph. Noncontiguous lines carry the same information as contiguous lines Diagonal lines carry information if they are more than one pixel wide. May have to look at information elsewhere in the matrix… New edges

Interpreting VSMs Wedges appear on the diagonal and represent cliques Off-diagonal blocks are bi-partite sub-graphs. Blank rows or columns for a vertex remove the vertex from the component. Blocks and wedges can be joined across rows and columns: - A is a clique (mirrored on the diagonal) - B, C, D are bi-partite sub-graphs - A + B, A + C are cliques - A + B + C + D is a clique - A and D are independent w/o additional supporting structures

Interpreting VSMs Some ordering algorithms may produce characteristic patterns in the VSM Envelope footprints are indicative of breadth-first search algorithms. Horizon footprints suggest depth-first algorithms. Galaxy footprints are caused by algorithms that don’t follow direct paths through the graph.

Ordering o Algorithms n n n n Breadth first search Depth first search Degree ordering Reverse Cuthill-Mc. Kee (RCM) King’s algorithm Sloan’s algorithm Separator tree Spectral Ordering

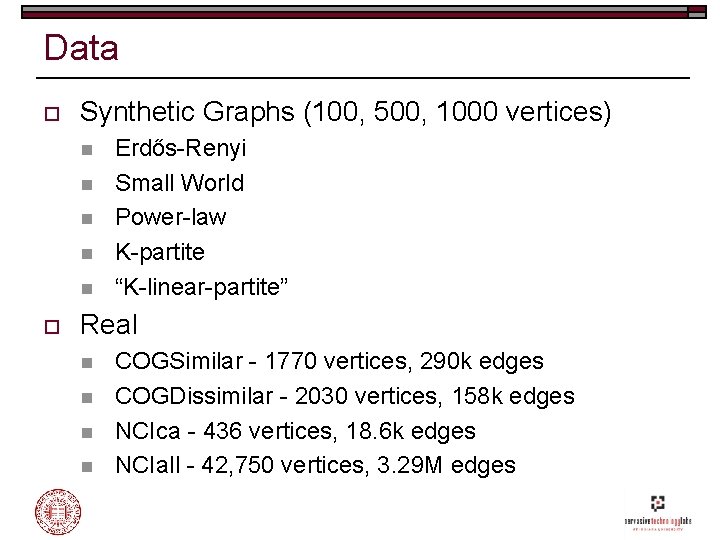

Data o Synthetic Graphs (100, 500, 1000 vertices) n n n o Erdős-Renyi Small World Power-law K-partite “K-linear-partite” Real n n COGSimilar - 1770 vertices, 290 k edges COGDissimilar - 2030 vertices, 158 k edges NCIca - 436 vertices, 18. 6 k edges NCIall - 42, 750 vertices, 3. 29 M edges

Methods: VSM Preparation … (1) (2) (3) (4) 1) Create or load each graph 2) Create two initial vertex orderings in memory: original and random 3) Apply each algorithm to each initial ordering 4) Generate hi-res (1000 x 1000) and lo-res (100 x 100) version of each VSM

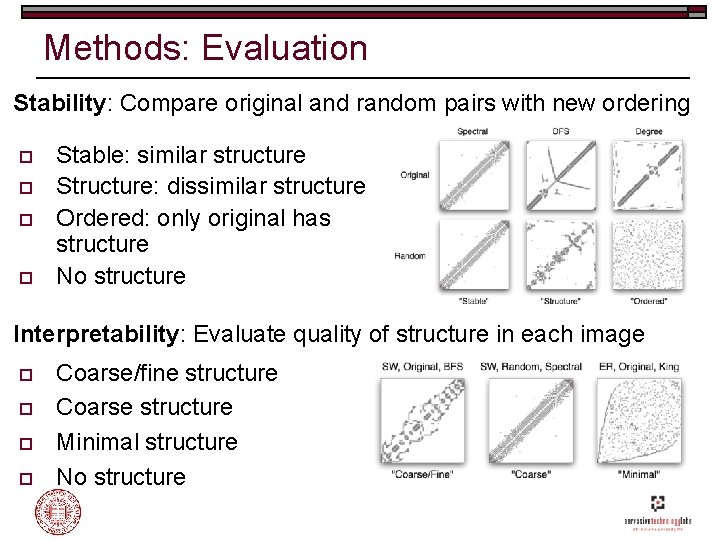

Methods: Evaluation Stability: Compare original and random pairs with new ordering o o Stable: similar structure Structure: dissimilar structure Ordered: only original has structure No structure Interpretability: Evaluate quality of structure in each image o o Coarse/fine structure Coarse structure Minimal structure No structure

Results: Stability is dependent on the graph and algorithm n n Synthetic graphs tended to be stable for all algorithms Real graphs o o “Stable” for degree, partitioning, and spectral algorithms “Structured” for search-based algorithms

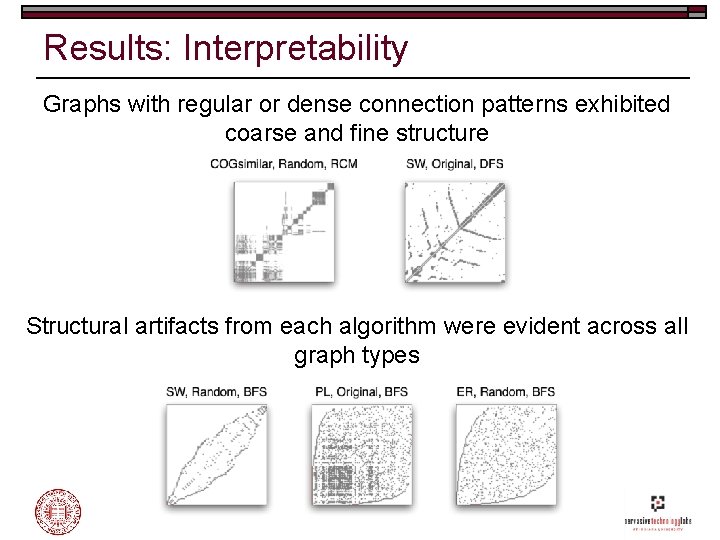

Results: Interpretability Graphs with regular or dense connection patterns exhibited coarse and fine structure Structural artifacts from each algorithm were evident across all graph types

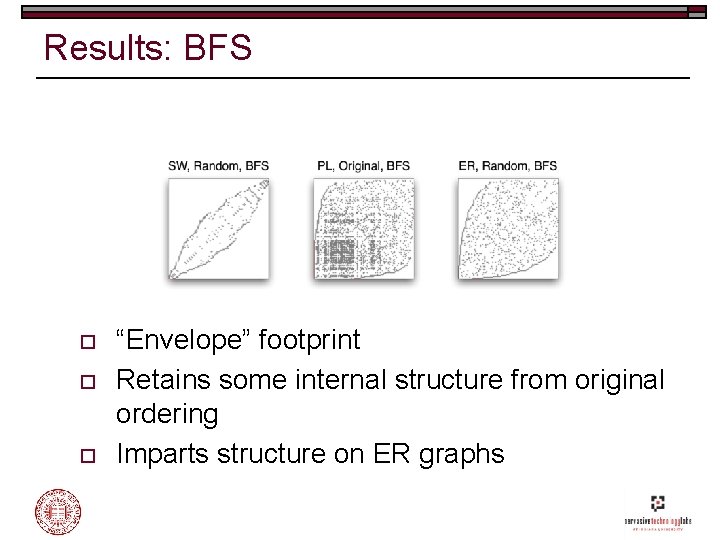

Results: BFS o o o “Envelope” footprint Retains some internal structure from original ordering Imparts structure on ER graphs

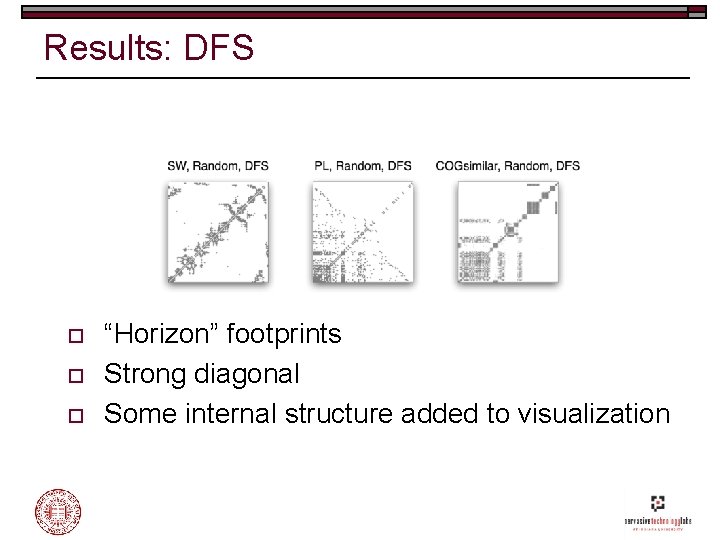

Results: DFS o o o “Horizon” footprints Strong diagonal Some internal structure added to visualization

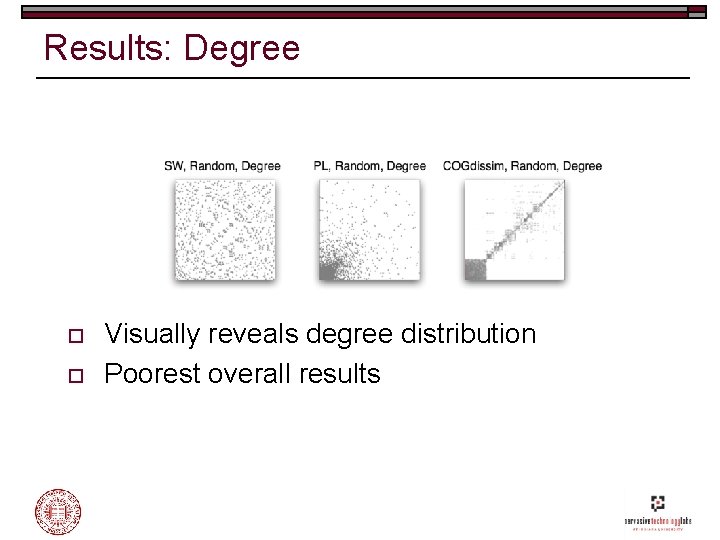

Results: Degree o o Visually reveals degree distribution Poorest overall results

Results: RCM and King o Both impart additional structure within the envelope created by the BFS

Results: Separator Tree o o Characterized by a “fat” diagonal Nearly reproduces ordering for small world graph

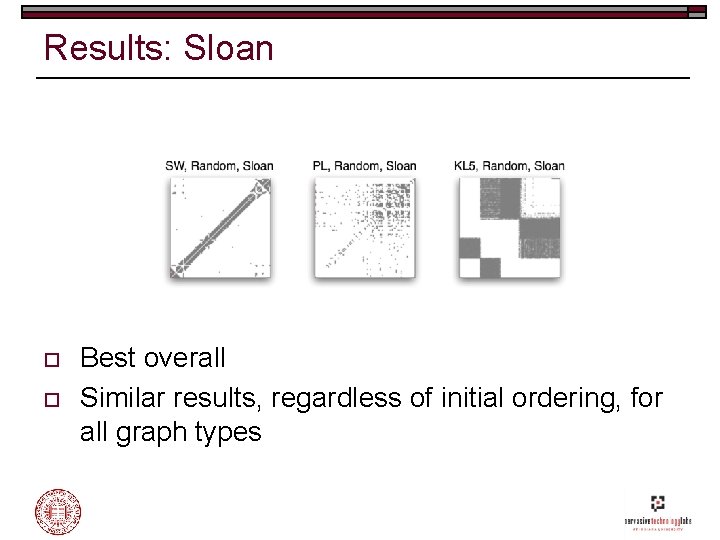

Results: Sloan o o Best overall Similar results, regardless of initial ordering, for all graph types

Results: Spectral o o “Galaxy” footprint Performed well on structured graphs and fully resolved KL 5 graphs

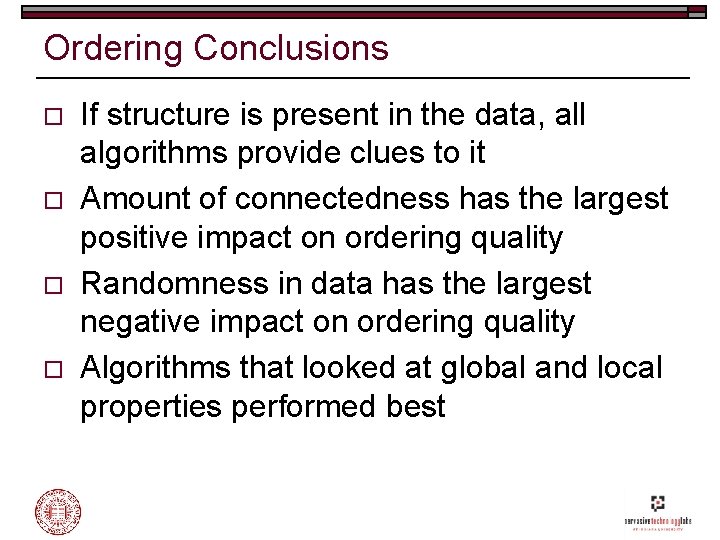

Ordering Conclusions o o If structure is present in the data, all algorithms provide clues to it Amount of connectedness has the largest positive impact on ordering quality Randomness in data has the largest negative impact on ordering quality Algorithms that looked at global and local properties performed best

Implementation Issues Interactivity is essential for exploring large graphs. Alternate orderings allow for different views and interpretations. Linked views, especially for vertex properties, help explore structural features. Edges (dots) can be colored by weight or category. Anti-aliasing is essential for large, sparse graphs: The graph on the right is easily interpreted as a dense graph with little structure. The image on the left provides a more accurate rendering of the graph.

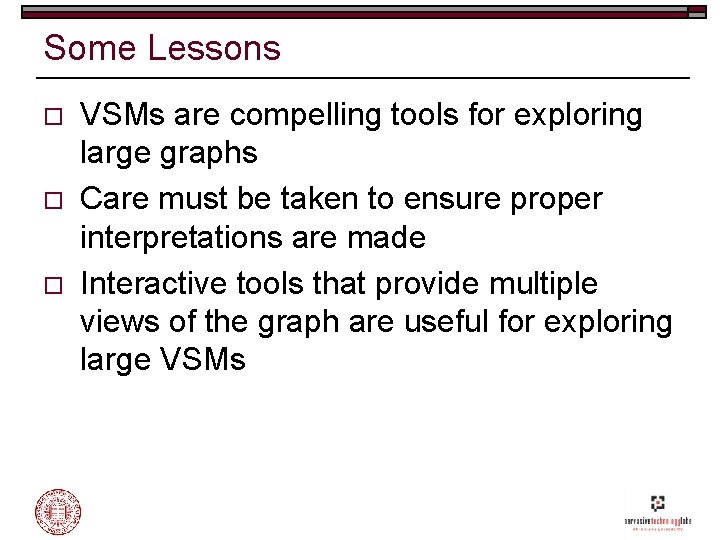

Some Lessons o o o VSMs are compelling tools for exploring large graphs Care must be taken to ensure proper interpretations are made Interactive tools that provide multiple views of the graph are useful for exploring large VSMs

BFS Case Study BFS shows remarkable consistency over several graph types, especially SWGs Can we better characterize its behavior? Specifically, can we quantify some of the things we’re seeing?

BFS Case Study

Visual Parameters o o o Bandwidth and average envelope width Envelope jump Envelope terminal Number of envelope gaps Average gap width

Graph Measurements o o o Diameter Characteristic path length Global efficiency Clustering coefficient Model parameters n, k, p

Graph Measurements

BFS Case Study We begin by considering fixed n and k, and looking at diameter and average envelope width.

Average Envelope Width and Diameter

Global Efficiency

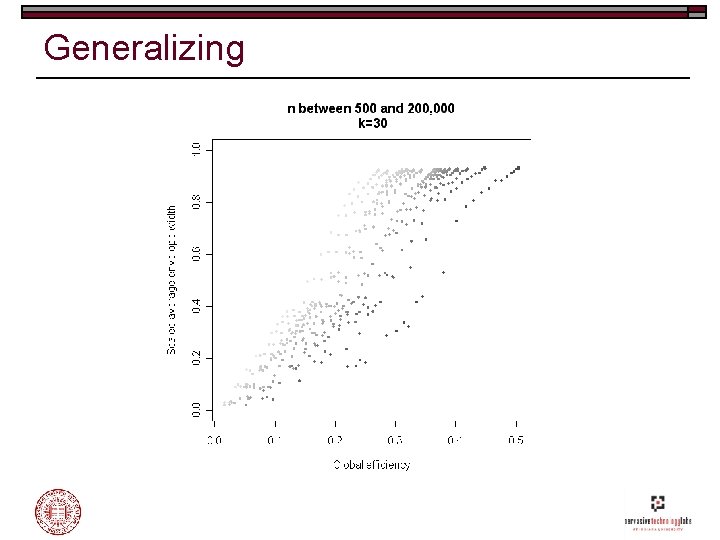

Generalizing What about other n and k?

Generalizing

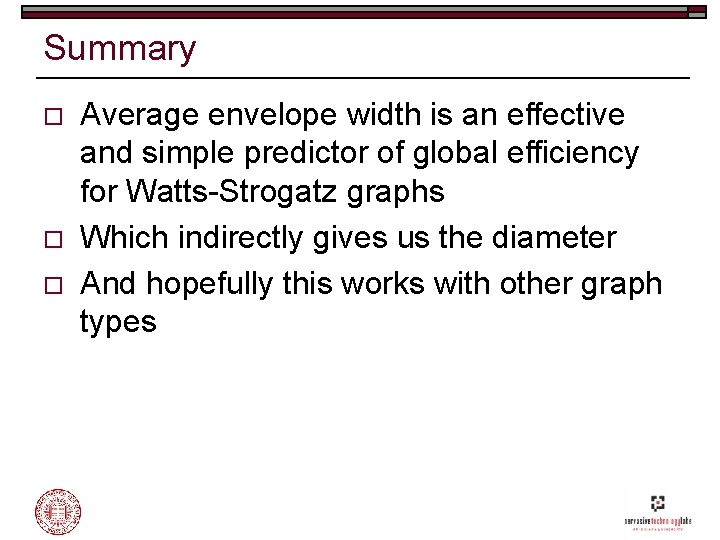

Summary o o o Average envelope width is an effective and simple predictor of global efficiency for Watts-Strogatz graphs Which indirectly gives us the diameter And hopefully this works with other graph types

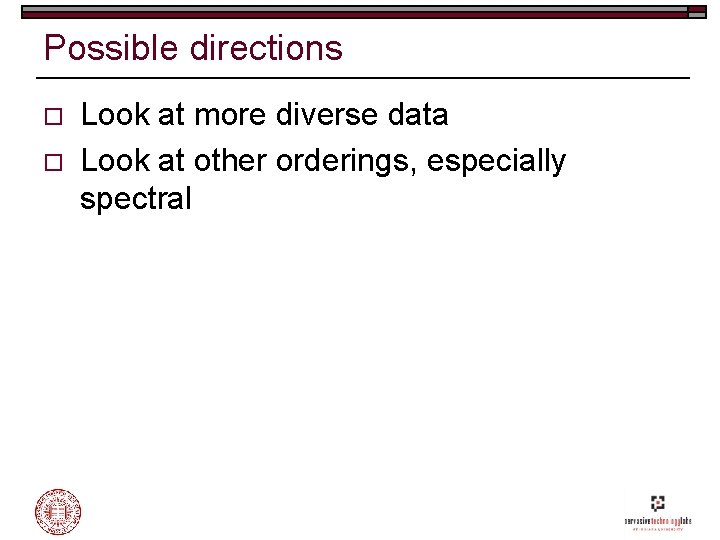

Possible directions o o Look at more diverse data Look at other orderings, especially spectral
