Matrices The Basics Vocabulary and basic concepts A

Matrices The Basics Vocabulary and basic concepts

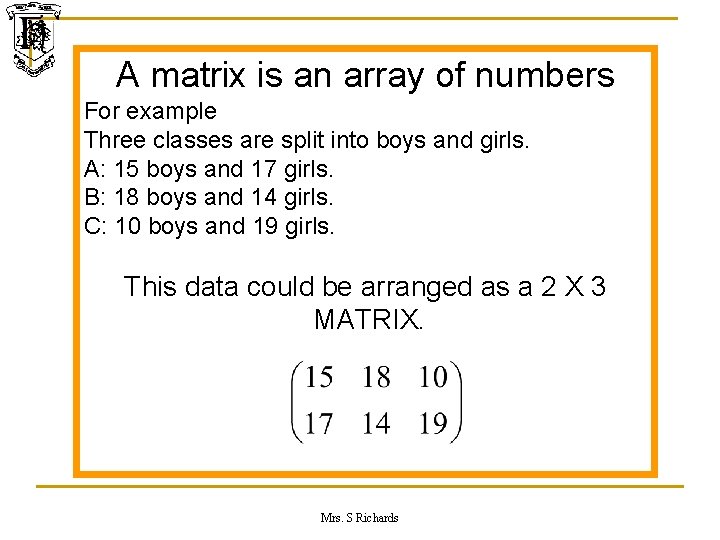

A matrix is an array of numbers For example Three classes are split into boys and girls. A: 15 boys and 17 girls. B: 18 boys and 14 girls. C: 10 boys and 19 girls. This data could be arranged as a 2 X 3 MATRIX. Mrs. S Richards

A matrix with R rows and C columns is called an R X C Matrix. This is called the ORDER of the matrix. Each entry in the matrix is called an ELEMENT. Mrs. S Richards

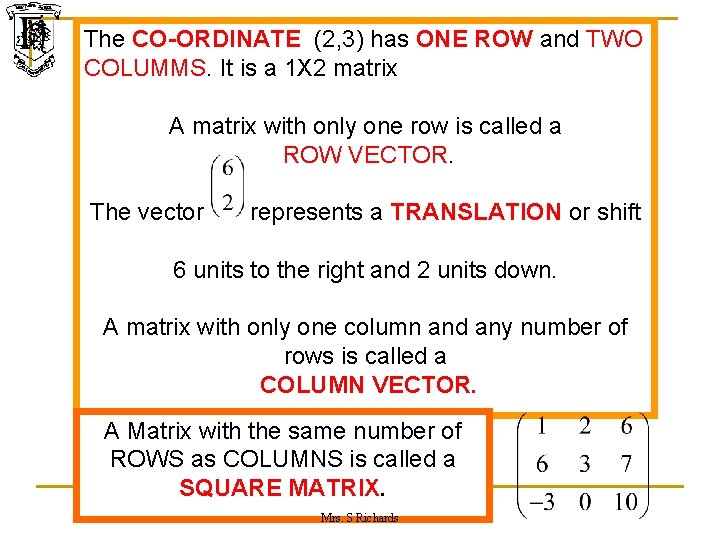

The CO-ORDINATE (2, 3) has ONE ROW and TWO COLUMMS. It is a 1 X 2 matrix A matrix with only one row is called a ROW VECTOR. The vector represents a TRANSLATION or shift 6 units to the right and 2 units down. A matrix with only one column and any number of rows is called a COLUMN VECTOR. A Matrix with the same number of ROWS as COLUMNS is called a SQUARE MATRIX. Mrs. S Richards

Addition and Subtraction of Matrices We may add or subtract two matrices ONLY if they have the SAME ORDER. Adding or subtracting matrices is carried out by adding or subtracting their corresponding elements. If two matrices A and B are of UNEQUAL ORDER then A + BMrs. does not exist. S Richards

Addition and Subtraction of Matrices If two matrices A and B are of EQUAL ORDER then A+B=B+A Addition of Matrices (where allowed) is COMMUTATIVE Mrs. S Richards

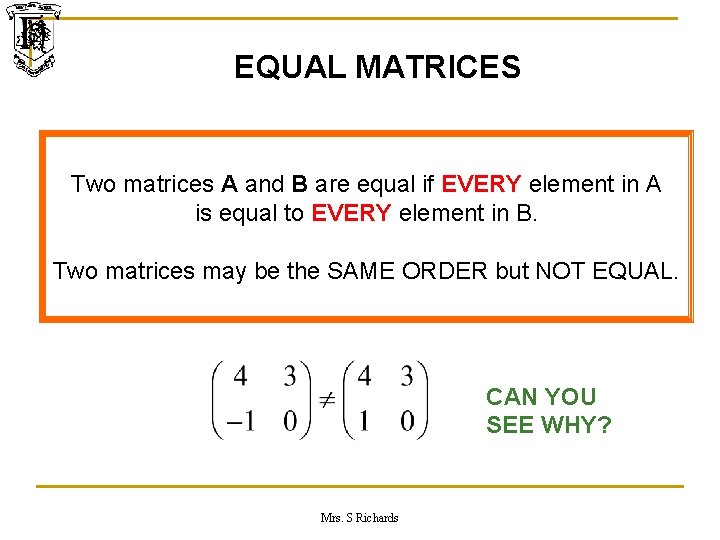

EQUAL MATRICES Two matrices A and B are equal if EVERY element in A is equal to EVERY element in B. Two matrices may be the SAME ORDER but NOT EQUAL. CAN YOU SEE WHY? Mrs. S Richards

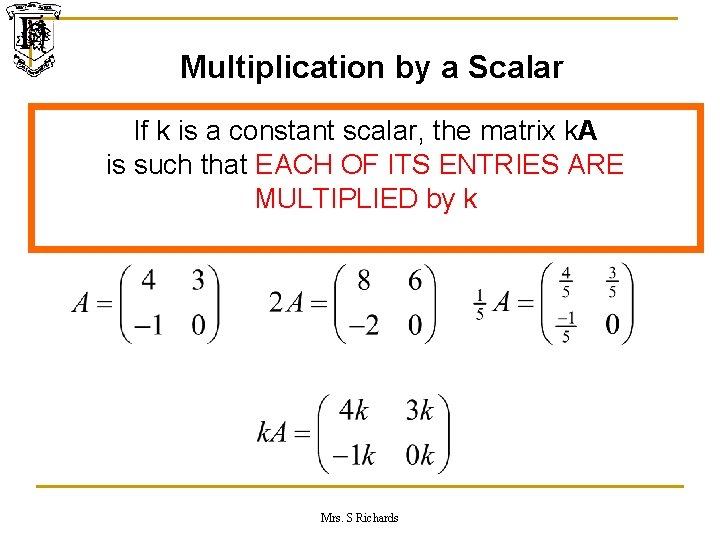

Multiplication by a Scalar If k is a constant scalar, the matrix k. A is such that EACH OF ITS ENTRIES ARE MULTIPLIED by k Mrs. S Richards

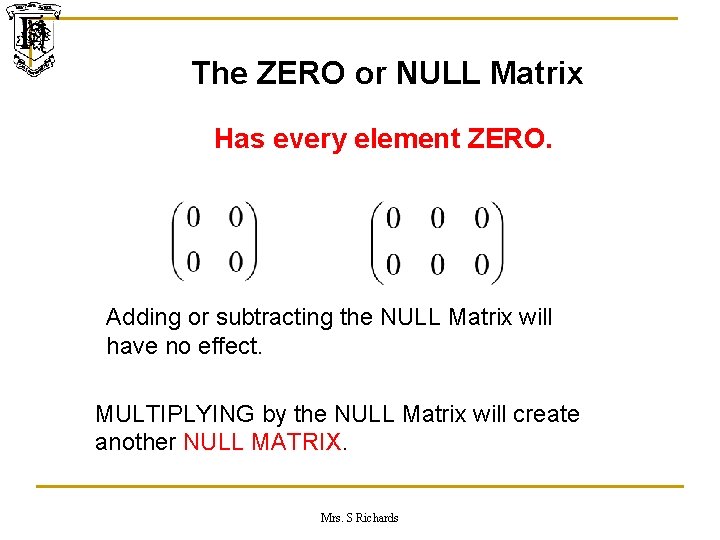

The ZERO or NULL Matrix Has every element ZERO. Adding or subtracting the NULL Matrix will have no effect. MULTIPLYING by the NULL Matrix will create another NULL MATRIX. Mrs. S Richards

The UNIT or IDENTITY MATRIX I A VERY IMPORTANT MATRIX. (Later work!) These are always SQUARE MATRICES This is denoted by the letter I and has zero entries except for 1’s on the diagonal. MULTIPLYING by the IDENTITY Matrix will create the SAME MATRIX. In a similar way to Multiplying a number by 1 Mrs. S Richards

The TRANSPOSE OF A MATRIX The rows are written as columns and the columns as rows. Mrs. S Richards
