Mathematics for Computer Science MIT 6. 042 J/18. 062 J Computational Processes II Copyright © Albert Meyer, 2002. Prof. Albert Meyer & Dr. Radhika Nagpal March 6, 2002 1

Computational Processes Last lecture: Invariants & Partial Correctness. March 6, 2002 2

Computational Processes Today: Termination, Derived Variables, Getting Married. March 6, 2002 3

Derived variables A derived variable, v, is a function giving a value to each state. March 6, 2002 4

Derived variables A derived variable, v, is a function giving a value to each state. Robot example: • Sum of coordinates, v : : = x + y. March 6, 2002 5

Derived variables A derived variable, v, is a function giving a value to each state. Robot example: • Sum of coordinates, v : : = x + y. • Parity of x + y, w : : = v mod 2. March 6, 2002 6

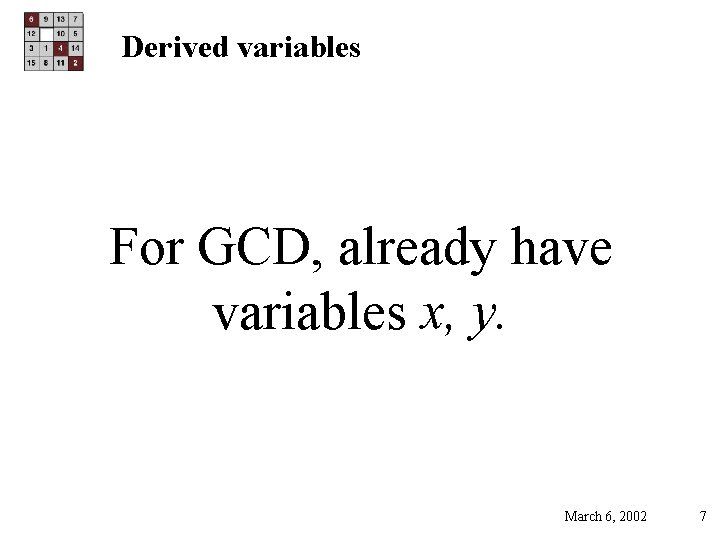

Derived variables For GCD, already have variables x, y. March 6, 2002 7

Derived variables Proof of GCD termination: variable y is strictly decreasing and natural number valued. March 6, 2002 8

Derived variables Termination follows by least number principle: y must take a least value, and thus the algorithm is stuck. March 6, 2002 9

Strictly Decreasing Variable 16 N 12 8 4 0 State March 6, 2002 10

Strictly Decreasing Variable 16 12 N Goes down at every step 8 4 0 State March 6, 2002 11

Weakly Decreasing Variable 16 12 N Down or constant after each step 8 4 0 State March 6, 2002 12

Weakly Decreasing Variable (We used to call weakly decreasing variables “nonincreasing” variables. ) March 6, 2002 13

Weakly Decreasing Variable OK terminology but remember: nonincreasing is NOT SAME as “not increasing. ” March 6, 2002 14

In-class Problem 1 March 6, 2002 15

Stable Marriage A Marriage Problem 1 2 3 4 5 Boys Girls A B C D E March 6, 2002 16

Stable Marriage Preferences: Boys 1: CBEAD 2 : ABECD 3 : DCBAE 4 : ACDBE 5 : ABDEC Girls A : 35214 B : 52143 C : 43512 D : 12345 E : 23415 March 6, 2002 17

Stable Marriage Preferences 1: CBEAD 2 : ABECD 3 : DCBAE 4 : ACDBE 5 : ABDEC Try “greedy” strategy for boys March 6, 2002 18

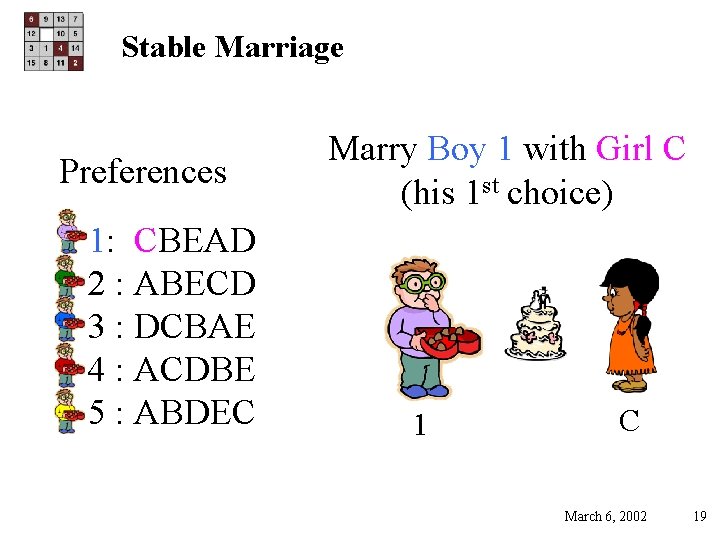

Stable Marriage Preferences 1: CBEAD 2 : ABECD 3 : DCBAE 4 : ACDBE 5 : ABDEC Marry Boy 1 with Girl C (his 1 st choice) 1 C March 6, 2002 19

Stable Marriage Preferences 1: CBEAD 2 : ABECD 3 : DCBAE 4 : ACDBE 5 : ABDEC Marry Boy 1 with Girl C (his 1 st choice) 1 C March 6, 2002 20

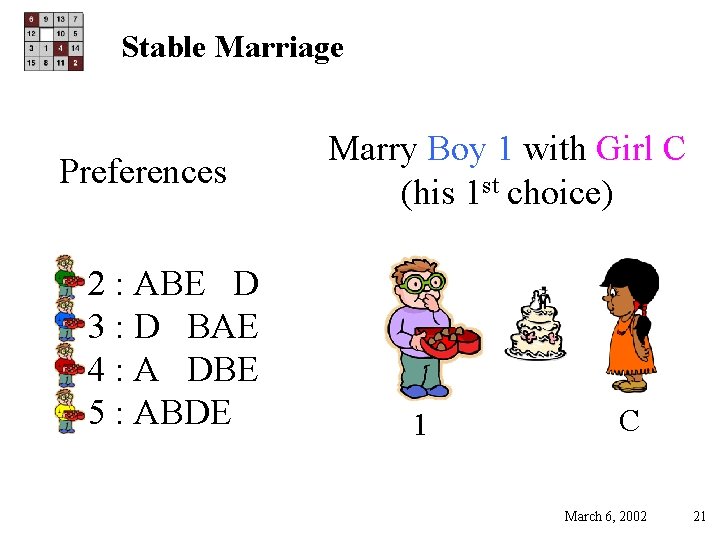

Stable Marriage Preferences 2 : ABE D 3 : D BAE 4 : A DBE 5 : ABDE Marry Boy 1 with Girl C (his 1 st choice) 1 C March 6, 2002 21

Stable Marriage Preferences 2 : ABED 3 : DBAE 4 : ADBE 5 : ABDE Marry Boy 1 with Girl C (his 1 st choice) 1 C March 6, 2002 22

Stable Marriage Preferences 1 C 2 : ABED 3 : DBAE 4 : ADBE 5 : ABDE Next: Marry Boy 2 with Girl A: (best remaining choice) 2 A March 6, 2002 23

Stable Marriage Preferences 1 C 2 : ABED 3 : DBAE 4 : ADBE 5 : ABDE Next: Marry Boy 2 with Girl A: (best remaining choice) 2 A March 6, 2002 24

Stable Marriage Final “boy greedy” marriages 1 C 3 D 2 A 4 B 5 E March 6, 2002 25

Stable Marriage Trouble! 1 C 4 B March 6, 2002 26

Stable Marriage Boy 4 likes Girl C better than his wife. 1 C 4 B March 6, 2002 27

Stable Marriage and vice-versa 1 C 4 B March 6, 2002 28

Stable Marriage Rogue Couple 1 C 4 B March 6, 2002 29

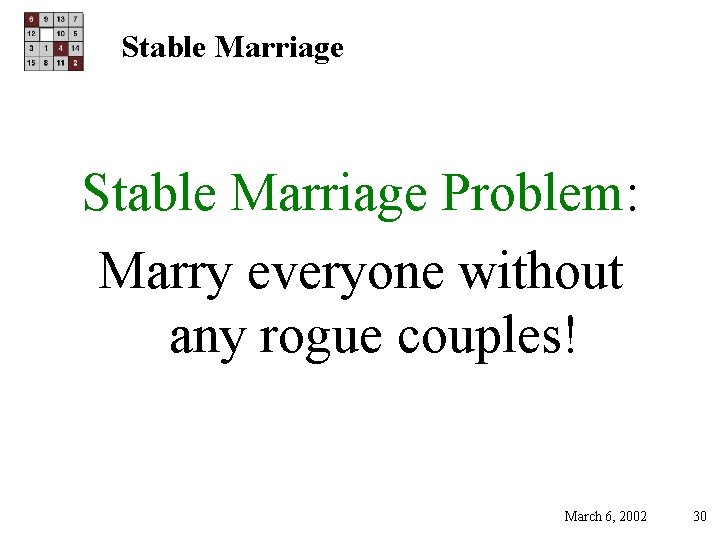

Stable Marriage Problem: Marry everyone without any rogue couples! March 6, 2002 30

Stable Marriage Do it! PROBLEM 2 March 6, 2002 31

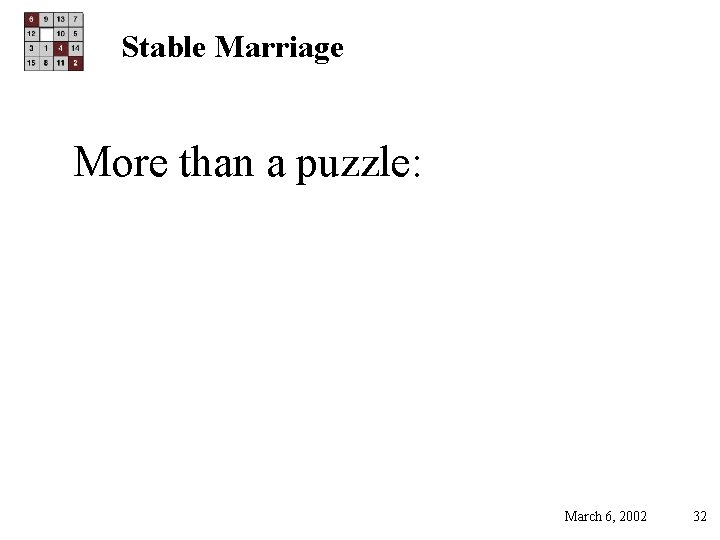

Stable Marriage More than a puzzle: March 6, 2002 32

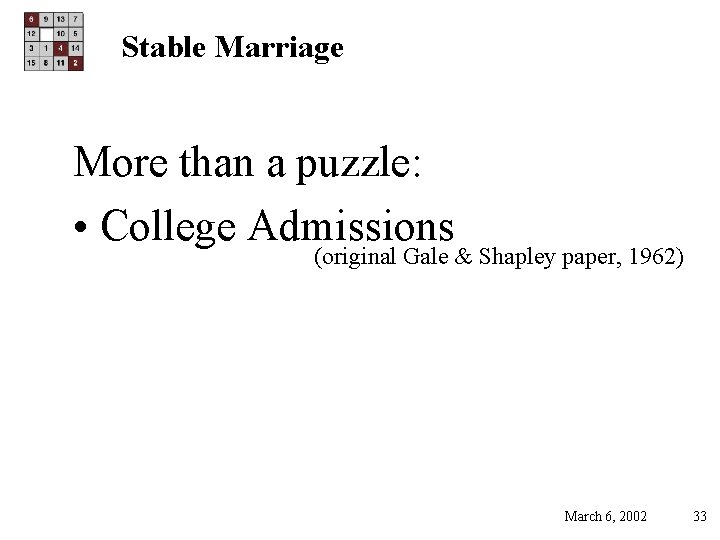

Stable Marriage More than a puzzle: • College Admissions (original Gale & Shapley paper, 1962) March 6, 2002 33

Stable Marriage More than a puzzle: • College Admissions (original Gale & Shapley paper, 1962) • Matching Hospitals & Residents. March 6, 2002 34

Stable Marriage More than a puzzle: • College Admissions (original Gale & Shapley paper, 1962) • Matching Hospitals & Residents. • Matching Dance Partners. March 6, 2002 35

Stable Marriage March 6, 2002 36

Stable Marriage The Mating Algorithm March 6, 2002 37

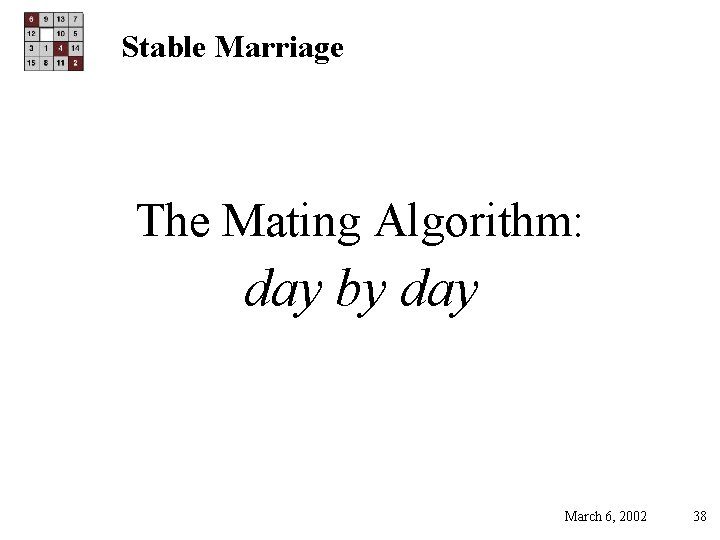

Stable Marriage The Mating Algorithm: day by day March 6, 2002 38

Stable Marriage Morning: boy serenades favorite girl Ted Alice Bob March 6, 2002 39

Stable Marriage Morning: boy serenades favorite girl Afternoon: girl rejects all but favorite Ted Alice Bob March 6, 2002 40

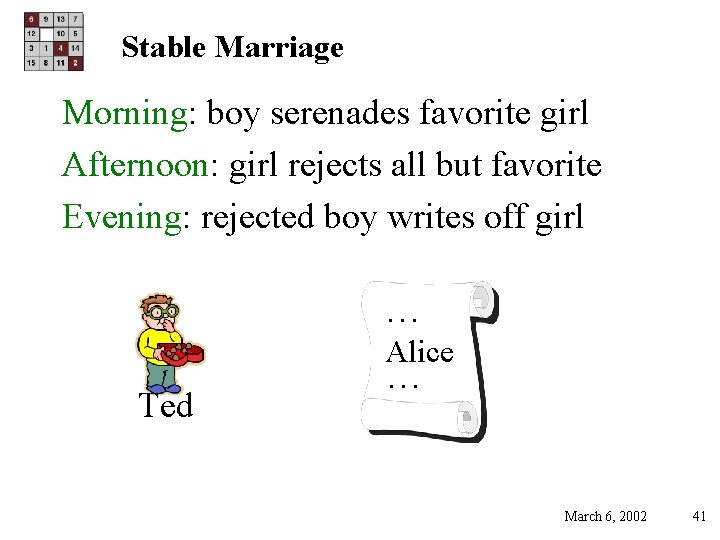

Stable Marriage Morning: boy serenades favorite girl Afternoon: girl rejects all but favorite Evening: rejected boy writes off girl … Alice Ted … March 6, 2002 41

Stable Marriage Morning: boy serenades favorite girl Afternoon: girl rejects all but favorite Evening: rejected boy writes off girl … Alice Ted … March 6, 2002 42

Stable Marriage Stop when no rejects. Girl marries her favorite suitor. March 6, 2002 43

In-class Problem 3 March 6, 2002 44

Stable Marriage Partial Correctness: March 6, 2002 45

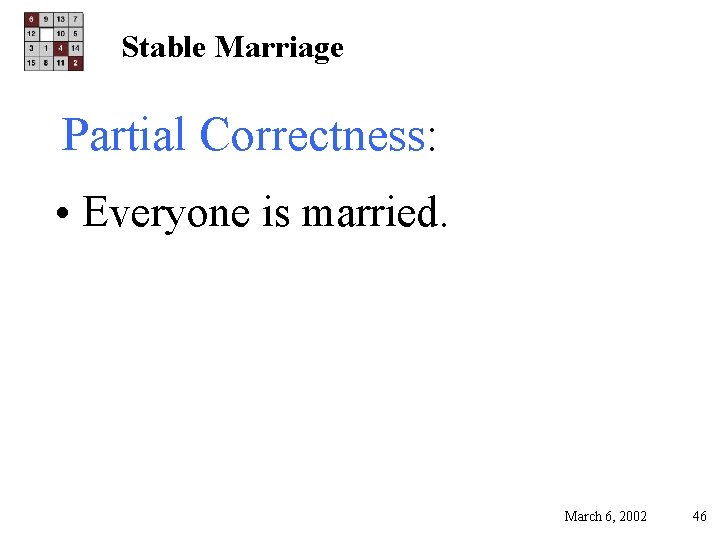

Stable Marriage Partial Correctness: • Everyone is married. March 6, 2002 46

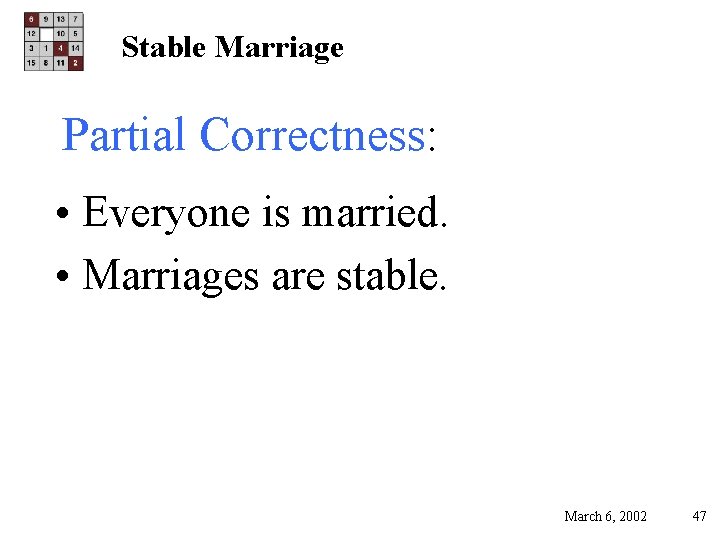

Stable Marriage Partial Correctness: • Everyone is married. • Marriages are stable. March 6, 2002 47

Stable Marriage Partial Correctness: • Everyone is married. • Marriages are stable. Termination: there exists a Wedding Day. March 6, 2002 48

Stable Marriage Model as State Machine State q: Each boy’s set of eligible girls q(Bob)={Carole, Alice, …} March 6, 2002 49

Stable Marriage Derived Variable: serenading Bob’s favorite eligible girl. March 6, 2002 50

Stable Marriage Derived Variable: suitors all boys serenading Alice. March 6, 2002 51

Stable Marriage Derived Variable: favorite Carole’s preferred suitor. March 6, 2002 52

Stable Marriage Different girls have different favorites, because boys serenade one girl at a time. March 6, 2002 53

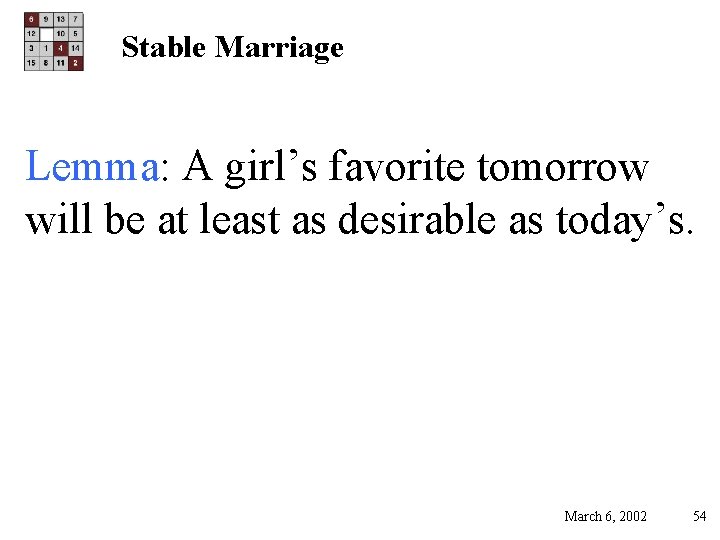

Stable Marriage Lemma: A girl’s favorite tomorrow will be at least as desirable as today’s. March 6, 2002 54

Stable Marriage Lemma: A girl’s favorite tomorrow will be at least as desirable as today’s. favorite(G) is weakly increasing for each G. March 6, 2002 55

Stable Marriage Lemma: A boy’s love tomorrow will be no more desirable than today’s. serenading(B) is weakly decreasing for each B. March 6, 2002 56

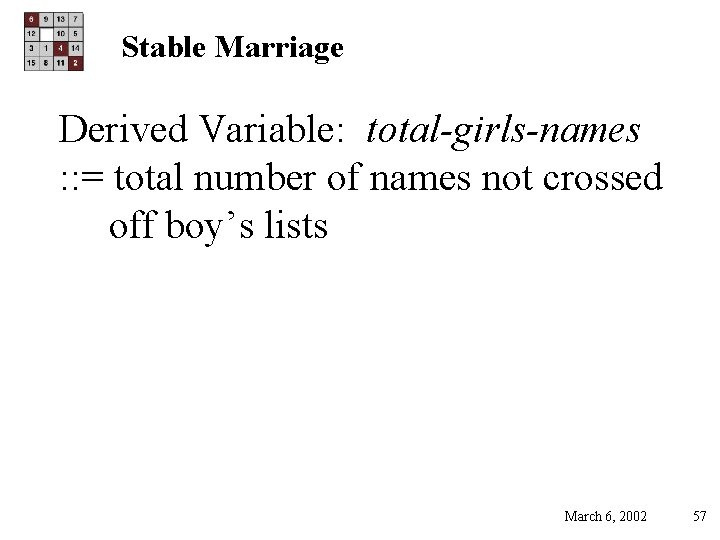

Stable Marriage Derived Variable: total-girls-names : : = total number of names not crossed off boy’s lists March 6, 2002 57

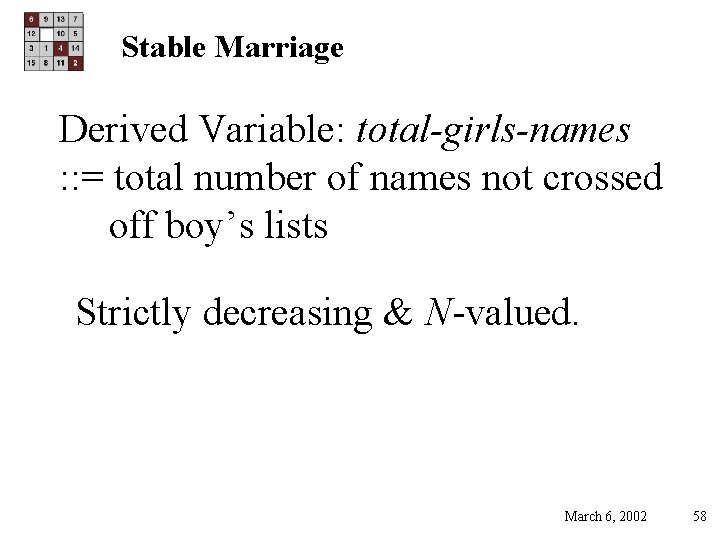

Stable Marriage Derived Variable: total-girls-names : : = total number of names not crossed off boy’s lists Strictly decreasing & N-valued. March 6, 2002 58

Stable Marriage Derived Variable: total-girls-names : : = total number of names not crossed off boy’s lists Strictly decreasing & N-valued. So Wedding Day. March 6, 2002 59

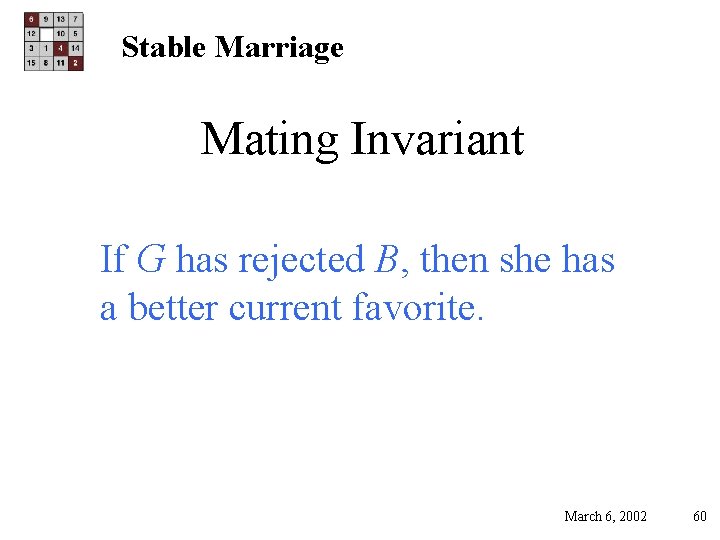

Stable Marriage Mating Invariant If G has rejected B, then she has a better current favorite. March 6, 2002 60

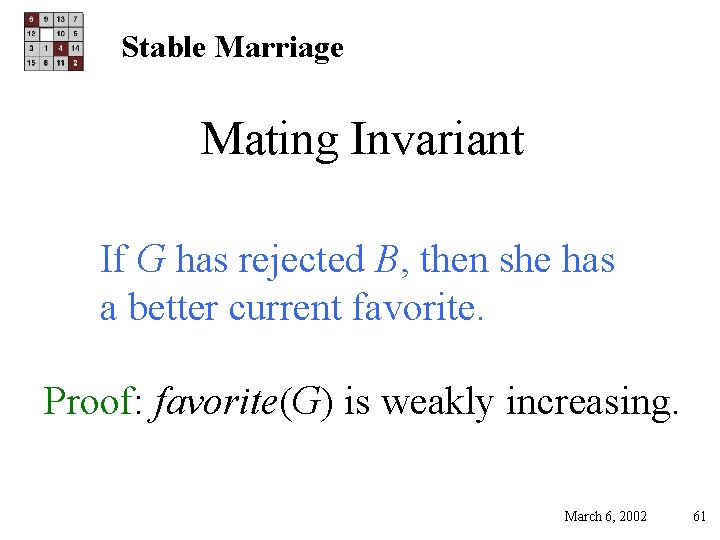

Stable Marriage Mating Invariant If G has rejected B, then she has a better current favorite. Proof: favorite(G) is weakly increasing. March 6, 2002 61

Stable Marriage Everyone is Married on the Wedding Day Proof by contradiction: March 6, 2002 62

Stable Marriage Everyone is Married on the Wedding Day Proof by contradiction: If B is not married, can’t be serenading, so list is empty. March 6, 2002 63

Stable Marriage Everyone is Married on the Wedding Day Proof by contradiction: If B is not married, can’t be serenading, so list is empty. By Invariant all girls have favorites better than B. March 6, 2002 64

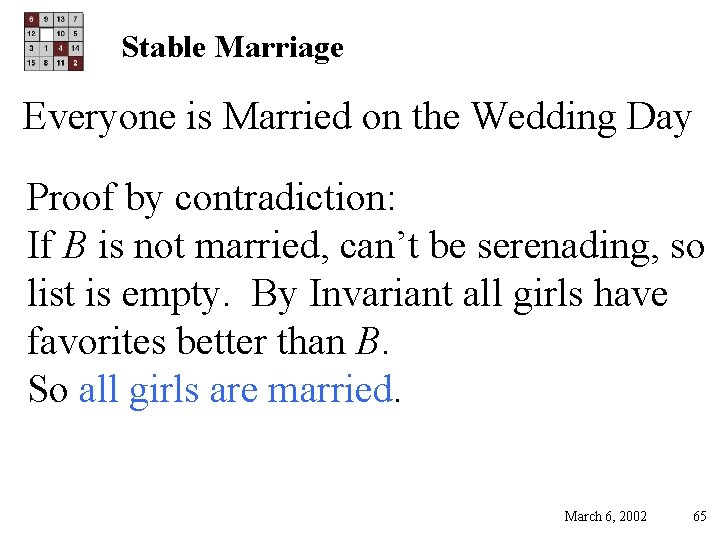

Stable Marriage Everyone is Married on the Wedding Day Proof by contradiction: If B is not married, can’t be serenading, so list is empty. By Invariant all girls have favorites better than B. So all girls are married. March 6, 2002 65

Stable Marriage Everyone is Married on the Wedding Day Proof by contradiction: If B is not married, can’t be serenading, so list is empty. By Invariant all girls have favorites better than B. So all girls are married. So all boys are married. March 6, 2002 66

Stable Marriage Stability: Similar easy argument using the Invariant. March 6, 2002 67

In-class Problem 4 March 6, 2002 68

Stable Marriage Who does better, boys or girls? Girls’ suitors get better, and boy’s sweethearts get worse, so girls do better? March 6, 2002 69

Stable Marriage Who does better, boys or girls? Girls’ suitors get better, and boy’s sweethearts get worse, so girls do better? No! March 6, 2002 70

Stable Marriage Mating Algorithm is Optimal for all Boys at once. March 6, 2002 71

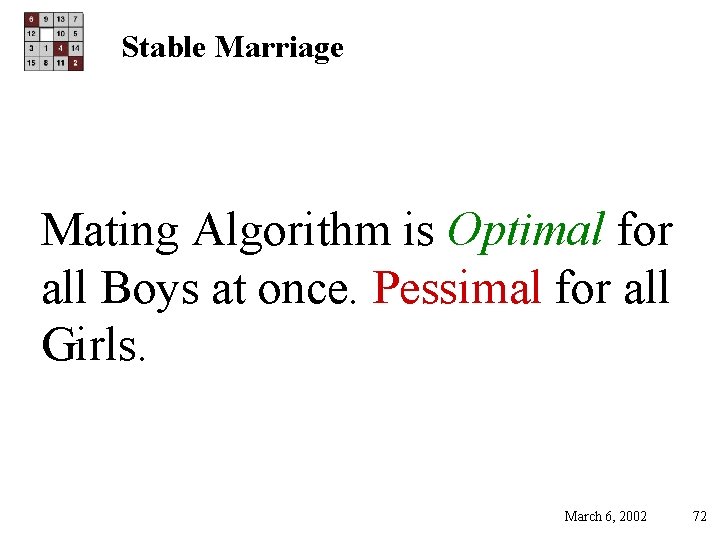

Stable Marriage Mating Algorithm is Optimal for all Boys at once. Pessimal for all Girls. March 6, 2002 72

Stable Marriage More questions, rich theory: Other stable marriages possible? - Can be many. Can a boy do better by lying? – No! Can a girl do better by lying – Yes! March 6, 2002 73
