Mathematical modeling And its possible applications in the diagnosis of cancer Researched by: Mrs. Himani Asija PGT Mathematics (Delhi Public School Vasant Kunj New Delhi)

The Problem We have the solution to cancer but is it the cure? Patient specific titration of the dosage of cancer related drugs is at best a vague field. Behavior of cancerous cells is seemingly random and unpredictable. It is little understood and therefore, at present inadequately treated.

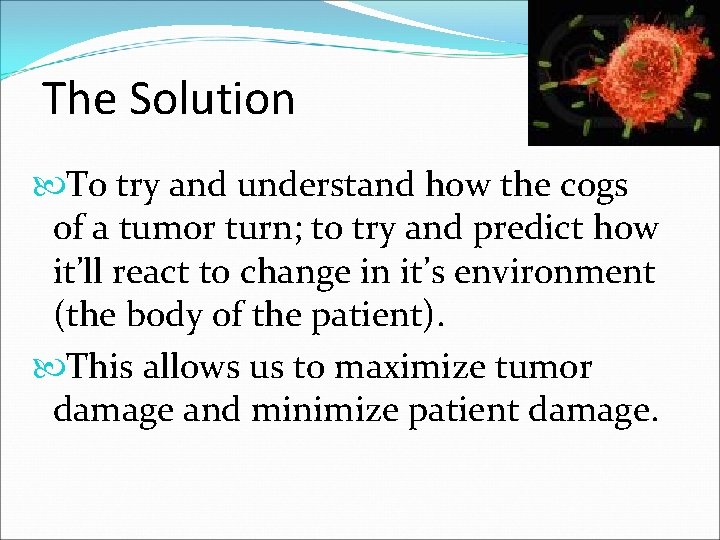

The Solution To try and understand how the cogs of a tumor turn; to try and predict how it’ll react to change in it’s environment (the body of the patient). This allows us to maximize tumor damage and minimize patient damage.

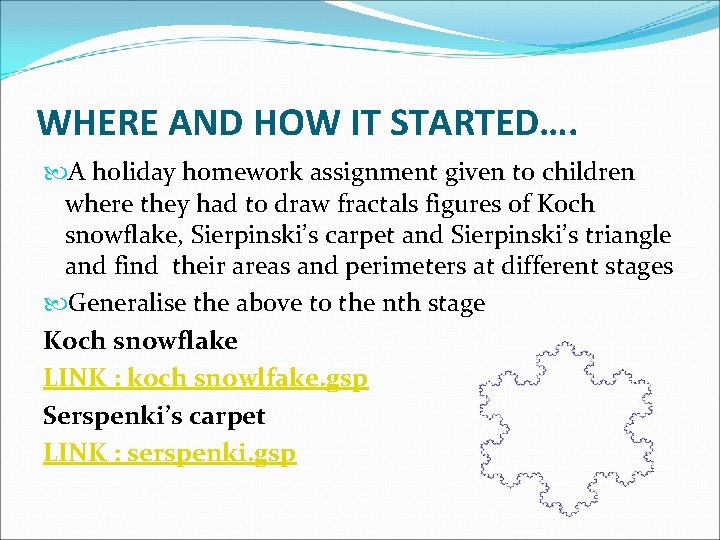

WHERE AND HOW IT STARTED…. A holiday homework assignment given to children where they had to draw fractals figures of Koch snowflake, Sierpinski’s carpet and Sierpinski’s triangle and find their areas and perimeters at different stages Generalise the above to the nth stage Koch snowflake LINK : koch snowlfake. gsp Serspenki’s carpet LINK : serspenki. gsp

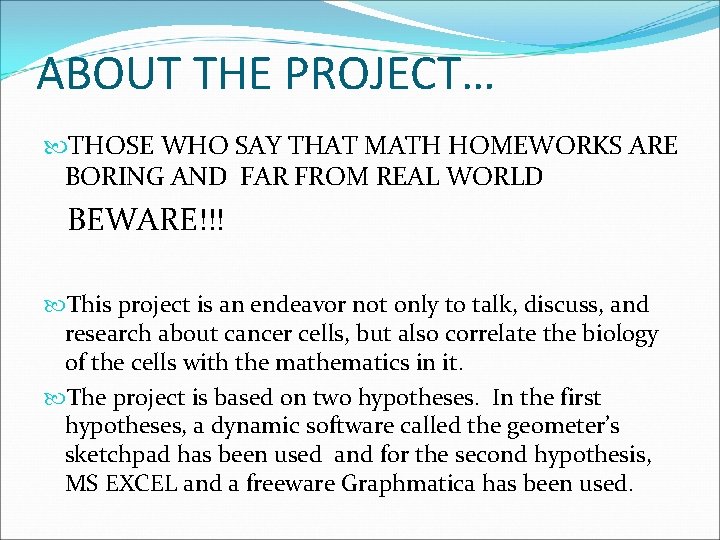

ABOUT THE PROJECT… THOSE WHO SAY THAT MATH HOMEWORKS ARE BORING AND FAR FROM REAL WORLD BEWARE!!! This project is an endeavor not only to talk, discuss, and research about cancer cells, but also correlate the biology of the cells with the mathematics in it. The project is based on two hypotheses. In the first hypotheses, a dynamic software called the geometer’s sketchpad has been used and for the second hypothesis, MS EXCEL and a freeware Graphmatica has been used.

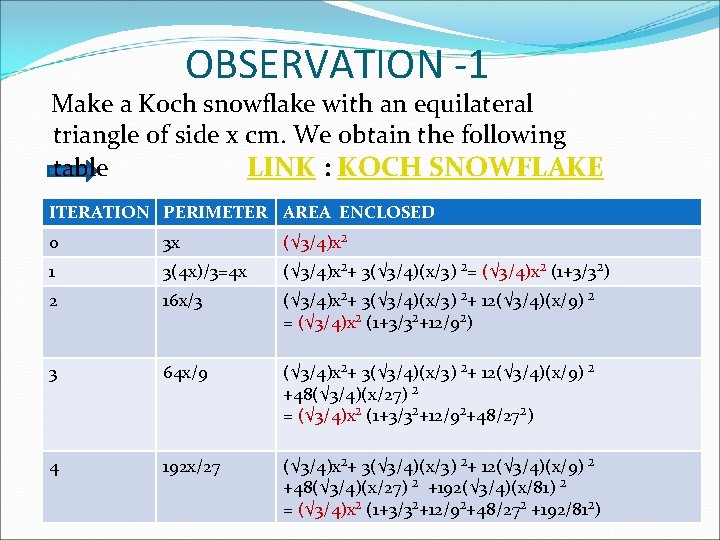

OBSERVATION -1 Make a Koch snowflake with an equilateral triangle of side x cm. We obtain the following table LINK : KOCH SNOWFLAKE ITERATION PERIMETER AREA ENCLOSED 0 3 x (√ 3/4)x² 1 3(4 x)/3=4 x (√ 3/4)x²+ 3(√ 3/4)(x/3) ²= (√ 3/4)x² (1+3/3²) 2 16 x/3 (√ 3/4)x²+ 3(√ 3/4)(x/3) ²+ 12(√ 3/4)(x/9) ² = (√ 3/4)x² (1+3/3²+12/9²) 3 64 x/9 (√ 3/4)x²+ 3(√ 3/4)(x/3) ²+ 12(√ 3/4)(x/9) ² +48(√ 3/4)(x/27) ² = (√ 3/4)x² (1+3/3²+12/9²+48/27²) 4 192 x/27 (√ 3/4)x²+ 3(√ 3/4)(x/3) ²+ 12(√ 3/4)(x/9) ² +48(√ 3/4)(x/27) ² +192(√ 3/4)(x/81) ² = (√ 3/4)x² (1+3/3²+12/9²+48/27² +192/81²)

PERIMETER The perimeters form a geometric progression with common ratio 4/3, which is greater than one 3 x, 4 x, 16 x/3, 48 x/9, 192 x/27, ………… So, the nth term Tn = 3 x(4/3)n-1 which increases infinitely as n increases infinitely. Conclusion: The perimeter of the polygon approaches infinity as n approaches infinity AREA THE ENCLOSED RATIO OF THE PERMETER SQUARED AND The area enclosed by the polygon forms a geometric progression with common AREA INCREASES INFINITELY AS THE NO. OF ratio 4/9, which is less than one SIDES(1+3/3²+12/9²+48/27² OF THE POLYGON INCREASES INFINITELY (√ 3/4)x² +192/81²+………. ) = (√ 3/4)x² (1+ ) = (√ 3/4)x² ( 8/5) = (√ 3/5)2 x² = 8/5 totimes the area of the original NOTE The perimeter has been squared produce a dimensionless triangle quantity in the ratio Conclusion: The area enclosed by the polygon is finite even when n approaches infinity

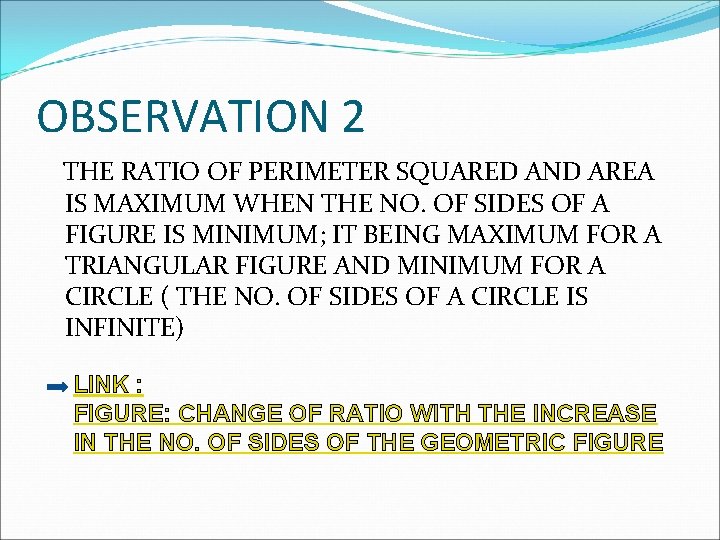

OBSERVATION 2 THE RATIO OF PERIMETER SQUARED AND AREA IS MAXIMUM WHEN THE NO. OF SIDES OF A FIGURE IS MINIMUM; IT BEING MAXIMUM FOR A TRIANGULAR FIGURE AND MINIMUM FOR A CIRCLE ( THE NO. OF SIDES OF A CIRCLE IS INFINITE) LINK : FIGURE: CHANGE OF RATIO WITH THE INCREASE IN THE NO. OF SIDES OF THE GEOMETRIC FIGURE

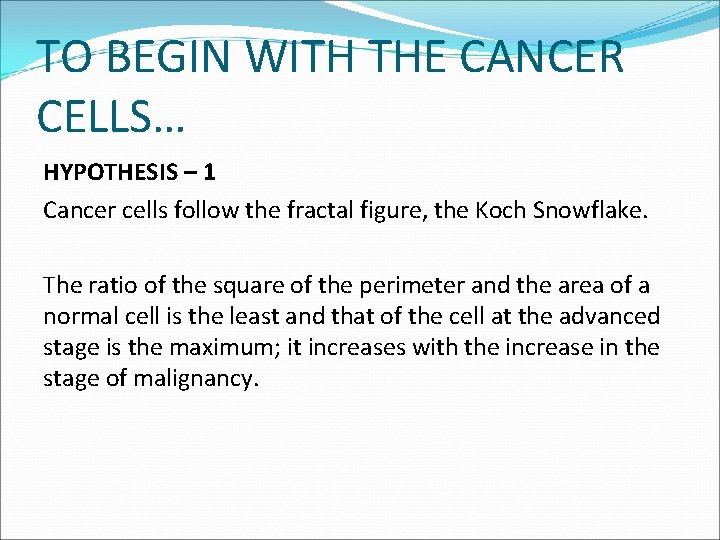

TO BEGIN WITH THE CANCER CELLS… HYPOTHESIS – 1 Cancer cells follow the fractal figure, the Koch Snowflake. The ratio of the square of the perimeter and the area of a normal cell is the least and that of the cell at the advanced stage is the maximum; it increases with the increase in the stage of malignancy.

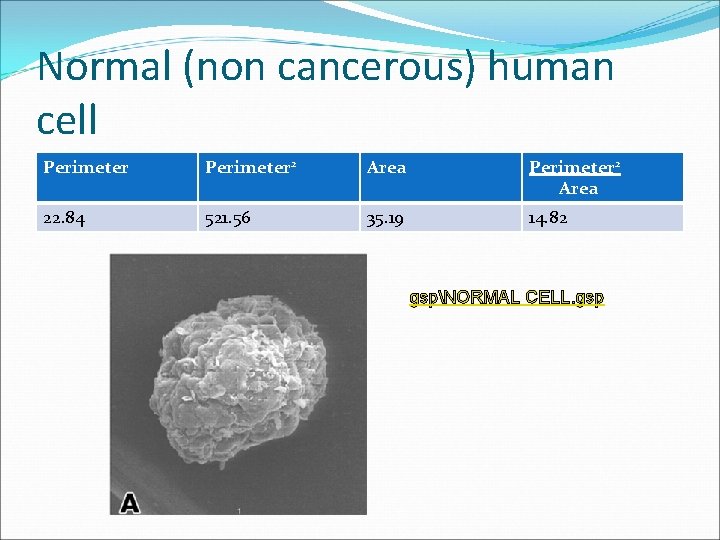

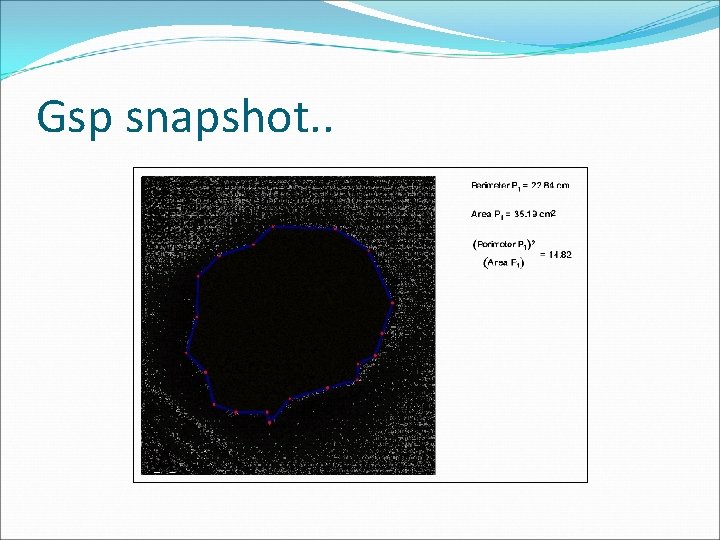

Normal (non cancerous) human cell Perimeter 2 Area 22. 84 521. 56 35. 19 14. 82 gspNORMAL CELL. gsp

Gsp snapshot. .

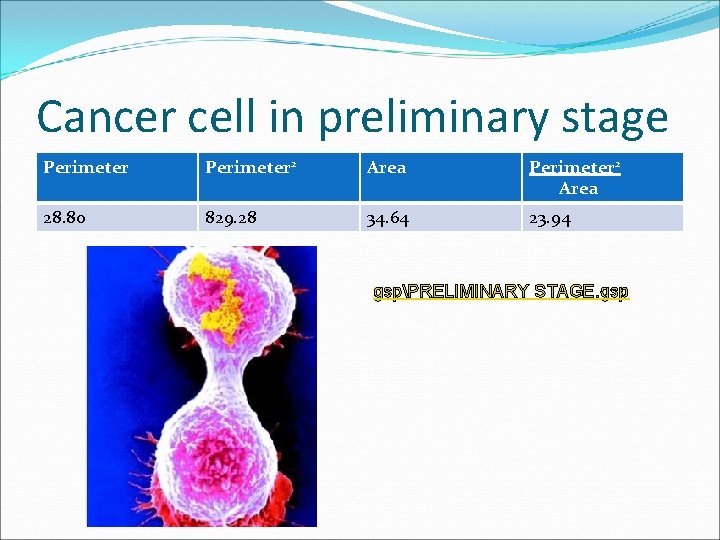

Cancer cell in preliminary stage Perimeter 2 Area 28. 80 829. 28 34. 64 23. 94 gspPRELIMINARY STAGE. gsp

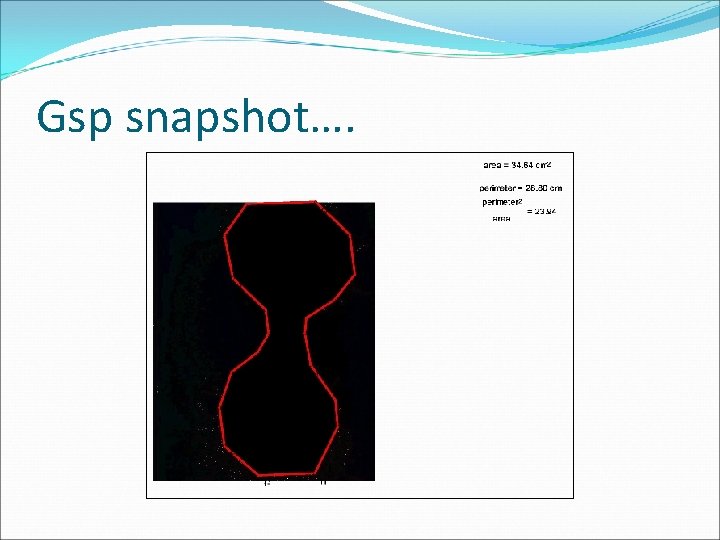

Gsp snapshot….

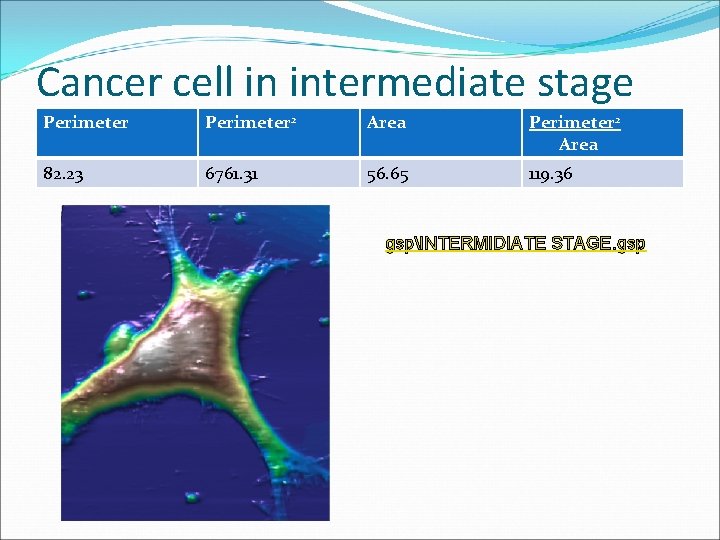

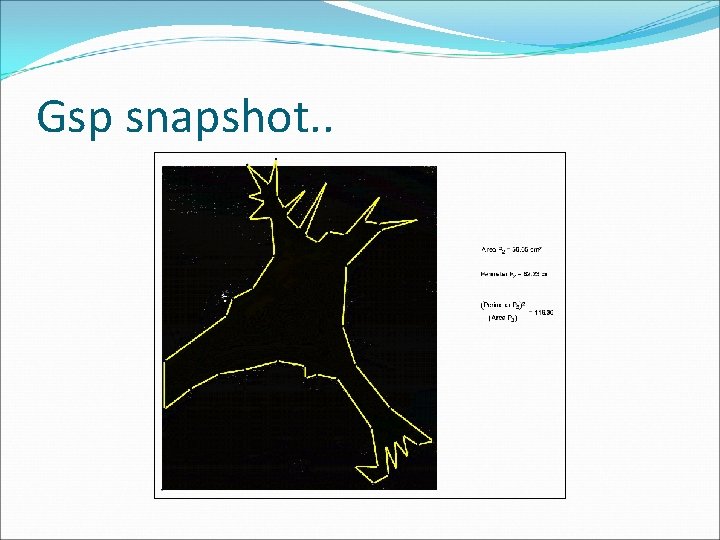

Cancer cell in intermediate stage Perimeter 2 Area 82. 23 6761. 31 56. 65 119. 36 gspINTERMIDIATE STAGE. gsp

Gsp snapshot. .

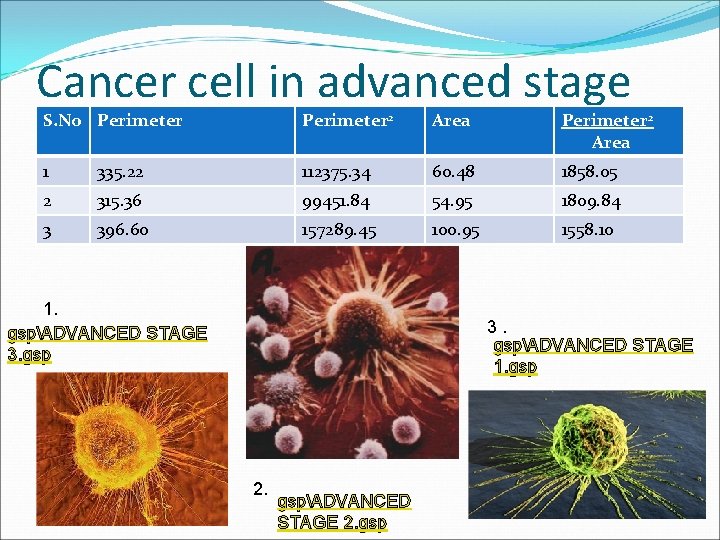

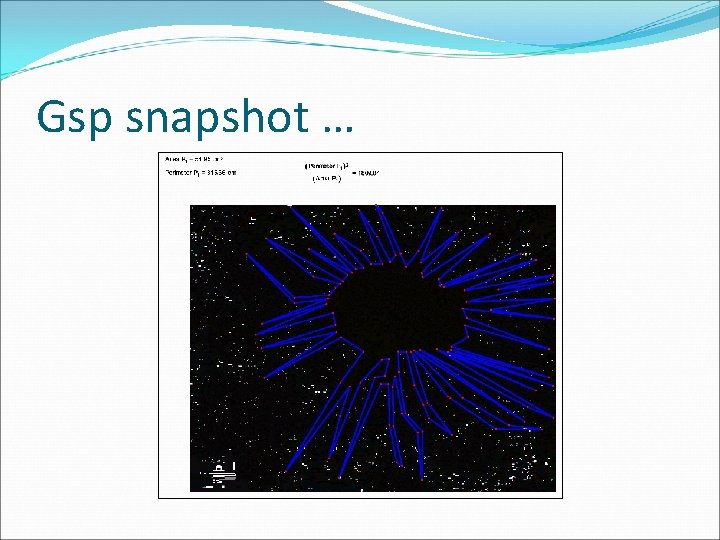

Cancer cell in advanced stage S. No Perimeter 2 Area 1 335. 22 112375. 34 60. 48 1858. 05 2 315. 36 99451. 84 54. 95 1809. 84 3 396. 60 157289. 45 100. 95 1558. 10 1. gspADVANCED STAGE 3. gspADVANCED STAGE 1. gsp 2. gspADVANCED STAGE 2. gsp

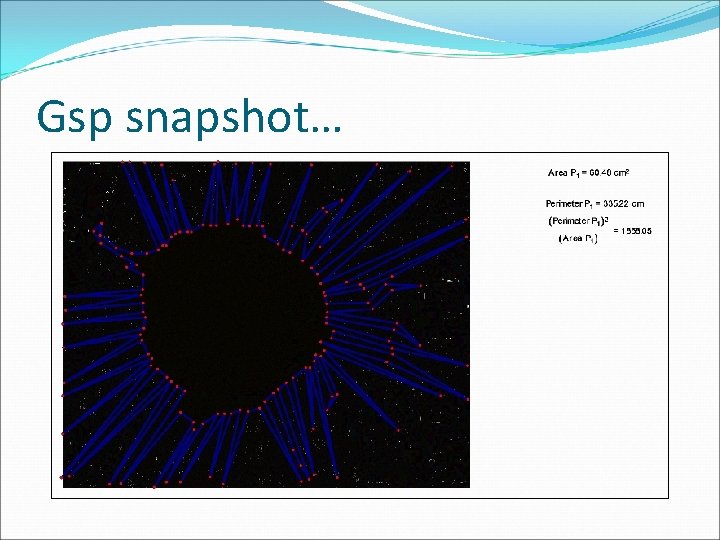

Gsp snapshot…

Gsp snapshot …

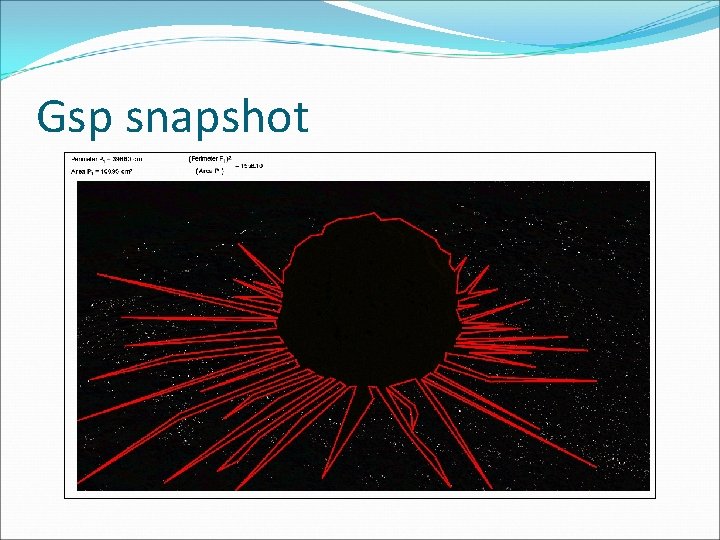

Gsp snapshot

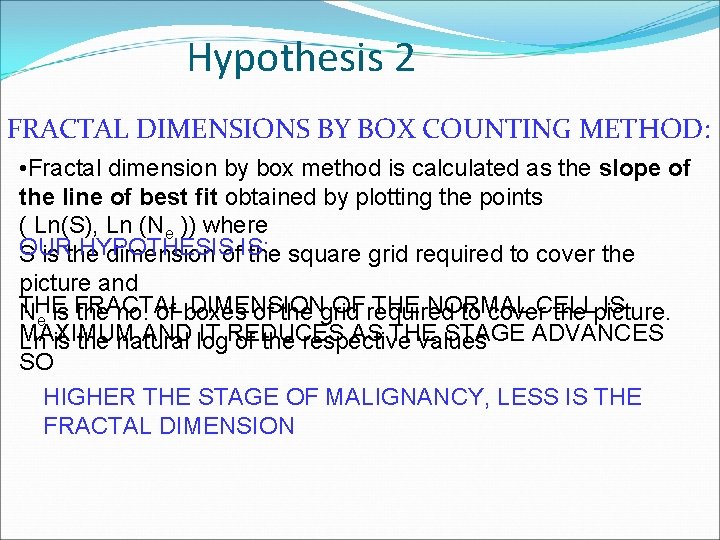

Hypothesis 2 FRACTAL DIMENSIONS BY BOX COUNTING METHOD: • Fractal dimension by box method is calculated as the slope of the line of best fit obtained by plotting the points ( Ln(S), Ln (Ne )) where OUR HYPOTHESIS S is the dimension of. IS: the square grid required to cover the picture and THE DIMENSION OF required THE NORMAL IS Ne is FRACTAL the no. of boxes of the grid to cover. CELL the picture. MAXIMUM AND log IT REDUCES AS THE STAGE ADVANCES Ln is the natural of the respective values SO HIGHER THE STAGE OF MALIGNANCY, LESS IS THE FRACTAL DIMENSION

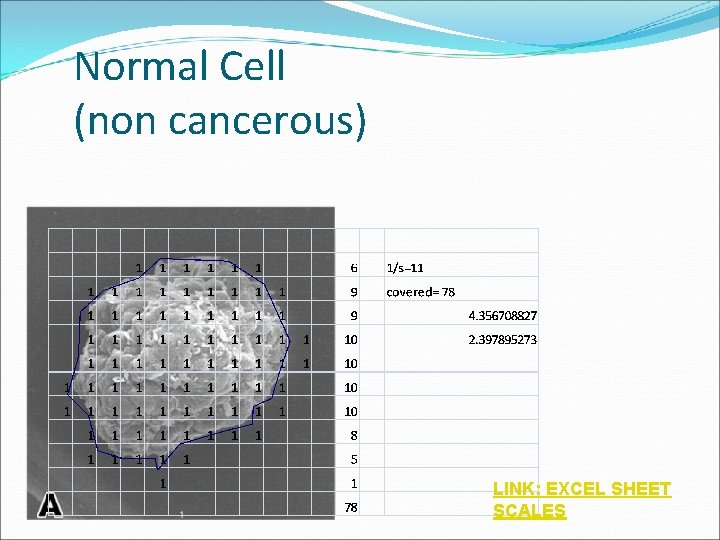

Normal Cell (non cancerous) LINK: EXCEL SHEET SCALES

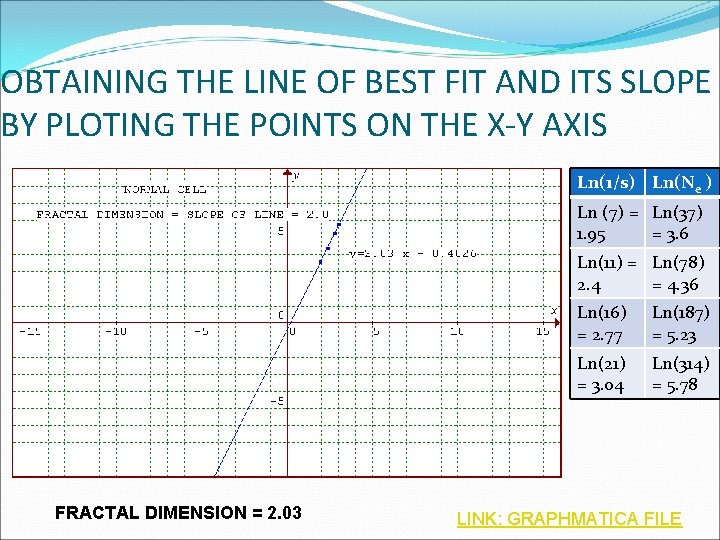

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS Ln(1/s) Ln(Ne ) Ln (7) = Ln(37) 1. 95 = 3. 6 Ln(11) = Ln(78) 2. 4 = 4. 36 FRACTAL DIMENSION = 2. 03 Ln(16) = 2. 77 Ln(187) = 5. 23 Ln(21) = 3. 04 Ln(314) = 5. 78 LINK: GRAPHMATICA FILE

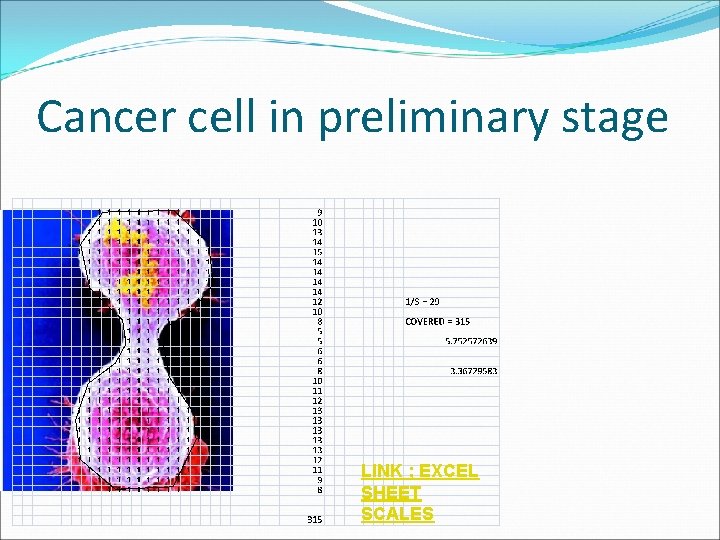

Cancer cell in preliminary stage LINK ; EXCEL SHEET SCALES

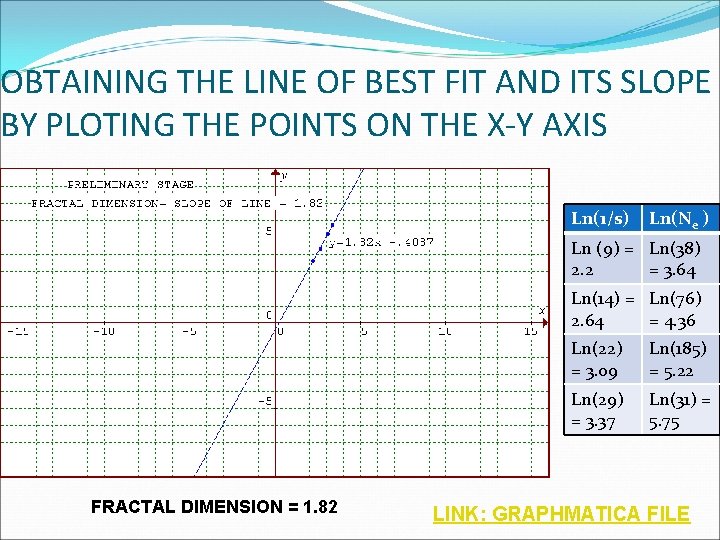

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS Ln(1/s) Ln(Ne ) Ln (9) = Ln(38) 2. 2 = 3. 64 Ln(14) = Ln(76) 2. 64 = 4. 36 FRACTAL DIMENSION = 1. 82 Ln(22) = 3. 09 Ln(185) = 5. 22 Ln(29) = 3. 37 Ln(31) = 5. 75 LINK: GRAPHMATICA FILE

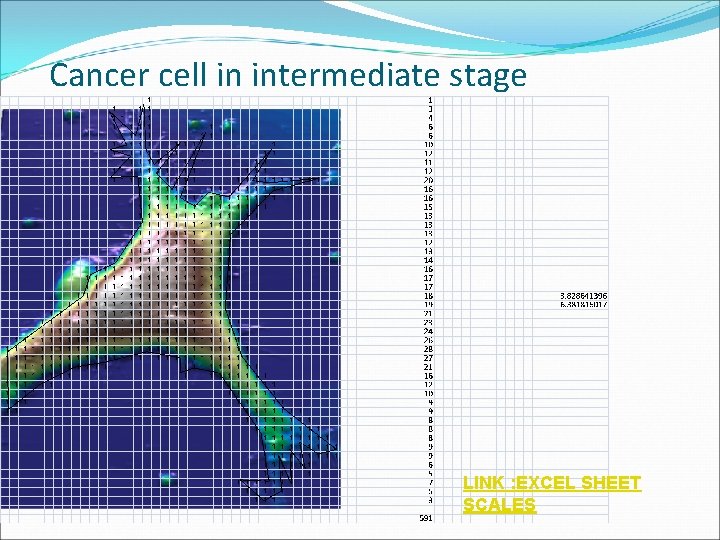

Cancer cell in intermediate stage LINK : EXCEL SHEET SCALES

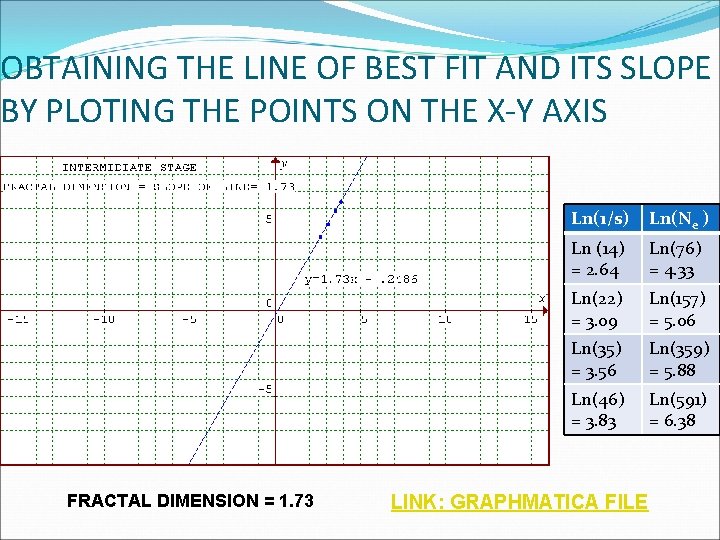

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS FRACTAL DIMENSION = 1. 73 Ln(1/s) Ln(Ne ) Ln (14) = 2. 64 Ln(76) = 4. 33 Ln(22) = 3. 09 Ln(157) = 5. 06 Ln(35) = 3. 56 Ln(359) = 5. 88 Ln(46) = 3. 83 Ln(591) = 6. 38 LINK: GRAPHMATICA FILE

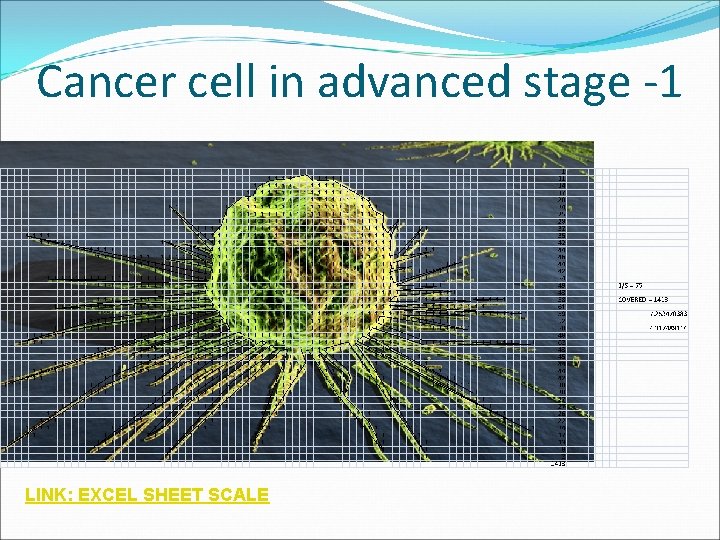

Cancer cell in advanced stage -1 LINK: EXCEL SHEET SCALE

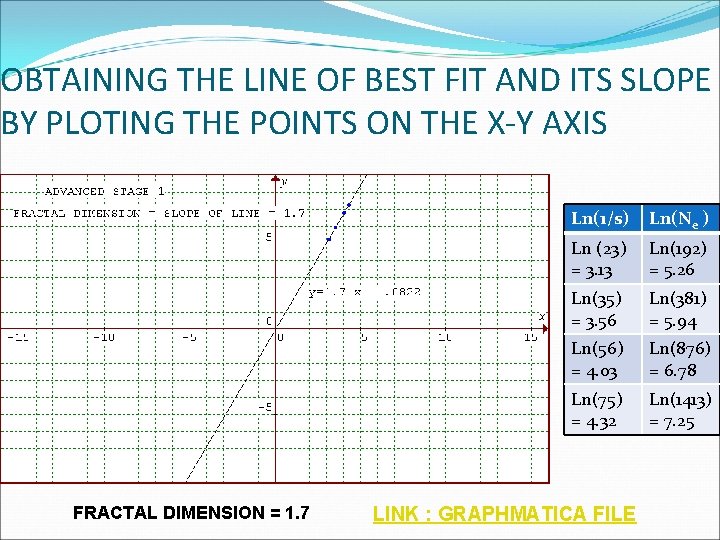

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS FRACTAL DIMENSION = 1. 7 Ln(1/s) Ln(Ne ) Ln (23) = 3. 13 Ln(192) = 5. 26 Ln(35) = 3. 56 Ln(381) = 5. 94 Ln(56) = 4. 03 Ln(876) = 6. 78 Ln(75) = 4. 32 Ln(1413) = 7. 25 LINK : GRAPHMATICA FILE

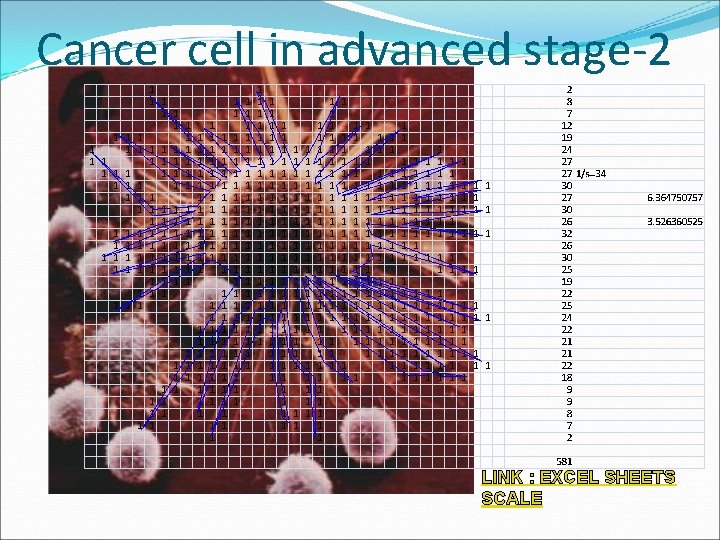

Cancer cell in advanced stage-2 LINK : EXCEL SHEETS SCALE

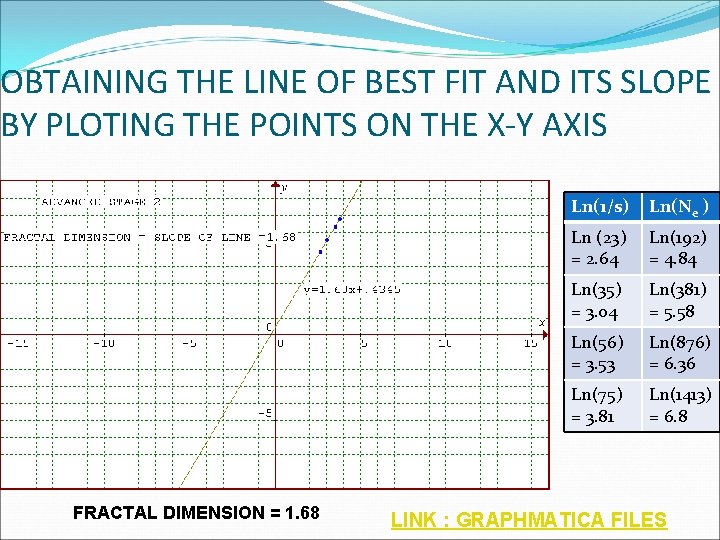

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS FRACTAL DIMENSION = 1. 68 Ln(1/s) Ln(Ne ) Ln (23) = 2. 64 Ln(192) = 4. 84 Ln(35) = 3. 04 Ln(381) = 5. 58 Ln(56) = 3. 53 Ln(876) = 6. 36 Ln(75) = 3. 81 Ln(1413) = 6. 8 LINK : GRAPHMATICA FILES

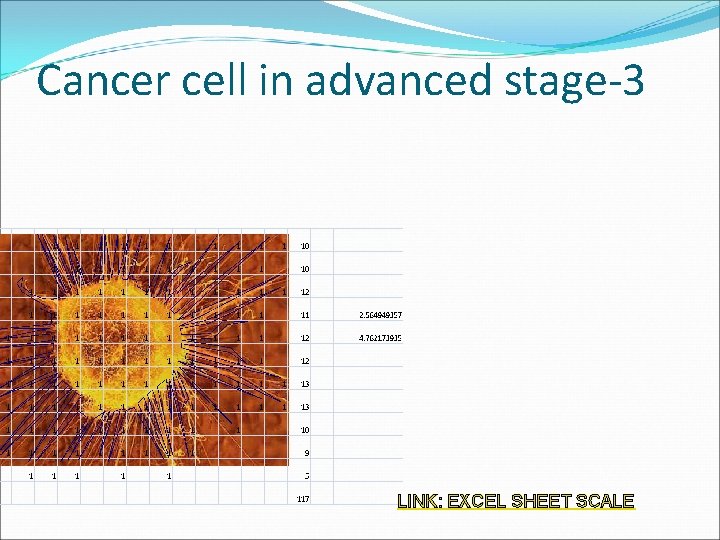

Cancer cell in advanced stage-3 LINK: EXCEL SHEET SCALE

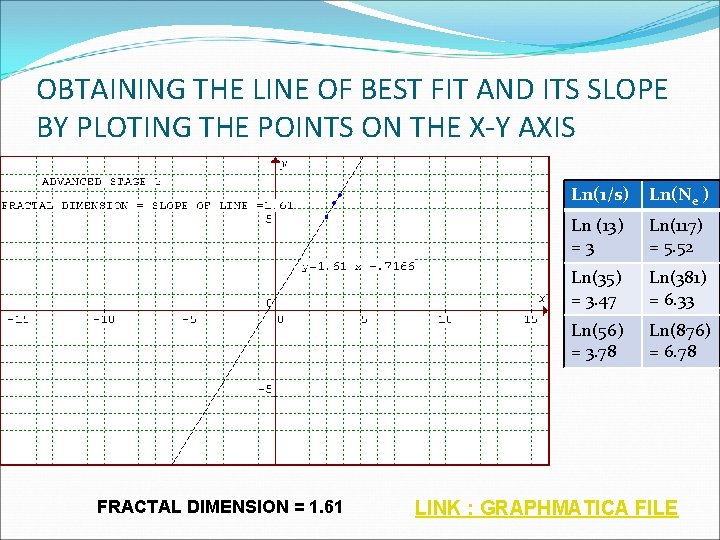

OBTAINING THE LINE OF BEST FIT AND ITS SLOPE BY PLOTING THE POINTS ON THE X-Y AXIS FRACTAL DIMENSION = 1. 61 Ln(1/s) Ln(Ne ) Ln (13) =3 Ln(117) = 5. 52 Ln(35) = 3. 47 Ln(381) = 6. 33 Ln(56) = 3. 78 Ln(876) = 6. 78 LINK : GRAPHMATICA FILE

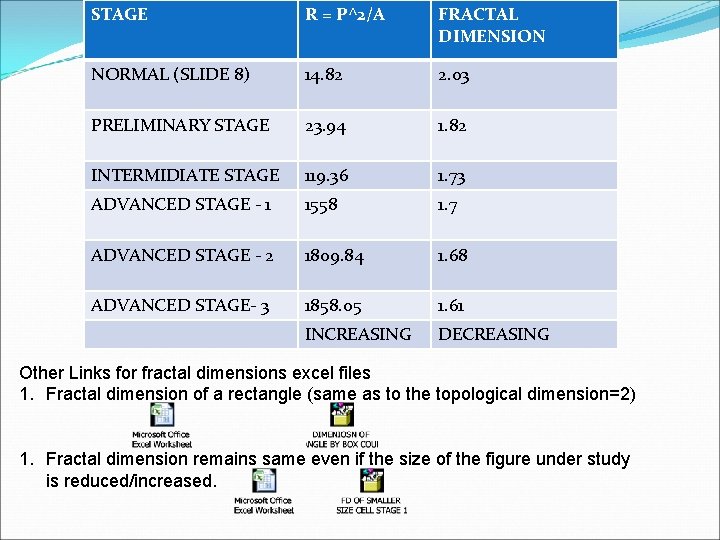

STAGE R = P^2/A FRACTAL DIMENSION NORMAL (SLIDE 8) 14. 82 2. 03 PRELIMINARY STAGE 23. 94 1. 82 INTERMIDIATE STAGE 119. 36 1. 73 ADVANCED STAGE - 1 1558 1. 7 ADVANCED STAGE - 2 1809. 84 1. 68 ADVANCED STAGE- 3 1858. 05 1. 61 INCREASING DECREASING Other Links for fractal dimensions excel files 1. Fractal dimension of a rectangle (same as to the topological dimension=2) 1. Fractal dimension remains same even if the size of the figure under study is reduced/increased.

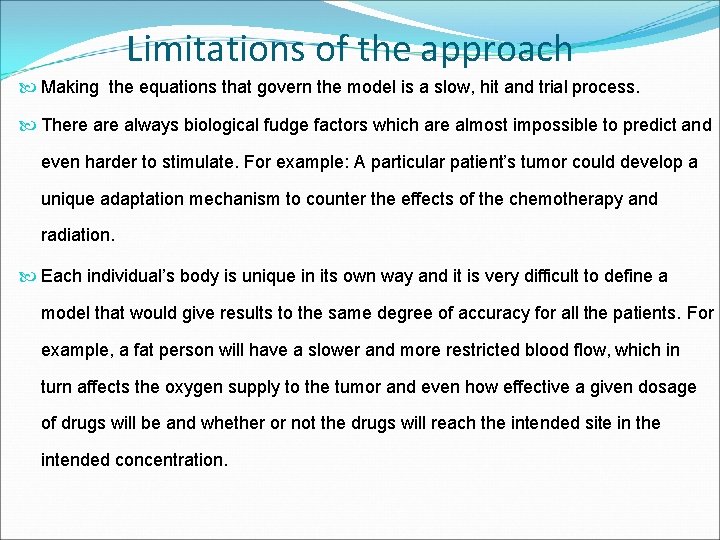

Limitations of the approach Making the equations that govern the model is a slow, hit and trial process. There always biological fudge factors which are almost impossible to predict and even harder to stimulate. For example: A particular patient’s tumor could develop a unique adaptation mechanism to counter the effects of the chemotherapy and radiation. Each individual’s body is unique in its own way and it is very difficult to define a model that would give results to the same degree of accuracy for all the patients. For example, a fat person will have a slower and more restricted blood flow, which in turn affects the oxygen supply to the tumor and even how effective a given dosage of drugs will be and whether or not the drugs will reach the intended site in the intended concentration.

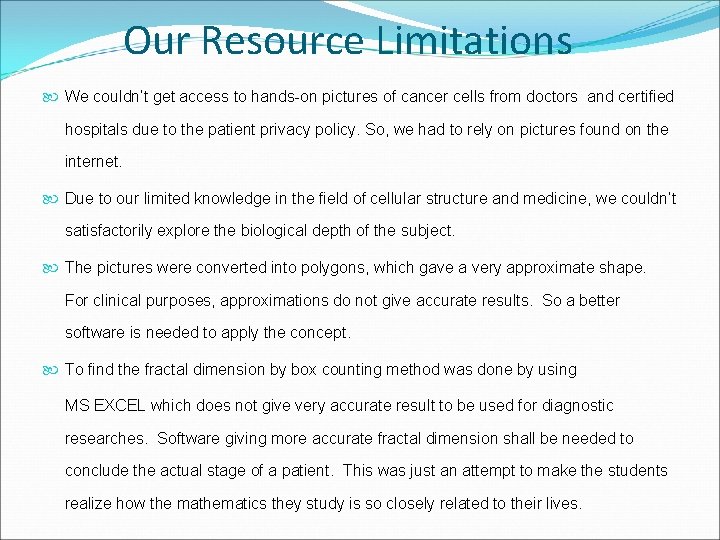

Our Resource Limitations We couldn’t get access to hands-on pictures of cancer cells from doctors and certified hospitals due to the patient privacy policy. So, we had to rely on pictures found on the internet. Due to our limited knowledge in the field of cellular structure and medicine, we couldn’t satisfactorily explore the biological depth of the subject. The pictures were converted into polygons, which gave a very approximate shape. For clinical purposes, approximations do not give accurate results. So a better software is needed to apply the concept. To find the fractal dimension by box counting method was done by using MS EXCEL which does not give very accurate result to be used for diagnostic researches. Software giving more accurate fractal dimension shall be needed to conclude the actual stage of a patient. This was just an attempt to make the students realize how the mathematics they study is so closely related to their lives.

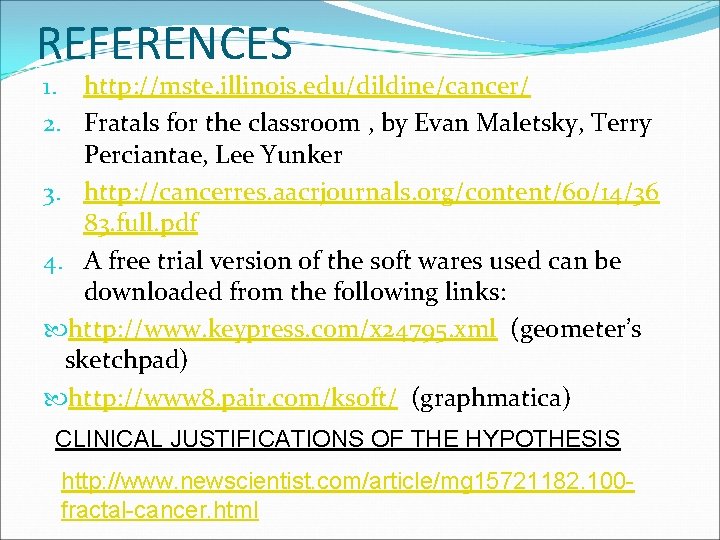

REFERENCES 1. http: //mste. illinois. edu/dildine/cancer/ 2. Fratals for the classroom , by Evan Maletsky, Terry Perciantae, Lee Yunker 3. http: //cancerres. aacrjournals. org/content/60/14/36 83. full. pdf 4. A free trial version of the soft wares used can be downloaded from the following links: http: //www. keypress. com/x 24795. xml (geometer’s sketchpad) http: //www 8. pair. com/ksoft/ (graphmatica) CLINICAL JUSTIFICATIONS OF THE HYPOTHESIS http: //www. newscientist. com/article/mg 15721182. 100 fractal-cancer. html

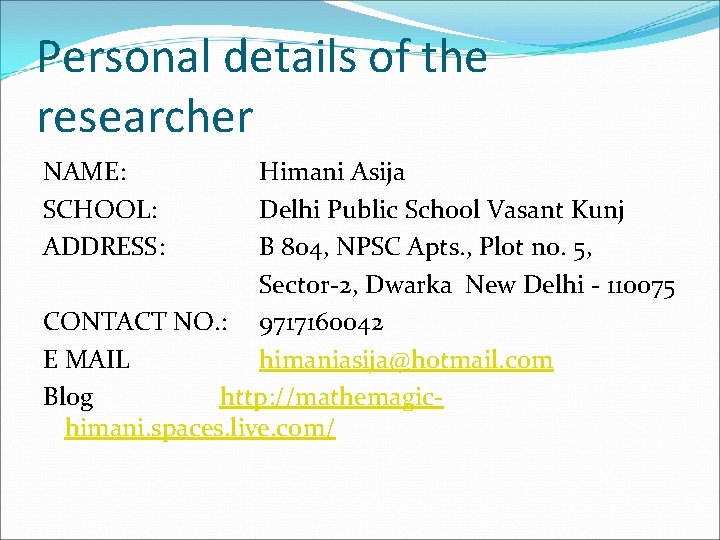

Personal details of the researcher NAME: SCHOOL: ADDRESS: Himani Asija Delhi Public School Vasant Kunj B 804, NPSC Apts. , Plot no. 5, Sector-2, Dwarka New Delhi - 110075 CONTACT NO. : 9717160042 E MAIL himaniasija@hotmail. com Blog http: //mathemagichimani. spaces. live. com/
