Mathcad Engineering Libraries Ebooks Key Benefits and Capabilities

Mathcad Engineering Libraries (E-books) Key Benefits and Capabilities Leverage standard libraries to solve design engineering problems Gain instant electronic access to critical engineering resources Work faster and easier using live, interactive content Easily copy content, including live equations, from the libraries to your own worksheets No need to recreate these libraries – they are ready on day one Three Libraries Mathcad Electrical Engineering Library Mathcad Mechanical Engineering Library Mathcad Civil Engineering Library 1 © 2006 PTC

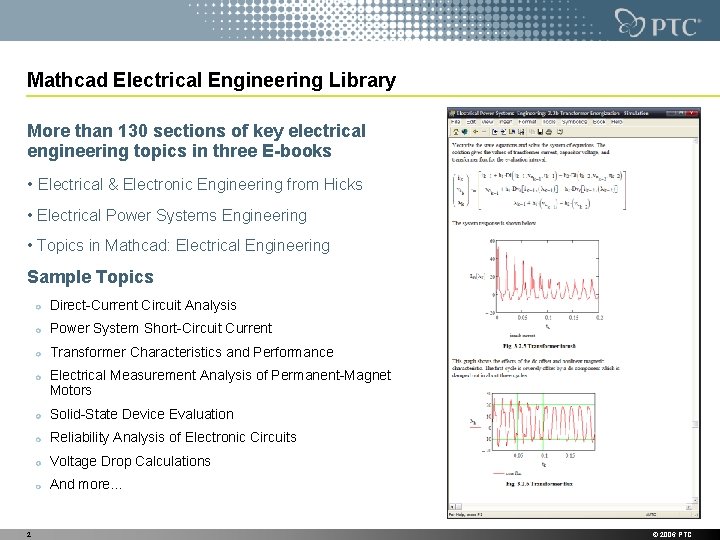

Mathcad Electrical Engineering Library More than 130 sections of key electrical engineering topics in three E-books • Electrical & Electronic Engineering from Hicks • Electrical Power Systems Engineering • Topics in Mathcad: Electrical Engineering Sample Topics Direct-Current Circuit Analysis Power System Short-Circuit Current Transformer Characteristics and Performance Electrical Measurement Analysis of Permanent-Magnet Motors Solid-State Device Evaluation Reliability Analysis of Electronic Circuits Voltage Drop Calculations And more… 2 © 2006 PTC

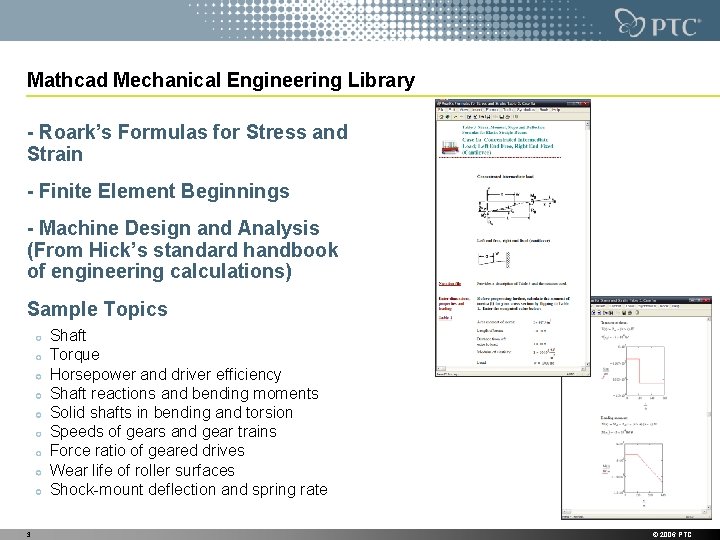

Mathcad Mechanical Engineering Library - Roark’s Formulas for Stress and Strain - Finite Element Beginnings - Machine Design and Analysis (From Hick’s standard handbook of engineering calculations) Sample Topics Shaft Torque Horsepower and driver efficiency Shaft reactions and bending moments Solid shafts in bending and torsion Speeds of gears and gear trains Force ratio of geared drives Wear life of roller surfaces Shock-mount deflection and spring rate 3 © 2006 PTC

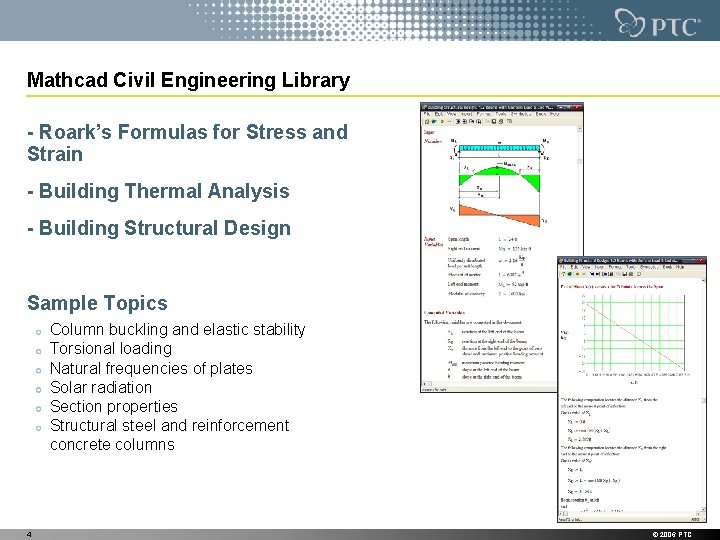

Mathcad Civil Engineering Library - Roark’s Formulas for Stress and Strain - Building Thermal Analysis - Building Structural Design Sample Topics Column buckling and elastic stability Torsional loading Natural frequencies of plates Solar radiation Section properties Structural steel and reinforcement concrete columns 4 © 2006 PTC

Mathcad Extension Packs – included with Mathcad 14 Mathcad Packs Data Analysis – Analyze engineering data patterns and relationships Image Processing – Solve problems with advanced image filtering/manipulation functions Signal Processing – Perform analog and digital signal processing, analysis, and visualization Wavelets – Wavelet techniques for signal and image analysis 5 © 2006 PTC

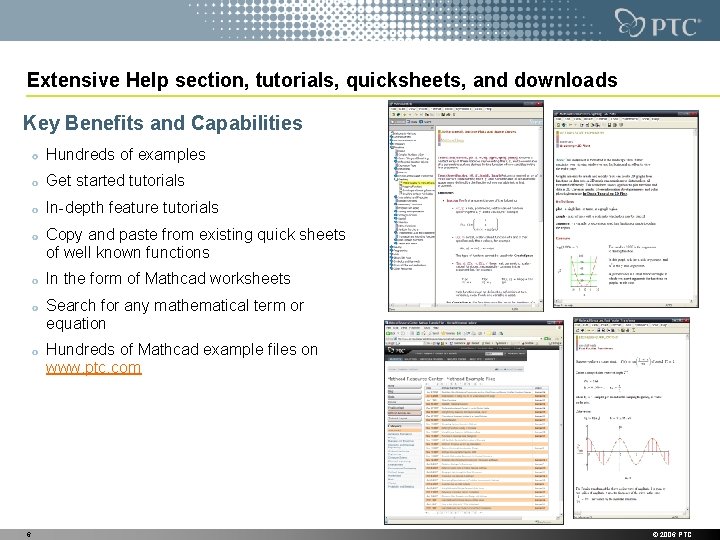

Extensive Help section, tutorials, quicksheets, and downloads Key Benefits and Capabilities Hundreds of examples Get started tutorials In-depth feature tutorials Copy and paste from existing quick sheets of well known functions In the form of Mathcad worksheets Search for any mathematical term or equation Hundreds of Mathcad example files on www. ptc. com 6 © 2006 PTC
