Math Review with Matlab Calculus Differentiation S Awad

Math Review with Matlab: Calculus Differentiation S. Awad, Ph. D. M. Corless, M. S. E. E. E. C. E. Department University of Michigan-Dearborn

Calculus: Differentiation n n General Derivatives Diff Command Differentiation Example Product Rule Example Chain Rule Example Partial Differentiation Partial Derivative Example Total Difference Approximation Sensitivity Analysis Example 2

Calculus: Differentiation General Derivatives n n n In general, derivatives are used to determine how quickly or slowly a function varies with respect to a changing variable For a two dimensional continuous curve, the derivative can be thought of as representing the instantaneous slope of the curve with respect to the changing variable The derivative operation is a limiting process defined as: 3

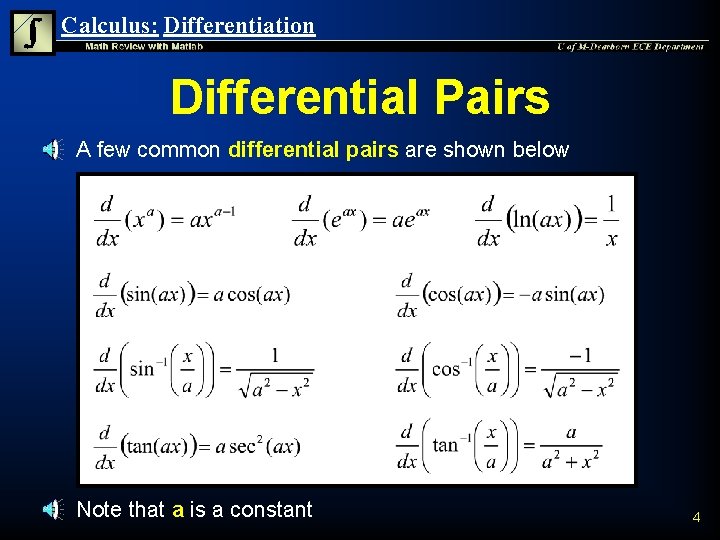

Calculus: Differentiation Differential Pairs n A few common differential pairs are shown below n Note that a is a constant 4

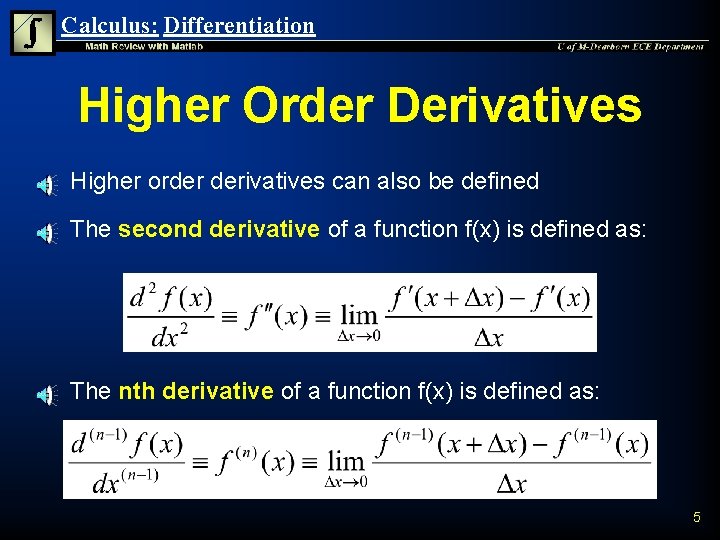

Calculus: Differentiation Higher Order Derivatives n Higher order derivatives can also be defined n The second derivative of a function f(x) is defined as: n The nth derivative of a function f(x) is defined as: 5

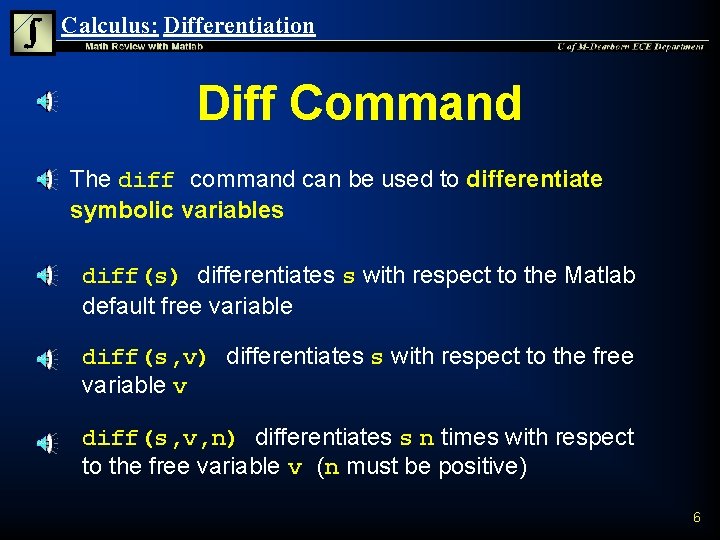

Calculus: Differentiation Diff Command n The diff command can be used to differentiate symbolic variables diff(s) differentiates s with respect to the Matlab default free variable diff(s, v) differentiates s with respect to the free variable v diff(s, v, n) differentiates s n times with respect to the free variable v (n must be positive) 6

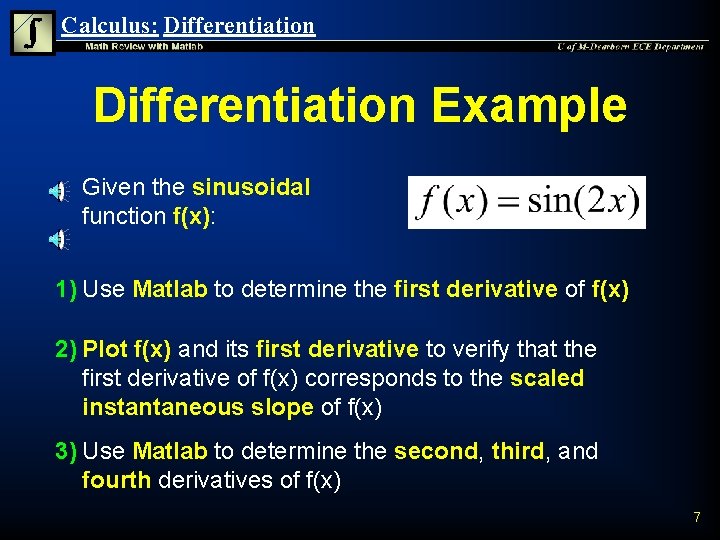

Calculus: Differentiation Example n Given the sinusoidal function f(x): 1) Use Matlab to determine the first derivative of f(x) 2) Plot f(x) and its first derivative to verify that the first derivative of f(x) corresponds to the scaled instantaneous slope of f(x) 3) Use Matlab to determine the second, third, and fourth derivatives of f(x) 7

Calculus: Differentiation First Derivative n Use the diff command to determine the first derivative thus verifying the differential pair: » syms x » f=sin(2*x); » dfdx=diff(f) dfdx = 2*cos(2*x) 8

Calculus: Differentiation Slope Analogy n n Plot f(x)=sin(2 x) and its df/dx=2 cos(2 x) Show relationship between slope of f(x) and the derivative » » » » subplot(2, 1, 1) ezplot(f) subplot(2, 1, 1) ezplot(f, 0, pi) grid on subplot(2, 1, 2) ezplot(dfdx, 0, pi) grid on 9

Calculus: Differentiation Second Derivative n n n Calculate second derivative » d 2 fdx 2=diff(dfdx) d 2 fdx 2 = from the first derivative -4*sin(2*x) Calculate second derivative f(x) by passing 2 as the number of times to differentiate » d 2 fdx 2=diff(f, 2) d 2 fdx 2 = Both methods give the -4*sin(2*x) same result! 10

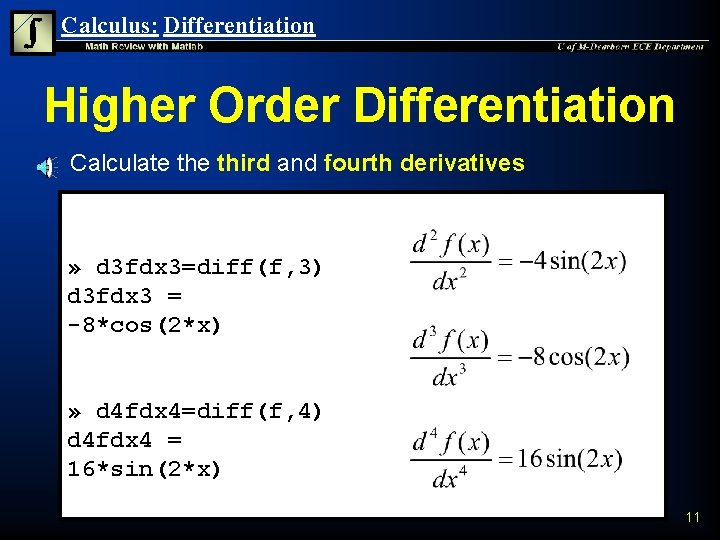

Calculus: Differentiation Higher Order Differentiation n Calculate third and fourth derivatives » d 3 fdx 3=diff(f, 3) d 3 fdx 3 = -8*cos(2*x) » d 4 fdx 4=diff(f, 4) d 4 fdx 4 = 16*sin(2*x) 11

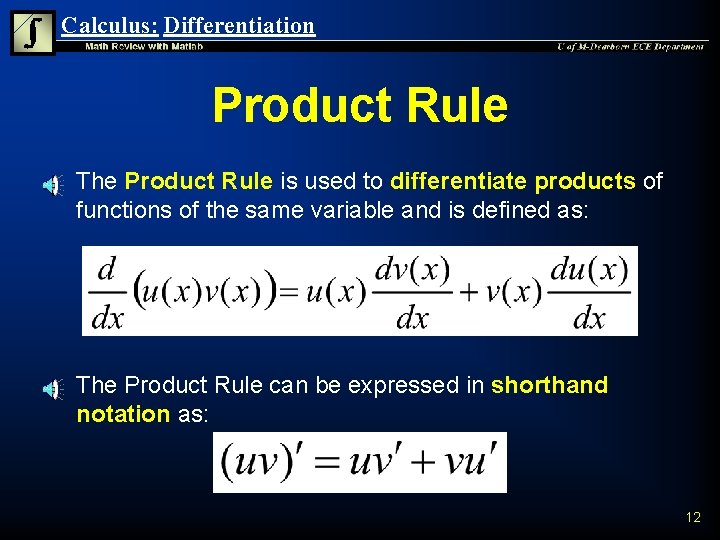

Calculus: Differentiation Product Rule n n The Product Rule is used to differentiate products of functions of the same variable and is defined as: The Product Rule can be expressed in shorthand notation as: 12

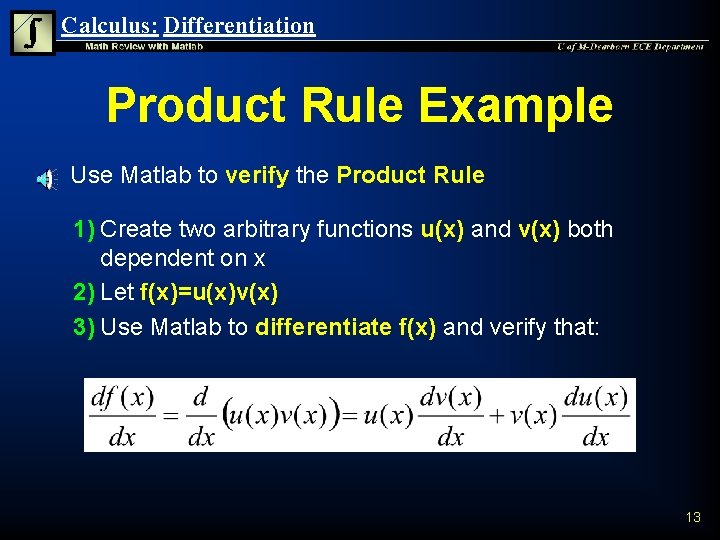

Calculus: Differentiation Product Rule Example n Use Matlab to verify the Product Rule 1) Create two arbitrary functions u(x) and v(x) both dependent on x 2) Let f(x)=u(x)v(x) 3) Use Matlab to differentiate f(x) and verify that: 13

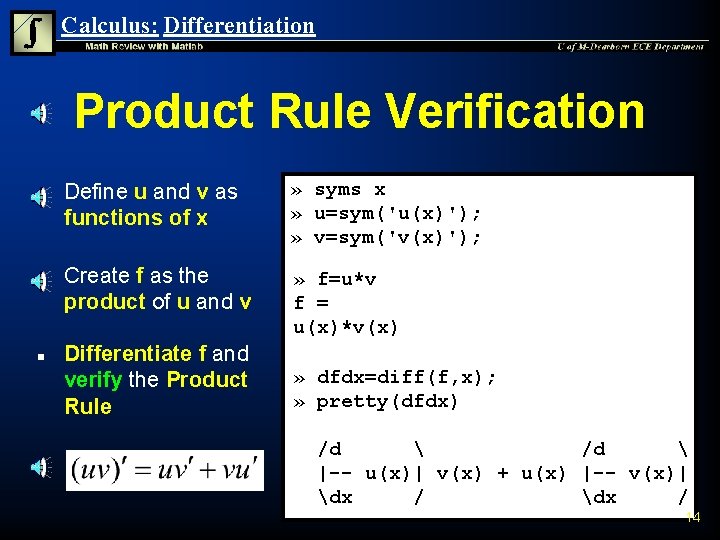

Calculus: Differentiation Product Rule Verification n Define u and v as functions of x » syms x » u=sym('u(x)'); » v=sym('v(x)'); Create f as the product of u and v » f=u*v f = u(x)*v(x) Differentiate f and verify the Product Rule » dfdx=diff(f, x); » pretty(dfdx) /d |-- u(x)| v(x) + u(x) |-- v(x)| dx / 14

Calculus: Differentiation Chain Rule Example n The Chain Rule is used to differentiate a function of a function and is defined as: 1) Given f(x) where a and b are constants: 2) Differentiate f(x) with respect to x 3) Use Matlab to verify the result 15

Calculus: Differentiation Perform Chain Rule n Break into sections and differentiate n Use the chain rule to differentiate f(x) 16

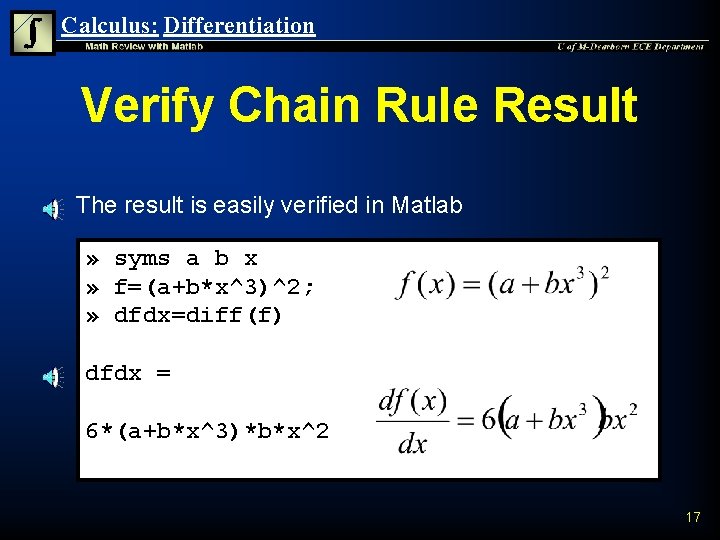

Calculus: Differentiation Verify Chain Rule Result n The result is easily verified in Matlab » syms a b x » f=(a+b*x^3)^2; » dfdx=diff(f) dfdx = 6*(a+b*x^3)*b*x^2 17

Calculus: Differentiation Partial Differentiation n Used to determine the rate of changes for functions of multiple changing variables Consider a function f(x, y) which is dependent on two variables x and y To signify that a derivative is with respect to one variable that another variable exists use the notations: First Partial Derivative of f(x, y) with respect to x: First Partial Derivative of f(x, y) with respect to y: (y held constant) (x held constant) 18

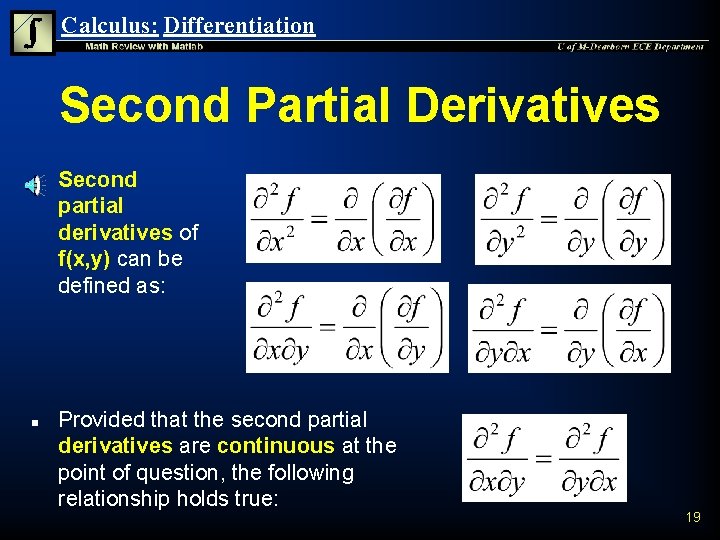

Calculus: Differentiation Second Partial Derivatives n n Second partial derivatives of f(x, y) can be defined as: Provided that the second partial derivatives are continuous at the point of question, the following relationship holds true: 19

Calculus: Differentiation Partial Derivative Example n Given the function: n Use Matlab to determine: 1) The first partial derivatives: 2) The second partial derivatives: 3) Verify the relationship: 20

Calculus: Differentiation First Derivatives n The standard diff command is used to determine the first partial derivatives in Matlab » syms x y; » f=2*x^3*y^2 + y^3; » dfdx = diff(f) dfdx = 6*x^2*y^2 » dfdy = diff(f, 'y') dfdy = 4*x^3*y+3*y^2 21

Calculus: Differentiation Second Derivatives n The second derivatives with respect to the same variable can be found by instructing setting the n parameter to 2 » d 2 fdx 2 = diff(f, 2) d 2 fdx 2 = 12*x*y^2 » d 2 fdx 2 = diff(f, 'y', 2) d 2 fdx 2 = 4*x^3+6*y 22

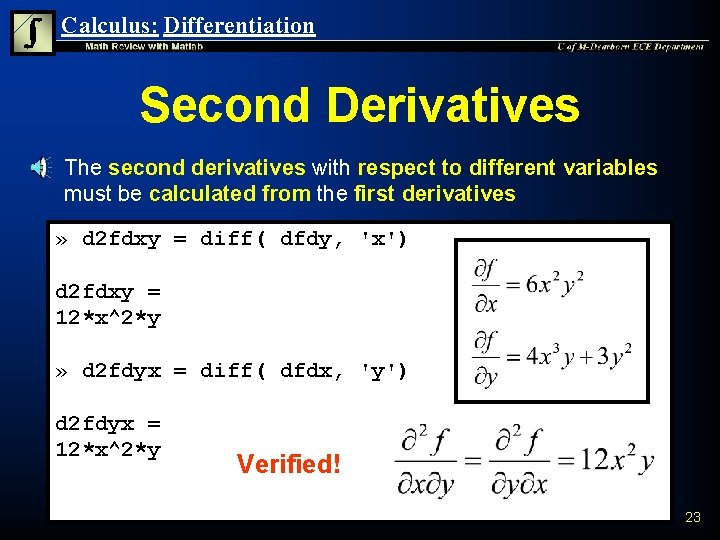

Calculus: Differentiation Second Derivatives n The second derivatives with respect to different variables must be calculated from the first derivatives » d 2 fdxy = diff( dfdy, 'x') d 2 fdxy = 12*x^2*y » d 2 fdyx = diff( dfdx, 'y') d 2 fdyx = 12*x^2*y Verified! 23

Calculus: Differentiation Total Difference Approximation n Given a function f(x, y) dependent upon the two variables x and y Suppose that small changes Dx in x and Dy in y occur simultaneously As a result, f changes to f + Df which can be approximated as: 24

Calculus: Differentiation Sensitivity Analysis n n n The total difference approximation can be extended to a function of N variables where: The total difference approximation can be used to perform sensitivity analysis of analog and digital systems A common application of sensitivity analysis is to examine the change in a digital filter’s frequency response and stability due to coefficient quantization 25

Calculus: Differentiation Sensitivity Analysis Example n n Given a circuit with a resistance R=1 k. W and initial current I=100 m. A flowing through it: The power, P, in Watts, absorbed by the resistor can be calculated using the equation: 1) Approximate the total change in power if : u Current may increase by 2% u Resistance may increase by 5% 2) Calculate the approximate new power and actual new power when both I and R change by the above percents 26

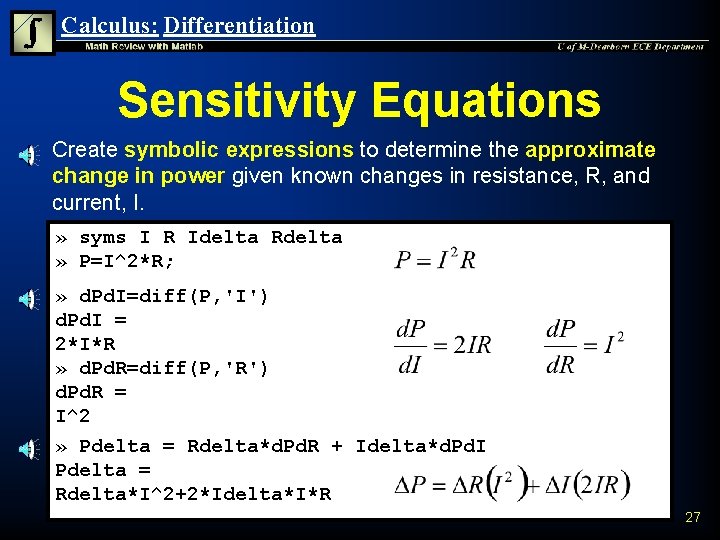

Calculus: Differentiation Sensitivity Equations n Create symbolic expressions to determine the approximate change in power given known changes in resistance, R, and current, I. » syms I R Idelta Rdelta » P=I^2*R; » d. Pd. I=diff(P, 'I') d. Pd. I = 2*I*R » d. Pd. R=diff(P, 'R') d. Pd. R = I^2 » Pdelta = Rdelta*d. Pd. R + Idelta*d. Pd. I Pdelta = Rdelta*I^2+2*Idelta*I*R 27

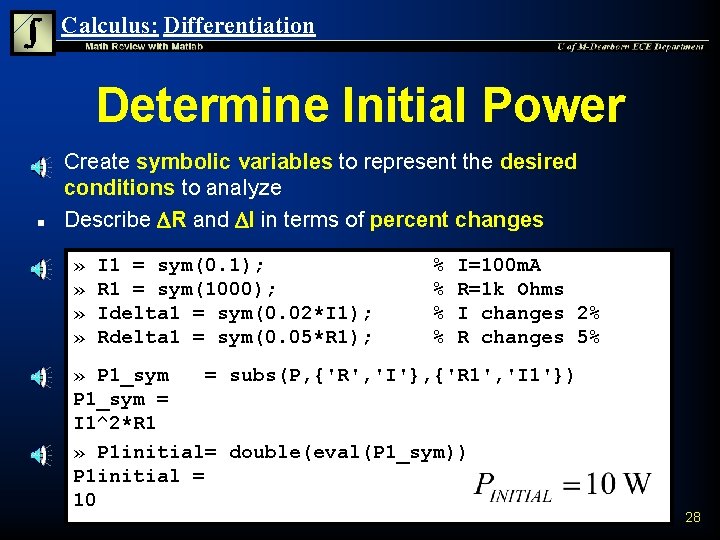

Calculus: Differentiation Determine Initial Power n n Create symbolic variables to represent the desired conditions to analyze Describe DR and DI in terms of percent changes » » I 1 = sym(0. 1); R 1 = sym(1000); Idelta 1 = sym(0. 02*I 1); Rdelta 1 = sym(0. 05*R 1); % % I=100 m. A R=1 k Ohms I changes 2% R changes 5% » P 1_sym = subs(P, {'R', 'I'}, {'R 1', 'I 1'}) P 1_sym = I 1^2*R 1 » P 1 initial= double(eval(P 1_sym)) P 1 initial = 10 28

Calculus: Differentiation Sensitivity Approximation n Substitute the desired parameters into the general symbolic expressions to determine approximate DP » P 1 delta_sym = subs(Pdelta, . . . {'R', 'I', 'Rdelta', 'Idelta'}, . . . {'R 1', 'I 1', 'Rdelta 1', 'Idelta 1'}) P 1 delta_sym = Rdelta 1*I 1^2+2*Idelta 1*I 1*R 1 » P 1 delta_approx = double(eval(P 1 delta_sym)) P 1 delta_approx = 0. 9 29

Calculus: Differentiation New Power Calculations n Evaluate approximated new total power » P 1 final_approx = double(eval(P 1_sym+P 1 delta_sym)) P 1 final_approx = 10. 9000 n Calculate the actual new power » P 1 final_sym = subs(P, {'R', 'I'}, . . . {'(R 1+Rdelta 1)', '(I 1+Idelta 1)'}) P 1 final_sym = (I 1+Idelta 1)^2*(R 1+Rdelta 1) » P 1 final_act = double(eval(P 1 final_sym)) P 1 final_act = 10. 9242 30

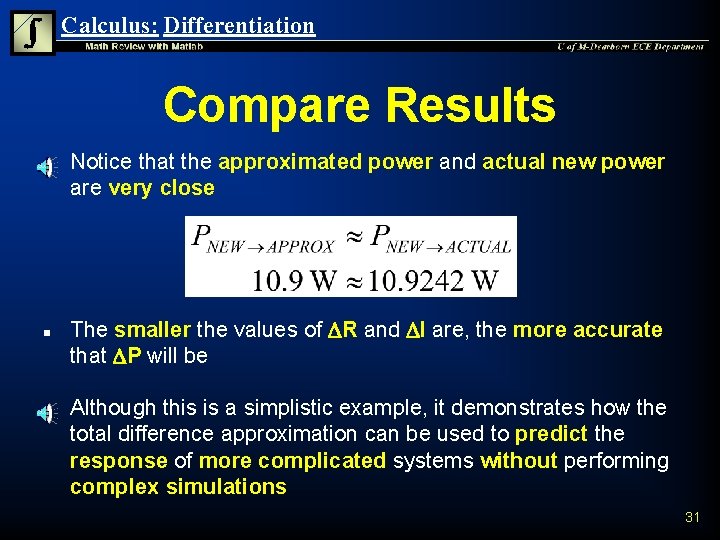

Calculus: Differentiation Compare Results n n n Notice that the approximated power and actual new power are very close The smaller the values of DR and DI are, the more accurate that DP will be Although this is a simplistic example, it demonstrates how the total difference approximation can be used to predict the response of more complicated systems without performing complex simulations 31

Calculus: Differentiation Summary n n Differentiation is used to determine the rate at which a function changes with respect to a changing variable The symbolic diff command can be used to differentiate functions. The user can specify the variable to differentiate with respect to and the number of times to differentiate Partial differentiation is used to determine the rate of changes for functions of multiple changing variables Total difference approximation and sensitivity analysis are used to approximate changes in a function based partial derivatives and on fixed changes in variables 32
