MATH 11 Apprenticeship and Workplace Grade, Angle of Elevation and Distance

MATH 11 Apprenticeship and Workplace Grade, Angle of Elevation and Distance

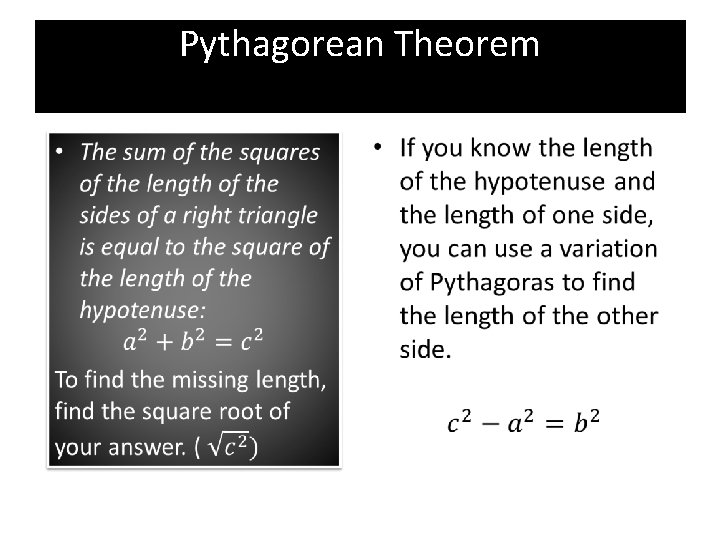

Pythagorean Theorem • •

Pythagorean Theorem • •

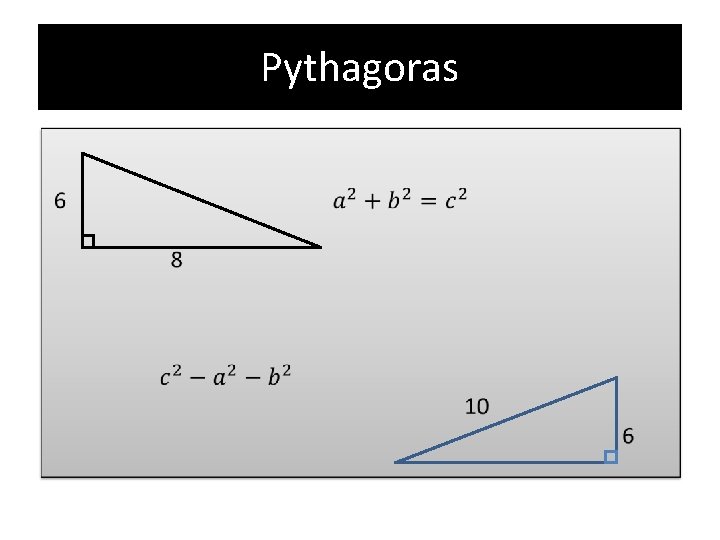

Pythagoras •

Pythagoras •

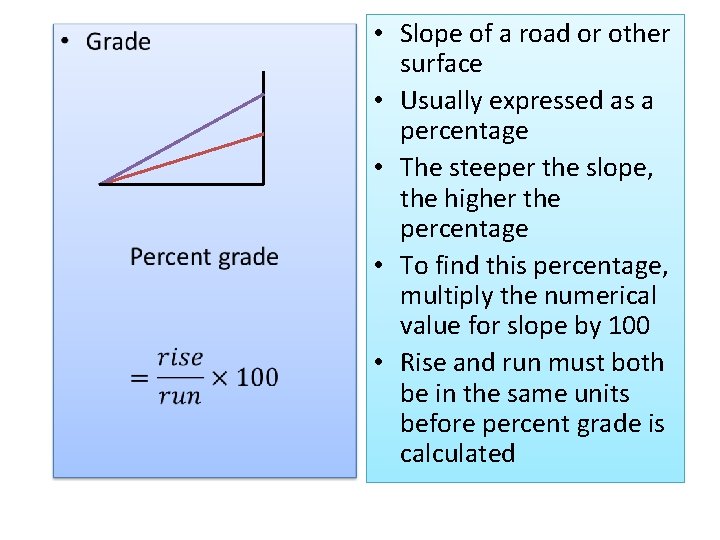

• • Slope of a road or other surface • Usually expressed as

• • Slope of a road or other surface • Usually expressed as a percentage • The steeper the slope, the higher the percentage • To find this percentage, multiply the numerical value for slope by 100 • Rise and run must both be in the same units before percent grade is calculated

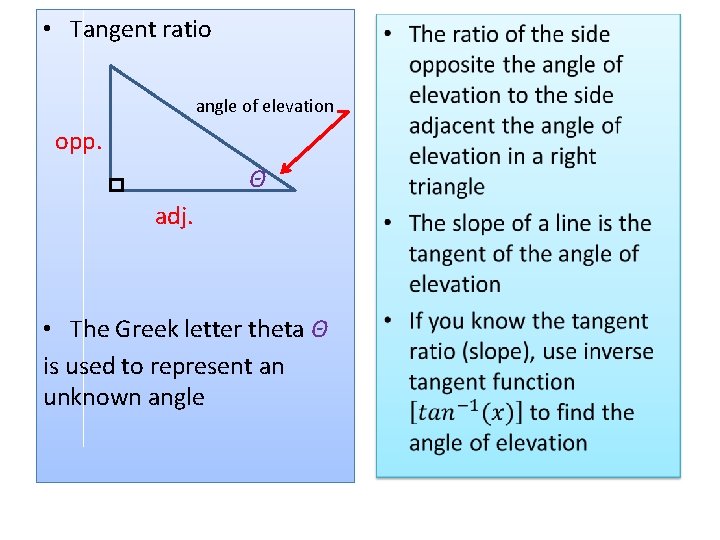

• Tangent ratio • angle of elevation opp. Θ adj. • The Greek

• Tangent ratio • angle of elevation opp. Θ adj. • The Greek letter theta Θ is used to represent an unknown angle

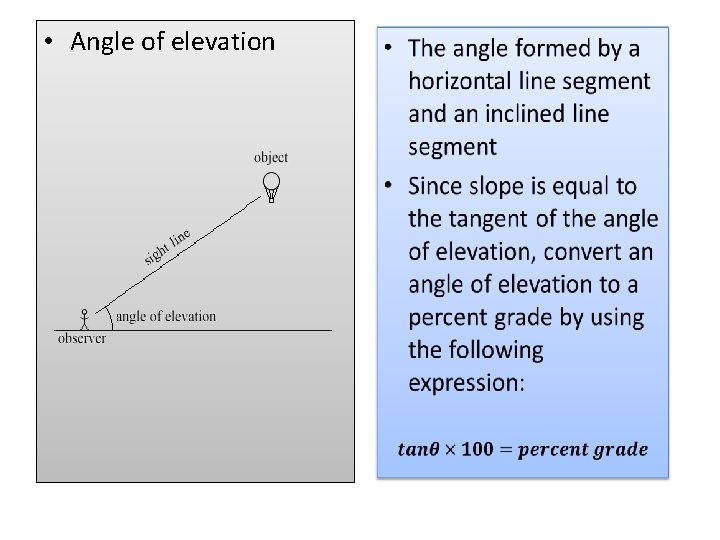

• Angle of elevation •

• Angle of elevation •

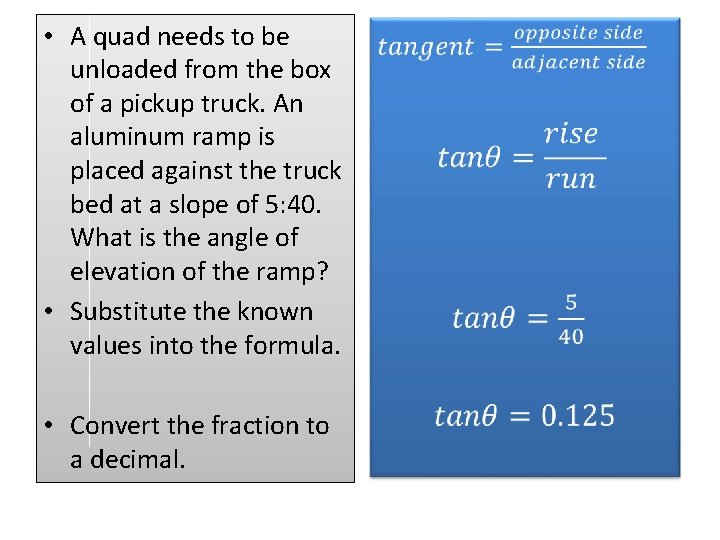

• A quad needs to be unloaded from the box of a pickup

• A quad needs to be unloaded from the box of a pickup truck. An aluminum ramp is placed against the truck bed at a slope of 5: 40. What is the angle of elevation of the ramp? • Substitute the known values into the formula. • Convert the fraction to a decimal. •

• Make sure your calculator is in degree mode!!!! • Use the inverse

• Make sure your calculator is in degree mode!!!! • Use the inverse tangent key on your calculator to find the angle of elevation. •

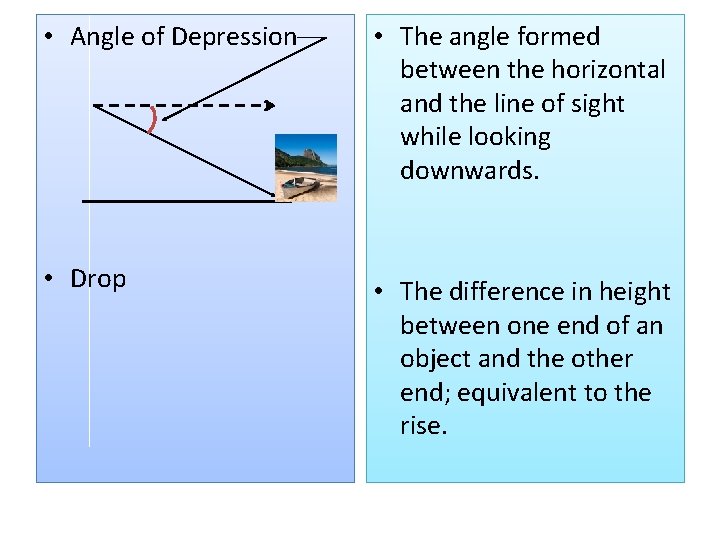

• Angle of Depression • The angle formed between the horizontal and the

• Angle of Depression • The angle formed between the horizontal and the line of sight while looking downwards. • Drop • The difference in height between one end of an object and the other end; equivalent to the rise.

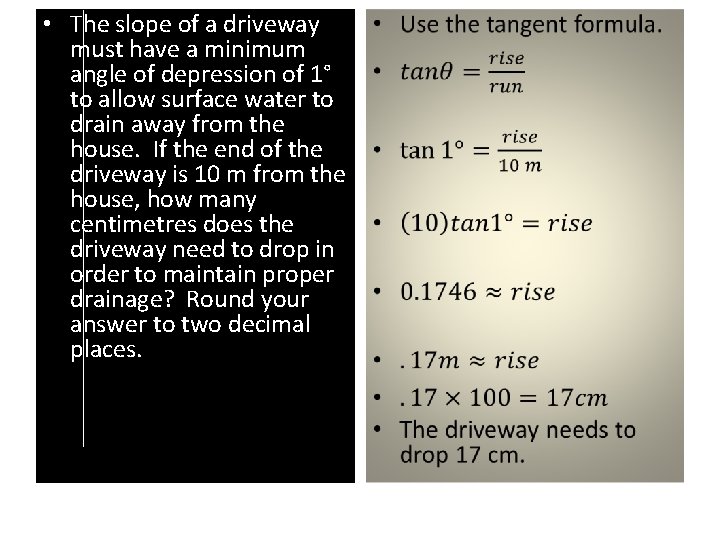

• The slope of a driveway must have a minimum angle of depression

• The slope of a driveway must have a minimum angle of depression of 1° to allow surface water to drain away from the house. If the end of the driveway is 10 m from the house, how many centimetres does the driveway need to drop in order to maintain proper drainage? Round your answer to two decimal places. •

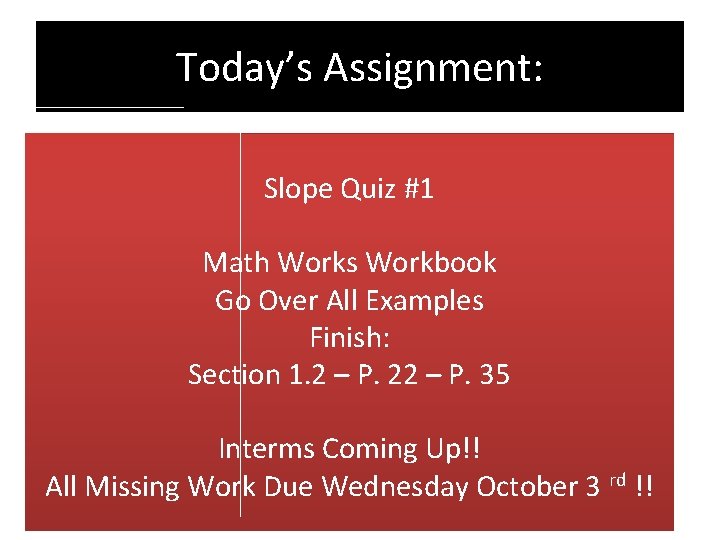

Today’s Assignment: Slope Quiz #1 Math Works Workbook Go Over All Examples Finish: Section

Today’s Assignment: Slope Quiz #1 Math Works Workbook Go Over All Examples Finish: Section 1. 2 – P. 22 – P. 35 Interms Coming Up!! All Missing Work Due Wednesday October 3 rd !!
