YGSZ/YGSG series Material Handling Machine 239 kw 48. 6 t

Company Profile Yichao is a high-tech enterprise specializing in excavation loading and unloading machinery integrating R&D, production, sales, service, education and training. The products cover more than 50 kinds of products in six series of excavating machinery, grabbing (unloading) machinery, unloading turning machinery, rotary drilling machinery, garden machinery and automobile dismantling machinery. The company has patented products with leading technology in the industry: full hydraulic crawler type dual power grab (unloading) machine products, covering: YGSZ 100, 150, 260, 320, 420, 500 series; full hydraulic fixed type dual power grab (unloading) machine Products, including: YGSG 100, 180, 260, 360 series; full hydraulic tire type dual power YGSLZ 400 -6 grab (unload) machine; and crawler type full hydraulic YGX 360 -6, YGX 260 -7, wheel full hydraulic YGL 140 -7 railway Special coal unloader series products. The equipment mainly serves: straw, power generation, recycling, garbage disposal, shipping terminal, material freight yard, station coal yard and other working conditions, bark, wood, straw, sand, coal, steel, various bulk Loading and unloading of goods and stacked goods. Low-carbon and environmentally friendly, which greatly saves the company's cost and improves work efficiency. It can be equipped with five-petle grabs, shell-type grabs or coupled grabs and other accessories. It has the advantages of reasonable structure, light operation, flexible operation, high work stability, safety and reliability, high efficiency, etc. The technical performance has reached the domestic leading level, which is comparable to the international similar products. The company strictly follows the ISO 9001: 2001 quality management system standard in management and has obtained the “Special Equipment Production License” issued by the state. Companies adhering to the "technology-driven, quality of survival" business policy, "create wealth for customers, create benefits for the community" as their responsibility, forge ahead, and constantly innovate, create a better tomorrow.

Advantages of YGSZ/YGSG series 1. The power system is driven by an engine or a three-phase motor, which is flexible and flexible. Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. Motor operation is one-third of the cost of engine operation; 2. The electrical system has protection functions such as overcurrent, overload and leakage; 3. Double pump double circuit total power regulation, negative flow control open system, reasonable allocation and utilization of motor power; 4. Double pump combined flow and multi-action compound to improve work efficiency; 5. Normally open rotary and travel brake. Independent oil cooling system, hydraulic oil cooler has large heat dissipation area and good heat dissipation effect; 6. Italian hose, seal and Trelleborg cylinder seal, completely solve the hydraulic system does not seep; 7. Enhanced working device for integral bending arm, gooseneck curved lever and various working grippers; 8. The computer optimized design of the working device, the box structure to achieve a reasonable high-strength structure; 9. Multi-function instrument panel, detecting various pressures, temperatures, oil levels and sound alarms; 10. Three-dimensional air supply, fresh air circulation, fluorine-free environmental protection, large-capacity automatic heating and cooling air-conditioning system; 11. Fixedly increased streamlined appearance driver's cab, shockproof and soundproof, wide view, safe and comfortable, providing a car-like working environment; 12. Optional rotary motor head makes the gripper have 360° rotation function, especially for directional materials, which has better gripping effect.

Tracked dual power hydraulic grabber YGSZ 100 Configuration parameter Working parameters engine model Yuchai YC 4 D 80 -T 20 Boom length 4000 mm Engine power/speed 58/2400 Kw/rpm Two arm length 2500 mm Motor Power 37 kw Grab volume 0. 25 -0. 5 m³ plum claw Main pump Toshiba, Japan Maximum grab height 5300 mm Working pressure 28 Mpa Maximum grab distance 6670 mm Main valve Toshiba, Japan Grab radius at maximum grab height 2820 mm Travel reducer Doosan, South Korea Maximum grab depth 2580 mm Swing computer SUNJIN, South Korea Grab radius at maximum grab depth 4445 mm Swing speed 0 -11 rpm Work cycle time 14 -16 s Walking speed 0 -4 km/h Work efficiency 250 -300 T/h Maximum grade 28° Dimensions 7900 x 2300 x 3200 mm YGSZ 150 Configuration parameter Working parameters engine model Yuchai YC 4 A 125 Z-T 20 Boom length 4500 mm Engine power/speed 92/2200 Kw/rpm Two arm length 2900 mm Motor Power 55 kw Grab volume 0. 4 -0. 8 m³ Main pump Hanri Kawasaki Maximum grab height 5710 mm Working pressure 31. 5 Mpa Maximum grab distance 6280 mm Main valve Korean Parker Grab radius at maximum grab height 4050 mm Travel reducer Doosan, South Korea Maximum grab depth 2030 mm Swing computer SUNJIN, South Korea Grab radius at maximum grab depth 4490 mm Swing speed 0 -12 rpm Work cycle time 14 -16 s Walking speed 0 -4 km/h Work efficiency 300 -380 T/h Maximum grade 28° Dimensions 8150 x 2480 x 3230 mm

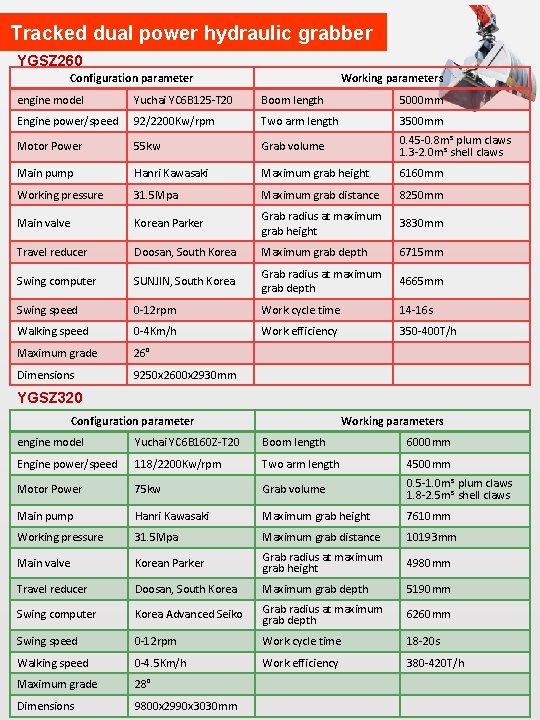

Tracked dual power hydraulic grabber YGSZ 260 Configuration parameter Working parameters engine model Yuchai YC 6 B 125 -T 20 Boom length 5000 mm Engine power/speed 92/2200 Kw/rpm Two arm length 3500 mm Motor Power 55 kw Grab volume 0. 45 -0. 8 m³ plum claws 1. 3 -2. 0 m³ shell claws Main pump Hanri Kawasaki Maximum grab height 6160 mm Working pressure 31. 5 Mpa Maximum grab distance 8250 mm Main valve Korean Parker Grab radius at maximum grab height 3830 mm Travel reducer Doosan, South Korea Maximum grab depth 6715 mm Swing computer SUNJIN, South Korea Grab radius at maximum grab depth 4665 mm Swing speed 0 -12 rpm Work cycle time 14 -16 s Walking speed 0 -4 Km/h Work efficiency 350 -400 T/h Maximum grade 26° Dimensions 9250 x 2600 x 2930 mm YGSZ 320 Configuration parameter Working parameters engine model Yuchai YC 6 B 160 Z-T 20 Boom length 6000 mm Engine power/speed 118/2200 Kw/rpm Two arm length 4500 mm Motor Power 75 kw Grab volume 0. 5 -1. 0 m³ plum claws 1. 8 -2. 5 m³ shell claws Main pump Hanri Kawasaki Maximum grab height 7610 mm Working pressure 31. 5 Mpa Maximum grab distance 10193 mm Main valve Korean Parker Grab radius at maximum grab height 4980 mm Travel reducer Doosan, South Korea Maximum grab depth 5190 mm Swing computer Korea Advanced Seiko Grab radius at maximum grab depth 6260 mm Swing speed 0 -12 rpm Work cycle time 18 -20 s Walking speed 0 -4. 5 Km/h Work efficiency 380 -420 T/h Maximum grade 28° Dimensions 9800 x 2990 x 3030 mm

Tracked dual power hydraulic grabber YGSZ 420 Configuration parameter Working parameters engine model Cummins 6 BTA 5. 9 -C 180 Boom length 9600 mm Engine power/ speed 132/2200 Kw/rpm Two arm length 5000 mm Motor Power 75 kw Grab volume 1. 0 m³ plum claw 2. 5 -3. 0 m³ shell claw Main pump Hanri Kawasaki Maximum grab height 9200 mm Working pressure 31. 5 Mpa Maximum grab distance 13485 mm Main valve Korean Parker Grab radius at maximum grab height 9165 mm Travel reducer Doosan, South Korea Maximum grab depth 9185 mm Swing computer SUNJIN, South Korea Grab radius at maximum grab depth 8940 mm Swing speed 0 -12 rpm Work cycle time 18 -22 s Walking speed 0 -4. 5 Km/h Work efficiency 300 -400 T/h Maximum grade 26° Grounding pressure 46. 5 kpa Dimensions 13700 x 3200 x 4200 mm YGSZ 500 Configuration parameter Working parameters engine model Cummins 6 LTAA 8. 9 -C 325 Boom length 9600 mm Engine power/speed 239/2200 Kw/rpm Two arm length 5000 mm Motor Power 132 kw Grab volume 1. 0 m³ plum claw 1. 5 -3 m³ shell claw Main pump Hanri Kawasaki Maximum grab height 10350 mm Working pressure 31. 5 Mpa Maximum grab height radius 18390 mm Main valve Korean Parker Maximum grab depth 8550 mm Travel reducer Doosan, South Korea Radius of maximum grab depth 9247 mm Swing computer SUNJIN, South Korea Maximum grab radius 13865 mm Swing speed 0 -12 rpm Minimum grab radius 3200 mm Walking speed 0 -5 Km/h Grab weight when grabbing radius 2000 kg Maximum grade 35° Work cycle time 18 -20 s Grounding pressure 93 kpa Work efficiency 380 -450 T/h Dimensions 14300 x 3400 x 4500 mm

Fixed hydraulic grabber YGSG 100 Configuration parameter Working parameters engine model Yuchai YC 4 D 80 -T 20 Boom length 4000 mm Engine power/speed 58 kw/2400 rpm Two arm length 2500 mm Motor power/speed 37 kw/1480 rpm Maximum grab height 5620 mm Main pump Toshiba, Japan Maximum snatch distance 6670 mm Working pressure 28 Mpa Grab distance at maximum grab height 2820 mm Main valve Toshiba, Japan Maximum grab depth 2395 mm Slewing reducer SUNJIN, South Korea Grab distance at maximum grab depth 4390 mm Swing speed 0 -9 rpm Snatch volume 0. 35 -0. 6 m³ Dimensions 7900 x 2300 x 2400 mm Work cycle time 14 -16 s Work efficiency 250 -300 T/h YGSG 180 Configuration parameter Working parameters engine model Yuchai YC 6 B 125 -T 20 Boom length 6000 mm Engine power/speed 92 kw/2200 rpm Two arm length 4500 mm Motor power/speed 55 kw/1480 rpm Grab volume 0. 5 m³ plum claw 1. 22. 0 m³ shell claw Main pump Hanri Kawasaki Maximum grab height 4265 mm Working pressure 31. 5 Mpa Maximum snatch distance 9300 mm Main valve Korean Parker Grab distance at maximum grab height 7440 mm Slewing reducer SUNJIN, South Korea Maximum grab depth 8630 mm Swing speed 0 -11 rpm Grab distance at maximum grab depth 5280 mm Dimensions 11250 x 2300 x 2310 mm Work cycle time 18 -20 s Work efficiency 250 -320 T/h

Fixed hydraulic grabber YGSG 260 Configuration parameter Working parameters engine model Cummins 6 BTA 5. 9 C 180 Boom length 9600 mm Engine power/speed 132 kw/2200 rpm Two arm length 5000 mm Motor power/speed 75 kw/1480 rpm Maximum grab height 1. 0 m³ plum claw 1. 52. 5 m³ shell claw Main pump Hanri Kawasaki Maximum snatch distance 9050 mm Working pressure 31. 5 Mpa Grab distance at maximum grab height 13480 mm Main valve Korean Parker Maximum grab depth 9165 mm Slewing reducer SUNJIN, South Korea Grab distance at maximum grab depth 9335 mm Swing speed 0 -9 rpm Snatch volume 8940 mm Dimensions 13700 x 3000 x 3100 mm Work cycle time 18 -22 s Work efficiency 300 -400 T/h YGSG 360 Configuration parameter Working parameters engine model Cummins 6 LTAA 8. 9 C 325 Boom length 9600 mm Engine power/speed 239 kw/2200 rpm Two arm length 6000 mm Motor power/speed 132 kw/1480 rpm Grab volume 1. 0 m 3 plum claw 1. 52. 5 m 3 shell claw Main pump Hanri Kawasaki Maximum grab height 9390 mm Working pressure 31. 5 Mpa Maximum snatch distance 14385 mm Main valve Korean Parker Grab distance at maximum grab height 10110 mm Slewing reducer Korea Advanced Seiko Maximum grab depth 10335 mm Swing speed 0 -9 rpm Grab distance at maximum grab depth 8940 mm Dimensions 14300 x 3000 x 3310 mm Work cycle time 18 -20 s Work efficiency 380 -450 T/h

Working curve

Technical & Structure Features Hydraulic system provide perfect power and accurate control Power system ensure the machine with high efficiency Enhanced working attachment can ensuring stable and reliable operation

Great operation experience The cab with large space and wide vision, dust-proof insulation, large capacity air condition provide operator a comfortable environment and improve working efficiency. Intergrated monitor and control switch, intelligent control system provide man-machine conversation and greatly facilitate equipment monitor and management. The operator seat is in conformity to ergonomics and may relieve fatigue; Intimate safety design: fire extinguisher, emergency hammer, seat belt.

Various different grabs Shell grab Four-petal grab Coupled gripper Buaming grab Five-petal grab Steel grab Wood grab

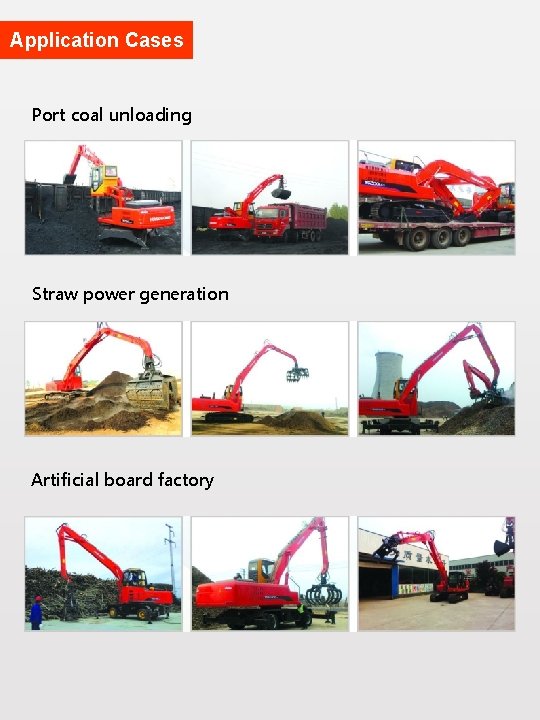

Application Cases Boat material handler Scrap steel recycle

Application Cases Port coal unloading Straw power generation Artificial board factory

Our service Custom service 1. Meet your special needs and ideas 2. According to the customer's actual working conditions, modify and order special size mechanical equipment 3. Other related mechanical assembly ordering Quick service Adhering to the service tenet of “Serving every car and every car owner wholeheartedly”, creating higher value for users Innovative service Through our services, you can always get the latest news, the company's professional R & D team and service center to complete a network, will let you understand the main trends of innovative services and expertise Pledge Company professional engineers train excavator operation and maintenance technology for customers
