MASTERColour CDM Elite Light Boost MASTERColour CDM-T/TC Elite Light Boost 70 W/930 Concise technical

MASTERColour CDM Elite Light Boost MASTERColour CDM-T/TC Elite Light Boost 70 W/930 Concise technical datasheet Version: 2011 July

CDM-T/TC Elite Light Boost 70 W/930 – technical data Benefits Applications • Ideal for

CDM-T/TC Elite Light Boost 70 W/930 – technical data Benefits Applications • Ideal for use in places where “fun factor” is • Excellent quality of light • Flexibility with lumen output for scene setting, and / or energy saving; while maintaining quality of light. • Easy design-in: lamp and gear fit into existing CDM 70 W luminaires. • Controllable with standard DALI commands. needed to attract attention from shoppers: shop windows, high impact shop areas. • Ideal when energy saving needs to be combined with flexibility in light levels: occupancy management; light boost. Dimensions CDM-T/TC Elite Light Boost 70 W/930 Dimensions 70 W lamp (in mm) D max LCL nom C Max CDM-TC Elite Light Boost G 8. 5 15 52 85 CDM-T Elite Light Boost G 12 20 56 103 Dimensions are same as existing CDM-T/TC (Elite) lamps Shape of burner in drawing is for indication only. Commercial specifications 70 W/930 CDM-T/TC Elite Light Boost lumen output efficacy (lm/W) CRI value @ 100% power value @ 50% power 7. 650 3. 300 104 85 95 79 Dim speed 100% -> 65% at 1 sec 65% -> 50% at 60 sec Boost speed 50% -> 100% at 1 sec If operated during life continuously at 100%, or at 50% of time dimmed and 50% of Specs for 4200 K and 35 W lamps may differ. time boosted: Maintenance 90% 4 k h Maintenance 12 k h 82% 15 k h 8 k h Life survival 50% Service life 80%

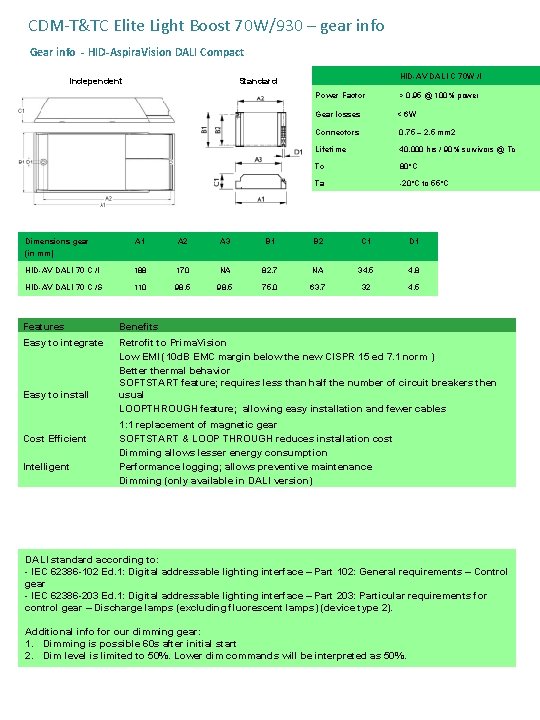

CDM-T&TC Elite Light Boost 70 W/930 – gear info Gear info - HID-Aspira. Vision

CDM-T&TC Elite Light Boost 70 W/930 – gear info Gear info - HID-Aspira. Vision DALI Compact Independent HID-AV DALI C 70 W /I Standard Power Factor > 0, 95 @ 100% power Gear losses < 6 W Connectors 0. 75 – 2. 5 mm 2 Lifetime 40. 000 hrs / 90% survivors @ Tc Tc 80°C Ta -20°C to 55°C Dimensions gear (in mm) A 1 A 2 A 3 B 1 B 2 C 1 D 1 HID-AV DALI 70 C /I 188 170 NA 82. 7 NA 34. 5 4. 8 HID-AV DALI 70 C /S 110 98. 5 75. 0 63. 7 32 4. 5 Features Benefits Easy to integrate Retrofit to Prima. Vision Low EMI (10 d. B EMC margin below the new CISPR 15 ed 7. 1 norm ) Better thermal behavior SOFTSTART feature; requires less than half the number of circuit breakers then usual LOOPTHROUGH feature; allowing easy installation and fewer cables Easy to install Cost Efficient Intelligent 1: 1 replacement of magnetic gear SOFTSTART & LOOP THROUGH reduces installation cost Dimming allows lesser energy consumption Performance logging; allows preventive maintenance Dimming (only available in DALI version) DALI standard according to: - IEC 62386 -102 Ed. 1: Digital addressable lighting interface – Part 102: General requirements – Control gear - IEC 62386 -203 Ed. 1: Digital addressable lighting interface – Part 203: Particular requirements for control gear – Discharge lamps (excluding fluorescent lamps) (device type 2). Additional info for our dimming gear: 1. Dimming is possible 60 s after initial start 2. Dim level is limited to 50%. Lower dim commands will be interpreted as 50%.

CDM-T&TC Elite Light Boost 70 W/930 – FAQ’s Frequently asked questions What is new

CDM-T&TC Elite Light Boost 70 W/930 – FAQ’s Frequently asked questions What is new or different in this new generation of Elite Light Boost lamps? This is the first generation of new CDM Elite lamps, based on a patented breakthrough technology, which enables dimming to 50% while maintaining excellent light quality. Which Light Boost MASTERColour CDM Elite versions will become available? We are first developing 70 W, in both T and TC versions, in 3000 K. More lamp types and wattages will follow in the future. Will the dimmable lamps fit into existing luminaires? Yes, both lamps and gear dimensions are according to existing standards. Also thermally and optically, the Elite Light Boost system fits into existing luminaires. Where and how can I apply light boosting? Light boosting offers an excellent opportunity for fashion retail to further enhance merchandise by scene setting or attention attraction (driven by a timed program, or linked to motion sensors or occupancy control). Light dimming can bring energy saving when 70 W lamps are replaced by dimmable 70 W systems and the 70 W power is only used at times when really needed. Why do you limit dimming to 50%? The first generation of CDM Elite Light Boost lamps will maintain color properties at 50% dimming. Lower dimming levels would lead to visible color changes and color rendering drop. Can I also vary light levels with normal MASTERColour CDM Elite lamps? No, normal CDM and CDM Elite lamps will turn green during dimming. When I dim a halogen lamp, the color temperature will drop. Why do CDM Elite lamps keep color temperature stable? Unlike for the halogen lamp, there is no light-giving filament to change temperature as the power is dimmed or boosted. What is the effect on color temperature when dimming/boosting the lamp? Our CDM Elite Light Boost lamp is tuned around the 3000 K color point, through which we can create this white sparkling light to illuminate the valuable goods. Depending on the light level variation, the color temperature will either move up when light is boosted, or move down when the light is dimmed. Do note that beyond our specified end-of-life point (15 k hr for 70 W/930), you might experience a small shift to a lower color point; this characteristics indicates that the lamp is up for replacement. Can I use the Elite Light Boost lamps permanently at full power? Yes, you can. The lamp performance will be according to Elite upgrade standard. However, in this case it is more cost efficient to use a non-dimmable system. Can I use the Elite Light Boost lamps permanently 50% dimmed? Yes, you can. The lamp performance will be according to CDM performance. However, in this case it is more cost efficient to use a non-dimmable system.

CDM-T&TC Elite Light Boost 70 W/930 Ordering data lamp and gear Naming 12 NC

CDM-T&TC Elite Light Boost 70 W/930 Ordering data lamp and gear Naming 12 NC EOC Release MASTERC CDM-T Elite Light Boost 70 W/930 G 12 1 C 928191905131 872790093888300 Nov 2010 MASTERC CDM-TC Elite Light Boost 70 W/930 G 8. 5 1 CT 928192105131 872790093892000 Nov 2010 HID-AV DALI C 70 /I CDM 220 -240 V 50/60 Hz 913700647166 872790094400600 Feb 2010 HID-AV DALI C 70 /S CDM 220 -240 V 50/60 Hz 913700647066 872790088430200 July 2011 HID-AV DALI C 70 /P CDM 220 -240 V 50/60 Hz 913700647266 871829115805900 July 2011 For more information, please contact Arthur van der Wateren Product Marketing CDM Philips Lighting GBU HID Steenweg op Gierle 417 B-2300 Turnhout, Belgium cell: + 32 (0) 471 920361 email: arthur. van. der. [email protected] com For more information, visit: www. philips. com/mastercolour © 2011 Koninklijke Philips Electronics N. V. All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. Date of release: July 2011
