Massive Clusters Gigabit Ethernet Progress on System Architecture for Extreme Devices David Culler http: //www. cs. berkeley. edu/~culler U. C. Berkeley Endeavour Retreat 1/20/2000 Endeavour Sys. Arch

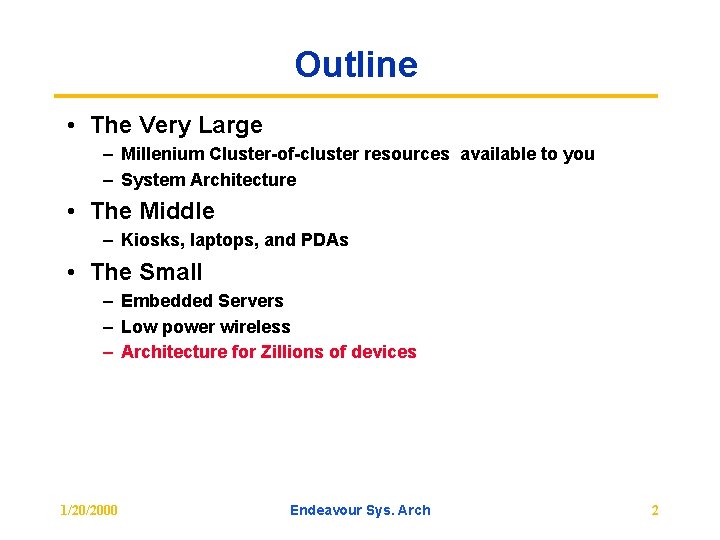

Outline • The Very Large – Millenium Cluster-of-cluster resources available to you – System Architecture • The Middle – Kiosks, laptops, and PDAs • The Small – Embedded Servers – Low power wireless – Architecture for Zillions of devices 1/20/2000 Endeavour Sys. Arch 2

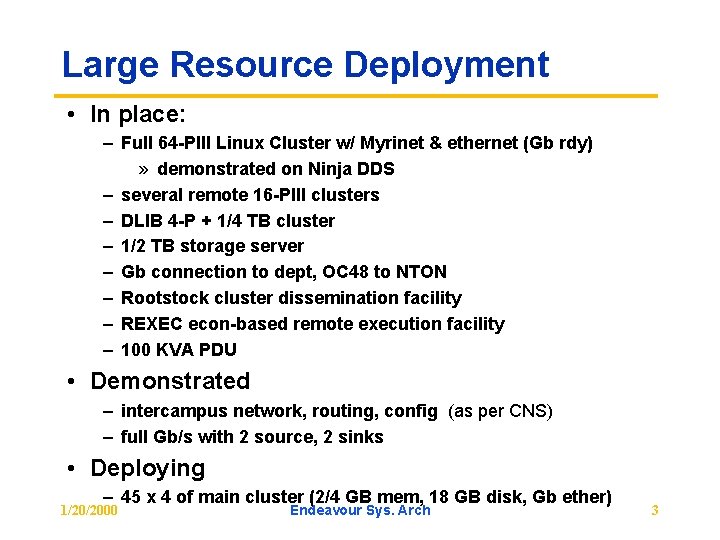

Large Resource Deployment • In place: – Full 64 -PIII Linux Cluster w/ Myrinet & ethernet (Gb rdy) » demonstrated on Ninja DDS – several remote 16 -PIII clusters – DLIB 4 -P + 1/4 TB cluster – 1/2 TB storage server – Gb connection to dept, OC 48 to NTON – Rootstock cluster dissemination facility – REXEC econ-based remote execution facility – 100 KVA PDU • Demonstrated – intercampus network, routing, config (as per CNS) – full Gb/s with 2 source, 2 sinks • Deploying – 45 x 4 of main cluster (2/4 GB mem, 18 GB disk, Gb ether) 1/20/2000 Endeavour Sys. Arch 3

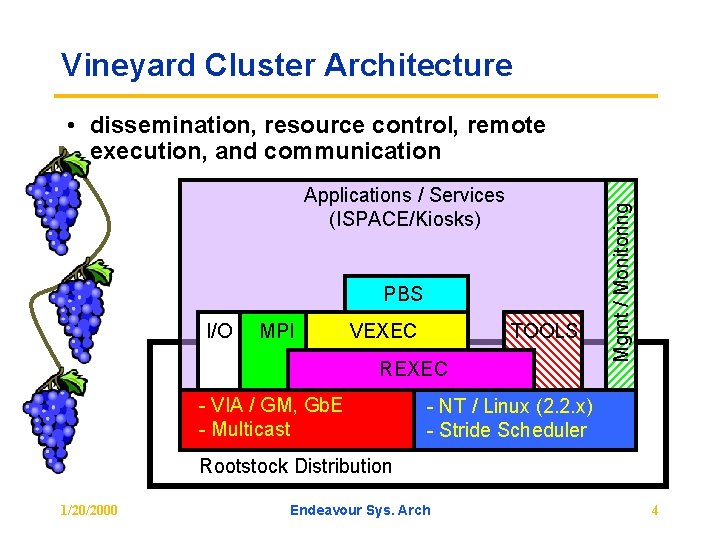

Vineyard Cluster Architecture Applications / Services (ISPACE/Kiosks) PBS I/O MPI VEXEC TOOLS REXEC - VIA / GM, Gb. E - Multicast Mgmt / Monitoring • dissemination, resource control, remote execution, and communication - NT / Linux (2. 2. x) - Stride Scheduler Rootstock Distribution 1/20/2000 Endeavour Sys. Arch 4

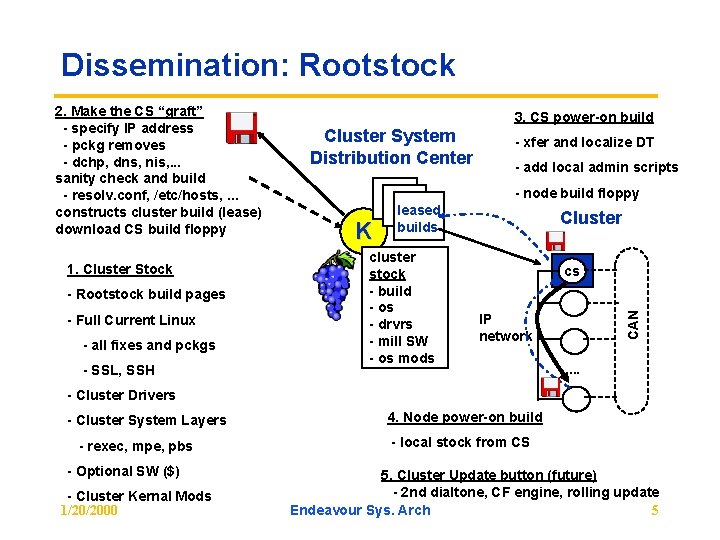

Dissemination: Rootstock 1. Cluster Stock - Rootstock build pages - Full Current Linux - all fixes and pckgs - SSL, SSH 3. CS power-on build Cluster System Distribution Center - xfer and localize DT - add local admin scripts - node build floppy K leased builds cluster stock - build - os - drvrs - mill SW - os mods Cluster cs CAN 2. Make the CS “graft” - specify IP address - pckg removes - dchp, dns, nis, . . . sanity check and build - resolv. conf, /etc/hosts, . . . constructs cluster build (lease) download CS build floppy IP network. . . - Cluster Drivers - Cluster System Layers - rexec, mpe, pbs - Optional SW ($) - Cluster Kernal Mods 1/20/2000 4. Node power-on build - local stock from CS 5. Cluster Update button (future) - 2 nd dialtone, CF engine, rolling update 5 Endeavour Sys. Arch

REXEC / VEXEC • Resource Management, Autoconfig, Mechanism/Policy, Enforcement Node A Node B Node C Node D rexecd Cluster IP Multicast Channel vexecd (Policy A) run indexer on Nodes AB at 3 credits/min vexecd (Policy B) “Nodes AB” minimum $ rexec %rexec –n 2 –r 3 indexer 1/20/2000 Endeavour Sys. Arch 6

“Intelligent” Middle • Deployed many laptops with 802 -11, 3 base stations, many PDAs with IR • Solved the PDA to IR-dongle and PDA to Annex serial port (J. Hill) • Deployed two kiosks: touch-LCD, IR-ppp – act as server for managment • Demonstrated key aspects of the service infrastructure – eg: get device applet from service point • e. Sticky notes appln • motivated xcoding-security infrastucture • => Need to harvest and extend 1/20/2000 Endeavour Sys. Arch 7

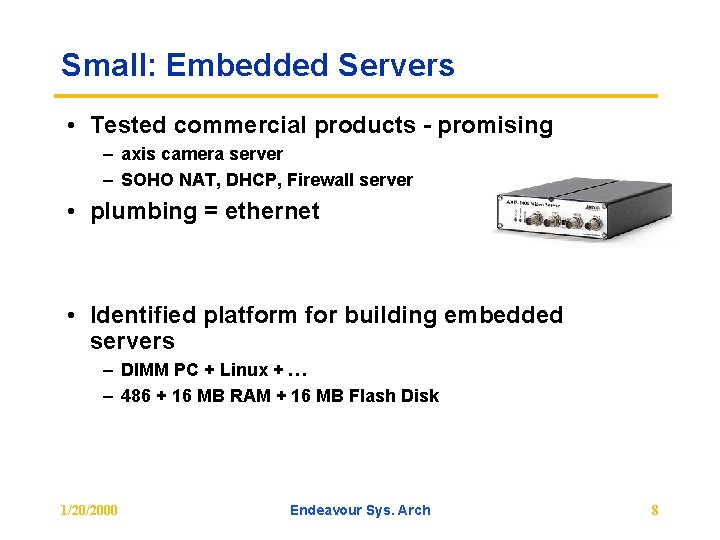

Small: Embedded Servers • Tested commercial products - promising – axis camera server – SOHO NAT, DHCP, Firewall server • plumbing = ethernet • Identified platform for building embedded servers – DIMM PC + Linux + … – 486 + 16 MB RAM + 16 MB Flash Disk 1/20/2000 Endeavour Sys. Arch 8

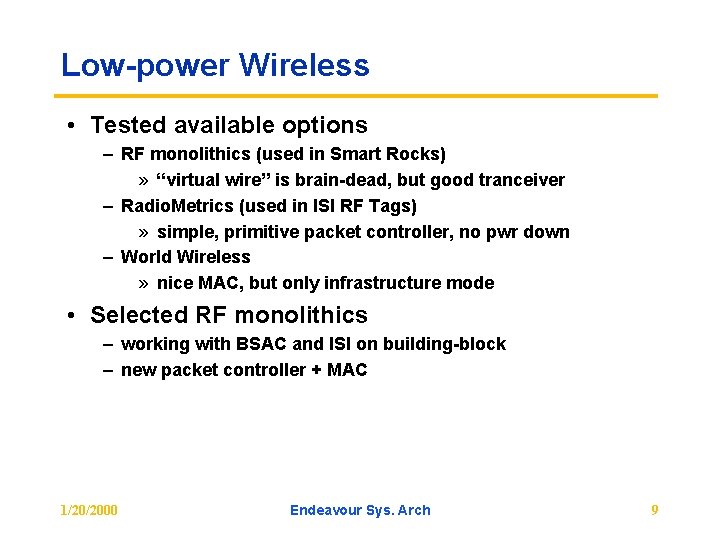

Low-power Wireless • Tested available options – RF monolithics (used in Smart Rocks) » “virtual wire” is brain-dead, but good tranceiver – Radio. Metrics (used in ISI RF Tags) » simple, primitive packet controller, no pwr down – World Wireless » nice MAC, but only infrastructure mode • Selected RF monolithics – working with BSAC and ISI on building-block – new packet controller + MAC 1/20/2000 Endeavour Sys. Arch 9

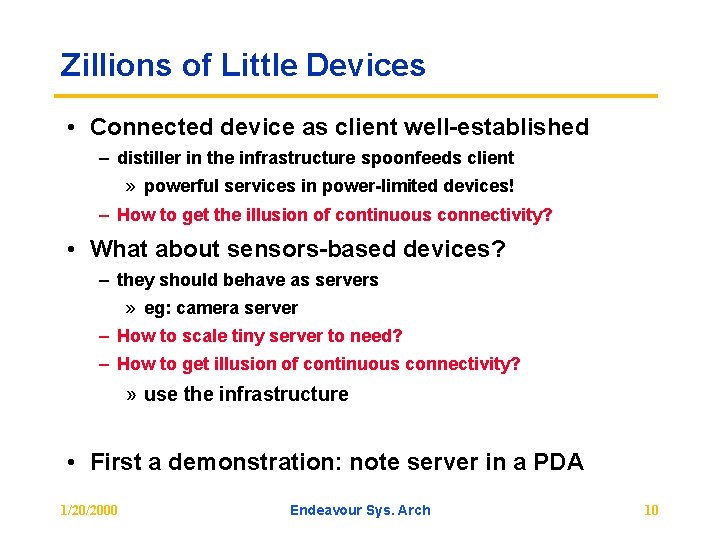

Zillions of Little Devices • Connected device as client well-established – distiller in the infrastructure spoonfeeds client » powerful services in power-limited devices! – How to get the illusion of continuous connectivity? • What about sensors-based devices? – they should behave as servers » eg: camera server – How to scale tiny server to need? – How to get illusion of continuous connectivity? » use the infrastructure • First a demonstration: note server in a PDA 1/20/2000 Endeavour Sys. Arch 10

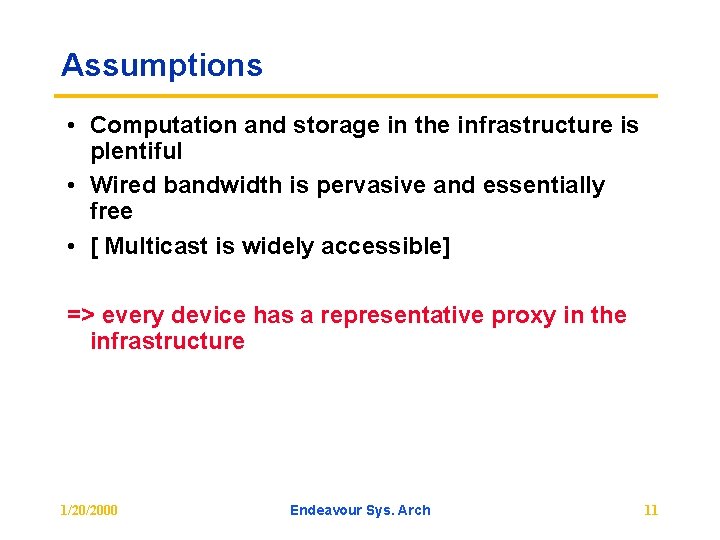

Assumptions • Computation and storage in the infrastructure is plentiful • Wired bandwidth is pervasive and essentially free • [ Multicast is widely accessible] => every device has a representative proxy in the infrastructure 1/20/2000 Endeavour Sys. Arch 11

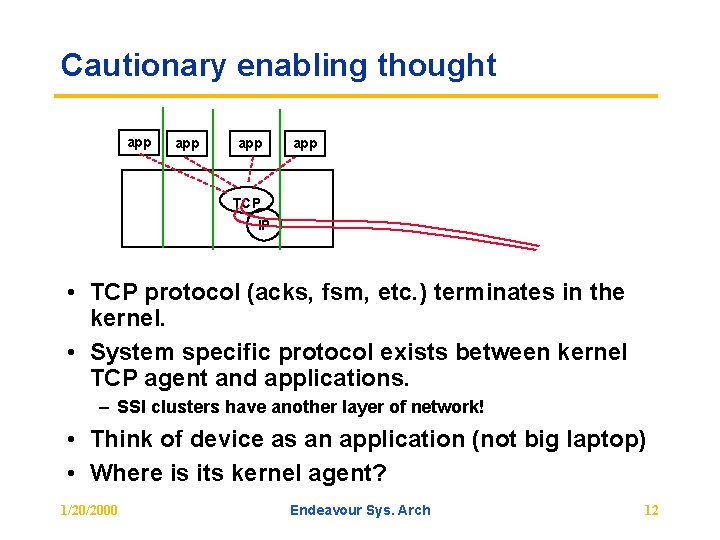

Cautionary enabling thought app app TCP IP • TCP protocol (acks, fsm, etc. ) terminates in the kernel. • System specific protocol exists between kernel TCP agent and applications. – SSI clusters have another layer of network! • Think of device as an application (not big laptop) • Where is its kernel agent? 1/20/2000 Endeavour Sys. Arch 12

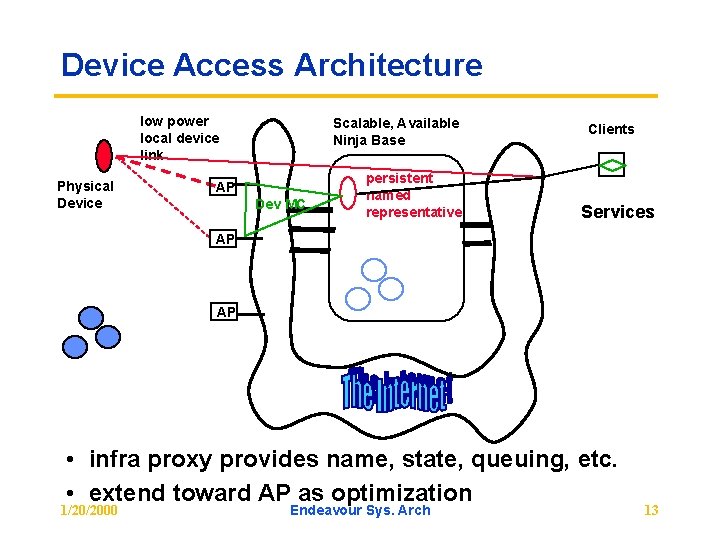

Device Access Architecture low power local device link Physical Device Scalable, Available Ninja Base AP Dev MC persistent named representative Clients Services AP AP • infra proxy provides name, state, queuing, etc. • extend toward AP as optimization 1/20/2000 Endeavour Sys. Arch 13

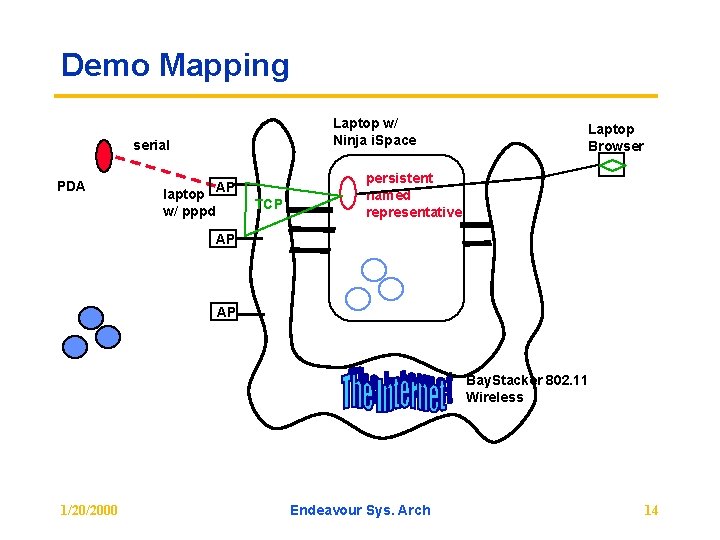

Demo Mapping Laptop w/ Ninja i. Space serial PDA laptop AP w/ pppd TCP Laptop Browser persistent named representative AP AP Bay. Stacker 802. 11 Wireless 1/20/2000 Endeavour Sys. Arch 14

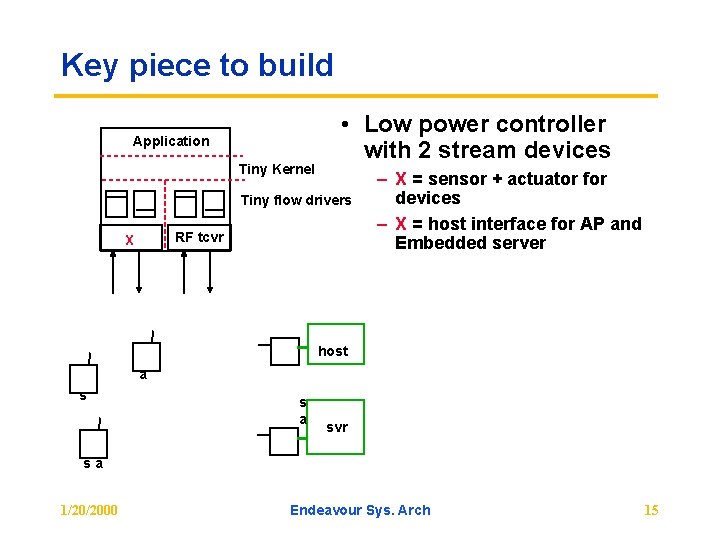

Key piece to build Application Tiny Kernel • Low power controller with 2 stream devices Tiny flow drivers RF tcvr X – X = sensor + actuator for devices – X = host interface for AP and Embedded server host a s s a svr sa 1/20/2000 Endeavour Sys. Arch 15
