MASSIMO Lighting LED Luminaires – Recessed Mounted Opal Diffuser Product Features : IP 44, opal led lens, driver : 220 -240 V, 50/60 Hz, white coated DKP steel & All. Frame ( RAL 9016 ), DIM driver and emergency kit can be applicable. Dimensions (L x W x H) (mm) and Weight (kg) : a. 18 W / 595 x 295 x 80 ; 3, 5 kg b. 36 W / 595 x 80 ; 4, 5 kg
MASSIMO Lighting LED Luminaires – Surface Mounted Opal Diffuser Product Features : IP 44, opal led lens, driver : 220 -240 V, 50/60 Hz, white coated DKP steel & All. Frame ( RAL 9016 ), DIM driver and emergency kit can be applicable. Dimensions (L x W x H) (mm) and Weight (kg) : a. 18 W / 625 x 235 x 65 ; 3, 0 kg b. 36 W / 625 x 65 ; 4, 0 kg
MASSIMO Lighting LED Luminaires – Downlight Product Features : IP 65 Class 1, Housing : Aluminium frame & heatsink, Cover : PC White ring and tempered glass, Reflector : White painted aluminium reflector, Driver : 220 -240 V, 50/60 Hz, 350 m. A, 1200 lm, Colour temperature : 3000 K, DIM can be applicable. Dimensions (L x W x H) (mm) and Weight (kg) : a. 8 W / 185 x 110
MASSIMO Lighting LED Luminaires – Beacon Product Features : IP 65, Housing : PC, Cover : PC Opal Cover, Driver : 10 W, 220 - 240 V, 50/60 Hz, 350 m. A, 1200 lm, Colour temperature : 3000 K, Emergency kit and DIM driver can be applicable. Dimensions (L x W x H) (mm) and Weight (kg) : a. 10 W / 340 x 115 ; 1. 2 kg
MASSIMO Lighting LED Luminaires – Canyon Square Product Features : IP 65 Class 1, Housing : PC, Cover : PC Oval Cover, Driver : 13 W , 220 -240 V, 50/60 Hz, , Colour temperature : 2700 K Emergency kit and DIM driver can be applicable. Dimensions (L x W x H) (mm) and Weight (kg) : a. 13 W / 350 x 104 ; 1. 5 kg
MASSIMO Lighting LED Luminaires – Wall light Product Features : Class : IP 65 Class 1, Housing : Aluminium frame & heatsink, Cover : PC White ring and tempered glass, Reflector : White painted aluminium reflector, Driver : 220 -240 V, 50/60 Hz, 350 m. A, 1200 lm, Colour temperature : 3000 K Dimensions (L x W x H) (mm) and Weight (kg) : a. 3, 2 W / 100 x 130 x 200
MASSIMO Lighting Recessed Mounted Luminaires / Direct – İndirect Two Side Perforated ( Tempered Glass ) Product Features : IP 54 Class 1 (room side), Housing : White (RAL 9016) powdered painted steel, Lighting : Direct – indirect symetric lighting distribution, G 5 lamp holder, T 5 lamp (14 W/ 24 W/28 W ), Ballast : High Frequency Electronic (ECG), Magnetic (CCG), Connector : Push type terminal block (3 poles), max 2, 5 mm 2 cable section, Dimensions (L x W x H) (mm) and Weight (kg) : a. 595/1195 x 585 ; b) 595/1195 x 295 x 80 ; max 9 kg.

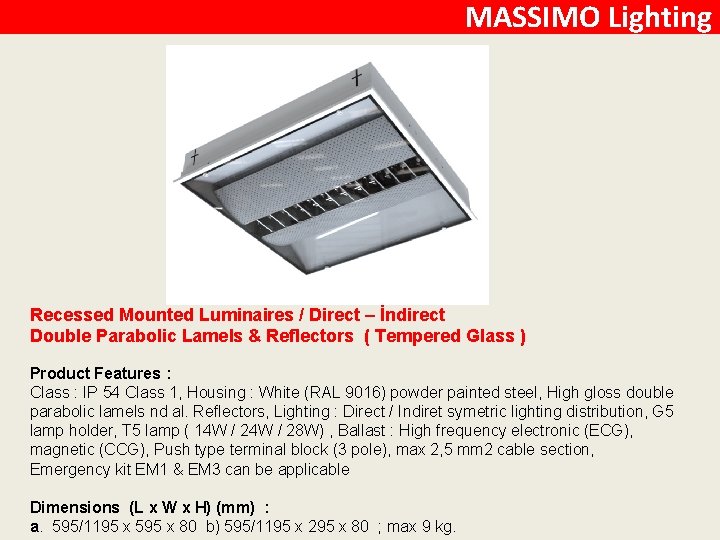

MASSIMO Lighting Recessed Mounted Luminaires / Direct – İndirect Double Parabolic Lamels & Reflectors ( Tempered Glass ) Product Features : Class : IP 54 Class 1, Housing : White (RAL 9016) powder painted steel, High gloss double parabolic lamels nd al. Reflectors, Lighting : Direct / Indiret symetric lighting distribution, G 5 lamp holder, T 5 lamp ( 14 W / 28 W) , Ballast : High frequency electronic (ECG), magnetic (CCG), Push type terminal block (3 pole), max 2, 5 mm 2 cable section, Emergency kit EM 1 & EM 3 can be applicable Dimensions (L x W x H) (mm) : a. 595/1195 x 595 x 80 b) 595/1195 x 295 x 80 ; max 9 kg.
MASSIMO Lighting Recessed Mounted Luminaires / Direct – İndirect Mat Single Lamels & Reflectors ( Tempered Glass ) Product Features : Class : IP 54 Class 1 Room side, Housing : White (RAL 9016) powder painted steel, Mat single lamels and mat allum. ref. High gloss double parabolic lamels and mat allum. reflectors, Lighting : Direct / Indiret symetric lighting distribution, G 5 lamp holder, T 5 lamp ( 14 W / 28 W) , Ballast : High frequency electronic (ECG), magnetic (CCG), Push type terminal block (3 pole), max 2, 5 mm 2 cable section, Emergency kit EM 1 & EM 3 can be applicable Dimensions (L x W x H) (mm) : a. 595/1195 x 595 x 80 b) 595/1195 x 295 x 80 ; max 9 kg.
MASSIMO Lighting Recessed Mounted Clean Room Luminaires with Reflector Product Features : Class : IP 40 / 54 Class 1 Room side, Housing : White (RAL 9016) powder painted steel, transparent clean glass with double parabolic reflector applications, Lighting : Direct symetric lighting distribution, G 13 lamp holder, T 8 lamp ( 18 W / 28 W / 36 W / 58 W) , Ballast : High frequency electronic (ECG), magnetic (CCG), Push type terminal block (3 pole), max 2, 5 mm 2 cable section, Emergency kit EM 1 & EM 3 can be applicable Dimensions (L x W x H) (mm) : a. 595/1195 x 595 x 80 b) 595/1195 x 295 x 80 ; 7 - 16 kg.
MASSIMO Lighting LED Luminaires – Mini Batten Product Features : Class : IP 44, Housing : Aluminium profile (white powder painted), Cover : PC, Driver : 220 – 240 V, 50 / 60 Hz, Emergency kit can be applicable at the surface, Length can be changeable for demand. Dimensions (L x W x H) (mm) and Weight (kg) : a. 12 W / 330 x 62 ; 0. 4 kg
MASSIMO Lighting Recessed mounted Lum. . T 5 with double parabolic refl. Product features: IP 20 /40 , Class 1 , Recessed, HFG high frequency control gear 2/3/4 x 14 W ( T 5 ), G 5 socket, Stee Housing, symmetric lighting distributions , high gloss double parabolic aluminum reflector, prizmatic & opal cover range available, housing white (RAL 9016), Lighting technology: - Easyopening reflector, direct, symetric Enclosure: High gloss aluminum reflector Dimensions : L: 595 mm, W: 595 mm, H: 50 mm ( 4 x 14 W)
MASSIMO Lighting Recessed mounted Lum. . T 5 PC with light green lamella Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2/3/4 x 14 W ( T 5 ), G 5 socket, Steel Housing, symmetric lighting distributions , Mat aluminum reflector & PC light green Lamela ( color range option is related to the quantity of the order ) housing color white (RAL 9016), Lighting technology : - Easy opening refl. direct, symetric, Enclosure: Mat aluminum reflector, Dimensions : : L: 595 mm, W: 595 mm, H: 50 mm ( 4 x 14 W )
MASSIMO Lighting Recessed mounted Lum. . T 5 with single mat lamella Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2/3/4× 14 W ( T 5 ) G 5 socket, Steel Housing , symmetric lighting distributions , Mat aluminium reflector with sigle Lamela , housing color white (RAL 9016), Lighting technology: • Light opening refl. direct, symetric • Enclosure: Mat aluminum reflector Dimensions : : L: 595 mm, W: 595 mm, H: 50 mm ( 4 x 14 W)
MASSIMO Lighting 3 Lamela Recessed mounted Lum. . T 8 with double parabolic refl. Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2/4× 18 W ( T 8 ), G 13 socket, Steel, Housing symmetric lighting distributions , high gloss double parabolic 7 aluminum lamela & reflector, ( 3 lamela is an option acc. to the request ) housing color white (RAL 9016) Lighting technology: - Easy opening refl. direct, symetric - Enclosure: High gloss aluminum reflector Dimensions : L: 595 mm, W: 595 mm, H: 80 mm ( 4 x 18 W ) 7 Lamela
MASSIMO Lighting Surface mounted Lum. . T 5 with double parabolic refl. Product features: IP 20 , Class 1 , Surface , HFG high frequency control gear 2/3/4× 14 W ( T 5 ), G 5 socket, sheet steel, symmetric lighting distributions , high gloss double parabolic aluminum reflector, housing color white (RAL 9016), Lighting technology: • Easy opening refl. , direct , symetric • Enclosure: High gloss aluminum reflector Dimensions : L: 605 mm, W: 605 mm, H: 65 mm ( 4 x 14 W)
MASSIMO Lighting Surface mounted Lum. . T 5 with single mat lamela. Product features: IP 20 , Class 1 , Surface , HFG high frequency control gear 2/3/4× 14 W ( T 5 ), G 5 socket, Steel Housing, symmetric lighting distributions , Mat aluminum reflector with sigle lamela , housing color white (RAL 9016), Lighting technology: • Easy opening refl. direct, symetric • Enclosure: Mat aluminum reflector Dimensions : : L: 605 mm, W: 605 mm, H: 65 mm ( 4 x 14 W)
MASSIMO Lighting Surface mounted Lum. . T 5 PC with light green lamella Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2/3/4× 14 W ( T 5 ), G 5 socket, 0, 5 mm DKP sheet steel, symmetric lighting distributions , Mat aluminum reflector & PC light green Lamela ( optional color range acc. the quantity ) , housing color white (RAL 9016), Lighting technology: - Easy opening refl. direct, symetric - Enclosure: Mat aluminum reflector Dimensions : : L: 605 mm, W: 605 mm, H: 65 mm ( 4 x 14 W)
MASSIMO Lighting Surface mounted Lum. . T 8 with double parabolic refl. Product features: IP 20 , Class 1 , Surface , HFG high frequency control gear 2/4× 18 W ( T 8 ), G 13 socket, Steel housing , symmetric lighting distributions , high gloss double parabolic aluminum reflector, housing color white (RAL 9016), Lighting technology: • Easy opening refl. direct, symetric • Enclosure: High gloss aluminum reflector Dimensions : L: 655 mm, W : 655 mm, H: 80 mm ( 4 x 18 W)
MASSIMO Lighting Surface mounted Lum. . T 8 with sigle mat lamela Product features: IP 20 , Class 1 , Surface , HFG high frequency control gear 2/4× 18 W ( T 8 ), G 13 socket, Steel hausing , symmetric lighting distributions , high gloss / mat aluminum reflector, with single lamela , housing color white (RAL 9016), Lighting technology: • Easy opening refl. direct, symetric • Enclosure: High gloss /mat Dimensions : L: 655 mm, W : 655 mm, H: 80 mm ( 4 x 18 W)
MASSIMO Lighting Surface mounted Lum. . T 8 with sigle mat lamela Product features: IP 40 , Class 1 , Surface, HFG high frequency control gear 2/4 x 18 W ( T 8 ), G 13 socket, Steel Housing symmetric lighting distributions , prizmatik /opal diffuser cover. housing color white (RAL 9016), Lighting technology: • Easy opening cover , direct, symetric • Enclosure: PMMA diffuser with Al. Frame Dimensions : L: 655 mm, W : 655 mm, H: 80 mm ( 4 x 18 W)
MASSIMO Lighting Recessed mounted ( Clip-in ) indirect Sym Lum. (middle perforated ). . . Dulux L , Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2 x 55 W , G 23 socket, Steel metal, indirect sym. lighting distributions , mono secondary refl. can be applied at the middle, Clip-in housing color white (RAL 9016), Lighting technology: • Indirect , Sym. Lighting distribution , perfore at the middle & steel powder painted side reflectors Dimensions : L: 600 mm, W: 600 mm, H: 80 mm
MASSIMO Lighting Downlight. . . Dulux D Product features: IP 20 / IP 40 (with glass) , Class 1 , Recessed, Elk. Balast / Magn. Balast 1 x 2 x 18 W , 1 x 2 x 26 W Dulux D, G 24 socket, Galvanized Steel Housing , symmetric lighting distributions , high gloss aluminum reflector, Lighting technology: • Light direct, symetric • Enclosure: High gloss anodized aluminum reflector. Glass accesories Dimensions : Dia ; 200 mm, H: 94 mm
MASSIMO Lighting Glass Downlight Square. . . Dulux D Product features: IP 20 , Class 1 , Recessed, HFG high frequency control gear 2 x 18/26/42 W , G 24 / E 27 socket, Steel housing , symmetric lighting distributions , high gloss parabolic aluminum reflector, housing color white (RAL 9016), Lighting technology: • Direct, symetric lighting distribution , Glass accessories • Enclosure: High gloss / Mat aluminum reflector Dimensions : Dimentions can be arrange acc. customer request.
MASSIMO Lighting Mini Batten - Linear Luminaires Suitable for ceiling /surface/ and suspended mounting , single / continuous / twin & row arrangements. PC Cover , IP 40 luminaire. Suitable for indoor applications. Direct wide lighting distributions. High Frequency Control Gear Ballast ( ECG ) with T 5 lamps. Easy mo unted by different PC brackets. Can also be suspended
MASSIMO Lighting Linear. . . T 5 Luminaires. Product features: IP 20 , Class 1 , Recessed / Surface / Suspended options and Lineer application available , HFG high frequency control gear 14/21/28/54/35/80 W ( T 5 ), G 5 socket, symmetric lighting distributions , high gloss double parabolic aluminum reflector / PC plastik cover / light green / blue lamelas can be applied. Housing made of Al. color ; white (RAL 9016) or grey anodized. Lighting technology: - Easy Refl. Opening. direct, symetric , Dimensions : L: Acc. customer request. . . mm, W: 105 mm, H: 105 mm
MASSIMO Lighting Recessed type clip-in Clean Room. . . T 8 Lum. Product features: IP 54 , Class 1 , Recessed, HFG high frequency control gear 2/4 x 18 W ( T 8 ), G 13 socket , Steel housing , symmetric lighting distributions , high gloss parabolic aluminum reflector , clip-in or standard recessed housing. Al. Frame or without frame , Housing coated powder painted in white (RAL 9016), Lighting technology: • Light opening refl. Direct, symetric lighting distributions. • Enclosure: High gloss aluminum reflector & Grey anodized Al. Frame Dimensions : L: 595 mm, W: 595 mm, H: 93 mm ( 4 x 18 W )
MASSIMO Lighting ( 3 x 80 W ) 4 x 80 W 4 x 54 W High Bay-T 5 Lum. Product features: - IP 54 / 65 ( Acc. To the customer request ) , Class 1 , CE Approved - Recessed, HFG high frequency control gear 2/3/4 x 28/35/54/80 W ( T 5 ), G 5 socket, 220/230 V , 50 -60 Hz. - Steel Housing, , welded side & corners , powder painted in white ( RAL 9010 Tetured ) - Liquid gasketing process - Tempred Glass , - Symmetric lighting distributions Hhigh gloss ( Mirro ) aluminum reflector - Glass opening with filexsible toggle latch & also as hinges , Lighting technology: • Easy installation & Glass cover opening , • Variable mounting brackets bfor surface / suspended / Cat-Walks • KIT application is available for 2 x 54 W / 4 x 54 W Dimensions : L: 1197 mm, W: 220 mm, H: 60 mm ( 2 x 54 W. . ) L: 1197 mm, W: 380 mm, H: 60 mm ( 4 x 54 W. . . ) L: 1197 mm, W: 300 mm, H: 60 mm ( 3 x 54 W. . ) L: 1497 mm, W: 220 mm, H: 60 mm ( 2 x 80 W. . ) L: 1497 mm, W: 380 mm, H: 60 mm ( 4 x 80 W. . )
MASSIMO Lighting Massipro – Industrial Luminaires
MASSIMO Lighting Under Canopy Lum. Product features: IP 65, Class 1, Surface / Recessed , white powder painted Al. Housing , Tempered Glass , Special white painted Sym & Assym Reflector , Symmetric & Assymetric lighting distributions. HID. . . 150 / 250 W Lamp options Lighting technology: • Direct, symetric , Assym. Dimensions : L: 330 mm, W: 330 mm H: 180 mm , Frame ; 395 x 395 mm
MASSIMO Lighting Led Luminaire Wall-Washer Product features: IP 66 , Class 1 , Decorative outdoor wall washer led ( power. Led ) luminaire. Tempered glass ( 3 mm ). Grey anodized Aluminium Housing & Cover. Lighting technology: • Easy aiming of the lights & easy mounting of the lum. , direct sym. lighting distribution. Dimensions : L: Acc. to the leds W ; 95/135 mm, H : 77/105 mm
MASSIMO Lighting Grey Gold White Crome Led Ring - Spot Product features: IP 20 , Class 1 , Recessed, Frame for Hologen lamps & Led lamps , GU 10 , Al. Enj. Frame with movable lamp-ring , Frame & Ring painted in grey / white. . or electro-plated Gold / Crome , . . . Lighting technology: • Easy lamp mounting , direct sym & asym lighting distribution. Dimensions : Dia. ; 96 mm, H: 135 mm
MASSIMO Lighting Deco. Round - Led Lum. . . . Wall & Ceiling Product features: IP 65, Class 1/2 , Surface , PP Housing & PC Cover , symmetric lighting distributions , Color ; Housing white Cover opal. İncandescent & compact Fluo. Lamps can be applicable. Lighting technology: • Direct, symetric , vandal resistant Dimensions : Dia. 340 mm, H: 120 mm
MASSIMO Lighting Canyon - Led Lum. . . . Wall & Ceiling Product features: IP 65, Class 1/2 , Surface , PP Housing & PC Cover , symmetric lighting distributions , Housing color white Cover color opal. İncandescent & compact Fluo. lamps can be applicable. Lighting technology: • Direct, symetric , vandal resistant Dimensions : Dia. 340 mm, H: 120 mm
MASSIMO Lighting Atlantic - Water-Proof Product features: IP 65, Class 1 , Surface , suspended mounting High Frequency Control Gear ( ECG )T 5/T 8 lamps & Magn. Balast (CCG ) T 8/T 5 lamp applications. Single / continious. row arrangement. Wide symmetric lighting distributions , PC Housing & PMMA or PC Cover. Lighting technology: • Wide Direct, symetric , vandal resistant Dimensions : Dia. 340 mm, H: 120 mm
MASSIMO Lighting TAILOR MADE PRODUCTS / PROJECTS
MASSIMO Lighting High Bay-T 5 Lum. Product features: - Suitable for the high ceilings - IP 54 / 65 ( Acc. To the customer request ) , Class 1 , CE Approved - Liquid gasketing process - Tempred Glass , - Recessed, HFG high frequency control gear 2 x 54/80 W ( T 5 ), G 5 socket, 220/230 V , 50 -60 Hz. - Steel Housing, , welded side & corners , powder painted in white ( RAL 9010 Tetured ) - Symmetric lighting distributions High gloss ( Mirro ) aluminum reflectors. Glass opening with flexible toggle latch & also as hinges Lighting technology: • Easy installation & Glass cover opening , • Variable mounting brackets for ; surface / suspended / Cat-Walks • KIT application is available for 2 x 54 W / 2 x 80 W Dimensions : L: 1197 mm, W: 495 mm, H: 150 mm ( 2 x 54 W. . ) L: 1497 mm, W: 495 mm, H: 150 mm ( 3 x 80 W. . )
MASSIMO Lighting Linear Luminaires Product features: IP 54, Class 1 , Recessed / Surfaced / Suspende Applications , Al. Anod. Housing , PC Cover , Symmetric lighting distributions PC Opal Cover / Single or Parbolic Refl. or white Painted Al. Louvre. Single or Overlapping 14/21/28/35/49/54 W T 5 Fluo. lamps can be applicable. Lighting technology: • Direct, symetric , Dimensions : W ; 100 mm, H: 110 mm
MASSIMO Lighting 1 x 14 W Modul Lum. Product features: IP 40 , Class 1 , Recessed , Micro Prizmatic Cover , White painted steel Housing , Symmetric lighting distributions , 1 x 14 W Fluo. Lamp. Easy lamp replecements. Lighting technology : • Direct symetric lighting distributions. • Dimensions : L: 600 mm, W: 100 mm , H: 80 mm
MASSIMO Lighting Linear Luminaires Product features: IP 54, Class 1 , Recessed / Surfaced / Suspende Applications , Al. Anod. Housing , PC Cover , Symmetric lighting distributions PC Opal Cover / Single or Parbolic Refl. or white Painted Al. Louvre. Single or Overlapping 14/21/28/35/49/54 W T 5 Fluo. lamps can be applicable. Lighting technology: • Direct, symetric , Dimenions : W ; 100 mm, H: 110 mm
MASSIMO Lighting T 5 -Pendant & Surface Mounted Linear Lum. Corner Junction View * The luminaires could be produced at the length of the T 5 Fluo. Lamps as seen in the picture or the Lumnaires could be produced as continious row ( PC Cover & Al. Profile ) up to 6 meters * The luminaires can be produced as single or double T 5 fluo. Lamp. * Luminaires Lighting distribution can be arranged as Direct ( %30 ) or Direct / Indirect ( %70) * Surface & Suspended applications are applicable , PC Transparent Cover , Al. painted or anodized Housing , Plastic End covers. Convenient for the corner junctions. Dimensions , W : 175 mm , H : 60 mm L : Acc. to the T 5 lamps / Costomer requests. .
MASSIMO Lighting Linear Assymetric T 5 Lum. * The luminaires could be produced at the length of the T 5 Fluo. Lamps as seen in the picture or the Lumnaires could be produced as continious row with Al. double parabolic mat reflector or Opal / Transparent Cover up to 3 mt. * The luminaires can be produced as single or double T 5 fluo. Lamp. • Lum. Suitable for the recessed application , Assymetric lighting distribution. White powder painted galvanized housing, Al. Frames ( painted or anodized ) Dimensions : W : 255 mm , H : 198 mm L : Acc. To the T 5 lamps / Costomer requests. .
MASSIMO Lighting 2 x. T 5 Wall Washer Product features: IP 20 Class 1 , Wall mounted. Al. anodized Housing. Continuous linear application. Movable two Assym Reflektors Applicable for 2 x 14/21 /24/ 28/35 W Fluo. Lamps. Lighting technology: • Assymetic. Dimensions : W: 200 mm, H: 102 mm L: . . .
MASSIMO Lighting Assym T 5 Wall Washer Product features: IP 40, Class 1 , Wall mounted. Al. anodized Housing. Continuous linear application. Assym. mat–Refllector. Applicable for 1 x 14/21 /24/ 28/35/80 W Fluo. Lamps. Transparent /opal cover can be applicable Lighting technology: • Assymetic wall washer. Dimensions : W : 200 mm , H : 55 mm , L : . . .
