MG 3 thermal transfer printer The versatile, compact and robust marking system MARKINGenius® MG 3 is a high resolution printer based on thermal transfer technology to produce high quality identification and labelling for ABB terminal blocks and other manufacturers , cables and all the equipments of electrical panels. The thermal transfer technology principle is using the heat to transfer characters or symbols onto a plastic marker through an ink ribbon. Besides the excellent printing quality, there is no drying time and the markers are instantly usable. With MG 3 thermal transfer printer forget about drying time and clogged printing heads problems. © ABB Month DD, YYYY | Slide 2

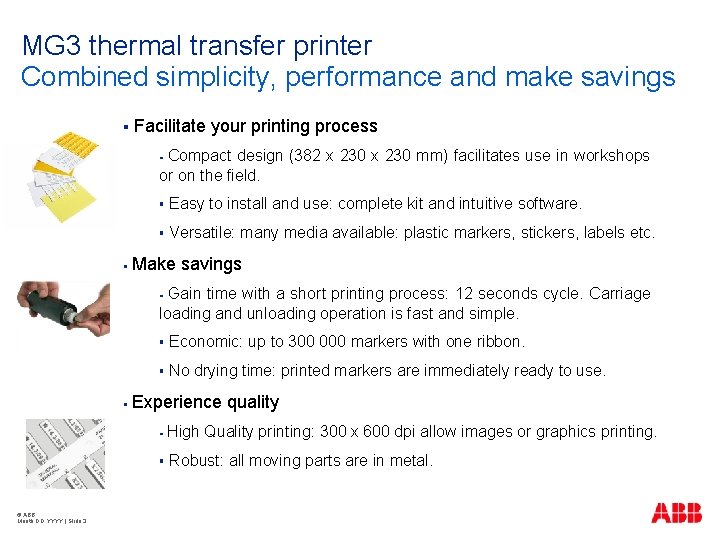

MG 3 thermal transfer printer Combined simplicity, performance and make savings § Facilitate your printing process Compact design (382 x 230 mm) facilitates use in workshops or on the field. § § § Easy to install and use: complete kit and intuitive software. § Versatile: many media available: plastic markers, stickers, labels etc. Make savings Gain time with a short printing process: 12 seconds cycle. Carriage loading and unloading operation is fast and simple. § § © ABB Month DD, YYYY | Slide 3 § Economic: up to 300 000 markers with one ribbon. § No drying time: printed markers are immediately ready to use. Experience quality § High Quality printing: 300 x 600 dpi allow images or graphics printing. § Robust: all moving parts are in metal.

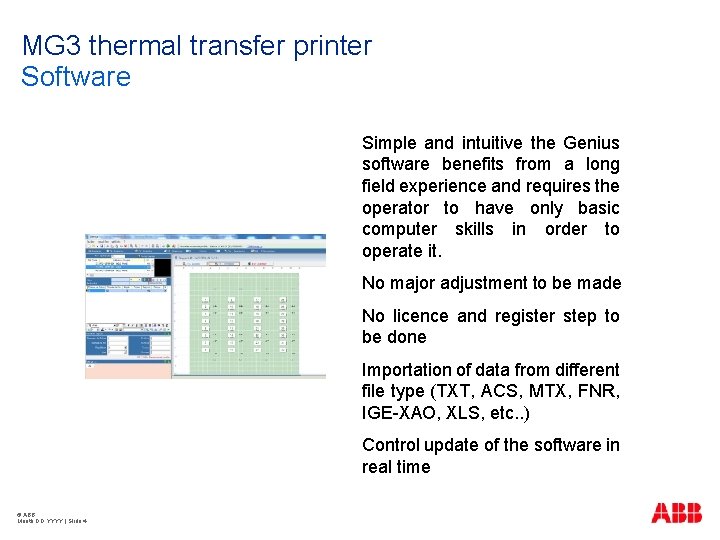

MG 3 thermal transfer printer Software Simple and intuitive the Genius software benefits from a long field experience and requires the operator to have only basic computer skills in order to operate it. No major adjustment to be made No licence and register step to be done Importation of data from different file type (TXT, ACS, MTX, FNR, IGE-XAO, XLS, etc. . ) Control update of the software in real time © ABB Month DD, YYYY | Slide 4

MG 3 thermal transfer printer Software Brochure Genius software Enter the SW code (Soft. Ware code) listed in catalogues or brochure for a direct access to the right printing media in the software © ABB Month DD, YYYY | Slide 5

MG 3 thermal transfer printer Complete solution for all identification requirements Terminal blocks identification Panel identification Group markers identification Components and equipments identification Wire identification Cable identification Push buttons identification Modular devices identification © ABB Month DD, YYYY | Slide 6

MG 3 thermal transfer printer Terminal blocks identification § § § MG-CPM § Rigid polycarbonate marker available in individual and strip markers. § Compatible with many type of terminal blocks § ABB terminal blocks: SNA series, SNK series § Others terminal blocks manufacturer: Phoenix, Weidmuller, Wago, Cabur, Conta Clip, Legrand, Siemens, Woertz, Connectwell, Wieland MG-CPMF § PVC marker strip to be slided on various type of terminal blocks. § Compatible with many type of terminal blocks § ABB SNA series terminal blocks § Others terminal blocks manufacturer: Phoenix, Weidmuller, Wago MG-CPMFA § Self adhesive PVC marker strip § © ABB Month DD, YYYY | Slide 7 Compatible with ABB SNK series terminal blocks

MG 3 thermal transfer printer Group markers identification § MG-TAPW § Rigid precut PVC markers. § Standard 9 mm height § Available in various lengths. To be snapped on ABB SNA series end stop marker holder. § § MG-TAR § § Rigid precut PVC markers. Available in various lengths. To be snapped on ABB SNA/SNK series and other manufacturers end stop marker holder. § © ABB Month DD, YYYY | Slide 8

MG 3 thermal transfer printer Wire identification § MG 2 -TDMO Rigid polycarbonate marker to be directly printed and snaped on the wire § § for 0. 5 to 6 mm² wire. Allow wire identification after connection § § § 2 sizes : 4 x 12 and 4 x 16 mm. MG-TDM Rigid polycarbonate marker to be directly printed and slided on the wire § © ABB Month DD, YYYY | Slide 9 § for 0. 5 to 6 mm² wire. § 2 sizes : 4 x 12 and 4 x 16 mm.

MG 3 thermal transfer printer Wire identification § MG-TPM Rigid ABS marker to be inserted in PM transparent holder. § PM 4 mm height with 3 different length (10, 12, 15 mm) § Large range of PM holder: for wires up to 240 mm² § § MG-TPMF Precut PVC marker to be inserted in PMF transparent holder for wires up to 70 mm². § PMF § Economic solution 4 mm height with 3 different length (10, 12, 15 mm) § © ABB Month DD, YYYY | Slide 10

MG 3 thermal transfer printer Cable identification § MG-ETF Rigid PVC marker for identification of large diameter cables, tubes or conduits. § § § 13 x 57 mm. § To be used with cable ties. MG-TPM Rigid ABS marker to be inserted in PM transparent holder for cables up to 240 mm². § § MG-TPMF Precut PVC marker to be inserted in PMF transparent holder for cables up to 70 mm². § © ABB Month DD, YYYY | Slide 11

MG 3 thermal transfer printer Modular devices identifications, circuits breakers… § MG-TAPW § RTA-TAPW §To be slided on adhesive rail (RTA-TAPW) § MG-17. 5 -A § § © ABB Month DD, YYYY | Slide 12 Self adhesive precut marker. § Standard 15 mm height § Used for modular components MG-TAP § RTA-TAP Rigid precut PVC markers To be slided on adhesive rail (RTA-TAP) §

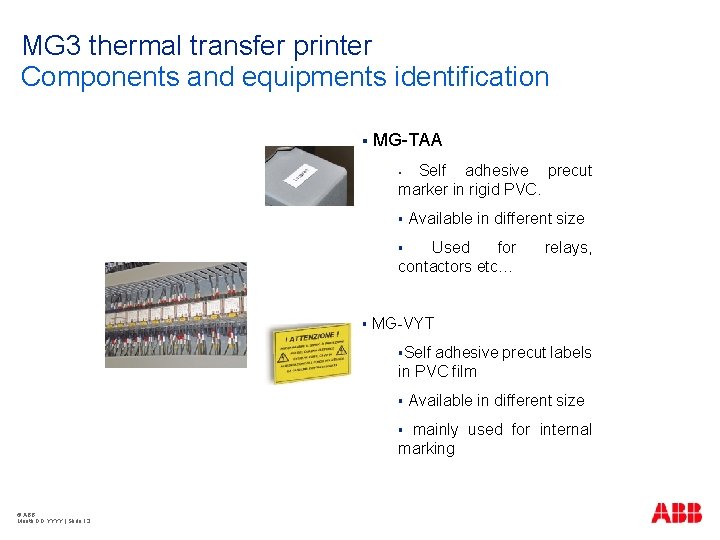

MG 3 thermal transfer printer Components and equipments identification § MG-TAA Self adhesive precut marker in rigid PVC. § § Available in different size Used for contactors etc… § § relays, MG-VYT §Self adhesive precut labels in PVC film § Available in different size mainly used for internal marking § © ABB Month DD, YYYY | Slide 13

MG 3 thermal transfer printer Components and equipments identification § MG-PLC Rigid precut PVC marker for PLC’s front faces. § § Available in different size Available in Siemens color (green) § § MG-TAPW § RTA-TAPW §To be slided on adhesive rail (RTA-TAPW) § RTA-TAP Rigid precut PVC markers. MG-TAP §Rigid precut PVC markers To be slided on adhesive rail (RTA-TAP) § © ABB Month DD, YYYY | Slide 14

MG 3 thermal transfer printer Push buttons identifications § MG-PTS Rigid pre cut PVC markers for Dia. 22. 5 push buttons § §To be tightened with front face of push button § MG-TAP § Rigid pre cut PVC markers Compatible with ABB push button plates type KA 1 -8120. § © ABB Month DD, YYYY | Slide 15

MG 3 thermal transfer printer Panel identification § MG-VRT-A Self adhesive rigid PVC panel plate used to identify electrical data or company logo § §To be tightened with front face of push button § © ABB Month DD, YYYY | Slide 16 Dimensions: 52 x 107 mm

MG 3 thermal transfer printer Accessories § MG 3 thermal transfer printer is delivered with a full set of accessories for an easy start. § 1 Software CD § 1 Power supply cable and 1 USB cable § 1 Installation, operating and maintenance and user documentation § 1 Protective cover § 1 Ribbon take up spool § 1 MG 2 -QTB support template for terminal block markers (MG-CPM) § 1 MG 2 -PWC support template for wire and cable markers (MG-TPM) § 1 MG 2 -PLT support template for wire and cable markers (MG-TPMF) and various labels and signs § 1 MG 2 -ETR Black printer ribbon. © ABB Month DD, YYYY | Slide 17

MG 3 thermal transfer printer Accessories § Support template § § © ABB Month DD, YYYY | Slide 18 Others support templates for others medias type available. Printer ribbons § Monochrome ribbons for high quality print § Ribbon lenght 200 m, width 120 mm § Colour available : Black, White, Red, Green, Blue.

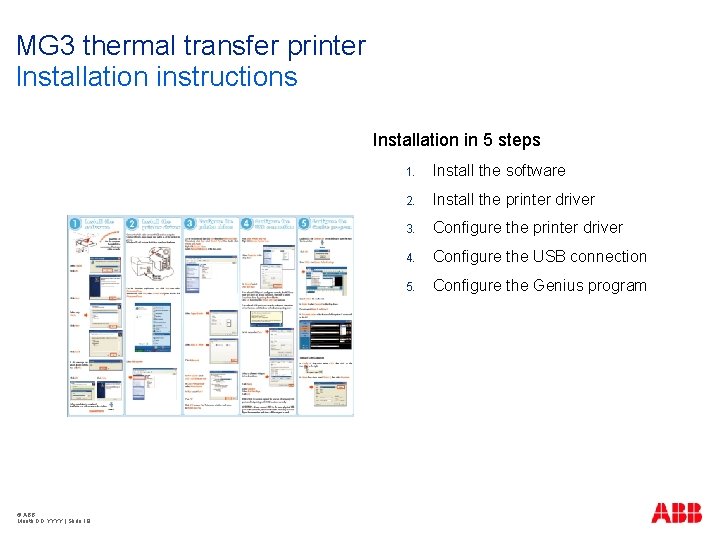

MG 3 thermal transfer printer Installation instructions Installation in 5 steps © ABB Month DD, YYYY | Slide 19 1. Install the software 2. Install the printer driver 3. Configure the printer driver 4. Configure the USB connection 5. Configure the Genius program

MG 3 thermal transfer printer Installation instructions: support template Simple printing process…support templates are easily interchanged The printer will save in memory the last support plate used. If you leave the support and try to close the char 3, the alarm will sound. If this happens, just turn off the printer to reset, then turn it on and push the 1 button. © ABB Group 2009

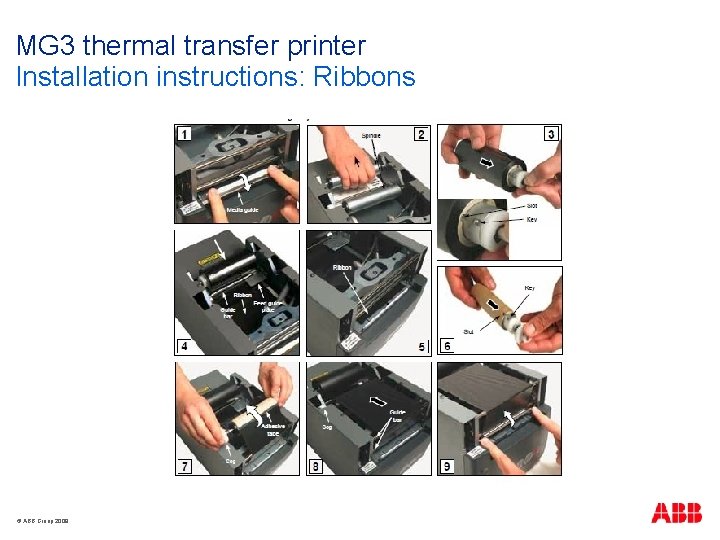

MG 3 thermal transfer printer Installation instructions: Ribbons © ABB Group 2009

MG 3 thermal transfer printer Software interface instructions © ABB Group 2009 1. Menu, Command, function and Upgrade bars 2. Media favourite table 3. Data input table 4. Tool bars 5. Fast insert 6. Instant preview 7. Print preview
