Marieb’s Human Anatomy and Physiology Marieb w Hoehn Chapter 9 Muscles and Muscle Tissue Lecture 16 1

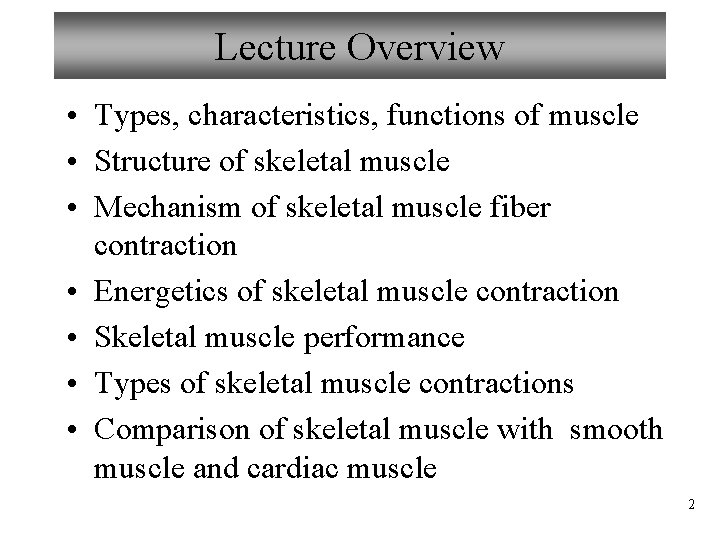

Lecture Overview • Types, characteristics, functions of muscle • Structure of skeletal muscle • Mechanism of skeletal muscle fiber contraction • Energetics of skeletal muscle contraction • Skeletal muscle performance • Types of skeletal muscle contractions • Comparison of skeletal muscle with smooth muscle and cardiac muscle 2

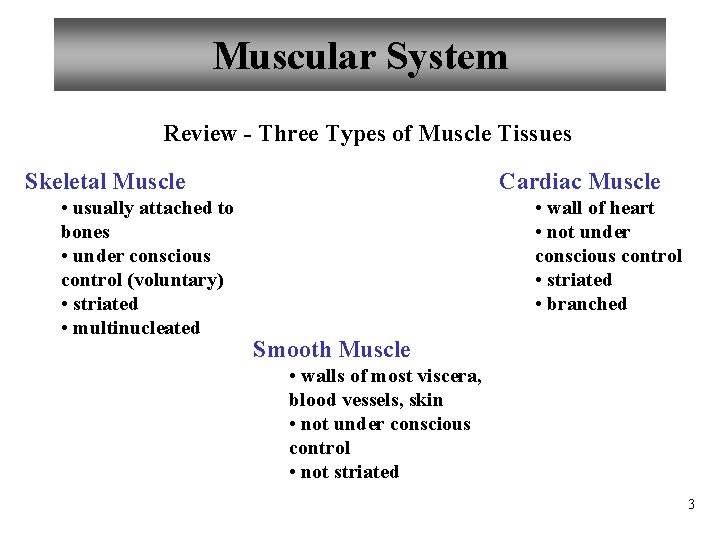

Muscular System Review - Three Types of Muscle Tissues Skeletal Muscle • usually attached to bones • under conscious control (voluntary) • striated • multinucleated Cardiac Muscle • wall of heart • not under conscious control • striated • branched Smooth Muscle • walls of most viscera, blood vessels, skin • not under conscious control • not striated 3

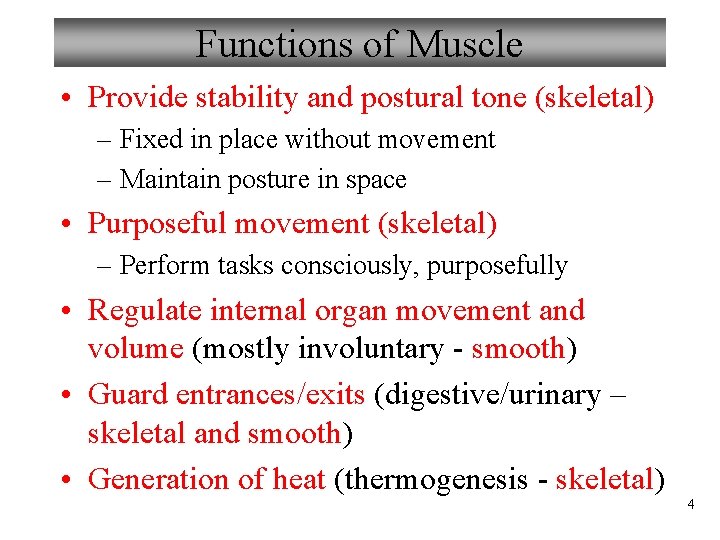

Functions of Muscle • Provide stability and postural tone (skeletal) – Fixed in place without movement – Maintain posture in space • Purposeful movement (skeletal) – Perform tasks consciously, purposefully • Regulate internal organ movement and volume (mostly involuntary - smooth) • Guard entrances/exits (digestive/urinary – skeletal and smooth) • Generation of heat (thermogenesis - skeletal) 4

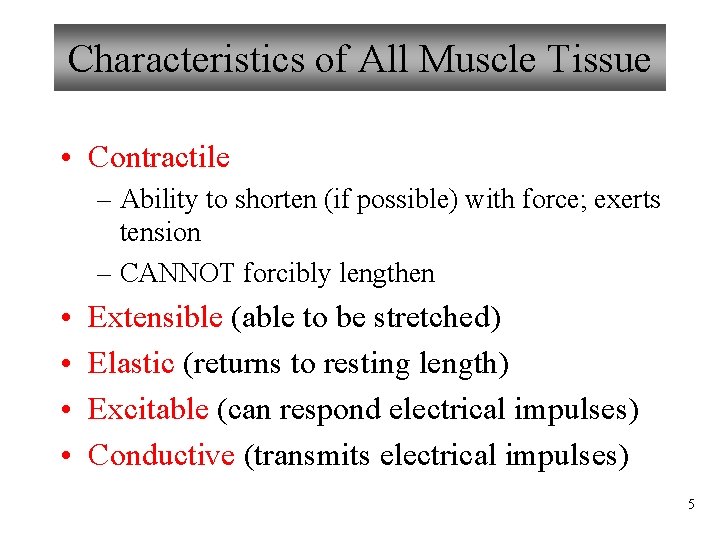

Characteristics of All Muscle Tissue • Contractile – Ability to shorten (if possible) with force; exerts tension – CANNOT forcibly lengthen • • Extensible (able to be stretched) Elastic (returns to resting length) Excitable (can respond electrical impulses) Conductive (transmits electrical impulses) 5

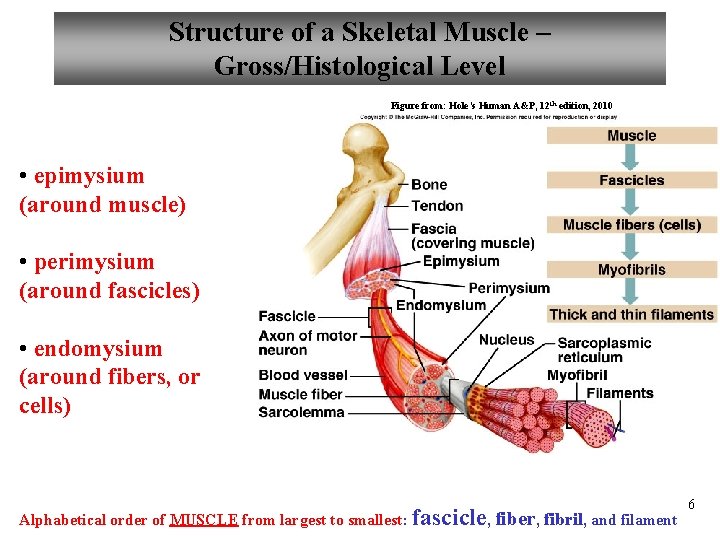

Structure of a Skeletal Muscle – Gross/Histological Level Figure from: Hole’s Human A&P, 12 th edition, 2010 • epimysium (around muscle) • perimysium (around fascicles) • endomysium (around fibers, or cells) Alphabetical order of MUSCLE from largest to smallest: fascicle, fiber, fibril, and filament 6

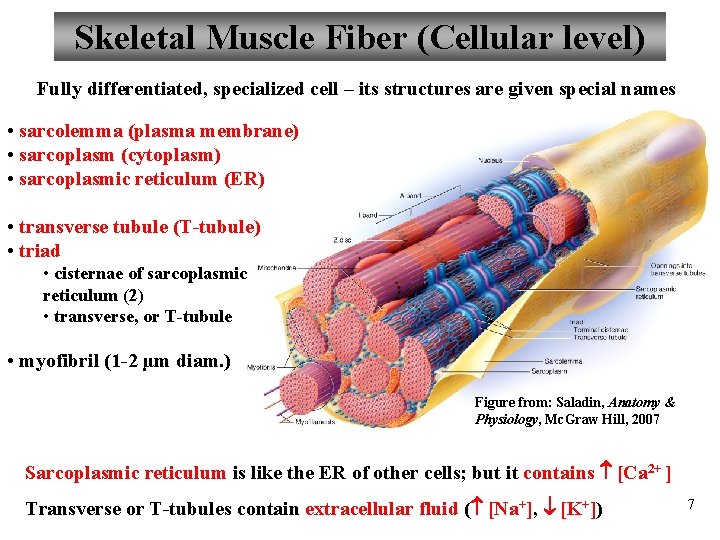

Skeletal Muscle Fiber (Cellular level) Fully differentiated, specialized cell – its structures are given special names • sarcolemma (plasma membrane) • sarcoplasm (cytoplasm) • sarcoplasmic reticulum (ER) • transverse tubule (T-tubule) • triad • cisternae of sarcoplasmic reticulum (2) • transverse, or T-tubule • myofibril (1 -2 µm diam. ) Figure from: Saladin, Anatomy & Physiology, Mc. Graw Hill, 2007 Sarcoplasmic reticulum is like the ER of other cells; but it contains [Ca 2+ ] Transverse or T-tubules contain extracellular fluid ( [Na+], [K+]) 7

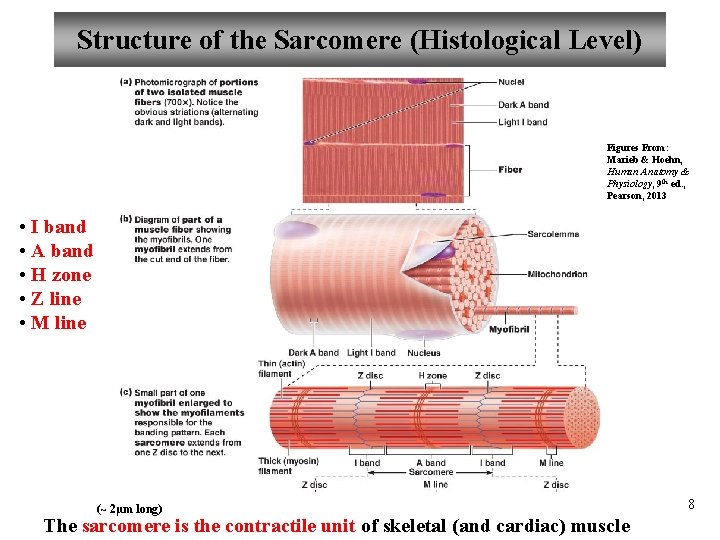

Structure of the Sarcomere (Histological Level) Figures From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 • I band • A band • H zone • Z line • M line (~ 2µm long) The sarcomere is the contractile unit of skeletal (and cardiac) muscle 8

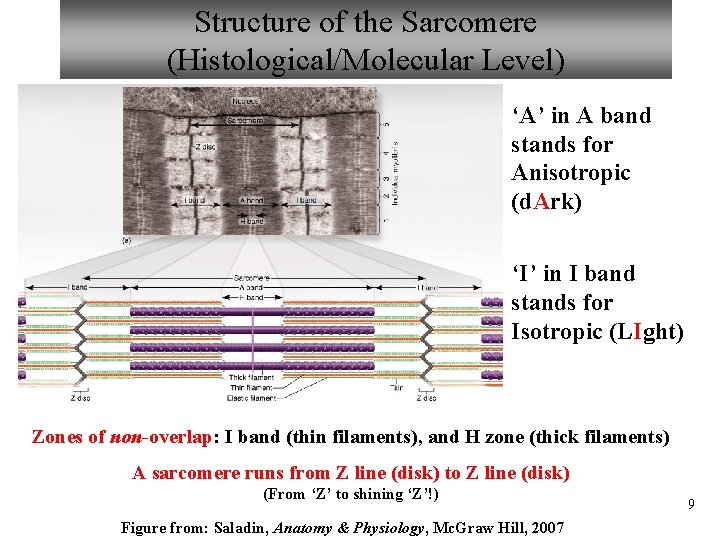

Structure of the Sarcomere (Histological/Molecular Level) ‘A’ in A band stands for Anisotropic (d. Ark) ‘I’ in I band stands for Isotropic (LIght) Zones of non-overlap: I band (thin filaments), and H zone (thick filaments) A sarcomere runs from Z line (disk) to Z line (disk) (From ‘Z’ to shining ‘Z’!) Figure from: Saladin, Anatomy & Physiology, Mc. Graw Hill, 2007 9

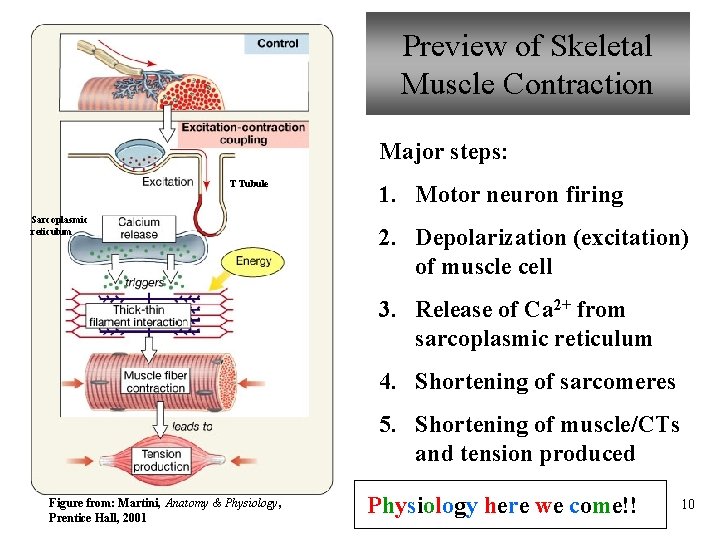

Preview of Skeletal Muscle Contraction Major steps: T Tubule Sarcoplasmic reticulum 1. Motor neuron firing 2. Depolarization (excitation) of muscle cell 3. Release of Ca 2+ from sarcoplasmic reticulum 4. Shortening of sarcomeres 5. Shortening of muscle/CTs and tension produced Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001 Physiology here we come!! 10

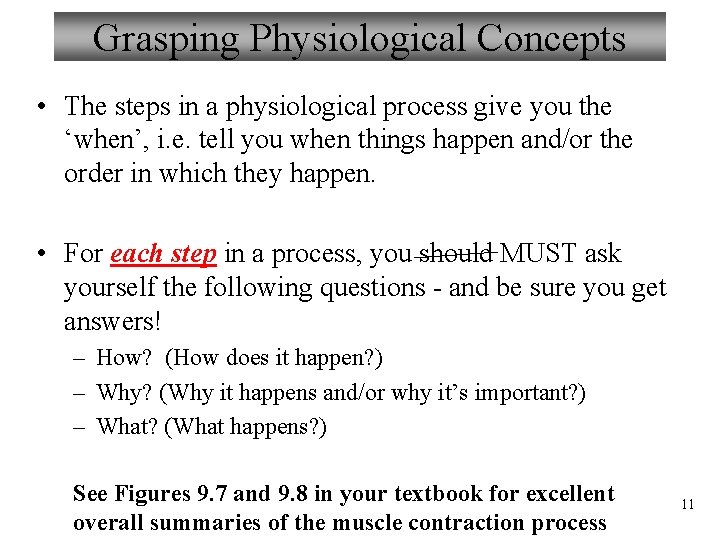

Grasping Physiological Concepts • The steps in a physiological process give you the ‘when’, i. e. tell you when things happen and/or the order in which they happen. • For each step in a process, you should MUST ask yourself the following questions - and be sure you get answers! – How? (How does it happen? ) – Why? (Why it happens and/or why it’s important? ) – What? (What happens? ) See Figures 9. 7 and 9. 8 in your textbook for excellent overall summaries of the muscle contraction process 11

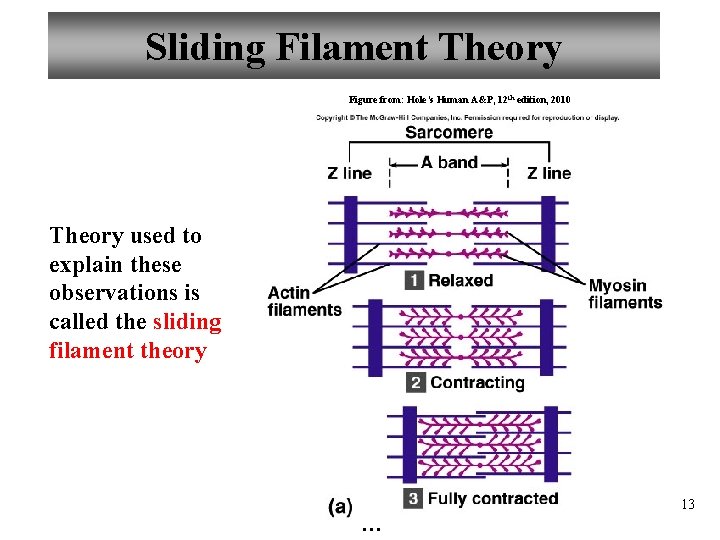

Sliding Filament Theory Figure from: Hole’s Human A&P, 12 th edition, 2010 Theory used to explain these observations is called the sliding filament theory … 13

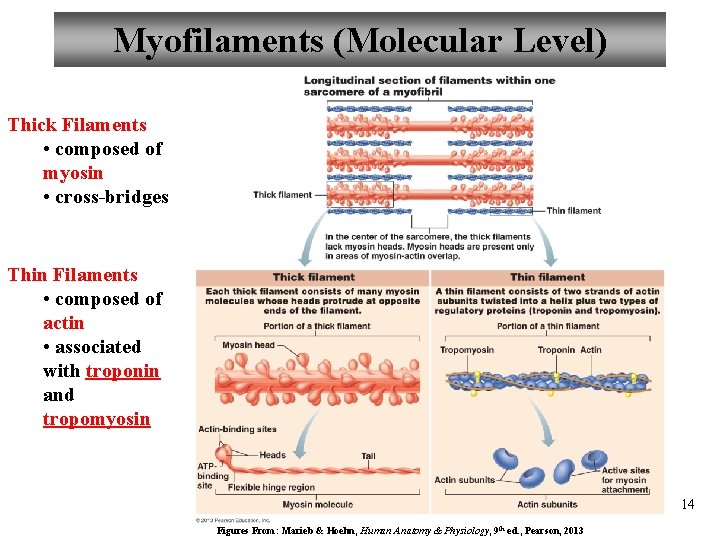

Myofilaments (Molecular Level) Thick Filaments • composed of myosin • cross-bridges Thin Filaments • composed of actin • associated with troponin and tropomyosin 14 Figures From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013

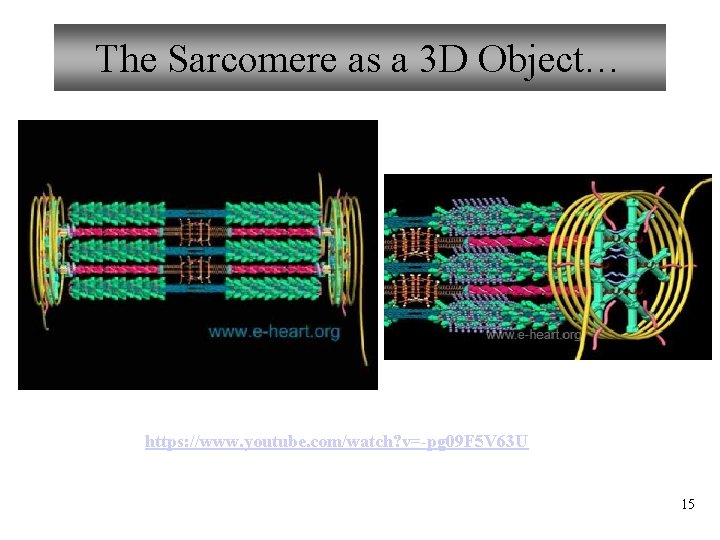

The Sarcomere as a 3 D Object… https: //www. youtube. com/watch? v=-pg 09 F 5 V 63 U 15

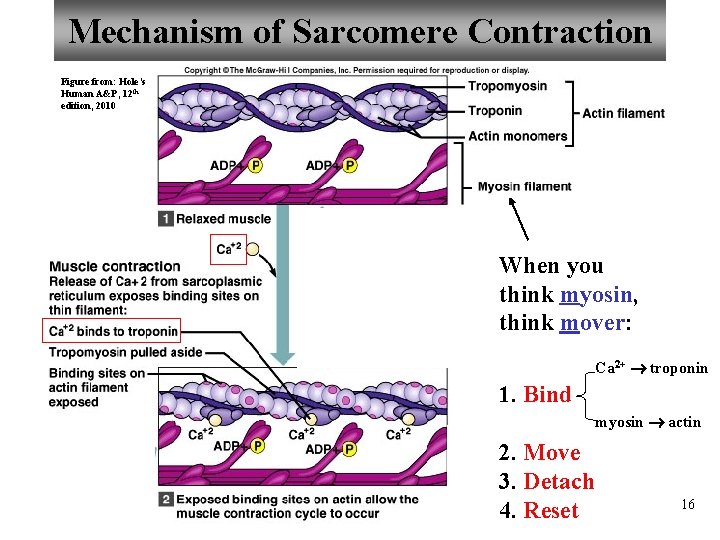

Mechanism of Sarcomere Contraction Figure from: Hole’s Human A&P, 12 th edition, 2010 When you think myosin, think mover: Ca 2+ troponin 1. Bind myosin actin 2. Move 3. Detach 4. Reset 16

Mechanism of Sarcomere Contraction Figure from: Hole’s Human A&P, 12 th edition, 2010 4. Reset 3. Detach 1. Bind … Cycle repeats about 5 times/sec Each power stroke shortens sarcomere by about 1% So, each second the sarcomere shortens by about 5% 2. Move What would happen if ATP was not present? 17 See Textbook Figure 9. 12 (Focus – Cross Bridge Cycle)

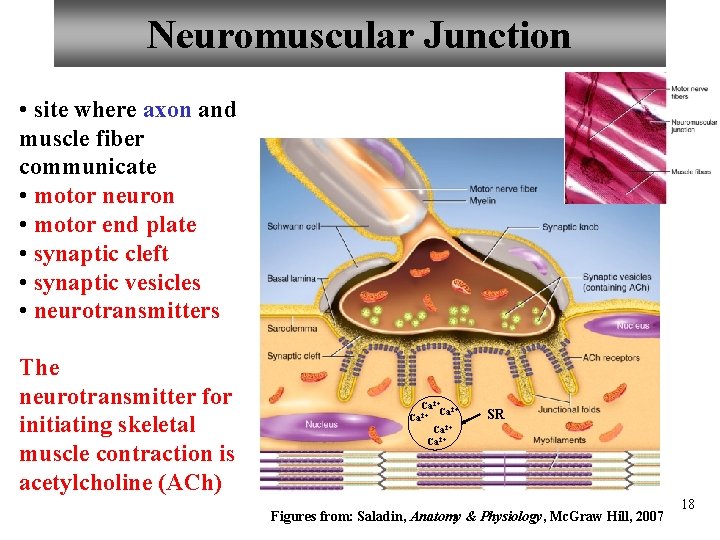

Neuromuscular Junction • site where axon and muscle fiber communicate • motor neuron • motor end plate • synaptic cleft • synaptic vesicles • neurotransmitters The neurotransmitter for initiating skeletal muscle contraction is acetylcholine (ACh) Ca 2+ 2+ Ca Ca 2+ SR Figures from: Saladin, Anatomy & Physiology, Mc. Graw Hill, 2007 18

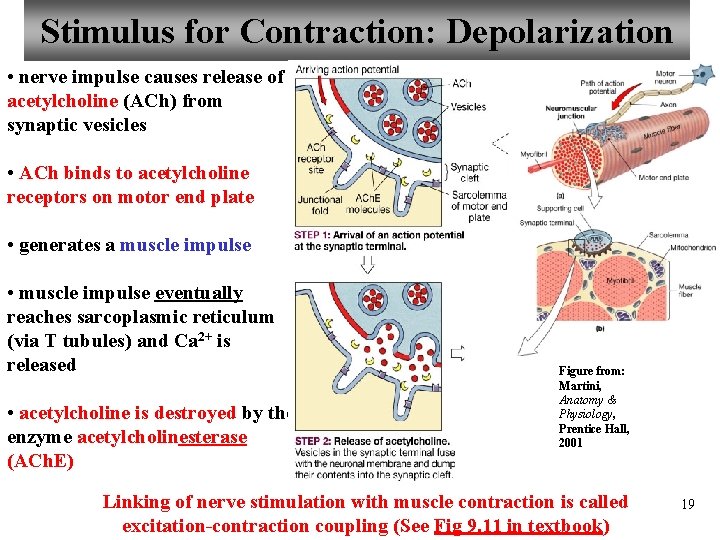

Stimulus for Contraction: Depolarization • nerve impulse causes release of acetylcholine (ACh) from synaptic vesicles • ACh binds to acetylcholine receptors on motor end plate • generates a muscle impulse • muscle impulse eventually reaches sarcoplasmic reticulum (via T tubules) and Ca 2+ is released • acetylcholine is destroyed by the enzyme acetylcholinesterase (ACh. E) Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001 Linking of nerve stimulation with muscle contraction is called excitation-contraction coupling (See Fig 9. 11 in textbook) 19

Summary of Skeletal Muscle Contraction Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001 5. Contraction Cycle begins - Bind (Ca, myosin) - Move - Detach - Reset Contraction Relaxation See Textbook Figure 9. 12 (Focus – Cross Bridge Cycle) 20

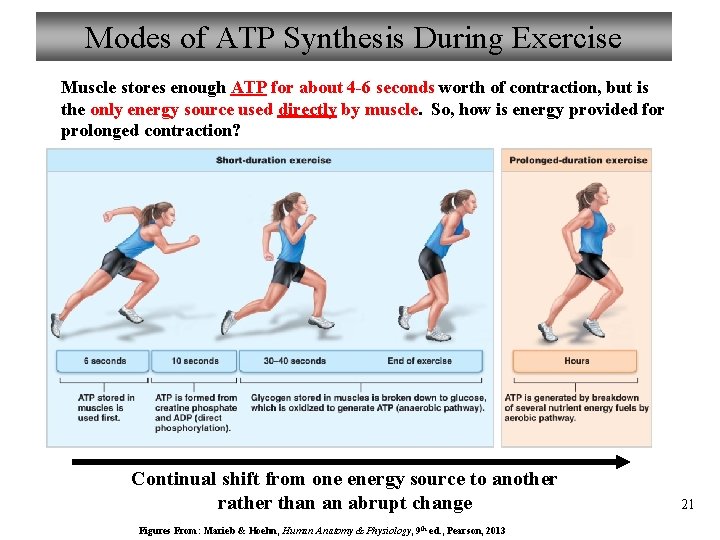

Modes of ATP Synthesis During Exercise Muscle stores enough ATP for about 4 -6 seconds worth of contraction, but is the only energy source used directly by muscle. So, how is energy provided for prolonged contraction? Continual shift from one energy source to another rather than an abrupt change Figures From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 21

Energy Sources for Contraction (Creatine-P) Figures From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 myoglobin stores extra oxygen so it can rapidly supply muscle when needed 22

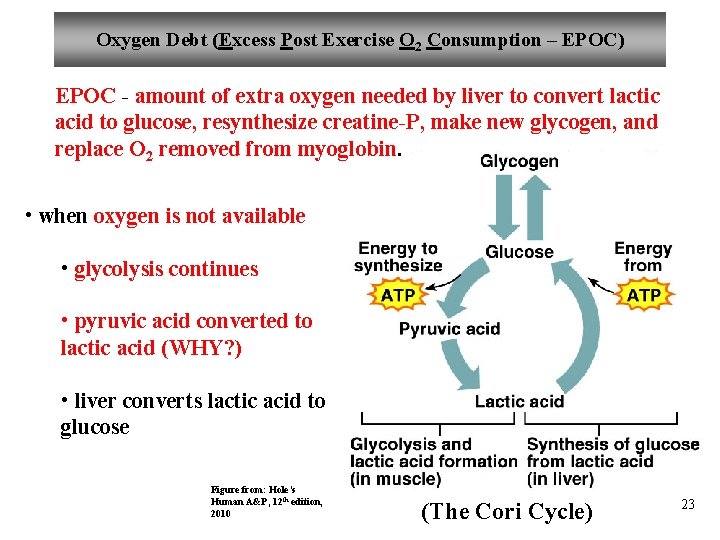

Oxygen Debt (Excess Post Exercise O 2 Consumption – EPOC) EPOC - amount of extra oxygen needed by liver to convert lactic acid to glucose, resynthesize creatine-P, make new glycogen, and replace O 2 removed from myoglobin. • when oxygen is not available • glycolysis continues • pyruvic acid converted to lactic acid (WHY? ) • liver converts lactic acid to glucose Figure from: Hole’s Human A&P, 12 th edition, 2010 (The Cori Cycle) 23

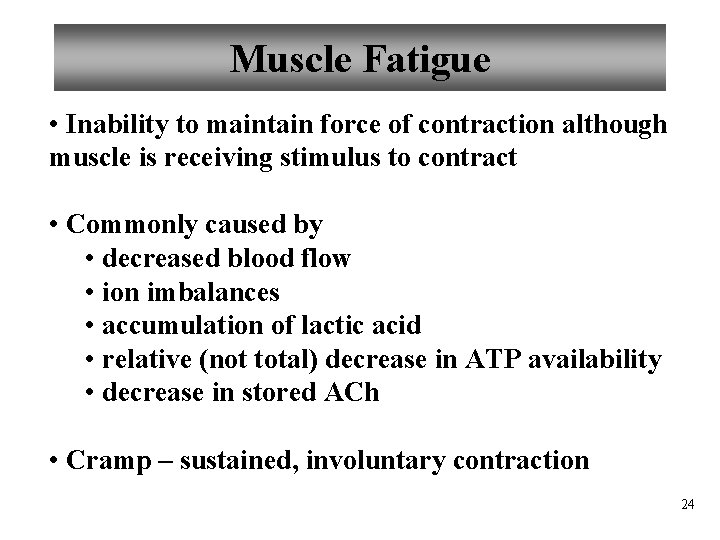

Muscle Fatigue • Inability to maintain force of contraction although muscle is receiving stimulus to contract • Commonly caused by • decreased blood flow • ion imbalances • accumulation of lactic acid • relative (not total) decrease in ATP availability • decrease in stored ACh • Cramp – sustained, involuntary contraction 24

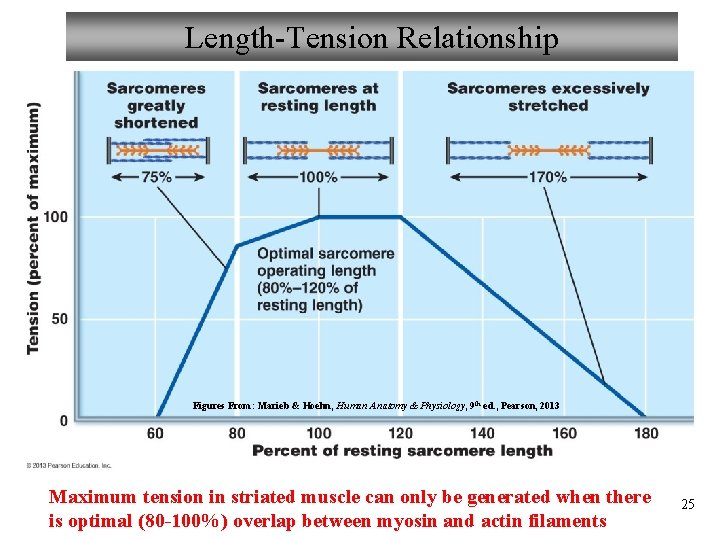

Length-Tension Relationship Figures From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 Maximum tension in striated muscle can only be generated when there is optimal (80 -100%) overlap between myosin and actin filaments 25

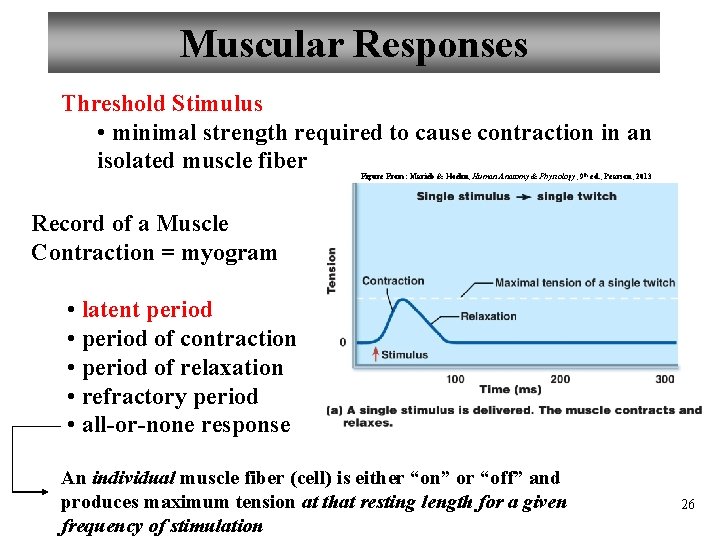

Muscular Responses Threshold Stimulus • minimal strength required to cause contraction in an isolated muscle fiber Figure From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 Record of a Muscle Contraction = myogram • latent period • period of contraction • period of relaxation • refractory period • all-or-none response An individual muscle fiber (cell) is either “on” or “off” and produces maximum tension at that resting length for a given frequency of stimulation 26

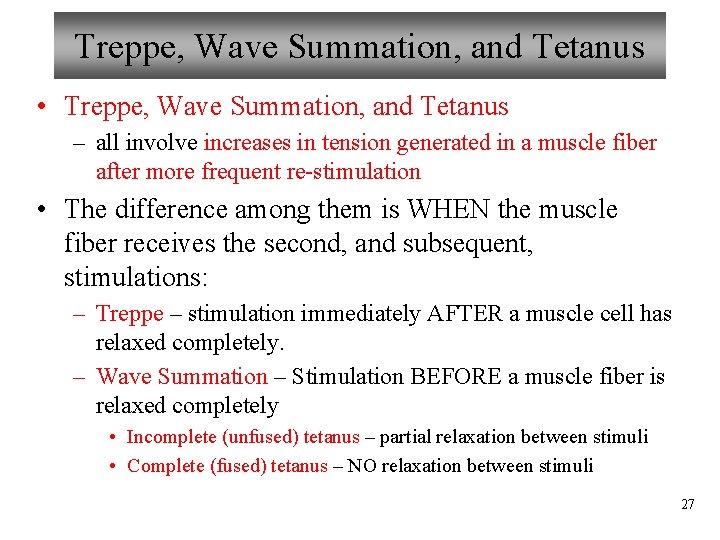

Treppe, Wave Summation, and Tetanus • Treppe, Wave Summation, and Tetanus – all involve increases in tension generated in a muscle fiber after more frequent re-stimulation • The difference among them is WHEN the muscle fiber receives the second, and subsequent, stimulations: – Treppe – stimulation immediately AFTER a muscle cell has relaxed completely. – Wave Summation – Stimulation BEFORE a muscle fiber is relaxed completely • Incomplete (unfused) tetanus – partial relaxation between stimuli • Complete (fused) tetanus – NO relaxation between stimuli 27

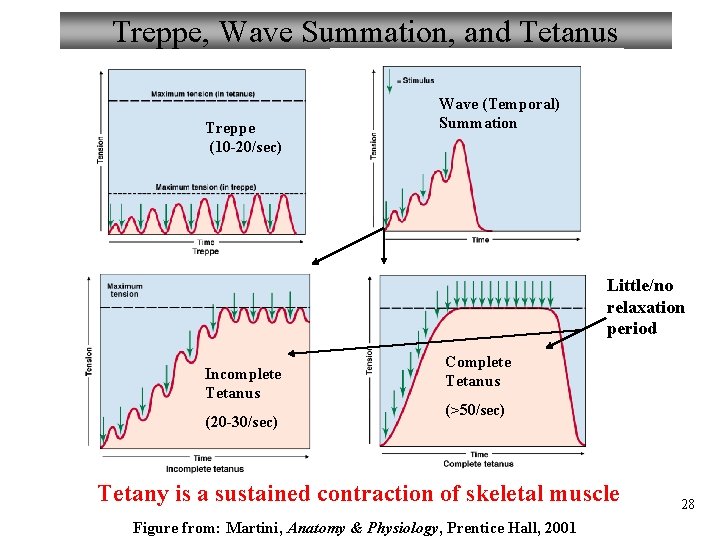

Treppe, Wave Summation, and Tetanus Treppe (10 -20/sec) Wave (Temporal) Summation Little/no relaxation period Incomplete Tetanus (20 -30/sec) Complete Tetanus (>50/sec) Tetany is a sustained contraction of skeletal muscle Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001 28

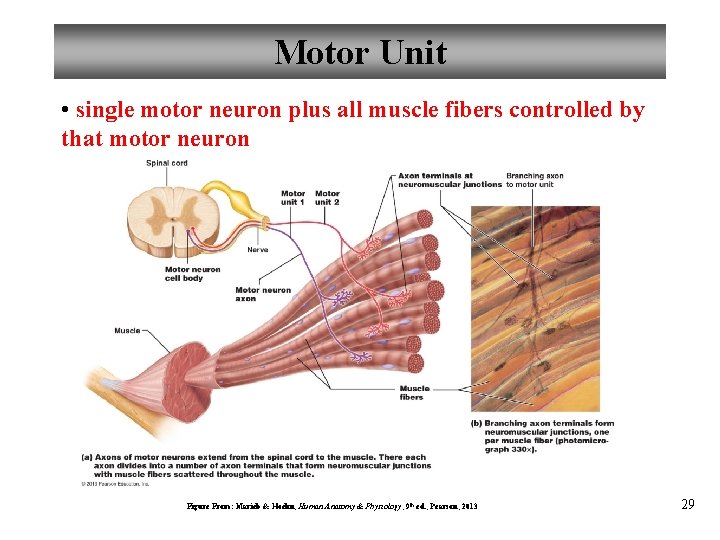

Motor Unit • single motor neuron plus all muscle fibers controlled by that motor neuron Figure From: Marieb & Hoehn, Human Anatomy & Physiology, 9 th ed. , Pearson, 2013 29

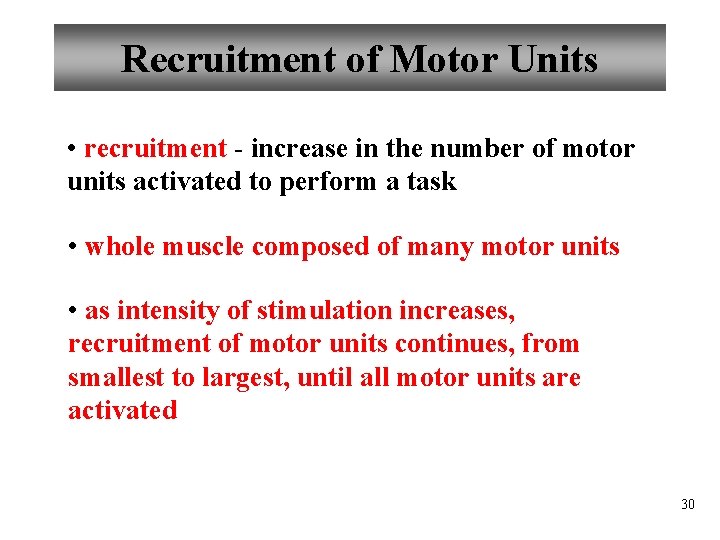

Recruitment of Motor Units • recruitment - increase in the number of motor units activated to perform a task • whole muscle composed of many motor units • as intensity of stimulation increases, recruitment of motor units continues, from smallest to largest, until all motor units are activated 30

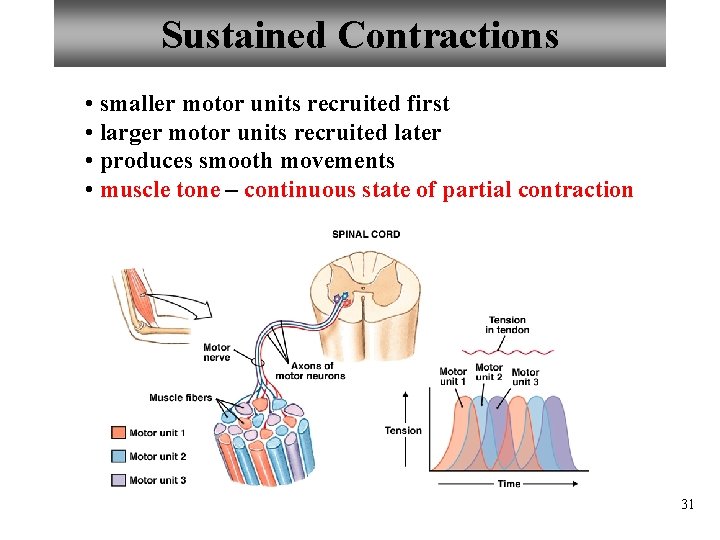

Sustained Contractions • smaller motor units recruited first • larger motor units recruited later • produces smooth movements • muscle tone – continuous state of partial contraction 31

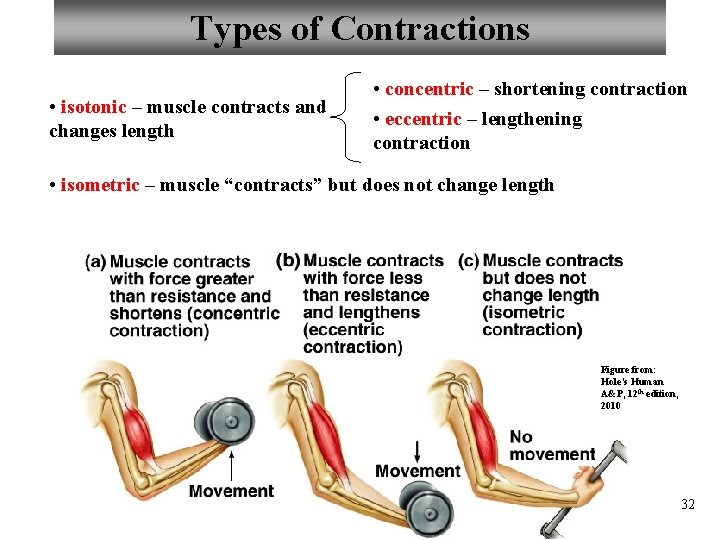

Types of Contractions • isotonic – muscle contracts and changes length • concentric – shortening contraction • eccentric – lengthening contraction • isometric – muscle “contracts” but does not change length Figure from: Hole’s Human A&P, 12 th edition, 2010 32

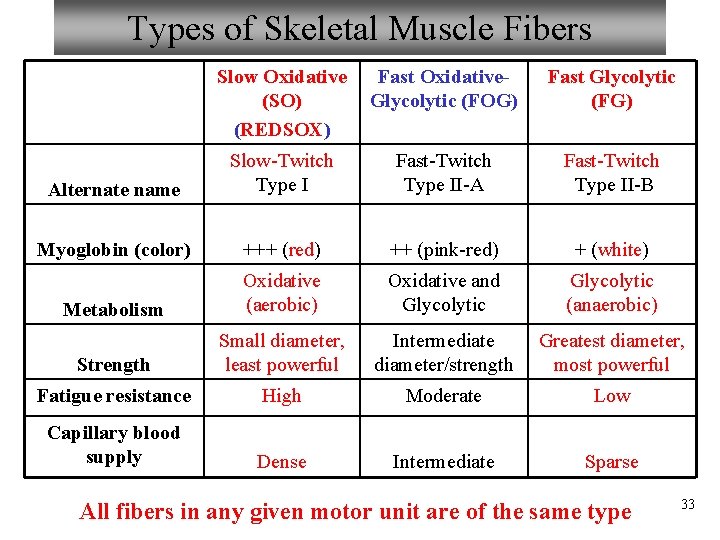

Types of Skeletal Muscle Fibers Slow Oxidative (SO) (REDSOX) Fast Oxidative. Glycolytic (FOG) Fast Glycolytic (FG) Alternate name Slow-Twitch Type I Fast-Twitch Type II-A Fast-Twitch Type II-B Myoglobin (color) +++ (red) ++ (pink-red) + (white) Metabolism Oxidative (aerobic) Oxidative and Glycolytic (anaerobic) Strength Small diameter, least powerful Intermediate diameter/strength Greatest diameter, most powerful Fatigue resistance High Moderate Low Capillary blood supply Dense Intermediate Sparse All fibers in any given motor unit are of the same type 33

Types of Skeletal Muscle Fibers All fibers in any given motor unit are of the same type 34

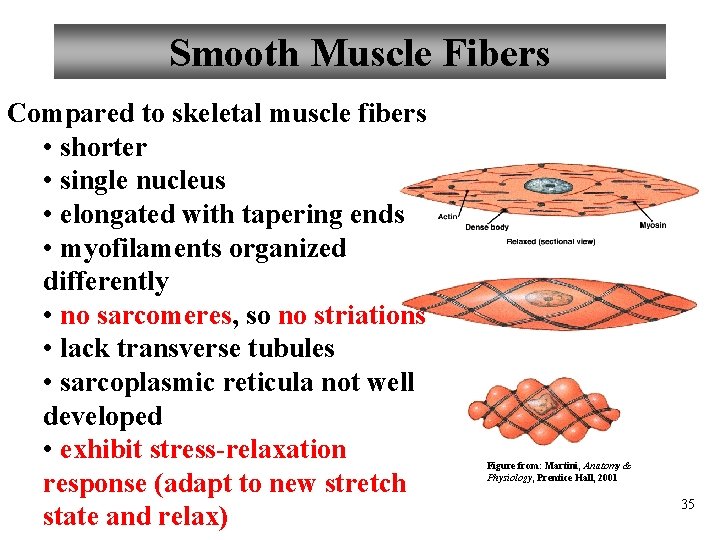

Smooth Muscle Fibers Compared to skeletal muscle fibers • shorter • single nucleus • elongated with tapering ends • myofilaments organized differently • no sarcomeres, so no striations • lack transverse tubules • sarcoplasmic reticula not well developed • exhibit stress-relaxation response (adapt to new stretch state and relax) Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001 35

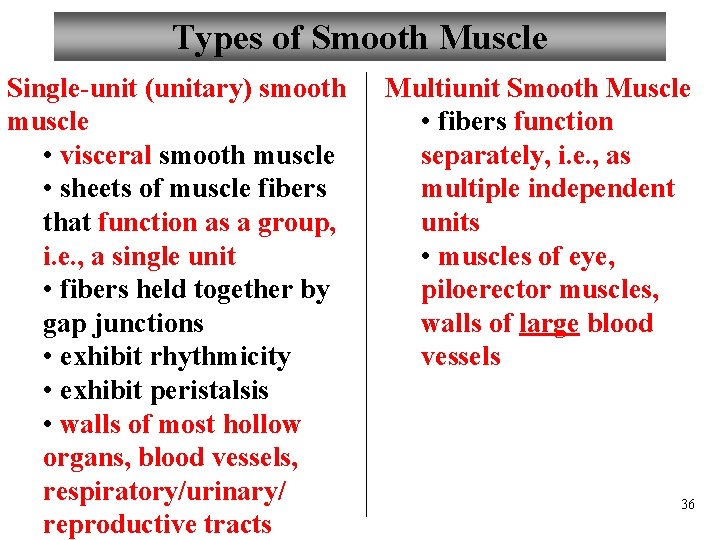

Types of Smooth Muscle Single-unit (unitary) smooth muscle • visceral smooth muscle • sheets of muscle fibers that function as a group, i. e. , a single unit • fibers held together by gap junctions • exhibit rhythmicity • exhibit peristalsis • walls of most hollow organs, blood vessels, respiratory/urinary/ reproductive tracts Multiunit Smooth Muscle • fibers function separately, i. e. , as multiple independent units • muscles of eye, piloerector muscles, walls of large blood vessels 36

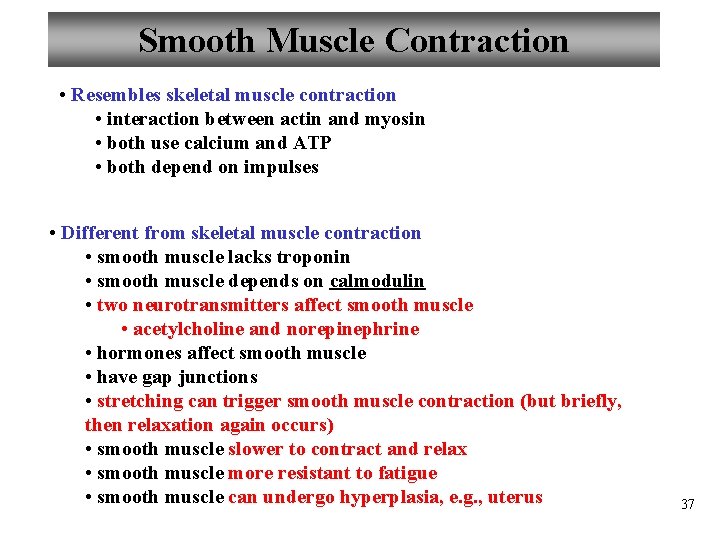

Smooth Muscle Contraction • Resembles skeletal muscle contraction • interaction between actin and myosin • both use calcium and ATP • both depend on impulses • Different from skeletal muscle contraction • smooth muscle lacks troponin • smooth muscle depends on calmodulin • two neurotransmitters affect smooth muscle • acetylcholine and norepinephrine • hormones affect smooth muscle • have gap junctions • stretching can trigger smooth muscle contraction (but briefly, then relaxation again occurs) • smooth muscle slower to contract and relax • smooth muscle more resistant to fatigue • smooth muscle can undergo hyperplasia, e. g. , uterus 37

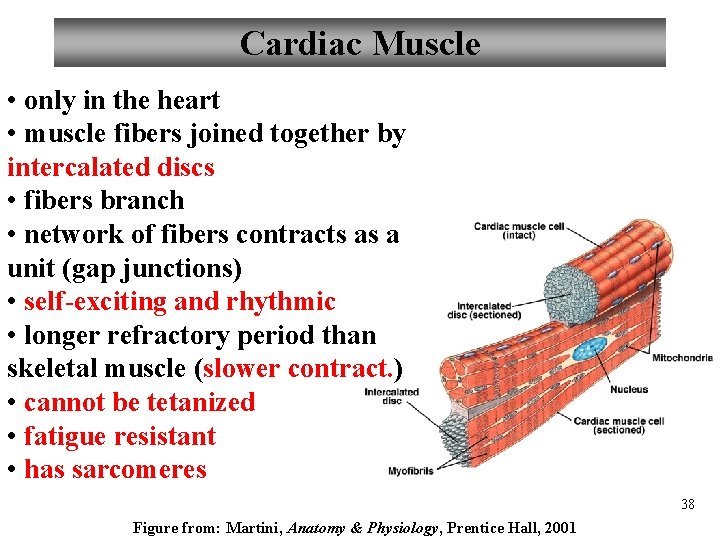

Cardiac Muscle • only in the heart • muscle fibers joined together by intercalated discs • fibers branch • network of fibers contracts as a unit (gap junctions) • self-exciting and rhythmic • longer refractory period than skeletal muscle (slower contract. ) • cannot be tetanized • fatigue resistant • has sarcomeres 38 Figure from: Martini, Anatomy & Physiology, Prentice Hall, 2001

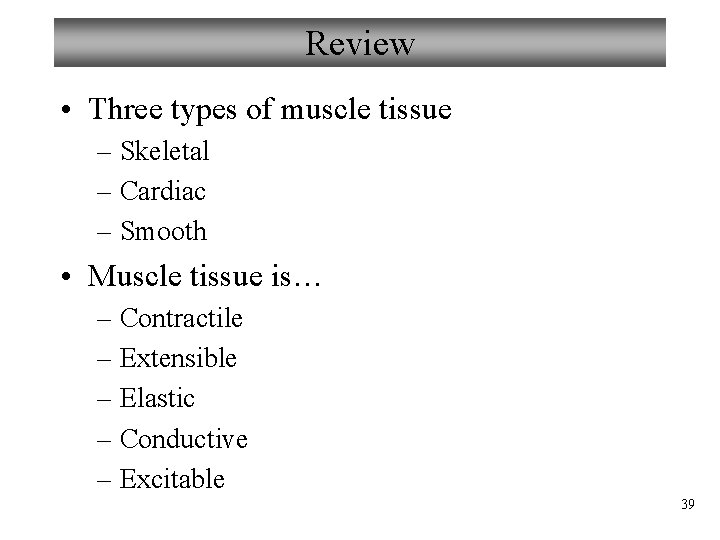

Review • Three types of muscle tissue – Skeletal – Cardiac – Smooth • Muscle tissue is… – Contractile – Extensible – Elastic – Conductive – Excitable 39

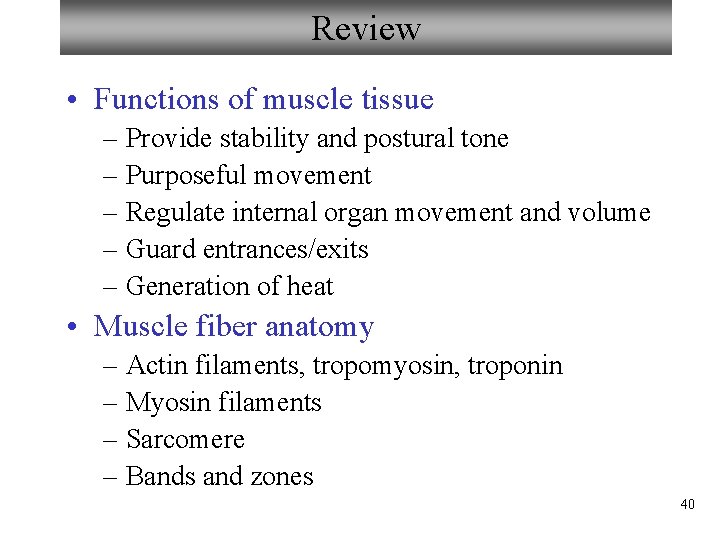

Review • Functions of muscle tissue – Provide stability and postural tone – Purposeful movement – Regulate internal organ movement and volume – Guard entrances/exits – Generation of heat • Muscle fiber anatomy – Actin filaments, tropomyosin, troponin – Myosin filaments – Sarcomere – Bands and zones 40

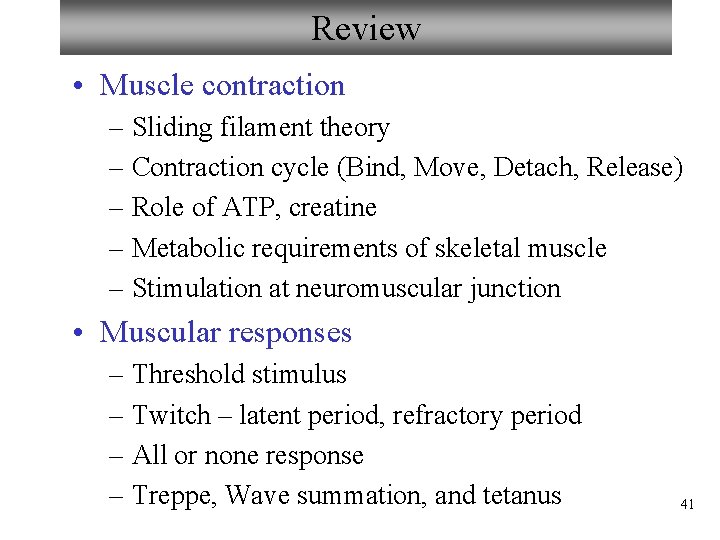

Review • Muscle contraction – Sliding filament theory – Contraction cycle (Bind, Move, Detach, Release) – Role of ATP, creatine – Metabolic requirements of skeletal muscle – Stimulation at neuromuscular junction • Muscular responses – Threshold stimulus – Twitch – latent period, refractory period – All or none response – Treppe, Wave summation, and tetanus 41

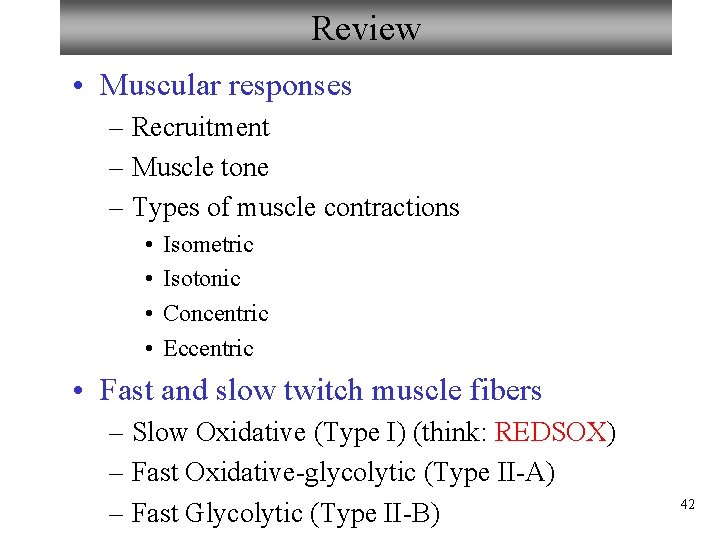

Review • Muscular responses – Recruitment – Muscle tone – Types of muscle contractions • • Isometric Isotonic Concentric Eccentric • Fast and slow twitch muscle fibers – Slow Oxidative (Type I) (think: REDSOX) – Fast Oxidative-glycolytic (Type II-A) – Fast Glycolytic (Type II-B) 42
