Maricopa Association of Governments Telecommunications Advisory Group PROJECT UPDATE November 17, 2005 Presented By: David S. Haines, P. E.

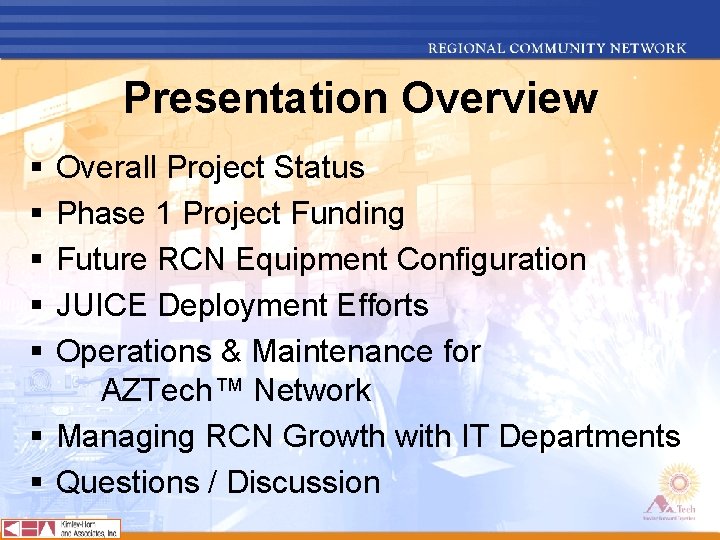

Presentation Overview § § § Overall Project Status Phase 1 Project Funding Future RCN Equipment Configuration JUICE Deployment Efforts Operations & Maintenance for AZTech™ Network § Managing RCN Growth with IT Departments § Questions / Discussion

Overall RCN Network Architecture Phase 1 (blue) Phase 2 (red) Future (green)

Project Status AZTech™ Integrated Emergency and Transportation Communications Network Grant funds: § Phase 1 Deployment DCR (West Valley and Core) – Completed Nov. 2004 § Phase 2 Deployment DCR (East Valley) – Circulated for comments in June 2005 – To be finalized within the month § Phase 1 Deployment PS&E Packages – In progress, scheduled completion in Dec. 2005

Project Funding Highlights § MAG has $1. 6 million reallocated from the Regional Video Conferencing System. § Funding for Video Conferencing upgrades to support IP Ethernet is included in RCN Phase 1. § A portion of Phase 1 can be constructed under the available $1. 6 M, and the region will need to pursue additional funding for the remaining portions.

Phase 1 A – The $1. 6 M Package § Video Conferencing IP-Ethernet Upgrade § Core Ring (3 Regional Hubs) – Regional Hub fiber / building access – ADOT fiber bottleneck relief (I-17, TOC to I-10) § Partial West Ring – Glendale Regional Hub § Six Metropolitan Hubs - ADOT TOC - Phoenix TMC - Glendale TMC - Phx Public Transit - Peoria TMC - MAG

Phase 1 A – The $1. 6 M Package § Advantages: – Builds the core ring & part of west ring – Provides RCN connectivity to Glendale TMC (arena / stadium events, Superbowl, etc. ) – Provides RCN connectivity to Peoria TMC (ADOT’s alternate TOC location) – Eliminates ADOT fiber bottleneck point – Connects Six Metropolitan Hubs - ADOT TOC - Phoenix TMC - Glendale TMC - Phx Public Transit - Peoria TMC - MAG

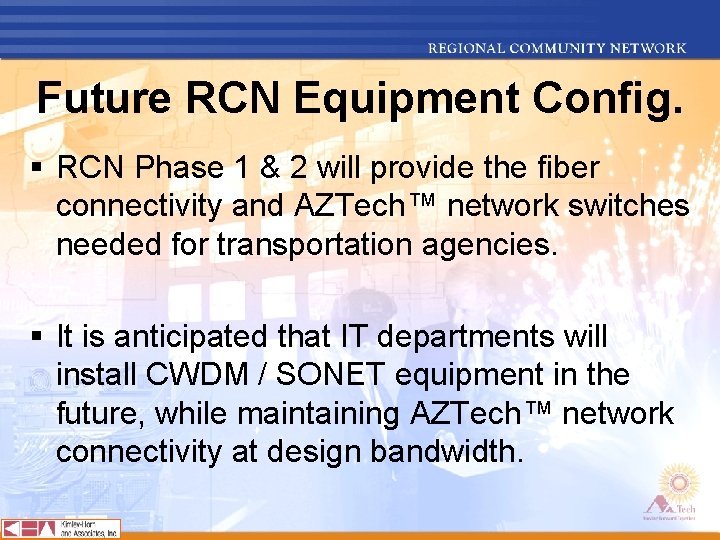

Future RCN Equipment Config. § RCN Phase 1 & 2 will provide the fiber connectivity and AZTech™ network switches needed for transportation agencies. § It is anticipated that IT departments will install CWDM / SONET equipment in the future, while maintaining AZTech™ network connectivity at design bandwidth.

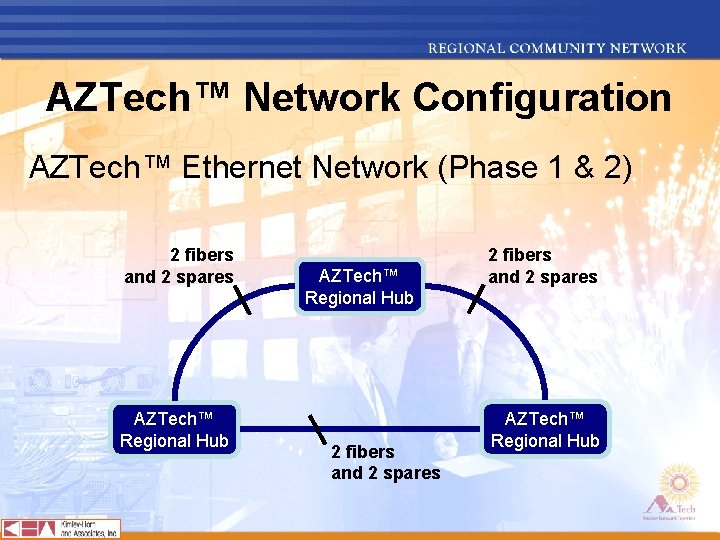

AZTech™ Network Configuration AZTech™ Ethernet Network (Phase 1 & 2) 2 fibers and 2 spares AZTech™ Regional Hub

Future RCN Equipment Config. AZTech™ Ethernet Network with IT department CWDM / SONET AZTech™ Regional Hub CWDM OC-48 SONET OC-48 CWDM AZTech™ Regional Hub CWDM AZTech™ Regional Hub SONET OC-48

JUICE Deployment § JUICE = Joint User Interoperability Communications Enterprise § Project Partners: – ADOT – Arizona DPS – City of Phoenix Street Transportation Dept. – City of Phoenix Information Technology Dept. – Maricopa County Telecommunication Dept.

JUICE Deployment § The original JUICE Proof of Concept

JUICE Deployment § Installs 3 SONET OC-48 Regional Hub nodes: – ADOT Traffic Operations Center – DPS Encanto Headquarters – City of Phoenix Calvin Goode Building (IT Hub) § Uses existing fiber from DPS to ADOT to Phoenix § Will use RCN Core Ring path in future

JUICE Deployment § SONET OC-48 Regional Hub networks: - AZTech™ WAN ACTIC Video WAN ADOT WAN DPS WAN - DPS CAD LAN Extensions - City of Phoenix WAN - Maricopa County WAN § DPS currently has primary responsibility for JUICE network configuration changes. § Equipment procurement / installation is underway. § Discussions have started for third party O&M support.

Future RCN Configuration AZTech™ Ethernet Network with IT department CWDM / SONET AZTech™ Regional Hub CWDM OC-48 SONET OC-48 CWDM AZTech™ Regional Hub CWDM AZTech™ Regional Hub SONET OC-48

O&M for AZTech™ Network AZTech™ Ethernet Network (Phase 1 &2) 2 fibers and 2 spares AZTech™ Regional Hub

O&M for AZTech™ Network § MCDOT will manage project to develop O&M plan for AZTech™ network under current grant funding. § It is currently envisioned that each agency will be responsible for maintaining the RCN fiber in their jurisdiction. § Each jurisdiction will be responsible for providing and maintaining their own firewall.

O&M for AZTech™ Network § O&M plan for AZTech™ network components will cover the development of a JPA/MOU for RCN Phase 1 & 2. § AZTech™ partners will need to decide if ADOT will continue to be the lead agency for AZTech™ network configurations (i. e. , IP address assignments, equipment maintenance)

Managing RCN Future Growth AZTech™ Ethernet Network with IT department CWDM / SONET AZTech™ Regional Hub CWDM OC-48 SONET OC-48 CWDM AZTech™ Regional Hub CWDM AZTech™ Regional Hub SONET OC-48

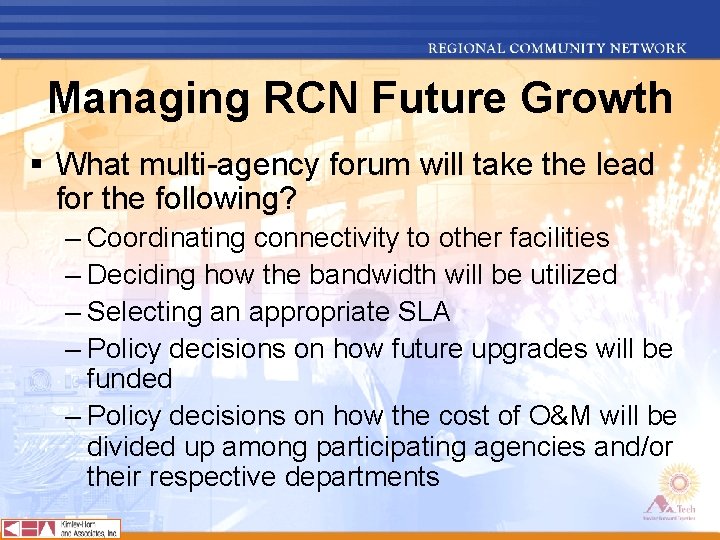

Managing RCN Future Growth § What multi-agency forum will take the lead for the following? – Coordinating connectivity to other facilities – Deciding how the bandwidth will be utilized – Selecting an appropriate SLA – Policy decisions on how future upgrades will be funded – Policy decisions on how the cost of O&M will be divided up among participating agencies and/or their respective departments

Managing RCN Future Growth § JPA / MOU Needed for future RCN § O&M Plan Needed for future RCN – Maintaining fiber links – Maintaining network equipment – Control of access – Other issues…

Project Contacts Debra Barker, P. E. , ITS Project Manager ADOT Transportation Technology Group (602) 712 -4281 dbarker@azdot. gov David Haines, P. E. , Project Manager Kimley-Horn and Associates, Inc. (602) 906 -1163 david. haines@kimley-horn. com
