MARIC Topology optimization of Oil Tanker Structures in
- Slides: 42
MARIC Topology optimization of Oil Tanker Structures in Cargo Tank Region QIU Weiqiang, GAO Chu, SUN Li, LUO Renjie Speaker: GAO Chu October 2016
Content Proposal for a VLCC with one center line longitudinal bulkhead Introduction to structure optimization techniques Definition of Structural Model, boundary conditions and load patterns FEA Topology results discussion Conclusions 2 MARIC
Hull structure of VLCC and Suezmax size oil tanker Typical transverse section of a VLCC Typical transverse section of a Suezmax size oil tanker VLCC with one C. L. BHD 3 MARIC
Tank arrangements of proposed VLCC and traditional one Traditional VLCC with one C. L. BHD 4 MARIC
Important issues to be aware of Shear Strength Stringer Design Local Strength 5 MARIC
The “GREAT STONE BRIDGE” 7. 3 m An Chi Ch'iao the Great Stone Bridge Chao Hsien, Hobei, China Sui Dynasty , AD 569 -617, Li Chun Master Builder 6 37. 02 m
Hull Structure Optimization Design Production Cost Topology Optimization Structure Capability Hull Structure Optimization Design Size Optimization 7 Shape Optimization MARIC
Continuum Topology Optimization Methods Homogenization method SIMP (Solid Isotropic Microstructure with Penalty) method ESO/BESO (Evolutionary /Bi-directional Evolutionary Structural Optimization) method ICM (Independent Continuous Mapping) method Level Set method “Killed” element Perimeter Method … 8 SIMP BESO MARIC
Basic Topology Optimization Procedure START FEA Sensitivity Filter Scheme Construct a new design No Converged ? Yes END 9 MARIC
Structures to be optimized 10 MARIC
Loading Patterns and model constraints Load Cases 45 Location δx Translation δy δz Aft End Cross section - Rigid Link Independent point Cross section - Fix Rigid Link θx Rotation θy θz Rigid Link - - Fix End beam Fore End Crosssection - Rigid Link Independent point Fix Intersection of CL&IB Fix Cross section Where: - no constraint applied (free) 11 Rigid Link - - Fix - - End beam MARIC
Problem Statement “Killed” element Solid Empty SIMP 12 BESO MARIC
Structures to be optimized Transverse frames Horizontal Stringers Non-designable Designable 13 MARIC
Structures to be optimized Separated 14 MARIC
Resulting topology of all loading patterns 15 MARIC
Resulting topology of typical transverse frame (all loading patterns) SIMP 16 BESO MARIC
Resulting topology of B 3 by SIMP method 17 MARIC
Iteration steps in SIMP process without loading patterns B 3 & B 11 18 Iteration 0 MARIC
Iteration steps in SIMP process without loading patterns B 3 & B 11 19 Iteration 1 MARIC
Iteration steps in SIMP process without loading patterns B 3 & B 11 20 Iteration 10 MARIC
Iteration steps in SIMP process without loading patterns B 3 & B 11 21 Iteration 20 MARIC
Topology Optimized Trans. Frames & H. Stringers 22 Final solution (Iteration 67) MARIC
Optimum topology by SIMP 23 MARIC
Optimum topology by BESO 24 MARIC
Optimum topology of typical transverse frame by SIMP method 25 MARIC

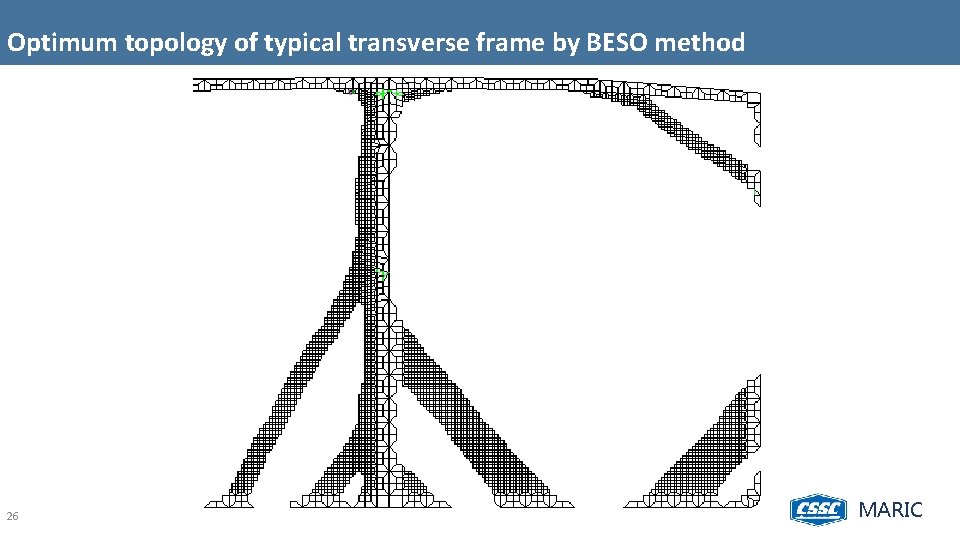

Optimum topology of typical transverse frame by BESO method 26 MARIC
Optimum topology of typical transverse frame 27 MARIC
Optimum topology of typical horizontal stringers by SIMP & BESO method SIMP 28 BESO MARIC
Optimized topology & new designs 01 SIMP 02 BESO 29 MARIC
Optimized topology & new designs SIMP 30 BESO MARIC
Shape/size optimization Vertical Girder Web Height Optimization 31 Horizontal Stringer Web Height Optimization Deck Transverse Web Height Optimization Size Optimization 01 02 Rule Check Nonlinear FEA Elastic column buckling Elastic torsional buckling Elastic column / torsional buckling Elasto-plastic behavior of the primary support member
BESO/SIMP optimum topology comparisons 32 Compared subjects SIMP BESO Traditional VLCC Surface areas of typical transverse frames (m 2) 575. 8 643. 3 731. 8 78. 7% 87. 9% Averaged weight of typical transverse webs (ton, except for wash BHD) 100. 8 111. 3 143. 1 70. 4% 77. 8% Structural weight per meter in cargo hold (ton) 111. 75 112. 55 127. 3 87. 8% 88. 4% 800 160 700 140 600 120 500 100 400 80 300 60 200 40 100 20 0 Comparison(%) 0 Surface area Averaged weight Weight per meter MARIC
Comparison between VLCC with one C. L. BHD and traditional one Transverse section arrangements of VLCC with one C. L. BHD 33 Transverse section arrangements of Traditional VLCC MARIC
Comparison between VLCC with one C. L. BHD and traditional one Horizontal stringer arrangements of VLCC with one C. L. BHD 34 Horizontal stringer arrangements of Traditional VLCC MARIC
Topology optimization with 3 D elements 35 MARIC
Topology optimization with 3 D elements 36 MARIC
Topology optimization with 3 D elements 37 MARIC
Application on other tankers New/Old transverse section design of Suezmax oil tanker 38 MARIC
Application on other tankers New/Old transverse section design of Aframax oil tanker 39 MARIC
Applications Vertical web end of a Aframax size oil tanker 40 MARIC
Conclusions New structural design of a VLCC is proposed Optimum topology of the VLCC with one C. L. BHD calculated and discussed Problems encountered during the optimization procedure Limitations of present optimization tools Issues to be resolved in the future 41 MARIC
THANKS 中国船舶及海洋 程设计研究院 MARINE DESIGN & RESEARCH INSTITUTE OF CHINA 42
