Maria Giuseppina Bisogni University and INFN Pisa AIDA

Maria Giuseppina Bisogni University and INFN Pisa AIDA - Academia meets Industry: Advanced interconnections for chip packaging in future detectors INFN Laboratori Nazionali di Frascati, 89/4/2013 Medical Imaging

Medical Imaging Today

Different Points of view • Medical point of view – Application driven – Diagnosis or intervention – Morphological/functiona l/combined imaging – Parameter requirements (size, speed, spatial and • point Physical of view the economical ofpoint view… contrast And resolution, – Technology driven dose. . ) – Wavelength (X-rays, – Workflow gamma rays, Visible light, NIR, Terahertz…) – Feasibility determined by available sources, materials, electronics, computing power

Radiological Imaging General radiography Angiography Digital Subtraction Angiography (DSA) Mammography Computed Tomography (CT) Cardiology (fluoroscopy)

Requirements for X-ray detectors Radiography Angiography Mammography Biopsy CT Detector size 43 x 43 (cm 2) 30 x 40 18 x 24 24 x 30 5 x 9 4 x 70 (curved) Pixel (mm) 125– 165 150– 400 50– 100 <50 500 Resolution 12 bits 12 bit 16 bit 20 bit Frame rate Single shot <1 s < 2 -30 f/s 15 -60 f/s (cardio) Single shot < 1 s Single shot 2000 -6000 f/s <1 s

Vertical Integration in diagnostic radiology

Digital Radiography Today • a. Si: H Flat Panels technology firstly introduced in early ‘ 90 s • First devices commercially available in in 2000 (GE Senographe) • State-of-the-art Xray imaging is done with flat-panel detectors (a. Si: H or a. Se, TFT read-out)

Single Photon Counting (SPC) Systems • Noise suppression – Higher SNR or lower dose – Low event rate applications • Linear and wide dynamic range – Limited by counter saturation • Energy discrimination – Compton events rejection – Color Imaging • “Energy weighting” suppression – Low energy photons weight less than high energy ones in integrating systems – In SPC systems all photons have same weight Edge-on Si strips n Hybrid pixels (MEDIPIX family) n 8

First SPC commercial mammographic system Sectra Micro. Dose. TM Now Philips Micro. Dose Mammography – Si strip detectors, 768 strips, 50 mm pitch, 21 detector rows – slight fan-out (to compensate beam divergence), 2 cm long – 500 mm thick – “quasi” edge-on (4º- 4. 5º tilt angle) – ~90% efficiency @ 30 ke. V • ASIC: • 128 channels • counting rate/pixel: >1 MHz 9

Detective Quantum Efficiency • DQE describes how the Signal to Noise Ratio varies across the imaging system stages. • It depends on the frequency through the MTF and the NPS, both frequency functions. • At zero frequency, DQE(0) depends on the detection efficiency and on the image variance M. Lundqvist et al. , “Evaluation of a Photon-Counting XRay Imaging System”, IEEE Trans. Nucl. Sci. 48 (4), August 2001 10

Computed Tomography Today z Gd 2 O 2 S scintillator on photodiodes 1 Courtesy of W. Kalender, U. Erlangen 4 x 1. 5 mm 16 x 0. 75 mm 3 4 x 1. 5 mm 4 2

Benefits of SPC in CT Low Dose CT Experimental validation of photon counting vs. conventional CT acquisition. The impact of “zero electronic noise” is apparent in ultra-low dose CT acquisitions. At high doses the “pile-up” effect makes counting individual photons difficult and lowers efficiency of photon counting detector. Color Imaging Photon Counting Prototype Clinical Study: Full FOV abdominal imaging. Improvements in material decomposition allow for Z-map images that are color coded according to tissue atomic number. Efficient energy separation allows for true By Tibor Duliskovich, MD, Medical Director CT, GE Healthcare “Photon Counting: A New CT Technology Just mono-energetic images. Over the Horizon”, 2011

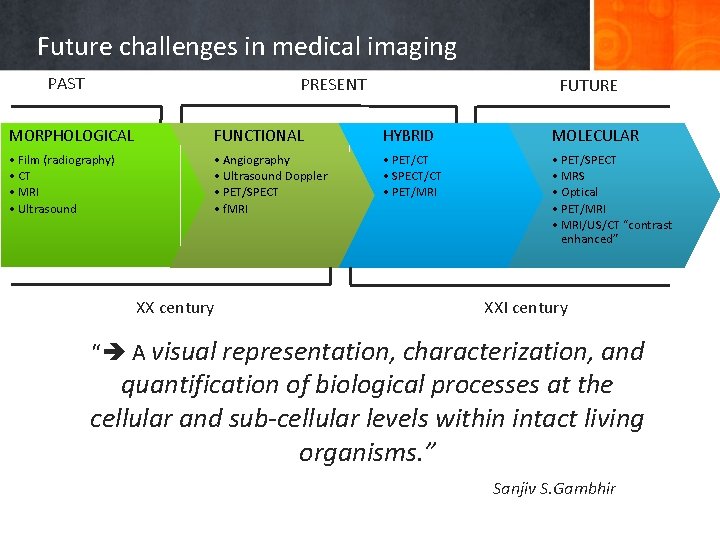

Future challenges in medical imaging PAST PRESENT FUTURE MORPHOLOGICAL FUNCTIONAL HYBRID MOLECULAR • Film (radiography) • CT • MRI • Ultrasound • Angiography • Ultrasound Doppler • PET/SPECT • f. MRI • PET/CT • SPECT/CT • PET/MRI • PET/SPECT • MRS • Optical • PET/MRI • MRI/US/CT “contrast enhanced” XX century XXI century “ A visual representation, characterization, and quantification of biological processes at the cellular and sub-cellular levels within intact living organisms. ” Sanjiv S. Gambhir 14

Combining morphology and function Nuclear medicine imaging techniques (PET and SPECT) and X-ray radiology are intrinsically complementary. CT A CT image precisely displays the body's anatomy but does not reveal the body's functional chemistry PET A PET scan reveals areas of abnormal activity but the exact location is unknown PET/CT The information is combined 15

“PET-CT is a technical evolution that has led to a medical revolution” J. Czernin, UCLA § New detectors (materials, geometries) § 3 D Acquisitions First PET/CT (1998) § Faster electronics CTI PET Systems (now Siemens) § New reconstruction algorithms § High performance CT systems 16

MR/PET: “one-stop-shop” New whole-body imaging procedures allow comprehensive imaging examinations Fused MR/PET facilitates accurate registration of morphological and functional aspects of diseases Pulmonary and osseous (arrow, red) metastatic disease of a non-small cell lung cancer (arrow, yellow) Coronal overview of 18 F-FDG PET and MRI (T 2 - weighted Turbo-STIR) Courtesy of Dr. Gaa, TU Munich Coronal and transversal MRI/PET fusion images 17

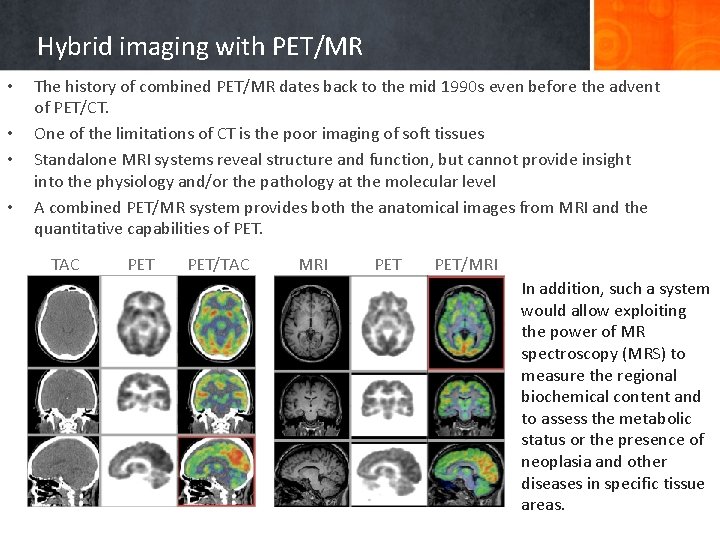

Hybrid imaging with PET/MR • • The history of combined PET/MR dates back to the mid 1990 s even before the advent of PET/CT. One of the limitations of CT is the poor imaging of soft tissues Standalone MRI systems reveal structure and function, but cannot provide insight into the physiology and/or the pathology at the molecular level A combined PET/MR system provides both the anatomical images from MRI and the quantitative capabilities of PET. TAC PET/TAC MRI PET/MRI In addition, such a system would allow exploiting the power of MR spectroscopy (MRS) to measure the regional biochemical content and to assess the metabolic status or the presence of neoplasia and other diseases in specific tissue areas. 18

Current PET/MR Configurations Separated Gantries Integrated Gantries

m. MR first PET/MR for simultaneous WB imaging Siemens Biograph m. MR based on APD technology

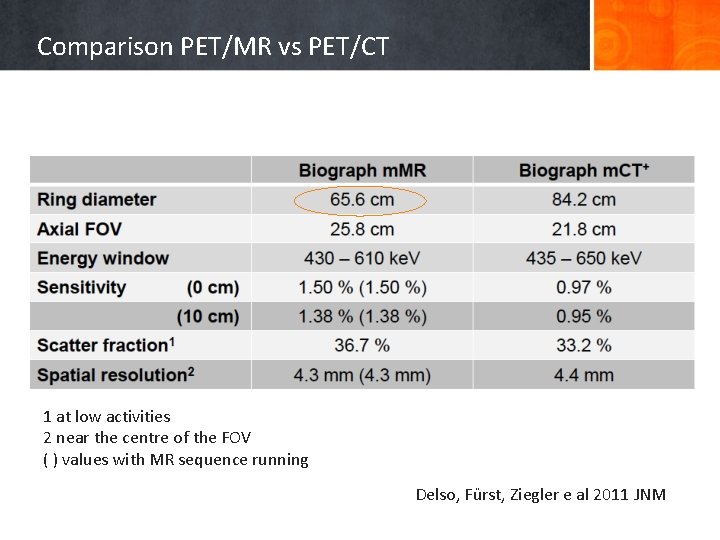

Comparison PET/MR vs PET/CT 1 at low activities 2 near the centre of the FOV ( ) values with MR sequence running Delso, Fürst, Ziegler e al 2011 JNM

Silicon Photo. Multiplier: The Ultimate dream? SOLID STATE PHOTODETECTOR 4 µm n+ cathode +VGM p high-electric field multiplication region π epilayer h� Si. PM: Multicell Avalanche Photodiode working in limited Geiger mode oxide ehole p+ substrate - 2 D array of microcells: structures in a common bulk. - Vbias > Vbreakdown: high field in multiplication region - Microcells work in Geiger mode: the signal is independent of the particle energy - The Si. PM output is the sum of the signals produced in all microcells fired. -The photon is absorbed and generates an electron/hole pair -The electron/hole diffuses or drifts to the high-electric field multiplication region -The drifted charge undergoes impact ionization and causes an avalanche breakdown. -Resistor in series to quench the avalanche (limited Geiger mode). As produced at FBK-irst, Trento, Italy High gain Low noise Good proportionality if Nphotons << Ncells 22

PMTs vs solid state photodetectors PMT APD Si. PM Gain 105 -107 102 105 -106 Dynamic range 106 104 103/mm Excess Noise Factor 0. 1 -0. 2 >2 1. 1 -1. 2 Rise time <1 ns 2 -3 ns ~1 ns Dark current <0. 1 n. A/cm 2 1 -10 n. A/mm 2 0. 1 -1 MHz/mm 2 QE @ 420 nm 25%a) 60 -80% <40%b) Bias voltage ~800 -2000 V ~100 -1500 V ~30 -50 V Temperature coefficient <1 %/K 2 -3 %/K 3 -5 %/K Magnetic susceptibility Very high (m. T) No No 23

Si. PM-Based PET/MRI Courtesy of Seiichi Yamamoto Kobe University Courtesy of Jae Sung Lee, Seoul National University

Human TOF PET/MRI based on Si. PMs Also a d. Si. PM-based version FP 7 Hyper Image Project: grant agreement no. 201651, http: //www. hybrid-pet-mr. eu/ FP 7 Sublima project: grant agreement no. : 241711, http: //www. sublima-pet-mr. eu/

In the past century medical imaging has mainly progressed in the sub-discipline of Diagnostic Radiology. Towards the end of XX century the impetuous development of nuclear detectors from other fields of physics brought to the onset of the imaging sub discipline of Nuclear Medicine is now rapidly progressing towards what is now called “personalized medicine” Combination of different and complementary imaging modalities in one device is the future New detectors concepts and smart interconnection techniques can lead to a breakthrough in Medical Imaging
