March 2008 doc IEEE 802 15 08 0222

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 802. 15 53 rd Session of meetings of the IEEE 802. 15 Working Group for Wireless Personal Area Networks March 16 -21, 2007 Caribe Royale Convention Center 8101 World Center Dr Orlando, FL, USA Consolidated Closing Report Submission 1 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 802. 15 Organization Chart To add your name to the WG/SG/TG reflectors please go to www. ieee 802. org/15 Submission 2 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives of the Orlando Session March 16 -21, 2008 TASK GROUP 3 c –mm. Wave PHY for 15. 3 1. Complete Initial Drafting Effort 2. Seek approval for WG Letter Ballot 3. Update Project Timeline TASK GROUP 4 c Alternate PHY layer: 1. CWPAN Status/Update and Next Steps 2. Finalize Drafting Schedule 3. Next Steps & Timeline Submission 3 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives of the Orlando Session March 16 -21, 2008 TASK GROUP 4 d Alternate PHY layer: 1. Review Final Proposal Submissions 2. Establish Drafting Group 3. Update Project Timeline TASK GROUP-4 e MAC Enhancements 1. Officer Elections 2. Refine Project Timeline/Work Activity Submission 4 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives of the Orlando Session March 16 -21, 2008 TASK GROUP 5 –Mesh Networking: 1. Comment Resolution -Working Group Letter Ballot 2. Technical Presentation and Discussion 3. PAR extension decision 4. Discussion of project plan-start of Sponsor Ballot TASK GROUP 6 -Body Area Networks 1. Finalize Application Matrix 2. Work on Channel Model and TR documents 3. Finalize operating procedures 4. Update Project Timeline as needed Submission 5 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives of the Orlando Session March 16 -21, 2008 STUDY GROUP-RFID 1. Develop Objectives 2. Identify groups that should be contacted to participate 3. Review Liaison Contacts Made 4. Draft Preliminary 5 C and PAR Scope and Purpose NEW PROJECTS SUBCOMMITTEE 1. Report on sub-group progress 2. New presentations Submission 6 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives of the Orlando Session March 16 -21, 2008 INTEREST GROUP-VISIBLE LIGHT COMMUNICATIONS 1. Develop Objectives 2. Conduct Tutorial for 802 Community 3. Review Liaison Contacts Made 4. Seek Approval to form a Study Group INTEREST GROUP- TERRAHERTZ COMMUNICATONS 1. Prepare Call for Contributions 2. Review Current Contributions Submission 7 Robert F. Heile, Zig. Bee Alliance

March 2008 Submission doc. : IEEE 802. 15 -08 -0222 -00 8 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 3 c mm. Wave PHY Amendment Closing Report 20 March, 2008 Submission 9 Robert F. Heile, Zig. Bee Alliance

March 2008 1. doc. : IEEE 802. 15 -08 -0222 -00 08: 00 Tuesday, March 18. Call to order. 2. TG 3 c Leadership: Chair: R. Fisher. vice Chair: S. Kato, A. Mathew Secretary : H. Ikeda , T. Baykas, C. S. Sum Technical Editor: J. Gilb Sub Editors: A. Astrin, S. Skafidas, I. Lakkis, C. Ngo, T. Baykas, C. S. Sum, A. Kasher, B. Gaffney 3. Attendance Approx. 90 attendees in each slot. 4. Ten 2 -hour time slots are allocated. Mar. 17 (Mon) Mar. 18 (Tue) Mar. 19 (Wed) Mar. 20 (Thu) AM 1 X X X AM 2 X PM 1 X X PM 2 X X 5. 14: 30 March 20 Meeting adjourned Submission 10 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Accomplishments l Draft baseline document DF 2 (PHY and MAC) was reviewed and modified l 89 comments were received, and 71 resolved (79. 8%). l Presented 22 technical contributions including comment resolutions l Six teleconference calls were scheduled before Jax. l TG 3 c project timeline updated, 08/0076 r 1. Submission 11 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Record of Motion Ballots Submission 12 Robert F. Heile, Zig. Bee Alliance

18 -Sep-20 doc. : IEEE 802. 15 -08 -0222 -00 08/0203 r 0 Conference calls, all 1. 5 hours • 2 April 2008 0600 PDT, 2200 KST/JST, 1500 Brussels sponsored by NICT • 8 April 2008, 2200 PDT, 9 April 2008, 1400 KST/JST, 0700 Brussels, sponsored by Samsung • 16 April 2008, 1500 PDT, 17 April 2008, 0700 KST/JST, 0000 Brussels, sponsored by (NICT or volunteer) • 22 April 2008 0600 PDT, 2200 KST/JST, 1500 Brussels, sponsored by (NICT or volunteer) • 29 April 2008, 2200 PDT, 30 April 2008, 1400 KST/JST, 0700 Brussels, sponsored by Samsung • 7 May 2008, 1500 PDT, 8 May 2008, 0700 KST/JST, 0000 Brussels, sponsored by (NICT or volunteer) Submission 13 Dr. James P. K. Gilb, Si. BEAM

18 -Sep-20 doc. : IEEE 802. 15 -08 -0222 -00 08/0203 r 0 Comment submission deadline. • Only comments received prior to May 5, 2008 midnight Ao. E will be considered in the 2008 Jacksonville meeting for inclusion in the draft. • Moved by James Gilb, Second S. Kato (Approved by acclamation) Submission 14 Dr. James P. K. Gilb, Si. BEAM

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 List of Contributions Submission 15 Robert F. Heile, Zig. Bee Alliance

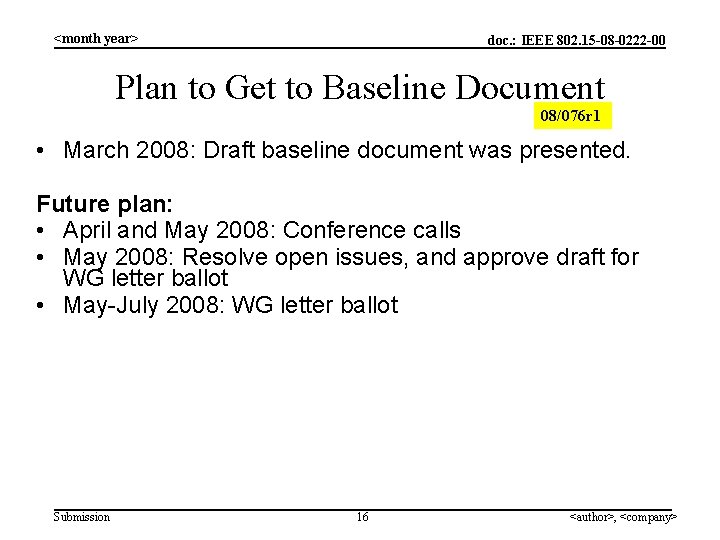

<month year> doc. : IEEE 802. 15 -08 -0222 -00 Plan to Get to Baseline Document 08/076 r 1 • March 2008: Draft baseline document was presented. Future plan: • April and May 2008: Conference calls • May 2008: Resolve open issues, and approve draft for WG letter ballot • May-July 2008: WG letter ballot Submission 16 <author>, <company>

<month year> doc. : IEEE 802. 15 -08 -0222 -00 Ballot plan 08/076 r 1 • July 2008 – First letter ballot completed, start comment resolution • November 2008 – Resolution of comments completed, begin recirculation ballot • January 2009 – re-circulation ballot completed, comment resolution • March 2009 - Start Sponsor ballot • May 2009 – 802 Sponsor Ballot completed, comment resolution, start recirculation ballot • July 2009 – 802 Sponsor Ballot re-circulation completed and, submit to Rev. Com for final approval • September 2009 – Approval by Rev. Com Submission 17 <author>, <company>

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Project timeline based on 08/0076 r 1 Submission 18 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 c 15. 4 PHY Amendment for China 20 March, 2008 Submission 19 Robert F. Heile, Zig. Bee Alliance

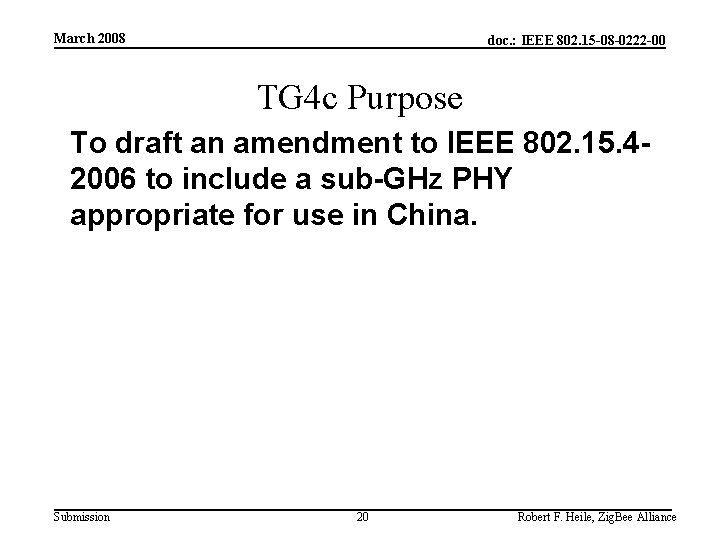

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 c Purpose To draft an amendment to IEEE 802. 15. 42006 to include a sub-GHz PHY appropriate for use in China. Submission 20 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Objectives • • • Approve Minutes/Agenda/Objectives Hear CWPAN Update Hear CWPAN’s Response to Co-Alternative Motion Determine Direction of Draft Incorporate Comments from Preliminary Draft Release Prepare Draft for 1 st Letter Ballot Review Timeline TG Approval of Draft Prepare Motion Seeking WG Approval to go to Letter Ballot Submission 21 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements • TG 4 c Orlando Mtg. Mins. – • Approved Orlando Agenda – • See doc. # 15 -08 -0215 -00 -004 c See doc. # 15 -08 -0095 -00 -004 c Approved Taipei Mtg. Minutes – See doc. # 15 -08 -0063 -00 -004 c • Heard Chinese WPAN Status Update • Heard Chinese WPAN Response to TG 4 c Motion in Nov. Mtg. – Submission CWPAN Agreed to Having the O-QPSK and MPSK as Co. Alternative PHY’s 22 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements (cont’d. ) • Incorporated Comments form Pre-Release • Prepared Draft for Letter Ballot Incorporating OQPSK and MPSK PHY’s as Co-Alternative • Reviewed and brought in TG 4 c timeline - see next slide for summary - detailed timeline posted as doc. # 15 -08 -0211 -00004 c Submission 23 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 c Ballot Plan Timeline • May 2008 – First letter ballot completed, comment resolution and start 1 st re-circulation • July 2008 – 1 st re-circulation ballot completed, comment resolution, and start 2 nd re-circulation • Sept. 2008 – 2 nd re-circulation ballot completed, comment resolution, and Start Sponsor ballot • Nov. 2008 – Sponsor ballot completed, comment resolution, and Start Sponsor ballot recirculation • Jan. 2009 – 802 Sponsor Ballot re-circulation completed and submit to Rev. Com for final approval Submission 24 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements (cont’d. ) • TG 4 c Motion to Accept Draft by Task Group Passed Unanimously “That the 802. 15 TG 4 c approves the draft amendment P 802 -15 -4 c-D 2_Draft_Amendment. pdf and in doing so approves taking it to the 802. 15 WG to seek approval to go to Letter Ballot. ” • Motion to the 802. 15 WG “That the 802. 15 WG approves the draft amendment P 802 -15 -4 c-D 2_Draft_Amendment. pdf to go to 1 st Letter Ballot. ” Submission 25 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements (cont’d. ) • Documents to be posted for the letter ballot are the following: - P 802 -15 -4 c-D 2_Draft_Amendment. pdf - IEEE Std 802. 15. 4 -2006. pdf - IEEE Std 802. 15. 4 a-2007. pdf - 15 -08 -0212 -00 -004 c-tg 4 c-letter-ballot-commenttemplate. xls • The ballot site should instruct the voter to recognize that this amendment is additive to the 2006 standard and the 2007 amendment Submission 26 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Future Plans • Send out 1 st Letter Ballot on March 28, 2008 (40 days) • Close 1 st Letter Ballot May 7, 2008 • 1 st Letter Ballot Comment Resolution in May ’ 08 Mtg. • Send out 1 st Letter Ballot Recirc. after May ’ 08 Mtg. Submission 27 Robert F. Heile, Zig. Bee Alliance

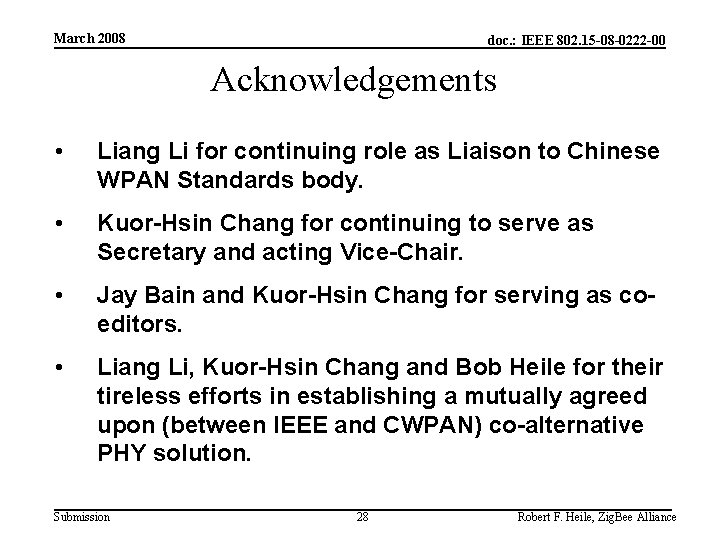

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Acknowledgements • Liang Li for continuing role as Liaison to Chinese WPAN Standards body. • Kuor-Hsin Chang for continuing to serve as Secretary and acting Vice-Chair. • Jay Bain and Kuor-Hsin Chang for serving as coeditors. • Liang Li, Kuor-Hsin Chang and Bob Heile for their tireless efforts in establishing a mutually agreed upon (between IEEE and CWPAN) co-alternative PHY solution. Submission 28 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 d 15. 4 PHY Amendment for Japan 20 March, 2008 Submission 29 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 d Purpose To amend 802. 15. 4 -2006 to include a sub. GHz PHY appropriate for use in Japan. Submission 30 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Objectives • Hear final proposal(s) • Appoint editor(s) • Instruct editors to prepare draft amendment Submission 31 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements / Outcomes • Proposers agreed a common baseline proposal • Heard final proposal • Formed editing team – Kiyoshi Fukui, Shusaku Shimada, Jay Bain (advisor) • Ready to start drafting amendment • Reviewed and updated timeline – 15 -07 -0552 -05 -004 d-tg 4 d-timeline. xls Submission 32 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 d Statistics • 4 sessions used. • Presentations: – 15 -08 -0109 -00 -004 d-p 802 -15 -4 -d-proposal-ww-bpsk-with-afaprovisioning. pdf – 15 -08 -0111 -01 -004 d-low-cost-and-low-power-consumptionproposal-for-802 -15 -4 d-from-oki. pdf Submission 33 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives for Jacksonville May 2008 • Review draft amendment and finalize edits ready for letter ballot. • Present draft coexistence assurance document to 802. 19 • Approve draft amendment and motion to request WG to start Letter Ballot Submission 34 Robert F. Heile, Zig. Bee Alliance

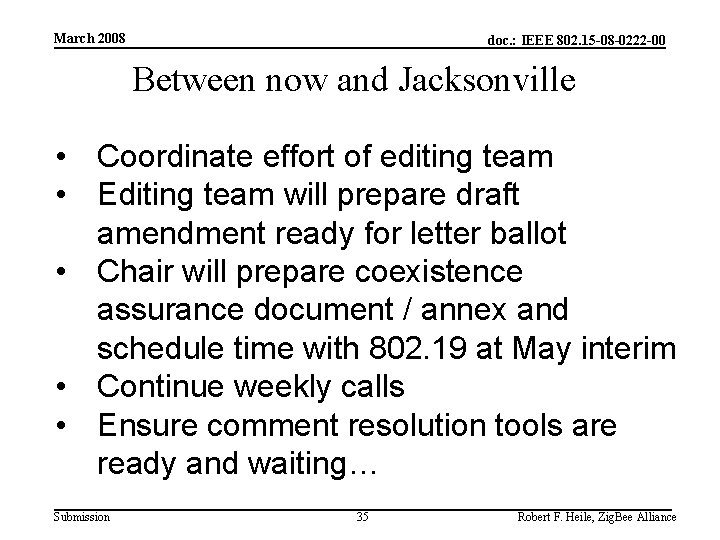

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Between now and Jacksonville • Coordinate effort of editing team • Editing team will prepare draft amendment ready for letter ballot • Chair will prepare coexistence assurance document / annex and schedule time with 802. 19 at May interim • Continue weekly calls • Ensure comment resolution tools are ready and waiting… Submission 35 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Acknowledgements • Thanks to: – Proposers for their work on proposals and agreement on joint proposal – Secretary – All participants Submission 36 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 e 15. 4 MAC Enhancements 20 March, 2008 Submission 37 Robert F. Heile, Zig. Bee Alliance

March 2008 Mar 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 4 e PAR Scope of Proposed Standard The intention of this amendment is to enhance and add functionality to the 802. 15. 4 -2006 MAC to a) better support the industrial markets and b) permit compatibility with modifications being proposed within the Chinese WPAN. Specifically, the MAC enhancements are limited to: • TDMA: to provide a) determinism, b) enhanced utilization of bandwidth • Channel Hopping: to provide additional robustness in high interfering environments and enhance coexistence with other wireless networks • GTS: to increase its flexibility such as a) supporting peer to peer, b) the length of the slot, and c) number of slots • CSMA: to improve throughput and reduce energy consumption • Security: to add support for additional options such as asymmetrical keys • Low latency: to reduce end to end delivery time such as needed for control applications Submission Slide 38 38 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

March 2008 Mar 2008 doc. : IEEE 802. 15 -08 -0222 -00 Purpose of Proposed Standard This functionality facilitates Industrial applications (such as addressed by HART 7 and the ISA 100 proposed standards), and those enhancements defined by the proposed Chinese WPAN standard that aren't included in TG 4 c. This amendment addresses coexistence with wireless protocols such as 802. 11, 802. 15. 3, and 802. 15. 4. Submission Slide 39 39 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

March 2008 Mar 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Goals/Accomplishments 1. 2. 3. 4. Review PAR, CFA; final call for officers Review 802. 15. 4 e application presentations Define various efforts necessary to fulfill goal of PAR Officer Election 1. Chair: Pat Kinney 2. Vice Chairs: Seong-Soon Joo, Phil Beecher 3. Editors: Zafer Sahinoglu, Ludwig Winkel, Liang Li 5. Update program schedule 6. Discussion on backward compatibility, expected behavior in old/new networks, optional behavior 7. Agreed upon date and time for first conference call: 1. 8 April 2008 at 8: 00 PDT Submission Slide 40 40 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

March 2008 Mar 2008 Submission doc. : IEEE 802. 15 -08 -0222 -00 TG 4 e Efforts/Quality Slide 41 41 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

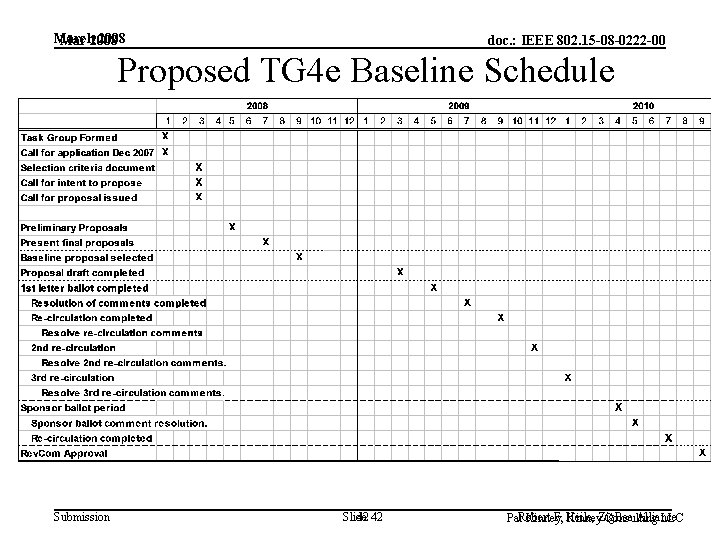

March 2008 Mar 2008 doc. : IEEE 802. 15 -08 -0222 -00 Proposed TG 4 e Baseline Schedule Submission Slide 42 42 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

March 2008 Mar 2008 doc. : IEEE 802. 15 -08 -0222 -00 Goals for Next Session • Concisely define proposed efforts • Map applications to the above efforts • Cull out efforts that are not needed by Applications, add efforts that are needed by applications • Discuss any changes to PAR that are necessary • Receive additional applications • Send out CFP Submission Slide 43 43 Robert F. Heile, Zig. Bee Alliance Pat Kinney, Kinney Consulting LLC

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 5 Mesh Networking Recommended Practice Closing Report 20 March, 2008 Submission 44 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 5 WPAN Mesh Closing Report March 20, 2008 Orlando, Florida Meeting Objectives • Complete Comment Resolution • Project plan Discussion Submission Slide 45 45 Robert F. Heile, Zig. Bee Alliance Myung Lee, CUNY

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Presentations • Synchronization Issue – Changsub Shin: 15 -08 -0173 r 0 • Multicasting – Allan Zhu: 15 -08 -0170 r 0 Submission Slide 46 46 Robert F. Heile, Zig. Bee Alliance Myung Lee, CUNY

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Summary of Comment Resolution • Total Number of Comments: 419 – Technical: 209 – Editorial: 210 • Resolution – Accept: 406 (AIP included) – Reject: 13 • The Group approved all the comment resolutions; (10 -0 -0) Submission 47 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Others Bi-weekly teleconference for texting progress – Time: 7: 00 PM, EST, 4 PM PST, 4 PM Europe, 8 AM Korea, 7 AM China – Date: Wednesday April 2, April 16, April 30 New Secretary: Dr. Tae Rim Park Submission Slide 48 48 Robert F. Heile, Zig. Bee Alliance Myung Lee, CUNY

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Motion Approved by WG Task Group 802. 15. 5 seeks Working Group approval to start a Recirculation Ballot based on the Comment Resolutions compiled as 15 -08 -0201 -00 -0005 d 2 P 802 -15 -5_Draft_LB-comments-sheet-Compiledr 9. xls Submission Slide 49 49 Robert F. Heile, Zig. Bee Alliance Myung Lee, CUNY

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 TG 6 Body Area Networking Closing Report 20 March, 2008 Submission 50 Robert F. Heile, Zig. Bee Alliance

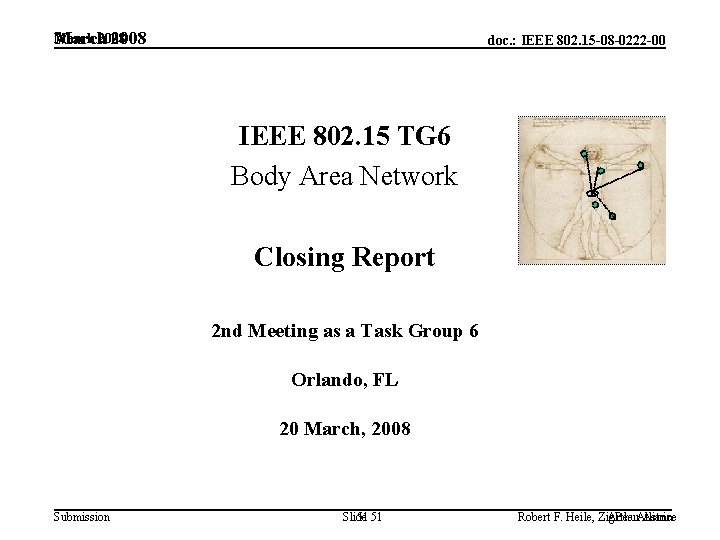

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 IEEE 802. 15 TG 6 Body Area Network Closing Report 2 nd Meeting as a Task Group 6 Orlando, FL 20 March, 2008 Submission Slide 51 51 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objectives for this session • Presentations of responses to TG Call for Applications • Presentations of responses to SG Calls • Issue Call for Intent (CFI) • Presentations of responses to SG Call for Technology and Regulatory issues and Body Channel Patterns • Edit BAN Channel Model Document, BAN Regulatory Document and review Technical Requirements Document • Appoint second Vice-Chair Submission Slide 52 52 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

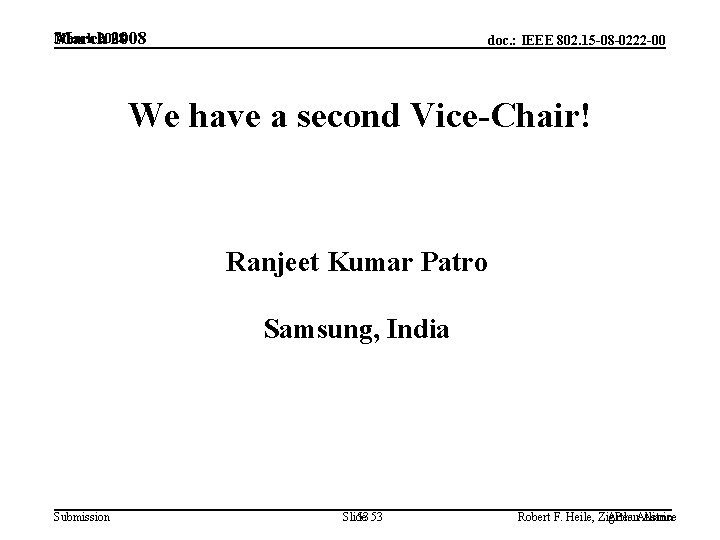

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 We have a second Vice-Chair! Ranjeet Kumar Patro Samsung, India Submission Slide 53 53 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Contributions List 15 -08 -0101 -04 -0006 -tg 6 -objectives-and-agenda-march-2008. xls 15 -08 -0106 -03 -0006 -frame-synchronization-to-combat-in-out-interference-in-wban. pdf Welcome: 15 -08 -0108 -00 -0006 -medical-body-area-network-application. pdf 15 -08 -0122 -00 -0006 -shadowing-effect-in-the-human-body-communication. pdf Philips Qualcomm Samsung GE General Electric Plantronics Zarlink Toumaz Stichting IMEC 15 -08 -0123 -00 -0006 -application-of-human-body-communication-for-ban. pdf 15 -08 -0132 -00 -0006 -are-mics-and-medradio-bands-suitable-for-ieee-802 -15 -6. ppt 15 -08 -0135 -00 -0006 -application-matrix-with-alternate-standards. xls 15 -08 -0140 -00 -0006 -state-of-the-art-in-synchronous-low-power-mac. pdf 15 -08 -0142 -00 -0006 -proposal-for-frequency-band-for-non-medical-ban-applications. ppt 15 -08 -0146 -01 -0006 -locational-affinity-awareness-for-ban-application. ppt 15 -08 -0153 -02 -0006 -technical-requirements-of-non-medical-applications. ppt 15 -08 -0154 -00 -0006 -capsule-endoscope-using-an-implant-wban. pdf 15 -08 -0155 -00 -0006 -preliminary-channel-models-for-wearable-wban. pdf 15 -08 -0157 -00 -0006 -motion-capture-for-ban. ppt 15 -08 -0158 -01 -0006 -toumaz-response-to-call-for-application. ppt 15 -08 -0160 -01 -0006 -phy-considerations-for-low-power-body-area-networks-ban. ppt 15 -08 -0162 -00 -0006 -zarlink-response-to-802 -15 -tg 6 -call-for-applications. pdf 15 -08 -0163 -00 -0006 -applications-channels-architectures. ppt 15 -08 -0165 -00 -0006 -non-medical-applications. ppt 15 -08 -0166 -01 -0006 -tg 6 -call-for-indication-of-intent-to-propose. doc 15 -08 -0168 -02 -0006 -ban-for-animal-usages. ppt Sessions: 6 Submission 15 -08 -0169 -00 -0006 -applications-of-body-area-network. ppt 15 -08 -0202 -02 -0006 -ban-usgae-for-enterprise-healthcare-ppt. ppt Slide 54 54 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

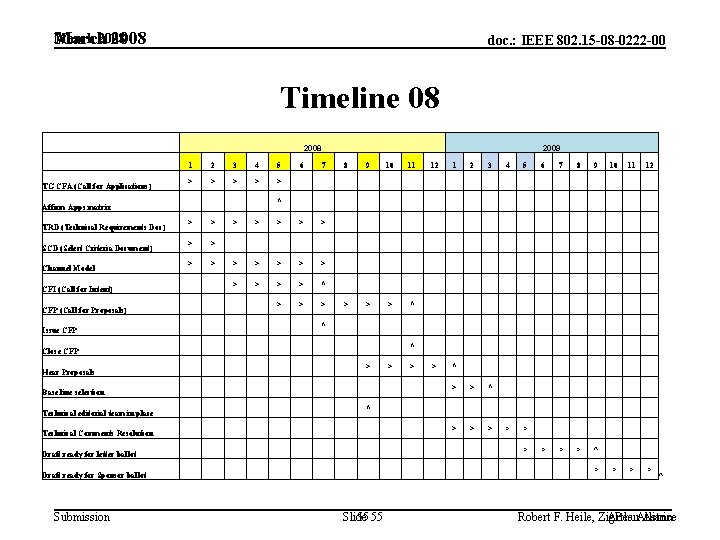

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Timeline 08 2008 TG CFA (Call for Applications) 1 2 3 4 5 6 7 8 9 10 > > > ^ > > > > > > > > ^ > > > ^ ^ > > > ^ Affirm Apps matrix TRD (Technical Requirements Doc) SCD (Select Criteria Document) Channel Model CFI (Call for Intent) CFP (Call for Proposals) Issue CFP Close CFP Hear Proposals Base line selection Technical editorial team in place Technical Comments Resolution Draft ready for letter ballot Draft ready for Sponsor ballot Submission 2009 Slide 55 55 11 12 > 1 2 3 4 5 6 7 8 9 10 11 12 ^ > > > > > > > ^ Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Plans for May 2008 meeting • Presentations of responses to TG Call for Applications • Presentations of responses to SG Calls • • Edit Call for Proposals (CFP) to issue in July • Next meeting: Wednesday, April 2, 2008 (need Teleconference bridge volunteer) Have regular teleconferences on Wednesdays – – – – Submission 6: 00 AM PST (West Coast USA , G-7 ), 9: 00 AM EST (East Coast USA , G-4 ), 13: 00 PM (UK, G) 14 : 00 PM (EU, G+1), 18 : 30 PM (Bangalore, India, G+5. 5), 22 : 00 PM JST(Japan, G+9), KST(Korea), 00: 00 AM (Canberra, Australia, G+11), ( Midnight Wed /Thu 4/3) Slide 56 56 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Rotating Teleconference schedule US CA US NY PST EST G-8 G-5 JP, KR AU EU India G+8 G+11 G+5. 5 2/27/08 8: 00 PM 2/27/08 11: 00 PM 2/28/08 12: 00 PM 2/28/08 4: 00 PM 2/28/08 5: 00 AM 2/28/08 8: 30 AM 2/27/08 7: 00 PM 2/27/08 10: 00 PM 2/28/08 11: 00 AM 2/28/08 3: 00 PM 2/28/08 4: 00 AM 2/28/08 7: 30 AM 2/27/08 6: 00 PM 2/27/08 9: 00 PM 2/28/08 10: 00 AM 2/28/08 2: 00 PM 2/28/08 3: 00 AM 2/28/08 6: 30 AM 2/27/08 5: 00 PM 2/27/08 8: 00 PM 2/28/08 9: 00 AM 2/28/08 1: 00 PM 2/28/08 2: 00 AM 2/28/08 5: 30 AM 2/27/08 4: 00 PM 2/27/08 7: 00 PM 2/28/08 8: 00 AM 2/28/08 12: 00 PM 2/28/08 1: 00 AM 2/28/08 4: 30 AM 2/27/08 3: 00 PM 2/27/08 6: 00 PM 2/28/08 7: 00 AM 2/28/08 11: 00 AM 2/28/08 12: 00 AM 2/28/08 3: 30 AM 2/27/08 2: 00 PM 2/27/08 5: 00 PM 2/28/08 6: 00 AM 2/28/08 10: 00 AM 2/27/08 11: 00 PM 2/28/08 2: 30 AM 2/27/08 1: 00 PM 2/27/08 4: 00 PM 2/28/08 5: 00 AM 2/28/08 9: 00 AM 2/27/08 10: 00 PM 2/28/08 1: 30 AM 2/27/08 12: 00 PM 2/27/08 3: 00 PM 2/28/08 4: 00 AM 2/28/08 8: 00 AM 2/27/08 9: 00 PM 2/28/08 12: 30 AM 2/27/08 11: 00 AM 2/27/08 2: 00 PM 2/28/08 3: 00 AM 2/28/08 7: 00 AM 2/27/08 8: 00 PM 2/27/08 11: 30 PM 2/27/08 10: 00 AM 2/27/08 1: 00 PM 2/28/08 2: 00 AM 2/28/08 6: 00 AM 2/27/08 7: 00 PM 2/27/08 10: 30 PM 2/27/08 9: 00 AM 2/27/08 12: 00 PM 2/28/08 1: 00 AM 2/28/08 5: 00 AM 2/27/08 6: 00 PM 2/27/08 9: 30 PM 2/27/08 8: 00 AM 2/27/08 11: 00 AM 2/28/08 12: 00 AM 2/28/08 4: 00 AM 2/27/08 5: 00 PM 2/27/08 8: 30 PM 2/27/08 7: 00 AM 2/27/08 10: 00 AM 2/27/08 11: 00 PM 2/28/08 3: 00 AM 2/27/08 4: 00 PM 2/27/08 7: 30 PM 2/27/08 6: 00 AM 2/27/08 9: 00 AM 2/27/08 10: 00 PM 2/28/08 2: 00 AM 2/27/08 3: 00 PM 2/27/08 6: 30 PM 2/27/08 5: 00 AM 2/27/08 8: 00 AM 2/27/08 9: 00 PM 2/28/08 1: 00 AM 2/27/08 2: 00 PM 2/27/08 5: 30 PM 2/27/08 4: 00 AM 2/27/08 7: 00 AM 2/27/08 8: 00 PM 2/28/08 12: 00 AM 2/27/08 1: 00 PM 2/27/08 4: 30 PM 2/27/08 3: 00 AM 2/27/08 6: 00 AM 2/27/08 7: 00 PM 2/27/08 11: 00 PM 2/27/08 12: 00 PM 2/27/08 3: 30 PM 2/27/08 2: 00 AM 2/27/08 5: 00 AM 2/27/08 6: 00 PM 2/27/08 10: 00 PM 2/27/08 11: 00 AM 2/27/08 2: 30 PM 2/27/08 1: 00 AM 2/27/08 4: 00 AM 2/27/08 5: 00 PM 2/27/08 9: 00 PM 2/27/08 10: 00 AM 2/27/08 1: 30 PM 2/27/08 12: 00 AM 2/27/08 3: 00 AM 2/27/08 4: 00 PM 2/27/08 8: 00 PM 2/27/08 9: 00 AM 2/27/08 12: 30 PM 2/26/08 11: 00 PM 2/27/08 2: 00 AM 2/27/08 3: 00 PM 2/27/08 7: 00 PM 2/27/08 8: 00 AM 2/27/08 11: 30 AM 2/26/08 10: 00 PM 2/27/08 1: 00 AM 2/27/08 2: 00 PM 2/27/08 6: 00 PM 2/27/08 7: 00 AM 2/27/08 10: 30 AM 2/26/08 9: 00 PM 2/27/08 12: 00 AM 2/27/08 1: 00 PM 2/27/08 5: 00 PM 2/27/08 6: 00 AM 2/27/08 9: 30 AM 2/26/08 8: 00 PM 2/26/08 11: 00 PM 2/27/08 12: 00 PM 2/27/08 4: 00 PM 2/27/08 5: 00 AM 2/27/08 8: 30 AM Submission Slide 57 57 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Thank You ! Any Questions ? Submission Slide 58 58 Robert F. Heile, Zig. Bee Alliance Arthur Astrin

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 RFID Study Group Closing Report 20 March, 2008 Submission 59 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 IEEE 802. 15 RFID-SG Closing Report 2 nd Meeting as a Study Group Orlando, Florida 20 March 2008 Submission 60 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 IEEE 802. 15 RFID Study Group Meeting Overview in Orlando, Florida 1. RFID-IG Volunteer Chair: M. Mc. Innis 2. Two each 2 -hour time slots were allocated during this session. 3. Attendance: Approx. 35 attendees in Monday PM 2 slot. Approx. 29 attendees in Thursday AM 1 slot. 4. Relative Documents: 15 -08 -0137 -01 -rfid-RFID-Agenda-March-2008 15 -08 -0138 -02 -rfid-RFID-SG-Opening-Introduction-March-2008 15 -08 -0089 -02 -rfid-RFID-Study-Group-Call-for-Contributions. doc 15 -08 -0207 -00 -rfid-RFID-SG-Minutes-Orlando-March-2008. doc Submission 61 Robert F. Heile, Zig. Bee Alliance

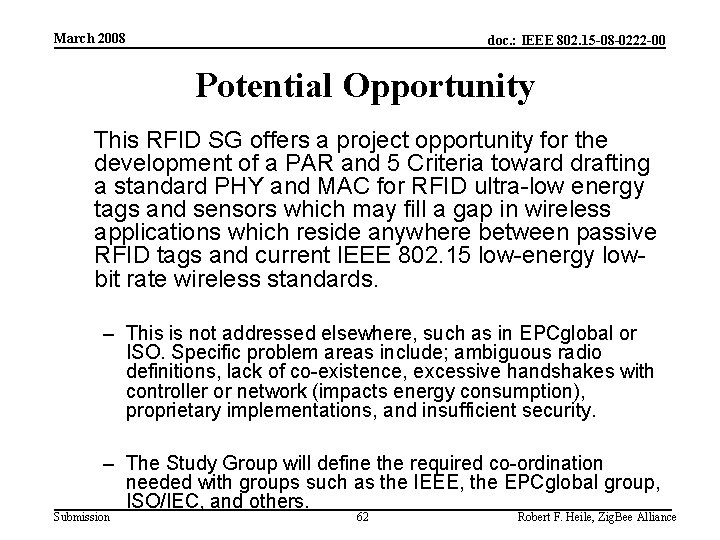

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Potential Opportunity This RFID SG offers a project opportunity for the development of a PAR and 5 Criteria toward drafting a standard PHY and MAC for RFID ultra-low energy tags and sensors which may fill a gap in wireless applications which reside anywhere between passive RFID tags and current IEEE 802. 15 low-energy lowbit rate wireless standards. – This is not addressed elsewhere, such as in EPCglobal or ISO. Specific problem areas include; ambiguous radio definitions, lack of co-existence, excessive handshakes with controller or network (impacts energy consumption), proprietary implementations, and insufficient security. – The Study Group will define the required co-ordination needed with groups such as the IEEE, the EPCglobal group, ISO/IEC, and others. Submission 62 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objective of the IEEE 802. 15 RFID the Study Group Determine whethere is sufficient participation from the RFID industry in drafting the PAR and Five Criteria documents required to become a Task Group for the purpose of developing a passive, semi-passive, or active RFID ultra-low energy tag and sensor PHY and/or MAC draft standard which would have; – Broad applicability – Is a unique solution for a problem – Is substantially different from other IEEE 802 Standards. Submission 63 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements Discussed the RFID SG direction. No presentations were made during this meeting session but several potential presentation authors have expressed intent to present during the May 2008 meeting in Jacksonville. The RFID SG Call for Contributions (CFC) document was substantially revised to remove a perceived limitation in CFC scope and to add more topics to help guide presenters on the type of information which is being sought. A motion was made within the RFID Study Group to extend the RFID Study Group for four months. The motion carried with a vote of: 13/0/0 Submission 64 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Motion Approved by Working Group Move that 802. 15 WG extend the RFID Study Group for four more months in order to develop a PAR and 5 Criteria for a draft standard for a PHY and/or MAC targeting RFID and low energy sensor applications. Submission 65 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 THz Interest Group Closing Report 20 March, 2008 Submission 66 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Tera. Hertz IG met for one session on Wednesday AM 1 with 10 attendees. We had four contributions: 1. Doc 15 -08 -0060 -01 -0 thz, “Call for Contributions” 2. Doc 15 -08 -0107 -0 thz, “Link Budget Exploration for THz Communications” 3. Doc 15 -08 -0133 -01 -0 thz, “Feasibility of Giga-bps Data Rates at THz Frequencies” 4. Doc 15 -08 -0172 -00 -0 thz, “Liaison to ITU-R WP 1 A regarding status of the 275 – 3000 GHz frequency band” Submission 67 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Motions: The liaison to the ITU-R was approved at both the IG and WG level for submittal to the ITU-R by IEEE 802. 18. THz IG will next meet in May in Jacksonville where we hope to have responses to the Call for Contributions. Submission 68 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Visible Light Communications Interest Group Closing Report 20 March, 2008 Submission 69 Robert F. Heile, Zig. Bee Alliance

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 IG-VLC 2 nd Meeting, Orlando, FL Closing Report 20 March, 2008 Submission Slide 70 70 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Purpose of VLC Interest Group • Determine whethere is sufficient interest in creating a VLC Study Group for the purpose of developing a Visible Light Communication PAR 5 C. Submission Slide 71 71 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Objective of Meeting • Call for presentation of VLC • Hearing for presentation of VLC issues • Take motion for promotion to SG-VLC Submission Slide 72 72 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 1. VLC tutorial in Monday 6: 30 pm - Presented by Samsung, VLCC, University of Oxford - Approx. 250 attendees were participated 2. Two 2 -hour time slots was held in Tuesday. - Attendance: 31 attendees in Tuesday PM 1 slot. 33 attendees in Thursday AM 2 slot. 3. Relative Documents: - VLC Tutorial 15 -08 -0114 -02 -0000 -vlc-tutorial-mco-samsung-oxford-2008 - Presentation 15 -08 -0129 -02 -0 vlc-application-trials 15 -08 -0131 -00 -0 vlc-some-challenges-for-visible-light-communication 15 -08 -171 -00 -0 vlc-10 mbps-visible-light-transmission-system 15 -08 -0139 -00 -0 vlc-siemens-s-view-on-standardisation-of-wireless-visible-lightcommunications 15 -08 -0184 -00 -0 vlc-visible-light-communications-standard-issues Submission Slide 73 73 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Meeting Achievements • Agreed upon a general purpose • Agreed that a Study Group should be formed • Passed Motion in 802. 15 WG Midweek Submission Slide 74 74 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Motion to the 802. 15 Working Group • Move that 802. 15 WG seek approval to form a Study Group to develop a PAR and 5 Criteria for a draft standard for a PHY and MAC targeting Visible Light Communication. – Moved : Eun Tae Won – Seconded : James Gilb – Vote : 65/0/2 Submission Slide 75 75 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Plans for May Meeting • • Presentation of “Call for Application” response Presentation of “Call for Technology” response Presentation of “Call for Regulatory” response Start work on PAR and 5 Cs Submission Slide 76 76 Robert F. Heile, Zig. Bee Alliance Eun Tae Won, Samsung Electronics

March 2008 doc. : IEEE 802. 15 -08 -0222 -00 Upcoming Sessions • May 11 -16, 2008, Hyatt, Jacksonville, FL, Interim • July 13 -18, 2008, Hyatt Regency Denver at the Colorado Convention Center Denver, Colorado USA , 802 Plenary Meeting. • Sept 7 -12, 2008, Hilton Waikoloa Villiage, Big Island, HI, USA Interim • November 9 -14, 2008, Hyatt Regency Dallas, TX, USA, 802 Plenary Meeting. • January 18 -23, 2009, Hyatt Regency Century Plaza, CA, USA Interim • March 8 -13, 2009, Hyatt Regency & Fairmont Vancouver, BC, Canada, 802 Plenary Meeting. Submission 77 Robert F. Heile, Zig. Bee Alliance
