Marcatori genetici nel plant breeding Utilizzo Identificazione clonale

Marcatori genetici nel plant breeding

Utilizzo Identificazione clonale Analisi dei parentali SCALA Struttura familiare Struttura di popolazione Flusso genico Filogeografia Ibridizzazione Filogenesi

Marcatori in biologia Marcatori fenotipici = caratteri distinguibili a occhio nudo Colore del fiore, forma del baccello, etc. . P = E+G

Karl Von Linne (1707 -1778)

Molecular markers Sequenze di proteine o DNA facilmente distinguibili, la cui eredità può essere verificata e associata con tratti ereditati indipendentemente dall’ambiente : a) Polimorfismi di proteine b) Polimorfismi di DNA

Molecular markers Sequenze (SNPs) Potere di risoluzione Microsatelliti (SSRs) Multi-locus fingerprints AFLP (Amplified Fragment Length Polymorphism) RAPD (random amplified polymorphic DNA) DNA cloroplastico PCR-RFLP allozimi (elettroforesi di proteine)

Polimorfismi di proteine Proteine di riserva del seme Isozimi

Isozimi

Isozimi Starch gel of the isozyme malate dehydrogenase (MDH). The numbers indicate first the MDH locus, and next the allele present (ie. 3 -18 is locus 3 allele 18). Some bands are heterodimers (intralocus or interlocus).

Struttura del DNA dal cromosoma al DNA Stretch of nitrogen fixation gene in soybean 1 ccacgcgtcc gtgaggactt gcaagcgccg cggatggtgg gctctgtggc tgggaacatg 61 ctgctgcgag ccgcttggag gcgggcgtcg ttggcggcta cctccttggc cctgggaagg 121 tcctcggtgc ccacccgggg actgcgcctg cgcgtgtaga tcatggcccc cattcgcctg 181 ttcactcaga ggcagaggca gtgctgcgac ctctctacat ggacgtacag gccaccactc 241 ctctggatcc cagagtgctt gatgccatgc tcccatacct tgtcaactac tatgggaacc 301 ctcattctcg gactcatgca tatggctggg agagcgaggc agccatggaa cgtgctcgcc 361 agcaagtagc atctctgatt ggagctgatc ctcgggagat cattttcact agtggagcta 421 ctgagtccaa caacatagca attaaggtag gaggagggat ggggatgttg tgtggccgac 481 agttgtgagg ggttgtggga agatggaagc cagaagcaaa aaagagggaa cctgacacta 541 tttctggctt cttgggttta gcgattagtg cccctctctc atttgaactc aactacccat 601 gtctccctag ttctct gcctttaaaaatgtgt ggaggacagc tttgtggagt 661 ctgaaatcac catctacctt tacttaggtt ctgagtgcca aacccaaggc accaggcatg 721 cgtccttgac tccggagcca tcaggc tttcctcagc cttttgcagc caagtctttt 781 agcctattgg tctgagttca gtgtggcagt tggttaggaa agaaggtggt tcttcgacca 841 ctaacagttt ggatttttta ggatgctagt cctttaaaa ……….

molecular marker? 1 ccacgcgtcc gtgaggactt gcaagcgccg cggatggtgg gctctgtggc tgggaacatg 61 ctgctgcgag ccgcttggag gcgggcgtcg ttggcggcta cctccttggc cctgggaagg 121 tcctcggtgc ccacccgggg actgcgcctg cgcgtgtaga tcatggcccc cattcgcctg 181 ttcactcaga ggcagaggca gtgctgcgac ctctctacat ggacgtacag gccaccactc 241 ctctggatcc cagagtgctt gatgccatgc tcccatacct tgtcaactac tatgggaacc 301 ctcattctcg gactcatgca tatggctggg agagcgaggc agccatggaa cgtgctcgcc 361 agcaagtagc atctctgatt ggagctgatc ctcgggagat cattttcact agtggagcta 421 ctgagtccaa caacatagca attaaggtag gaggagggat ggggatgttg tgtggccgac 481 agttgtgagg ggttgtggga agatggaagc cagaagcaaa aaagagggaa cctgacacta 541 tttctggctt cttgggttta gcgattagtg cccctctctc atttgaactc aactacccat 601 gtctccctag ttctct gcctttaaaaatgtgt ggaggacagc tttgtggag Gene A DNA M 1 M 2 MFG Gene B MFG AACCTGAAAAGTTACCCTTTAAAGGCTTAAGGAAAAAGGGTTTAACCAAGGAATTCCATCGGGAATTCCG readily detectable sequence of DNA whose inheritance can be monitored and associated with the trait inheritance

Image from UV light table Image from computer screen

Co-dominant marker Gel configuration P 1 P 2 O 1 O 2 Dominant marker P 2 O 1 Polymorphism Parent 1 : one band Gel configuration P 1 Polymorphism -Parent 1 : one band -Parent 2 : a smaller band -Offspring 1 : heterozygote = both bands -Offspring 2 : homozygote parent 1 O 2 -Parent 2 : no band -Offspring 1 : homozygote parent 1 -Offspring 2 : ? ?

Dominant versus Co-dominant Dominant: No distinction between homo- and heterozygotes possible No allele frequencies available AFLP, RAPD Co-dominant: homozygotes can be distinguished from heterozygotes; allele frequencies can be calculated microsatellites, SNP, RFLPs

Desirable properties for a good molecular marker * Polymorphic * Co-dominant inheritance * Occurs throughout the genome * Reproducible * Easy, fast and cheap to detect * Selectivity neutral * High resolution with large number of samples

Basis for DNA marker technology • Restriction Endonucleases • Polymerase chain reaction (PCR) • DNA-DNA hybridization • DNA sequencing

RFLP based markers *Examine differences in size of specific DNA restriction fragments *Require pure, high molecular weight DNA *Usually performed on total cellular genome

Endonucleases and restriction sequences YF AAATCGGGACCTAATGGGCC G Ind 1 ATTTAGGGCAATTCCA Ind 2

RFLP techniques

RFLP Polymorphisms interpretation 1 2 3 4 5 6 MFG 1 2 3 4 5 6

Advantages and disadvantages of RFLP • Advantages – Reproducible – Co-dominant – Simple • Disadvantages – Time consuming – Expensive – Use of radioactive probes

DNA/DNA Hybridization Denaturation Elevated temperature Known DNA sequence

Polymerase Chain Reaction • Powerful technique for amplifying DNA • Amplified DNA are then separated by gel electrophoresis

PCR based methods 1. Reactions conditions *Target DNA ( or template) *Reaction buffer containing the co-factor Mg. Cl 2 *One or more primers *Four nucleotides (d. ATP, d. CTP, d. GTP, d. TTP) *Thermostable DNA polymerase

2. Use of DNA polymerase = an enzyme that can synthesize DNA at elevated temperature ex : Taq = enzyme purified from hot spring bacterium : Thermus aquaticus 3. Thermal cycle *Denaturing step - one to several min at 94 -96 º C *Annealing step - one to several min at 50 -65 º C *Elongation step - one to several min at 72 º C 4. Repetition –typically 20 to 50 times average 35 times

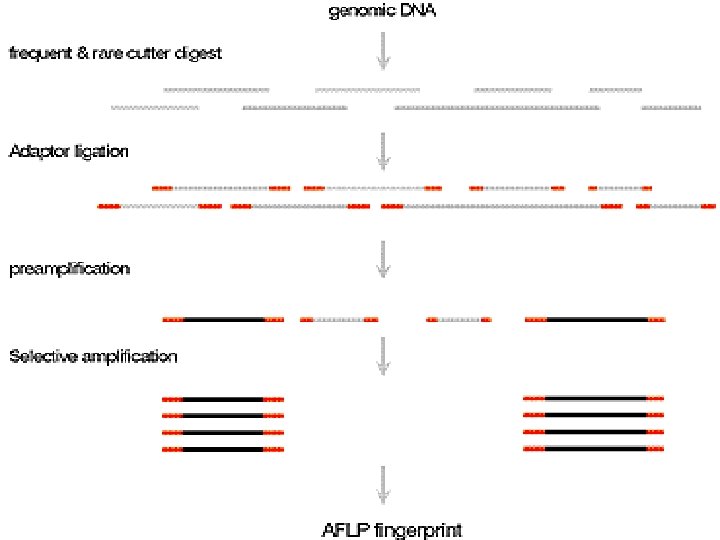

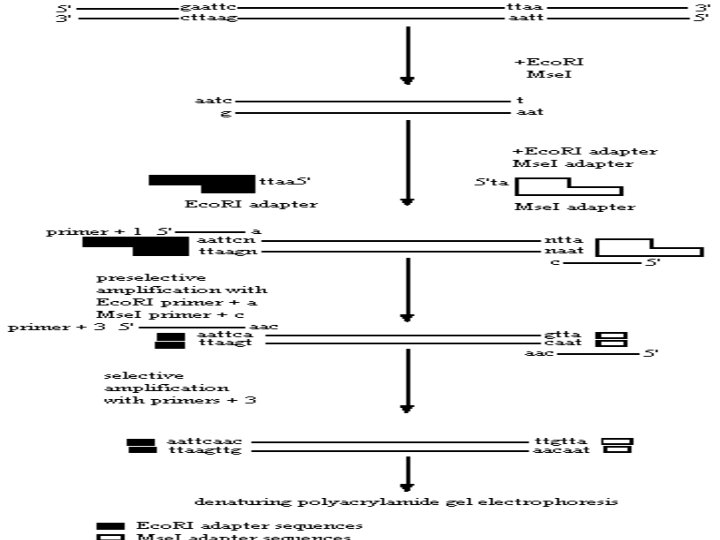

AFLP Markers n n Most complex of marker technologies Involves cleavage of DNA with two different enzymes Involves ligation of specific linker pairs to the digested DNA Subsets of the DNA are then amplified by PCR

AFLP Markers n n The PCR products are then separated on acrylamide gel 128 linker combinations are readily available Therefore 128 subsets can be amplified Patented technology

AFLP Markers n n n Technically demanding Reliable and stable Moderate cost Need to use different kits adapted to the size of the genome being analyzed. Like RAPD markers need to be converted to quick and easy PCR based marker

RAPD Markers n n There are other problems with RAPD markers associated with reliability Because small changes in any variable can change the result, they are unstable as markers RAPD markers need to be converted to stable PCR markers. How?

RAPD Markers n n The polymorphic RAPD marker band is isolated from the gel It is used a template and re-PCRed The new PCR product is cloned and sequenced Once the sequence is determined, new longer and specific primers can be designed

RAPD • Amplifies anonymous stretches of DNA using arbitrary primers • Fast and easy method for detecting polymorphisms • Domimant markers • Reproducibility problems

RAPD Polymorphisms among landraces of sorghum Sequences of 10 -mer RAPD primers RAPD gel configuration Name Sequence OP OP M OP OP OP 5’ 5’ 5’ A 08 A 15 A 17 A 19 D 02 –GTGACGTAGG- 3’ –TTCCGAACCC- 3’ –GACCGCTTGT- 3’ –CAAACGTCGG- 3’ –GGACCCAACC- 3’

SSR repeats and primers Repeat GGT(5) Sequence GCGCCGAGTTCTAGGGTTTCGGAATTTGAACCGTC GAGGGCTGATGAGGTGGATA ATTGGGCGTCGGTGAAGAAGTCGCTTCCGTCGTTTGAT TCCGGTCGTCAGAATCAGAATCGATATGGTG GCAGTGGTGGTGGTTTTGGTGGTGGTGA ATCTAAGGCGGATGGAGTGGATAATTGGGCGGTTGGT AAGAAACCTCTTCCTGTTAG ATCTTATGGCGGTTCTCGTG ATTCTGGAACCAGATCGCTGGTCTAGAGGTTCT GCTGTGGAACCA…. .

SSR polymorphisms P 1 AATCCGGACTAGCTTCTTCTTTAGCGA P 2 AAGGTTATTTCTTCTTCTTCTTAGG P 1 Gel configuration P 2

Linkage groups

Anand N 97 SSR scoring for F 5: 6 pop from the cross Anand x N 97 -3708 -13 M

4. SNPs (Single Nucleotide Polymorphisms) SNPs on a DNA strand Hybridization using fluorescent dy • Any two unrelated individuals differ by one base pair every 1, 000 or so, referred to as SNPs. • Many SNPs have no effect on cell function and therefore can be used as molecular markers.

DNA sequencing Sequencer Sequencing gel Sequencing graph

Types of traits =types of markers Single gene trait: seed shape Multigenic trait; ex: plant growth =Quantitative Trait Loci MFG

USES OF MOLECULAR MARKER q Measure genetic diversity q Mapping q Tagging

Genetic Diversity Define appropriate geographical scales for monitoring and management (epidemology) q Establish gene flow mechanism q identify the origin of individual (mutation detection) q Monitor the effect of management practices q manage small number of individual in ex situ collection q Establish of identity in cultivar and clones (fingerprint) q paternity analysis and forensic q

Genetic Diversity

Gotcha! fingerprints seeds, plantlets early selection of the good allele

Mapping q The determination of the position and relative distances of gene on chromosome by means of their linkage q Genetic map A linear arrangement of genes or genetic markers obtained based on recombination q Physical map A linear order of genes or DNA fragments

Physical Mapping It contains ordered overlapping cloned DNA fragment q The cloned DNA fragments are usually obtained using restriction enzyme digestion q

QTL Mapping A set of procedures for detecting genes controlling quantitative traits (QTL) and estimating their genetics effects and location q To assist selection

Marker Assisted Selection n Breeding for specific traits in plants and animals is expensive and time consuming The progeny often need to reach maturity before a determination of the success of the cross can be made The greater the complexity of the trait, the more time and effort needed to achieve a desirable result.

MAS n n n The goal to MAS is to reduce the time needed to determine if the progeny have trait The second goal is to reduce costs associated with screening for traits If you can detect the distinguishing trait at the DNA level you can identify positive selection very early.

Developing a Marker n n n Best marker is DNA sequence responsible for phenotype i. e. gene If you know the gene responsible and has been isolated, compare sequence of wild-type and mutant DNA Develop specific primers to gene that will distinguish the two forms

Developing a Marker n n n If gene is unknown, screen contrasting populations Use populations rather than individuals Need to “blend” genetic differences between individual other than trait of interest

Developing Markers n n Cross individual differing in trait you wish to develop a marker Collect progeny and self or polycross the progeny Collect and select the F 2 generation for the trait you are interested in Select 5 - 10 individuals in the F 2 showing each trait

Developing Markers n n Extract DNA from selected F 2 s Pool equal amounts of DNA from each individual into two samples - one for each trait Screen pooled or “bulked” DNA with what method of marker method you wish to use Method is called “Bulked Segregant Analysis”

Marker Development n n n Other methods to develop population for markers exist but are more expensive and slower to develop Near Isogenic Lines, Recombinant Inbreeds, Single Seed Decent What is the advantage to markers in breeding?

Reducing Costs via MAS n Example disease resistance • 10000 plants n Greenhouse space or field plots • $5000 - $10000 n Time 4 months (salary) • $10 - $15000 • total cost = $15 - $25, 000

Reducing Costs via MAS n n n PCR-based testing @ $5 sample $50, 000 - costs more? Analysis of trait not easily phenotyped E. g: Cadmium in Durum wheat 10000 plants need to reach maturity Cadmium accumulates in seed

Reducing costs via MAS n n n $15 - 25 growing costs + analysis Atomic Absorption @ $15 per sample $150, 000 + growing costs PCR analysis still $50000 Savings in time and money increase as more traits are analyzed Many biochemical tests cost >$50 sample

Marker Assisted Breeding n n n MAS allows for gene pyramiding incorporation of multiple genes for a trait Prevents development of biological resistance to a gene Reduces space requirements - dispose of unwanted plants and animal early

QTL study Trait M. 1 M. 2 M. 3 P. 1 P. 2 I. 1 I. 2 I. 3 I. 4 2. 5 8. 4 7. 1 2. 5 4. 5 2. 3 1 3 3 2 2 1 1 3 1 1 2 3 Statistical programs used in molecular marker studies * SAS * ANOVA * Mapmaker * Cartographer Types of population used for molecular markers studies: F 2, RILs, Backcrosses (MILs), DH.

QTL Mapping
