Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Summary of NICT’s Technical Proposals for TGaf Authors: Submission Date: 2010 -03 -09 Slide 1 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Executive Summary • This document presents the summary of the 7 proposals submitted by NICT to TGaf • The fundamental concern highlighted by these proposals is the adaptation of the 802. 11 system to the FCC rules • Each proposal is summarized by a one-page summary featuring the problem to be solved, the proposed solution and features of the proposal Submission Slide 2 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af List of NICT’s Proposals • Distributed Measurement Report Period for Interference Detection in 802. 11 af MAC – 10/248 r 1 – C. W. Pyo • Modification on DFS and DCF procedure adapting to FCC rules in TVWS: Hidden Node – 10/253 r 1 – C. S. Sum • Synchronization of Quiet Periods for Incumbent User Detection – 10/256 r 1 – Z. Lan • Regulatory/Operating Classes Specifications – 10/257 r 1 – T. Baykas • Radio Resource Measurement Type and Procedure for TVWS application under FCC rules – 10/260 r 1 – Y. Alemseged • Enabling Procedure of Communication in TVWS under FCC rules – 10/261 r 1 - C. Sun • Requirements and Amendments Regarding TVWS Database Access – 10/262 r 0 – H. N Tran Submission Slide 3 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Distributed Measurement Report Period for Interference Detection in 802. 11 af MAC • Document number – • Problem to tackle – • Allocating Measurement Report Period (MRP) for each STA enables to avoid the failure of measurement report Features of proposal – – • Interfere with TV broadcasting from the failure of measurement report within every 60 s (FCC rule) Proposed Solution – • C. W. Pyo - IEEE 802. 11 -10/0248 r 1 Beacon/Probe response informs the location of MRP to STAs Each STA reports the measurement result in its MRP to AP AP determines channel switching or network termination from the measurement report If AP does not have any report from STA in MRP, AP determines channel switching or network termination Proposed changes – Submission Define a new information element of MRP Slide 4 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Modification on DFS and DCF procedure adapting to FCC rules in TVWS : Hidden Node • Document number – • Problem to tackle – • Relayed-RTS-CTS mechanism to extend RTS range of influence Features of proposal – – – • Multiple transmission power levels due to FCC regulations further elevate the seriousness of hidden node problem Proposed Solution – • C. S. Sum - IEEE 802. 11 -10/0253 r 1 Initiating STA sends out RTS relayed (max 4 relays) until it reaches the destination STA CTS sent by the destination STA Proposed changes – – Submission Minor modifications to existing RTS-CTS procedures Minor modifications to existing RTS frame format Slide 5 Chin-Sean Sum, NICT

doc. : IEEE 802. 11 -10 -0289 -00 -00 af Synchronization of Quiet Periods for Incumbent User Detection • Document number – • Problem to tackle – – • Z. Lan - IEEE 802. 11 -10/0256 r 1 802. 11 2007 DFS has defined the procedure to quiet the current channel so the channel can be tested for the presence of the incumbent services However according to the procedure (11. 9. 1 IEEE Std 802. 11 -2007), the affected STAs are confined inside the same BSS or IBSS During the period when STAs in a certain BSS are quieted, STAs in an adjacent BSS may still be allowed to transmit As a direct consequence, in the quiet period which is supposed to be used to detect incumbent users, there might be signals from adjacent BSSs, which interfere the detection of incumbent users This document reviews the 802. 11 -2007 DFS procedure and proposes an amendment of Quiet Period Synchronization mechanism for 802. 11 af to guarantee the detection of the incumbent users – The procedure utilizes the original Quieting Channel procedure – And proposes new Public Action Frames to facilitate the synchronization of the quiet periods Submission Slide 6 Chen SUN, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Regulatory/Operating Classes Specifications • Document number – T. Baykas - IEEE 802. 11 -10/0257 r 1 • Problem to tackle – How channelization should be numbered in TVWS in USA/Canada for 802. 11 systems • Proposed Solution – Using IEEE 802. 11 channelization system • Features of proposal – 5, 10, 20 MHz – 5 starting frequencies for CANADA/USA. 50 MHz, 51 MHz, 52 MHz , 53 MHz, 54 MHz with dot 11 Channel. Starting. Factors of 100, 102, 104, 106, 108 respectively. – 5 MHz channels are located in the center of TV channels. – 10 MHz channels are located in the center of 2 adjacent TV channels. – 20 MHz channels are located in the center of 4 adjacent TV channels. Submission Slide 7 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Radio Resource Measurement Type and Procedure for TVWS application under FCC rules • Document number – • Problem to tackle – – • All the sensing capability of 802. 11 k are optional which cannot be may not be useful for 802. 11 af due to the mandatory requirements of FCC The sensing capability of 802. 11 system in TVWS should be extended to address the sensing of primary signals Proposed solution – • Y. Alemseged - IEEE 802. 11 -10/0260 r 1 Addition of new measurement frame type and corresponding measurement procedures Features of proposal – – • The proposal does not specify any rules regarding the behavior of 802. 11 af The proposal merely extends the capability of the 802. 11 system to be able to comply to the FCC rules Proposed changes – Primary signal measurement frame – Corresponding procedures on request and report of the measurement frame Submission Slide 8 Chin-Sean Sum, NICT

doc. : IEEE 802. 11 -10 -0289 -00 -00 af Enabling Procedure of Communication in TVWS under FCC rules • Document number – • Problem to tackle – – • C. Sun - IEEE 802. 11 -10/0261 r 1 FCC has specified rules for operating a fixed station and personal/portable station The DSE procedure defined in 802. 11 y doesn’t provide sufficient procedure to support fixed station, personal/portable stations which do not have access to the database This proposal proposes to modify the DSE procedure defined in 802. 11 y to support the operation of fixed station and personal/portable station under FCC rules – – Submission Procedure A is for STAs with compatibility to 802. 11 y to satisfy the FCC rules. Procedure B is for STAs without compatibility to 802. 11 y. It enables communication not only to satisfy mandatory FCC rules but also to have additional benefits such as better incumbent user protection, reduced transmit power, etc. Slide 9 Chen SUN, NICT

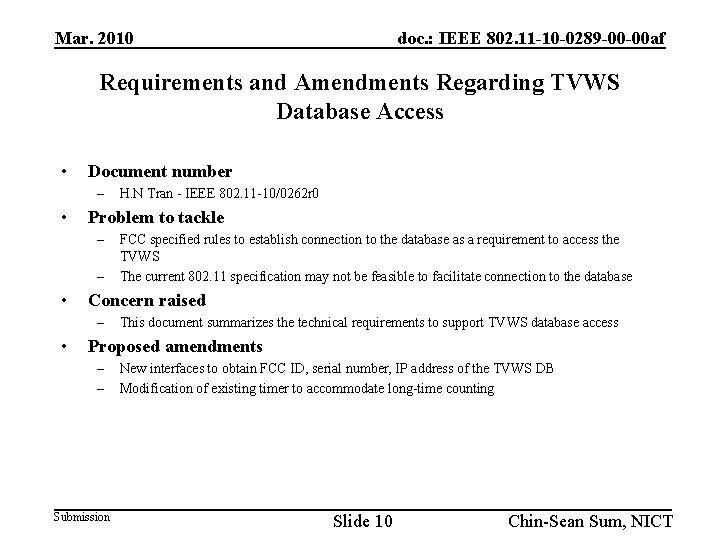

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Requirements and Amendments Regarding TVWS Database Access • Document number – • Problem to tackle – – • FCC specified rules to establish connection to the database as a requirement to access the TVWS The current 802. 11 specification may not be feasible to facilitate connection to the database Concern raised – • H. N Tran - IEEE 802. 11 -10/0262 r 0 This document summarizes the technical requirements to support TVWS database access Proposed amendments – – Submission New interfaces to obtain FCC ID, serial number, IP address of the TVWS DB Modification of existing timer to accommodate long-time counting Slide 10 Chin-Sean Sum, NICT

Mar. 2010 doc. : IEEE 802. 11 -10 -0289 -00 -00 af Conclusion • This document summarizes the 7 proposals submitted by NICT to 802. 11 af • The primary concern of the proposals is surrounding the adaptation of the 802. 11 system to the FCC rules • It is the intention of the proposers to collect feedback from the group in the Orlando meeting for further improvement Submission Slide 11 Chin-Sean Sum, NICT
