Maps Resource A Map Projections Problem Project a
Maps - Resource A Map Projections • Problem: Project a sphere onto a flat surface. • Scale • Alternative projection methods • Distortions • Terminology of map projections
Map Projections - Resource A Properties of the Globe Grid • All meridians are of equal length; each is one-half the length of the equator. • All meridians converge at the poles and are true north-south lines. • All lines of latitude (parallels) are parallel to the equator and to each other. • Parallels decrease in length as one nears the poles. • Meridians and parallels intersect at right angles. • The scale on the surface of the globe is the same in every direction.

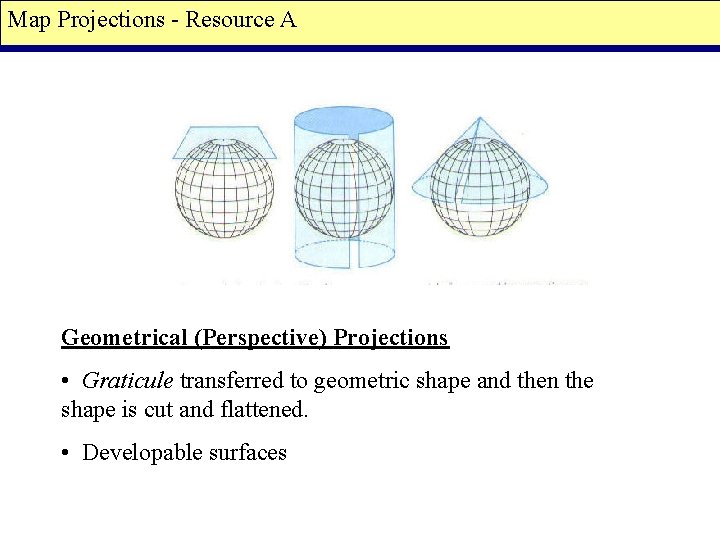

Map Projections - Resource A Geometrical (Perspective) Projections • Graticule transferred to geometric shape and then the shape is cut and flattened. • Developable surfaces
Map Projections - Resource A Projection Classes • Cylindrical • Conic • Planar (Azimuthal) • Oval or Elliptical
Map Projections - Resource A Orthographic • light source at infinity Gnomonic • light source at center Stereographic • light source at antipode.

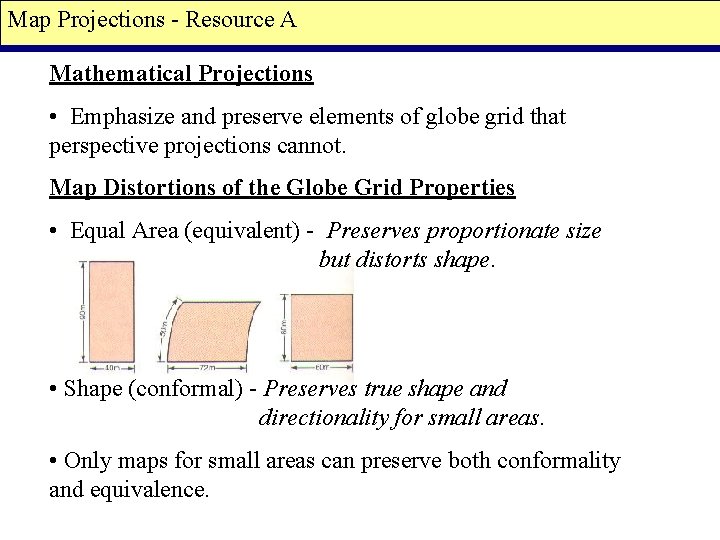

Map Projections - Resource A Mathematical Projections • Emphasize and preserve elements of globe grid that perspective projections cannot. Map Distortions of the Globe Grid Properties • Equal Area (equivalent) - Preserves proportionate size but distorts shape. • Shape (conformal) - Preserves true shape and directionality for small areas. • Only maps for small areas can preserve both conformality and equivalence.

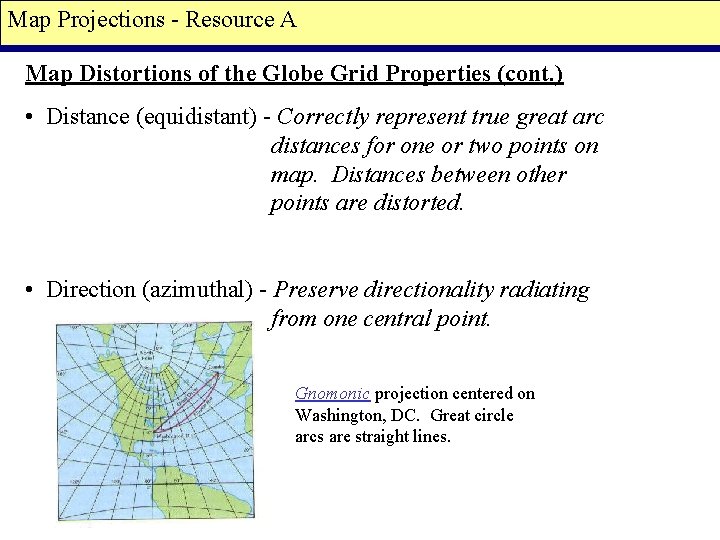

Map Projections - Resource A Map Distortions of the Globe Grid Properties (cont. ) • Distance (equidistant) - Correctly represent true great arc distances for one or two points on map. Distances between other points are distorted. • Direction (azimuthal) - Preserve directionality radiating from one central point. Gnomonic projection centered on Washington, DC. Great circle arcs are straight lines.
Map Projections - Resource A Examples Equal area sinusoidal Azimuthal equidistant Mercator (conformal)
Map Projections - Resource A Examples Miller (cylindrical) Albers equal area (conic) Azimuthal Equidistant (planar) Robinson Projection (oval)
