Mapping the Internet and Intranets 1 of 75
Mapping the Internet and Intranets Bill Cheswick ches@lumeta. com http: //www. cheswick. com 75 slides
Motivations • Intranets are out of control – Always have been • Highlands “day after” scenario • Internet tomography • Curiosity about size and growth of the Internet • Same tools are useful • Panix DOS attacks – a way to trace anonymous packets back! for understanding any large network, including intranets Mapping the Internet and Intranets 3 of 75
Related Work • See Martin Dodge’s cyber geography page • MIDS - John Quarterman • CAIDA - kc claffy • Mercator • “Measuring ISP topologies with rocketfuel” - 2002 – Spring, Mahajan, Wetherall • Enter “internet map” in your search engine Mapping the Internet and Intranets 4 of 75
The Goals • Long term reliable collection of Internet and Lucent connectivity information – without annoying too many people – movie of Internet growth! • Develop tools to probe intranets • Probe the distant corners of the Internet • Attempt some simple visualizations of the data Mapping the Internet and Intranets 5 of 75
Methods - data collection • Single reliable host connected at the company perimeter • Daily full scan of Lucent • Daily partial scan of Internet, monthly full scan • One line of text per network scanned – Unix tools Mapping the Internet and Intranets 6 of 75

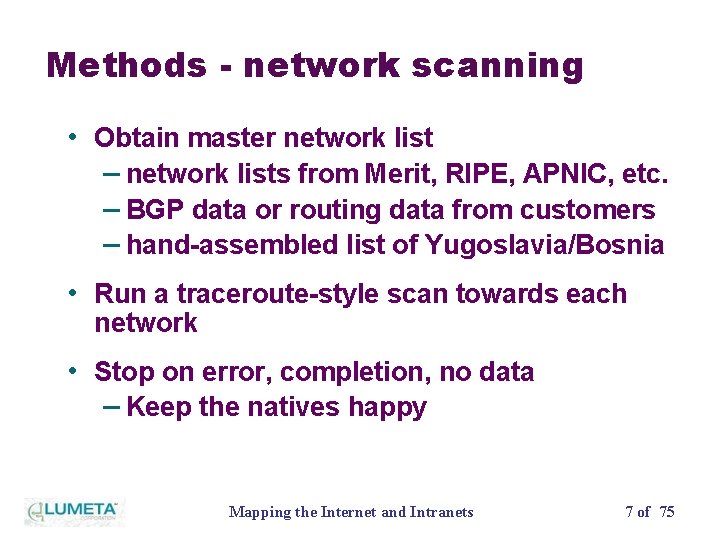

Methods - network scanning • Obtain master network list – network lists from Merit, RIPE, APNIC, etc. – BGP data or routing data from customers – hand-assembled list of Yugoslavia/Bosnia • Run a traceroute-style scan towards each network • Stop on error, completion, no data – Keep the natives happy Mapping the Internet and Intranets 7 of 75

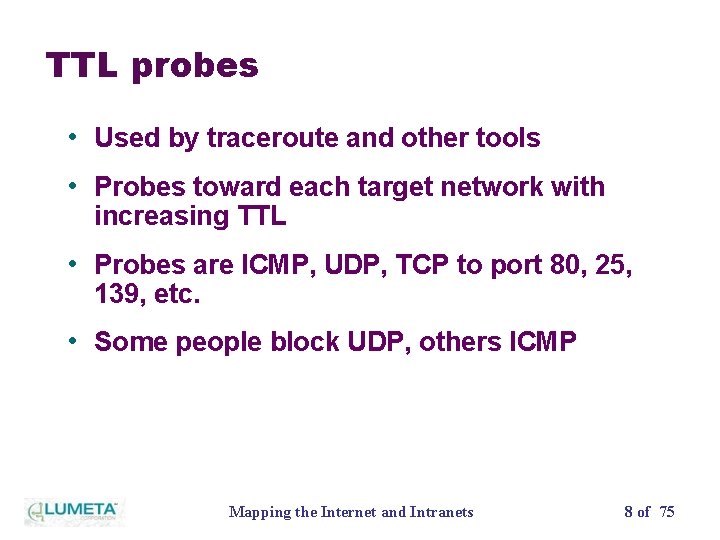

TTL probes • Used by traceroute and other tools • Probes toward each target network with increasing TTL • Probes are ICMP, UDP, TCP to port 80, 25, 139, etc. • Some people block UDP, others ICMP Mapping the Internet and Intranets 8 of 75
TTL probes Client Hop 1 Hop 2 Hop 3 Router IP IP Hardware Application level TCP/UDP Hop 3 Hop 4 Server Application level Router IP IP IP Hardware Mapping the Internet and Intranets TCP/UDP 9 of 75

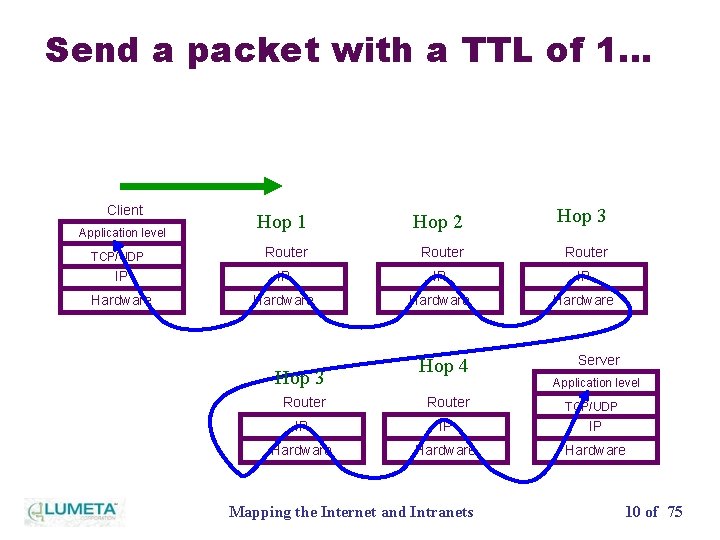

Send a packet with a TTL of 1… Client Hop 1 Hop 2 Hop 3 Router IP IP Hardware Application level TCP/UDP Hop 3 Hop 4 Server Application level Router IP IP IP Hardware Mapping the Internet and Intranets TCP/UDP 10 of 75
…and we get the death notice from the first hop Client Hop 1 Hop 2 Hop 3 Router IP IP Hardware Application level TCP/UDP Hop 3 Hop 4 Server Application level Router IP IP IP Hardware Mapping the Internet and Intranets TCP/UDP 11 of 75
Send a packet with a TTL of 2… Client Hop 1 Hop 2 Hop 3 Router IP IP Hardware Application level TCP/UDP Hop 3 Hop 4 Server Application level Router IP IP IP Hardware Mapping the Internet and Intranets TCP/UDP 12 of 75

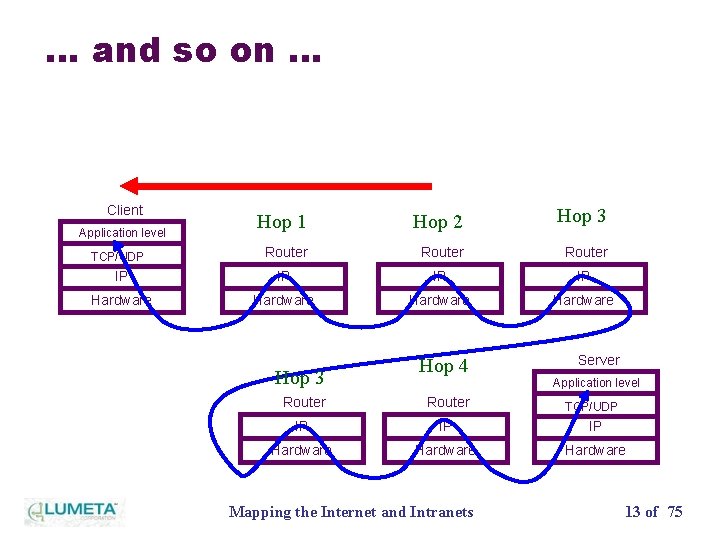

… and so on … Client Hop 1 Hop 2 Hop 3 Router IP IP Hardware Application level TCP/UDP Hop 3 Hop 4 Server Application level Router IP IP IP Hardware Mapping the Internet and Intranets TCP/UDP 13 of 75
Advantages • We don’t need access (I. e. SNMP) to the routers • It’s very fast • Standard Internet tool: it doesn’t break things • Insignificant load on the routers • Not likely to show up on IDS reports • We can probe with many packet types Mapping the Internet and Intranets 14 of 75
Limitations • Outgoing paths only • Level 3 (IP) only – ATM networks appear as a single node – This distorts graphical analysis • Not all routers respond • Many routers limited to one response per second Mapping the Internet and Intranets 15 of 75
Limitations • View is from scanning host only • Takes a while to collect alternating paths • Gentle mapping means missed endpoints • Imputes non-existent links Mapping the Internet and Intranets 16 of 75

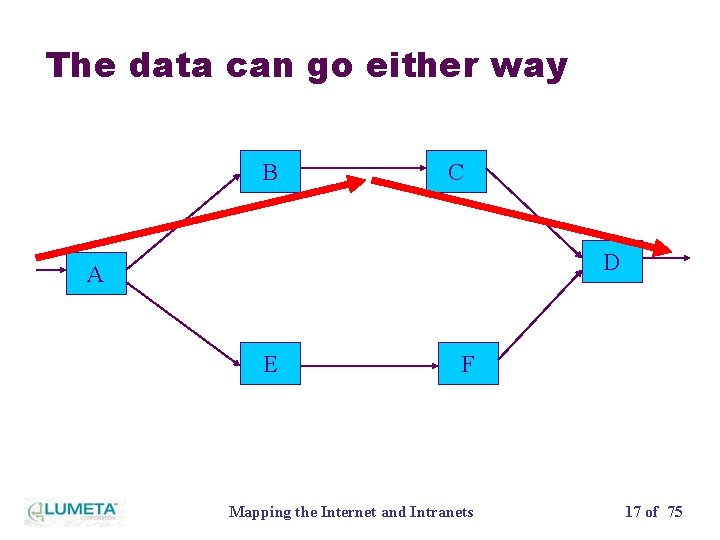

The data can go either way B C D A E F Mapping the Internet and Intranets 17 of 75
The data can go either way B C D A E F Mapping the Internet and Intranets 18 of 75
But our test packets only go part of the way B C D A E F Mapping the Internet and Intranets 19 of 75

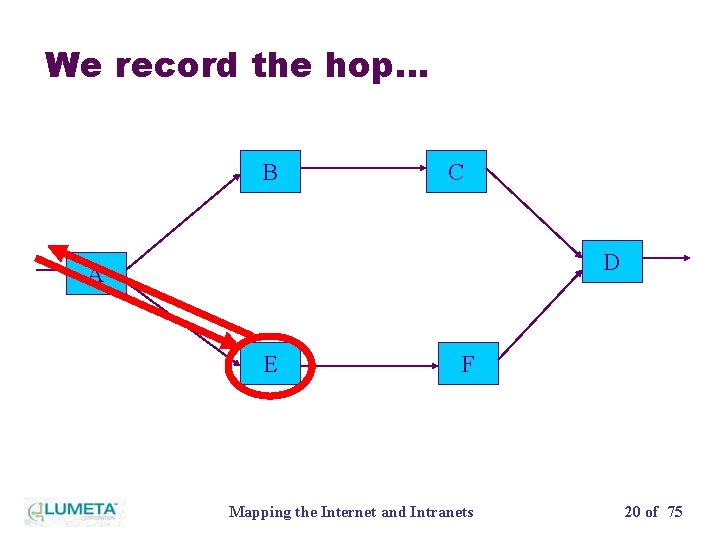

We record the hop… B C D A E F Mapping the Internet and Intranets 20 of 75

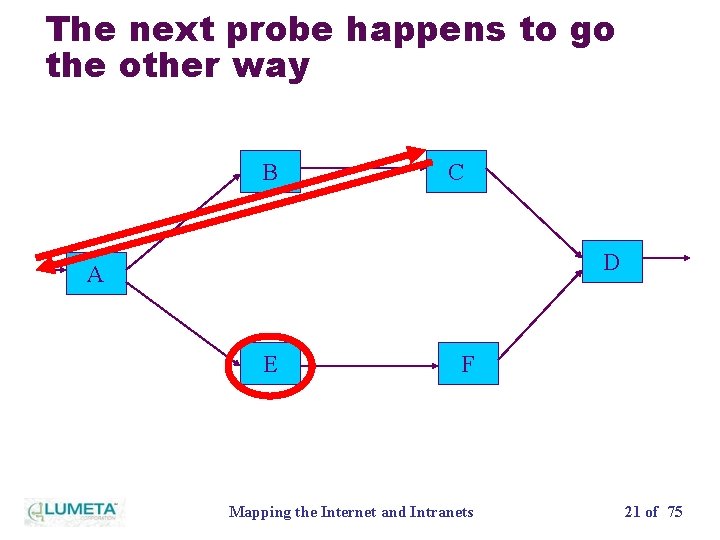

The next probe happens to go the other way B C D A E F Mapping the Internet and Intranets 21 of 75

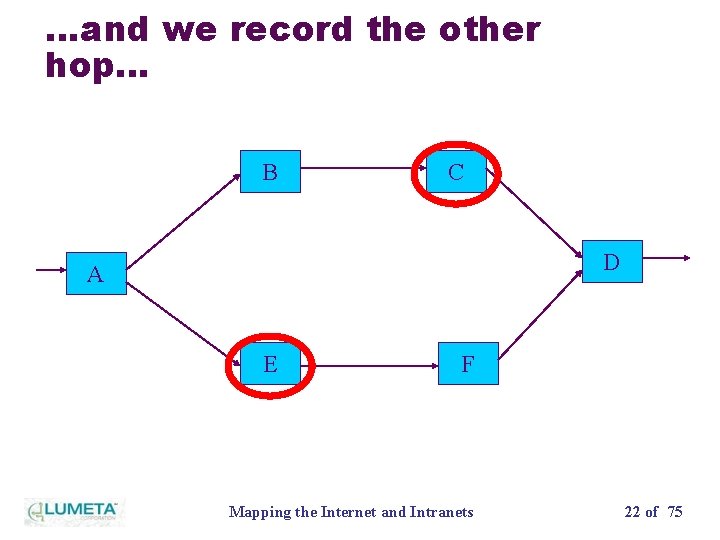

…and we record the other hop… B C D A E F Mapping the Internet and Intranets 22 of 75

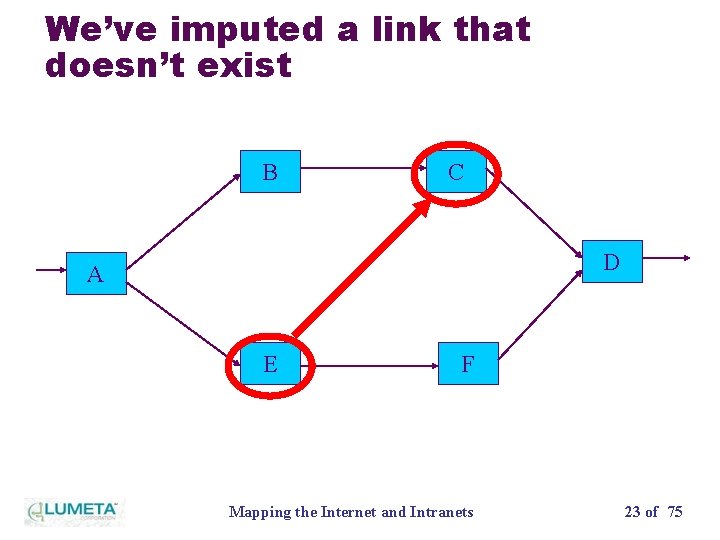

We’ve imputed a link that doesn’t exist B C D A E F Mapping the Internet and Intranets 23 of 75
Data collection complaints • Australian parliament was the first to complain • List of whiners (25 nets) • Military noticed immediately – Steve Northcutt – arrangements/warnings to DISA and CERT • These complaints are mostly a thing of the past – Internet background radiation predominates Mapping the Internet and Intranets 24 of 75

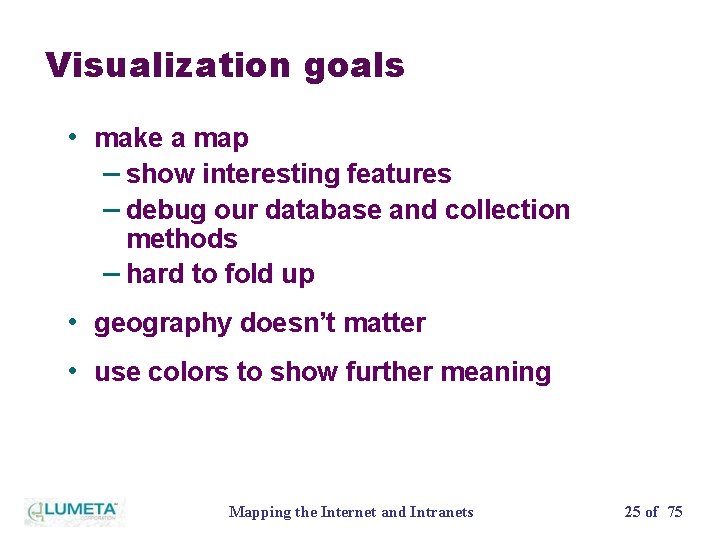

Visualization goals • make a map – show interesting features – debug our database and collection methods – hard to fold up • geography doesn’t matter • use colors to show further meaning Mapping the Internet and Intranets 25 of 75
Mapping the Internet and Intranets 26 of 75
Mapping the Internet and Intranets 27 of 75
Infovis state-of-the-art in 1998 • 800 nodes was a huge graph • We had 100, 000 nodes • Use spring-force simulation with lots of empirical tweaks • Each layout needed 20 hours of Pentium time Mapping the Internet and Intranets 28 of 75
Mapping the Internet and Intranets 29 of 75
Visualization of the layout algorithm Laying out the Internet graph 75 slides
Mapping the Internet and Intranets 31 of 75
Visualization of the layout algorithm Laying out an intranet 75 slides
Mapping the Internet and Intranets 33 of 75
A simplified map • Minimum distance spanning tree uses 80% of the data • Much easier visualization • Most of the links still valid • Redundancy is in the middle Mapping the Internet and Intranets 34 of 75
Colored by AS number Mapping the Internet and Intranets 35 of 75

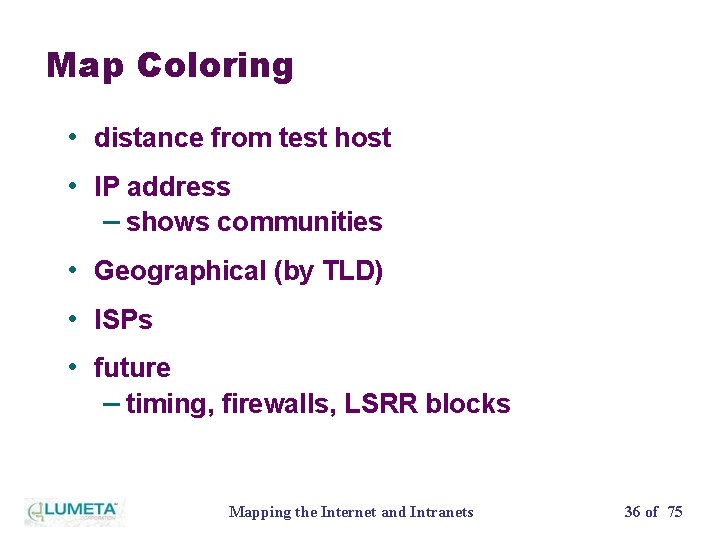

Map Coloring • distance from test host • IP address – shows communities • Geographical (by TLD) • ISPs • future – timing, firewalls, LSRR blocks Mapping the Internet and Intranets 36 of 75
Colored by IP address! Mapping the Internet and Intranets 37 of 75
Colored by geography Mapping the Internet and Intranets 38 of 75
Colored by ISP Mapping the Internet and Intranets 39 of 75

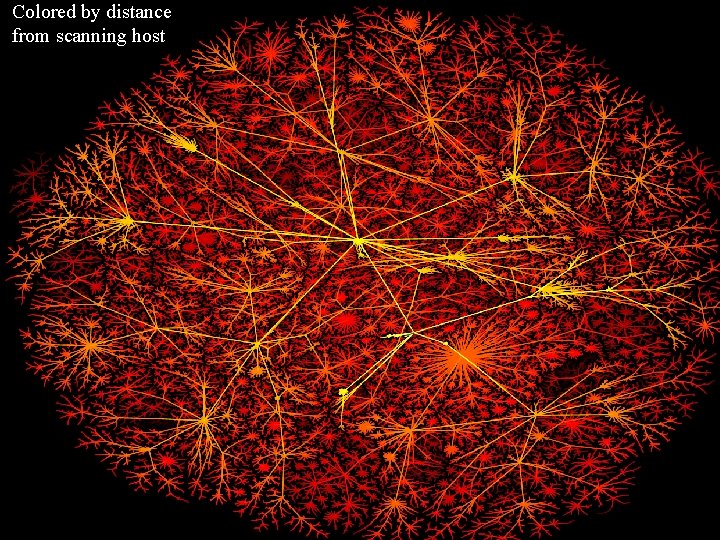

Colored by distance from scanning host Mapping the Internet and Intranets 40 of 75
US military reached by ICMP ping Mapping the Internet and Intranets 41 of 75

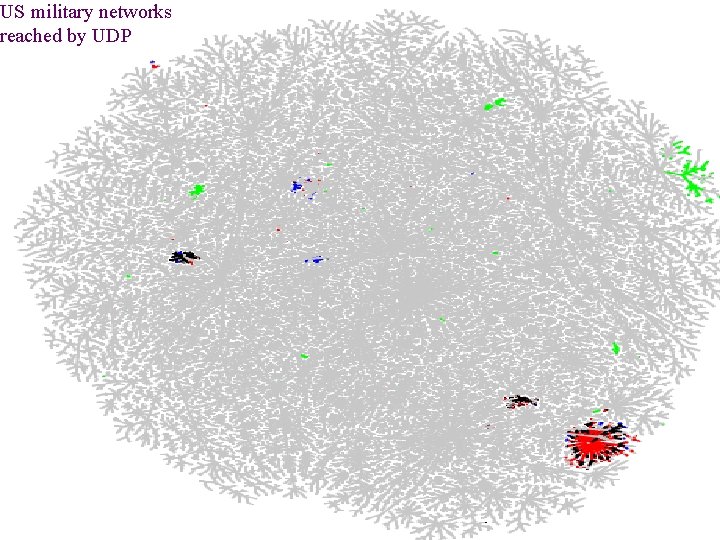

US military networks reached by UDP Mapping the Internet and Intranets 42 of 75

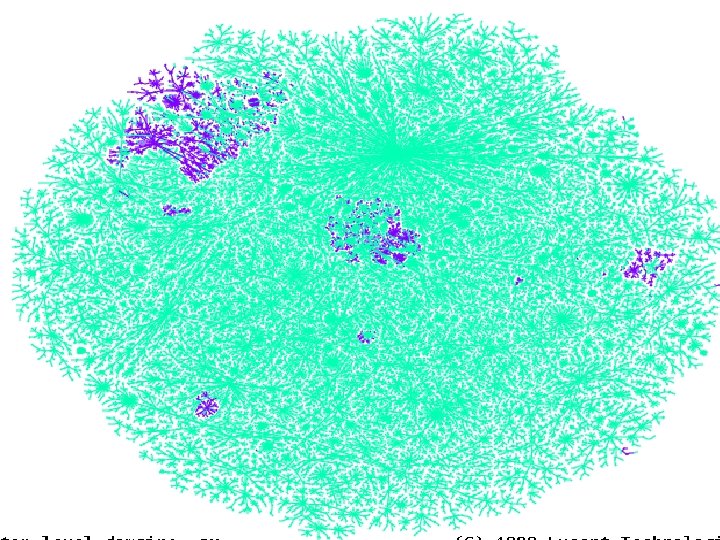

Mapping the Internet and Intranets 43 of 75
Mapping the Internet and Intranets 44 of 75
History of the Project • Started in August 1998 at Bell Labs • April-June 1999: Yugoslavia mapping • July 2000: first customer intranet scanned • Sept. 2000: spun off Lumeta from Lucent/Bell Labs Mapping the Internet and Intranets 45 of 75
Yugoslavia An unclassified peek at a new battlefield 75 slides
Mapping the Internet and Intranets 47 of 75
Intranets: the rest of the Internet 75 slides
The Pretty Good Wall of China Mapping the Internet and Intranets 52 of 75
Mapping the Internet and Intranets 53 of 75
Mapping the Internet and Intranets 54 of 75
Mapping the Internet and Intranets 55 of 75
Mapping the Internet and Intranets 56 of 75

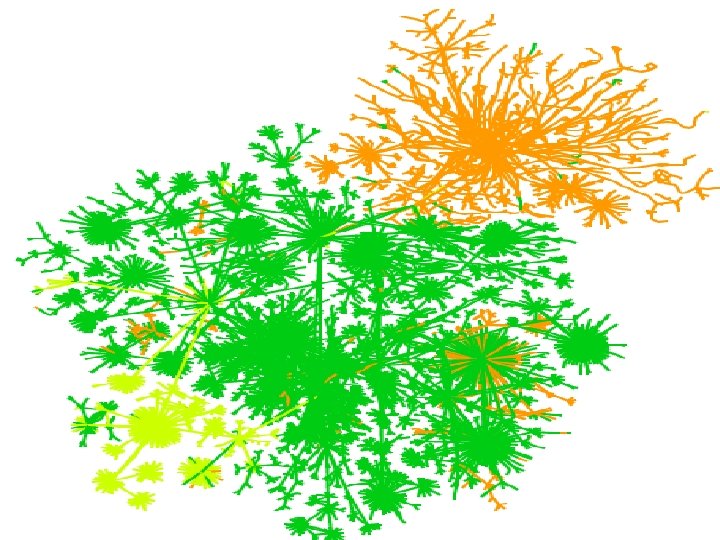

Mapping the Internet and Intranets 57 of 75
This was Supposed To be a VPN Mapping the Internet and Intranets 58 of 75
Mapping the Internet and Intranets 59 of 75

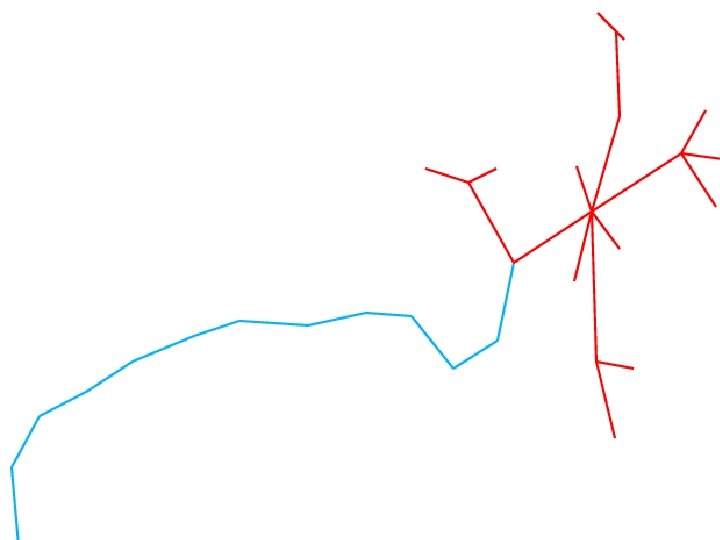

Mapping the Internet and Intranets 60 of 75
Anything large enough to be called an “intranet” is out of control 75 slides
Case studies: corp. networks Some intranet statistics Mapping the Internet and Intranets 62 of 75
Leak Detection Lumeta’s “special sauce” 75 slides

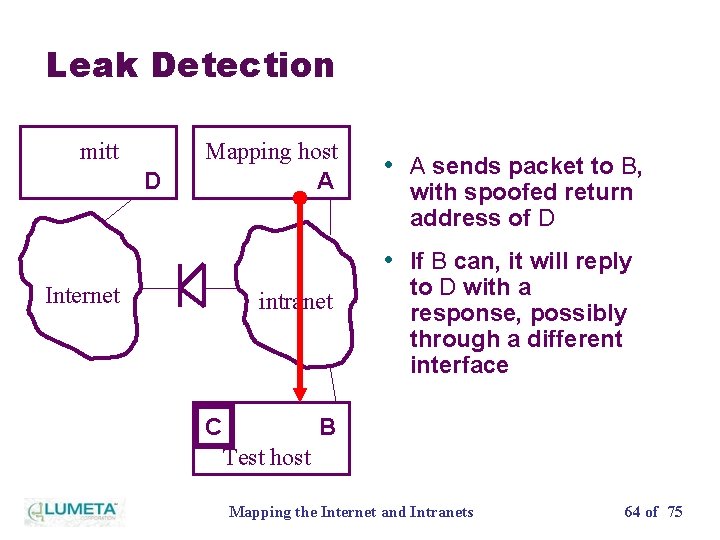

Leak Detection mitt D Mapping host A • A sends packet to B, with spoofed return address of D • If B can, it will reply Internet intranet C to D with a response, possibly through a different interface B Test host Mapping the Internet and Intranets 64 of 75
Outbound Leak Detection mitt D Mapping host A • Packet must be crafted so the response won’t be permitted through the firewall • A variety of packet types Internet intranet and responses are used • Either inside or outside address may be discovered • Packet is labeled so we C B know where it came from Test host Mapping the Internet and Intranets 65 of 75
Inbound Leak Detection mitt D Mapping host A • This direction is usually more important • It all depends on the Internet intranet site policy… • …so many leaks might be just fine. C B Test host Mapping the Internet and Intranets 66 of 75
Inbound Leak Detection mitt D Mapping host A Internet intranet C B Test host Mapping the Internet and Intranets 67 of 75
Some Lumeta lessons • Reporting is the really hard part – Converting data to information • “Tell me how we compare to other clients” • Offering a service was good practice, for a while • The clients want a device • We have >70 Fortune-200 companies and government agencies as clients • Need-to-have vs. want-to-have Mapping the Internet and Intranets 68 of 75
Honeyd – network emulation • Anti-hacking tools by Niels Provos at citi. umich. edu • Can respond as one or more hosts • I am configuring it to look like an entire client’s network • Useful for testing and debugging • Product? Mapping the Internet and Intranets 69 of 75
Open questions and future work 75 slides
How do you analyze a large graph over time? • Five years of Internet data, mostly unanalyzed • Alternate paths to a target country • Sample insight: “Poland was off the Internet yesterday” • Placement of monitoring tools? • Compute a display differences between two complex graphs Mapping the Internet and Intranets 71 of 75
Visualizations • These graphs are too big for a piece of paper • Various approaches available, but none really satisfactory • Build visualization graph as the data comes in, and as the network evolves Mapping the Internet and Intranets 72 of 75
Mapping the Internet and Intranets 73 of 75
Mapping the Internet and Intranets Bill Cheswick ches@lumeta. com http: //www. cheswick. com 75 slides
Mapping the Internet and Intranets 75 of 75
