Mapping Census Data in Arc View 3 x
- Slides: 61
Mapping Census Data in Arc. View 3. x Nancy Lemay University of Ottawa Barbara Znamirowski Trent University April 2004 Ontario DLI training
Workshop Outline • Defining certain concepts and terms: Map scale, coordinate systems, datum and projections. We will try to understand these concepts April 2004 Ontario DLI training
Workshop Outline (cont’d) • Understanding different file formats: - “. e 00”, “. shp”, “. shx”, “. dbf”, “. sbn” and “. sbx”. • Introduction to Arc. View and its components. • Hands-on exercise using census data and cartographic boundary files (CBF). April 2004 Ontario DLI training
Map Scales A defined dimensional relationship between reality and the map (Robinson et al. , 1995): a) Verbal: “one cm represents ten kilometers” b) Representative fraction: 1: 10, 000 c) Graphic scale: 5000 d) Area scale: 0 5000 10000 Meters Represents square kilometers April 2004 Ontario DLI training
Calculate Map Scales • For example, if 2 cm on a map represents 1 km on the ground the scale would be 2 cm = 1 km, or. . . • Scale is “unitless” because it is a ratio. April 2004 Ontario DLI training
Examples small vs. large scale Large scale: 1: 50, 000 Small scale: 1: 250, 000 April 2004 Ontario DLI training
Coordinate systems • A coordinate system is a reference system based on mathematical rules for specifying positions (locations) on the surface of the earth. The coordinate values can be spherical (latitude and longitude) or planar (such as Universal Transverse Mercator). • A coordinate system is usually defined by a datum, ellipsoid and projection, and is specified in terms of units (e. g. degrees, meters). April 2004 Ontario DLI training
Types of Coordinate Systems Geographic coordinate system: – Uses latitude and longitude for locating positions on the uniformly curved surface of the earth. Rectangular/plane coordinate systems: – Used to locate positions on a flat map. – For example Universal Transverse Mercator (UTM) April 2004 Ontario DLI training
Geographic Coordinate System • The Equator (latitude) and Prime Meridian (longitude) are the reference points. Usually Greenwich, England is the Prime Meridian. • The Cartographic Boundary Files, the Road Network Files and the representative points are disseminated in latitude/longitude coordinates. Prime meridian Equator April 2004 Ontario DLI training

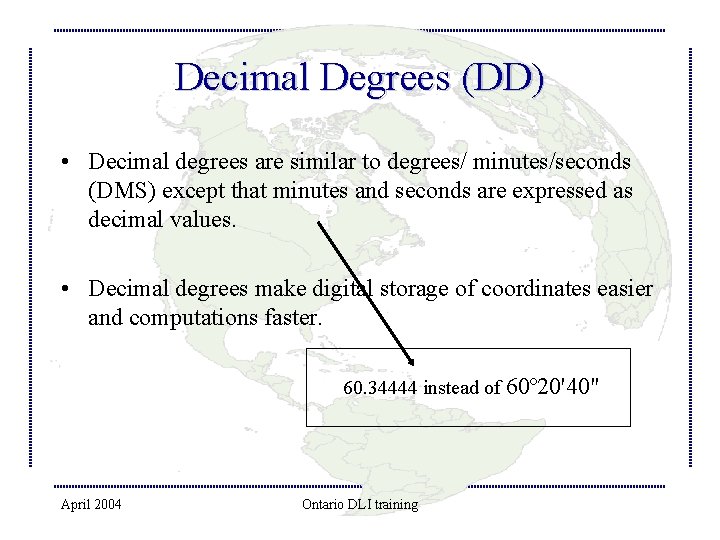

Decimal Degrees (DD) • Decimal degrees are similar to degrees/ minutes/seconds (DMS) except that minutes and seconds are expressed as decimal values. • Decimal degrees make digital storage of coordinates easier and computations faster. 60. 34444 instead of 60º 20'40" April 2004 Ontario DLI training
Example: Converting DMS to DD degrees seconds 60º 20'40" minutes 20 minutes. = 0. 33333 (20/60) 40 seconds = 0. 01111 (40/3600) Add up the degrees to get an answer: 60º + 0. 33333 + 0. 01111=60. 34444 DD April 2004 Ontario DLI training
Ellipsoid (Spheroid) and Geoid • Ellipsoid - used as a reference of the earth’s surface for the mathematical model of the earth. Mathematical approximation of the geoid. • Geoid - estimates the earth’s surface using mean sea level of the ocean with all continents removed. April 2004 Ontario DLI training
Datum • Geodetic reference system that specifies the size and shape of the earth. • Base point from which the latitude and longitude of all other points on the earth's surface are referenced. • Two types of datums: (1) Earth-centered (WGS 84, NAD 83), (2) Local (NAD 27, ED 50). • The spatial data disseminated for the 2001 Census are based on the North American Datum of 1983 (NAD 83). http: //www. geod. nrcan. gc. ca/index_e/geodesy_e/reference 04_e. html April 2004 Ontario DLI training
Map Projections • Process of transforming and representing positions on the earth's three-dimensional curved surface to a twodimensional (flat) surface. • The process is accomplished by a direct geometric projection or by a mathematically derived transformation. Use projected spatial data to calculate distance!! For more information: http: //mac. usgs. gov/mac/isb/pubs/Map. Projections/projections. html April 2004 Ontario DLI training
Map Projections Examples Cylindrical Equal Area Lambert Conformal Conic Preferred for world maps. Mollweide’s Good for directional and shape relations along large east-west mid-latitudes. Good for middle latitudes. April 2004 Ontario DLI training
Different File Formats Shapefile “. shp” is used in Arc. View and Arc. GIS and is accompanied by the following auxiliary files: • “. dbf” the d. BASE file that stores the attribute information of features. Required. • “. shx” the file that stores the index of the feature geometry. • “. sbn &. sbx” the files that store the spatial index of the features. • “. prj” - the file that stores the coordinate system information. • “. xml” - metadata for Arc. Info 8. 0, for using shapefiles on the Internet. Coverages are often published in a compacted form with the extension “. e 00”: • Proprietary file format used to distribute Arc/Info datasets. Topology and attributes are properly maintained in this format. April 2004 Ontario DLI training
Arc. View Project File • The Arc. View “. apr” file contains the project information. • Features are stored: • view properties • theme information • layout information • other types of information are stored. • Return to the project without having to re-load all the associated files. April 2004 Ontario DLI training
Stat. Can Spatial File Naming Convention First Character: projection of file: “g” if projection is Geographic Latitude/Longitude and “l” if projection is Lambert Conic Conformal. Next three characters: primary geographic boundary of file, for example “csd”. For example: gcsd 035 b 02 a_e. exe April 2004 Ontario DLI training
Next three Numbers: geographic code of coverage, for example 035. Next character: file type (based on 1996 codes). a if digital boundary file (for Dissemination Warehouse only) (DBF in 1996) b if Cartographic Boundary File, detailed coverage for large-scale mapping c if detailed interior lakes hydrographic coverage e Ecumene For example: r Road Network Files (RNF and SRNF) gcsd 035 b 02 a_e. exe April 2004 Ontario DLI training
Following two numbers: dissemination year (date stamp for versioning) – The choices are: 01 if disseminated in 2001, 02 if disseminated in 2002, 03 if disseminated in 2003 etc. Next character: file format: – “a” ARC/INFO® Arc. GIS Export File (e 00), “m” Map. Info® Export File (mid & mif) Final two characters: language – _e English – _f français April 2004 For example: gcsd 035 b 02 a_e. exe Ontario DLI training
Introduction to Arc. View 3. x April 2004 Ontario DLI training
Tool bar Menu bar Button bar Project window Document windows Status bar April 2004 Ontario DLI training
Arc. View Documents View – display, query & analyze themes Layout – integrate documents to create presentationquality maps Table – display attribute data Script – program written in Avenue used to customize the interface, automate common functions or create applications April 2004 Ontario DLI training
Arc. View Projects Project window Views Displays the names of all project documents & acts as a gateway to all documents in the project. Tables Charts Layouts Scripts April 2004 Ontario DLI training
Views and Themes • Theme: A GIS links sets of features and their attributes and manages them together in units called themes. Each theme has a title and a legend in the view’s Table of Contents. Themes April 2004 Ontario DLI training
You can control visibility and change display order (by dragging) Theme Operations Active themes are raised To make more than one theme active, hold down the Shift key as you click on each theme. When a theme is turned on, Arc. View draws it in the map display area. To invoke the Legend Editor Double-click on active theme. April 2004 Ontario DLI training

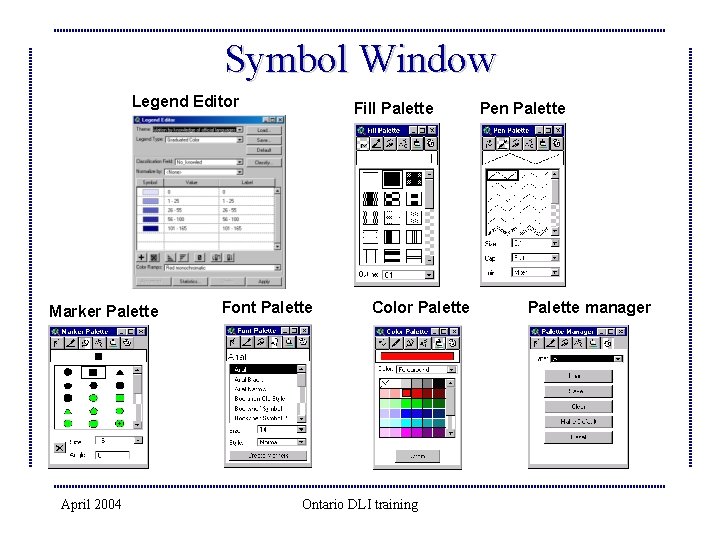

Symbol Window Legend Editor Marker Palette April 2004 Fill Palette Font Palette Color Palette Ontario DLI training Pen Palette manager
Let’s Map 2001 Census Data… Proportion of Italian Mother Tongue by Census Tracts Source: Statistics Canada 2001 Census data and cartographic boundary files Author: Nancy Lemay Projection: Lambert Conformal Conic April 2004 Ontario DLI training
Saving the Beyond 20/20 table • Open the B 20/20 table «. ivt » for: – Profile of Citizenship, Immigration, Birthplace, Generation Status, Ethnic Origin, Visible Minorities and Aboriginal Peoples, for Census Metropolitan Areas, Tracted Census Agglomerations and Census Tracts, 2001 Census - Cat. No. 95 F 0489 XCB 01005 • After subsetting the B 20/20 table to include only Ottawa Census Tracts, save the table as a «. dbf » file. April 2004 Ontario DLI training
Importing the CBF. e 00 file a) Under Start then Programs, you will find under Esri: April 2004 Ontario DLI training
Importing the. e 00 file (cont’d) b) c) Click on Browse… to find your. e 00 file on your hard drive. Click on Browse… and select where you want to save the new data files and type a new filename in Output Data Source. April 2004 Ontario DLI training
Open Arc. View • Open Arc. View and double-click on Views in the project view. April 2004 Ontario DLI training
Set working directory… When starting a project in which new data needs to be created, the working directory has to be set so that Arc. View knows where to store the files. File -> Set Working Directory After this has been selected a dialog will appear where the working directory can be set. April 2004 Ontario DLI training
Load cartographic boundary file To add a new theme click on April 2004 Ontario DLI training
Make theme active Add a check to make theme active April 2004 Ontario DLI training
Add table to your new project • Open Arc. View 3. x make Tables active in the project window, click on Add. (2) (1) (3) April 2004 Ontario DLI training
Information on Table Joins • A join function is provided in Arc. View so that the census data can be appended to the attribute table of the CBF. • In order to join the two tables, a common field containing the same values must be identified. Please note that the name of the field does not have to be the same, but the values in the field must be of the same type (string vs number). April 2004 Ontario DLI training
Prepare census table for a join • To Edit the census table click under Table –> Start Editing • Under Edit click Add Field… • Type « CTUID » for Name, select « String » as a Type and « 10 » for Width. • Click under Table –> Stop Editing April 2004 Ontario DLI training
• We need to convert these census tract labels to recreate the common field in our profile data. • Click Calculate in the Field menu. The calculation is based on the following instruction: CTUID=505. As. String+[Geography]. Left(7), which means that the CTUID string is created by adding the Ottawa CMA code as a string to the left-most 7 characters in each of the Geography labels. April 2004 Ontario DLI training
Open CBF table To open the CBF table go back to the View and click the table icon on the button bar April 2004 Ontario DLI training
Identify common field Find the common field, it should be left justified (string). April 2004 Ontario DLI training
Join the census data with CBF Destination table Source table April 2004 Ontario DLI training
• In the attribute table click on the field you will use to join. You know the field is selected when it is sunken and darker than the surrounding fields. • In the shapefile table click on the same field. Click Table in the menu and then Join or click on the following button: Destination table April 2004 Ontario DLI training Source table
Calculate the ratio Open the destination table and under Table select Start Editing April 2004 Ontario DLI training
Add a new field to calculate ratio Once the table is in edit mode, select Add Field under Edit. April 2004 Ontario DLI training
Define the new field • Give the new field a proper name. • Select Number as Type. • Type “ 4” for number of Decimal Places. April 2004 Ontario DLI training
Calculate the new variable • Under Field select Calculate… • Let’s calculate the ratio of people who have Italian as a mother tongue and the total population. April 2004 Ontario DLI training
Map the new variable • Go back to the View and double-click on the active theme. • We will select Graduated Color as a Legend type. April 2004 Ontario DLI training
Select a classification field • Select your newly created variable called Ratio for the Classification Field. Click Apply. April 2004 Ontario DLI training
Choose a projection • A projection is needed for publication purposes and for calculating distances. • Under View select Properties. • Select kilometers as Map Units and Distance Units. • Click on Custom and select Lambert Conformal Conic. April 2004 Ontario DLI training
Optional: add hydrography • Click on the to add the hydrography shapefile. • Remember to make it active by adding a checkmark. Double-click on the active theme to activate the Legend Editor and doubleclick on the color box below Symbol. Click on the paint brush to select a new color. Click Apply. April 2004 Ontario DLI training
Final results April 2004 Ontario DLI training
Comparing Arc. View 3. x and Arc. GIS 8. x • Same basic functionality as 3. x • Separate software modules for organizing files (Arc. Catalog), accessing tools (Arc. Toolbox) and working with data (Arc. Map). • Projection-on-the-fly • Direct read of more data formats • Can import 3. x project files and legend files April 2004 Ontario DLI training
Terminology • Project files (*. apr) become map documents (*. mxd) • Projects become maps • Views become data frames April 2004 Ontario DLI training
Interface • No more project window • Table of contents – Display view – Source view • Map display • Toolbars April 2004 Ontario DLI training
Importing • Simple to do, but it has been known to cause problems. – Primarily, cannot import all 3. x views • Import 3. x project files (*. apr) • Import 3. x legend files (*. avl) April 2004 Ontario DLI training
Project file problem… • Arc. Map allows the storing of relative path names. • Use “Set Data Source” to find lost layers or simply remove and re-add the lost layer. April 2004 Ontario DLI training
New terminology • http: //www. esri. com/news/arcuser/0402/files/talking. pdf April 2004 Ontario DLI training
References • Robinson, A. H. , et al. , Elements of cartography. 6 th ed. 1995, New York: John Wiley. 674. April 2004 Ontario DLI training
Partial Credits for Stolen Slides • http: //tdr. tug-libraries. on. ca/HELPS/gishelp. htm • http: //prod. library. utoronto. ca: 8090/maplib/Arc. Map_Guid e. pdf • http: //www. ideal. forestry. ubc. ca/cons 340/Lecture 03. pdf • http: //maps. nrcan. gc. ca/maps 101/scale. html • http: //www. uottawa. ca/academic/arts/geographie/lpcweb/w eb 2320/ April 2004 Ontario DLI training
More info on making your projects portable: • http: //www. wlu. ca/~wwwgeog/special/geomatics/pdf/tra nsportable. pdf • http: //www. esri. com/industries/k 12/download/docs/transapr. pdf Importing Arc. View GIS Projects into Arc. GIS • http: //www. esri. com/news/arcuser/0701/avconvert. html April 2004 Ontario DLI training
