Map Visualization Symbology Labels Annotation in Arc GIS

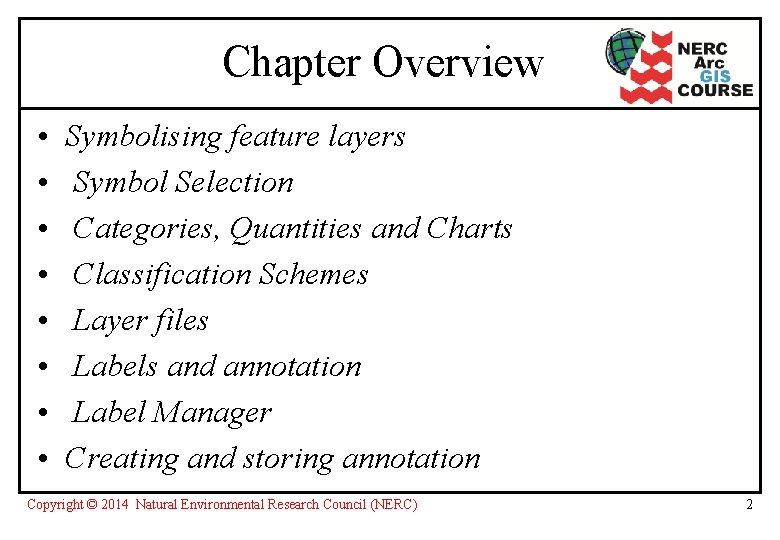

Chapter Overview • • Symbolising feature layers Symbol Selection Categories, Quantities and Charts Classification Schemes Layer files Labels and annotation Label Manager Creating and storing annotation Copyright © 2014 Natural Environmental Research Council (NERC) 2

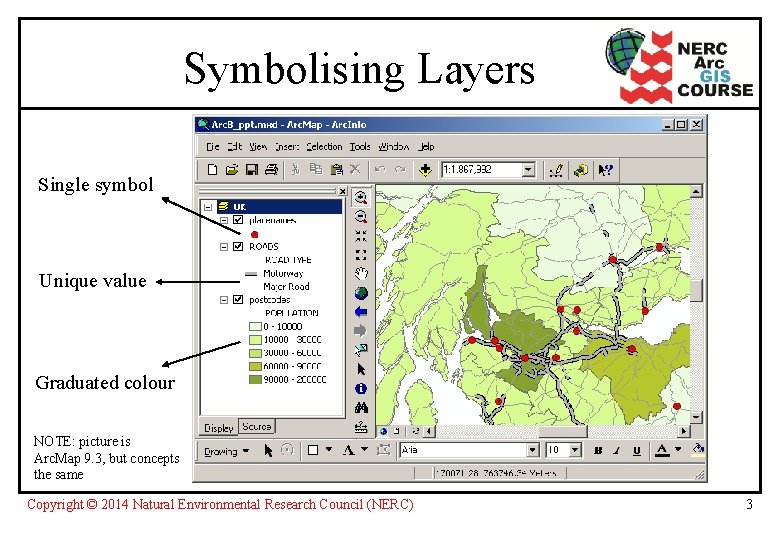

Symbolising Layers Single symbol Unique value Graduated colour NOTE: picture is Arc. Map 9.

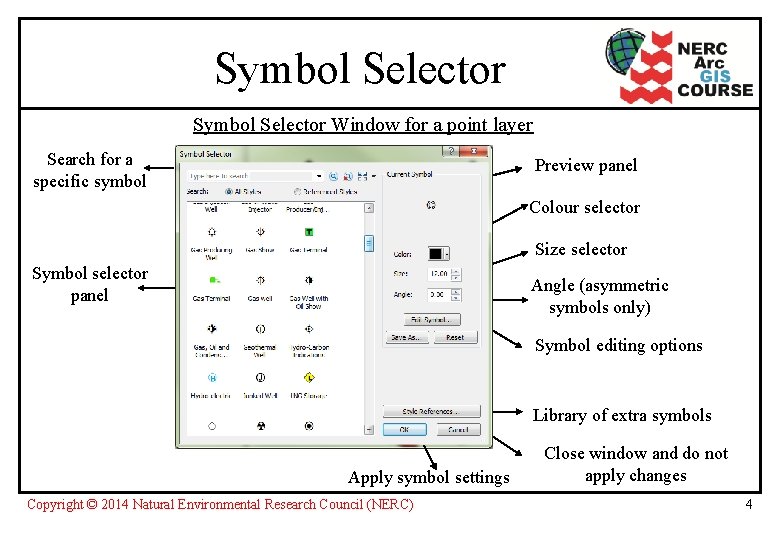

Symbol Selector Window for a point layer Search for a specific symbol Preview panel Colour selector Size selector Symbol selector panel Angle (asymmetric symbols only) Symbol editing options Library of extra symbols Apply symbol settings Copyright © 2014 Natural Environmental Research Council (NERC) Close window and do not apply changes 4

Single Symbol Layers Single symbol transparent patterned polygon fill Copyright © 2014 Natural Environmental

Categorised Layers Unique value layer Copyright © 2014 Natural Environmental Research Council (NERC) 6

Quantitative Layers Graduated colour layer Actual class boundaries Labels appearing on legend Copyright ©

Classification Window Copyright © 2014 Natural Environmental Research Council (NERC) 8

Charts PIE CHARTS - % Sand, Mud, Gravel at each sample location Copyright ©

Raster Symbolization • Stretched • Unique values • Classified Copyright © 2014 Natural Environmental

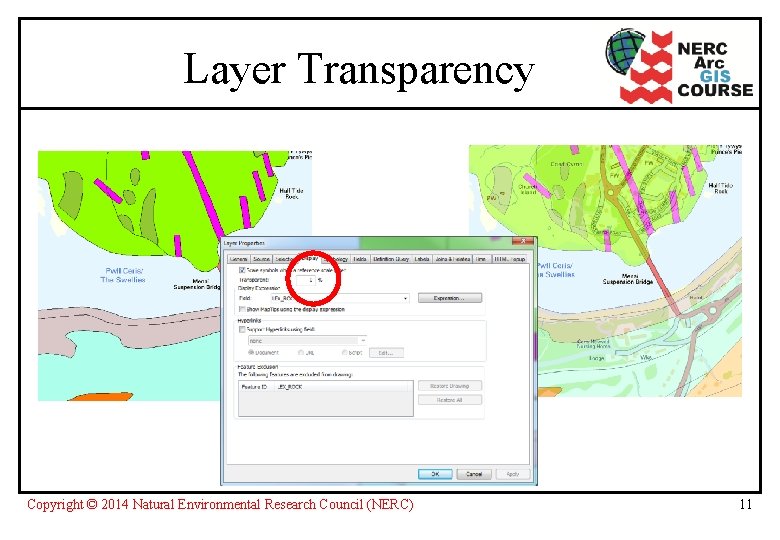

Layer Transparency Copyright © 2014 Natural Environmental Research Council (NERC) 11

Layer files Saving a layer file Group Layer Files Adding a layer file into

Importing Layer files Selecting a layer file to apply to the current feature layer The Import Symbology window where *. lyr and *. avl files can be applied to the current feature layer, or a legend from another feature layer in the project can be copied. Copyright © 2014 Natural Environmental Research Council (NERC) 13

Stylesheets Using Styles Copyright © 2014 Natural Environmental Research Council (NERC) 14

Labels and annotation Cities labelled dynamically by Arc. Map – every label has the same properties Annotation – individual text graphic selected to change properties Copyright © 2014 Natural Environmental Research Council (NERC) 15

Quick & Manual Labelling 1) 2) Drawing Toolbar Label Tool Copyright © 2014 Natural

Dynamically displaying labels Labelling features differently Set label properties Label all features the same way Turn dynamic labels on or off Choose attribute field for label text or build expression to use more than one attribute field Choose text symbol Copyright © 2014 Natural Environmental Research Council (NERC) Build an expression that identifies subset of features you want to label 17

Labeling Toolbar & Manager ©ESRI Copyright © 2014 Natural Environmental Research Council (NERC) 18

Dynamic labeling: label placement LABEL PLACEMENT PROPERTIES 1) Label Position 2) Fitting Strategy 3)

Label Priorities Copyright © 2014 Natural Environmental Research Council (NERC) 20

Dynamic labeling: setting scales om Zo to le sca Set scale range when layer’s labels visible Fix the size of labels relative to other features in the map at that scale Text appears larger when zoom in Copyright © 2014 Natural Environmental Research Council (NERC) 21

Creating annotation from labels Set Reference Scale Set current map scale to be the reference scale Convert labels to annotation Create annotation for specified features Copyright © 2014 Natural Environmental Research Council (NERC) 22

Storing annotation Store annotation in the map document Store annotation as a feature class in geodatabase Store feature-linked annotation in geodatabase Annotation feature class in Arc. Catalog Copyright © 2014 Natural Environmental Research Council (NERC) 23

Chapter Summary You have now learnt to: • Symbolise data to make it more meaningful • Save, reuse and share symbology • Apply a standard symbolisation using stylesheets • Use layer files to save symbolisation • Recognise the differences between labelling and annotation • Place labels and set their scales • Convert labels to annotation Copyright © 2012 Natural Environmental Research Council (NERC) 24
