Manufacturing Execution Systems (MES) Entering Work Instructions into 3 WS Hit F 5 key,

Manufacturing Execution Systems (MES) Entering Work Instructions into 3 WS Hit F 5 key, to view in full screen mode then ESC to return to original format.

MES Introduction Wayahead manage many different production & mixing activities within the 3 WS

MES Introduction Wayahead manage many different production & mixing activities within the 3 WS program. 3 WS has many modules to cover each manufacturing operation. Please review the 3 WS module flowchart list in this document. Specific MES work instruction (WI) functionality, is available across each 3 WS module, with flexible setup and data entry options, to cover most production requirements. This document will take you through some of the 3 WS stages, to highlight how different work instructions can be setup and then entered, during actual manufacturing activities.

MES Work Instructions in 3 WS modules

MES Work Instructions in 3 WS modules

1. Setup formula items – list of MES actions. You can setup multiple MES

1. Setup formula items – list of MES actions. You can setup multiple MES activities for the same material. Different MES actions are managed using configurable UOM setup rules. This data can also be downloaded, from your ERP system, such as SAP.

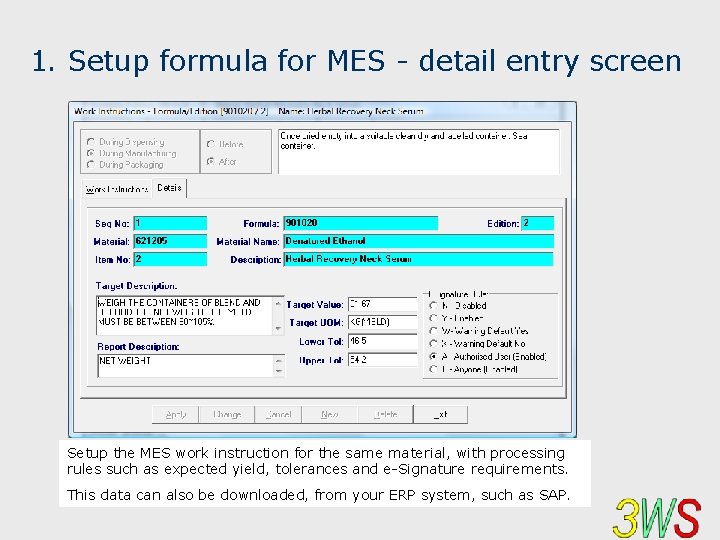

1. Setup formula for MES - detail entry screen Setup the MES work instruction

1. Setup formula for MES - detail entry screen Setup the MES work instruction for the same material, with processing rules such as expected yield, tolerances and e-Signature requirements. This data can also be downloaded, from your ERP system, such as SAP.

2. Dispensing – After dispensing message 3 WS shows an AFTER Dispensing MES work

2. Dispensing – After dispensing message 3 WS shows an AFTER Dispensing MES work instruction below. Then the program will print out a barcoded dispensing label, to be scanned during the mixing stage. The operator records the ‘Exhaust Air Flap %’ during the MES result process. Result of 31% is inside tolerance (30% - 40%), so no e. Signature is required.

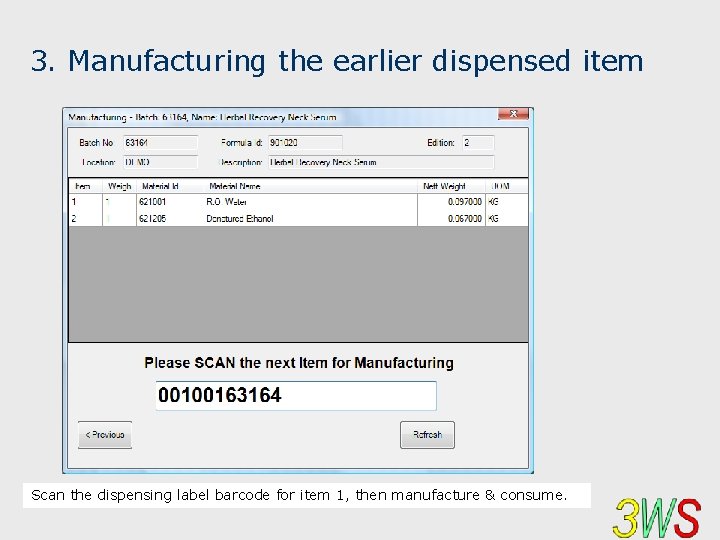

3. Manufacturing the earlier dispensed item Scan the dispensing label barcode for item 1,

3. Manufacturing the earlier dispensed item Scan the dispensing label barcode for item 1, then manufacture & consume.

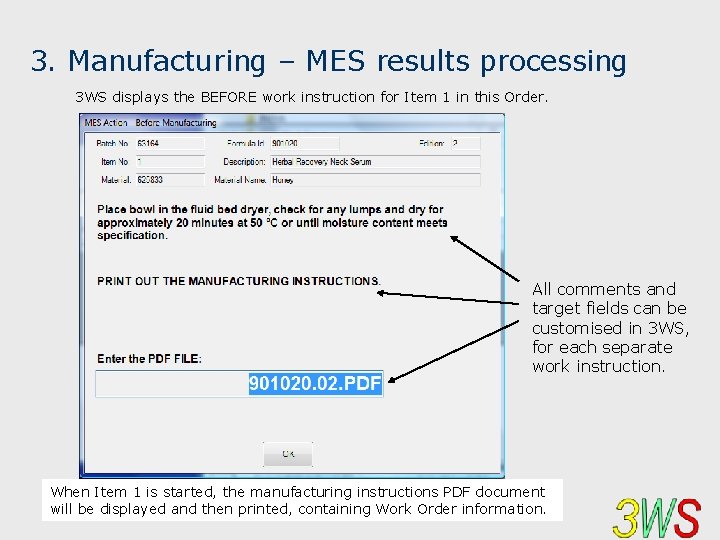

3. Manufacturing – MES results processing 3 WS displays the BEFORE work instruction for

3. Manufacturing – MES results processing 3 WS displays the BEFORE work instruction for Item 1 in this Order. All comments and target fields can be customised in 3 WS, for each separate work instruction. When Item 1 is started, the manufacturing instructions PDF document will be displayed and then printed, containing Work Order information.

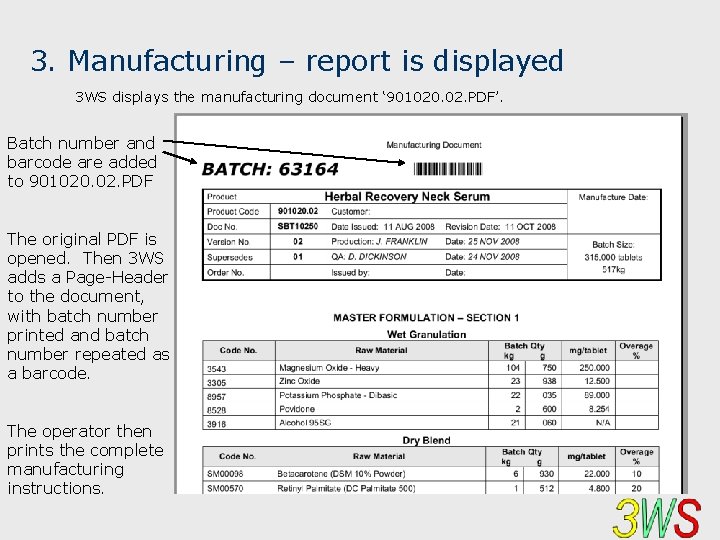

3. Manufacturing – report is displayed 3 WS displays the manufacturing document ‘ 901020.

3. Manufacturing – report is displayed 3 WS displays the manufacturing document ‘ 901020. 02. PDF’. Batch number and barcode are added to 901020. 02. PDF The original PDF is opened. Then 3 WS adds a Page-Header to the document, with batch number printed and batch number repeated as a barcode. The operator then prints the complete manufacturing instructions.

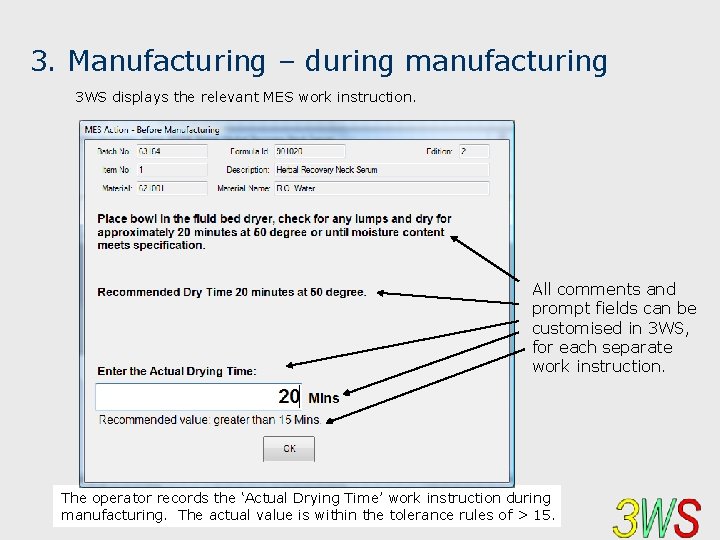

3. Manufacturing – during manufacturing 3 WS displays the relevant MES work instruction. All

3. Manufacturing – during manufacturing 3 WS displays the relevant MES work instruction. All comments and prompt fields can be customised in 3 WS, for each separate work instruction. The operator records the ‘Actual Drying Time’ work instruction during manufacturing. The actual value is within the tolerance rules of > 15.

3. Manufacturing - after manufacturing After item 2 is consumed, 3 WS displays the

3. Manufacturing - after manufacturing After item 2 is consumed, 3 WS displays the AFTER MES work instruction. Yield will be instantly calculated and displayed. The operator records the ‘NET WEIGHT’ yield MES result after mixing the item.

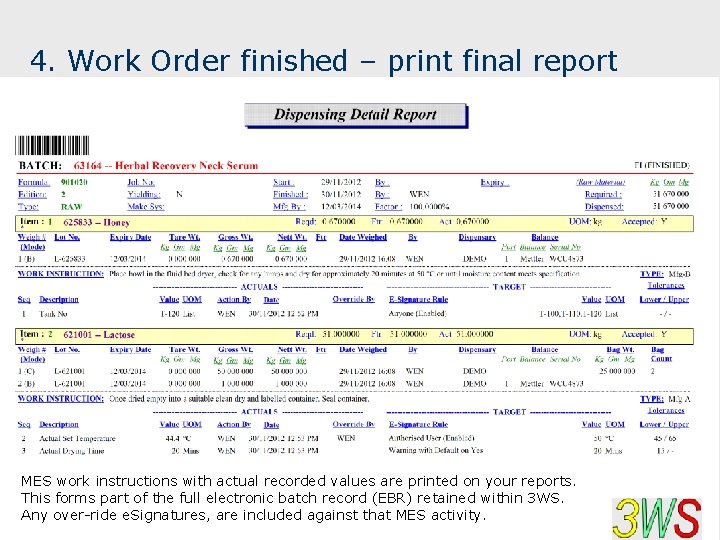

4. Work Order finished – print final report MES work instructions with actual recorded

4. Work Order finished – print final report MES work instructions with actual recorded values are printed on your reports. This forms part of the full electronic batch record (EBR) retained within 3 WS. Any over-ride e. Signatures, are included against that MES activity.

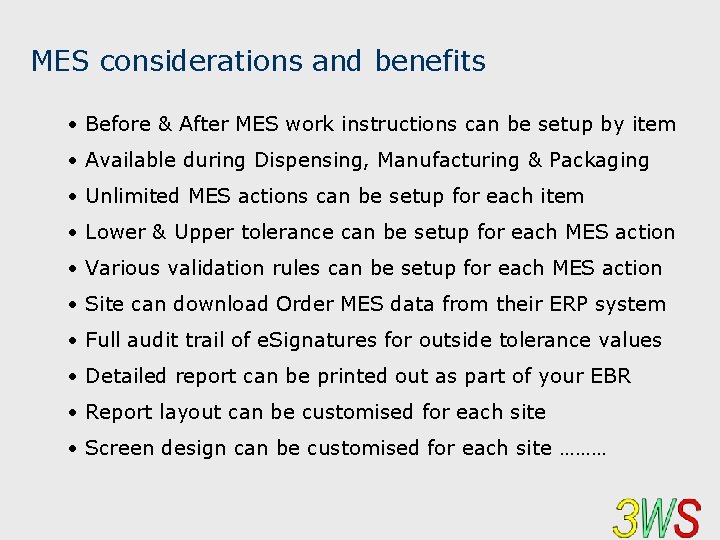

MES considerations and benefits • Before & After MES work instructions can be setup

MES considerations and benefits • Before & After MES work instructions can be setup by item • Available during Dispensing, Manufacturing & Packaging • Unlimited MES actions can be setup for each item • Lower & Upper tolerance can be setup for each MES action • Various validation rules can be setup for each MES action • Site can download Order MES data from their ERP system • Full audit trail of e. Signatures for outside tolerance values • Detailed report can be printed out as part of your EBR • Report layout can be customised for each site • Screen design can be customised for each site ………

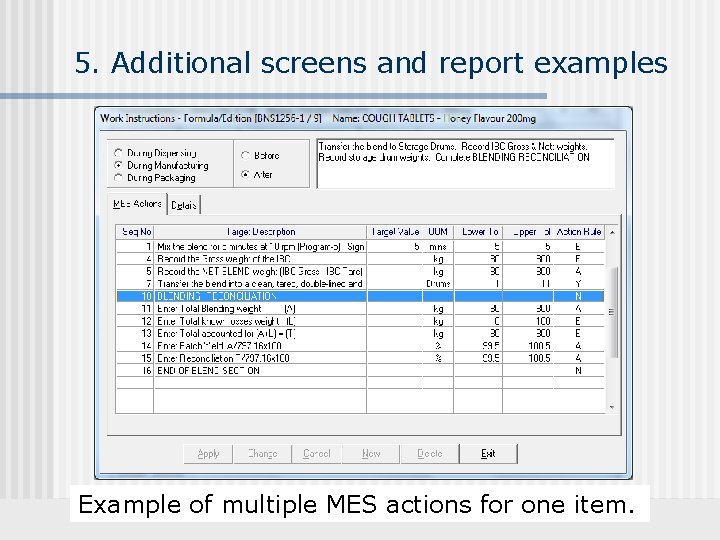

5. Additional screens and report examples Example of multiple MES actions for one item.

5. Additional screens and report examples Example of multiple MES actions for one item.

Item=1 EBR after MES Actions are entered Example of multiple MES actions for an

Item=1 EBR after MES Actions are entered Example of multiple MES actions for an item, with one over-ride

Item=14 EBR before MES results are entered Example of EBR report, PRIOR to recording

Item=14 EBR before MES results are entered Example of EBR report, PRIOR to recording of actual consumption data for Blending, Net weight & the final Reconciliation formula.

Item=14 EBR after MES results are entered Example of completed Blending, Net weight &

Item=14 EBR after MES results are entered Example of completed Blending, Net weight & Reconciliation data. Note: all report layouts and contents can be customised onsite.
