Manufacturer independent Battery Sizing according to IEEE Short

Manufacturer independent Battery Sizing according to IEEE Short description and important features

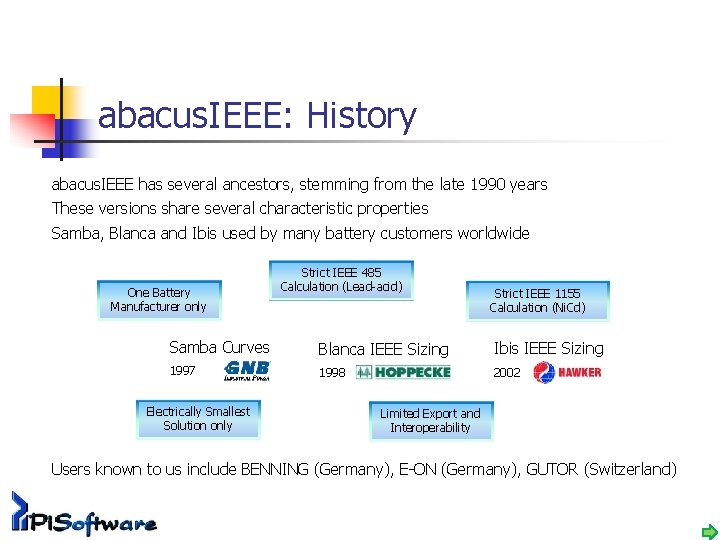

abacus. IEEE: History abacus. IEEE has several ancestors, stemming from the late 1990 years These versions share several characteristic properties Samba, Blanca and Ibis used by many battery customers worldwide One Battery Manufacturer only Strict IEEE 485 Calculation (Lead-acid) Strict IEEE 1155 Calculation (Ni. Cd) Samba Curves Blanca IEEE Sizing Ibis IEEE Sizing 1997 1998 2002 Electrically Smallest Solution only Limited Export and Interoperability Users known to us include BENNING (Germany), E-ON (Germany), GUTOR (Switzerland)

abacus. IEEE: Evolution abacus. IEEE has evolved to a techno and commercial tool during the last decade There are several editions, both manufacturer dependent and independent abacus. IEEE implements many extensions and has many new features Calculation Extensions to IEEE 485 and 1115 Unlimited number of Manufacturers BENNING Edition All possibly usable Batteries calculated 2008 2010 HBL Edition 2011 PANASONIC Edition FIAMM Edition Compare Results for different Manufacturers FAAM Edition Output Documents both technical and commercial 2012 2011 Link to Rack and Cabinet sizing software AEG Edition 2018 Output Documents in arbitrary languages GAZ Edition 2015 Output Documents exportable as HTML, PDF, DOC, E-Mail New Users (partly early test stage) include AMETEK, NORTHSTAR, VERTIV, YUASA

abacus. IEEE: Editions abacus. IEEE is available in two main editions Single Edition is for Battery Manufacturers and their Clients Premium Edition is for OEMs and Battery Traders One Battery Manufacturer only Usually Open Redistribute License Find all Results for Distribute Manufacturer Files and Exports interchangeable abacus. IEEE Single Edition est. 1998/2010 abacus. IEEE Premium Edition est. 2008/2014 Cheap Upgrade from Single to Premium is possible Unlimited number of Manufacturers Usually Open Company License Compare Results for different Manufacturers

abacus. IEEE: Distributions abacus. IEEE is available in two main distributions abacus 4 b is for bundling in big companies with very many users and needs installation abacus 4 u is for you in a smaller company with fewer users and needs no installation Files and Exports interchangeable Installed on every User‘s Computer Company-wide License usually abacus 4 b abacus 4 u Setup Edition est. 2014 Updates for Software and Databases needed Online Edition Running on the Pi. Software Server Cheap individual Subscription model est. 2008/2014 abacus 4 b Single Edition can be individually updated to abacus 4 u Premium Edition Software and Databases always up-to-date

abacus. IEEE: User Interface design Language selection Ribbons instead of Menus Database tools Presentation of results very variable Font, font size and font style Multiple Documents simultaneously

abacus. IEEE: Sizing Wizard, Battery Permanent instruction Select database (e. g. manufacturer) Clear orientation Filter for Battery type Electrode type Life time Outlet Application Select one or more battery types Additional settings

abacus. IEEE: Sizing Wizard, Cells IEEE-Mode: ONE number of cells Minimum system voltage leads to Final voltage per cell Maximum system voltage leads to IEEE-ideal number of cells

abacus. IEEE: Sizing Wizard, Cells Cell-Mode: Cells range given Minimum system voltage or Final voltage per cell given Number of cells variegated automatically Final voltage per cell or minimum system voltage will be calculated

abacus. IEEE: Sizing Wizard, Cells Voltage-Mode: Voltages given Minimum system voltage or Final voltage per cell given Number of cells variegated. Final voltage per cell or minimum system voltage will be calculated Maximum system voltage and minimum number of cells given

abacus. IEEE: Sizing Wizard, Load IEEE Load types Power loads with Kt. P und Rt. P Input with power factor, efficicieny and apparent power Comfortable Load input in table IEEE Random Load profile easily editable

abacus. IEEE: Sizing Wizard, Custom Ambient temperatures Additional parameters: Design and Aging Custom sizing: State of Charge and Tolerance Custom sizing: Range of Parallel strings Mix blocks with various cell numbers

abacus. IEEE: Sizing Wizard, Project data Additional data

abacus. IEEE: IEEE Worksheet (HTML) Project data Header Load profile Normed calculation Random Load Recommended Battery

abacus. IEEE: Report (HTML) Header Graphical load profile Recommended Battery picture Additional data

abacus. IEEE: Calculation control Progress indicator Remaining time Progress Calculations Failures, i. e. unsuitable batteries Success, i. e. usable batteries Cancel button Configurable summary

abacus. IEEE: Result list Sorting, e. g. Price or Workload Columns, hideable Results freely groupable Synchronizing with Cell. View Multiple grouping Sorting within groups Selection of preferred result

abacus. IEEE: Battery. Explorer Additional freely configurable View of all Cellytypes for all manufacturers/databases (Cell. View) Synchronizing with Result. List Sortable, groupable, exportable

abacus. IEEE: Exporting Result Data for own further processing Grouped and sorted result list for further work, e. g. in calculation worksheet ABACUS result as HTML, PDF and MS Word File Grouped and sorted Cell. View list for further analysis, e. g. in calculation worksheet Export to custom database Launch Rack & Cabinet sizing software

abacus. IEEE: Filtering Top Filter to hide uninteresting results Show all suitable Batteries and include their commercial data Show all suitable Batteries but hide their commercial data Show best Ten, best 100 or All results Show smallest suitable Battery for every Plate type and include Price Show smallest suitable Battery for every Plate type and hide Price Show only cheapest suitable Battery for every Plate type Show smallest suitable Battery for every Plate type and include all bigger Batteries which are not more expensive…

abacus. IEEE: Quick Sizing ONE input dialogue for all typical input parameters Preselection of manufacturers and battery types Battery filter System voltages Load Type and Calculation mode Load profile

abacus: Battery Sizing Products abacus. IEEE abacus. Curves abacus. Rack • IEEE Std 485 (Lead) • IEEE Std 1115 (Ni. Cd) • IEEE Std 1568 (Railway) • Iconst Curve Interpolation • Multiple Diagrams • Data Tags and Reports • Rack & Cabinet Sizing • Battery Parameter Import • Reports and Sketches Battery Sizing & Selection Storage Sizing & Selection Constant Current Discharge Curves Constant Power Discharge Curves Language Versions 1 Voltage-over-Time Discharge Curves Goodies Tools Suite 2 Rack & Cabinet Database Administration Tools 3 Database Service / Release Service 1: German, English, more on request 2: abacus. Cells, abacus. Capacity, more planned 3: DBEncryption, Setup. Creator, and more

abacus Battery Sizing Distributions abacus: Licencing Models abacus 4 u „abacus for you“ • Online Subscription • Individual & Extendable • NEW: Shared Licences abacus 4 b „abacus for bundling“ Individual and Optimal Combination of Distribution and Edition Licence • Installable Setup Version • Open Licences available • NEW: Individual Licence abacus Single Edition „one manufacturer database“ • Online or Installable Version • Open Licences available • NEW: Shared Licences abacus Premium Edition „multiple databases“ • Online or Installable Version • Open Company available • NEW: Shared Licences abacus Battery Sizing Editions

Thank you for your interest Further Information: info@pisoftware. de www. pisoftware. de Direct Contact: support. abacus@pisoftware. de www. pisoftware. de/en/news. aspx
