MANDIBLE RT 233 MANDIBLE ANATOMY rami coronoid process

MANDIBLE RT 233

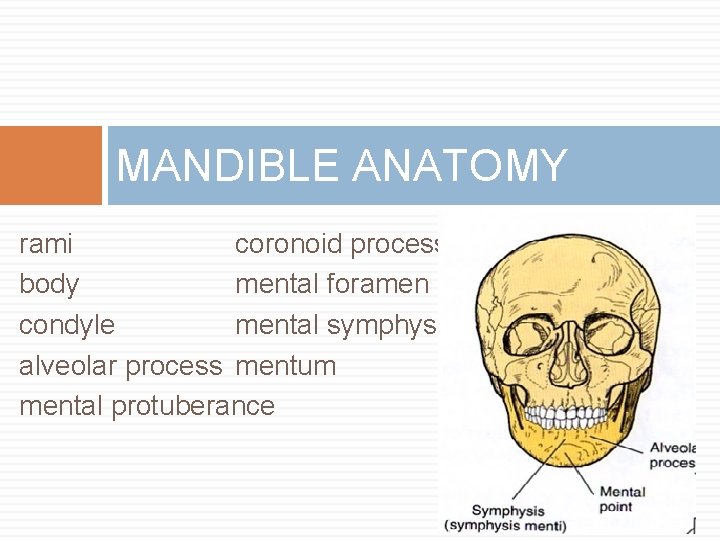

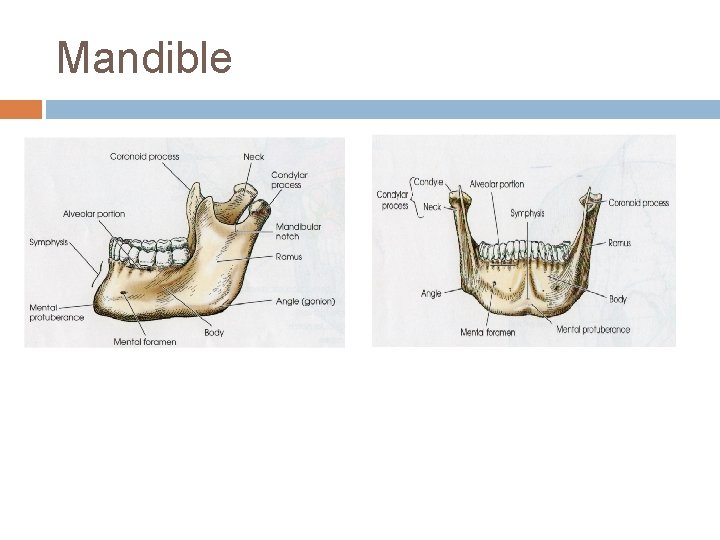

MANDIBLE ANATOMY rami coronoid process body mental foramen condyle mental symphysis alveolar process mentum mental protuberance

Mandible

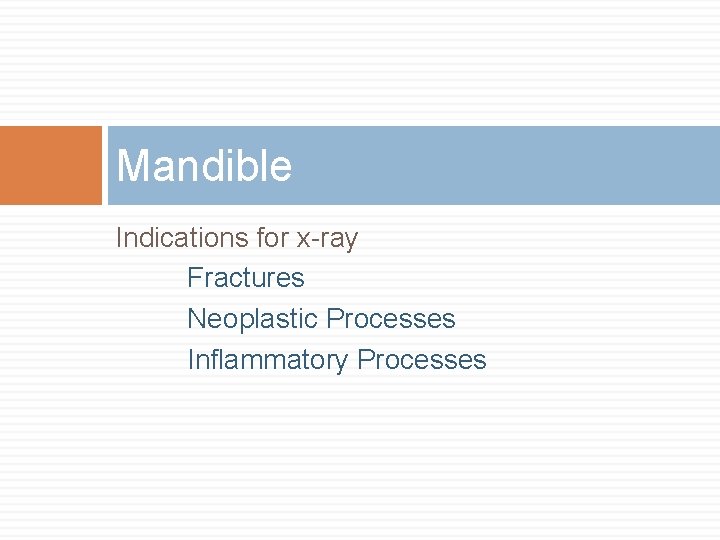

Mandible Indications for x-ray Fractures Neoplastic Processes Inflammatory Processes

Mandible

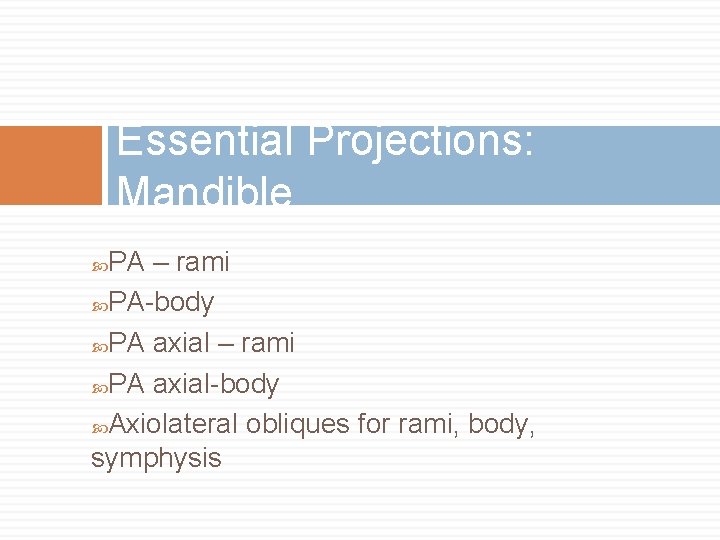

Essential Projections: Mandible PA – rami PA-body PA axial – rami PA axial-body Axiolateral obliques for rami, body, symphysis

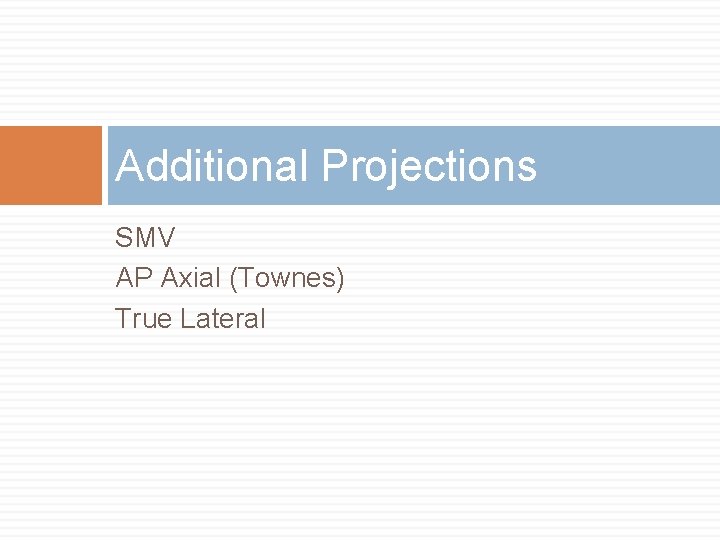

Additional Projections SMV AP Axial (Townes) True Lateral

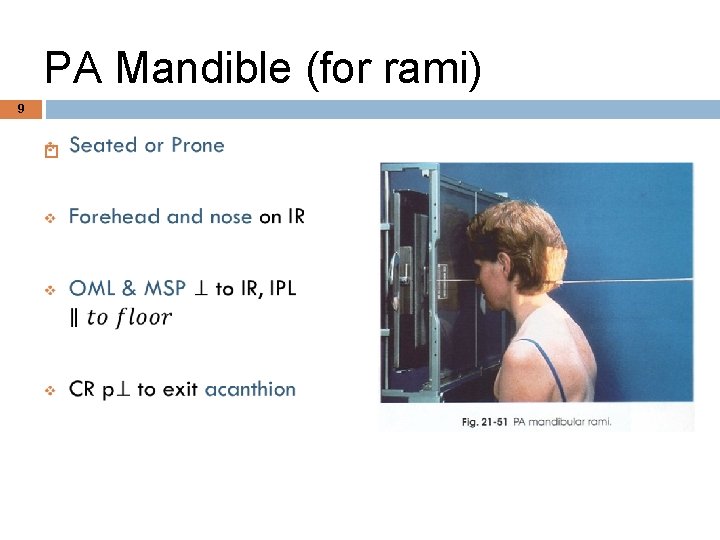

PA Mandible (for rami) 9

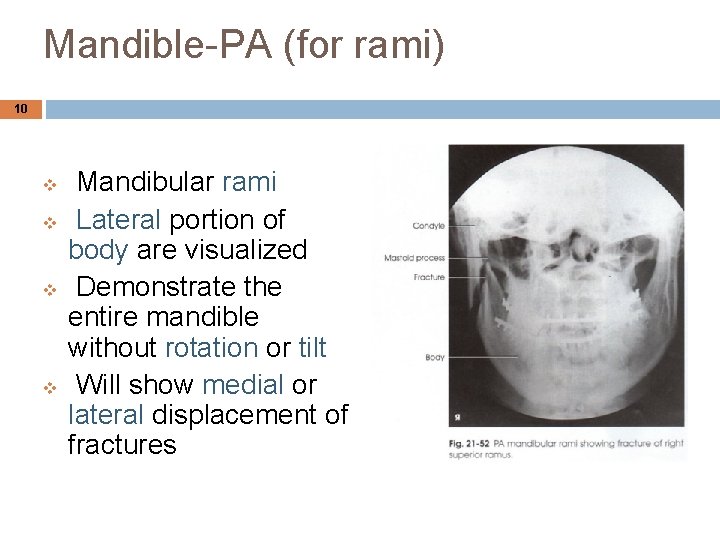

Mandible-PA (for rami) 10 v v Mandibular rami Lateral portion of body are visualized Demonstrate the entire mandible without rotation or tilt Will show medial or lateral displacement of fractures

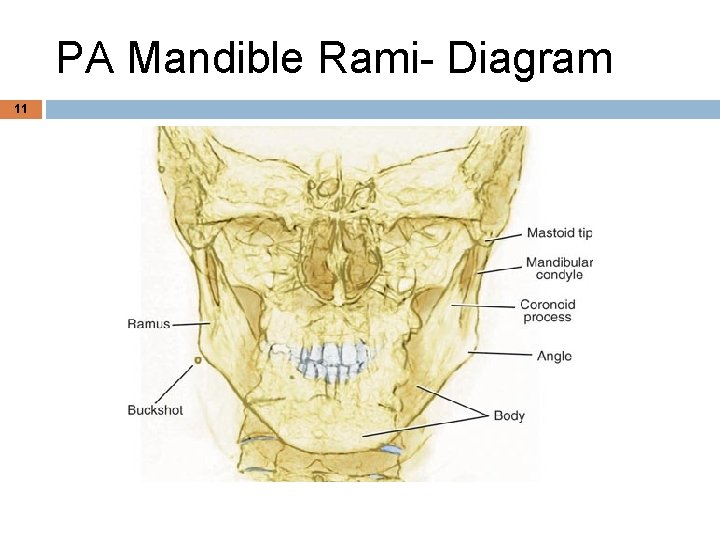

PA Mandible Rami- Diagram 11

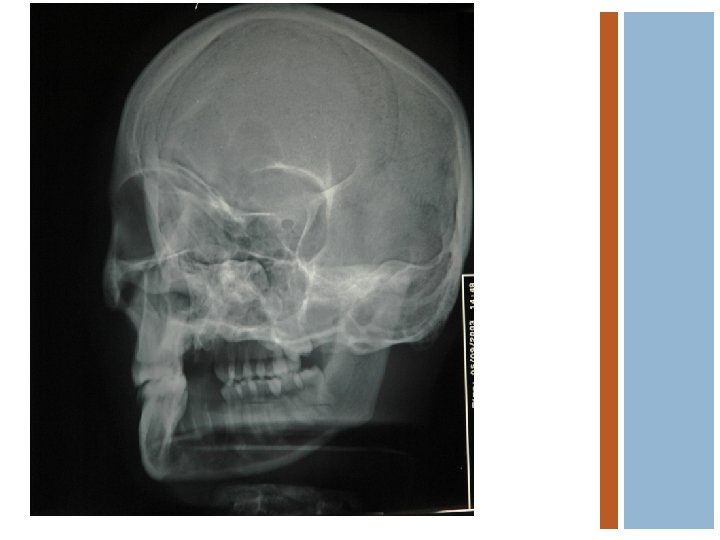

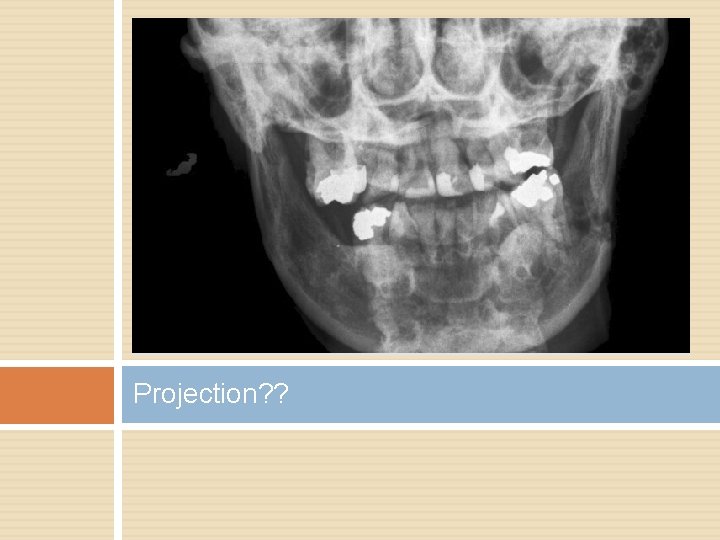

Projection? ?

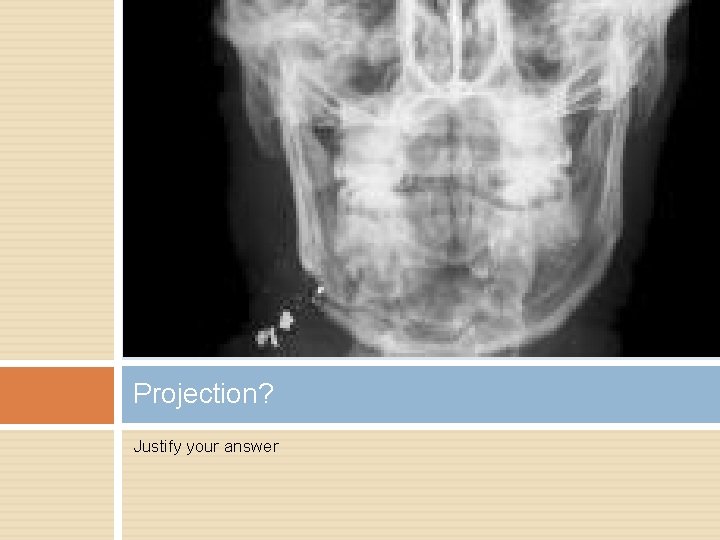

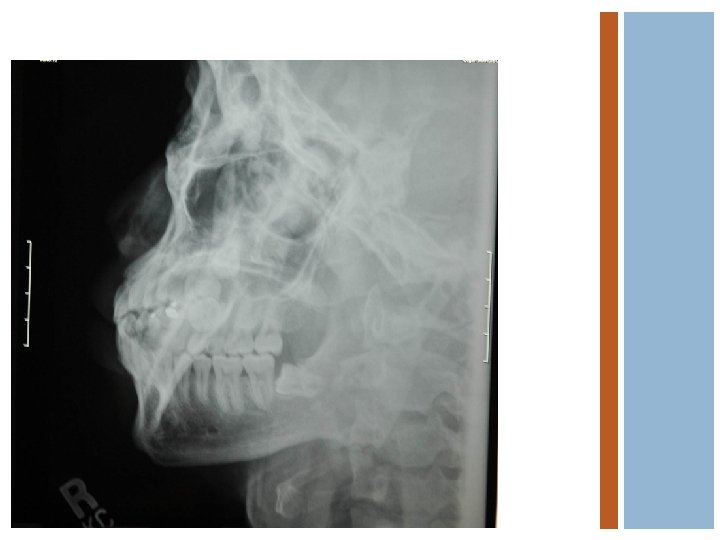

Projection? Justify your answer

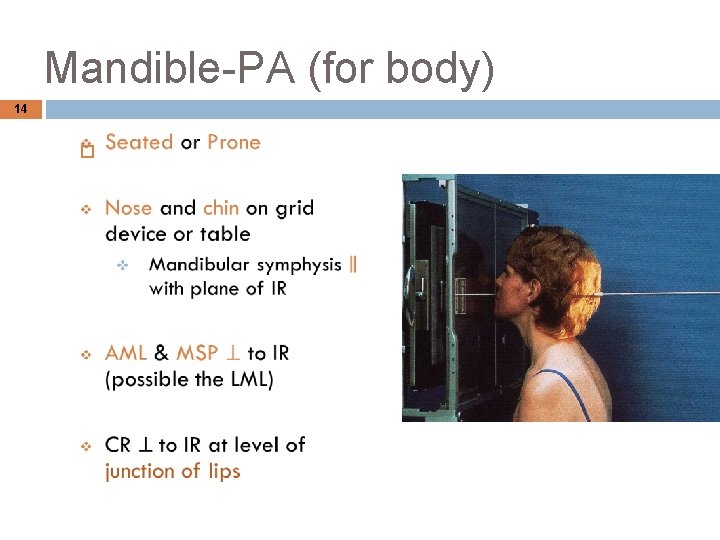

Mandible-PA (for body) 14

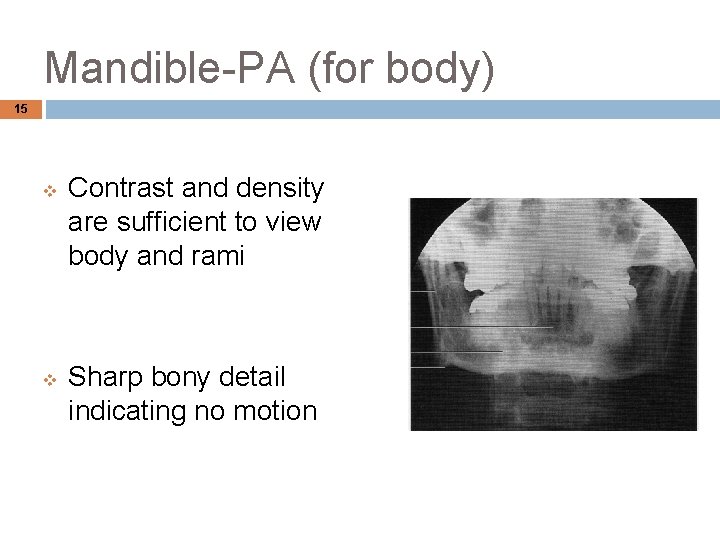

Mandible-PA (for body) 15 v v Contrast and density are sufficient to view body and rami Sharp bony detail indicating no motion

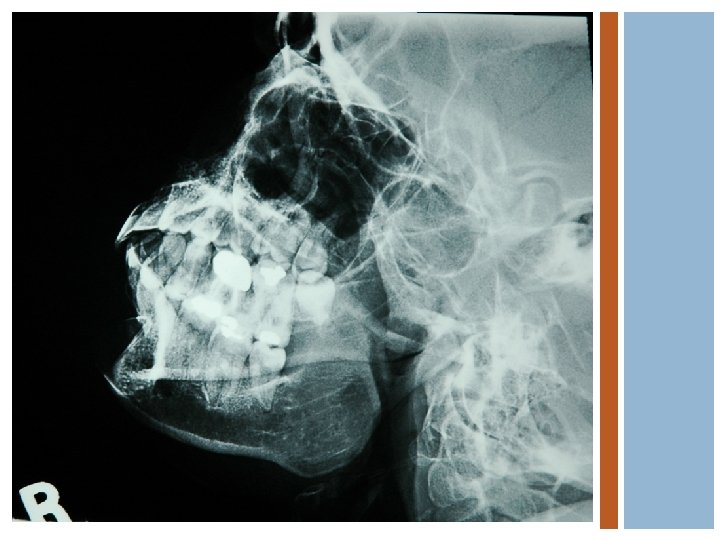

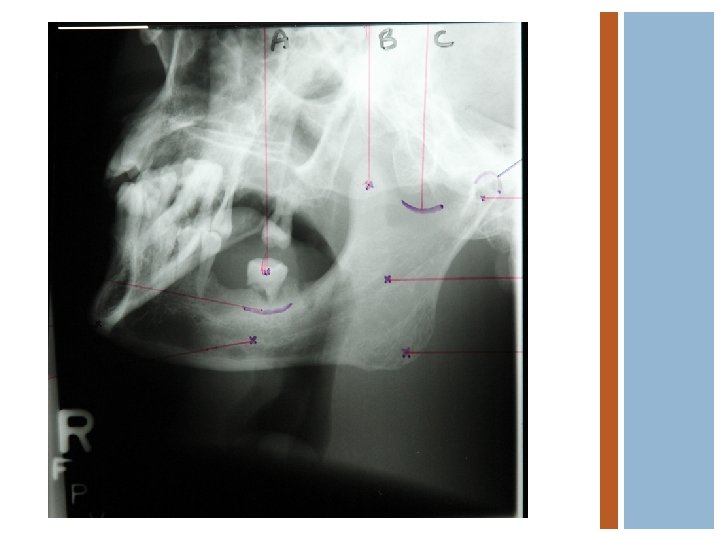

Projection? Identify labels: …. .

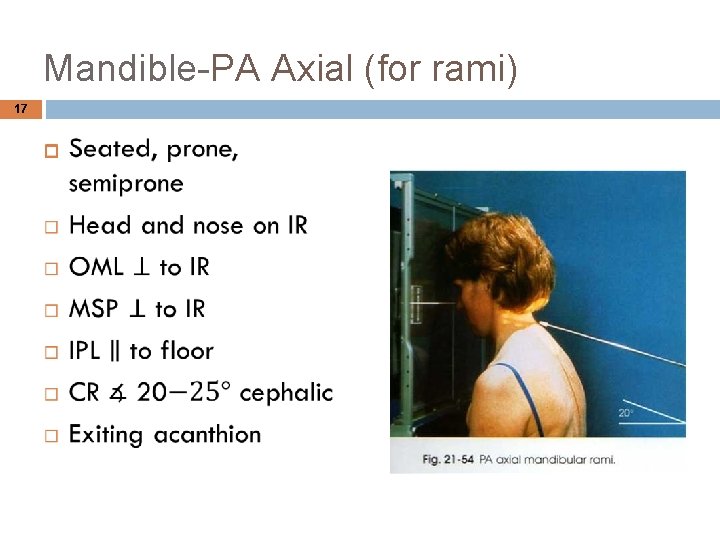

Mandible-PA Axial (for rami) 17

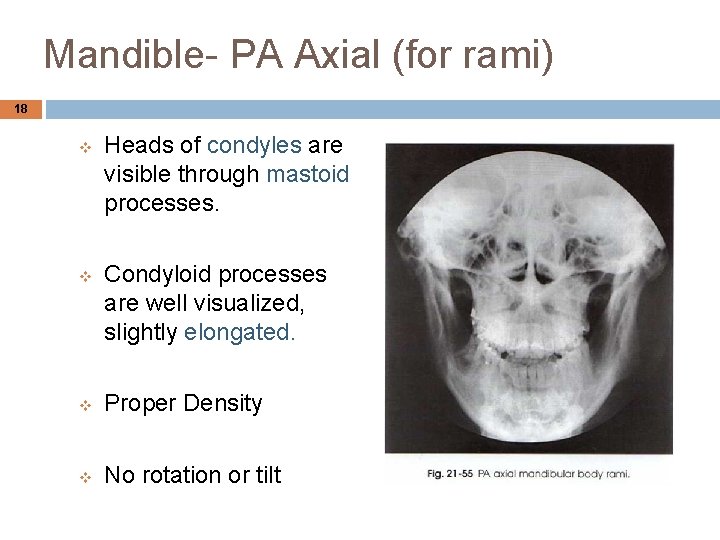

Mandible- PA Axial (for rami) 18 v v Heads of condyles are visible through mastoid processes. Condyloid processes are well visualized, slightly elongated. v Proper Density v No rotation or tilt

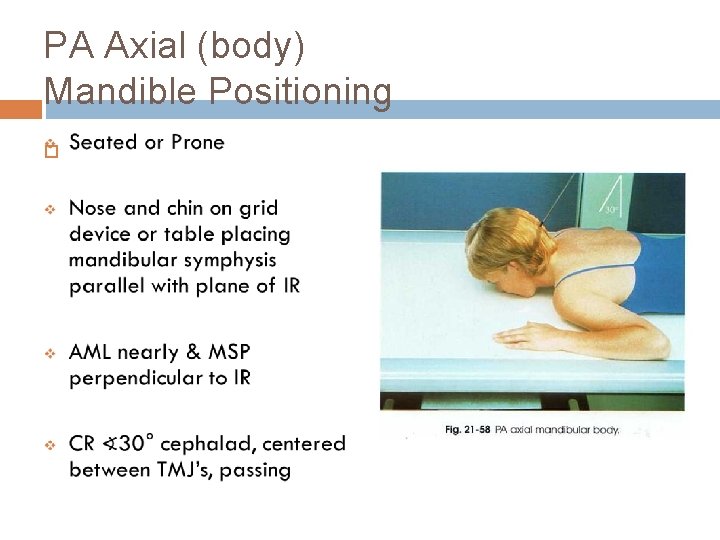

PA Axial (body) Mandible Positioning

PA Axial (body) Mandible Radiographs v v v TMJ’s just inferior to mastoid process Symmetric rami Adequate contrast and density

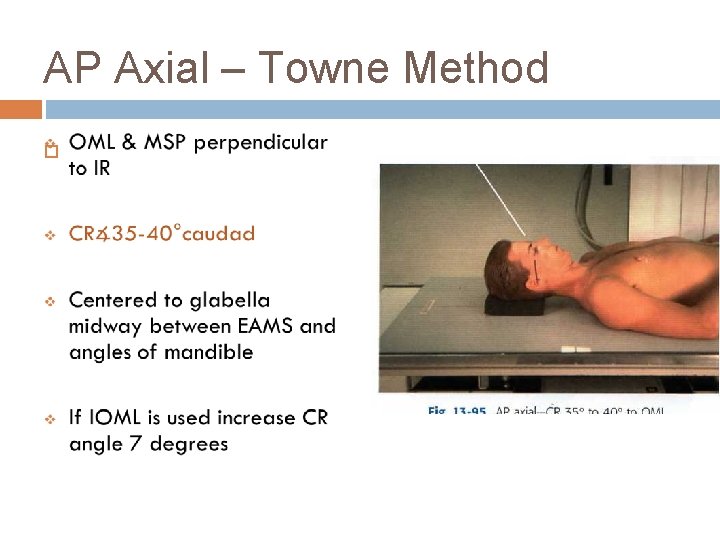

AP Axial – Towne Method

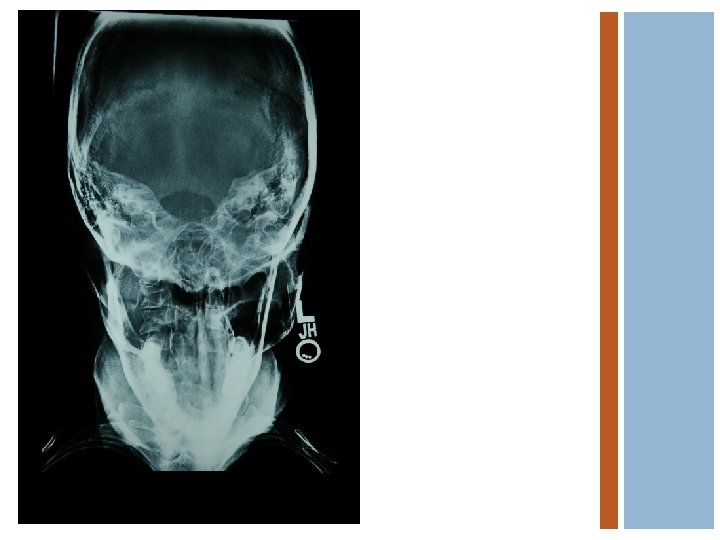

AP Axial- Towne Method Radiograph v v v Demonstrates condyloid processes symmetrically Clear visualization of TMJ fossae and condyle relationship Minimal SI of TM fossae and mastoid portions

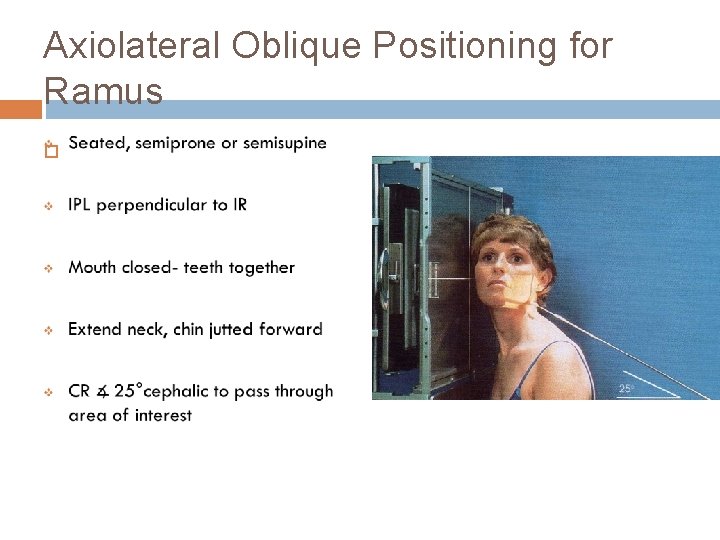

Axiolateral Oblique Positioning for Ramus

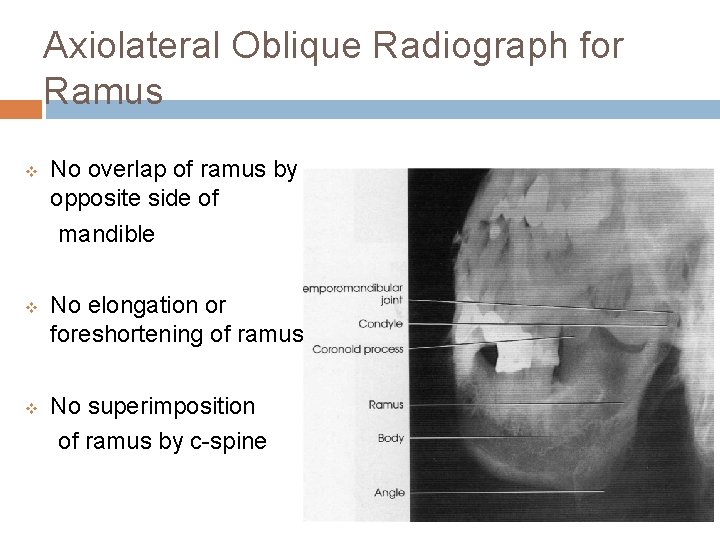

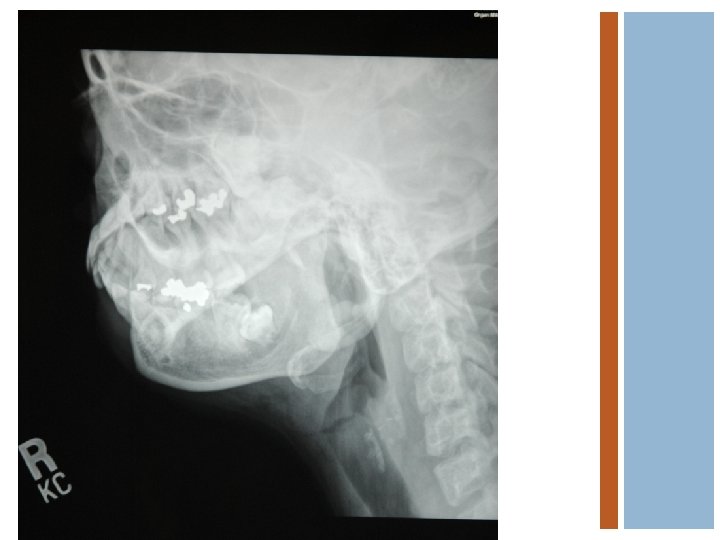

Axiolateral Oblique Radiograph for Ramus v v v No overlap of ramus by opposite side of mandible No elongation or foreshortening of ramus No superimposition of ramus by c-spine

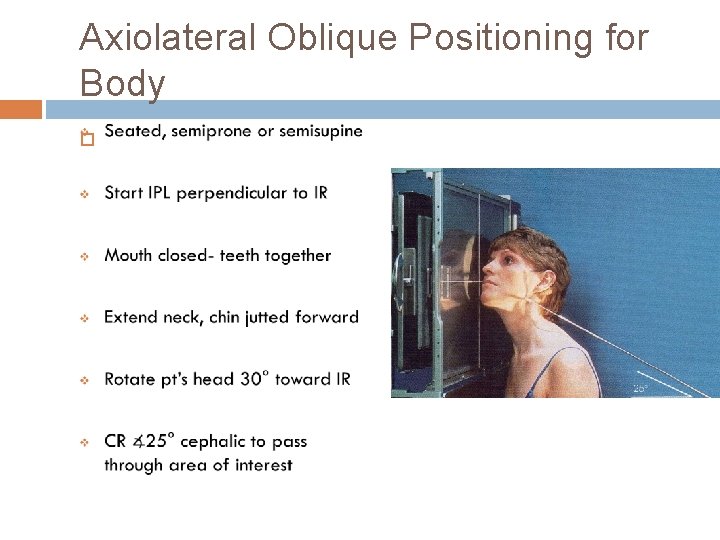

Axiolateral Oblique Positioning for Body

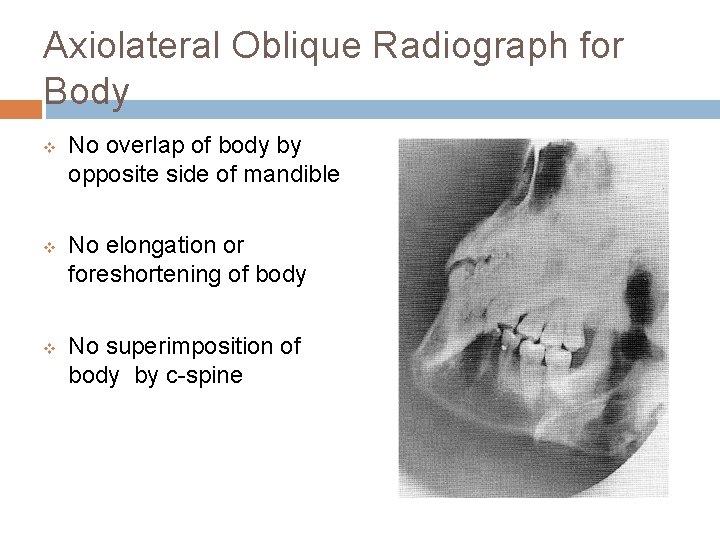

Axiolateral Oblique Radiograph for Body v v v No overlap of body by opposite side of mandible No elongation or foreshortening of body No superimposition of body by c-spine

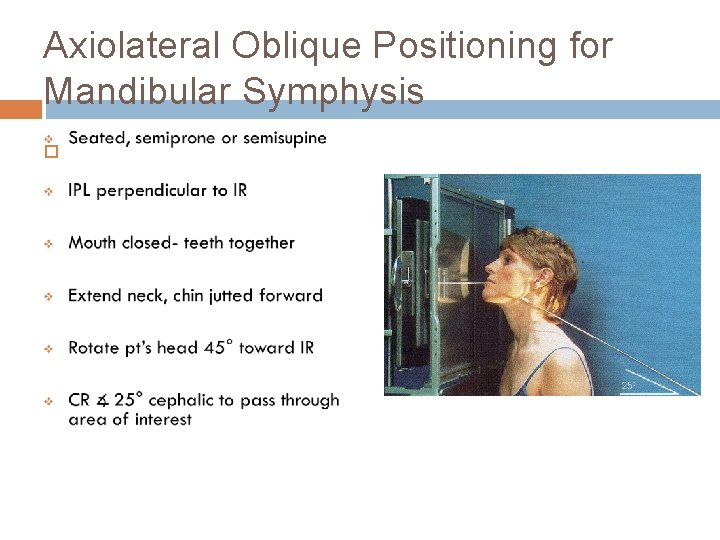

Axiolateral Oblique Positioning for Mandibular Symphysis

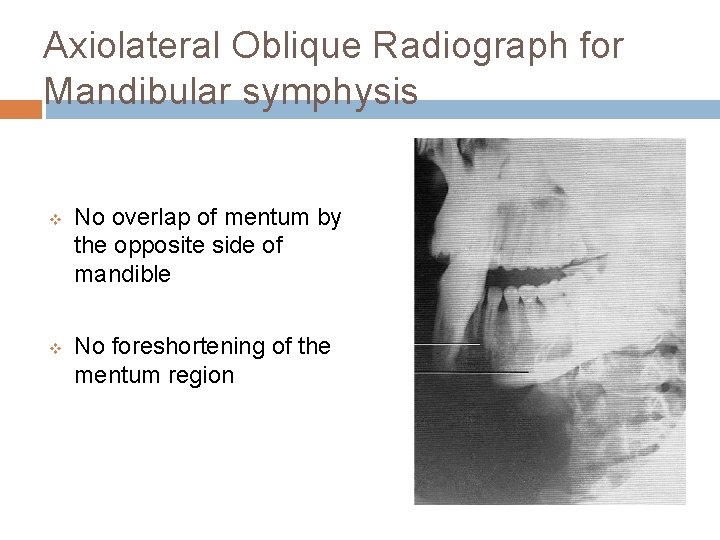

Axiolateral Oblique Radiograph for Mandibular symphysis v v No overlap of mentum by the opposite side of mandible No foreshortening of the mentum region

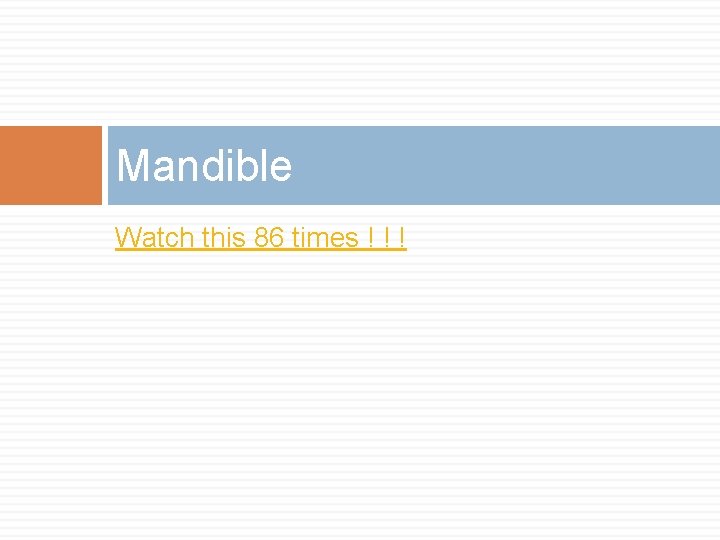

Mandible Watch this 86 times ! ! !

Mandible Watch it live!!

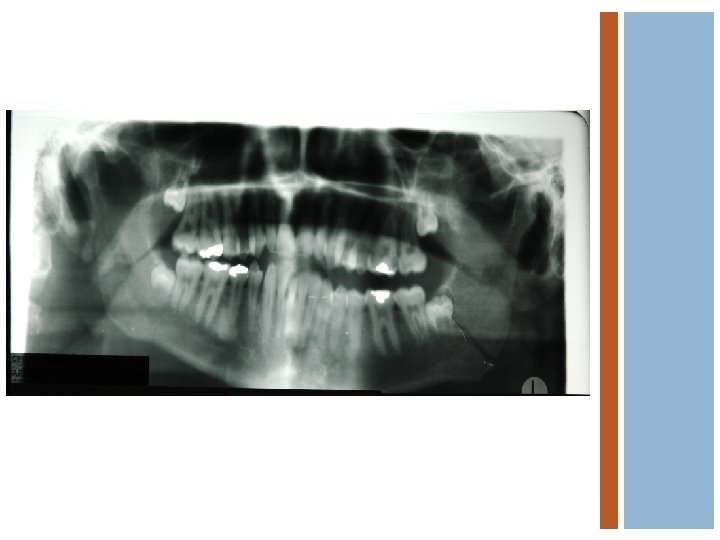

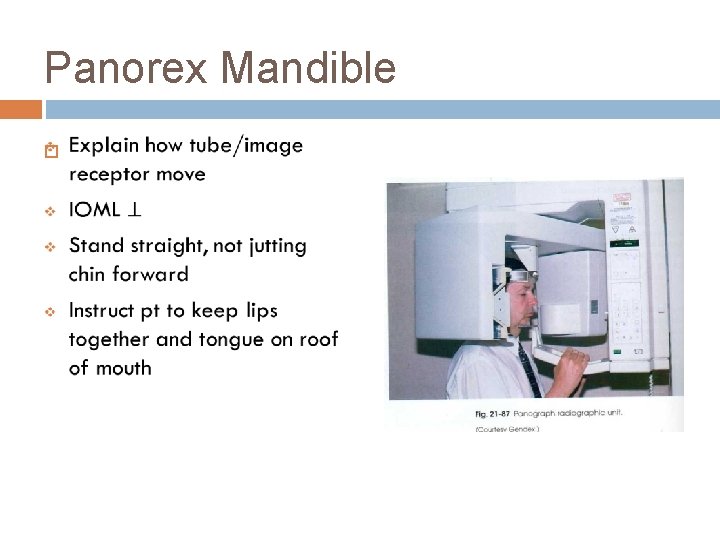

Panorex Mandible

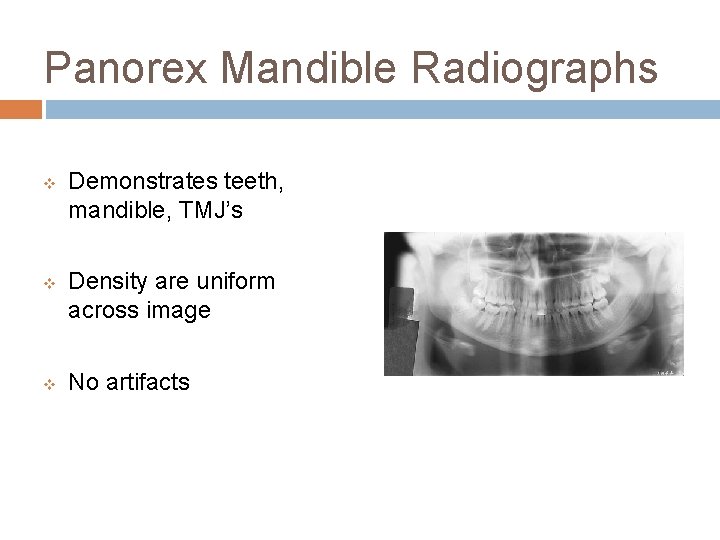

Panorex Mandible Radiographs v v v Demonstrates teeth, mandible, TMJ’s Density are uniform across image No artifacts
