Managing your SBCS with Cisco Configuration Assistant 3. 0 Steve Di. Stefano, Technical Solutions Architect – U. S. Sales Team © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1

• Software Pack Application • Network Configuration Enhancements • Locale Packs Application Static NAT • Devices Supported Modified VLAN Creation • Phone Registration and DN Assignment • New Voice Features Phone Registration and DN Assignment Improvement Extension Mobility Floating Extensions Voicemail Notifications Improved Bulk User and Phone Import SNR Timeout Call park Recall Call Hold Audible Alert FXO PSTN Trunk Port Control Live Record recurring Beep tone adjustment T. 37 Fax to Email Av. T Remote Access Paging Nesting © 2010 Cisco and/or its affiliates. All rights reserved. • Maintenance and Other Upload/Download files to UC 500 flash Enable/Disable Network polling STCAPP adjustments Configuration Archive Toll fraud with SIP Trunk Source groups 79 xx Phone Auth Failure Resolution Drag and Drop Capabilities Expanded * Codes in Outgoing Dial Plan Cisco Confidential 2

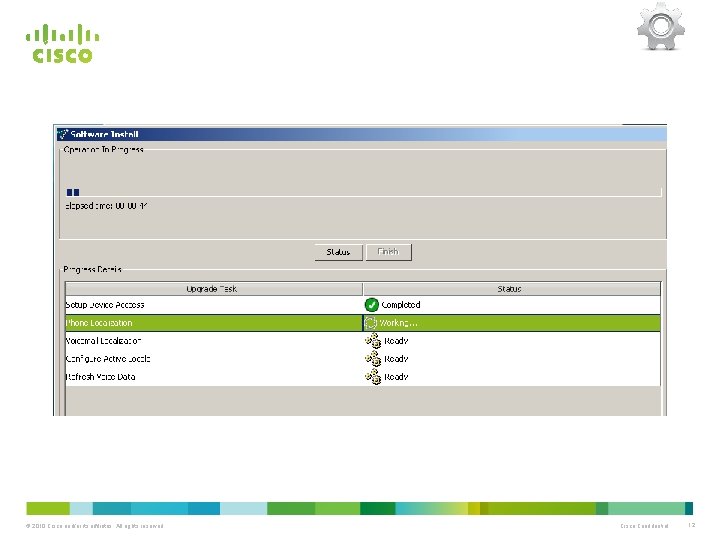

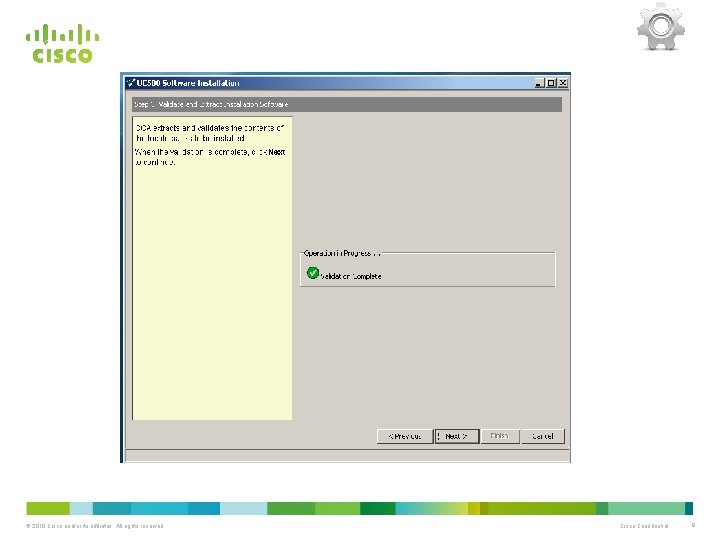

• CCA 3. 0 supports UC 500 software pack (SWP) version 8. 1. 0 • UC 500 Software Packs are large zip files that contain all necessary files for the UC 500 Series platform and locale. The factory default locale for the UC 500 is US/ English. • Separate UC 500 software packs are provided for the Model UC 520, UC 540, and UC 560 platforms. You must download the correct. zip file for your UC 500 platform. • The UC 500 software pack bundles all the necessary platform files together with all of the necessary language files and phone files for the default locale, which is US/English. The files are named UC 5 xx_8. 1. 0. zip. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

https: //supportforums. cisco. com/docs/DOC-14562 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco

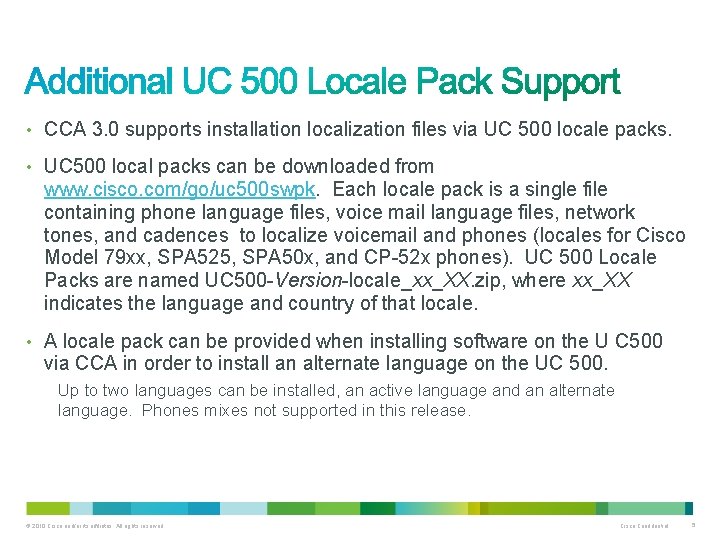

• CCA 3. 0 supports installation localization files via UC 500 locale packs. • UC 500 local packs can be downloaded from www. cisco. com/go/uc 500 swpk. Each locale pack is a single file containing phone language files, voice mail language files, network tones, and cadences to localize voicemail and phones (locales for Cisco Model 79 xx, SPA 525, SPA 50 x, and CP-52 x phones). UC 500 Locale Packs are named UC 500 -Version-locale_xx_XX. zip, where xx_XX indicates the language and country of that locale. • A locale pack can be provided when installing software on the U C 500 via CCA in order to install an alternate language on the UC 500. Up to two languages can be installed, an active language and an alternate language. Phones mixes not supported in this release. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

Locale © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 10

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 12

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 14

• Cisco Model 79 xx, SPA 3 xx, SPA 5 xx, CIPC & 69 xx IP Phone Support Cisco Model 6901, 6911, 6921, 6941, and 6961 IP phones added in 3. 0 (not 6945 yet) Drag-and-drop phone firmware upgrades are also supported for these phones. • Routers Cisco Unified Communications 500 Series platform, all models Cisco SA 500 Series Security Appliances, all models (SA 520, SA 520 W, and SA 540) FW version 2. 1. 8 Cisco SR 500 Series Secure Routers (SR 520 ADSL, - Ethernet, SR 520 -T 1) Cisco Services Ready Platform SRP 500 Series, all models discovery and cross-launch of native Web-based Configuration Utility only. Cisco 800 Series Routers: Models 831, 836, 851 W, 857 W, 871 W, 876 W, 877 M, 877 W, 878, and 878 W © 2010 Cisco and/or its affiliates. All rights reserved. • Access Points Cisco Small Business Pro AP 541 N Dualband Single-radio Access Points Cisco 521 Wireless Express Controller. Based Access Points Cisco 521 Wireless Express Autonomous Access Points Wireless LAN Controllers Cisco 526 Wireless Express Mobility Controllers • Video Cameras Cisco Model WVC 2300 and PVC 2300 Business Internet Video Cameras • Switches Catalyst Express 520 switches, all models Cisco ESW 500 Series switches, all models Cisco Confidential 15

CCA Release Notes: http: //www. cisco. com/en/US/products/ps 7287/prod_release_notes_list. html © 2010 Cisco and/or its

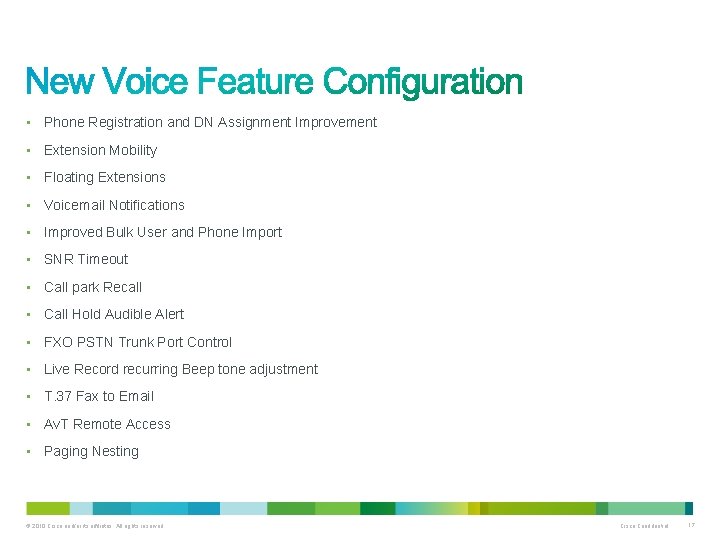

• Phone Registration and DN Assignment Improvement • Extension Mobility • Floating Extensions • Voicemail Notifications • Improved Bulk User and Phone Import • SNR Timeout • Call park Recall • Call Hold Audible Alert • FXO PSTN Trunk Port Control • Live Record recurring Beep tone adjustment • T. 37 Fax to Email • Av. T Remote Access • Paging Nesting © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 17

Ephone-DN assignment (not auto anymore) © 2010 Cisco and/or its affiliates. All rights reserved.

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 19

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 20

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 21

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 22

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 23

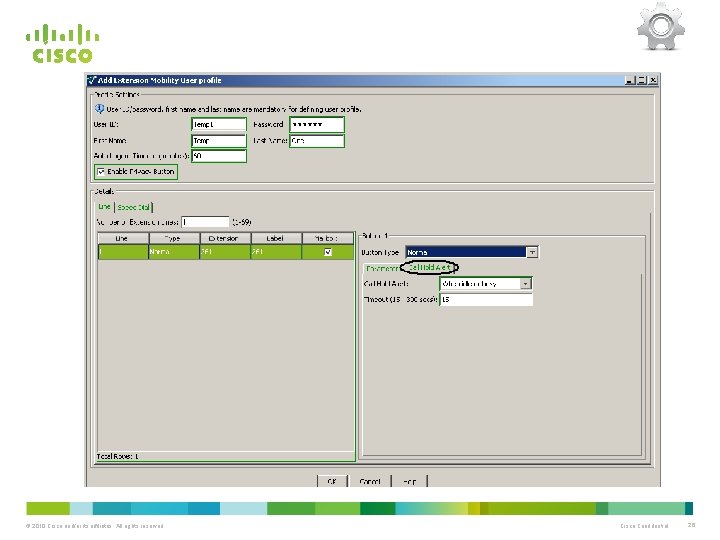

Extension Mobility http: //www. youtube. com/watch? v=2 Xge 4 qo 29 iw http: //www. youtube. com/user/Cisco. CCA#p/u/11/V 7 sz-b. H 5 M 0 o © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 24

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 25

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 26

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 27

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 28

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 29

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 30

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 31

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 32

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 33

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 34

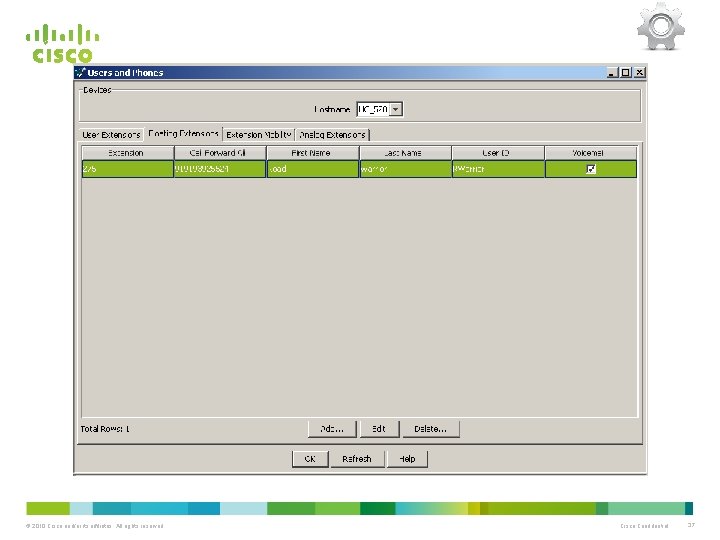

Floating Extension http: //www. youtube. com/user/Cisco. CCA#p/u/15/PVayq. RUf. H 18 © 2010 Cisco and/or

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 36

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 37

Voicemail Notifications http: //www. youtube. com/user/Cisco. CCA#p/u/7/BJVY 91 LC 92 o © 2010 Cisco

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 39

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 40

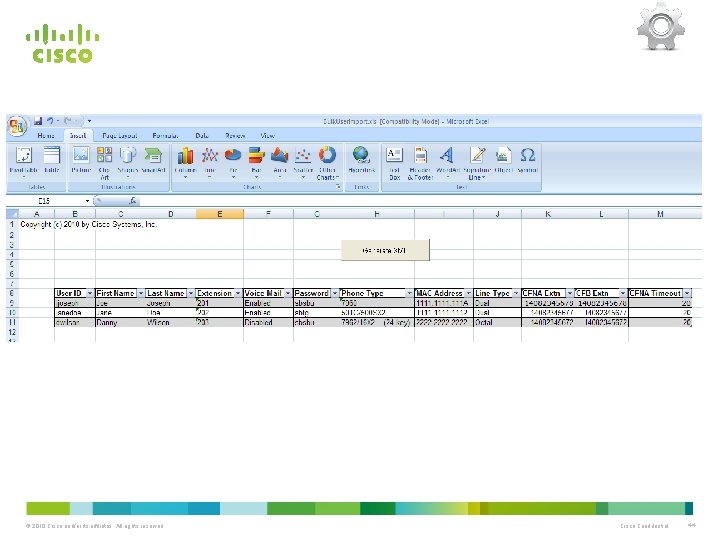

Improved Bulk User and Phone Support http: //www. youtube. com/user/Cisco. CCA#p/u/17/Wbkqxa. Vjiso © 2010

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 42

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 43

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 44

SNR Timeout http: //www. youtube. com/user/Cisco. CCA#p/u/6/QHe. CG 2 cd. Ojg © 2010 Cisco

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 46

Call Park Recall http: //www. youtube. com/user/Cisco. CCA#p/u/2/V 15 PNS 175 j. E ©

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 48

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 49

Call Hold Audible Alert http: //www. youtube. com/user/Cisco. CCA#p/u/5/o. Y 4 q. CIcd-xs ©

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 51

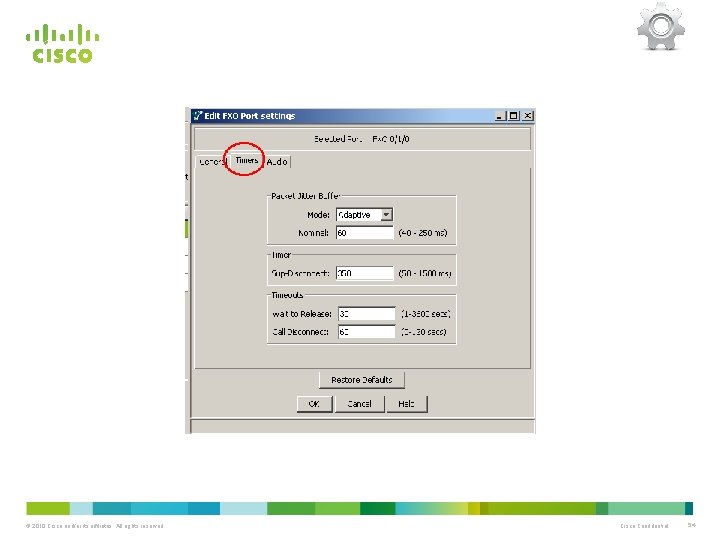

FXO PSTN Trunk Port Control http: //www. youtube. com/user/Cisco. CCA#p/u/16/u. Dd 3 n 0

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 53

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 54

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 55

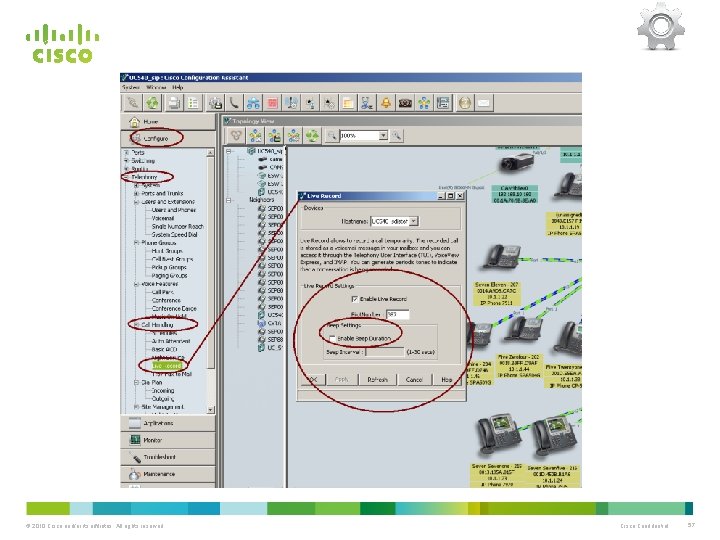

Live Record Beep Adjustments http: //www. youtube. com/user/Cisco. CCA#p/u/3/Tzmd. Pe. Elp. TU https: //supportforums. cisco. com/docs/DOC-14566 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 56

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 57

T. 37 FAX to EMAIL http: //www. youtube. com/watch? v=e. Jm 7 em. D_39

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 59

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 60

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 61

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 62

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 63

Av. T Remote Access © 2010 Cisco and/or its affiliates. All rights reserved. Cisco

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 65

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 66

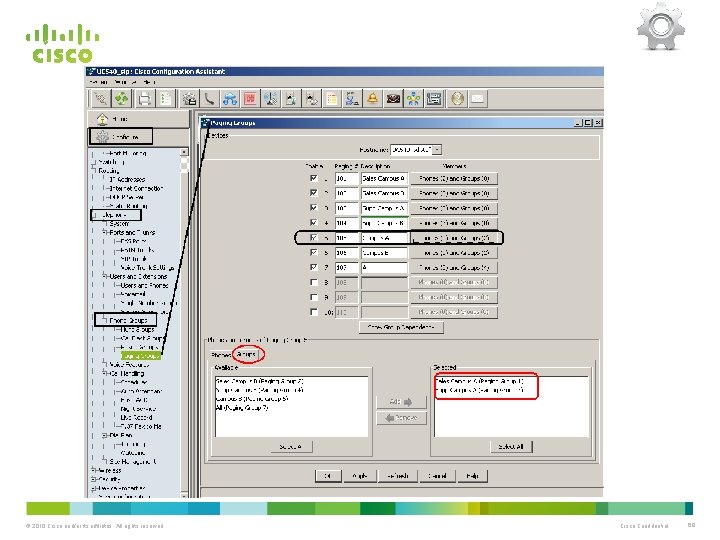

Paging Nesting © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 67

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 68

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 69

• Static NAT mapping (up to 5 WAN IPs) VOD: http: //www. youtube. com/user/Cisco. CCA#p/u/14/z. AWzh 32 PWW 4 • Modified VLAN Creation Steps Look for a TEL soon © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 70

• Upload/Download files to UC 500 flash • Enable/Disable Network polling • STCAPP adjustments • Configuration Archive • Toll fraud with SIP Trunk Voice Source groups • 79 XX Phone Load Auth Failure Resolution • Drag and Drop Capabilities Expanded • “*” codes in Dial Plan © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 71

Upload / Download Files on UC 500 Flash http: //www. youtube. com/user/Cisco. CCA#p/a/6 F 218631610882 D 0/1/p. C 4 gs. Ifn 0 CE © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 72

Upload: Highlight ‘Flash: ’ Download: Highlight <File> © 2010 Cisco and/or its affiliates. All

Enable / Disable Network Polling © 2010 Cisco and/or its affiliates. All rights reserved.

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 75

STCAPP Adjustments © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 76

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 77

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 78

Configuration Archive © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 79

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 80

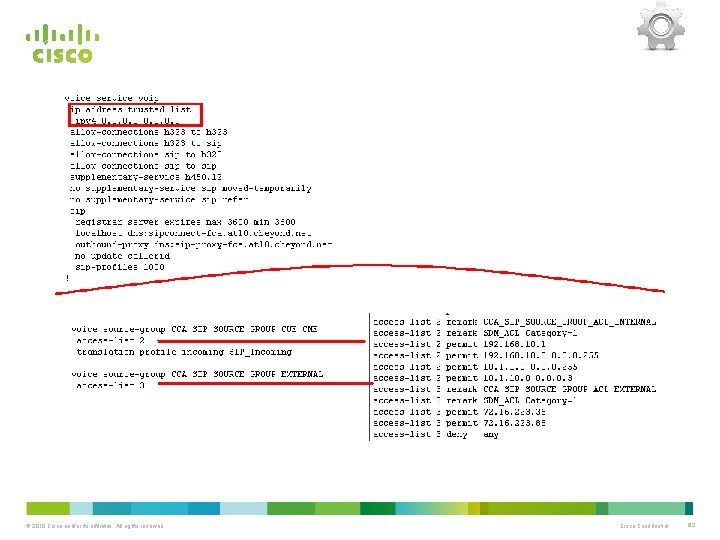

SIP Trunk Toll Fraud Implementation http: //www. cisco. com/en/US/tech/tk 652/tk 90/technologies_tech_note 09186 a 0080 b 3 e 123. shtml © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 81

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 82

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 83

7900 Auth Failure Resolution http: //www. cisco. com/en/US/docs/net_mgmt/cisco_c onfiguration_assistant/version 2_2_6/release/notes/c ca_226_relnotes. html#wp 232912 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 84

© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 85

Drag and Drop Capabilities Expanded http: //www. cisco. com/en/US/docs/net_mgmt/cisco_c onfiguration_assistant/version 3_0/release/notes/cca _30_relnotes_OL 23762 -01. html#wp 232912 © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 86

• All Models of Phone Loads now supported © 2010 Cisco and/or its

* Codes in Outgoing Dial Plan © 2010 Cisco and/or its affiliates. All rights

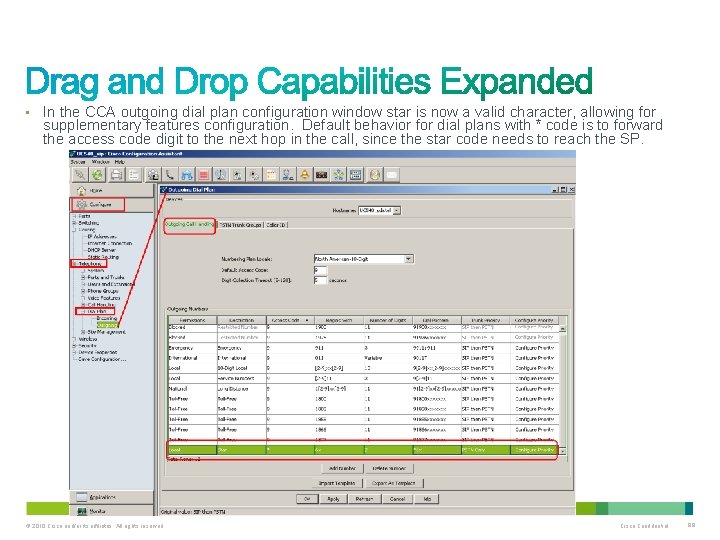

• In the CCA outgoing dial plan configuration window star is now a valid character, allowing for supplementary features configuration. Default behavior for dial plans with * code is to forward the access code digit to the next hop in the call, since the star code needs to reach the SP. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 89

• Menus under Configure > Telephony have been reorganized and renamed: The Voice window has been renamed Users and Phones and is now located under Configure > Telephony > Users and Extensions. The System and Network tabs associated settings were removed from the Voice window. Voice system settings are now configured on the System Settings window under Configure > Telephony > System. The Region window is now located under Configure > Telephony > System. The Single Number Reach window is now located under Configure > Telephony > Users and Extensions. The System Speed Dial window is now located under Configure > Telephony > Users and Extensions. Speed dials for user phones are now configured from the Users and Phones window. The Voicemail window is now located under Configure > Telephony > Users and Extensions. The Auto Attendant, Schedules, Basic ACD, Night Service, and Live Record windows are now located under Configure > Telephony > Call Handling. The Analog Port Settings window has been renamed FXS Ports and is now located under Configure > Telephony > Ports and Trunks. The Multisite Manager and Maximum Calls windows are now located under Configure > Telephony > Site Management. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 90
