Managing your Apache HTTP Web Server Content with

Managing your Apache HTTP Web Server Content with mod_dav and mod_ftp William A. Rowe, Jr. ASF Member, httpd and APR projects Sr. Software Engineer, Covalent Technologies

The Choices • upload scripts • content management applications • ssh (scp) or nfs/samba filesystems • Web. DAV (mod_dav) • ftpd (strictly using ssl/tls), or mod_ftp

Upload scripts • Mostly, they suck • Notorious (bugtraq / vuln-dev notoriety) • Quite possibly ideal for narrow-focus, tightly controlled applications such as media, photos, web 2. 0 updates etc.

CMS Applications • Single purposed (not a solution for a diverse author base). • Deploy corresponding CMS server agent required by each of the authoring tools. • As secure as the design paradigm.

ssh (scp) • Secure (Very) • Requires 1: 1 system accounts to web administrators • Keys strongly recommended over password access • One more service to administer

nfs/samba • Requires 1: 1 user: author accounts • On the locally deployed server – ideal • Sub-par solution for remotely co-located web server infrastructure • One more service to administer

Web. DAV / mod_dav • Does not require 1: 1 users to authors • Easily secured with https: (ssl/tls) • Short of ftp, the mostly widely deployed and flexible authoring solution (no lock-in!)

ftpd for Content • Requires 1: 1 accounts per web admin • (Unless anonymous, which is the worse of two evils) • Non-SSL security is worse than no security (packet sniffers, anyone? ) • One more service to administer

ftp using mod_ftp + tls/ssl • Does -not- require 1: 1 users / authors. • All content is written with the ownership of the user which httpd is running as (same as mod_dav). • Passwords and content, are all secured on the wire with implicit or explicit ssl.

The Criteria • Single administrative solution • Secure / Encrypted transactions (ssl/tls) • Apache HTTP security context (httpd managed users, not system accounts)

The bottom line – our Authors • Lenya, Slide, Vignette & many more clients, including MS Web Folders and MS Office all support Web. DAV • More ancient clients will support ftp • Flexibility without frequent server-side installation churn

The Solutions • mod_dav – the modern connector • mod_ftp – the legacy connector • Add mod_ssl – avoid plaintext over the wire for either protocol • Single security-context for content

mod_dav_fs • mod_dav is simply a protocol • mod_dav_fs does the heavy 'filesystem' lifting of file content – and locking • You must leverage both modules! • See conf/extras/httpd-dav. conf

mod_ftp • Here – but not yet here • http: //httpd. apache. org/modules/ will keep you up to date with it's first release • Not for the timid, but for the impatient: http: //svn. apache. org/repos/asf/httpd/mod_ftp/trunk/STATUS

Authorization Options • For few authors, mod_authz_username • For many, mod_authz_dbd/dbm/ldap help manage the users

Permissions and Ownership • Apache defaults to User Nobody • For authoring, use a generally lowprivilege account e. g. “webauthor” • Must have read/write to the web contents

More Secure Permissions • Consider two httpd instances, author and user instances, two separate Users • Short of 'perchild' MPM – these must be physical (IP-based) vhosts. (For SSL, they must be IP based vhosts anyways).

Trouble for Authors GET is not GET, for authors • <!--#include virtual="/header. shtml" --> • Options Includes, and Set/Add. Handler • GET /doc. shtml produces the combined document – not what the author wants!

A real GET EITHER • Create a <Virtual. Host>, e. g. http: //author. example. com/ • Create an Alias/<Location >, e. g. http: //author. example. com/author/

GETting true files In either case <Virtual. Host | Location. . . > Set. Handler default-handler This provides a true GET, but for Script. Alias hint - Don't use Script. Alias

Trouble : Incompatibilies Client incompatibility • Some hints are in httpd. conf, others are found in extra/httpd-dav. conf • Google is your friend; new releases mean newly incompatible behaviors

<Limit > considered harmful • Two <Limit>'s will not be aggregated! • <Limit > is not a proper container, it is for a limited subset of auth directives • You may have only one <Limit> • But when you violate the rules – httpd is. . .

A <Virtual. Host > surprise • Named hosts are looking at Server. Name and Server. Alias. IP Based hosts are looking at port and number. • When not matched, the content is served by the first vhost. . . so make it a stub

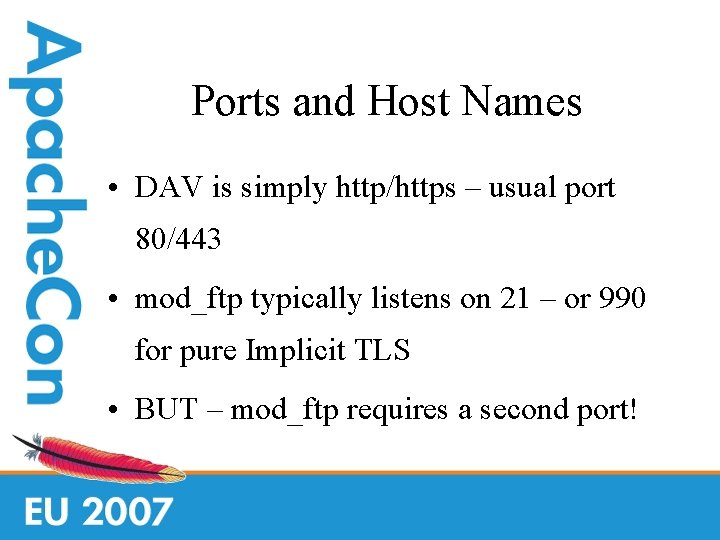

Ports and Host Names • DAV is simply http/https – usual port 80/443 • mod_ftp typically listens on 21 – or 990 for pure Implicit TLS • BUT – mod_ftp requires a second port!

Data Connections for FTP • Apache running as Nobody/Untrusted user can't use the default port 20 data!

Good References http: //www. webdav. org/ http: //www. apache. org/docs/2. 2/ http: //httpd. apache. org/modules/ http: //wiki. apache. org/httpd/

Educational Links • http: //en. wikipedia. org/wiki/Ftp_client • http: //en. wikipedia. org/wiki/Comparison _of_FTP_clients • http: //en. wikipedia. org/wiki/Web. DAV

Contact and Followup http: //www. rowe-clan. net/wrowe/ http: //people. apache. org/~wrowe/ wrowe@rowe-clan. net IRC help at irc. freenode. net #apache Peer help at users@httpd. apache. org
