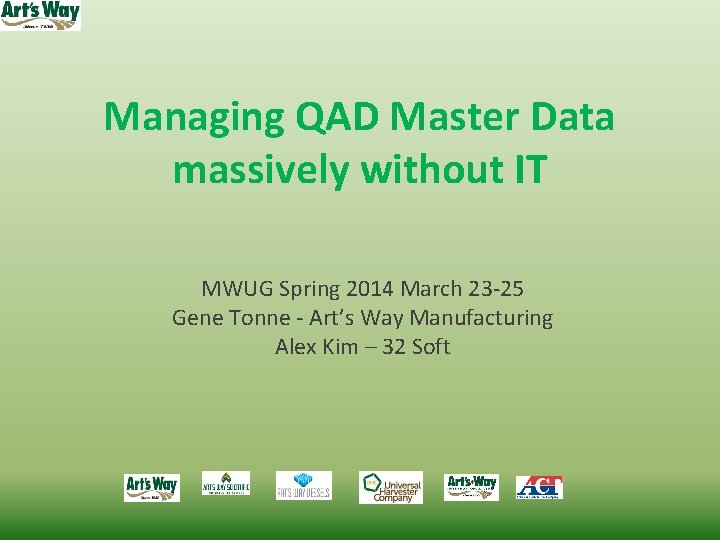

Managing QAD Master Data massively without IT MWUG Spring 2014 March 23 -25 Gene Tonne - Art’s Way Manufacturing Alex Kim – 32 Soft

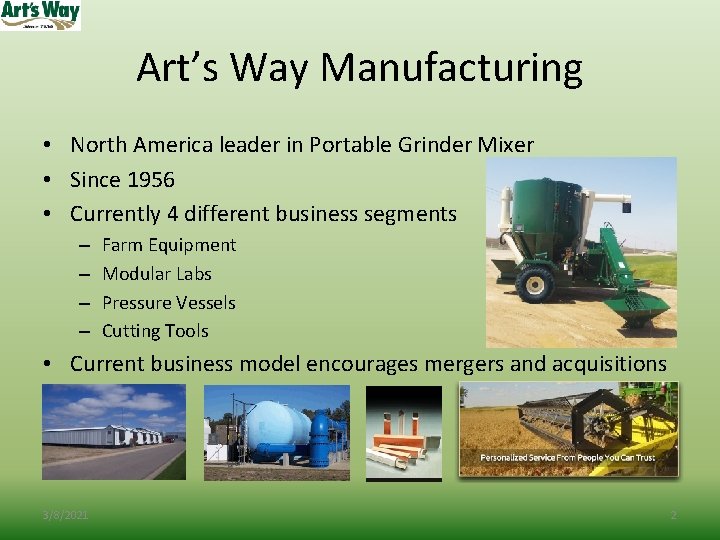

Art’s Way Manufacturing • North America leader in Portable Grinder Mixer • Since 1956 • Currently 4 different business segments – – Farm Equipment Modular Labs Pressure Vessels Cutting Tools • Current business model encourages mergers and acquisitions 3/8/2021 2

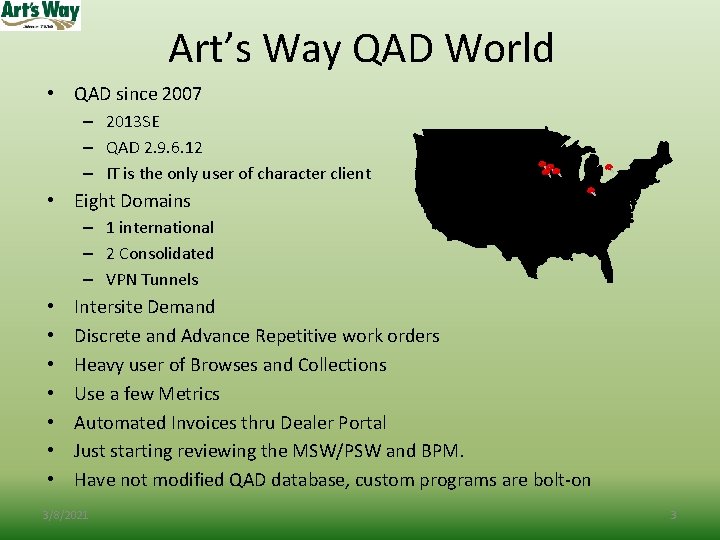

Art’s Way QAD World • QAD since 2007 – 2013 SE – QAD 2. 9. 6. 12 – IT is the only user of character client • Eight Domains – 1 international – 2 Consolidated – VPN Tunnels • • Intersite Demand Discrete and Advance Repetitive work orders Heavy user of Browses and Collections Use a few Metrics Automated Invoices thru Dealer Portal Just starting reviewing the MSW/PSW and BPM. Have not modified QAD database, custom programs are bolt-on 3/8/2021 3

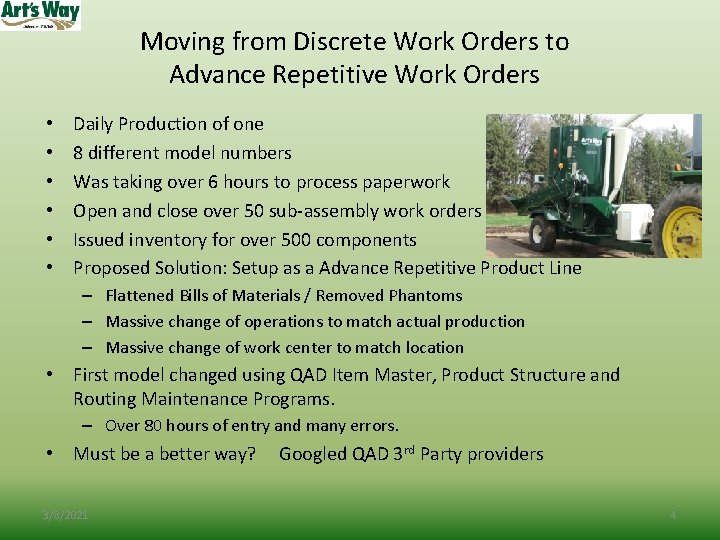

Moving from Discrete Work Orders to Advance Repetitive Work Orders • • • Daily Production of one 8 different model numbers Was taking over 6 hours to process paperwork Open and close over 50 sub-assembly work orders Issued inventory for over 500 components Proposed Solution: Setup as a Advance Repetitive Product Line – Flattened Bills of Materials / Removed Phantoms – Massive change of operations to match actual production – Massive change of work center to match location • First model changed using QAD Item Master, Product Structure and Routing Maintenance Programs. – Over 80 hours of entry and many errors. • Must be a better way? Googled QAD 3 rd Party providers 3/8/2021 4

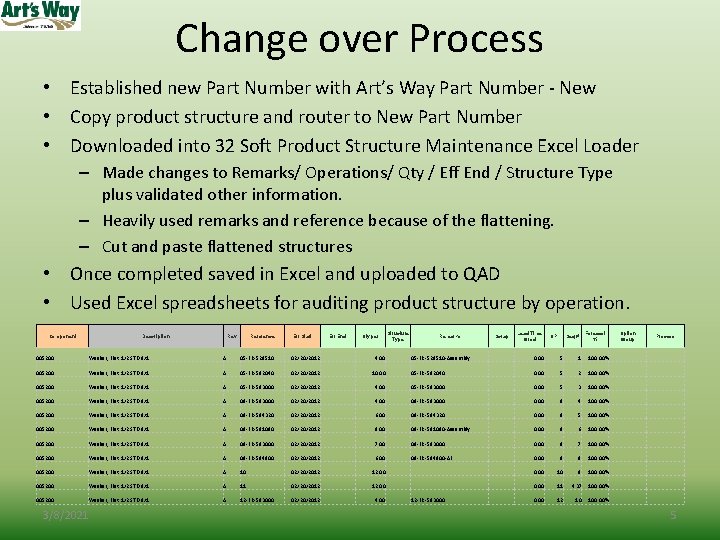

Change over Process • Established new Part Number with Art’s Way Part Number - New • Copy product structure and router to New Part Number • Downloaded into 32 Soft Product Structure Maintenance Excel Loader – Made changes to Remarks/ Operations/ Qty / Eff End / Structure Type plus validated other information. – Heavily used remarks and reference because of the flattening. – Cut and paste flattened structures • Once completed saved in Excel and uploaded to QAD • Used Excel spreadsheets for auditing product structure by operation. Component Description Rev Reference Eff Start Eff End Qty per Structure Type Remarks Scrap Lead Time Offset OP Seq # Forecast % Option Group Process 005200 Washer, Flat 1/2 STD 9/1 A 05 -FR-529510 02/20/2012 4. 00 05 -FR-529510 -Assembly 0. 00 5 1 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 05 -FR-582040 02/20/2012 10. 00 05 -FR-582040 0. 00 5 2 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 05 -FR-583000 02/20/2012 4. 00 05 -FR-583000 0. 00 5 3 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 08 -FR-583000 02/20/2012 4. 00 08 -FR-583000 0. 00 8 4 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 08 -FR-584320 02/20/2012 6. 00 08 -FR-584320 0. 00 8 5 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 09 -FR-581090 02/20/2012 8. 00 09 -FR-581090 -Assembly 0. 00 9 6 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 09 -FR-583000 02/20/2012 7. 00 09 -FR-583000 0. 00 9 7 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 09 -FR-584900 02/20/2012 6. 00 09 -FR-584900 -AF 0. 00 9 8 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 10 02/20/2012 12. 00 0. 00 10 9 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 11 02/20/2012 12. 00 0. 00 11 437 100. 00% 005200 Washer, Flat 1/2 STD 9/1 A 12 -FR-583000 02/20/2012 4. 00 12 -FR-583000 0. 00 12 10 100. 00% 3/8/2021 5

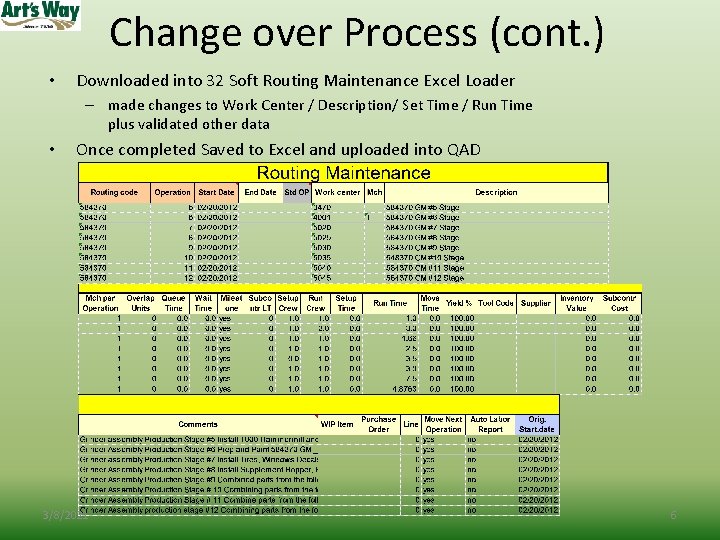

Change over Process (cont. ) • Downloaded into 32 Soft Routing Maintenance Excel Loader – made changes to Work Center / Description/ Set Time / Run Time plus validated other data • Once completed Saved to Excel and uploaded into QAD 3/8/2021 6

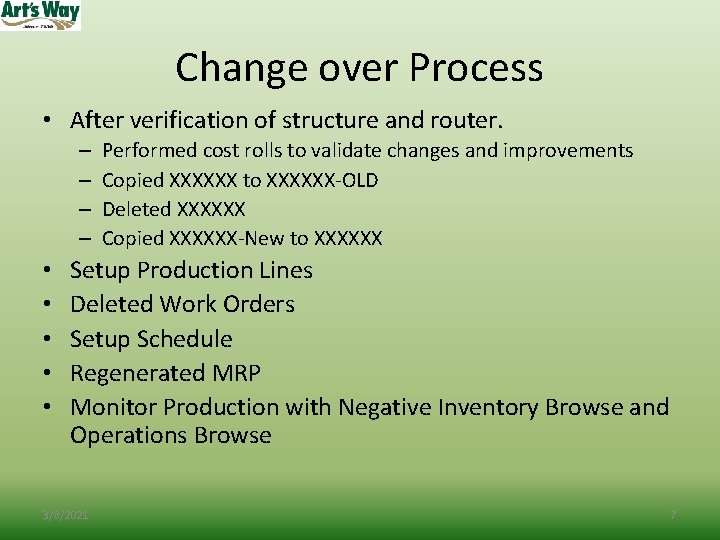

Change over Process • After verification of structure and router. – – • • • Performed cost rolls to validate changes and improvements Copied XXXXXX to XXXXXX-OLD Deleted XXXXXX Copied XXXXXX-New to XXXXXX Setup Production Lines Deleted Work Orders Setup Schedule Regenerated MRP Monitor Production with Negative Inventory Browse and Operations Browse 3/8/2021 7

Merger and Acquisition Process This is what data and QAD looks like to a new acquisition • 1, 206, 926 5% Sales - Baler Whole Good 79, 000 % Sales - AW Ser Parts 10, 945 % Sales - AW Ser Parts 1, 423 % and they are all tuned into radio station 1, 423 % Sales - AW Ser Parts WIIFM 160, 019 1% Sales - AW Ser Parts 6, 821 % Sales - AW Ser Parts 20, 487 % Sales - AW Ser Parts 8, 938 % Sales - AW Ser Parts 112 % Sales - AW Ser Parts 130, 340 1% 130, 340 1% Sales - AW Ser Parts (3, 458) % (3, 458) % Sales - AW Ser Parts (11, 669) % (11, 669) % Sales - AW Ser Parts (2, 951) % (2, 951) % Sales - AW Ser Parts 1, 088 % Sales - AW Ser Parts 0 % 3/8/2021 8

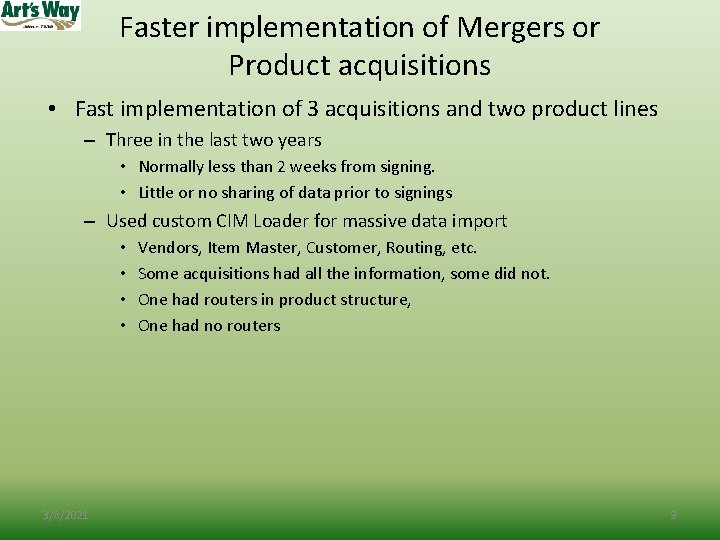

Faster implementation of Mergers or Product acquisitions • Fast implementation of 3 acquisitions and two product lines – Three in the last two years • Normally less than 2 weeks from signing. • Little or no sharing of data prior to signings – Used custom CIM Loader for massive data import • • 3/8/2021 Vendors, Item Master, Customer, Routing, etc. Some acquisitions had all the information, some did not. One had routers in product structure, One had no routers 9

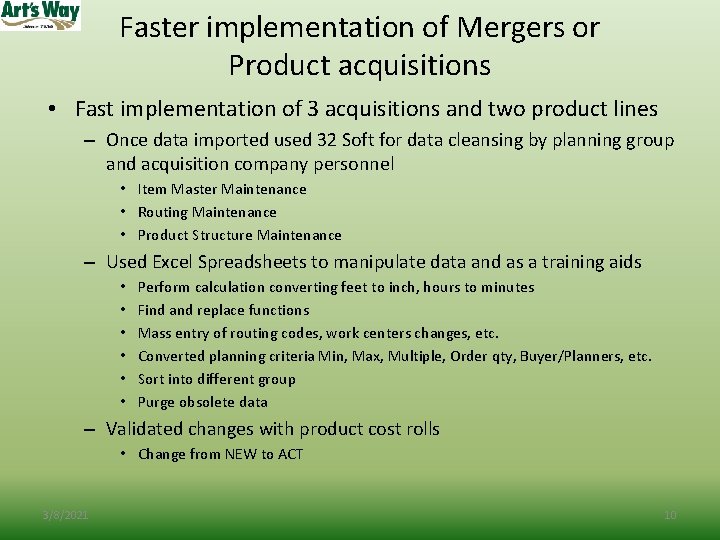

Faster implementation of Mergers or Product acquisitions • Fast implementation of 3 acquisitions and two product lines – Once data imported used 32 Soft for data cleansing by planning group and acquisition company personnel • Item Master Maintenance • Routing Maintenance • Product Structure Maintenance – Used Excel Spreadsheets to manipulate data and as a training aids • • • Perform calculation converting feet to inch, hours to minutes Find and replace functions Mass entry of routing codes, work centers changes, etc. Converted planning criteria Min, Max, Multiple, Order qty, Buyer/Planners, etc. Sort into different group Purge obsolete data – Validated changes with product cost rolls • Change from NEW to ACT 3/8/2021 10

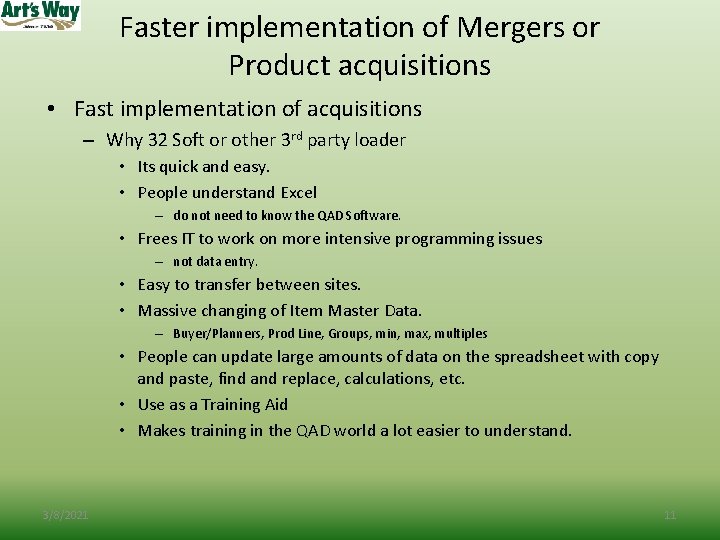

Faster implementation of Mergers or Product acquisitions • Fast implementation of acquisitions – Why 32 Soft or other 3 rd party loader • Its quick and easy. • People understand Excel – do not need to know the QAD Software. • Frees IT to work on more intensive programming issues – not data entry. • Easy to transfer between sites. • Massive changing of Item Master Data. – Buyer/Planners, Prod Line, Groups, min, max, multiples • People can update large amounts of data on the spreadsheet with copy and paste, find and replace, calculations, etc. • Use as a Training Aid • Makes training in the QAD world a lot easier to understand. 3/8/2021 11

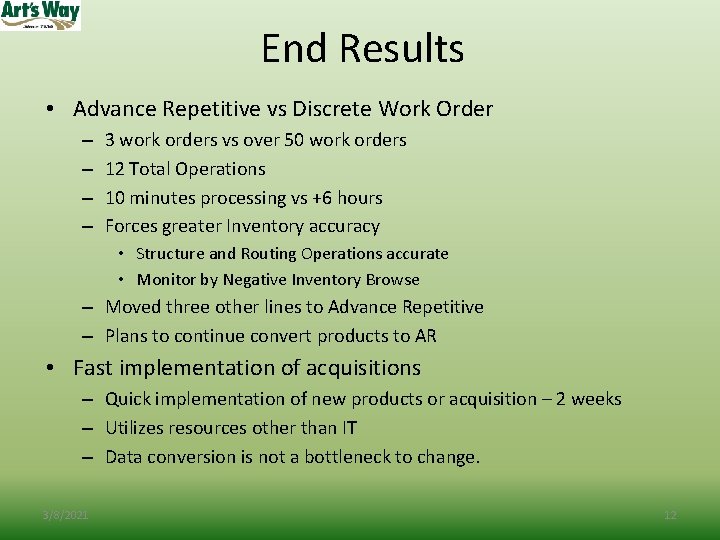

End Results • Advance Repetitive vs Discrete Work Order – – 3 work orders vs over 50 work orders 12 Total Operations 10 minutes processing vs +6 hours Forces greater Inventory accuracy • Structure and Routing Operations accurate • Monitor by Negative Inventory Browse – Moved three other lines to Advance Repetitive – Plans to continue convert products to AR • Fast implementation of acquisitions – Quick implementation of new products or acquisition – 2 weeks – Utilizes resources other than IT – Data conversion is not a bottleneck to change. 3/8/2021 12

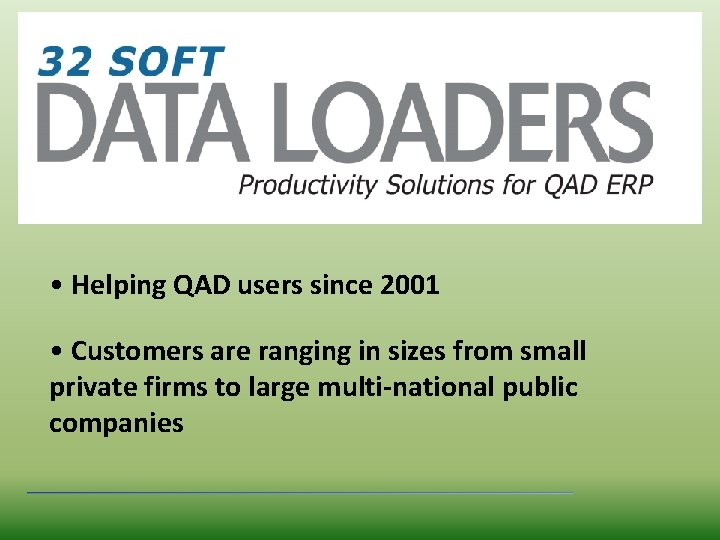

• Helping QAD users since 2001 • Customers are ranging in sizes from small private firms to large multi-national public companies

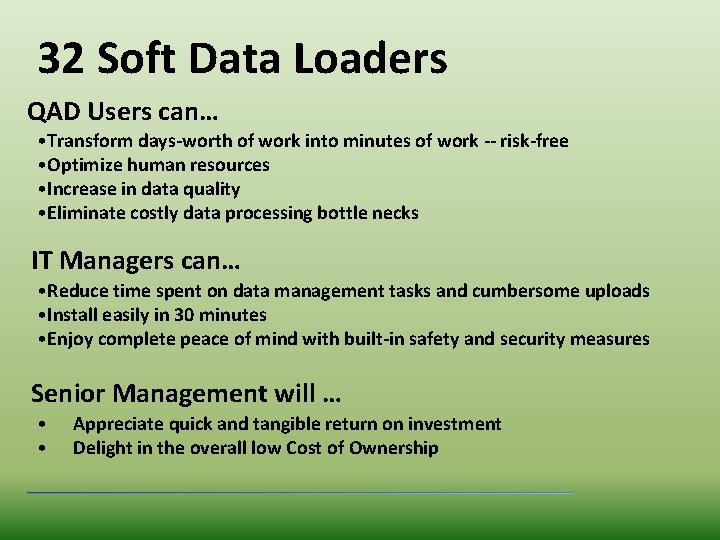

32 Soft Data Loaders QAD Users can… • Transform days-worth of work into minutes of work -- risk-free • Optimize human resources • Increase in data quality • Eliminate costly data processing bottle necks IT Managers can… • Reduce time spent on data management tasks and cumbersome uploads • Install easily in 30 minutes • Enjoy complete peace of mind with built-in safety and security measures Senior Management will … • • Appreciate quick and tangible return on investment Delight in the overall low Cost of Ownership

Reporting, Maintenance and Analytical Tool Rolled Into One! • Manage thousands of records in 60 seconds • Make massive data updates at once in easy-to-use Excel • Use Excel tools to analyze data • Quick and accurate data management • Precise and timely business decision-making ability • Increased productivity • Improved flexibility and cost reduction • Fully SOX compliant

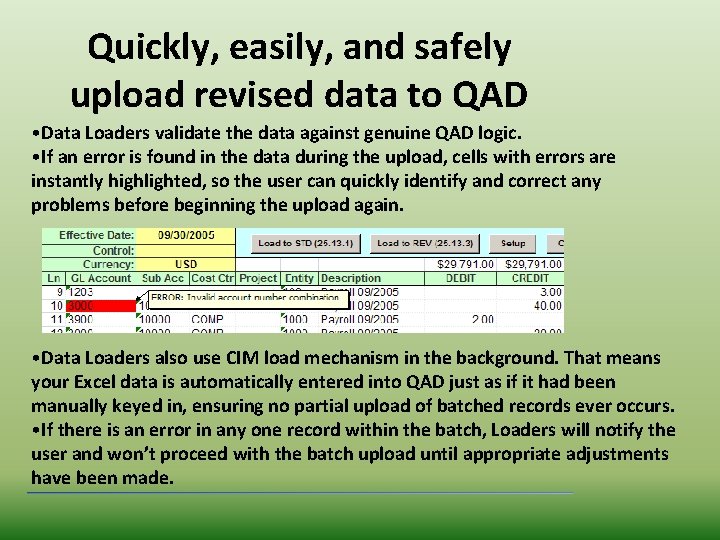

Quickly, easily, and safely upload revised data to QAD • Data Loaders validate the data against genuine QAD logic. • If an error is found in the data during the upload, cells with errors are instantly highlighted, so the user can quickly identify and correct any problems before beginning the upload again. • Data Loaders also use CIM load mechanism in the background. That means your Excel data is automatically entered into QAD just as if it had been manually keyed in, ensuring no partial upload of batched records ever occurs. • If there is an error in any one record within the batch, Loaders will notify the user and won’t proceed with the batch upload until appropriate adjustments have been made.

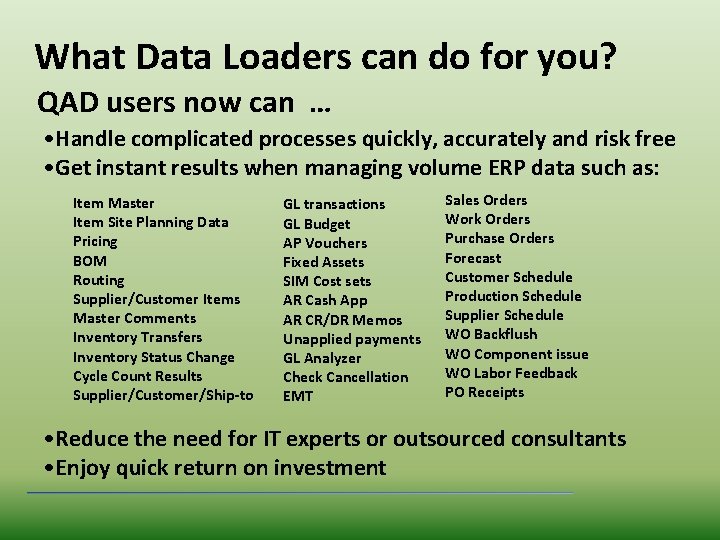

What Data Loaders can do for you? QAD users now can … • Handle complicated processes quickly, accurately and risk free • Get instant results when managing volume ERP data such as: Item Master Item Site Planning Data Pricing BOM Routing Supplier/Customer Items Master Comments Inventory Transfers Inventory Status Change Cycle Count Results Supplier/Customer/Ship-to GL transactions GL Budget AP Vouchers Fixed Assets SIM Cost sets AR Cash App AR CR/DR Memos Unapplied payments GL Analyzer Check Cancellation EMT Sales Orders Work Orders Purchase Orders Forecast Customer Schedule Production Schedule Supplier Schedule WO Backflush WO Component issue WO Labor Feedback PO Receipts • Reduce the need for IT experts or outsourced consultants • Enjoy quick return on investment

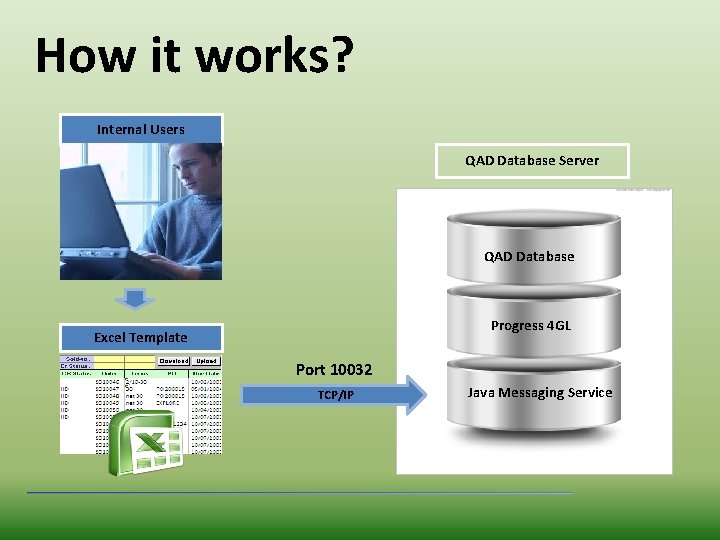

How it works? Internal Users QAD Database Server QAD Database Progress 4 GL Excel Template Port 10032 TCP/IP Java Messaging Service

Q&A
